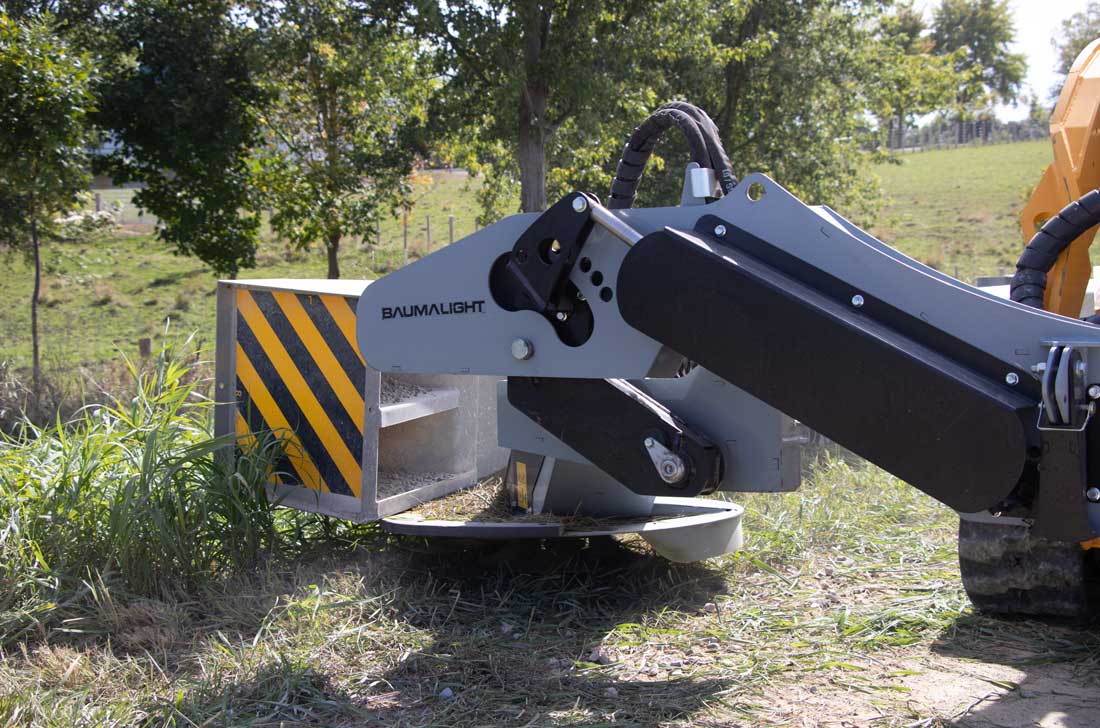

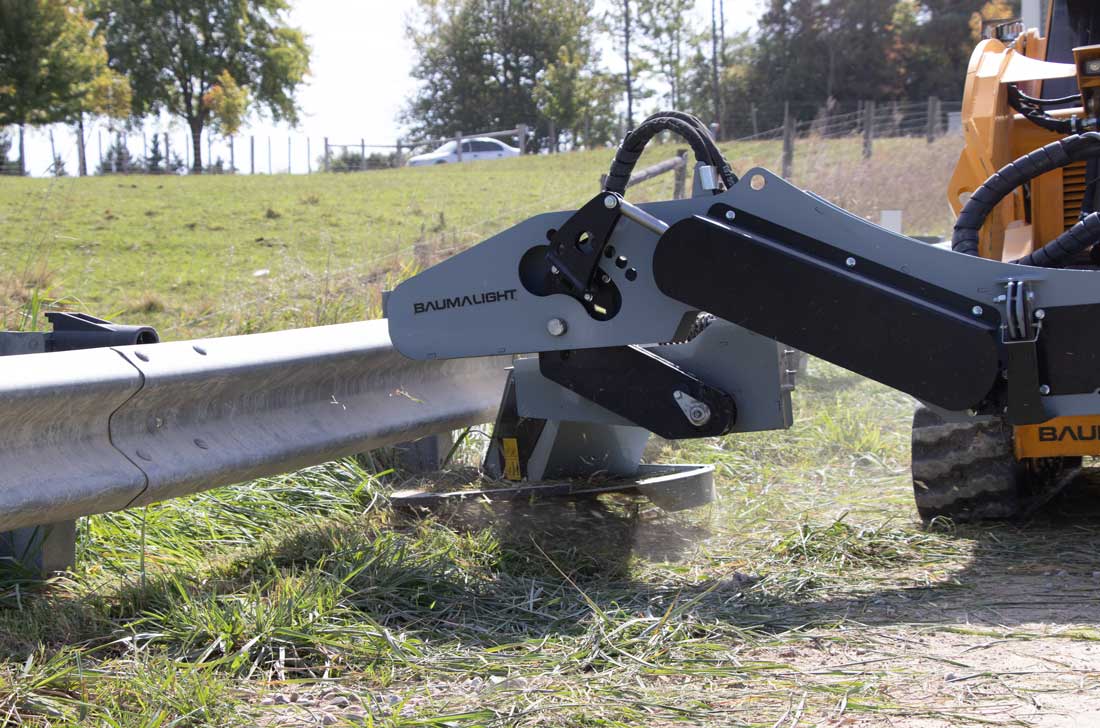

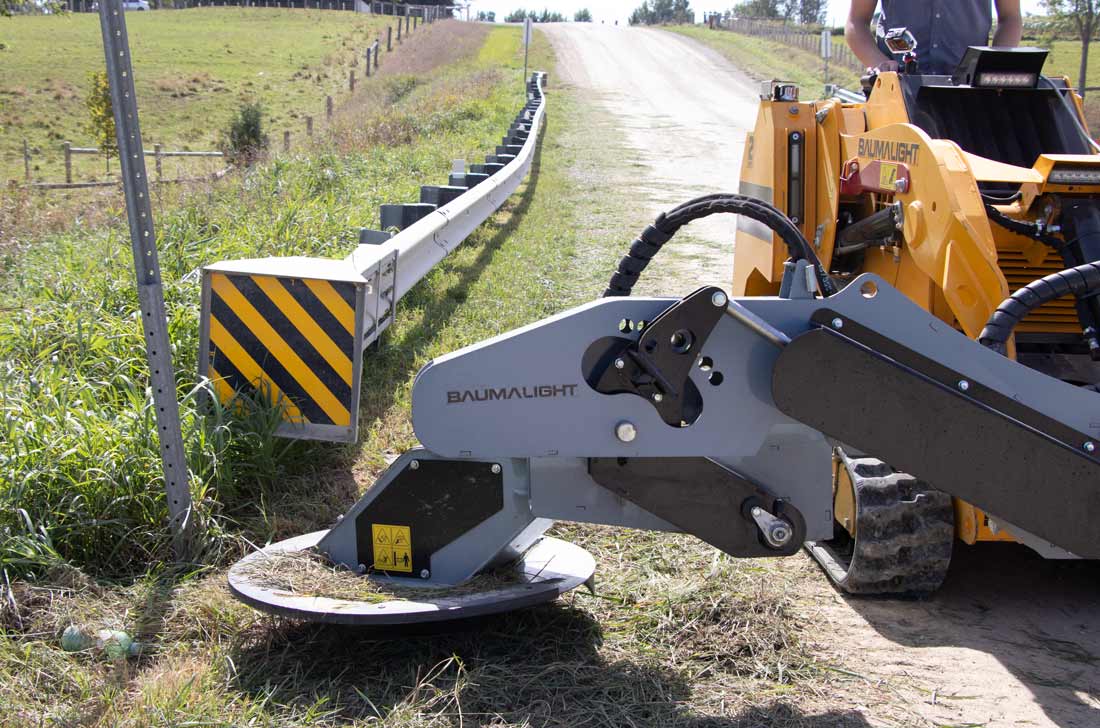

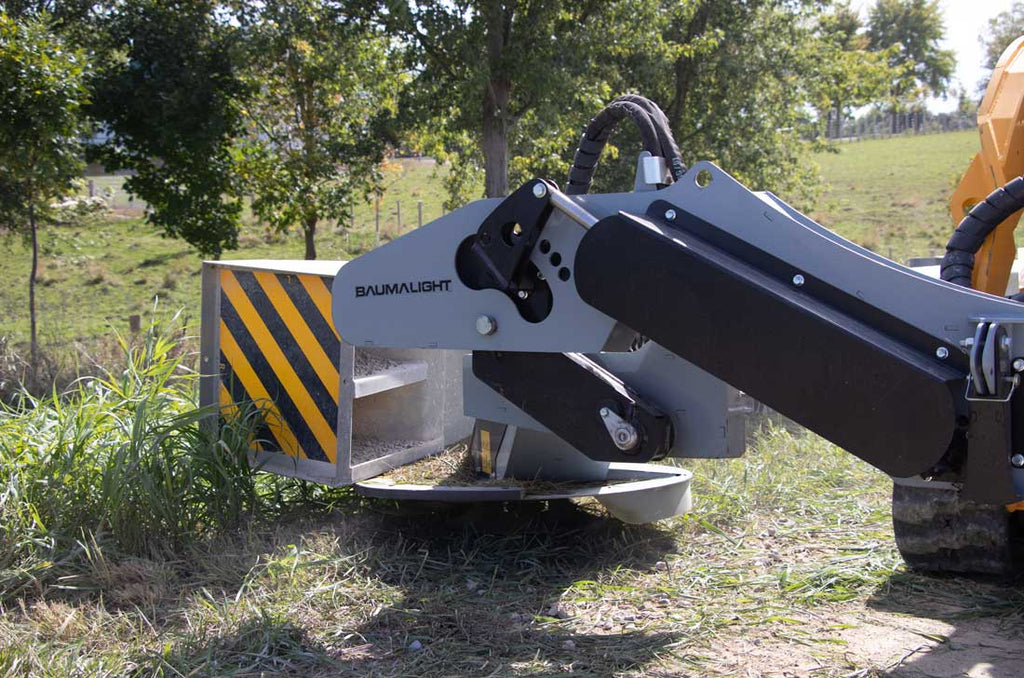

The Baumalight BMM230 Mini Barrier Mower turns a compatible mini skid steer into a focused tool for maintaining vegetation along fence lines, guardrails, orchards, and vineyards. Designed to cut long, heavy grass and small brush, its offset mowing head helps operators work around posts, trees, and barriers where obstacles interrupt an otherwise continuous mowing pass.
Two reversible slasher blades made from ¼-inch AR400 steel cut grass and brush up to 1 inch in diameter. Mounted at opposite ends of a one-piece steel rotor, the blades provide a broad cutting surface for vegetation maintenance. Grade 8 mounting bolts, castle nuts, and cotter pins secure the blade assembly, while the welded mounting collar provides clearance to help prevent binding during operation.
The C508 bent-axis piston motor uses the carrier’s hydraulic supply to drive the cutting assembly, with a recommended operating range of 8–15 GPM and 2,700–4,000 PSI. A heavy-duty output-shaft shield helps protect the drive area from debris and impact, and the sheet-metal discharge guard helps direct cut material away from the operator. The required case-drain line includes a vent-to-atmosphere relief valve to help protect the motor shaft seal from excessive case pressure.

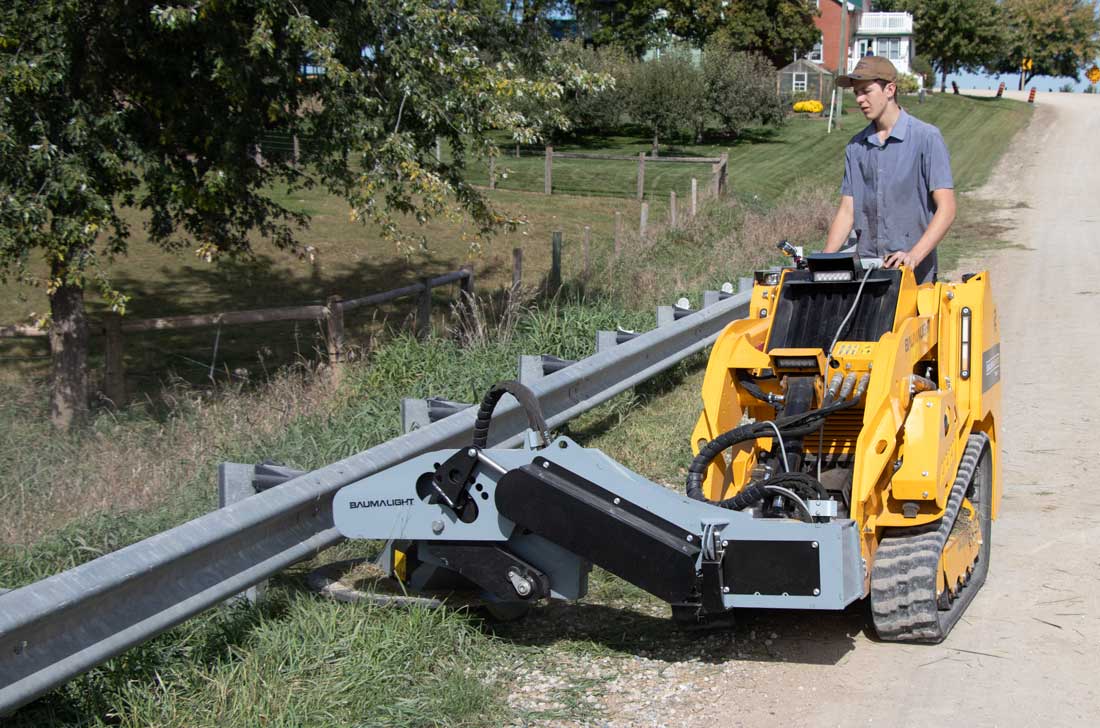

Standard manual angle adjustment lets operators set the mowing head for the work area. The optional D007053 electric actuator kit adds powered head-angle adjustment, useful when maintaining vegetation across rolling terrain. The electric configuration requires a 12V constant power supply fused at 30 amps, making electrical compatibility an essential part of selecting the correct setup.
Sleeved hydraulic hoses and a greaseable pivoting hose arm help manage slack and reduce pinching and strain as the attachment moves. Zinc-plated greaseable pins, hardened spring-steel bushings, and a powder-coated steel structure support regular service and outdoor use. A spare replacement blade set is included, giving owners service parts for future blade replacement.

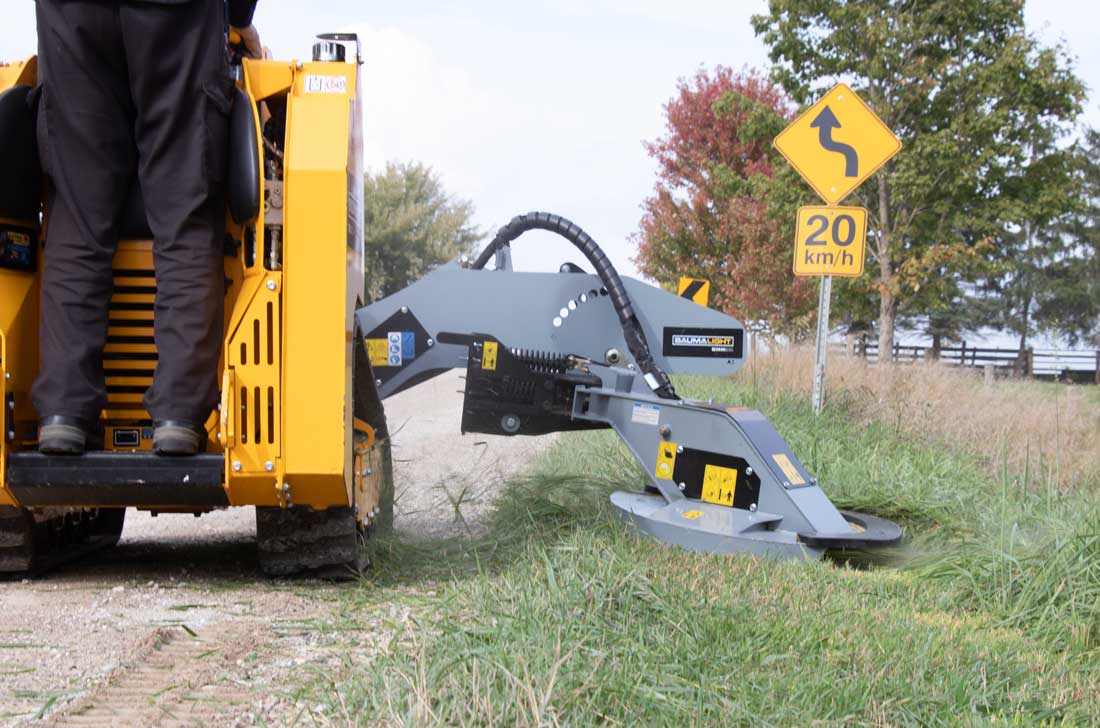

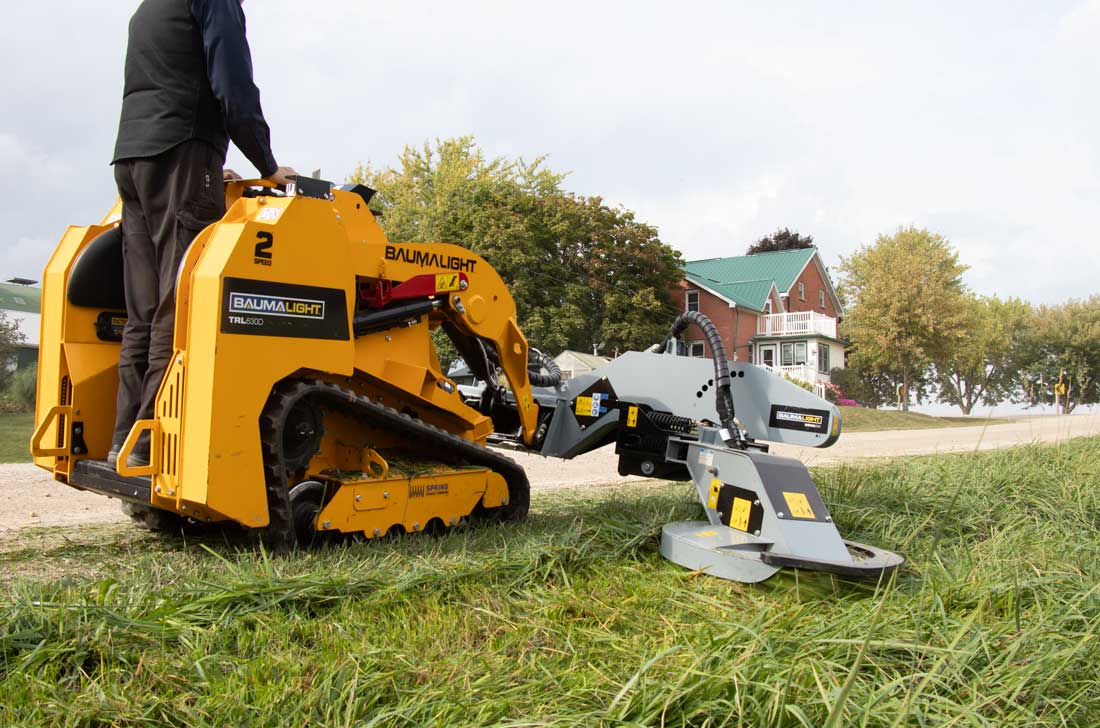

With its common industry mini skid-steer mount, the BMM230 suits property owners, landscape contractors, and vegetation-maintenance crews working around established barriers. Bobcat mini carriers may require the separately quoted adapter plate. Confirm carrier compatibility and current cutting width before ordering: Baumalight’s model description states a 30-inch path, while its comparison chart lists 32 inches.
