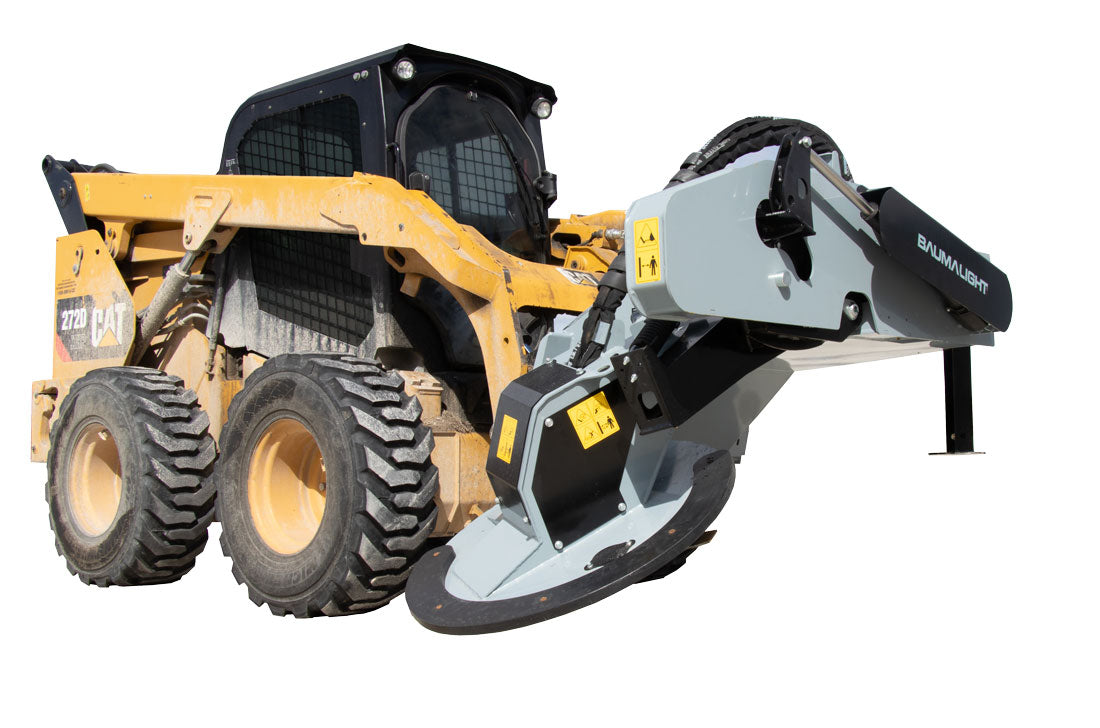

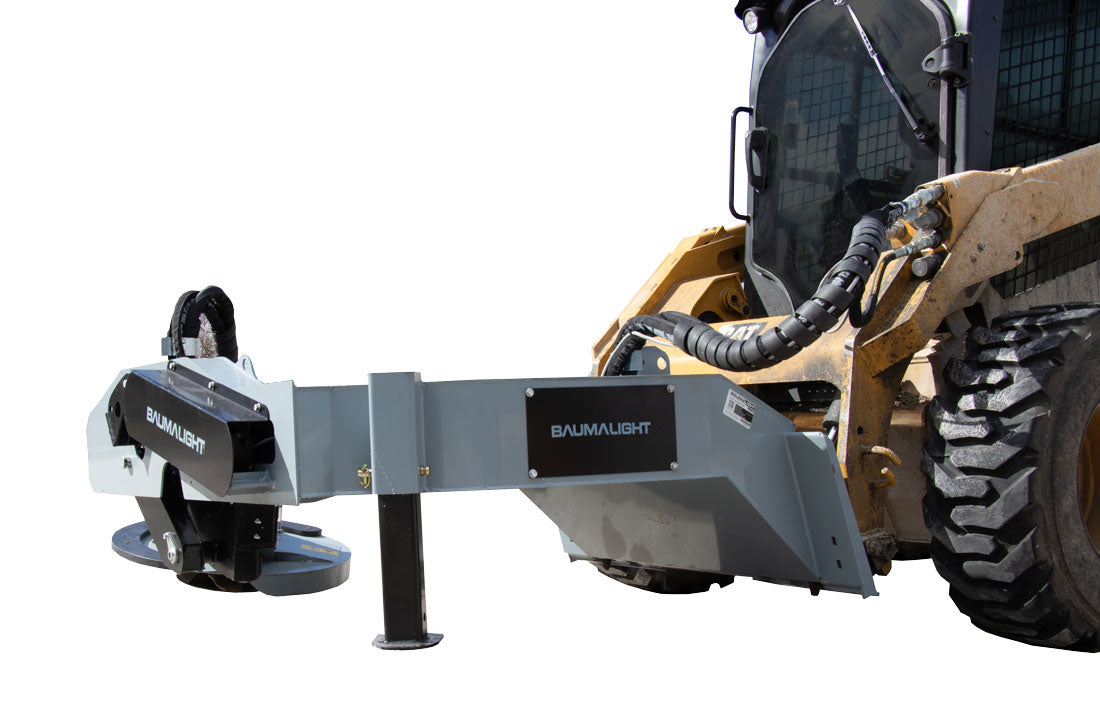

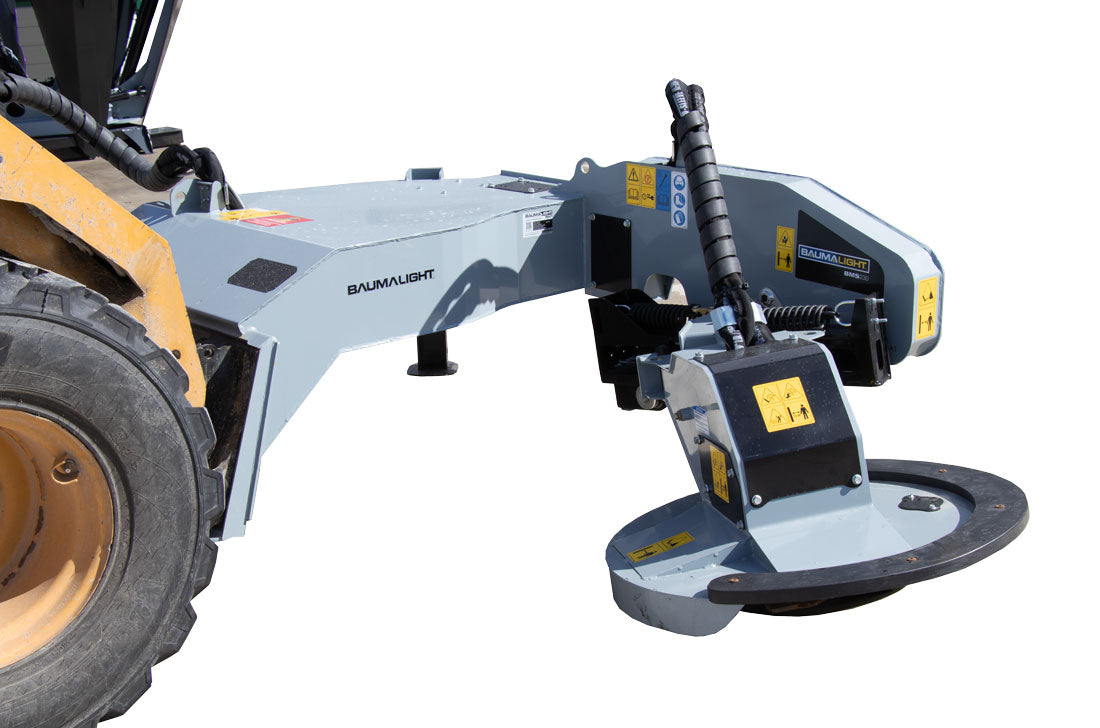

The Baumalight BMS230 Barrier Mower gives compatible skid steers an offset cutting attachment for maintaining heavy grass and light brush along fences, roadside barriers, orchards, and vineyards. Designed for work around posts, guardrails, and trees, the mower combines a rotary cutting head with terrain-angle adjustment to address vegetation along obstacle-filled boundaries.
An extension-spring swing system allows the mowing head to move away when it encounters a post or barrier, then returns it to its working position after the obstacle passes. This movement helps the head follow the barrier line while reducing the impact transmitted through the attachment. Standard electric tilt adjustment lets operators change the head angle for rolling terrain, using a 12V constant power supply fused at 30 amps.

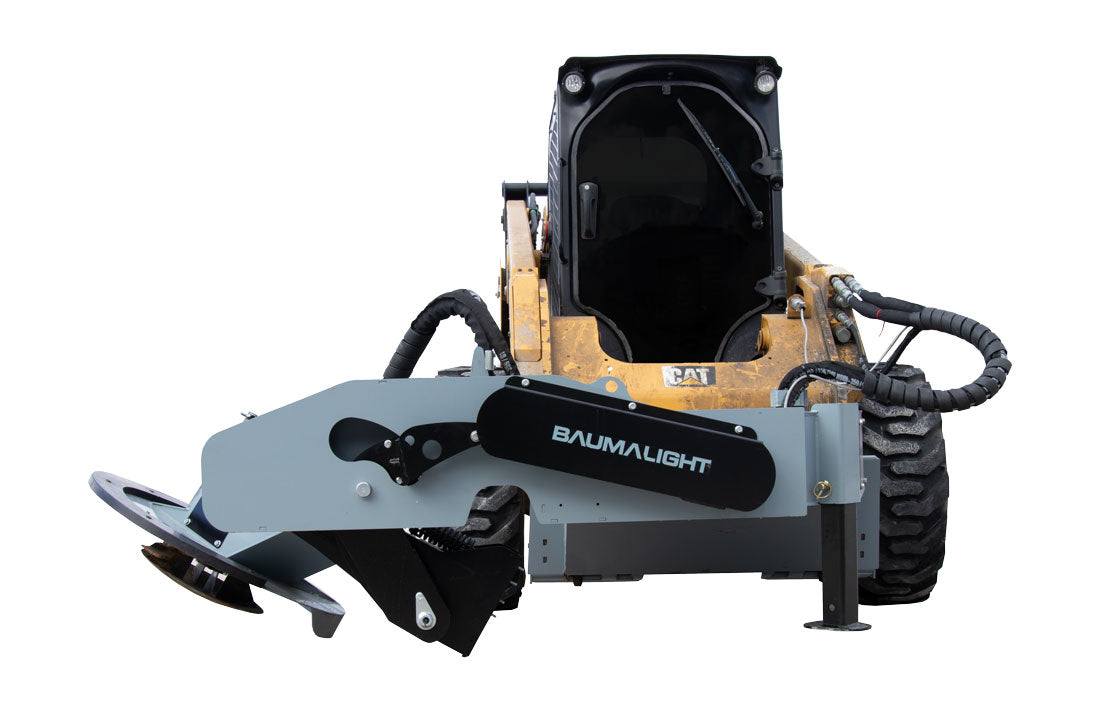

Two reversible slasher blades made from ¼-inch AR400 steel handle grass and brush up to the 1-inch diameter listed in Baumalight’s comparison chart. The blades attach to opposite ends of a one-piece steel rotor, with Grade 8 bolts, castle nuts, and cotter pins securing the assembly. A welded blade-mount collar creates operating clearance to help limit binding, while a spare blade set is included for future replacement.
The C530 bent-axis piston motor is matched to carriers supplying 15–25 GPM at 2,700–4,000 PSI. A heavy-duty output-shaft shield helps protect the drive from debris and impact, and sheet-metal discharge protection helps direct cut material away from the operator. The motor requires a connected case-drain line; its vent-to-atmosphere relief valve helps protect the shaft seal when excessive case pressure develops.
Armoured, sleeved hydraulic hoses and a greaseable pivoting hose arm help control hose slack and protect against pinching and strain. Zinc-plated greaseable pins, hardened spring-steel bushings, and a powder-coated steel structure support serviceability through repeated vegetation-maintenance work. The universal skid-steer mount connects the mower to compatible carriers within the manufacturer’s stated weight and hydraulic ranges.
The BMS230 is intended for property-maintenance crews and contractors managing vegetation along established barriers. Baumalight currently identifies this model as preproduction, so availability, lead time, and applicable warranty terms require confirmation. Cutting width also needs confirmation: the model narrative describes a 60-inch path, while the shared comparison chart lists 32 inches.
