BAUMALIGHT

Rotary Brush Cutter

For Excavators

50" Cutting Width

Request QuoteAdd To Cart

Baumalight Rotary Brush Cutter CXC550 For Excavators

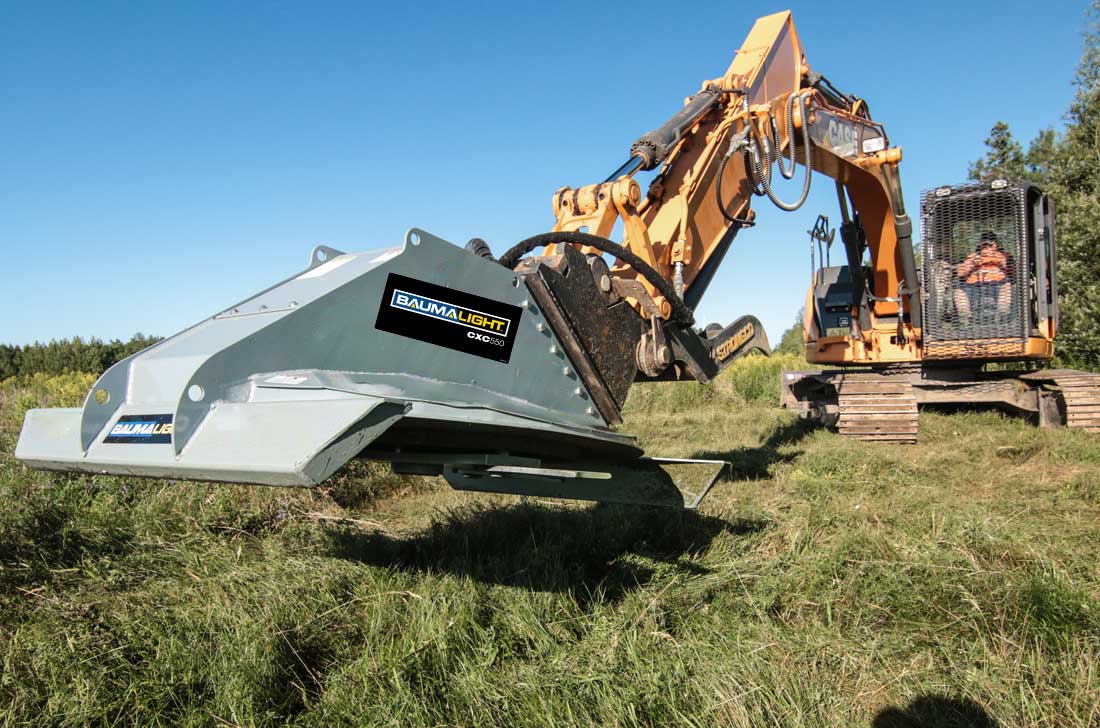

Baumalight CXC550 rotary brush cutter field use

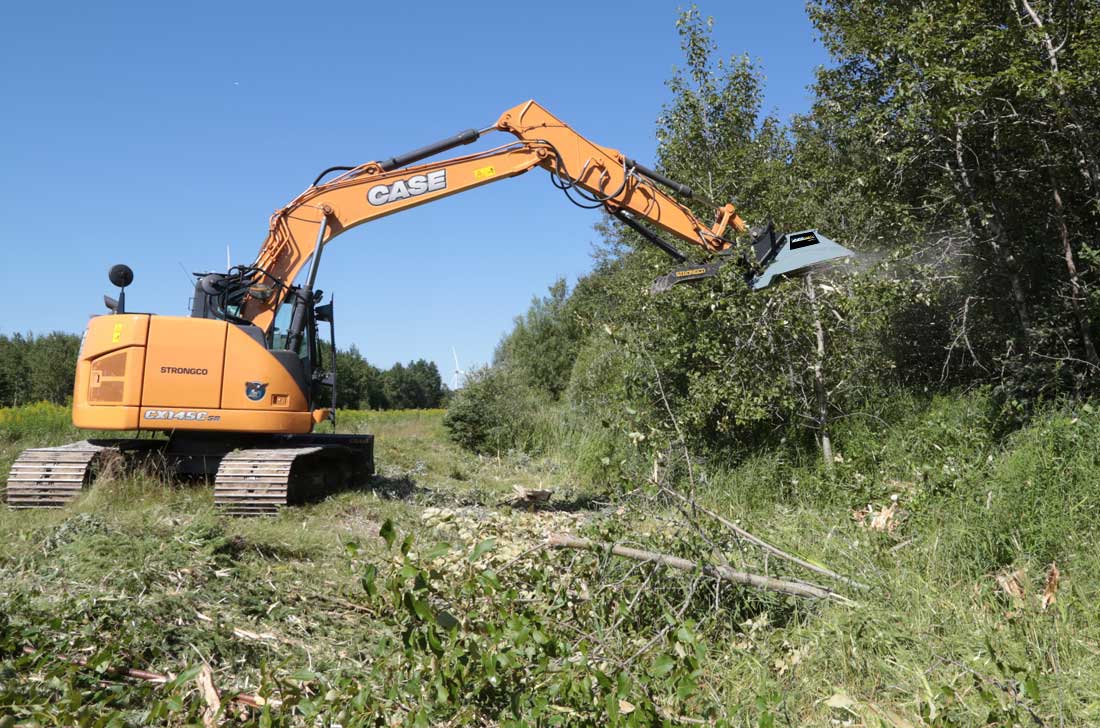

Baumalight CXC550 rotary brush cutter deck and working detail

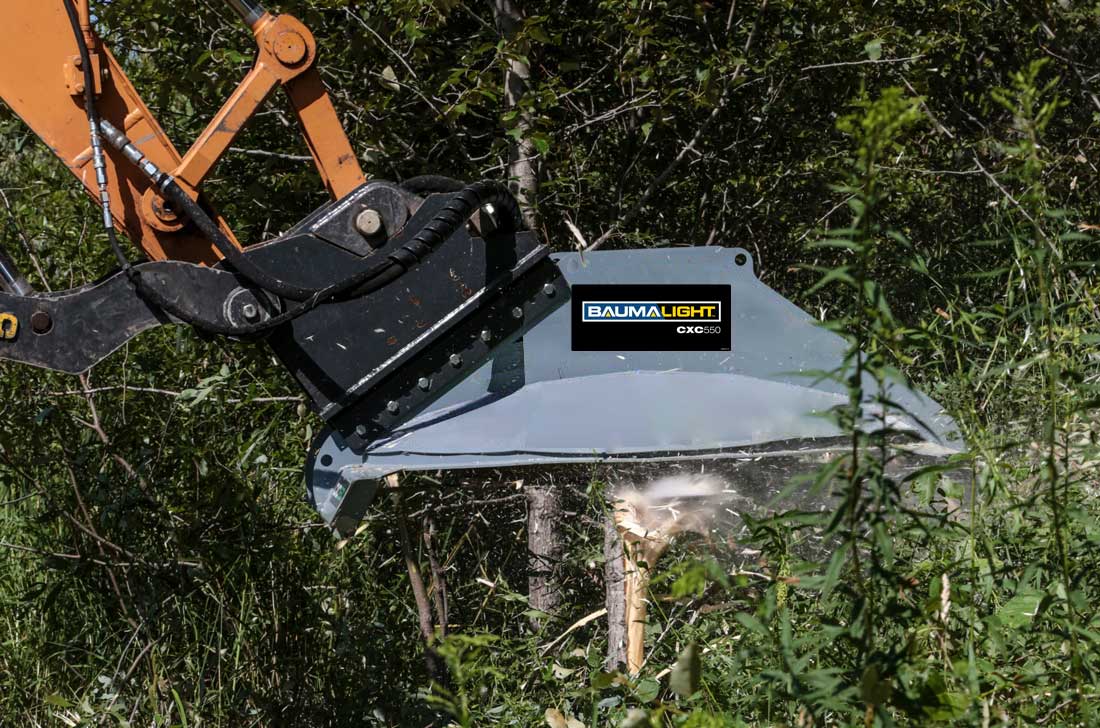

Baumalight CXC550 rotary brush cutter brush management
Baumalight CXC550 rotary brush cutter carrier and attachment setup
Baumalight CXC550 rotary brush cutter product overview
Baumalight CXC550 rotary brush cutter cutting operation
Roll over image to zoom in Click on image to zoom
Baumalight CXC550 rotary brush cutter field useBaumalight CXC550 rotary brush cutter deck and working detailBaumalight CXC550 rotary brush cutter brush managementBaumalight CXC550 rotary brush cutter carrier and attachment setupBaumalight CXC550 rotary brush cutter product overviewBaumalight CXC550 rotary brush cutter cutting operation
Baumalight

Baumalight Rotary Brush Cutter CXC550 For Excavators

SKU: CXC550-HX530 Currently In Stock

$13,249.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Manual Find Parts

MOST IMPORTANT FEATURES

50" CUTTING WIDTH

A 50 INCH CUTTING WIDTH GIVES THIS CUTTER A DEFINED WORKING SWATH FOR RECLAIMING OVERGROWN GROUND, WITH THE 67 INCH CUTTING PATH GUIDING ACCESS AND CARRIER POSITIONING.

3-BLADE CUTTING ROTOR

THE 3 BLADE ROTOR USES REVERSIBLE CUTTING EDGES TO ATTACK VEGETATION THROUGH REPEATED PASSES, WITH REPLACEABLE BLADES SUPPORTING SCHEDULED SERVICE AND A FRESH CUTTING EDGE AS WEAR DEVELOPS.

MATCHED MOTOR CONFIGURATIONS

MOTOR FLOW RANGES HELP MATCH THE CUTTER TO YOUR CARRIER, SO HYDRAULIC OUTPUT, WORKING PRESSURE, AND CONNECTION REQUIREMENTS CAN BE CHECKED TOGETHER BEFORE THE ATTACHMENT ENTERS SERVICE.

REINFORCED DECK AND BEARING SUPPORT

A REINFORCED 1/4" STEEL DECK FORMS A DURABLE BASE, WITH LARGE BEARING SUPPORT CARRYING THE ROTOR DURING REPEATED CUTTING PASSES THROUGH OVERGROWN VEGETATION AND WOODY BRUSH.

REPLACEMENT BLADES INCLUDED

A FREE REPLACEMENT BLADE SET COMES WITH A NEW CUTTER, PROVIDING SERVICE PARTS FOR KEEPING THE ROTOR READY AS CUTTING EDGES WEAR THROUGH REGULAR PROPERTY MAINTENANCE AND CLEARING WORK.

Description

Key Benefits

Technical Specs

Applications

Baumalight CXC550

The Baumalight CXC550 Excavator Rotary Brush Cutter puts a 50-inch cutting width at the end of a compatible excavator's boom, helping operators manage vegetation on banks, ditches, and other areas that are difficult to approach with a conventional mower. The 67-inch cutting path and open front and rear deck support controlled positioning around brush and uneven terrain. With the excavator carrying and orienting the attachment, the operator can bring the cutter to the material while respecting the machine's lifting and stability limits.

Bent axis piston motor options let the CXC550 be matched to the excavator's available hydraulic flow and pressure. The three-way rotor carries reversible 1/2-inch AR400 slasher blades, using a tri-swing cutting arrangement to attack vegetation and reduce cut material. Maximum brush capacity is 6-inch maximum brush size; actual cutting performance depends on the selected motor, carrier hydraulics, vegetation, and operator technique.

The 1/4-inch steel deck is reinforced with support channels to form a durable working platform for property reclamation. Large bearing support carries the cutting assembly, and Grade 8 blade fasteners with castle nuts and cotter pins secure the slasher blades. The heavy-duty rotor sandwiches the three-way blade assembly between 1-inch top and bottom plates. A free replacement blade set is supplied with a new cutter, helping keep scheduled blade service straightforward as the working edges wear.

The CXC550 weighs 1,380 lb and is designed for 8–20 ton tracked; 10–24 ton wheeled excavators. The package includes a carrier-matched bolt-on excavator mount. Wires, hoses, and couplers are sold separately. Every offered bent axis piston motor requires a correctly connected case-drain circuit, with the chosen motor matched to its flow range and 3,000–4,000 PSI working pressure. Verify the complete attachment setup with the carrier specifications and follow the operator's manual for installation, cutting technique, and maintenance.

Baumalight CXC550

• Working Width for Your Carrier – The 50-inch cutting width gives the CXC550 a defined swath for managing overgrown ground. Match the working envelope to access, terrain, and the carrier's ability to position the attachment.

• Hydraulics Matched to the Machine – The offered motor setups provide choices for matching carrier flow and pressure. Correct hydraulic selection helps the rotor work effectively under load without assuming all machines supply the same output.

• Serviceable Cutting Edges – The 3-blade rotor uses reversible, replaceable cutting edges for scheduled service. A free replacement blade set is included with a new cutter, giving you practical support for maintaining blade condition.

• Construction for Brush Work – The 1/4" steel deck is reinforced with support channels. Large bearing support carries the rotor during repeated cutting passes.

• Reach Difficult Vegetation – Boom positioning helps bring the cutter to ditch edges, banks, and other difficult areas. Carrier stability, reach limits, and attachment weight still govern where and how it can work.

• Clear Installation Requirements – The carrier-matched excavator mount is included. Wires, hoses, and couplers are supplied separately for the installation. Verify the motor, hydraulic connections, and any required case drain before startup.

Baumalight CXC550

• Model: CXC550
• Carrier Type: Excavator
• Cutting Width: 50"
• Cutting Path: 67"
• Blade Count: 3
• Deck Thickness: 1/4" steel
• Lowest Cutting Height: 2.5"
• Unit Weight: 1,380 lb
• Carrier Weight Range: 8–20 ton tracked; 10–24 ton wheeled
• Maximum Brush Size: 6" (performance depends on motor/power and material)
• Mount: Carrier-matched bolt-on excavator mount included
• Deck Opening / Guarding: Open front and rear deck
• Included Service Parts: Free replacement blade set
• Motor Flow Options: HX530: 15–25 GPM; HX550: 20–30 GPM; HX570: 25–40 GPM; HX590: 30–50 GPM
• Working Hydraulic Pressure: 3,000–4,000 PSI
• Case Drain: Case drain required for every offered motor
• Connections / Exclusions: Carrier-matched excavator mount included; wires, hoses, and couplers sold separately
• Adapter Connection Code: A03

Baumalight CXC550

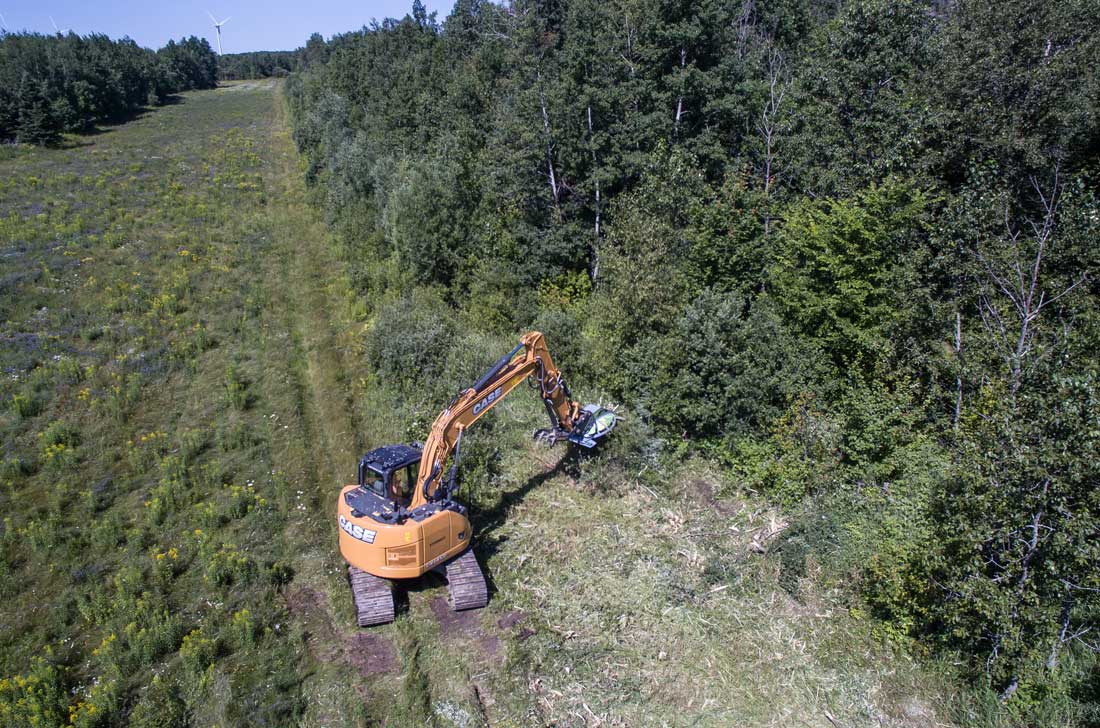

  • Managing brush along ditches and banks with a correctly matched excavator.
  • Clearing vegetation in areas that need boom reach and controlled cutter positioning.
  • Reclaiming overgrown property edges within the carrier’s stability and attachment limits.
  • Maintaining access corridors and drainage edges through grass and woody growth.
  • Reducing brush with successive passes, matched to the motor, hydraulic supply, and material.

Baumalight Brush Cutting & Support

Baumalight CXC550

ENGINEERED FOR POWER:

  • 50-inch cutting width and 67-inch cutting path put brush management within reach of a compatible excavator.
  • Bent axis piston motor choices match the carrier's hydraulic flow: HX530: 15–25 GPM; HX550: 20–30 GPM; HX570: 25–40 GPM; HX590: 30–50 GPM.
  • 3-way rotor carries reversible slasher blades for repeated cutting passes through standing vegetation.
  • Maximum brush size is 6 inches, subject to the selected motor, hydraulic supply, and material conditions.
  • Heavy-duty rotor uses 1-inch top and bottom plates to support the three-way blade assembly.

BUILT FOR PRECISION:

  • Open front and rear deck support versatile positioning around vegetation with the excavator boom.
  • Reinforced 1/4" steel deck uses support channels to provide a durable base for the cutting assembly.
  • Large bearing support carries the rotor and helps the assembly withstand regular vegetation-management work.
  • Grade 8 blade fasteners with castle nuts and cotter pins secure the cutting blades for serviceable installation.
  • Reversible 1/2-inch AR400 blades provide durable cutting edges that can be inspected and serviced between jobs.

READY FOR THE FIELD:

  • Carrier range is 8–20 ton tracked; 10–24 ton wheeled; confirm boom capacity, attachment fit, and machine stability.
  • Attachment weight is 1,380 lb, with a 2.5-inch lowest cutting height.
  • A carrier-matched bolt-on excavator mount is included with the cutter.
  • Wires, hydraulic hoses, and couplers are not included; a free replacement blade set comes with a new cutter.
  • Every offered motor requires a case-drain connection and a matched hydraulic flow range at 3,000–4,000 PSI.
