BAUMALIGHT

Rotary Brush Cutter

For Excavators

36" Cutting Width

Request QuoteAdd To Cart

Baumalight Rotary Brush Cutter CXG336 For Excavators

Baumalight CXG336 rotary brush cutter product overview

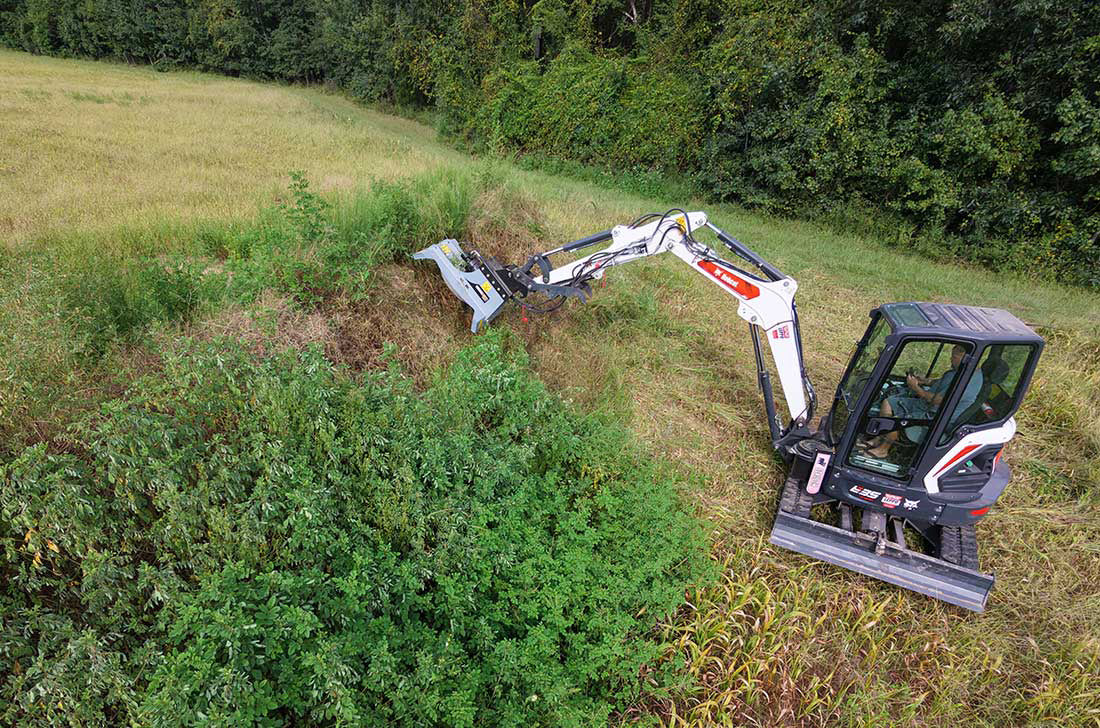

Baumalight CXG336 rotary brush cutter carrier and attachment setup
Baumalight CXG336 rotary brush cutter cutting operation

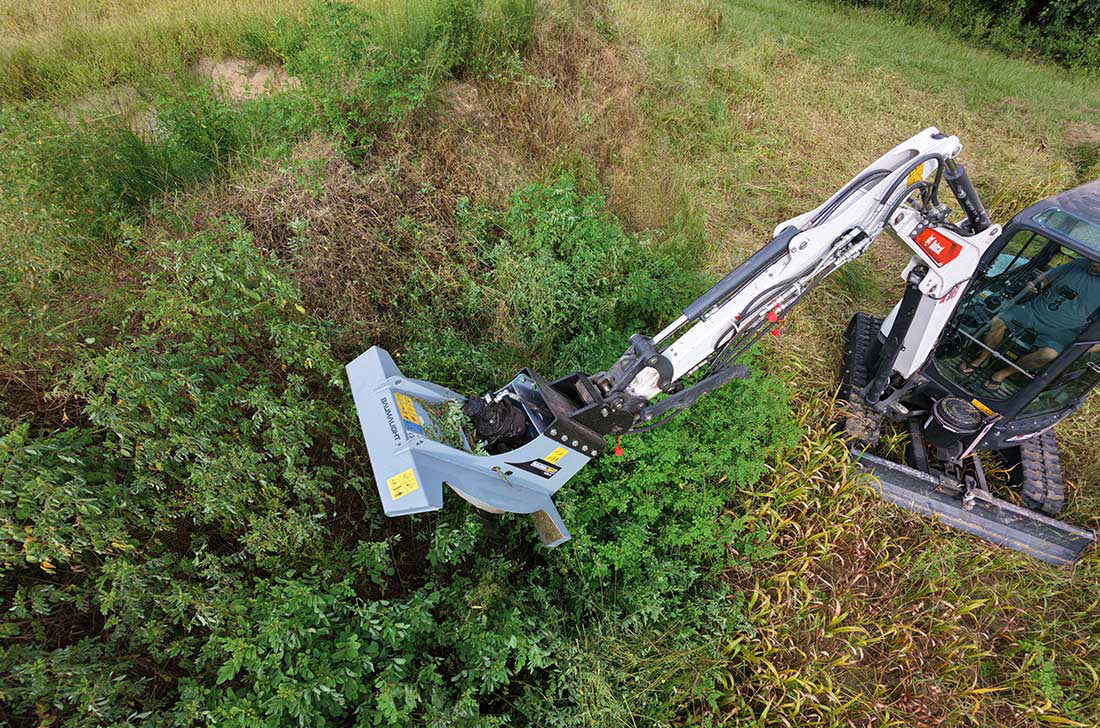

Baumalight CXG336 rotary brush cutter deck and working detail
Baumalight CXG336 rotary brush cutter brush management

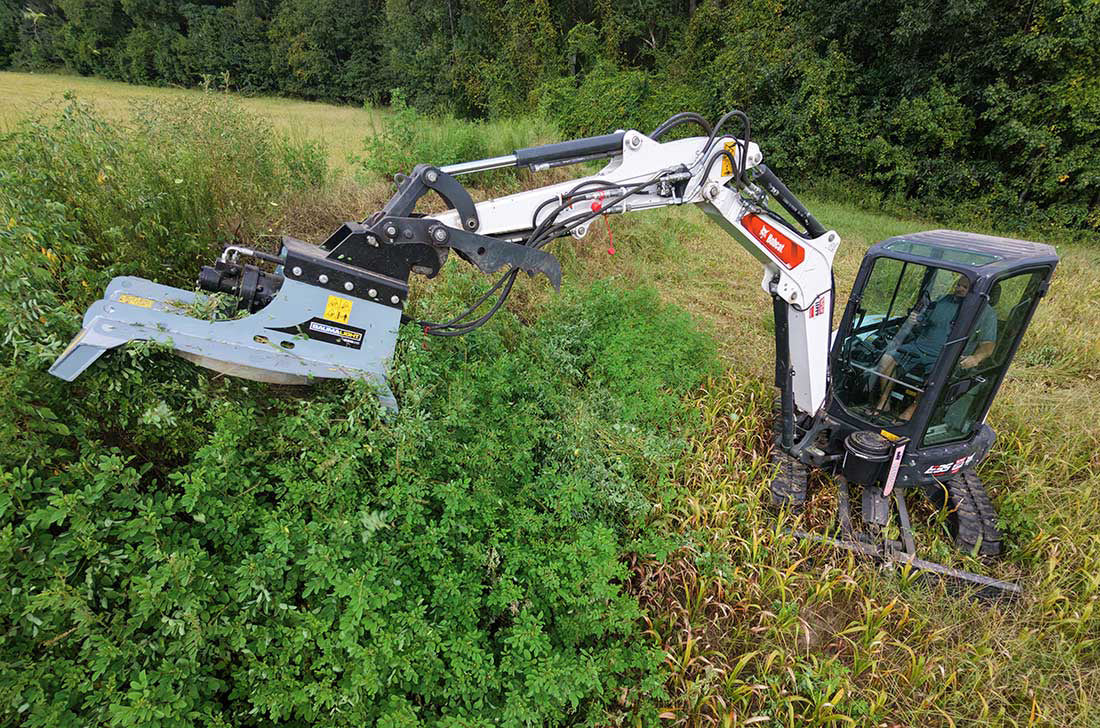

Baumalight CXG336 rotary brush cutter field use
Roll over image to zoom in Click on image to zoom
Baumalight CXG336 rotary brush cutter product overviewBaumalight CXG336 rotary brush cutter carrier and attachment setupBaumalight CXG336 rotary brush cutter cutting operationBaumalight CXG336 rotary brush cutter deck and working detailBaumalight CXG336 rotary brush cutter brush managementBaumalight CXG336 rotary brush cutter field use
Baumalight

Baumalight Rotary Brush Cutter CXG336 For Excavators

SKU: CXG336-M250 Currently In Stock

$6,649.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Manual Find Parts

MOST IMPORTANT FEATURES

36" CUTTING WIDTH

A 36 INCH CUTTING WIDTH GIVES THIS CUTTER A DEFINED WORKING SWATH FOR RECLAIMING OVERGROWN GROUND, WITH THE 47 INCH CUTTING PATH GUIDING ACCESS AND CARRIER POSITIONING.

2-BLADE CUTTING ROTOR

THE 2 BLADE ROTOR USES REVERSIBLE CUTTING EDGES TO ATTACK VEGETATION THROUGH REPEATED PASSES, WITH REPLACEABLE BLADES SUPPORTING SCHEDULED SERVICE AND A FRESH CUTTING EDGE AS WEAR DEVELOPS.

MATCHED MOTOR CONFIGURATIONS

MOTOR FLOW RANGES HELP MATCH THE CUTTER TO YOUR CARRIER, SO HYDRAULIC OUTPUT, WORKING PRESSURE, AND CONNECTION REQUIREMENTS CAN BE CHECKED TOGETHER BEFORE THE ATTACHMENT ENTERS SERVICE.

REINFORCED DECK AND BEARING SUPPORT

A REINFORCED 3/16" STEEL DECK FORMS A DURABLE BASE, WITH LARGE BEARING SUPPORT CARRYING THE ROTOR DURING REPEATED CUTTING PASSES THROUGH OVERGROWN VEGETATION AND WOODY BRUSH.

REPLACEMENT BLADES INCLUDED

A FREE REPLACEMENT BLADE SET COMES WITH A NEW CUTTER, PROVIDING SERVICE PARTS FOR KEEPING THE ROTOR READY AS CUTTING EDGES WEAR THROUGH REGULAR PROPERTY MAINTENANCE AND CLEARING WORK.

Description

Key Benefits

Technical Specs

Applications

Baumalight CXG336

The Baumalight CXG336 Excavator Rotary Brush Cutter puts a 36-inch cutting width at the end of a compatible excavator's boom, helping operators manage vegetation on banks, ditches, and other areas that are difficult to approach with a conventional mower. The 47-inch cutting path and open front and rear deck support controlled positioning around brush and uneven terrain. With the excavator carrying and orienting the attachment, the operator can bring the cutter to the material while respecting the machine's lifting and stability limits.

The M250 roller-vane motor works with a 6–18 GPM hydraulic flow range and does not require a case drain, making this model a practical choice for appropriately matched compact excavators. Its two-way rotor carries reversible slasher blades for repeated cutting passes. Maximum brush capacity is 4-inch maximum brush size; actual cutting performance depends on the selected motor, carrier hydraulics, vegetation, and operator technique.

The 3/16-inch steel deck is reinforced with support channels to form a durable working platform for property reclamation. Large bearing support carries the cutting assembly, and Grade 8 blade fasteners with castle nuts and cotter pins secure the slasher blades. A 3/4-inch rotor and bolt-on bottom cover support durability while keeping service access practical. A free replacement blade set is supplied with a new cutter, helping keep scheduled blade service straightforward as the working edges wear.

The CXG336 weighs 400 lb and is designed for 3–6 ton tracked; 4.5–7 ton wheeled excavators. The package includes a carrier-matched bolt-on excavator mount. Wires, hoses, and couplers are sold separately. Confirm the M250 motor’s 2,500–3,000 PSI working range and match the excavator’s hydraulic connections before operation. Verify the complete attachment setup with the carrier specifications and follow the operator's manual for installation, cutting technique, and maintenance.

Baumalight CXG336

• Working Width for Your Carrier – The 36-inch cutting width gives the CXG336 a defined swath for managing overgrown ground. Match the working envelope to access, terrain, and the carrier's ability to position the attachment.

• Hydraulics Matched to the Machine – The offered motor setup provides a defined range for matching carrier flow and pressure. Correct hydraulic selection helps the rotor work effectively under load without assuming all machines supply the same output.

• Serviceable Cutting Edges – The 2-blade rotor uses reversible, replaceable cutting edges for scheduled service. A free replacement blade set is included with a new cutter, giving you practical support for maintaining blade condition.

• Construction for Brush Work – The 3/16" steel deck is reinforced with support channels. Large bearing support carries the rotor during repeated cutting passes.

• Reach Difficult Vegetation – Boom positioning helps bring the cutter to ditch edges, banks, and other difficult areas. Carrier stability, reach limits, and attachment weight still govern where and how it can work.

• Clear Installation Requirements – The carrier-matched excavator mount is included. Wires, hoses, and couplers are supplied separately for the installation. Verify the motor, hydraulic connections, and any required case drain before startup.

Baumalight CXG336

• Model: CXG336
• Carrier Type: Excavator
• Cutting Width: 36"
• Cutting Path: 47"
• Blade Count: 2
• Deck Thickness: 3/16" steel
• Lowest Cutting Height: 2.5"
• Unit Weight: 400 lb
• Carrier Weight Range: 3–6 ton tracked; 4.5–7 ton wheeled
• Maximum Brush Size: 4" (performance depends on motor/power and material)
• Mount: Carrier-matched bolt-on excavator mount included
• Deck Opening / Guarding: Open front and rear deck
• Included Service Parts: Free replacement blade set
• Motor Flow Options: M250: 6–18 GPM
• Working Hydraulic Pressure: 2,500–3,000 PSI
• Case Drain: M250: no case drain needed
• Connections / Exclusions: Carrier-matched excavator mount included; wires, hoses, and couplers sold separately
• Adapter Connection Code: A02

Baumalight CXG336

  • Managing brush along ditches and banks with a correctly matched excavator.
  • Clearing vegetation in areas that need boom reach and controlled cutter positioning.
  • Reclaiming overgrown property edges within the carrier’s stability and attachment limits.
  • Maintaining access corridors and drainage edges through grass and woody growth.
  • Reducing brush with successive passes, matched to the motor, hydraulic supply, and material.

Baumalight Brush Cutting & Support

Baumalight CXG336

ENGINEERED FOR POWER:

  • 36-inch cutting width and 47-inch cutting path put brush management within reach of a compatible excavator.
  • M250 roller-vane motor matches a 6–18 GPM flow range without requiring a case drain.
  • 2-way rotor carries reversible slasher blades for repeated cutting passes through standing vegetation.
  • Maximum brush size is 4 inches, subject to the selected motor, hydraulic supply, and material conditions.
  • A 3/4-inch rotor and bolt-on bottom cover support cutting duty with practical service access.

BUILT FOR PRECISION:

  • Open front and rear deck support versatile positioning around vegetation with the excavator boom.
  • Reinforced 3/16" steel deck uses support channels to provide a durable base for the cutting assembly.
  • Large bearing support carries the rotor and helps the assembly withstand regular vegetation-management work.
  • Grade 8 blade fasteners with castle nuts and cotter pins secure the cutting blades for serviceable installation.
  • Reversible cutting edges allow routine blade service and replacement as the working surfaces wear.

READY FOR THE FIELD:

  • Carrier range is 3–6 ton tracked; 4.5–7 ton wheeled; confirm boom capacity, attachment fit, and machine stability.
  • Attachment weight is 400 lb, with a 2.5-inch lowest cutting height.
  • A carrier-matched bolt-on excavator mount is included with the cutter.
  • Wires, hydraulic hoses, and couplers are not included; a free replacement blade set comes with a new cutter.
  • M250 works at 2,500–3,000 PSI and needs no case drain; verify flow and carrier connections before installation.
