BAUMALIGHT

Tree Shear

For Excavators

Up to 12" Cutting Capacity

Request QuoteAdd To Cart

Baumalight Tree Shear IXP512G For Excavators

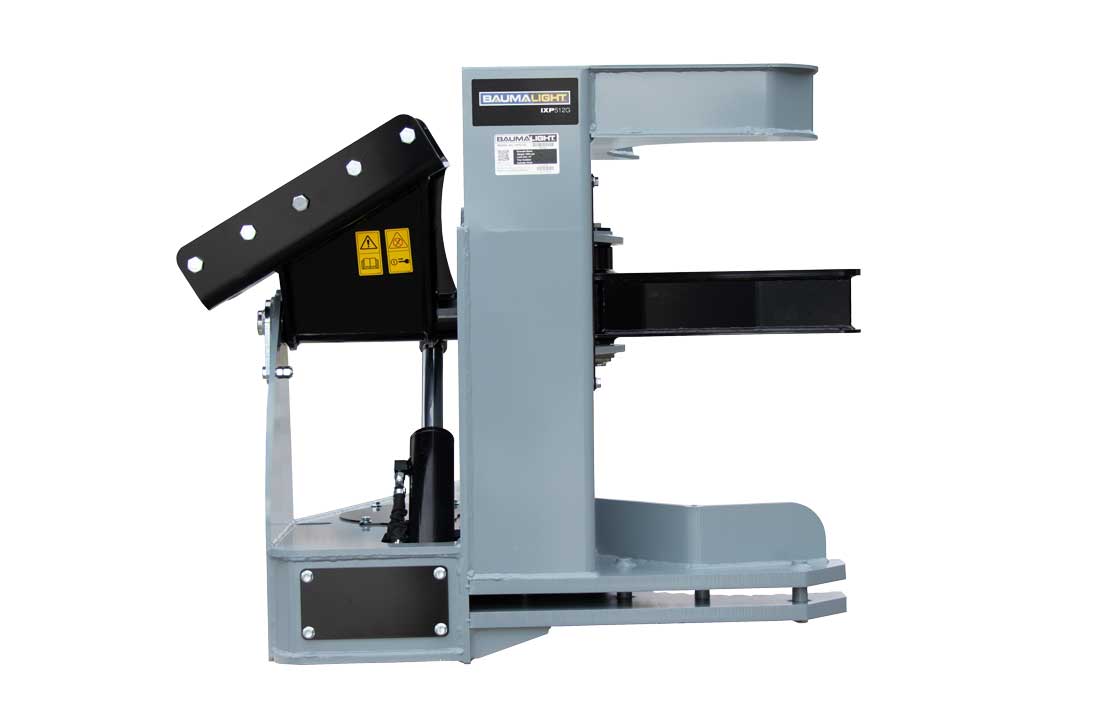

Baumalight IXP512G tree shear — Baumalight IXP512G rotating excavator tree shear

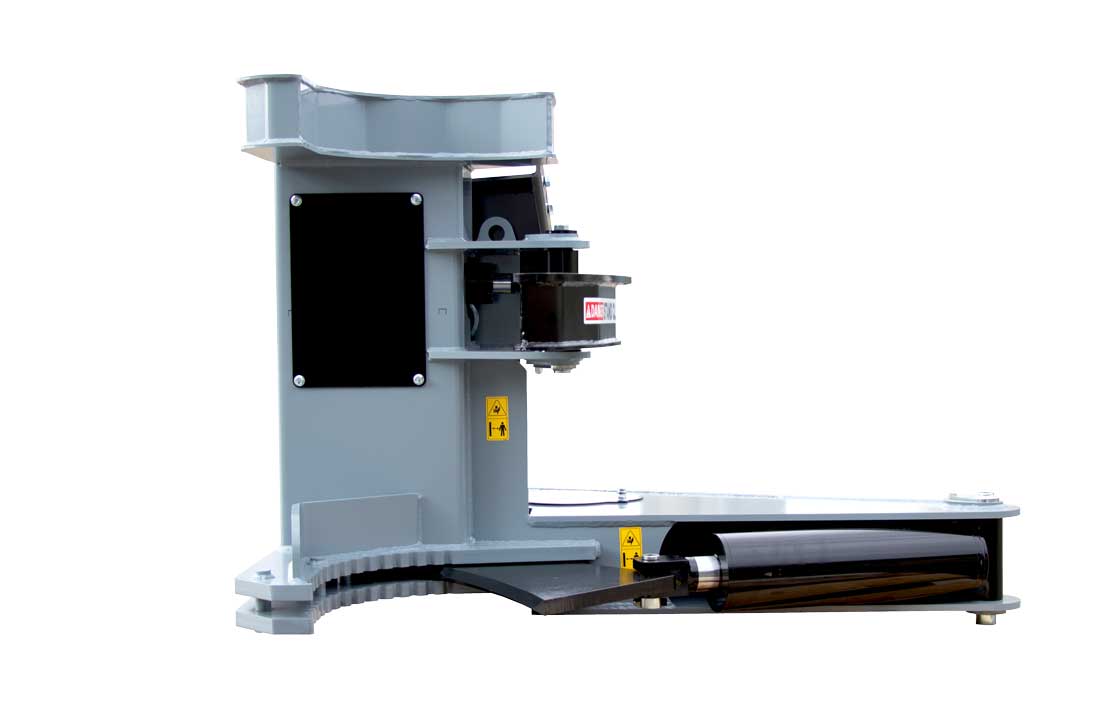

Baumalight IXP512G tree shear — Baumalight IXP512G with AR400 steel blade

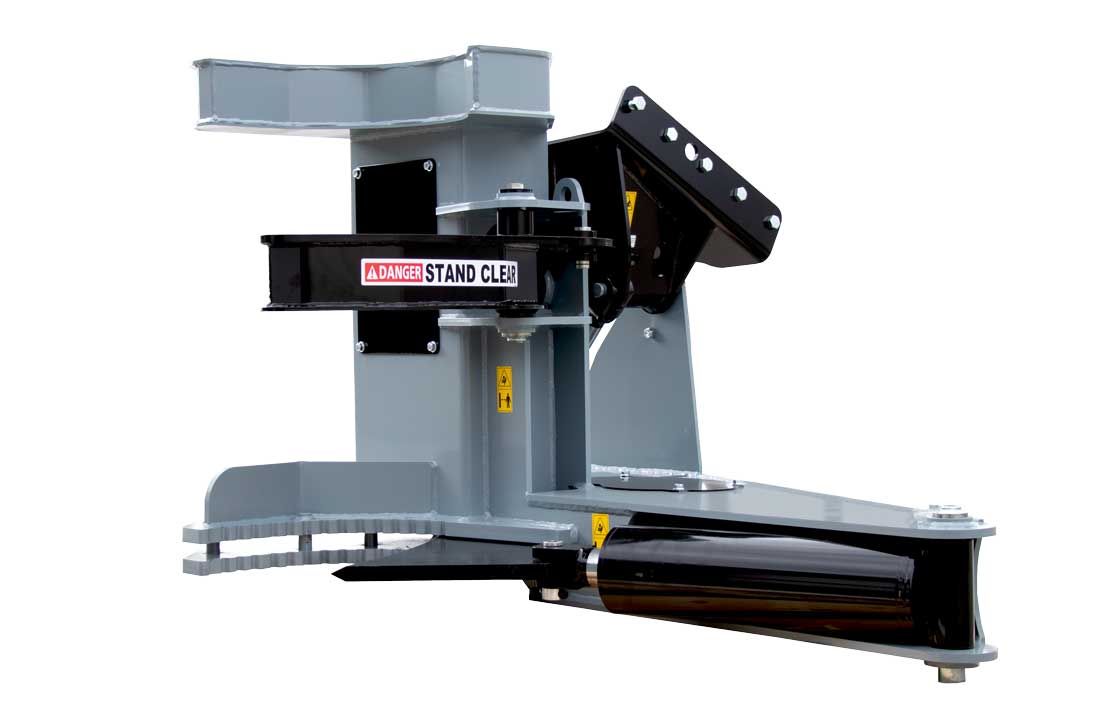

Baumalight IXP512G tree shear — Baumalight IXP512G with heavy duty cylinder

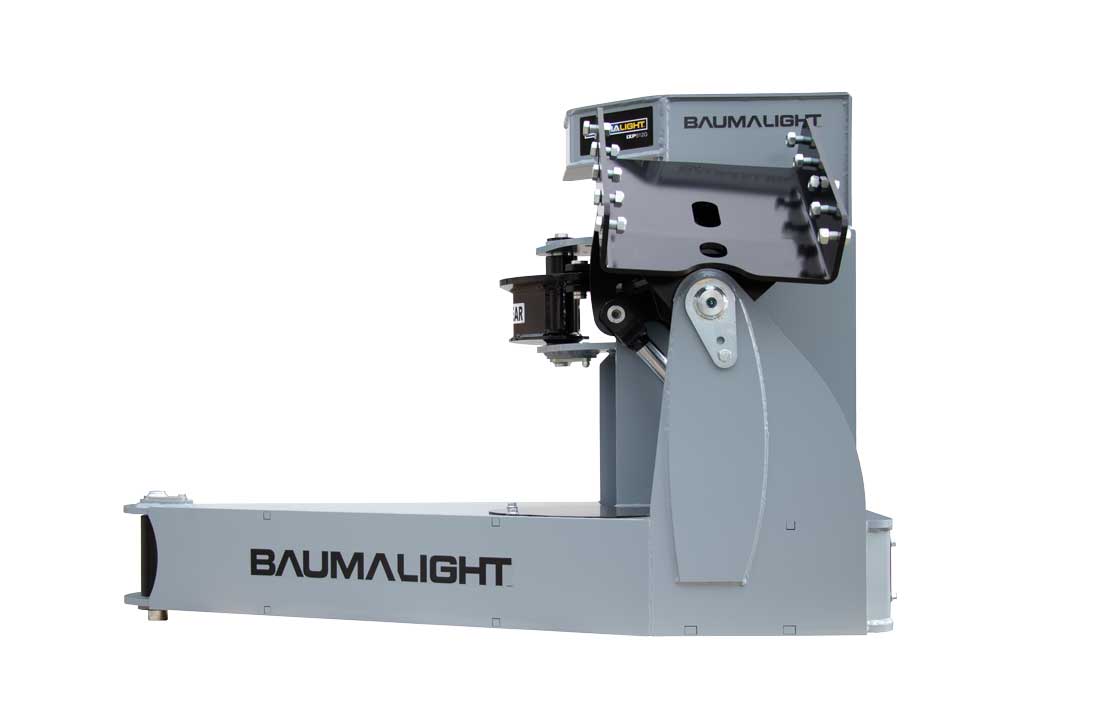

Baumalight IXP512G tree shear — IXP512G with fixed curved cradle bar

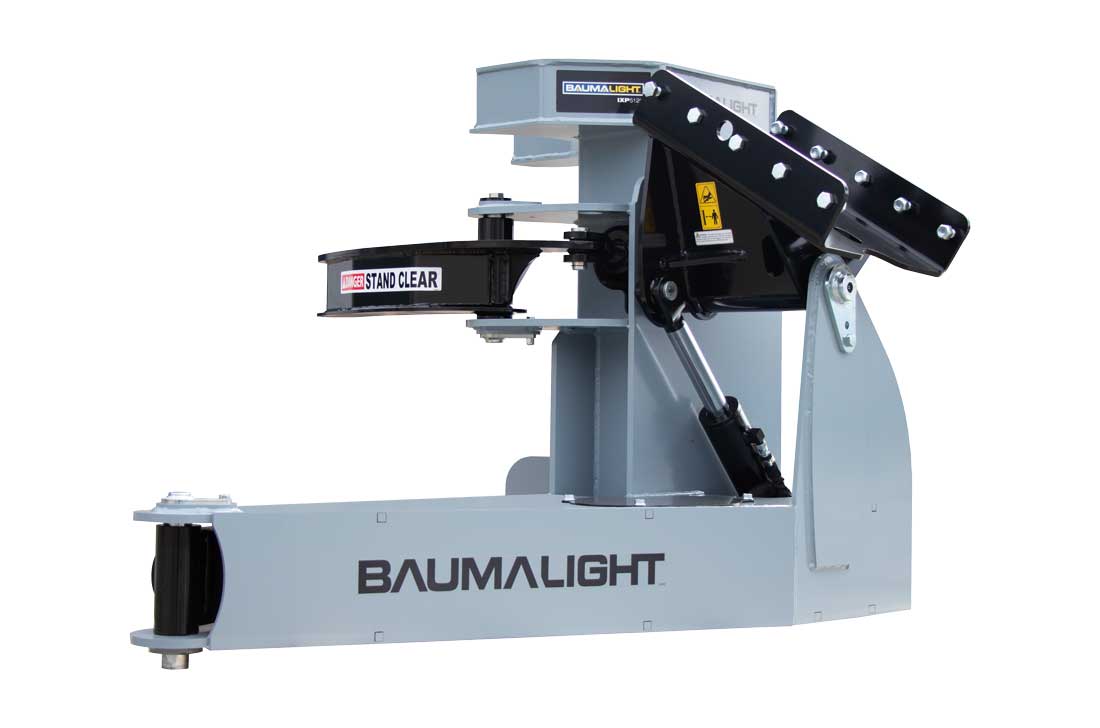

Baumalight IXP512G tree shear — IXP512G with individually moving grabber arm
Roll over image to zoom in Click on image to zoom
Baumalight IXP512G tree shear — Baumalight IXP512G rotating excavator tree shearBaumalight IXP512G tree shear — Baumalight IXP512G with AR400 steel bladeBaumalight IXP512G tree shear — Baumalight IXP512G with heavy duty cylinderBaumalight IXP512G tree shear — IXP512G with fixed curved cradle barBaumalight IXP512G tree shear — IXP512G with individually moving grabber arm
Baumalight

Baumalight Tree Shear IXP512G For Excavators

SKU: IXP512G Currently In Stock

$10,149.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Manual Find Parts

MOST IMPORTANT FEATURES

12" CUTTING CAPACITY

CAPACITY OF UP TO 12 INCHES DEFINES THE WORKING ENVELOPE, WHILE WOOD TYPE AND AVAILABLE HYDRAULIC PRESSURE DETERMINE WHICH TREE DIAMETERS YOUR MATCHED CARRIER CAN ACTUALLY CUT.

AR400 STEEL BLADE

ABRASION RESISTANT AR400 STEEL PROVIDES A TOUGH CUTTING SURFACE FOR TREE CLEARING, WITH HYDRAULIC CYLINDER POWER DRIVING THE BLADE THROUGH SUITABLE WOODY MATERIAL ON A COMPATIBLE CARRIER.

90 DEGREE PIVOT

A FULL 90 DEGREE PIVOT RANGE LETS THE HEAD CHANGE CUTTING ORIENTATION BETWEEN STANDING TREES AND HORIZONTAL LIMBS, SUPPORTING DIFFERENT CLEARING TASKS WITH ONE PROPERLY EQUIPPED MACHINE.

SERVICEABLE PIVOT POINTS

GREASEABLE PINS AND HARDENED STEEL BUSHINGS SUPPORT ROUTINE MAINTENANCE AT THE MOVING JOINTS, HELPING KEEP THE CUTTING AND HANDLING ASSEMBLY READY FOR REPEATED OUTDOOR TREE CLEARING WORK.

CARRIER MATCHED SETUP

CARRIER AND HYDRAULIC FLOW RANGES HELP GUIDE ATTACHMENT SELECTION, WITH MOUNTING, CONNECTIONS, LIFT CAPACITY, AND MACHINE STABILITY CHECKED TOGETHER BEFORE ORDERING AND PUTTING THE SHEAR INTO SERVICE.

Description

Key Benefits

Technical Specs

Applications

Baumalight IXP512G

The Baumalight IXP512G Tree Shear turns a compatible excavator into a focused tool for cutting small trees and managing woody growth. Its hydraulic cutting action is designed for a capacity of up to 12 inches, helping contractors and property owners clear access routes, reclaim overgrown ground, and remove selected trees. The excavator mounting arrangement brings the shear to the end of the boom for positioning within the machine’s working reach.

An abrasion-resistant AR400 steel blade and a hydraulic cylinder provide the core cutting mechanism. A full 90-degree pivot range supports upright tree cutting and horizontal limb removal. An individually moving grabber arm and fixed curved cradle bar help hold and relocate sheared material. Those handling features support the cutting workflow, while careful positioning and stable carrier operation remain essential.

Match this attachment to 8–20 ton excavators, with auxiliary hydraulic flow of 15–60 GPM. Cutting performance changes with hydraulic pressure and wood type, so the maximum diameter is a selection guide rather than a promise for every tree. Use Baumalight’s cutting-performance chart to compare your available pressure with the expected species and trunk diameter. A tree shear leaves roots and a stump in the ground; plan a separate removal step when the site requires complete root extraction.

Greaseable pivot points, hardened steel bushings, and protected hydraulic hose routing support regular field service. The bolt-on mounting plate connects to the included carrier-matched excavator mount. Boom wires, hoses, and couplers are sold separately; an auxiliary electrical connection with one ON/OFF pin and ground is required, and the optional hand control needs custom boom wiring. Follow the operator’s manual for inspection, maintenance, and field operation.

Baumalight IXP512G

Purpose-built clearing — The Baumalight IXP512G Tree Shear turns a compatible excavator into a focused tool for cutting small trees and managing woody growth. Its hydraulic cutting action is designed for a capacity of up to 12 inches, helping contractors and property owners clear access routes, reclaim overgrown ground, and remove selected trees. The excavator mounting arrangement brings the shear to the end of the boom for positioning within the machine’s working reach.

Controlled hydraulic action — Auxiliary hydraulic flow range is 15–60 GPM.

Practical material handling — Moving grabber arm and fixed curved cradle bar help hold cut material.

Clear carrier requirements — Match to 8–20 ton excavators and verify lift capacity, hydraulic output, and stability.

Serviceable construction — Hardened chrome-vanadium spring-steel bushings support the main pivot joints.

Installation details — A carrier-matched excavator mount is included. Boom wires, hoses, and couplers are sold separately. Rotation requires one ON/OFF electrical pin and ground; confirm connector or optional hand control.

Baumalight IXP512G

Model: IXP512G
Attachment type: Tree Shear
Carrier range: 8–20 ton excavators
Cutting capacity: Up to 12 inches; wood type and hydraulic pressure affect performance
Hydraulic flow: 15–60 GPM
Cylinder bore: 5 inches
Cutting blade: AR400 abrasion-resistant steel
Blade orientation: 90-degree pivot
Grabber: Included
Mounting: Bolt-on plate; carrier-matched excavator mount included
Electrical AUX: 1 ON/OFF pin and ground required; connector/control separate
Included connections: Boom wires, hoses, and couplers NOT included
Package: Attachment + Excavator Mount; optional controls sold separately
Pivot bushings: Chrome-vanadium AISI 6150 spring steel

Baumalight IXP512G

  • Cutting small trees along farm edges and property corridors.
  • Reclaiming overgrown acreage with a properly matched carrier.
  • Clearing access lanes and suitable trail corridors.
  • Removing limbs within the model's pressure and diameter limits.
  • Contractor vegetation clearing with planned handling of cut material.

Baumalight Tree Shears & Service

Baumalight IXP512G

ENGINEERED FOR POWER:

  • Cutting capacity is up to 12 inches; available pressure and wood type determine actual results.
  • Auxiliary hydraulic flow range is 15–60 GPM.
  • AR400 steel cutting blade provides an abrasion-resistant working surface.
  • Hydraulic cylinder powers the cutting mechanism without a separate cutting motor.
  • A full 90-degree pivot range supports upright tree cutting and horizontal limb work.

BUILT FOR PRECISION:

  • Moving grabber arm and fixed curved cradle bar help hold cut material.
  • Grease pins at pivot points support routine lubrication and inspection.
  • Hardened chrome-vanadium spring-steel bushings support the main pivot joints.
  • Protected hose routing helps reduce exposure to brush and pinching.
  • Tree shearing leaves a stump and roots; separate removal is needed for complete extraction.

READY FOR THE FIELD:

  • Match to 8–20 ton excavators and verify lift capacity, hydraulic output, and stability.
  • Greaseable pivot points support routine lubrication and inspection.
  • A carrier-matched excavator mount is included. Boom wires, hoses, and couplers are sold separately.
  • Rotation requires one ON/OFF electrical pin and ground; confirm connector or optional hand control.
  • Hardened chrome-vanadium spring-steel bushings support the main pivot joints.
Request a Quote
