Baumalight

Mini Skid Steer

Kubota

Diesel 2-Speed

Most Important Features

COMPACT JOBSITE ACCESS

NARROW 36" WIDTH ALLOWS THE MACHINE TO NAVIGATE THROUGH GATES, PATHWAYS, AND TIGHT WORK AREAS WHILE MAINTAINING STRONG LIFTING AND PUSHING PERFORMANCE.

RELIABLE DIESEL POWER

KUBOTA DIESEL ENGINE DELIVERS CONSISTENT TORQUE AND EFFICIENT PERFORMANCE FOR DEMANDING TASKS WITHOUT POWER DROP-OFF.

2-SPEED DRIVE PERFORMANCE

INTEGRATED 2-SPEED SYSTEM IMPROVES TRAVEL SPEED AND JOBSITE PRODUCTIVITY WHILE MAINTAINING CONTROL DURING HEAVY WORK.

PRECISION CONTROL SYSTEM

HYDROSTATIC DRIVE WITH JOYSTICK CONTROLS PROVIDES SMOOTH, RESPONSIVE OPERATION FOR ACCURATE MOVEMENT AND MATERIAL HANDLING.

DURABLE TRACKED PLATFORM

HEAVY-DUTY TRACK SYSTEM IMPROVES TRACTION, REDUCES GROUND PRESSURE, AND SUPPORTS STABLE OPERATION ACROSS UNEVEN TERRAIN.

Description

Key Benefits

Technical Specs

Applications

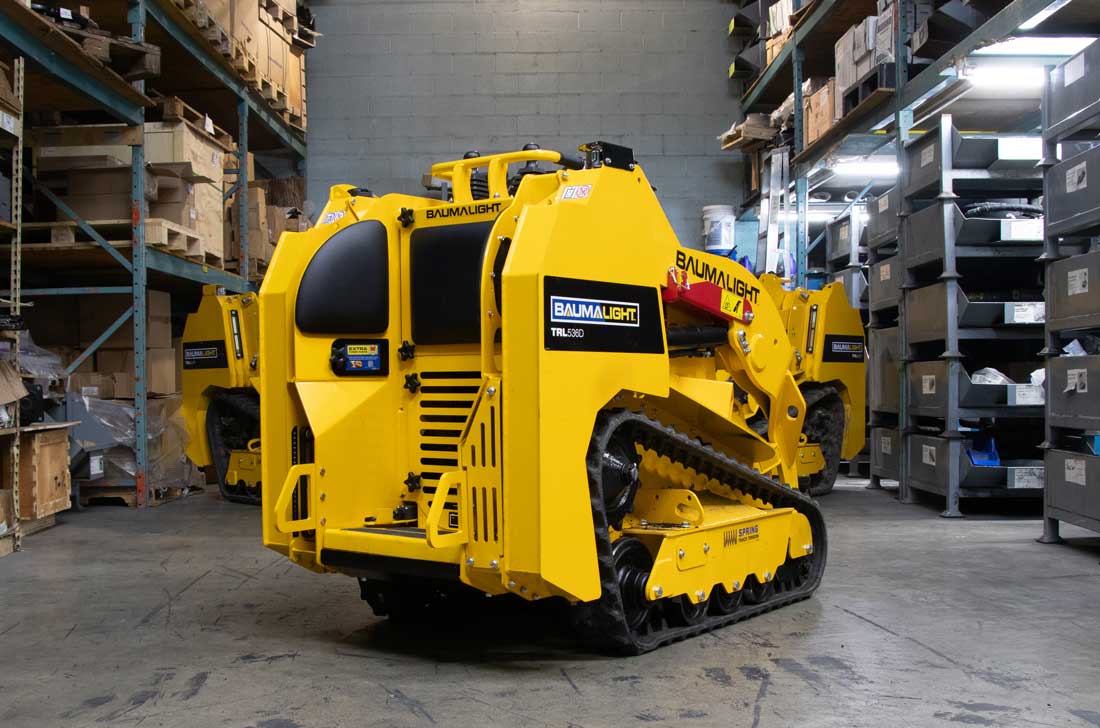

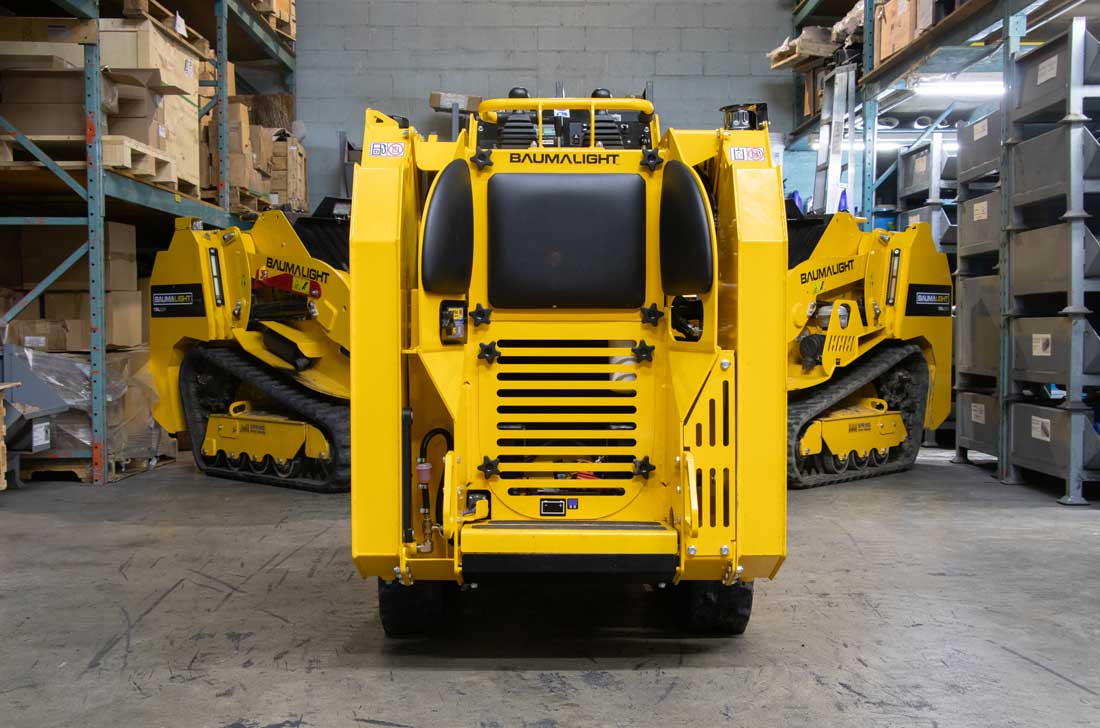

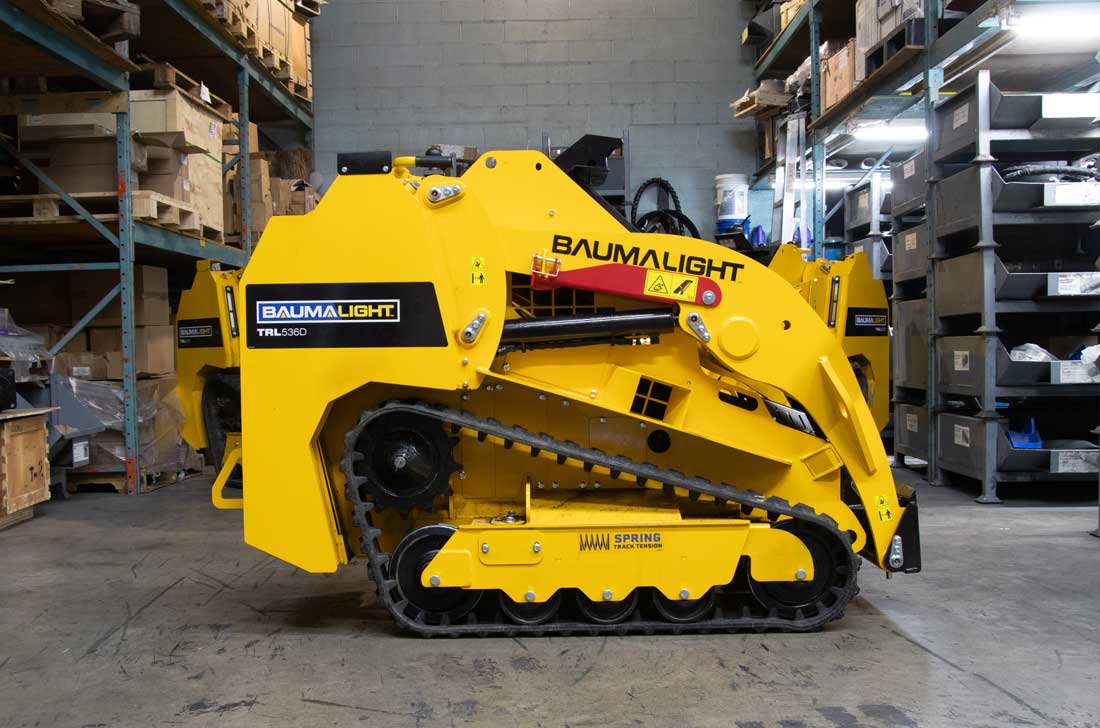

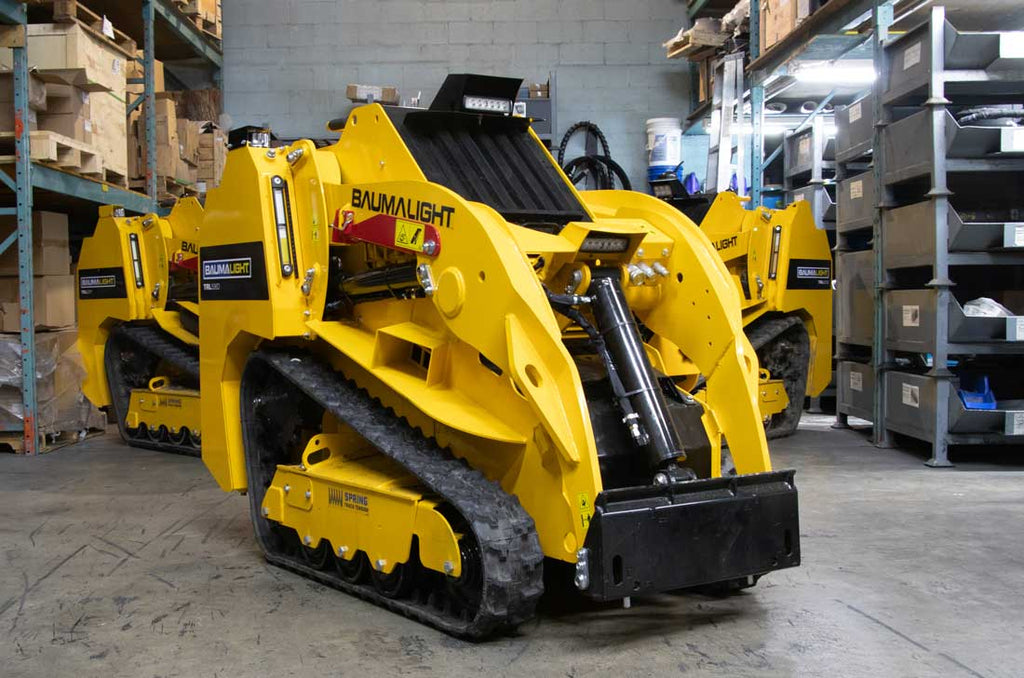

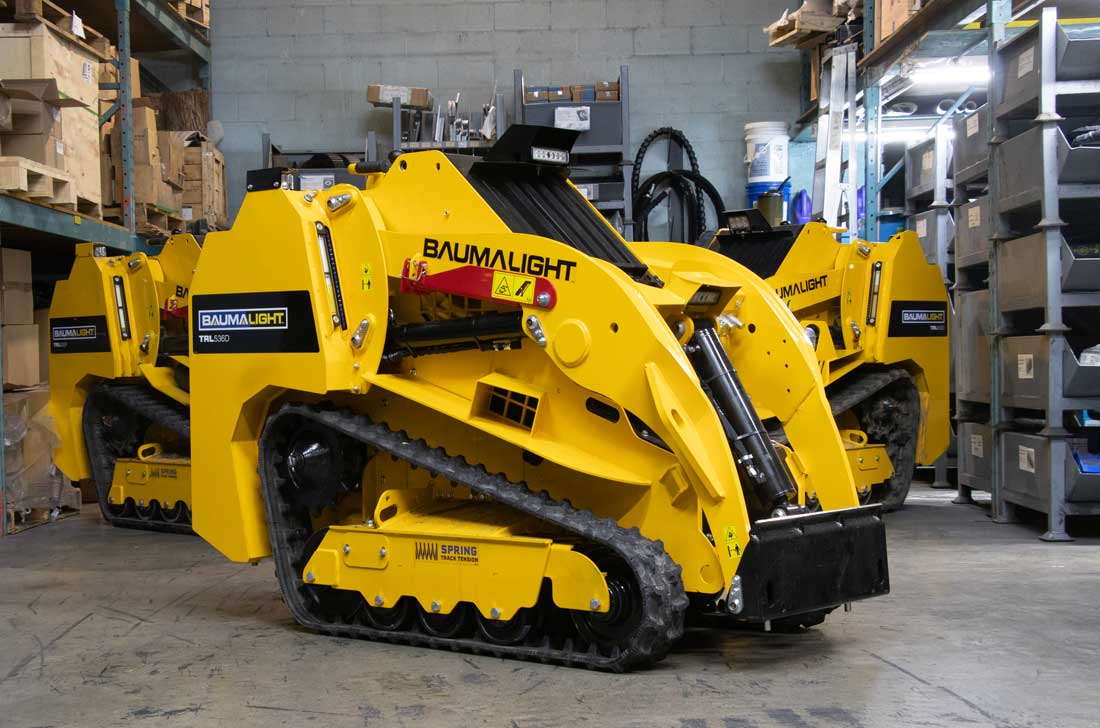

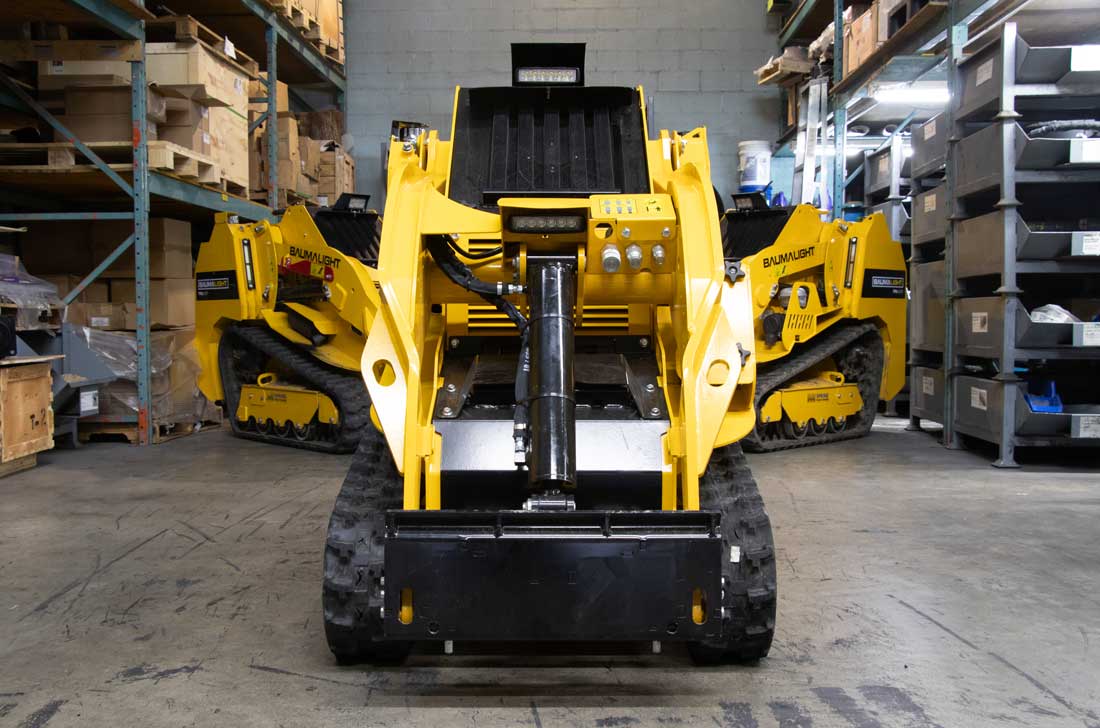

Baumalight Mini Skid Steer TRL536D

The Baumalight TRL536D Mini Skid Steer is a compact, stand-on machine designed for high performance in tight-access job sites where space is limited but productivity cannot be compromised. With an overall width of just 36 inches, it easily navigates through gates, narrow pathways, and confined work areas, making it ideal for landscaping, property maintenance, and material handling applications. Powered by a reliable Kubota diesel engine, the TRL536D delivers consistent output and long-term durability, while the integrated 2-speed drive system improves travel efficiency and pushing capability across varying job conditions.

Built with a fully welded all-steel frame, this unit is engineered for demanding environments and long-term use. The hydrostatic drive system paired with intuitive joystick controls allows for smooth, precise operation, while the stand-on operator platform provides clear visibility and better control during loading, grading, and transport tasks. The machine ships with a narrow track configuration for minimal ground disturbance, with the option to upgrade to wider tracks for reduced ground pressure when operating on softer terrain.

With a tipping capacity of 1,670 pounds and a lifting capacity of 1,570 pounds with a bucket, the TRL536D offers strong performance relative to its compact size. Its hydraulic system supports a wide range of attachments, allowing operators to adapt the machine for trenching, digging, grading, and more. Overall, the TRL536D is a practical, jobsite-ready solution for operators who need maneuverability, durability, and reliable performance in a compact mini skid steer platform.

Baumalight Mini Skid Steer TRL536D

  • High-Performance Diesel Power – Kubota diesel engine delivers consistent torque and reliable output for demanding jobsite tasks, ensuring strong performance across digging, lifting, and material handling applications
  • 2-Speed Travel Efficiency – Integrated 2-speed drive system improves jobsite productivity by increasing travel speed while maintaining pushing power when needed
  • Tight-Access Capability – 36" narrow width allows the machine to operate in confined areas such as gates, pathways, and restricted job sites where larger equipment cannot fit
  • Precision Operator Control – Joystick-operated hydrostatic drive provides smooth, responsive handling for accurate movement and better control during detailed work
  • Attachment Versatility – High-output hydraulic system supports a wide range of attachments for trenching, grading, digging, and site cleanup
  • Jobsite Stability & Traction – Track system improves grip on uneven terrain while reducing ground pressure for more stable operation across different surfaces
  • Durable Steel Construction – Reinforced all-steel frame is built to withstand heavy workloads and continuous use in demanding environments

Baumalight Mini Skid Steer TRL536D

  • Model: TRL536D
  • Engine: Kubota D1105 Diesel
  • Gross Engine HP: 24.8 HP
  • Net Engine HP: 23.9 HP
  • Peak Torque: 52.7 ft/lb
  • Displacement: 1.1 L
  • Drive Type: Hydrostatic
  • Drive Control: Joystick
  • Track Size: 150 x 72 x 45 (Upgradeable)
  • Travel Speed: 8.8 km/h
  • Ground Pressure: 5.7 psi (Narrow Tracks), 3.9 psi (Wide Tracks)
  • Relief Setting: 3,000 psi
  • Hydraulic Flow (No Load): 10.5 GPM
  • Hydraulic Reservoir Capacity: 29.25 Litres
  • Number of Pumps: 3

Baumalight Mini Skid Steer TRL536D

Baumalight Mini Skid Steer TRL536D

ENGINEERED FOR POWER:

  • Kubota diesel engine delivers reliable torque and consistent performance under load
  • 2-speed drive system increases travel efficiency and pushing capability
  • Hydrostatic drive provides smooth, responsive control in demanding conditions
  • High-output hydraulic system supports a wide range of attachments
  • Consistent power delivery for digging, lifting, grading, and material handling
  • Built to maintain performance across long work cycles and heavy use

BUILT FOR PRECISION:

  • Narrow 36" width allows access through tight gates and confined job sites
  • Stand-on operator platform improves visibility and machine control
  • Joystick-operated controls enable accurate, responsive movement
  • Compact design allows precise maneuvering in restricted areas
  • Stable track system maintains control on uneven terrain
  • Ideal for detailed work including trenching, grading, and site cleanup

DESIGNED FOR DURABILITY:

  • All-steel frame construction built for long-term jobsite use
  • Reinforced components withstand heavy loads and repeated operation
  • Track system reduces ground pressure and improves traction
  • Engineered for reliability in landscaping, construction, and property maintenance environments
  • Built to handle continuous operation without compromising structural integrity
  • Manufactured to meet professional-grade performance standards
