BAUMALIGHT

Hydraulic Power Pack

For 540 RPM PTO Tractors

162 L Reservoir

Request QuoteAdd To Cart

Baumalight PTO Hydraulic Power Pack P40-540 For Tractors

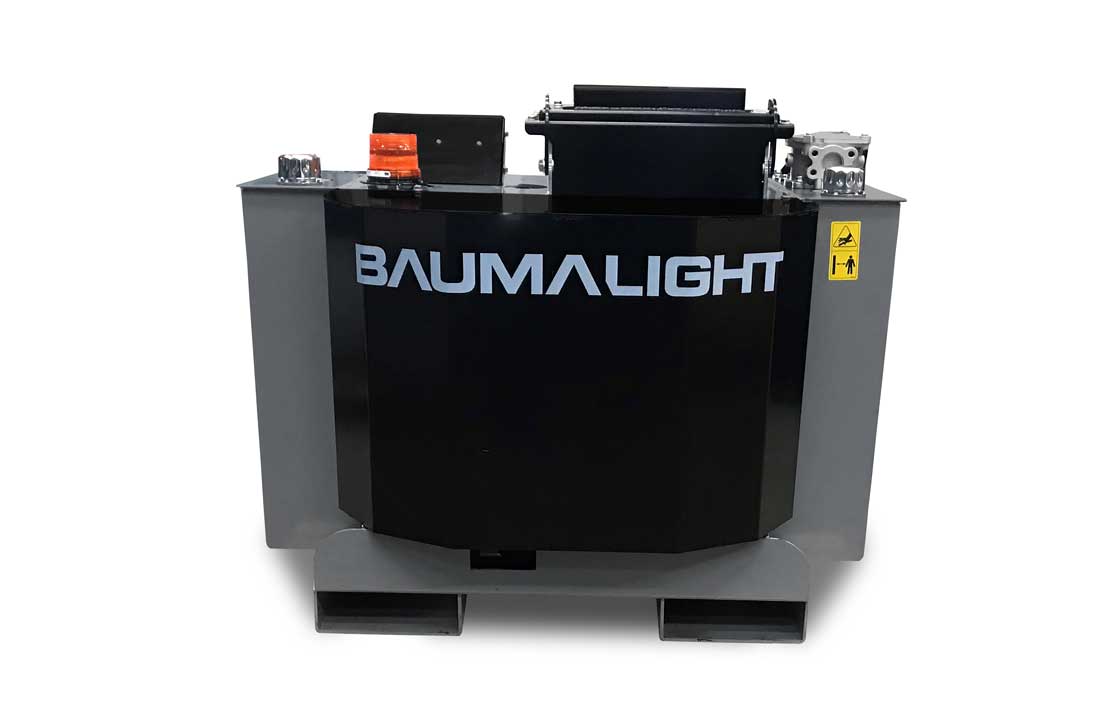

Baumalight P40-540 hydraulic power pack product overview

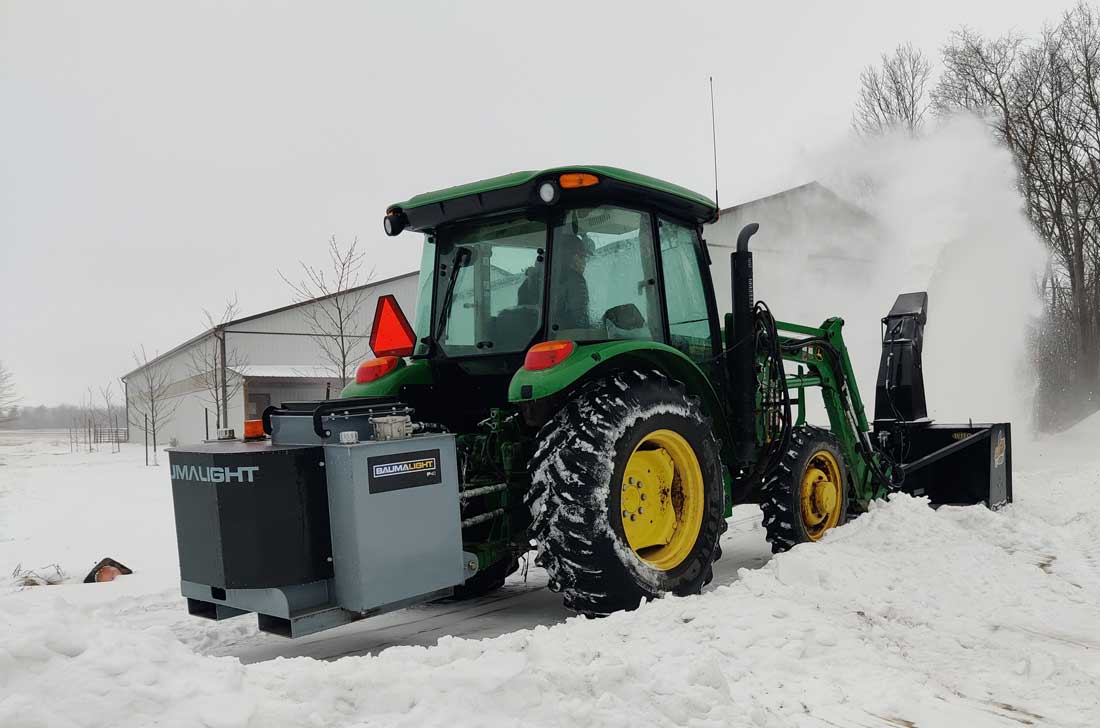

Baumalight P40-540 hydraulic power pack in operation

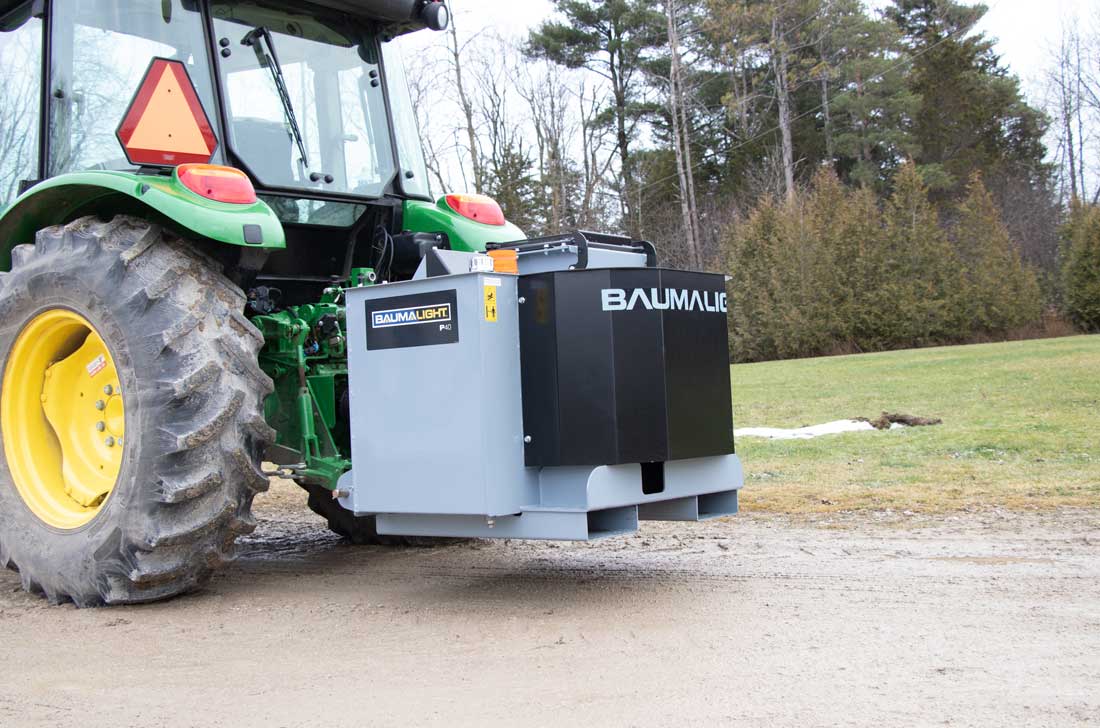

Baumalight P40-540 hydraulic power pack reservoir and frame

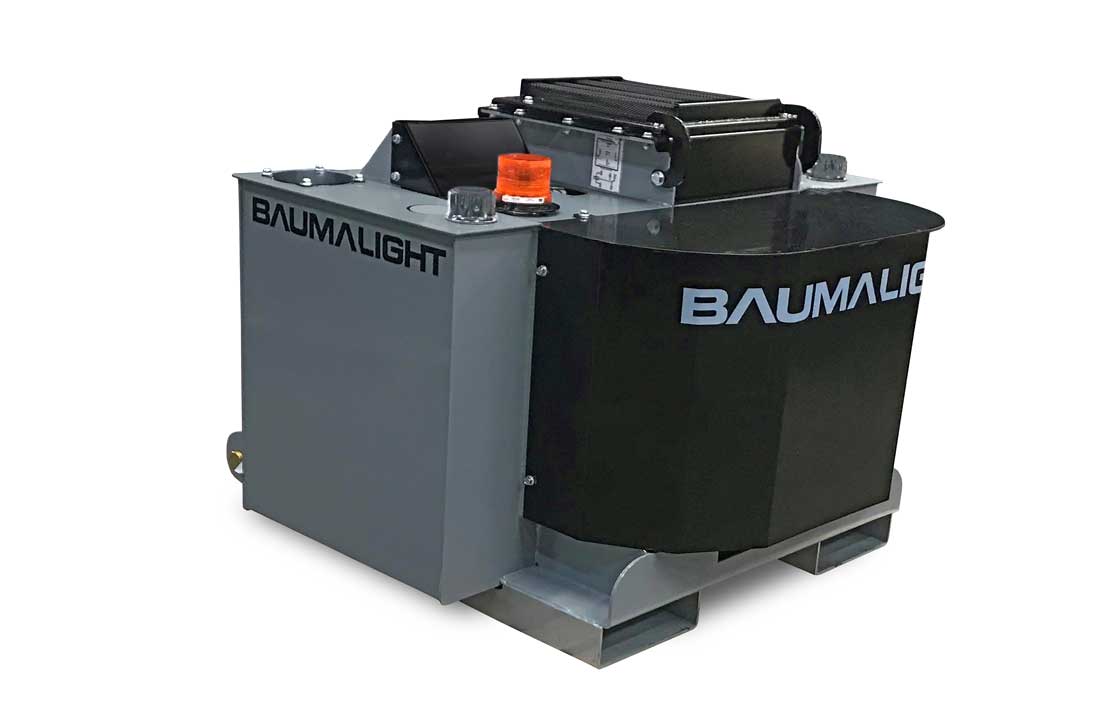

Baumalight P40-540 hydraulic power pack PTO system

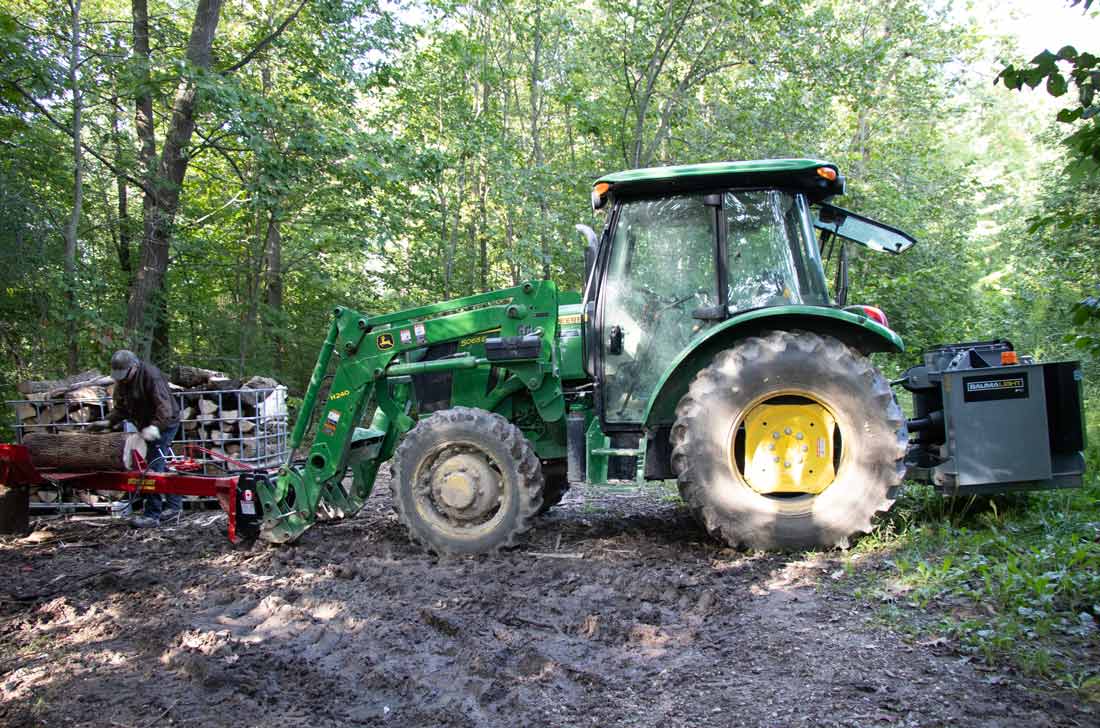

Baumalight P40-540 hydraulic power pack tractor three-point mount

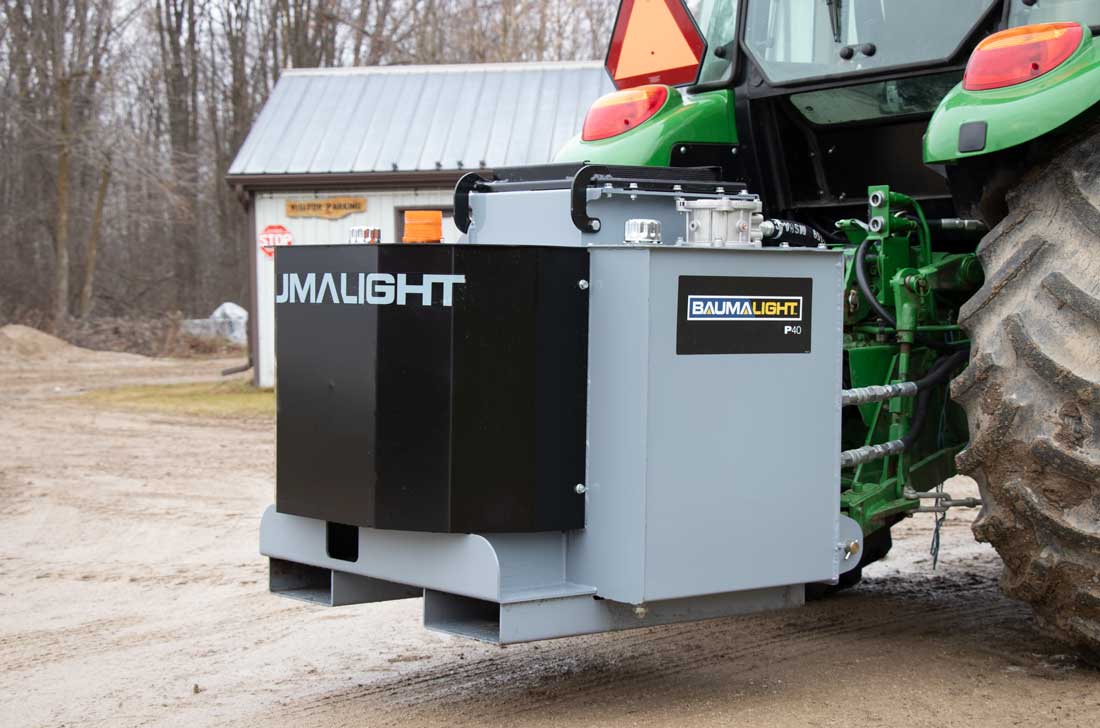

Baumalight P40-540 hydraulic power pack on tractor

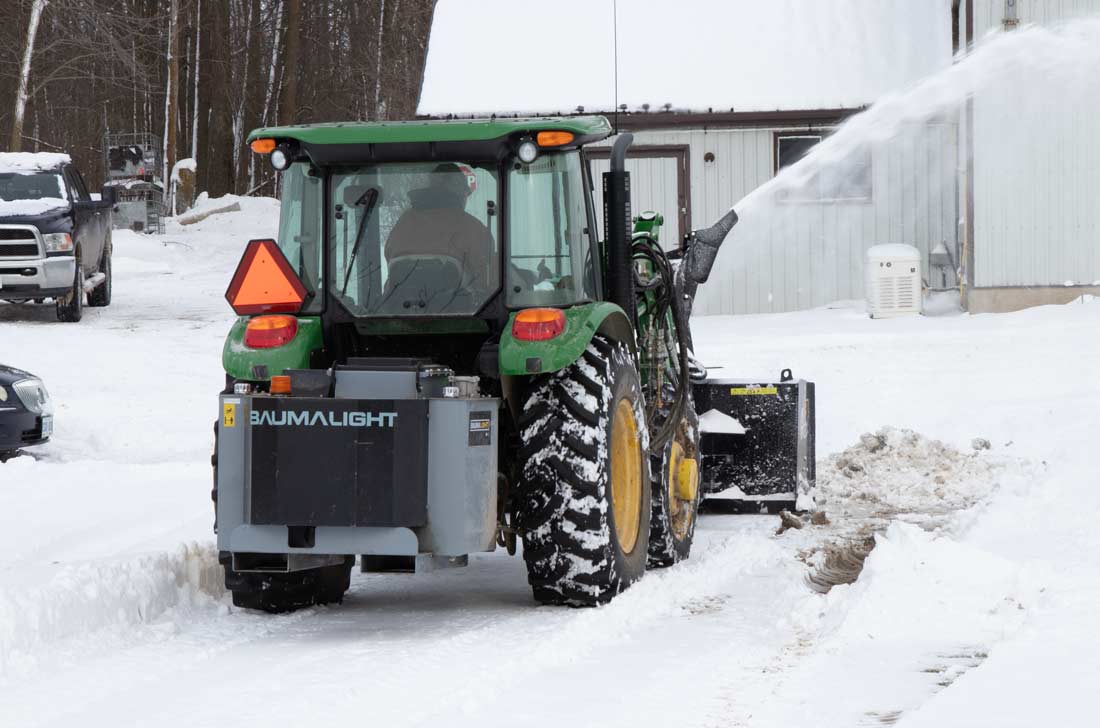

Baumalight P40-540 hydraulic power pack rear-mounted view
Baumalight P40-540 hydraulic power pack drive system
Baumalight P40-540 hydraulic power pack working view

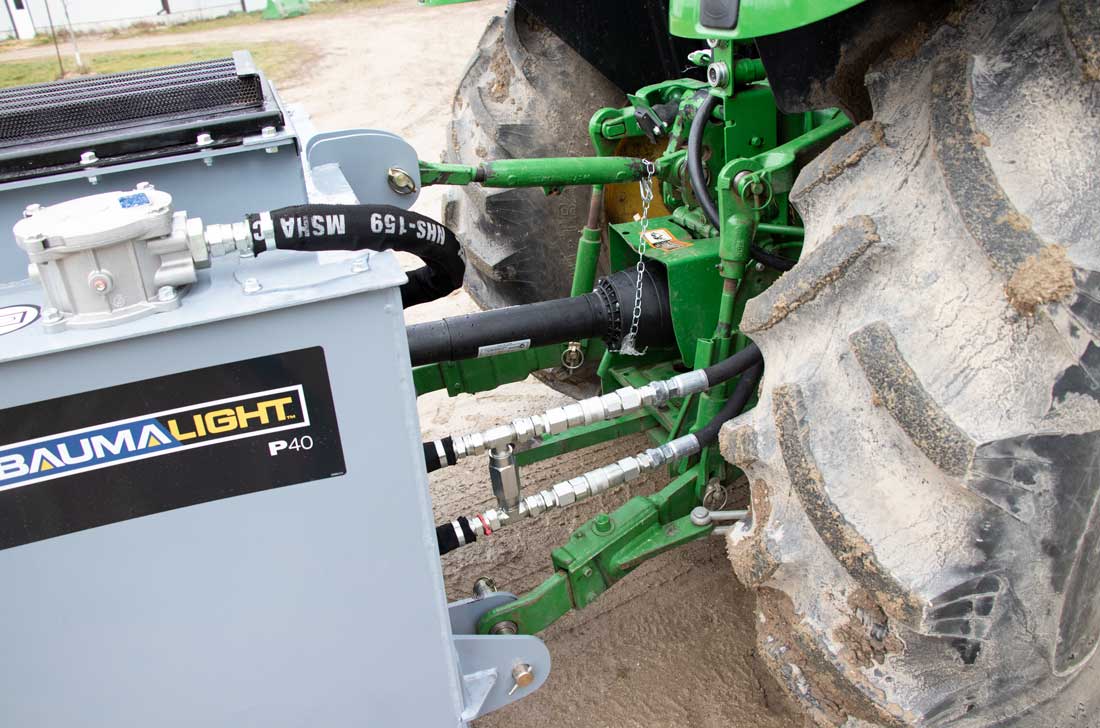

Baumalight P40-540 hydraulic power pack tractor hydraulic installation

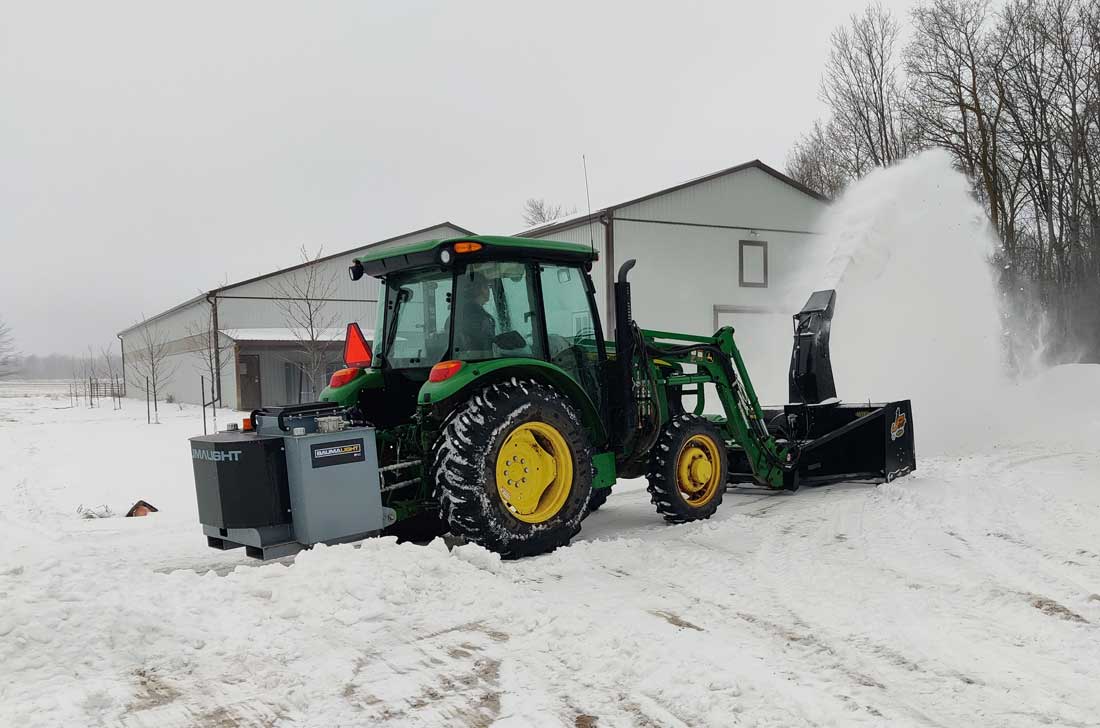

Baumalight P40-540 hydraulic power pack tractor-mounted setup

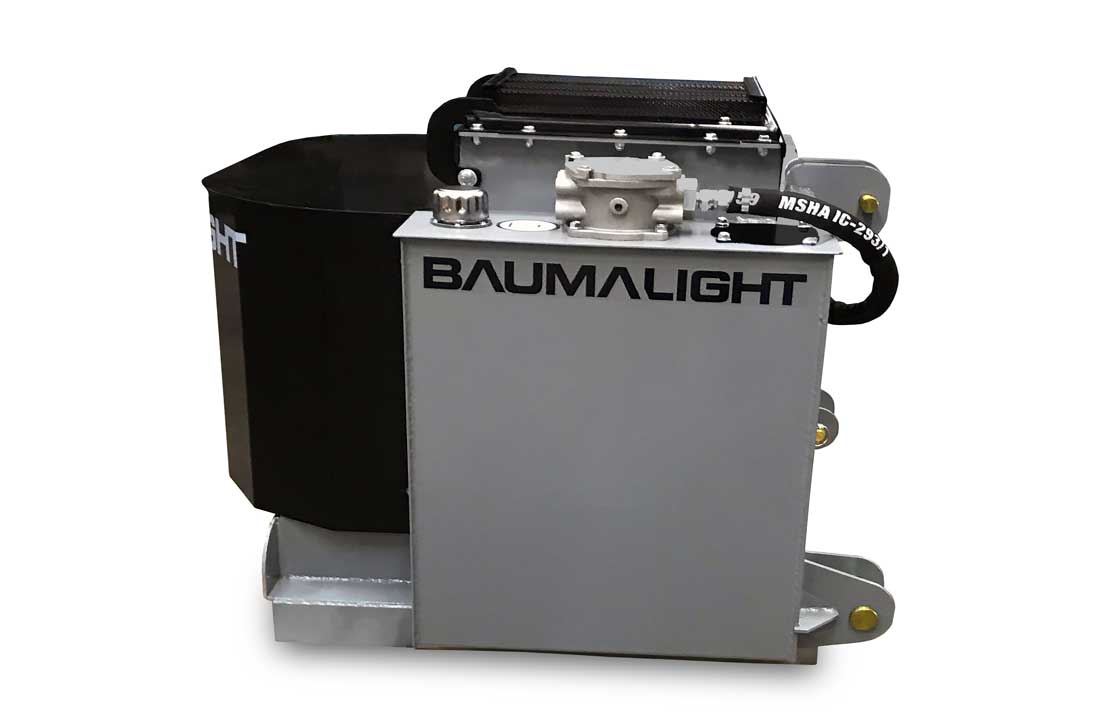

Baumalight P40-540 hydraulic power pack hydraulic power unit
Baumalight P40-540 hydraulic power pack forklift handling access
Roll over image to zoom in Click on image to zoom
Baumalight P40-540 hydraulic power pack product overviewBaumalight P40-540 hydraulic power pack in operationBaumalight P40-540 hydraulic power pack reservoir and frameBaumalight P40-540 hydraulic power pack PTO systemBaumalight P40-540 hydraulic power pack tractor three-point mountBaumalight P40-540 hydraulic power pack on tractorBaumalight P40-540 hydraulic power pack rear-mounted viewBaumalight P40-540 hydraulic power pack drive systemBaumalight P40-540 hydraulic power pack working viewBaumalight P40-540 hydraulic power pack tractor hydraulic installationBaumalight P40-540 hydraulic power pack tractor-mounted setupBaumalight P40-540 hydraulic power pack hydraulic power unitBaumalight P40-540 hydraulic power pack forklift handling access
Baumalight

Baumalight PTO Hydraulic Power Pack P40-540 For Tractors

SKU: P4030-540 Currently In Stock

$14,499.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Manual Find Parts

MOST IMPORTANT FEATURES

TRACTOR POWER, MORE ATTACHMENT OPTIONS

PTO DRIVE CONVERTS THE TRACTOR'S AVAILABLE POWER INTO AN AUXILIARY HYDRAULIC CIRCUIT, ALLOWING PROPERLY MATCHED LOADER ATTACHMENTS TO WORK BEYOND THE LIMITS OF THE TRACTOR'S NATIVE HYDRAULIC FLOW.

PUMP OPTIONS MATCHED TO THE JOB

THREE PUMP CONFIGURATIONS PROVIDE A CHOICE OF HYDRAULIC SETUPS, HELPING MATCH THE ATTACHMENT'S REQUIREMENTS TO AVAILABLE PTO HORSEPOWER, WORKING PRESSURE, AND THE DUTY EXPECTED ON YOUR PROPERTY.

OIL CAPACITY AND ACTIVE COOLING

THE 162 LITRE RESERVOIR AND OVERSIZED HYDRAULIC RADIATOR SUPPORT OIL CAPACITY AND HEAT MANAGEMENT, WITH CLEANING ACCESS THAT HELPS KEEP THE COOLING SYSTEM READY FOR REGULAR ATTACHMENT WORK.

CLEAR SYSTEM CONDITION MONITORING

PRESSURE, OIL LEVEL, AND TEMPERATURE MONITORING HELP THE OPERATOR FOLLOW SYSTEM CONDITIONS, WHILE THE FLASHING LED BEACON PROVIDES A VISIBLE OVERHEATING ALERT DURING HYDRAULIC ATTACHMENT OPERATION.

PRACTICAL HANDLING AND SERVICE ACCESS

FORKLIFT TINE SLOTS SUPPORT CONVENIENT HANDLING OF THE DETACHED UNIT, WHILE THE ACCESSIBLE RETURN FILTER, SERVICEABLE GEARBOX, AND POWDER COATED CONSTRUCTION HELP SUPPORT REGULAR MAINTENANCE AND OUTDOOR USE.

Description

Key Benefits

Technical Specs

Applications

Baumalight P40-540

The Baumalight P40-540 PTO Hydraulic Power Pack expands what a compatible tractor can do with hydraulically driven loader attachments. Powered by a 540 RPM rear PTO, the self-contained hydraulic system mounts on a Category 2 three-point hitch and supplies auxiliary power independently of the tractor's native hydraulic flow. It is a practical way to put an existing tractor to work with a properly matched hydraulic mulcher, brush cutter, stump grinder, or other motor-driven attachment.

Choose from the 50 cc, 60 cc, and 108 cc pump configurations listed for this PTO speed to match the intended attachment and the tractor's available power. Pump size, operating pressure, and load all affect the horsepower needed to maintain useful hydraulic output. Baumalight lists a 40 HP minimum engine rating for the P40-540 and a 110 HP maximum PTO rating, but the minimum is not a promise of full output from every pump. Confirm the chosen pump, attachment flow range, and working pressure together before ordering.

A 162-litre hydraulic reservoir provides oil capacity for the auxiliary circuit, while the oversized hydraulic radiator helps manage heat during attachment operation. An accessible return-oil filter supports system cleanliness, and the pressure gauge, oil-level indicator, and temperature monitoring help the operator keep track of working conditions. An LED beacon alerts the operator when the system overheats. The hydraulic relief valve provides over-torque protection, with an adjustable relief setting that must be matched to the connected equipment.

The serviceable oversized gearbox and powder-coated construction support regular outdoor use, while forklift-tine slots make handling and storage more convenient. The unit weighs 1,397 lb without hydraulic oil and 1,705 lb with oil, so tractor hitch capacity and overall stability need to be checked alongside attachment fit. A 12-volt DC connection is required, and this model is not quick-hitch compatible. Set up the driveline, hoses, couplers, and attachment connections for the specific tractor, then follow the operator's manual for startup, monitoring, and maintenance.

Baumalight P40-540

• Independent Auxiliary Hydraulics – The PTO-driven pump gives a suitable tractor a dedicated hydraulic source for compatible attachments, providing another way to use the tractor's engine power.

• A Configuration for Your Equipment – Three pump choices support matching the system to attachment flow and pressure requirements. Verify available PTO horsepower under load rather than relying only on the model's minimum engine rating.

• Cooling for Attachment Work – The oversized radiator and substantial reservoir help manage hydraulic oil temperature. Accessible cooling surfaces make routine cleaning practical between jobs.

• Working Conditions in View – A pressure gauge, oil-level indicator, temperature monitoring, and overheating beacon help the operator assess the system while using the connected attachment.

• Straightforward Scheduled Service – The accessible return-oil filter and serviceable gearbox support routine inspections and maintenance, with the operator's manual providing the setup and service procedures.

• Convenient Detached Handling – Forklift-tine slots help move the power pack around the workshop or storage area with appropriate lifting equipment, while powder coating protects exposed surfaces.

Baumalight P40-540

• Model: P40-540
• PTO Input Speed: 540 RPM
• Minimum Engine Power: 40 HP, with additional power required as pump load increases
• Maximum PTO Power: 110 HP
• Pump Configurations: 50 cc, 60 cc, or 108 cc, as listed in manufacturer pricing
• Reservoir Capacity: 162 litres
• Hitch: Category 2 three-point
• Quick-Hitch Compatibility: No
• Hydraulic Tank Filter: Yes, return-oil filter
• Over-Torque Protection: Hydraulic relief valve
• Relief Setting: Adjustable to suit the attachment
• Electrical Supply: 12-volt DC required
• Weight Without Hydraulic Oil: 1,397 lb
• Weight With Hydraulic Oil: 1,705 lb
• Cooling: Oversized hydraulic oil radiator
• Monitoring: Pressure, oil level, temperature, and overheating beacon
• Handling: Forklift-tine slots
• Pump Selection: Confirm available PTO horsepower and attachment flow and pressure requirements

Baumalight P40-540

  • Supplying auxiliary hydraulic power to a compatible tractor-loader brush mulcher.
  • Operating a matched hydraulic brush cutter for pasture and property vegetation control.
  • Powering a compatible hydraulic stump grinder with the correct flow and pressure setup.
  • Expanding loader attachment use on tractors with limited native hydraulic flow.
  • Farm, estate, and contractor work where the tractor, pump, and hydraulic attachment are matched for the task.

Baumalight Hydraulic Power & Attachment Support

Baumalight P40-540

ENGINEERED FOR POWER:

  • Tractor PTO drive supplies a dedicated auxiliary hydraulic circuit for compatible motor-driven attachments, expanding the work a suitable loader tractor can perform.
  • Three pump configurations let the hydraulic setup be matched to the intended attachment, available PTO horsepower, and working pressure.
  • Oversized gearbox transfers PTO power to the hydraulic pump and is designed with access for routine service.
  • Hydraulic relief valve provides over-torque protection, with an adjustable setting matched to the connected attachment's requirements.
  • 162-litre reservoir supplies substantial hydraulic oil capacity for the power pack's independent auxiliary circuit.

BUILT FOR PRECISION:

  • Oversized hydraulic radiator helps control oil temperature during attachment operation and can be accessed for cleaning.
  • Pressure gauge provides a visible reference for hydraulic system pressure while the attachment is working.
  • Oil-level and temperature monitoring help the operator check system conditions and plan service before continuing work.
  • LED beacon flashes when the system overheats, giving a clear signal to stop and investigate the cause.
  • Accessible hydraulic return filter supports clean oil circulation and straightforward filter service during scheduled maintenance.

READY FOR THE FIELD:

  • Designed for 540 RPM tractor PTO input with a Category 2 three-point hitch; verify the specific tractor and driveline setup.
  • Published 40 HP minimum engine rating and 110 HP maximum PTO rating define the base model; selected pump demand must also be checked.
  • Forklift-tine slots simplify moving the detached power pack for storage, loading, and workshop service with suitable lifting equipment.
  • Powder-coated construction helps protect exposed surfaces during outdoor property maintenance and vegetation-management work.
  • Requires 12-volt DC power and is not quick-hitch compatible; verify hitch capacity, hydraulic connections, and tractor stability before installation.
