Baumalight

RC780 Auger Drive

For Skid Steers & Excavators

20—45 GPM

Request QuoteAdd To Cart

Baumalight Auger Drive RC780 Contractor Hydraulic

Baumalight RC780 auger drive image 1

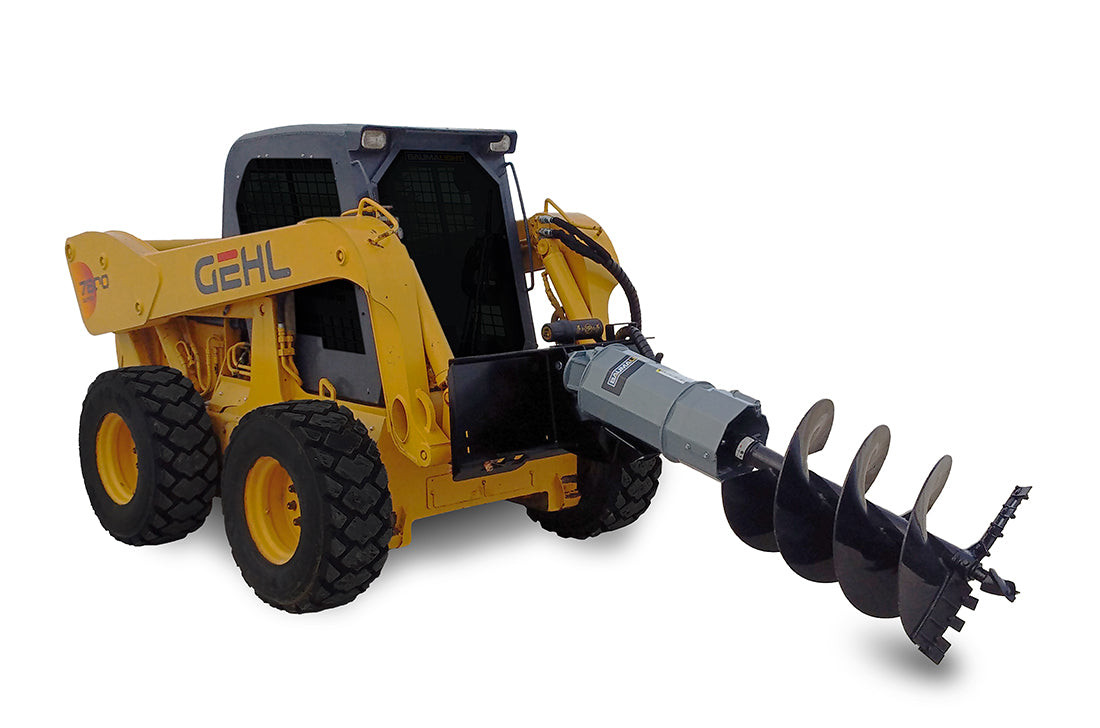

Baumalight RC780 auger drive image 2
Baumalight RC780 auger drive image 3

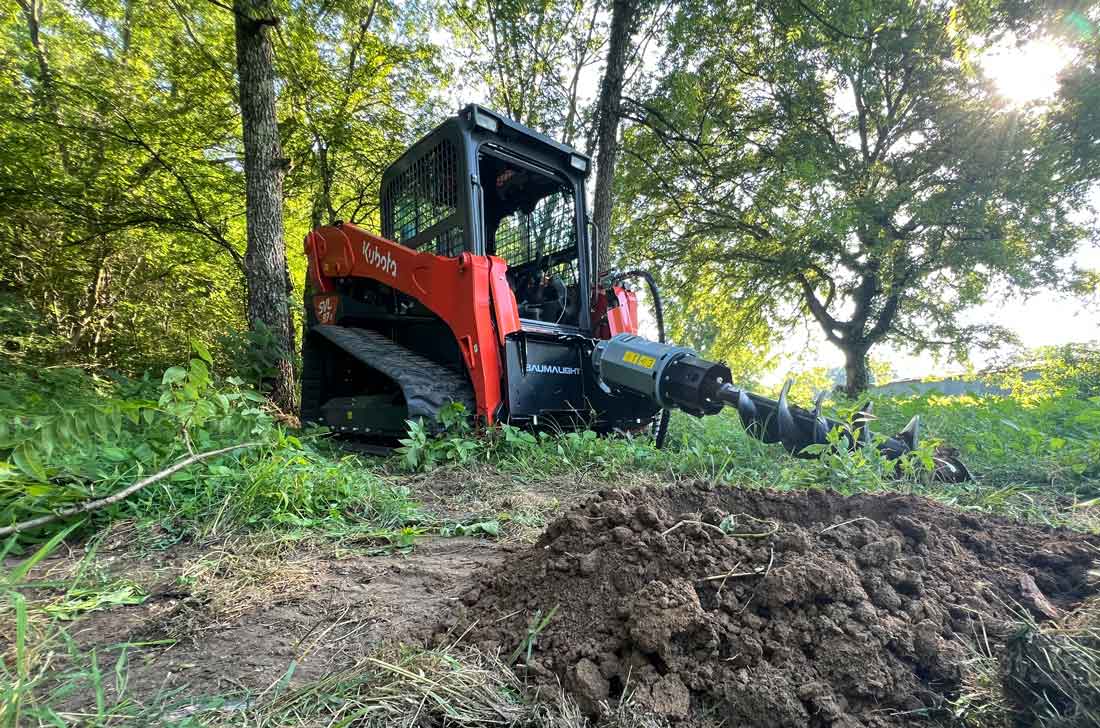

Baumalight RC780 auger drive image 4

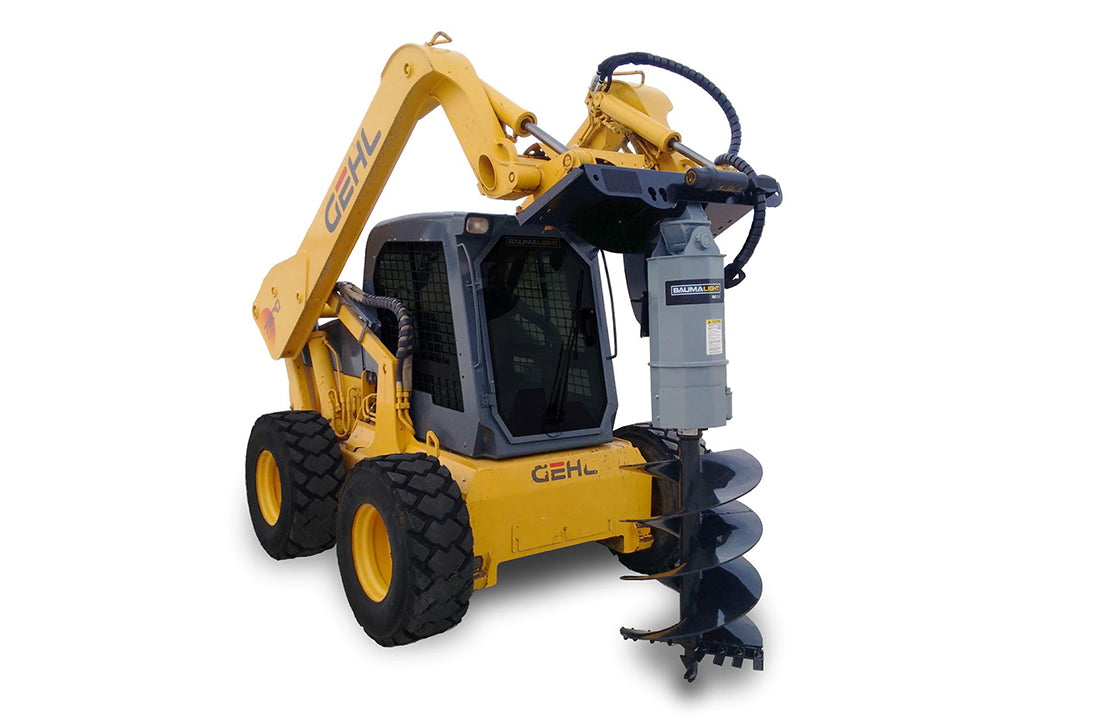

Baumalight RC780 auger drive image 5

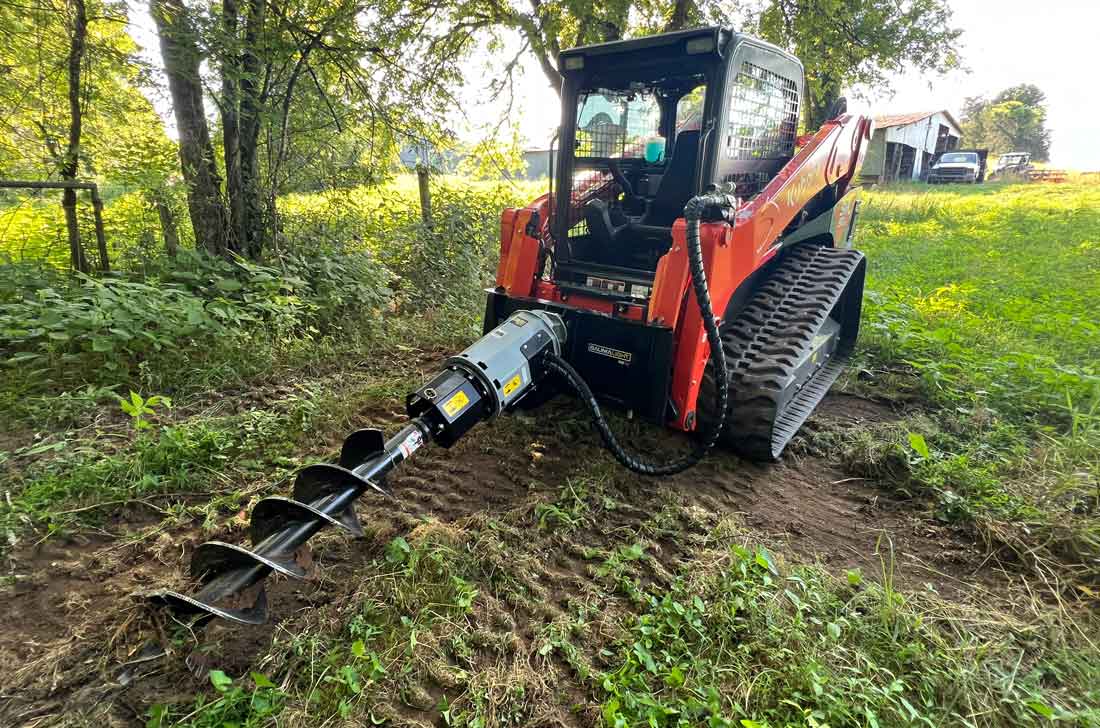

baumalight rc780 contractor series auger drive

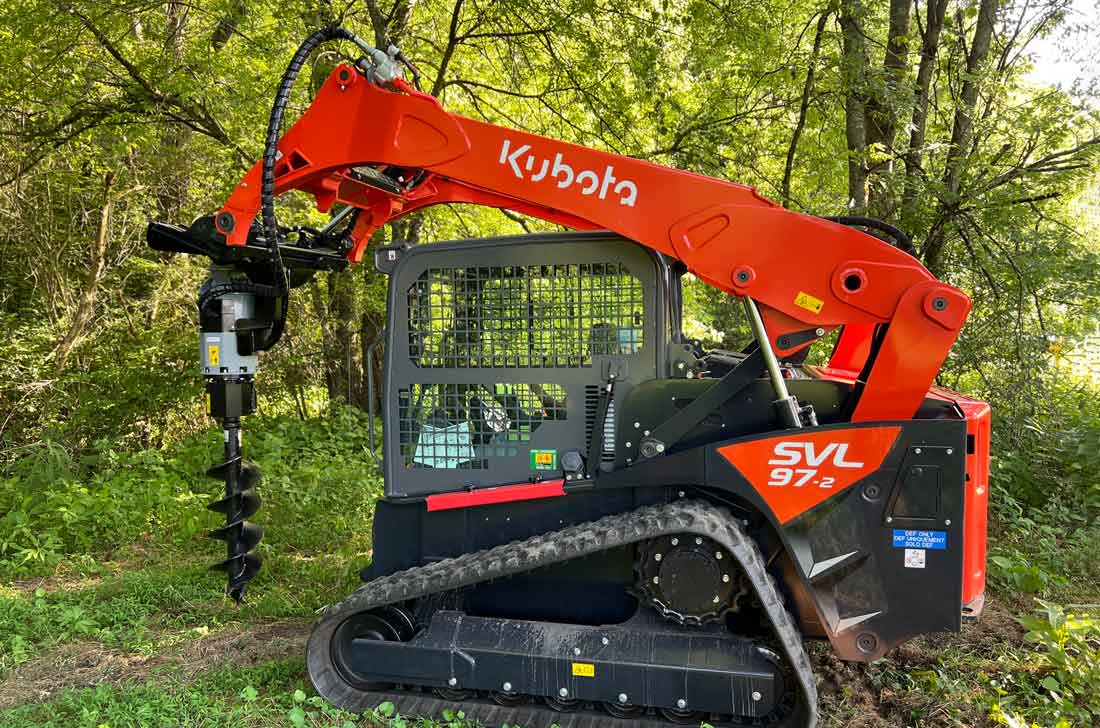

rc780 mounted on kubota tracked loader

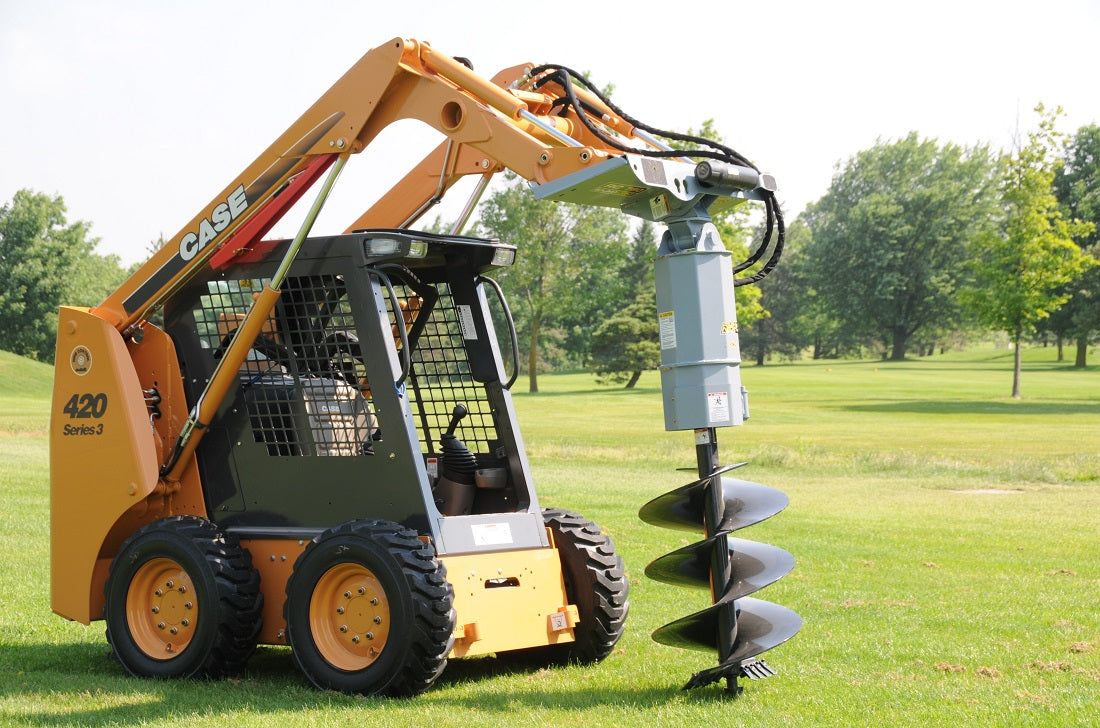

Baumalight hydraulic auger on 420 case skidsteer

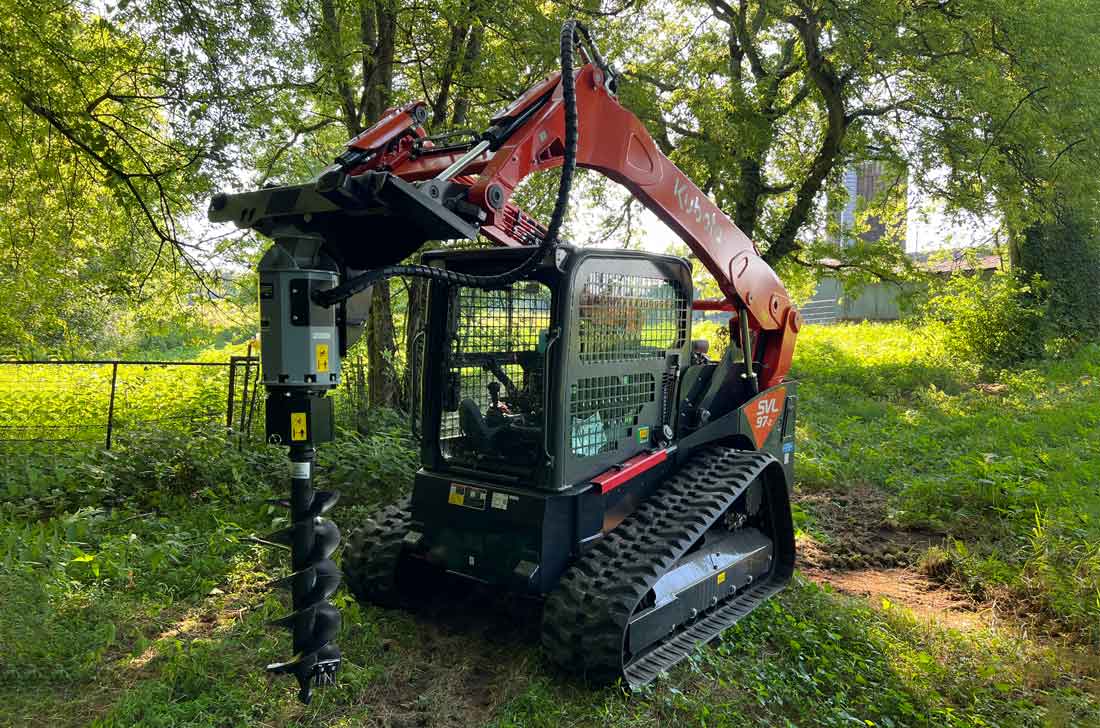

baumalight rc780 with double shielded hoses

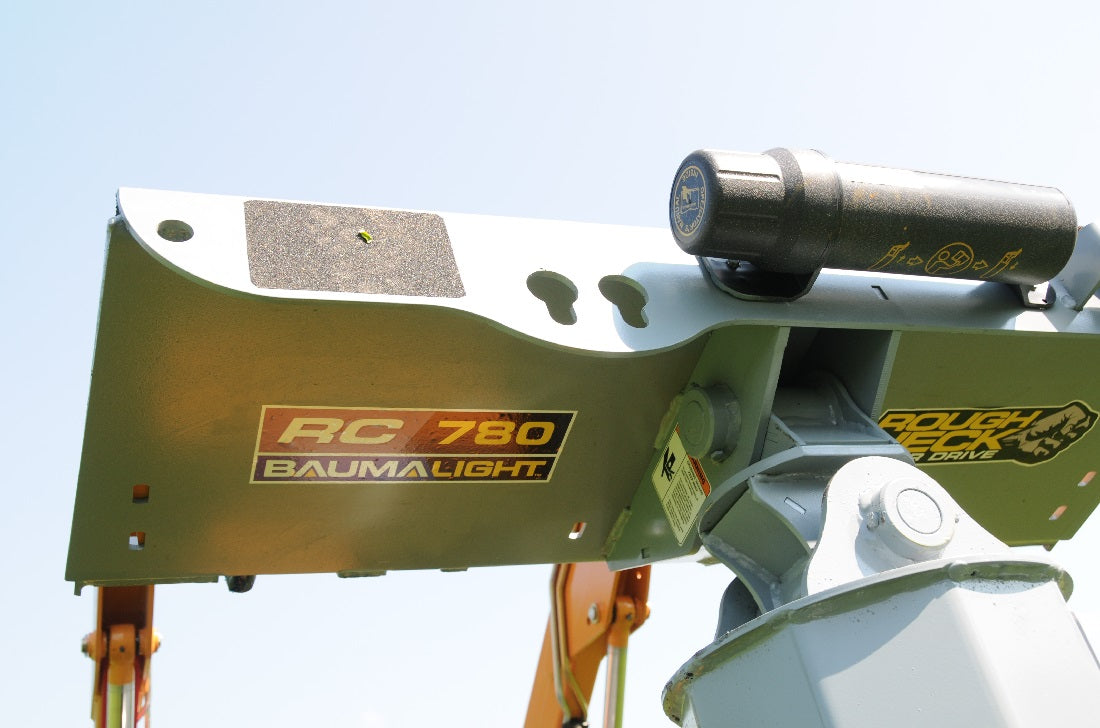

Baumalight RC780 heavy duty universal joint on auger drive

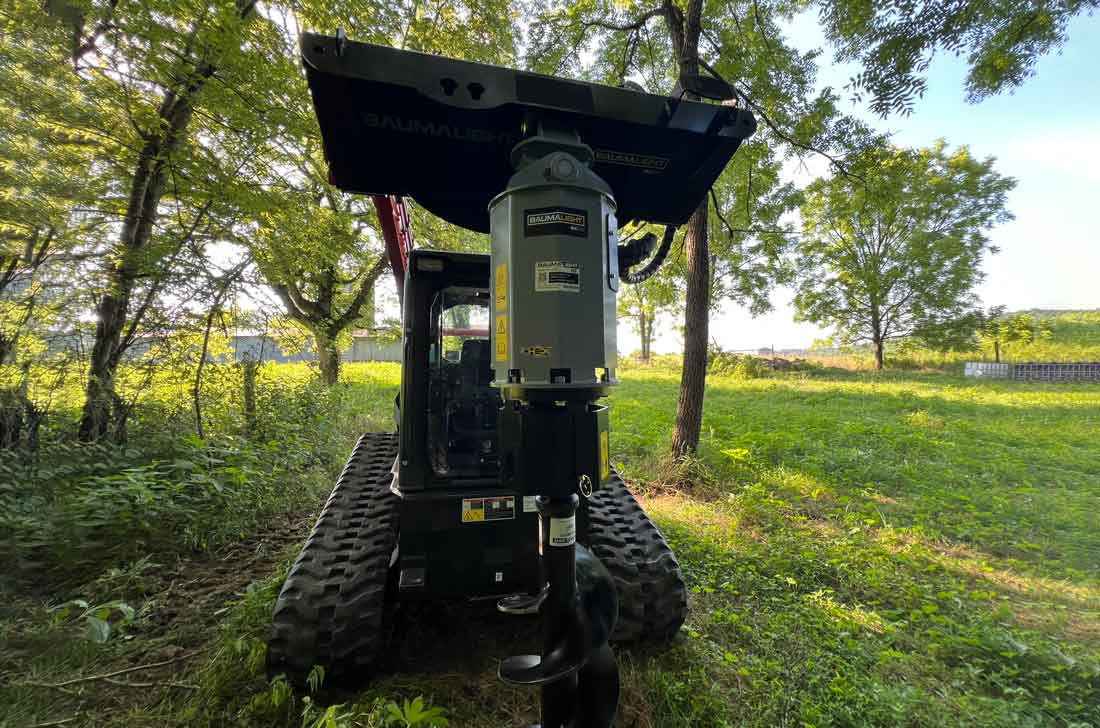

baumalight rc780 with hinged safety shield
Rough neck 2 inch hex drive heavy duty auger
Roll over image to zoom in Click on image to zoom
Baumalight RC780 auger drive image 1Baumalight RC780 auger drive image 2Baumalight RC780 auger drive image 3Baumalight RC780 auger drive image 4Baumalight RC780 auger drive image 5baumalight rc780 contractor series auger driverc780 mounted on kubota tracked loaderBaumalight hydraulic auger on 420 case skidsteerbaumalight rc780 with double shielded hosesBaumalight RC780 heavy duty universal joint on auger drivebaumalight rc780 with hinged safety shieldRough neck 2 inch hex drive heavy duty auger
Baumalight

Baumalight Auger Drive RC780 Contractor Hydraulic

SKU: BML-RC780 Currently In Stock

$4,799.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Manual Find Parts

MOST IMPORTANT FEATURES

HIGH-FLOW CONTRACTOR POWER

DESIGNED FOR 20–40 GPM WITH UP TO 45 GPM MAXIMUM, GIVING HIGHER-FLOW SKID STEERS AND EXCAVATORS A PURPOSE-BUILT DRILLING PLATFORM.

UP TO ~4,000 FT-LB TORQUE

BAUMALIGHT PUBLISHES TORQUE OUTPUT AROUND 4,000 FT-LB IN THE UPPER PRESSURE RANGE FOR DEMANDING SOIL AND LARGE-BIT APPLICATIONS.

HEAVY-DUTY 5:1 PLANETARY

A HEAVY-DUTY PLANETARY DRIVE WITH A 5:1 RATIO BALANCES STRONG TORQUE WITH PRODUCTIVE AUGER SPEED.

LARGE-CARRIER COMPATIBILITY

RATED FOR SKID STEERS UP TO 12,000 LB AND EXCAVATORS UP TO 30,000 LB WITH THE PROPER MOUNTING SYSTEM.

2-INCH HEX DRIVE

THE 2-INCH HEX OUTPUT AND REINFORCED PIVOT SYSTEM ARE BUILT FOR HIGH TORQUE AND REPEATED CONTRACTOR USE.

Description

Key Benefits

Technical Specs

Applications

Baumalight RC780

The Baumalight RC780 Contractor Series hydraulic auger drive is built for larger skid steers and excavators that need higher flow, higher torque, and heavy-duty drilling performance. It is suited to professional post-hole drilling, tree planting, stump planing, and difficult ground conditions.

The RC780 uses a heavy-duty planetary drive with a 5:1 gear ratio and 2-inch hex output. A 1½-inch pivot pin with brass bushings and reinforced contractor frame provide the strength needed for larger carriers and demanding daily work.

Hydraulic requirements are 20–40 GPM with up to 45 GPM maximum. Baumalight publishes performance data from 2,000 to 3,500 PSI, with torque reaching roughly 4,000 ft-lb in the upper pressure range.

The RC780 is rated for skid steers from 3,000 to 12,000 lb and excavators from 4,000 to 30,000 lb. Its heavier 460 lb drive-only weight and broader hydraulic appetite make it the high-capacity option in Baumalight’s current core auger-drive lineup.

Baumalight RC780

  • Contractor Series construction matched to the intended carrier class and workload
  • Hydraulic range matched to the published Baumalight flow and pressure data
  • Heavy-duty universal-joint geometry helps the drive follow the hole during drilling
  • Interchangeable auger-bit platform supports fence, landscape, tree-planting, and specialty applications
  • Mounting plates and hose kits can be configured separately for the customer’s machine

Baumalight RC780

  • Model: RC780
  • Series: Contractor
  • Drive Type: Heavy Duty Planetary
  • Recommended Hydraulic Flow: 20–40 GPM
  • Maximum Hydraulic Flow: 45 GPM
  • Published Pressure Range: 2,000–3,500 PSI
  • Drive Output: 2″ Hex
  • Pivot Pin: 1½″ with Brass Bushings
  • Frame: Heavy Duty
  • Gear Ratio: 5:1
  • Skid Steer Size: 3,000–12,000 lb
  • Excavator Size: 4,000–30,000 lb
  • Shipping Weight: 460 lb (drive only)

Baumalight RC780

  • Fence post drilling
  • Tree planting
  • Deck and footing holes
  • Landscape installation
  • Farm and acreage work
  • Specialty auger-bit applications

Baumalight RC780

ENGINEERED FOR POWER:

  • Contractor Series construction matched to the intended carrier class and workload
  • Hydraulic range matched to the published Baumalight flow and pressure data
  • Heavy-duty universal-joint geometry helps the drive follow the hole during drilling
  • Interchangeable auger-bit platform supports fence, landscape, tree-planting, and specialty applications
  • Mounting plates and hose kits can be configured separately for the customer’s machine

BUILT FOR PRECISION:

  • Controlled hydraulic drive delivers predictable drilling speed and torque
  • Carrier-specific mounting keeps power-fit logic separate from physical mounting
  • Replaceable auger bits allow one drive unit to cover multiple hole diameters and applications
  • Double-shielded hydraulic hoses improve abrasion and puncture protection where equipped
  • Published flow and pressure ranges support machine-by-machine Power Fit matching

READY FOR THE FIELD:

  • Built for post holes, fence lines, landscaping, and tree-planting work
  • Compatible with skid-steer and excavator mounting systems appropriate to the model
  • Drive-only shipping weight keeps the core unit straightforward to freight and handle
  • Service and repair information is supported by Baumalight’s right-to-repair resources
  • Auger bits, mounting plates, and hoses are selected separately to complete the working package
