BAUMALIGHT

Log Splitter

For Skid Steers

14" × 8" Splitting Cone

Baumalight

Baumalight Log Splitter RSS380 For Skid Steers

SKU: RSS380-D002507 Currently In Stock

Sale price$7,299.99 USD

MOST IMPORTANT FEATURES

PLANETARY SPLITTING POWER

THE HYDRAULIC PLANETARY DRIVE TRANSFERS CARRIER POWER TO THE ROTATING CONE, PROVIDING A PRACTICAL WAY TO BREAK DOWN LOGS WITH CONTROLLED POSITIONING FROM A COMPATIBLE MACHINE.

COMPLETE CONE PACKAGE

THE LISTED PACKAGE INCLUDES THE RSS380 DRIVE AND COMPLETE D002507 CONE ASSEMBLY, WITH A 14-INCH LENGTH AND 8-INCH DIAMETER FOR PROGRESSIVE LOG SPLITTING.

REPLACEABLE HARDENED TIP

THE HARDENED ENTRY TIP STARTS THE CONE INTO THE WOOD AND CAN BE REPLACED AS IT WEARS, HELPING KEEP THE SPLITTING ASSEMBLY SERVICEABLE OVER REPEATED USE.

PROTECTED DRIVE CONSTRUCTION

THE HEAVY-DUTY ENCASEMENT, POWDER-COATED FINISH, AND PROTECTIVE SHAFT FLANGE HELP THE ATTACHMENT WITHSTAND OUTDOOR WORK WHILE SHIELDING THE MAIN SHAFT SEAL FROM WOOD DEBRIS.

SKID STEER CONNECTION

THE SKID STEER MOUNTING PLATE AND INCLUDED HYDRAULIC HOSES SIMPLIFY SETUP ON A COMPATIBLE CARRIER. CONFIRM COUPLERS, FLOW, PRESSURE, AND CASE-DRAIN REQUIREMENTS BEFORE STARTING WORK.

Description

Key Benefits

Technical Specs

Applications

Baumalight RSS380

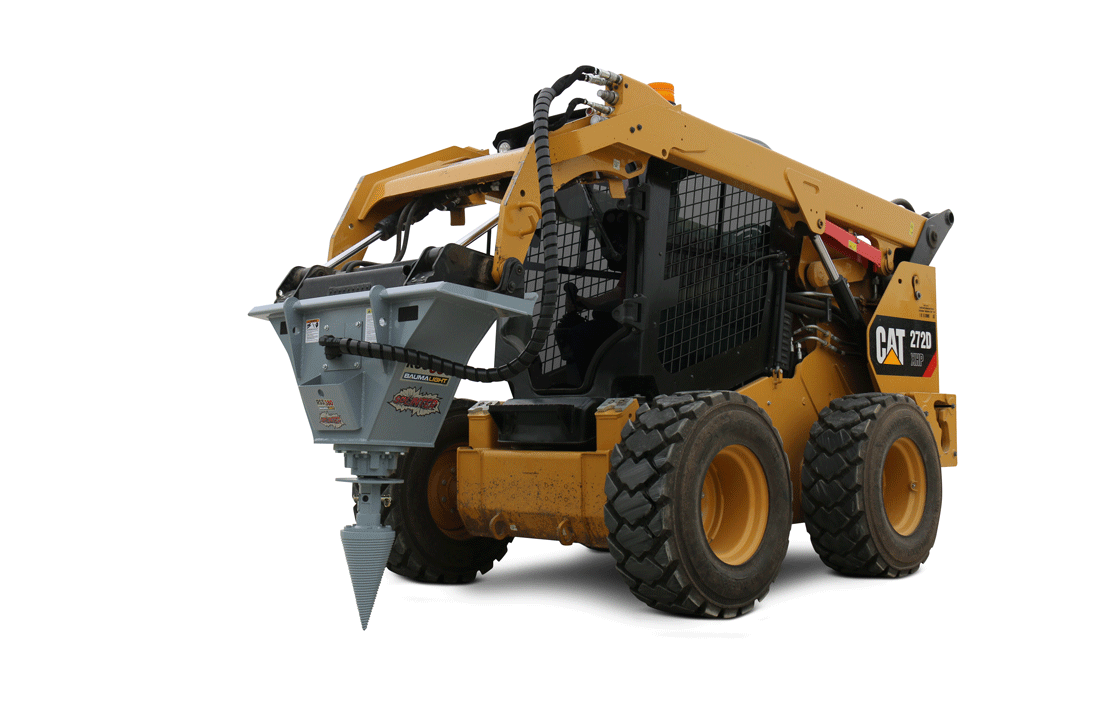

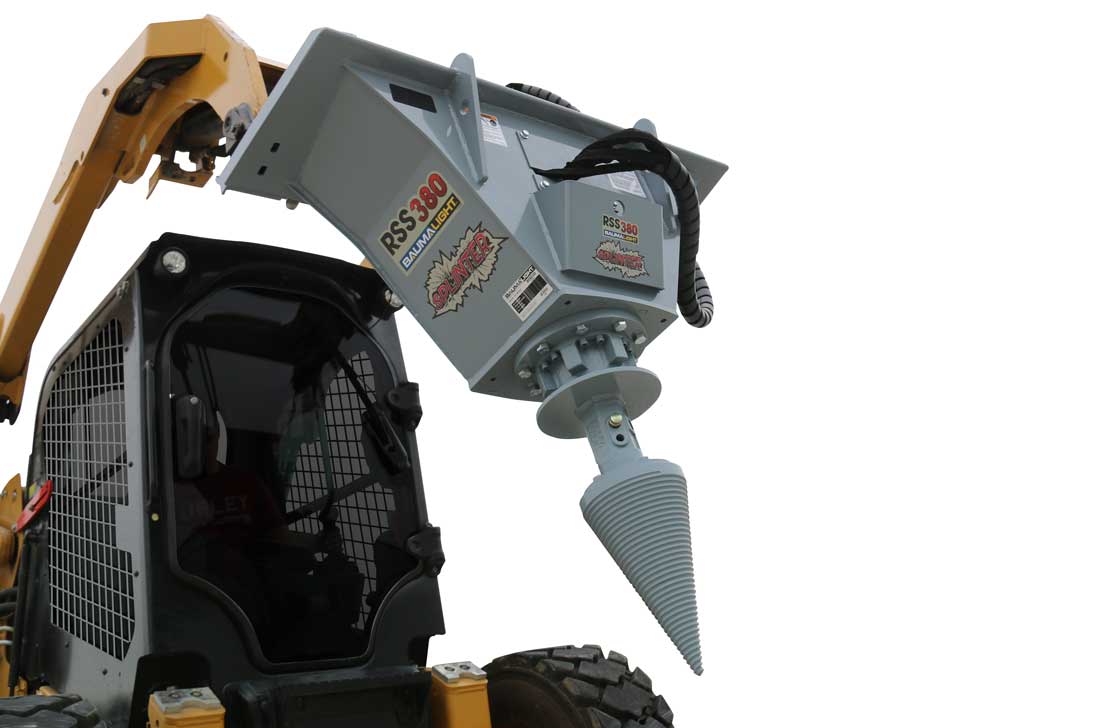

The Baumalight RSS380 Log Splitter turns a compatible skid steer into a practical tool for breaking down logs and bulky woody material. Its hydraulically powered planetary drive delivers rotational force to a 14-inch-long, 8-inch-diameter splitting cone, allowing the operator to approach material horizontally or vertically as the work area permits. This package includes the RSS380 drive and the complete D002507 splitting cone assembly, so the listed price covers both essential components.

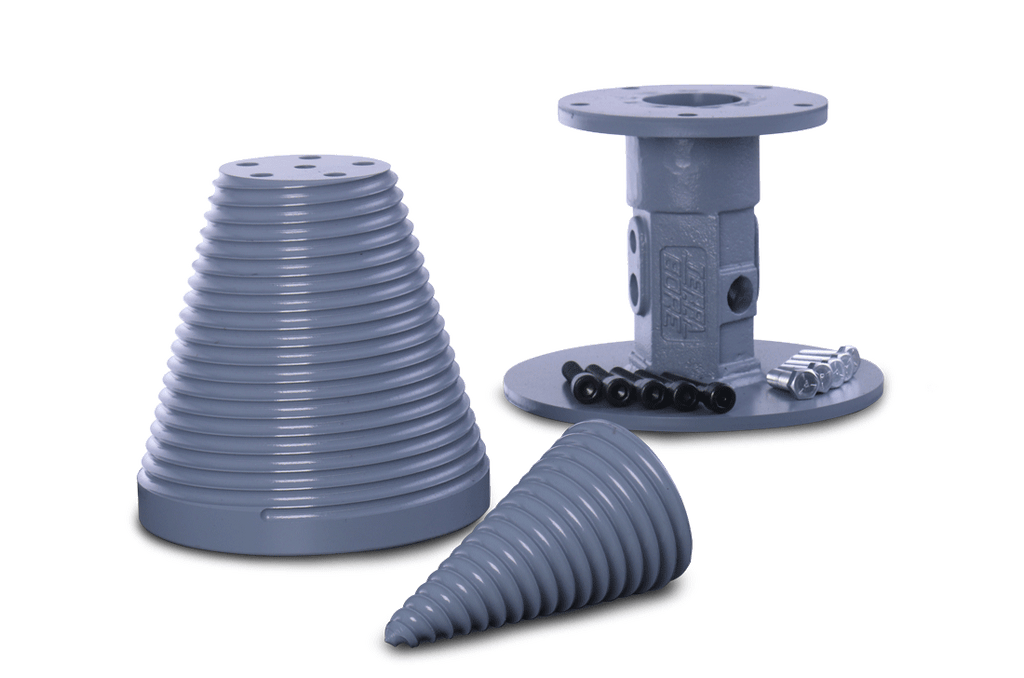

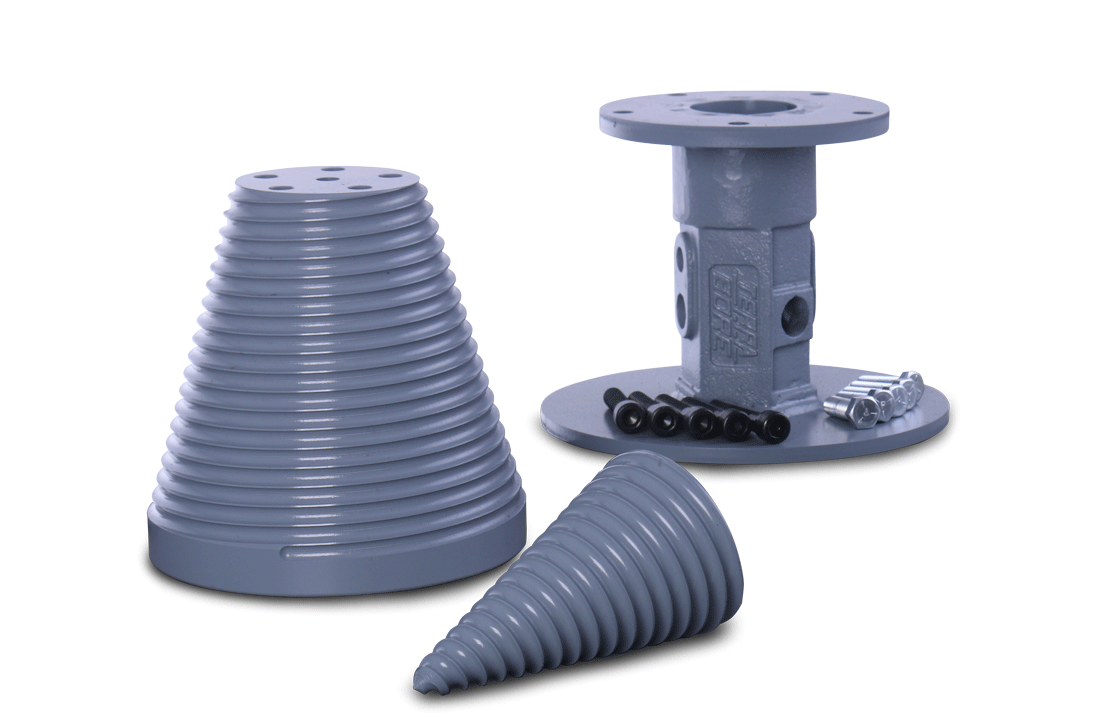

Two helical spirals guide the cone into the wood, starting at a hardened, replaceable entry tip. Rather than relying on a conventional cylinder and wedge, the rotating cone opens the log as it advances. The 2-inch hex connection securely couples the cone to the drive, while a protective flange helps shield the main shaft seal from debris. The heavy-duty drive encasement and powder-coated finish support repeated work in outdoor log-processing environments.

Match the RSS380 to a carrier supplying a recommended 20–40 GPM at 2,500–3,000 PSI; the maximum limits are 45 GPM and 3,500 PSI. A case drain is recommended below 3,000 PSI and required at 3,000 PSI and above. The skid steer mounting plate and included hydraulic hoses simplify attachment setup, while carrier connections and hydraulic compatibility must be verified before use. No separate 12-volt electrical supply is required.

Built for farms, contractors, and property-maintenance crews, the RSS380 helps reduce large pieces of wood before further handling or processing. The skid steer mounting arrangement keeps the splitter readily accessible for controlled positioning from the cab, subject to the carrier's operating limits and operator's manual. Compatible optional tools can extend the drive's usefulness, but are purchased separately. Splitting results depend on wood species, grain, moisture, and carrier performance; match the carrier to the required mounting and hydraulic specifications.

Baumalight RSS380

• Complete Drive and Cone – The package includes the model-specific drive and complete splitting cone assembly, making the supplied components and purchase price clear.

• Progressive Cone Engagement – Two helical spirals advance the splitting cone into the log, with a hardened entry tip that can be replaced as wear develops.

• Hydraulic Planetary Power – The carrier's hydraulics power a planetary drive with a 2-inch hex connection, without requiring a separate 12-volt electrical supply.

• Flexible Log Approach – The attachment can engage wood horizontally or vertically, helping operators select a controlled approach for the material and work area.

• Drive Protection – A heavy-duty encasement, protective shaft flange, and powder-coated finish help support service life in outdoor log-processing work.

• Familiar Skid Steer Setup – The skid steer plate and included hoses simplify connection; verify carrier couplers, hydraulic settings, and case-drain arrangements before use.

Baumalight RSS380

• Model: RSS380
• Package: RSS380 drive + D002507 complete cone assembly
• Carrier: Compatible skid steer
• Cone Dimensions: 14" long × 8" diameter
• Cone Connection: 2-inch hex
• Drive Type: Hydraulically powered planetary
• Recommended Flow: 20–40 GPM
• Maximum Flow: 45 GPM
• Recommended Pressure: 2,500–3,000 PSI
• Maximum Pressure: 3500 PSI
• Case Drain: Recommended below 3,000 PSI; required at 3,000 PSI and above
• Mount: Skid steer mounting plate
• Hydraulic Hoses: Included
• Electrical Requirement: No separate 12V supply required
• Entry Tip: Hardened and replaceable
• Optional Tools: Compatible tools sold separately

Baumalight RSS380

  • Breaking down logs before further handling or processing
  • Farm and rural-property wood management
  • Contractor log-processing tasks after tree removal
  • Reducing bulky woody material during property cleanup
  • Controlled log splitting using a compatible skid steer

Baumalight Log Splitter Service & Support

Baumalight RSS380

ENGINEERED FOR POWER:

  • Hydraulically powered planetary drive transfers carrier power directly to the splitting cone
  • Recommended 20–40 GPM flow supports compatible skid steer hydraulic systems
  • 2-inch hex connection couples the included cone to the drive
  • Dual helical spirals advance the cone into the log for progressive splitting
  • Heavy-duty encasement and powder-coated construction protect the drive during outdoor work

BUILT FOR PRECISION:

  • Included 14-inch-long, 8-inch-diameter cone starts the split with a defined entry point
  • Hardened replaceable tip provides a serviceable wear surface at the cone's leading end
  • Horizontal or vertical engagement allows the approach to suit the log and work area
  • Protective shaft flange helps shield the main seal from wood debris
  • No separate 12-volt electrical connection is needed to run the attachment

READY FOR THE FIELD:

  • Skid steer mounting plate provides a familiar attachment interface
  • Hydraulic hoses are included with the skid steer drive
  • Verify the carrier's couplers, flow, and pressure before connecting
  • Case drain is required at 3,000 PSI and above, and recommended below that pressure
  • Drive and complete splitting cone are included; additional tools are sold separately
