BAUMALIGHT

Log Splitter

For Excavators

14" × 8" Splitting Cone

Request QuoteAdd To Cart

Baumalight Log Splitter RSX780 For Excavators

Baumalight RSX780 log splitter product view 1
Baumalight RSX780 log splitter product view 2

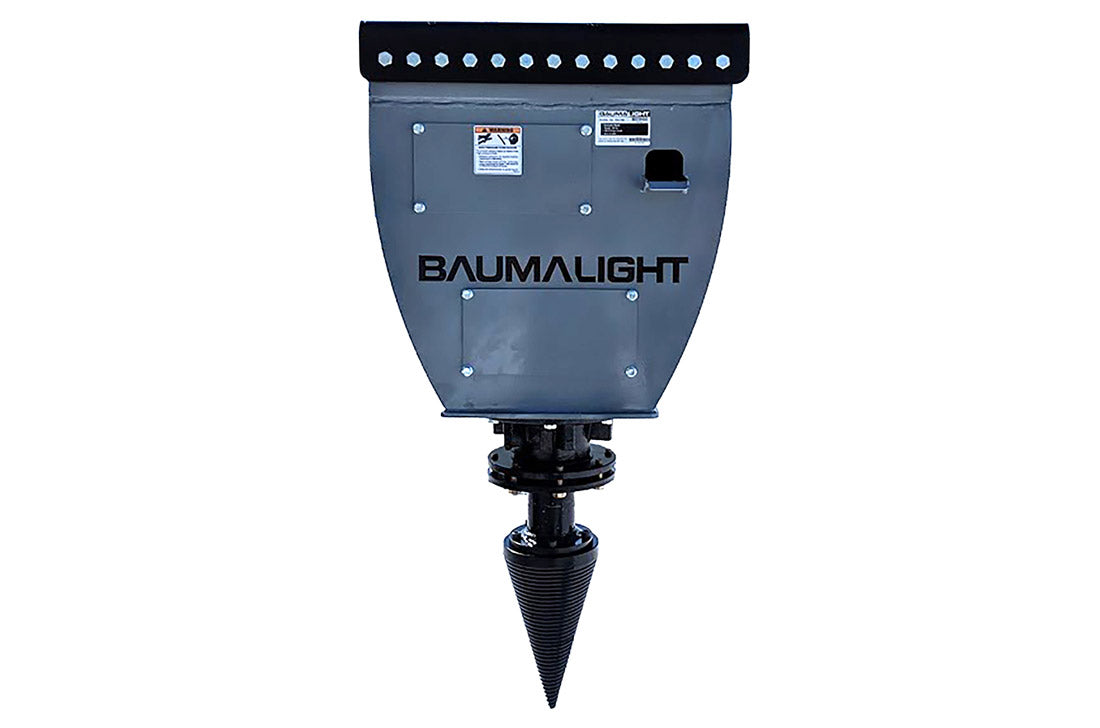

Baumalight RSX780 log splitter product view 3

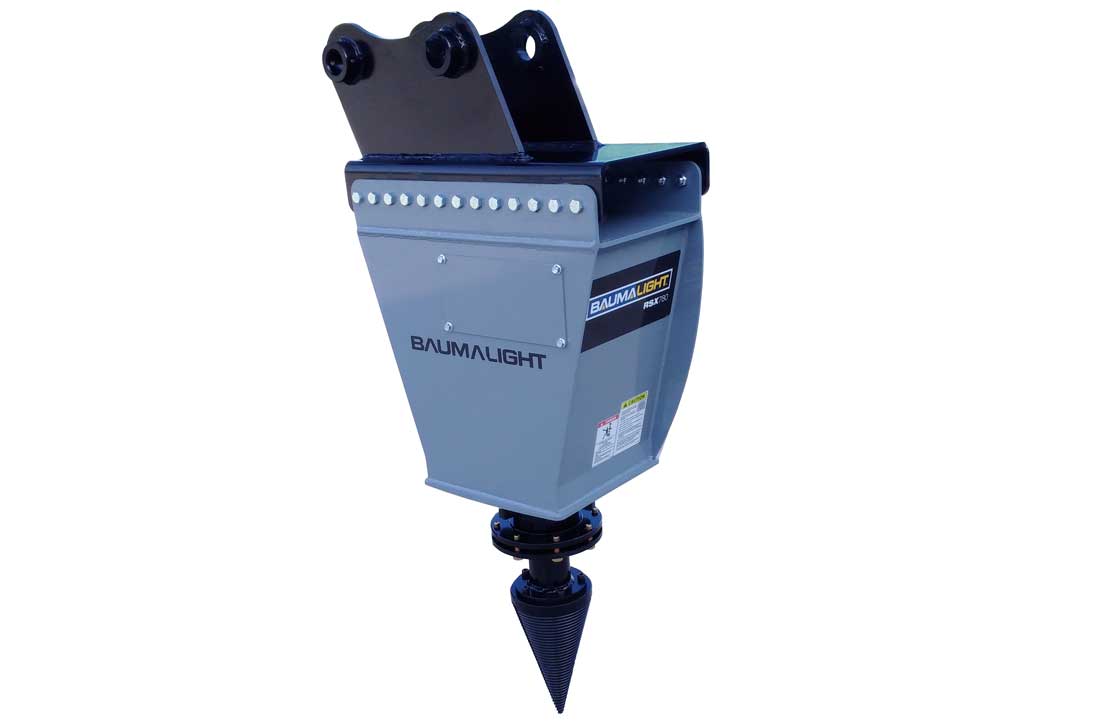

Baumalight RSX780 log splitter product view 4

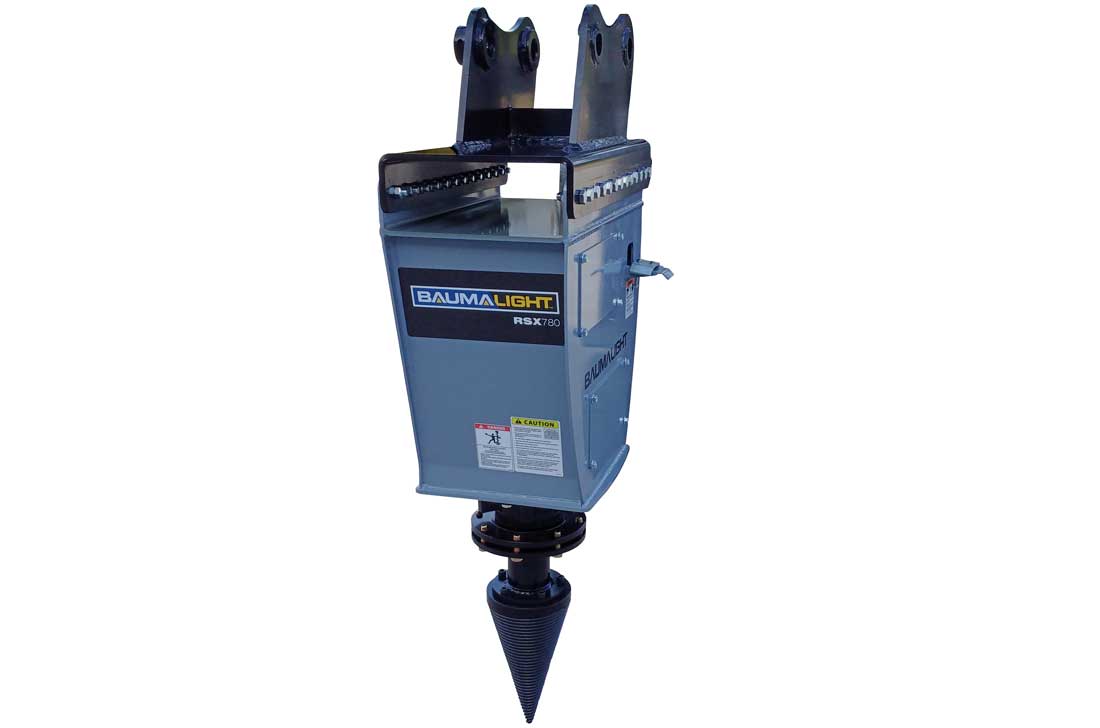

Baumalight RSX780 log splitter product view 5

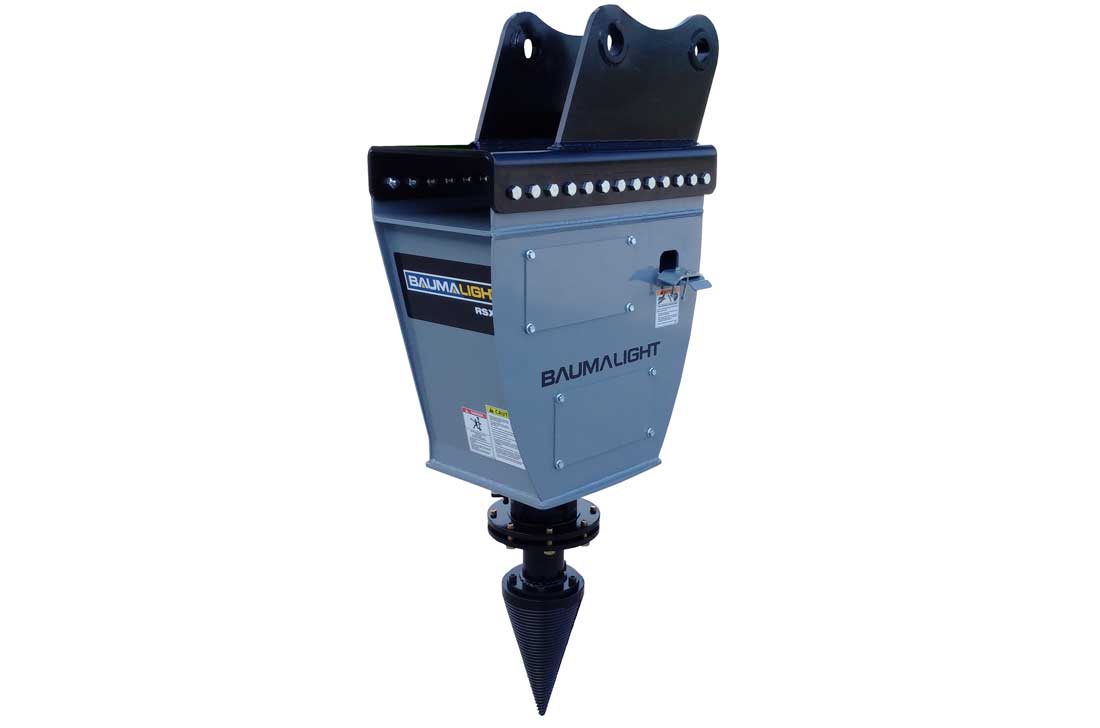

Baumalight RSX780 log splitter product view 6

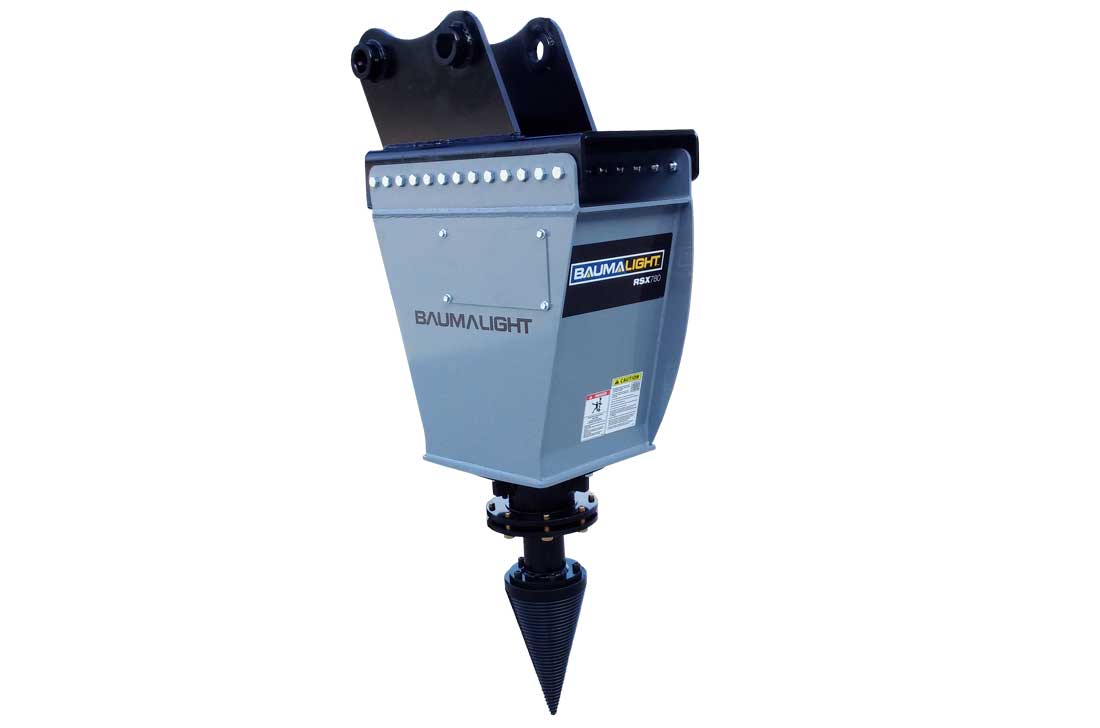

Baumalight RSX780 log splitter product view 7
Roll over image to zoom in Click on image to zoom
Baumalight RSX780 log splitter product view 1Baumalight RSX780 log splitter product view 2Baumalight RSX780 log splitter product view 3Baumalight RSX780 log splitter product view 4Baumalight RSX780 log splitter product view 5Baumalight RSX780 log splitter product view 6Baumalight RSX780 log splitter product view 7
Baumalight

Baumalight Log Splitter RSX780 For Excavators

SKU: RSX780-D003935 Currently In Stock

$11,149.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Manual Find Parts

MOST IMPORTANT FEATURES

PLANETARY SPLITTING POWER

THE HYDRAULIC PLANETARY DRIVE TRANSFERS CARRIER POWER TO THE ROTATING CONE, PROVIDING A PRACTICAL WAY TO BREAK DOWN LOGS WITH CONTROLLED POSITIONING FROM A COMPATIBLE MACHINE.

COMPLETE CONE PACKAGE

THE LISTED PACKAGE INCLUDES THE RSX780 DRIVE AND COMPLETE D003935 CONE ASSEMBLY, WITH A 14-INCH LENGTH AND 8-INCH DIAMETER FOR PROGRESSIVE LOG SPLITTING.

REPLACEABLE HARDENED TIP

THE HARDENED ENTRY TIP STARTS THE CONE INTO THE WOOD AND CAN BE REPLACED AS IT WEARS, HELPING KEEP THE SPLITTING ASSEMBLY SERVICEABLE OVER REPEATED USE.

PISTON MOTOR AND GAUGE

A BENT-AXIS PISTON MOTOR POWERS THE DRIVE, WHILE THE PRESSURE GAUGE HELPS MONITOR WORKLOAD DURING OPERATION WITHIN HYDRAULIC FLOW AND PRESSURE LIMITS.

BOLT-ON EXCAVATOR INTERFACE

THE BOLT-ON INTERFACE ACCEPTS A CARRIER-SPECIFIC EXCAVATOR ADAPTER FOR CONTROLLED POSITIONING. A CARRIER MATCHED EXCAVATOR MOUNT IS INCLUDED. HYDRAULIC HOSES ARE SOLD SEPARATELY AND MUST MATCH YOUR MACHINE.

Description

Key Benefits

Technical Specs

Applications

Baumalight RSX780

The Baumalight RSX780 Log Splitter turns a compatible excavator into a practical tool for breaking down logs and bulky woody material. Its hydraulically powered planetary drive delivers rotational force to a 14-inch-long, 8-inch-diameter splitting cone, allowing the operator to approach material horizontally or vertically as the work area permits. This package includes the RSX780 drive and the complete D003935 splitting cone assembly, and a carrier-matched excavator mount, all included in the listed price.

Two helical spirals guide the cone into the wood, starting at a hardened, replaceable entry tip. Rather than relying on a conventional cylinder and wedge, the rotating cone opens the log as it advances. The 8-bolt flange connection securely couples the cone to the drive, while a protective flange helps shield the main shaft seal from debris. An integrated pressure gauge helps the operator monitor workload, and a bent-axis piston motor supplies power for demanding hydraulic applications.

Match the RSX780 to a carrier supplying a recommended 20–55 GPM at 2,500–4,500 PSI; the maximum limits are 65 GPM and 5,000 PSI. A case drain is required and is crucial to correct motor operation. Baumalight specifies a maximum 18-ton excavator for splitter use, with a lower 15-ton limit when operating an optional planer. No separate 12-volt electrical supply is required.

Built for farms, contractors, and property-maintenance crews, the RSX780 helps reduce large pieces of wood before further handling or processing. The drive-and-cone package includes a carrier-matched bolt-on excavator mount. Hydraulic hoses are sold separately. Compatible optional tools can extend the drive's usefulness, but are purchased separately. Splitting results depend on wood species, grain, moisture, and carrier performance; match the carrier to the required mounting and hydraulic specifications.

Baumalight RSX780

• Complete Drive and Cone – The package includes the model-specific drive, complete splitting cone assembly, and a carrier-matched excavator mount.

• Progressive Cone Engagement – Two helical spirals advance the splitting cone into the log, with a hardened entry tip that can be replaced as wear develops.

• Hydraulic Planetary Power – The carrier's hydraulics power a planetary drive with a 8-bolt flange connection, without requiring a separate 12-volt electrical supply.

• Flexible Log Approach – The attachment can engage wood horizontally or vertically, helping operators select a controlled approach for the material and work area.

• Workload Visibility – An integrated pressure gauge provides a visible indication of workload, while the bent-axis piston motor supports the model's specified hydraulic range.

• Carrier-Specific Mounting – The bolt-on interface uses the included carrier-matched excavator mount. Confirm fit, hoses, and the 18-ton maximum carrier limit before ordering.

Baumalight RSX780

• Model: RSX780
• Package: RSX780 drive + D003935 complete cone assembly + Excavator Mount
• Carrier: Excavator; maximum 18 tons for splitter use
• Cone Dimensions: 14" long × 8" diameter
• Cone Connection: 8-bolt flange
• Drive Type: Hydraulically powered planetary
• Recommended Flow: 20–55 GPM
• Maximum Flow: 65 GPM
• Recommended Pressure: 2,500–4,500 PSI
• Maximum Pressure: 5000 PSI
• Case Drain: Required; crucial to motor operation
• Mount: Bolt-on interface; carrier-matched excavator mount included
• Hydraulic Hoses: Not included; purchased separately
• Electrical Requirement: No separate 12V supply required
• Entry Tip: Hardened and replaceable
• Optional Tools: Compatible tools sold separately
• Baumalight Connection Code: A03
• Maximum Carrier with Optional Planer: 15 tons
• Motor: Bent-axis piston
• Pressure Gauge: Included

Baumalight RSX780

  • Breaking down logs before further handling or processing
  • Farm and rural-property wood management
  • Contractor log-processing tasks after tree removal
  • Reducing bulky woody material during property cleanup
  • Controlled log splitting using a compatible excavator

Baumalight Log Splitter Service & Support

Baumalight RSX780

ENGINEERED FOR POWER:

  • Hydraulically powered planetary drive transfers carrier power directly to the splitting cone
  • Recommended 20–55 GPM flow supports compatible excavator hydraulic systems
  • 8-bolt flange connection couples the included cone to the drive
  • Dual helical spirals advance the cone into the log for progressive splitting
  • Bent-axis piston motor supports the model's higher hydraulic pressure range

BUILT FOR PRECISION:

  • Included 14-inch-long, 8-inch-diameter cone starts the split with a defined entry point
  • Hardened replaceable tip provides a serviceable wear surface at the cone's leading end
  • Horizontal or vertical engagement allows the approach to suit the log and work area
  • Protective shaft flange helps shield the main seal from wood debris
  • Integrated pressure gauge lets the operator monitor hydraulic workload

READY FOR THE FIELD:

  • Designed for splitter use on compatible excavators up to 18 tons
  • Carrier-matched bolt-on excavator mount is included
  • Hydraulic hoses are purchased separately and must suit the carrier
  • Required case-drain connection must be installed before operation
  • Drive and complete splitting cone are included; additional tools are sold separately
