BAUMALIGHT

Stump Planer

For Excavators

20–55 GPM Hydraulics

Request QuoteAdd To Cart

Baumalight Stump Planer RSX780 For Excavators

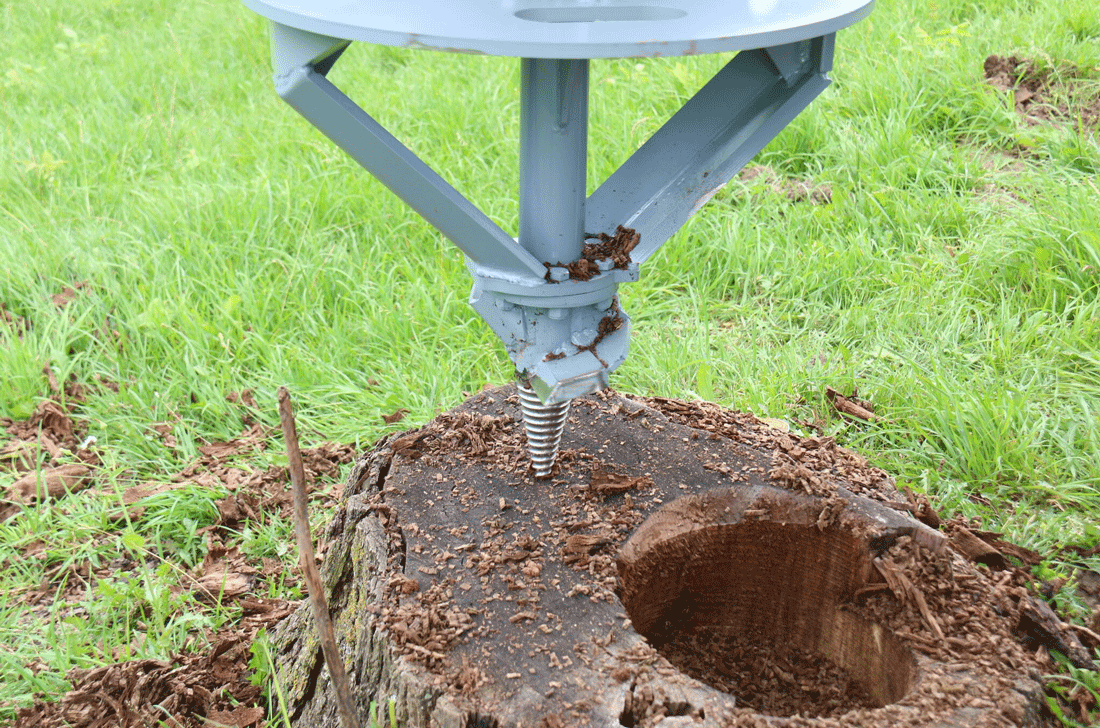

Baumalight excavator stump planer — manufacturer representative image

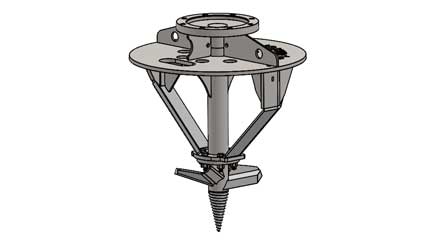

RSX780 stump planer — Large stump planer bit

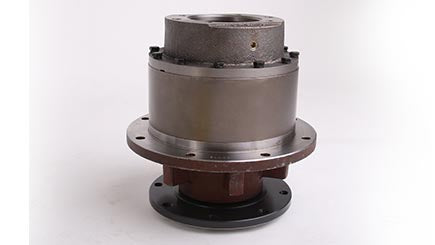

RSX780 stump planer — Planetary Drive

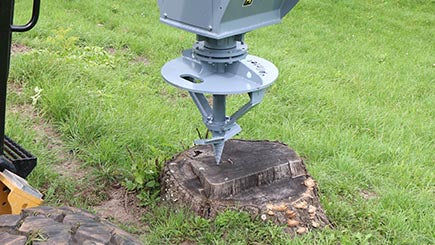

RSX780 stump planer — Heavy Duty Sharpenable Blades
RSX780 stump planer — Bolt On Excavator Adaptor
Roll over image to zoom in Click on image to zoom
Baumalight excavator stump planer — manufacturer representative imageRSX780 stump planer — Large stump planer bitRSX780 stump planer — Planetary DriveRSX780 stump planer — Heavy Duty Sharpenable BladesRSX780 stump planer — Bolt On Excavator Adaptor
Baumalight

Baumalight Stump Planer RSX780 For Excavators

SKU: RSX780-D003381 Currently In Stock

$11,149.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Manual Find Parts

MOST IMPORTANT FEATURES

CONTROLLED PLANETARY POWER

HYDRAULIC PLANETARY DRIVE USES THE CARRIER'S OIL FLOW TO DELIVER DELIBERATE, LOW SPEED STUMP PLANING WITHOUT AN ADDITIONAL 12V ELECTRICAL CONNECTION AT THE ATTACHMENT.

SHARPENABLE STANDARD BLADES

STANDARD HEAD AR500 LEADING BLADES AND AR400 CLEANUP BLADES CAN BE SHARPENED, WHILE THE HARDENED ENTRY TIP IS REPLACEABLE TO SUPPORT ONGOING CUTTING PERFORMANCE.

LOW SPEED CHIP CONTROL

LOW RPM CUTTING PRODUCES COARSE CHIPS AND HELPS LIMIT SCATTER AROUND THE WORK AREA, MAKING CONTROLLED STUMP REMOVAL USEFUL FOR LANDSCAPING AND PROPERTY RESTORATION.

EXCAVATOR FITMENT

DESIGNED FOR EXCAVATORS WITH A 15 TON MAXIMUM CARRIER LIMIT FOR PLANING. A CARRIER MATCHED EXCAVATOR MOUNT IS INCLUDED. HYDRAULIC HOSES ARE SOLD SEPARATELY.

FLANGE MOUNT CUTTING HEAD

D003381 PLANER HEAD USES AN EIGHT BOLT FLANGE CONNECTION, WITH ELEVEN INCH LEADING KNIFE SPAN AND TWENTY ONE INCH CLEANUP KNIFE SPAN FOR STANDARD PLANING.

Description

Key Benefits

Technical Specs

Applications

Baumalight RSX780

The Baumalight RSX780 Stump Planer turns a compatible excavator into a controlled stump-removal tool for landscape restoration, property maintenance, and clearing after tree removal. Its hydraulic planetary drive works at low speed, shaving the stump into coarse chips rather than producing the fine material associated with a high-speed cutting wheel. This approach helps limit chip scatter around the work area while giving the operator a deliberate cutting process for urban properties, rural yards, and confined jobsites.

This package pairs the RSX780 drive with the D003381 flange-mount planer head, with a carrier-matched excavator mount included in the selected configuration. The standard head combines a hardened replaceable entry tip with sharpenable AR500 leading blades and AR400 cleanup blades. Its leading knives span 11 inches and its cleanup knives span 21 inches.

Use a compatible carrier within the 15 tons maximum weight limit for planing, with recommended hydraulic flow of 20–55 GPM. The piston motor supports recommended operating pressure of 2,500–4,500 PSI, and a dedicated case drain is required. The drive-and-head package includes a carrier-matched bolt-on excavator mount. Hydraulic hoses are sold separately. Confirm the coupler, plumbing, and carrier setup before ordering.

For stumps wider than the standard head, begin at one edge and make successive cuts around the perimeter before finishing the reduced center with the cleanup blades. This sequence helps avoid leaving an outer ridge that is difficult to remove. Heavy-duty housing, a protective powder-coated finish, and main-shaft seal protection support ongoing field use. Consult the supplied manual for operation and maintenance, maintain the required work-area clearance.

Baumalight RSX780

Controlled stump removal — Low-speed planing helps keep chips close to the work area and produces coarse material for easier cleanup.

Serviceable standard cutting head — Replaceable entry tip and sharpenable AR500 leading and AR400 cleanup blades allow maintenance without replacing the complete standard head.

Hydraulic planetary power — Recommended flow of 20–55 GPM lets you match the drive to a suitable carrier; no additional 12V electrical connection is required.

Clear carrier compatibility — Planer use is limited to 15 tons maximum for planing. These limits differ from the same drive's log-splitter ratings.

Adaptable excavator mounting — The included bolt-on excavator mount is matched to the carrier. Confirm the coupler and hose requirements before ordering.

Protected drive components — Heavy-duty housing, powder coating, and a protective flange at the main shaft seal help support ongoing field service.

Baumalight RSX780

Model: RSX780
Package: RSX780 drive + D003381 standard planer head + Excavator Mount
Carrier weight for planing: 15 tons maximum for planing
Recommended hydraulic flow: 20–55 GPM
Maximum hydraulic flow: 65 GPM
Recommended operating pressure: 2,500–4,500 PSI
Maximum hydraulic pressure: 5,000 PSI
Case drain: Dedicated case drain required
Drive type: Hydraulic planetary with piston motor
Tool connection: 8-bolt flange
Standard head: D003381 flange-mount planer
Standard leading knives: 11-inch span; sharpenable AR500 steel
Standard cleanup knives: 21-inch span; sharpenable AR400 steel
Mounting: Carrier-matched bolt-on excavator mount included
Hydraulic hoses: Sold separately; carrier plumbing must be confirmed
Electrical connection: No 12V supply required
Entry tip: Hardened, replaceable tip
Blade service: Sharpenable leading and cleanup blades
Additional tools: Log splitter and auger tools sold separately

Baumalight RSX780

  • Stump removal after tree clearing on residential and commercial properties.
  • Landscape restoration before replanting or establishing a usable yard.
  • Rural property maintenance around former tree and shelterbelt locations.
  • Controlled stump removal in confined areas with an appropriately matched carrier.
  • Contractor and municipal cleanup where coarse chips and deliberate cutting are preferred.

Baumalight Stump Planer Service & Support

Baumalight RSX780

ENGINEERED FOR POWER:

  • Hydraulic planetary drive delivers controlled cutting power at low operating speed.
  • Recommended 20–55 GPM flow matches the drive to compatible carrier hydraulics.
  • Piston motor supports recommended pressure of 2,500–4,500 PSI.
  • Package includes the D003381 flange-mount planer head in the standard configuration.
  • Heavy-duty encasement and powder coating support demanding outdoor stump-removal work.

BUILT FOR PRECISION:

  • The standard head's hardened, replaceable tip draws the cutting tool into the stump.
  • Sharpenable AR500 leading blades and AR400 cleanup blades extend the standard head's serviceability.
  • Standard leading knives span 11 inches; cleanup knives span 21 inches.
  • Work around the perimeter of oversized stumps before finishing the reduced center.
  • Low-speed cutting creates coarse chips and helps reduce scatter around the working area.

READY FOR THE FIELD:

  • Carrier limit: 15 tons maximum for planing; verify suitability specifically for stump planing.
  • Carrier-matched bolt-on excavator mount is included in the package.
  • Hydraulic hoses and carrier-specific plumbing are required and sold separately.
  • Dedicated case drain required.
  • Grease and inspect the drive and cutting head as part of routine maintenance.
