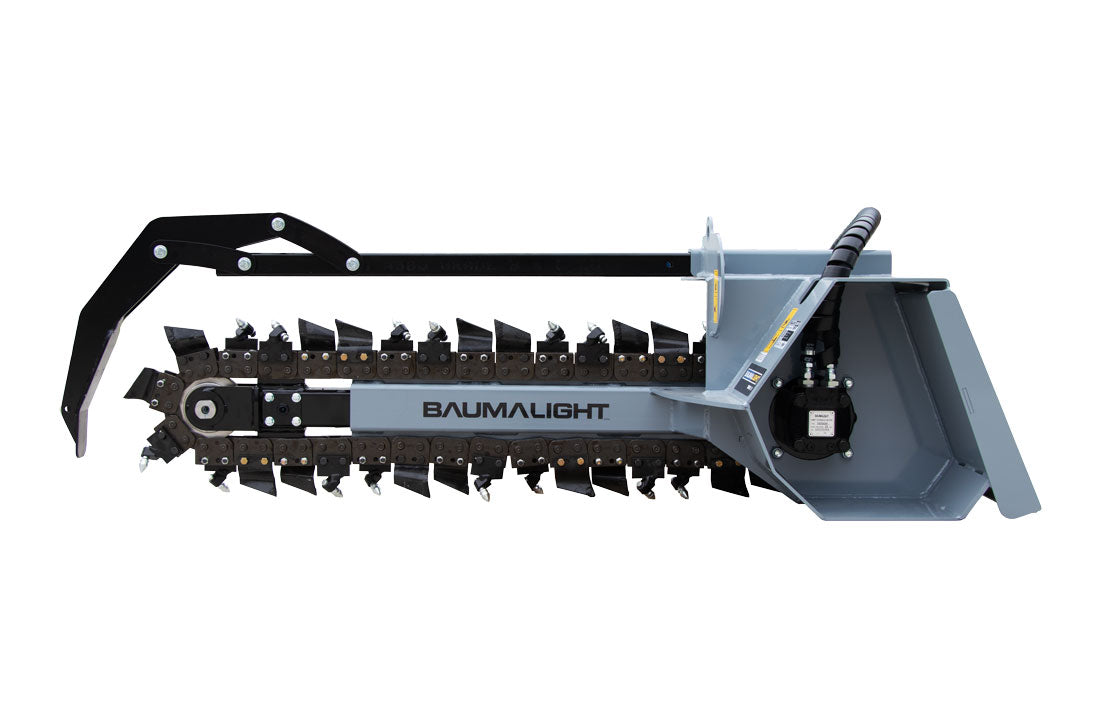

Baumalight TNM336B with planetary drive system

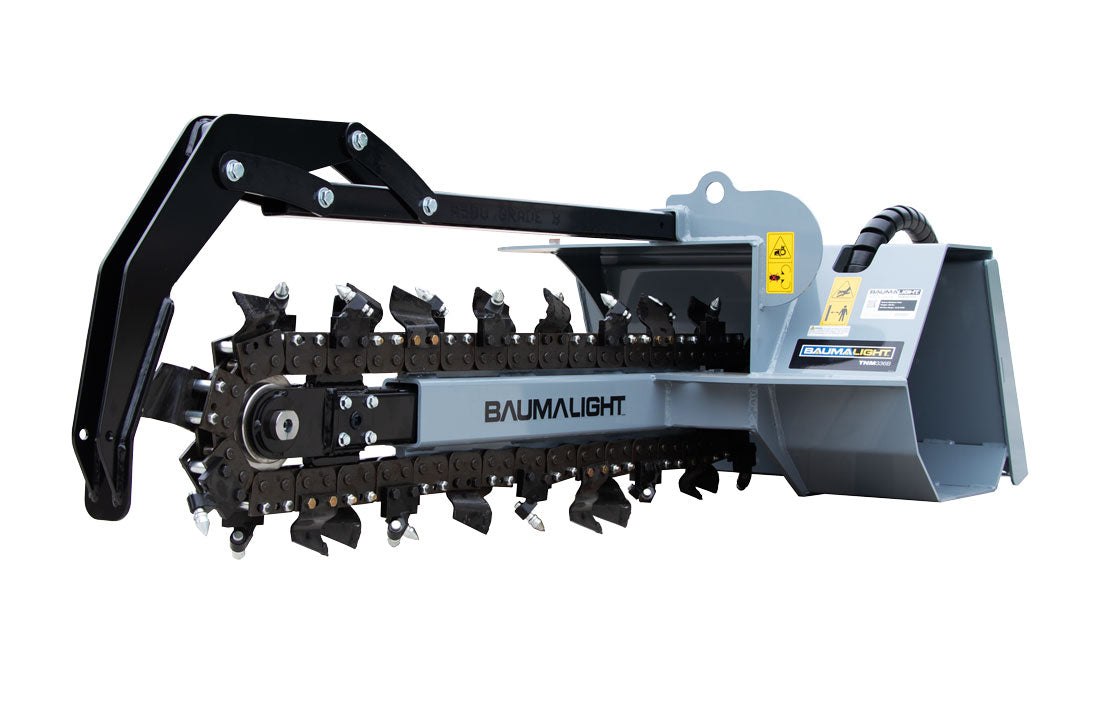

TNM336B Trencher with adjustable chain tension

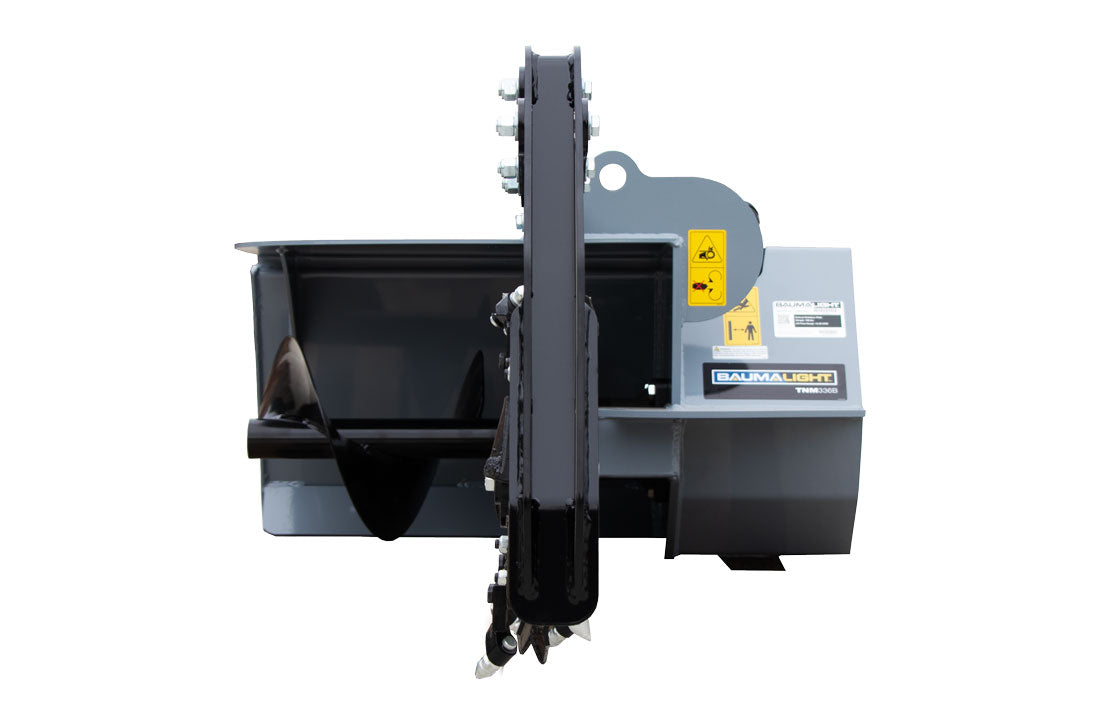

Baumalight TNM336B Trencher with side auger

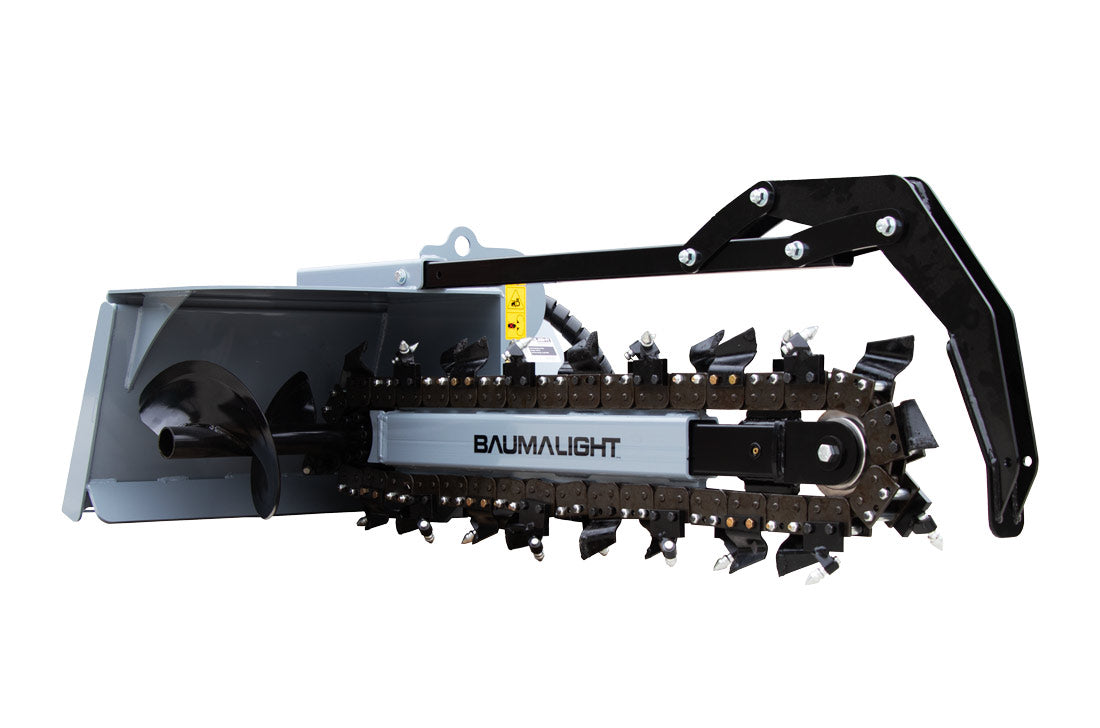

Baumalight TNM336B Trencher for Bobcat miniskidsteer

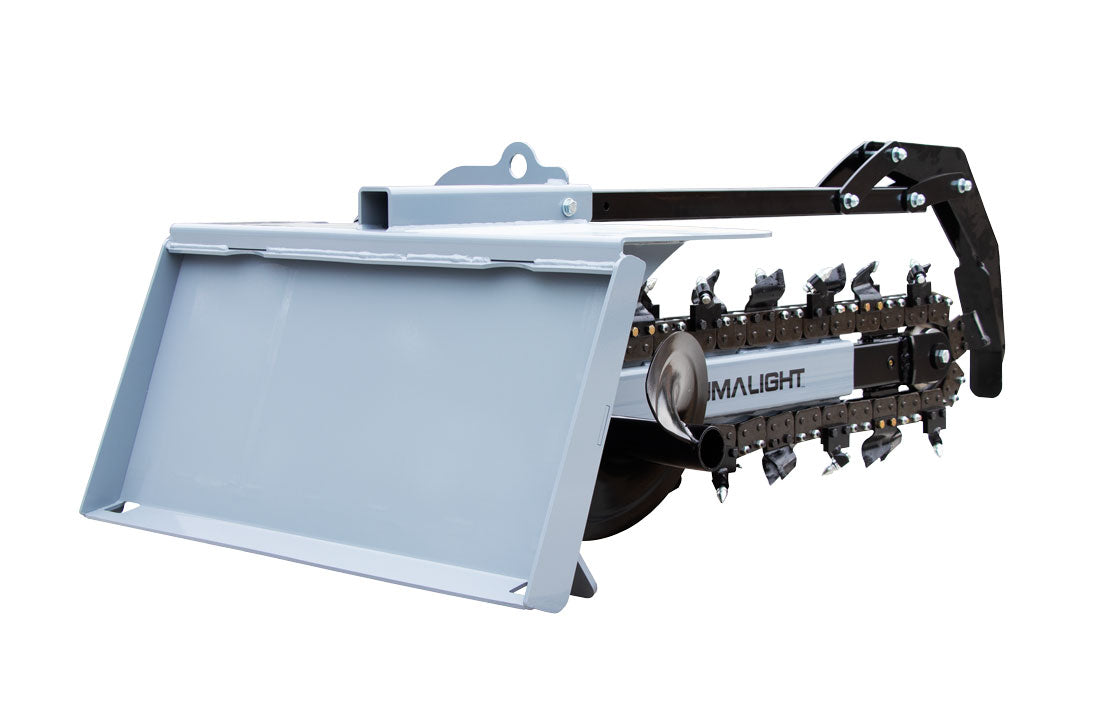

Baumalight TNM336B with crumb scraper bar

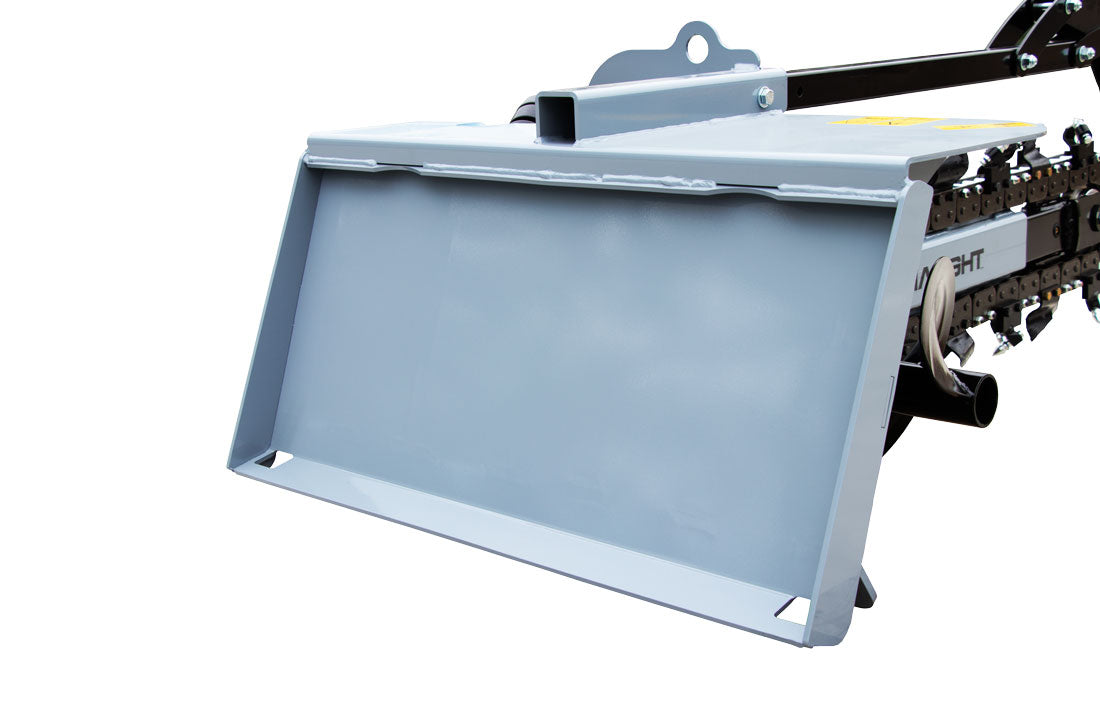

TNM336B with durable powder coated finish

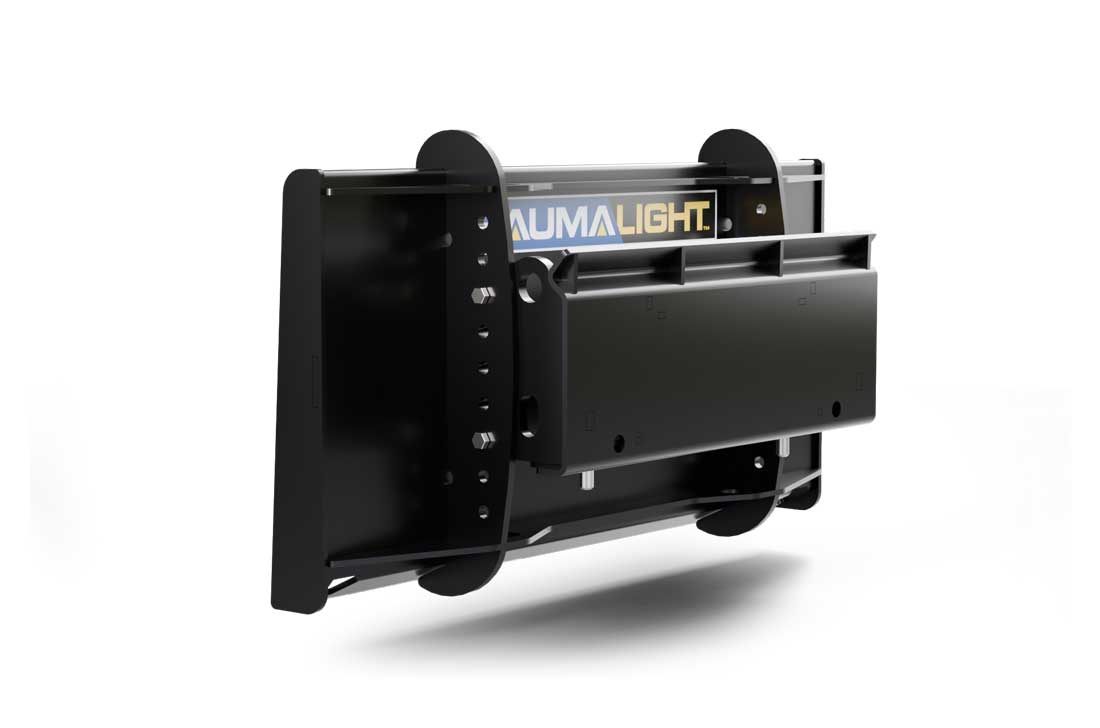

Bobcat mini skidtsteer mounting plate

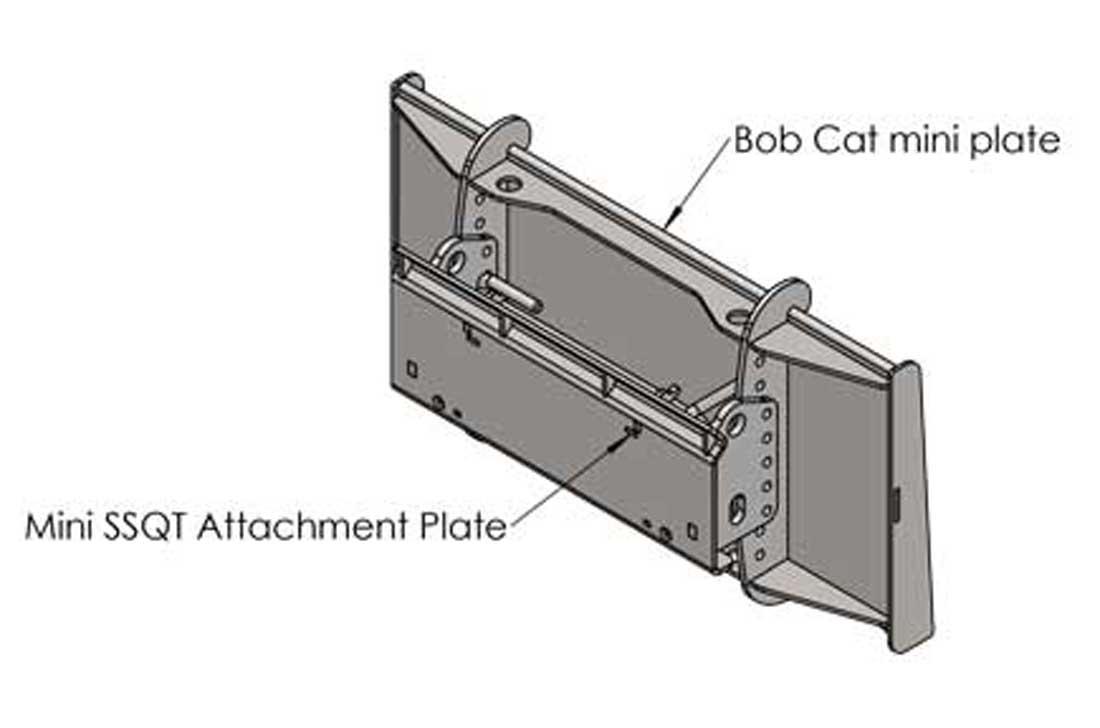

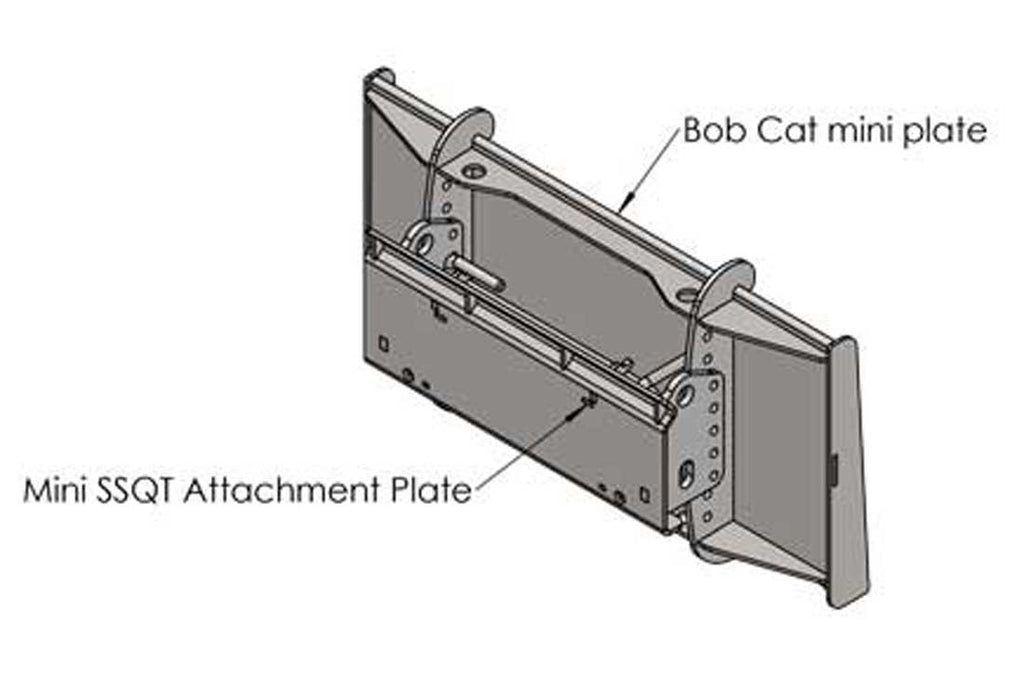

Optional D006290 bobcat cheater adapter plate

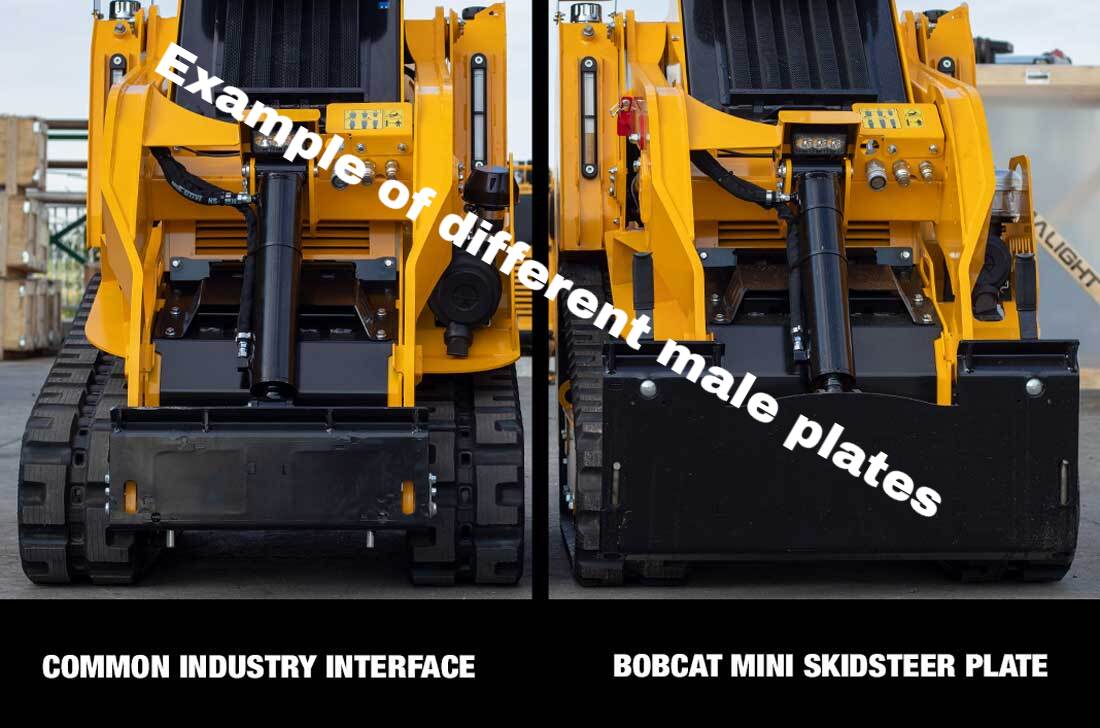

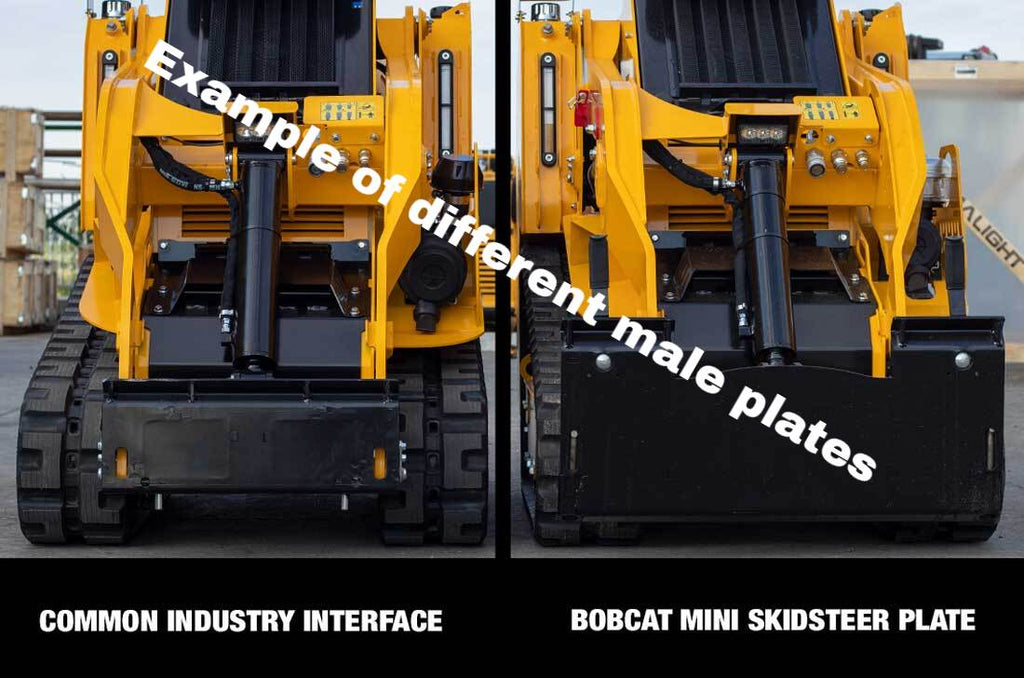

Baumalight mounting plates comparison front view
Baumalight mounting plates comparison top view

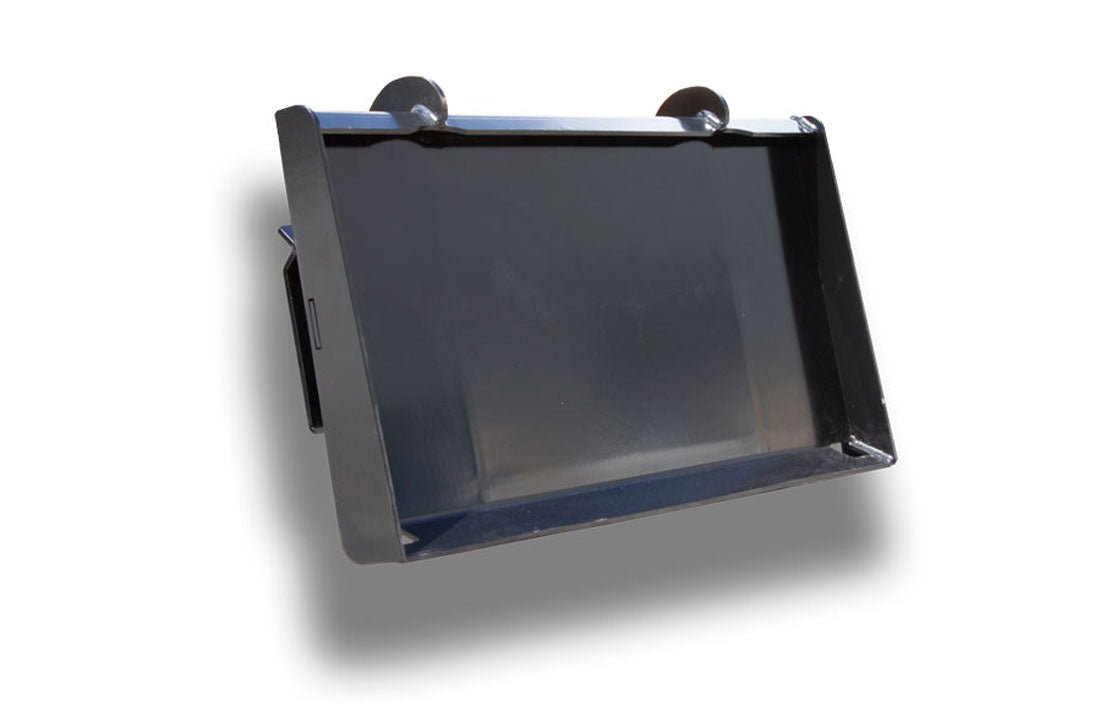

Optional mounting plate for mini skidsteer
Bobcat mini skidtsteer mounting plate
Optional D006290 bobcat cheater adapter plate
Baumalight mounting plates comparison front view
Baumalight mounting plates comparison top view
Optional mounting plate for mini skidsteer
Roll over image to zoom in Click on image to zoom
Baumalight TNM336B with planetary drive systemTNM336B Trencher with adjustable chain tensionBaumalight TNM336B Trencher with side augerBaumalight TNM336B Trencher for Bobcat miniskidsteerBaumalight TNM336B with crumb scraper barTNM336B with durable powder coated finishBobcat mini skidtsteer mounting plateOptional D006290 bobcat cheater adapter plateBaumalight mounting plates comparison front viewBaumalight mounting plates comparison top viewOptional mounting plate for mini skidsteerBobcat mini skidtsteer mounting plateOptional D006290 bobcat cheater adapter plateBaumalight mounting plates comparison front viewBaumalight mounting plates comparison top viewOptional mounting plate for mini skidsteer
Baumalight

Baumalight Trencher TNM336B for Bobcat Mini Skid Steers

SKU: BML-TNM336B-S3604 Currently In Stock

$6,699.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Manual Find Parts

MOST IMPORTANT FEATURES

DEFINED DIGGING DEPTH

CUT TRENCHES UP TO 36 INCHES DEEP FOR IRRIGATION, DRAINAGE, AND UNDERGROUND SERVICE PROJECTS.

HYDRAULIC CHAIN DRIVE

DIRECT DRIVE DRIVE DELIVERS 6,703 LB-IN OF CHAIN TORQUE AT 3,000 PSI WITHOUT A SEPARATE ROLLER-CHAIN TRANSMISSION.

CHAIN CONFIGURATIONS

CHOOSE 4–6-INCH CHAIN WIDTHS WITH CUP TOOTH OR 50/50 ROCK-AND-CUP TOOTH CUTTING CONFIGURATIONS.

CLEANER TRENCHING

THE SIDE AUGER MOVES SPOIL ASIDE WHILE THE HINGED CRUMB SCRAPER BAR SWEEPS LOOSE MATERIAL INTO THE DIGGING CHAIN.

ACCESSIBLE TENSIONING

A GREASE-CYLINDER CHAIN TENSIONER TAKES UP SLACK WITH A GREASE GUN FOR STRAIGHTFORWARD ROUTINE ADJUSTMENT.

Description

Key Benefits

Technical Specs

Applications

Baumalight TNM336B

The Baumalight TNM336B Trencher for bobcat mini skid steers cuts trenches up to 36 inches deep with 4–6-inch chain widths. Built for irrigation, drainage, and utility-line installation projects, it gives property owners, landscapers, and contractors a defined digging envelope for laying new underground services. Select the chain width and tooth style that match your trenching application.

The direct drive hydraulic drive delivers power to the digging-chain sprocket without a separate roller-chain transmission. Chain torque reaches 6,703 lb-in at 3,000 PSI, supported by a 1:10 taper hardened shaft. Hydraulic relief provides over-torque protection, while cup tooth and mixed rock-and-cup tooth chain configurations let you match the cutting system to soil conditions.

A side auger moves excavated soil away from the cutting action and keeps it alongside the trench for backfilling. The included hinged crumb scraper bar sweeps loose material into the moving chain to help clear the trench bottom. A precision-machined solid steel nose runs on dual tapered roller bearings, with a protective washer, rubber seal, and accessible grease fitting supporting the nose assembly.

The TNM336B operates with 7–18 GPM hydraulic flow and connects through the included Bobcat mini skid steer plate. The recommended carrier weight range is 1,500–4,000 lb. A grease-cylinder chain tensioner lets you take up chain slack with a grease gun, keeping routine tension adjustment accessible between trenching jobs.

Baumalight TNM336B

36-inch trenching depth supports planned underground-line installation within the attachment’s working envelope.

Direct drive drive delivers hydraulic power directly to the chain sprocket without a separate roller-chain transmission.

4–6-inch chain widths and two tooth styles let crews match the digging configuration to the installation and soil.

The side auger keeps excavated spoil close enough for backfilling while clearing the cutting path.

The hinged crumb scraper bar helps move loose material out of the trench bottom.

Grease-gun tension adjustment and accessible nose lubrication support routine maintenance between jobs.

Baumalight TNM336B

Model: TNM336B

Attachment type: Trencher

Carrier: Bobcat Mini Skid Steers

Maximum trench depth: 36 in.

Chain widths: 4–6 in.

Tooth configurations: Cup tooth or 50/50 rock & cup tooth

Drive type: Direct drive

Chain torque at 3,000 PSI: 6,703 lb-in

Hydraulic flow: 7–18 GPM

Over-torque protection: Hydraulic relief

Main shaft: 1:10 taper hardened shaft

Carrier horsepower: 10–25 HP

Carrier weight range: 1,500–4,000 lb

Attachment weight: 535 lb (base trencher; configuration varies)

Mount included: Bobcat mini skid steer plate

Chain tensioner: Grease-cylinder adjustment

Crumb scraper bar: Included

Side auger: Included

Baumalight TNM336B

  • Irrigation and water-line trench preparation.
  • Drainage-pipe and rural property improvement projects.
  • Electrical conduit and communications-line trenching.
  • Landscape construction and contractor utility installation.
  • New underground service routes within the attachment’s digging limits.

SEE BAUMALIGHT TRENCHERS AT WORK

Baumalight TNM336B

ENGINEERED FOR POWER:

  • The direct drive hydraulic drive powers the digging-chain sprocket without a separate roller-chain transmission.
  • Chain torque reaches 6,703 lb-in at 3,000 PSI for driving the cutting teeth through the soil.
  • The 7–18 GPM hydraulic flow range defines the output needed from a suitable carrier.
  • A 1:10 taper hardened shaft supports the digging-chain drive assembly under trenching loads.
  • Hydraulic relief provides over-torque protection for the drive system during demanding digging conditions.

BUILT FOR PRECISION:

  • Up to 36 inches of trenching depth provides a defined digging envelope for underground service installation.
  • Choose 4–6-inch chain widths to match the trench opening to your pipe, cable, or drainage application.
  • The side auger moves soil clear of the digging action and leaves it alongside the trench for backfilling.
  • The hinged crumb scraper bar sweeps loose soil toward the chain to help clear the bottom of the trench.
  • Cup tooth and 50/50 rock-and-cup tooth configurations provide cutting options for different soil conditions.

READY FOR THE FIELD:

  • The solid steel nose is precision machined and supported by dual tapered roller bearings for trenching loads.
  • A protective washer and rubber bearing seal help shield the nose assembly from rocks, dirt, and moisture.
  • An accessible grease fitting provides a service point for lubricating the nose bearing assembly.
  • The grease-cylinder tensioner pushes the roller nose forward so chain slack can be adjusted with a grease gun.
  • The included Bobcat mini skid steer plate provides the connection for a matching carrier within the attachment’s hydraulic and weight requirements.
