Baumalight

Tree Saw

For Mini Skid Steers

30" Blade Diameter

Baumalight

Baumalight Tree Saw DSM230 For Mini Skid Steers

SKU: DSM230-T508 Currently In Stock

Sale price$7,899.99 USD

MOST IMPORTANT FEATURES

PURPOSE BUILT TREE CUTTING

30-INCH CIRCULAR BLADE CUTS TREES AND LIMBS UP TO 10 INCHES IN DIAMETER.

SERVICEABLE CUTTING TEETH

H3000 CARBIDE-TIPPED TEETH PROVIDE THREE CUTTING EDGES PER TOOTH.

CONTROLLED HEAD POSITIONING

MANUAL HEAD REPOSITIONING SUPPORTS HORIZONTAL CUTTING AND VERTICAL TRIMMING.

MATCHED CARRIER CONNECTION

MINI SKID STEER MOUNTING PLATE FITS THE INTENDED CARRIER CATEGORY.

PRACTICAL FIELD SERVICE

INDIVIDUAL HIGH-SPEED TEETH CAN BE ROTATED AND REPLACED AS THEIR CUTTING EDGES WEAR.

Description

Key Benefits

Technical Specs

Applications

Baumalight DSM230

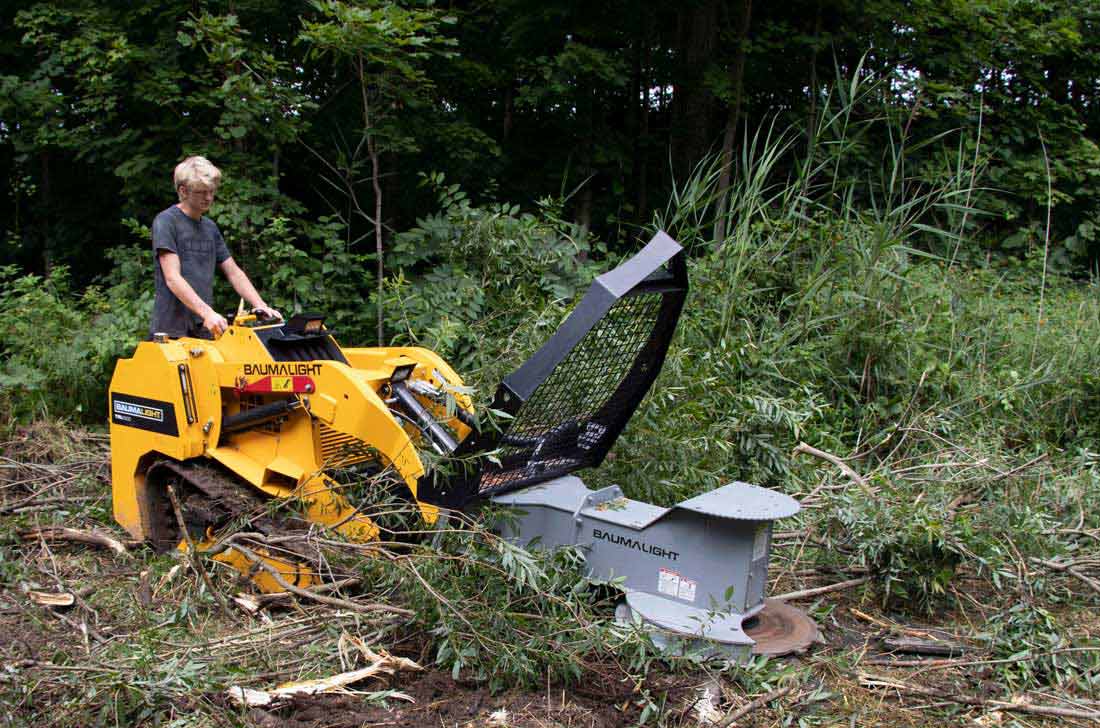

The Baumalight DSM230 Tree Saw gives mini skid steers a dedicated cutting tool for pruning limbs, clearing woody growth, and maintaining access around rural properties and work sites. Its 30-inch circular blade provides a cutting capacity of up to 10 inches, making it a practical way to cut trees and branches before moving or processing the material. The mounting plate brings the saw into the carrier's working reach for controlled positioning around vegetation.

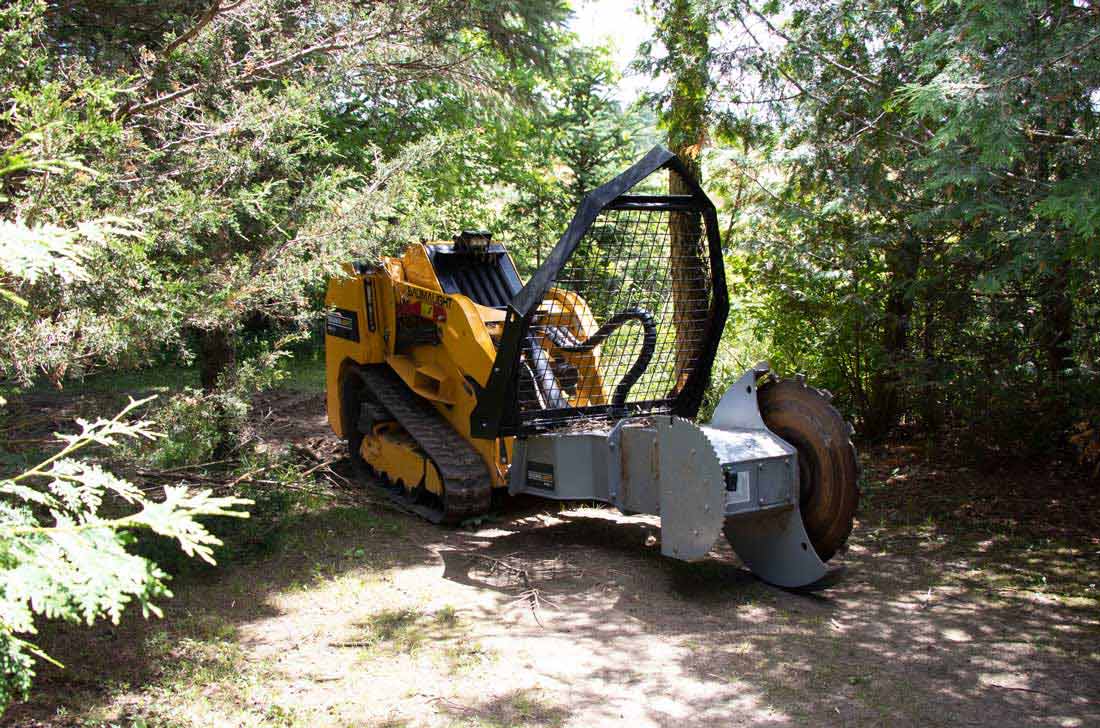

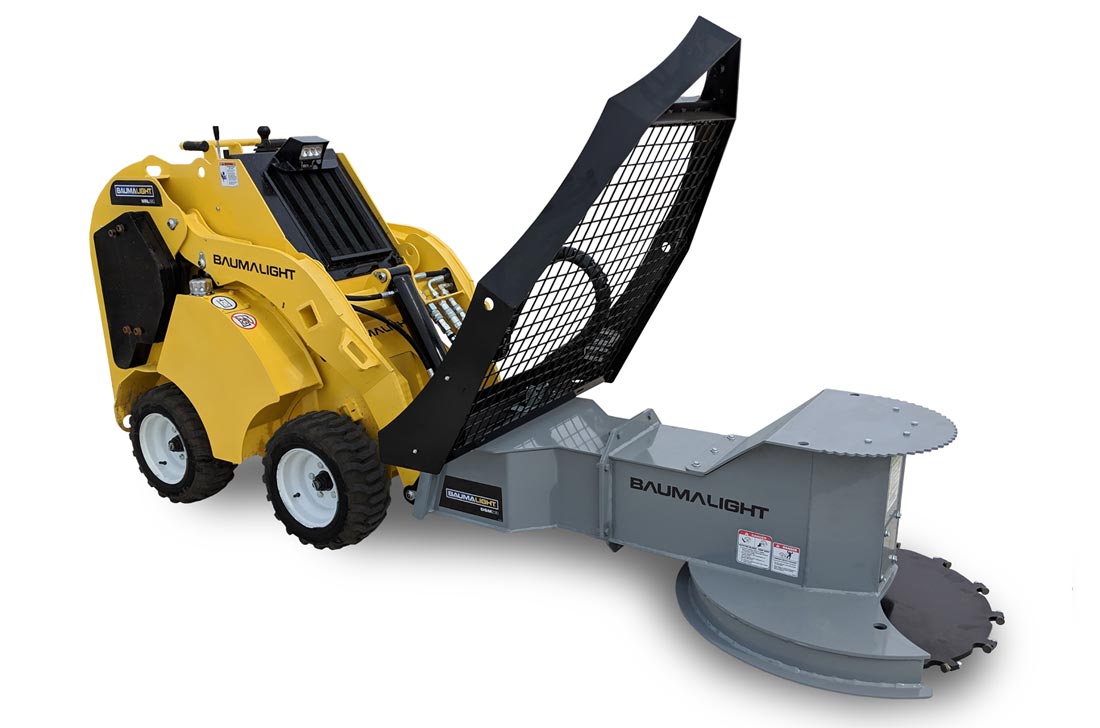

This model uses a manually repositioned cutting head for horizontal cutting or vertical trimming. Head positioning is changed manually by loosening the mounting bolts, rotating the assembly, and securing it in the selected position. Replaceable carbide-tipped high-speed teeth chip through the wood, and each tooth can be repositioned to present one of three cutting edges. Six replacement teeth are included for future service.

The T508 bent-axis piston motor works within a 6–20 GPM hydraulic flow range, with a dedicated case-drain connection required. The mini skid steer package includes hydraulic hoses, standard couplers, and the case-drain connection. Carrier-specific adapter plates for nonstandard mini skid steer mounting systems are separate options. No auxiliary electrical connection is required for head positioning.

Heavy-duty bearing support carries the blade through repeated cutting, and the blade shield helps direct chips around the working head. Removable access panels keep routine servicing practical, while protected hydraulic hose routing reduces exposure to brush and moving components. A powder-coated finish supports regular outdoor work. The saw cuts above-ground material and leaves roots and the remaining stump in place. Use the carrier within its rated handling limits and follow the operator's manual for setup and field operation.

Baumalight DSM230

30-inch circular blade cuts trees and limbs up to 10 inches in diameter.

H3000 carbide-tipped teeth provide three cutting edges per tooth.

Manual head repositioning supports horizontal cutting and vertical trimming.

Mini skid steer mounting plate fits the intended carrier category.

Individual high-speed teeth can be rotated and replaced as their cutting edges wear.

Removable panels provide access for inspection and maintenance.

Baumalight DSM230

Model: DSM230
Attachment type: Tree Saw
Carrier: Mini Skid Steers
Blade diameter: 30 inches
Maximum cut: Up to 10 inches; results depend on wood and carrier performance
Head positioning: Manual head positioning
Teeth: H3000 carbide-tipped high-speed teeth
Number of teeth: 12
Replacement teeth: Six included
Attachment weight: 650 lb
Mounting: Mini skid steer mounting plate
Hydraulic flow: 6–20 GPM
Motor: T508 bent-axis piston
Case drain: Required
Electrical AUX: Not required
Hydraulic hoses: Included
Hydraulic couplers: Standard couplers included
Shipping: Freight shipping

Baumalight DSM230

  • Fence-row and boundary vegetation cutting
  • Pasture and woodlot cleanup
  • Access-road and trail clearing
  • Tree and limb cutting within attachment limits
  • Rural property and landscape maintenance

SEE BAUMALIGHT TREE SAWS AT WORK

Baumalight DSM230

ENGINEERED FOR POWER:

  • 30-inch circular blade cuts trees and limbs up to 10 inches in diameter.
  • T508 bent-axis piston motor matches a 6–20 GPM hydraulic flow range.
  • H3000 carbide-tipped teeth provide three cutting edges per tooth.
  • Manual head repositioning supports horizontal cutting and vertical trimming.
  • Six replacement teeth are included for scheduled tooth service.

BUILT FOR PRECISION:

  • Blade shielding helps direct chips around the cutting head.
  • Heavy-duty bearing support carries the blade during repeated cuts.
  • Individual high-speed teeth can be rotated and replaced as their cutting edges wear.
  • Removable panels provide access for inspection and maintenance.
  • Cutting removes above-ground wood; stumps and roots remain for separate extraction.

READY FOR THE FIELD:

  • Mini skid steer mounting plate fits the intended carrier category.
  • Attachment weight is 650 lb.
  • Dedicated case drain is required for the hydraulic motor.
  • Hydraulic hoses, standard couplers, and case-drain connection are included.
  • No auxiliary electrical connection is required for head positioning.
