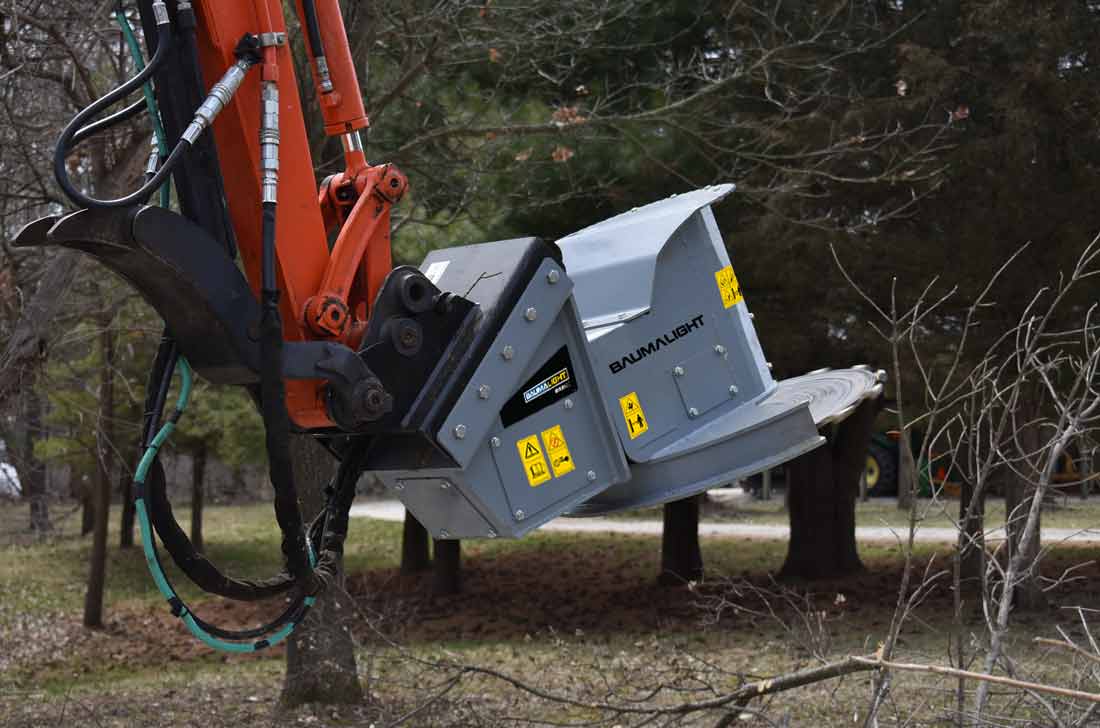

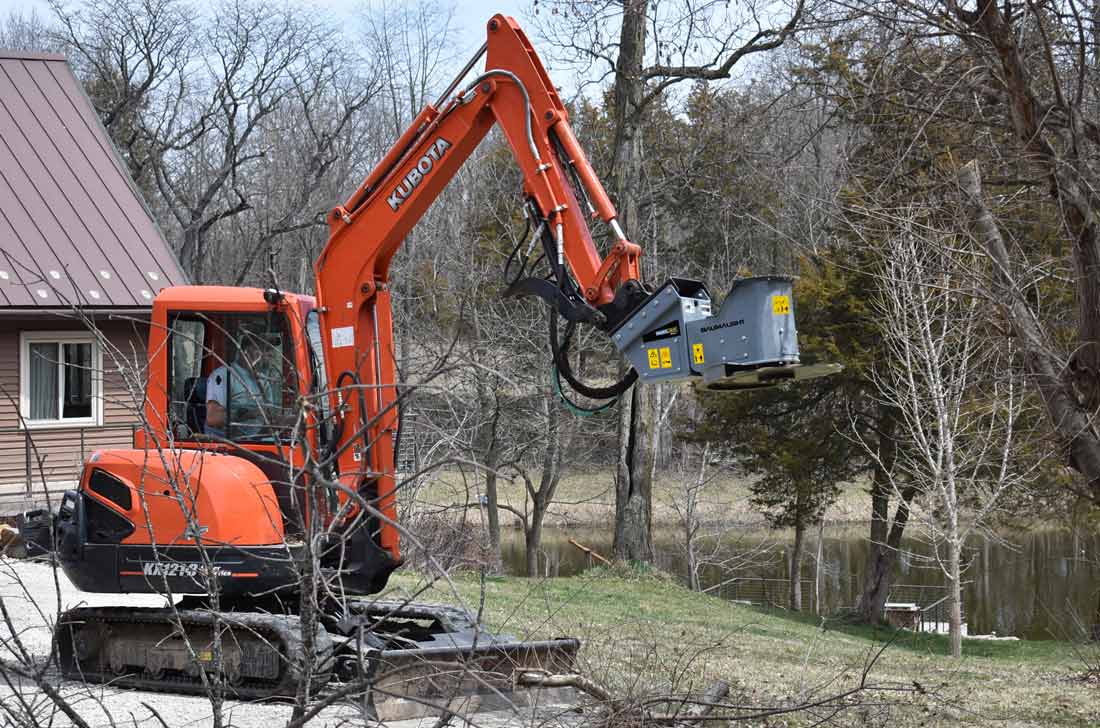

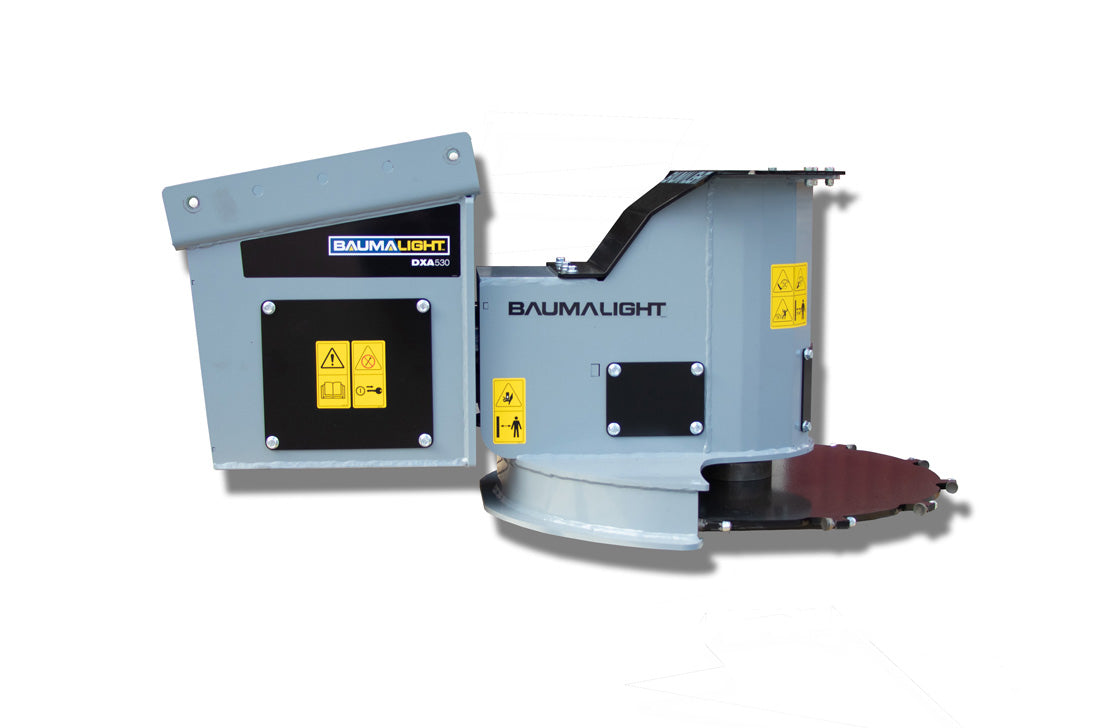

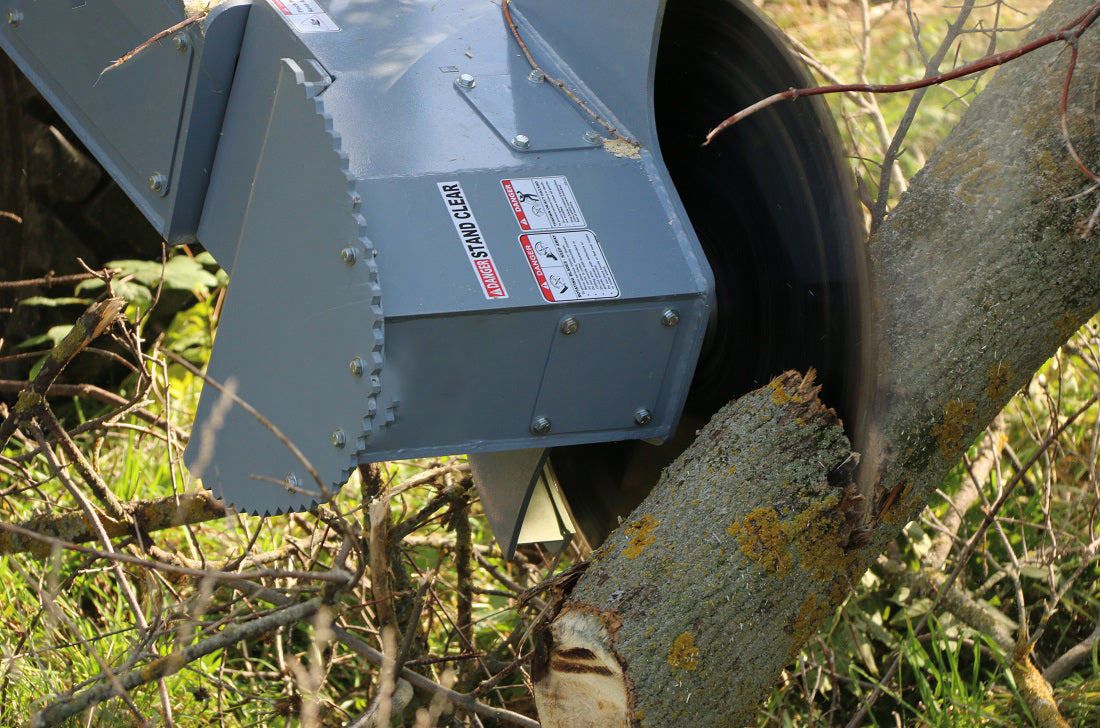

The Baumalight DXA530 Tree Saw gives excavators a dedicated cutting tool for pruning limbs, clearing woody growth, and maintaining access around rural properties and work sites. Its 30-inch circular blade provides a cutting capacity of up to 10 inches, making it a practical way to cut trees and branches before moving or processing the material. Mounted at the end of the excavator boom, the saw uses the carrier's reach to approach vegetation from a useful working position.

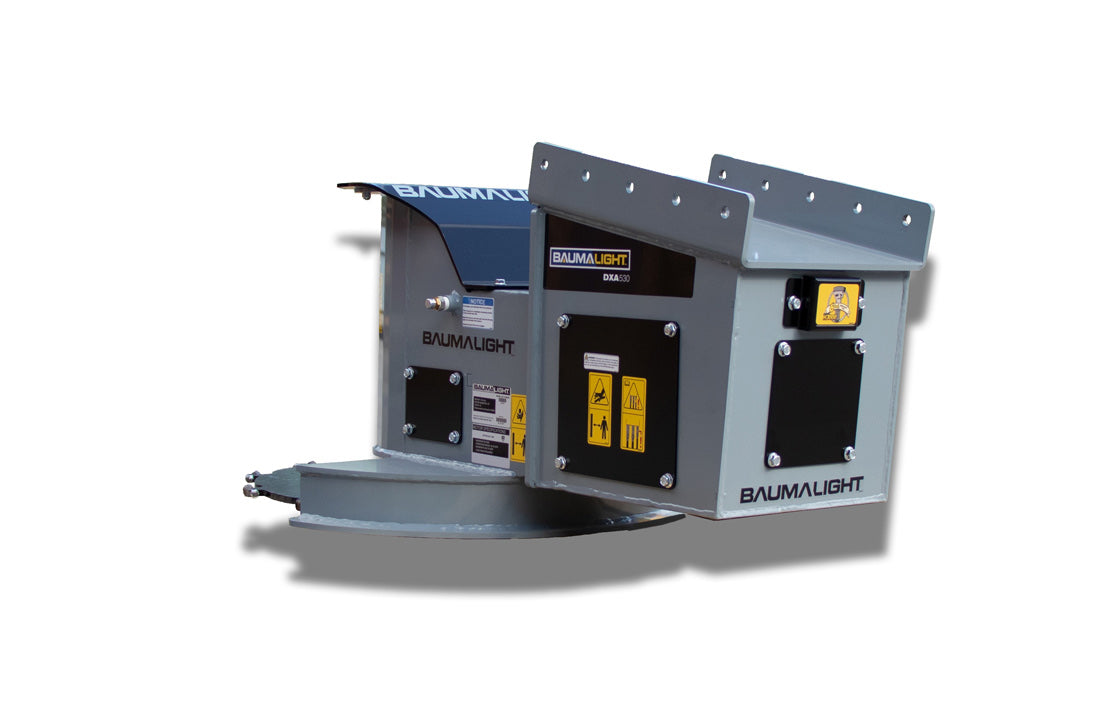

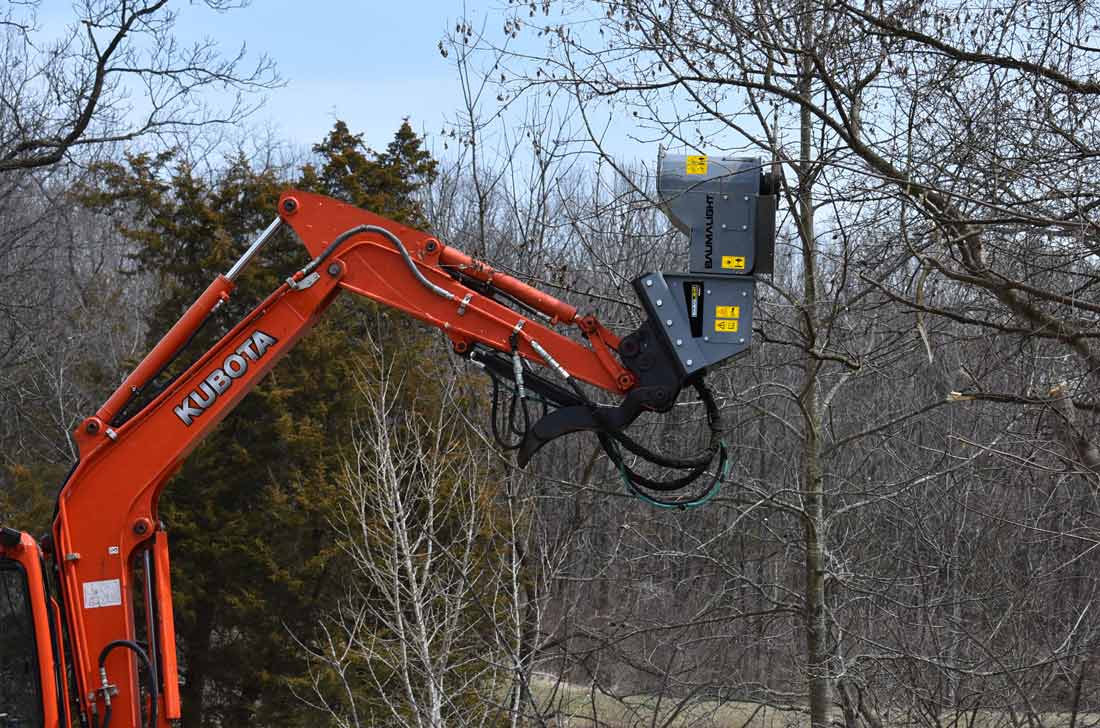

This model uses a 180-degree powered helical actuator. Powered rotation changes the blade's approach without manually unbolting the head, helping the operator move between cutting angles as the task changes. Replaceable carbide-tipped high-speed teeth chip through the wood, and each tooth can be repositioned to present one of three cutting edges. Six replacement teeth are included for future service.

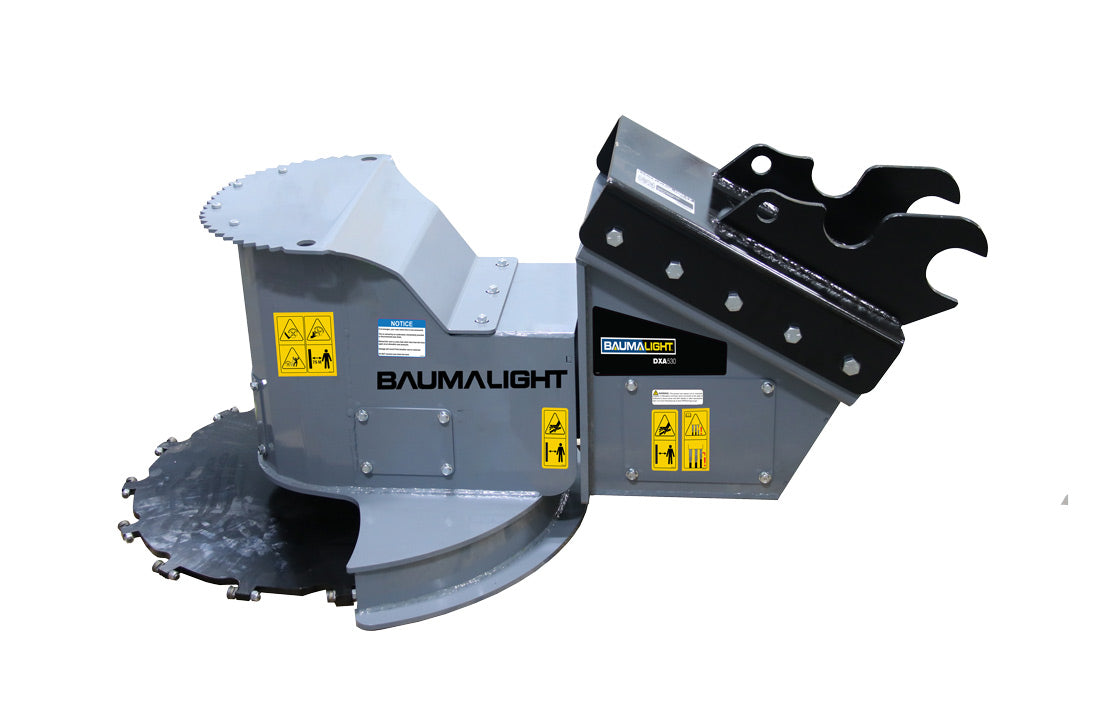

The T530 bent-axis piston motor works within a 10–45 GPM hydraulic flow range, with a dedicated case-drain connection required. The DXA530 is sized for 4–12 ton excavators. A carrier-matched excavator mount is included in this package; connecting hoses, hydraulic couplers, and boom wiring are supplied separately for the installation. Powered head rotation requires two ON/OFF electrical pins and ground, with the connector and control arrangement matched to the machine.

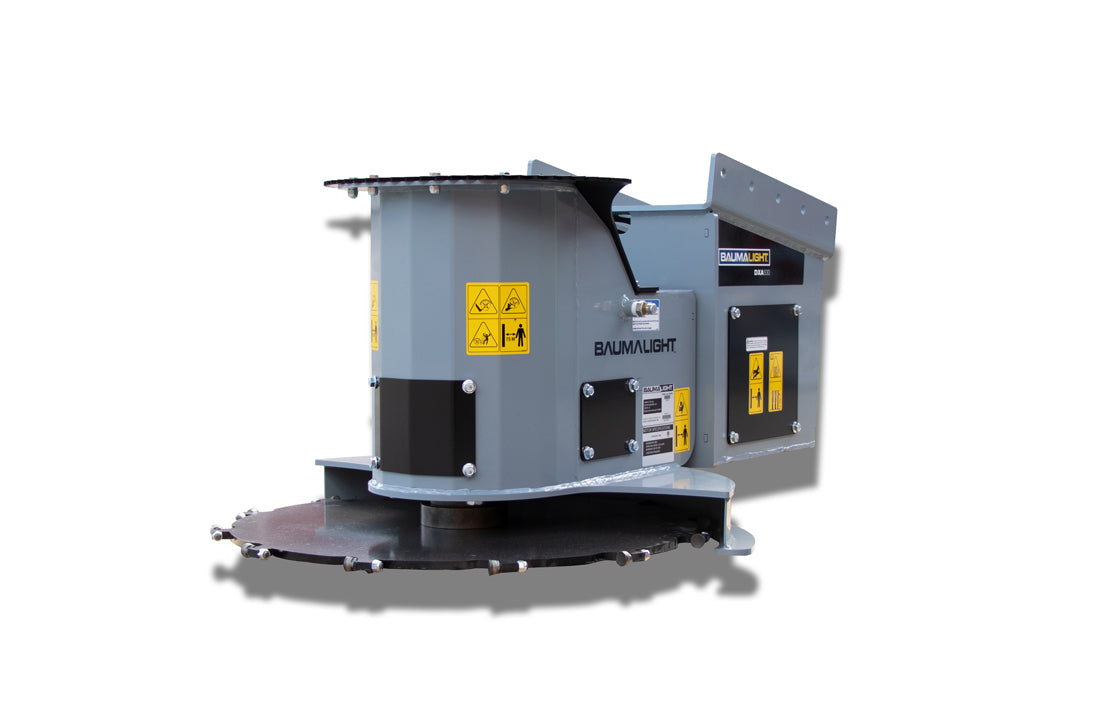

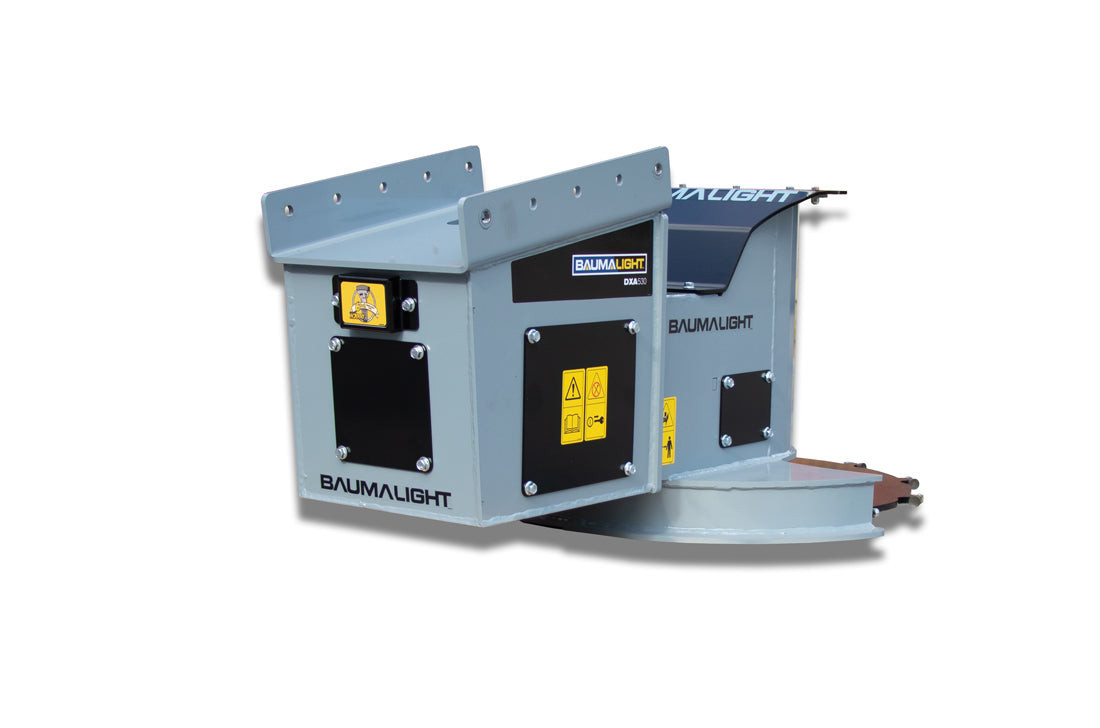

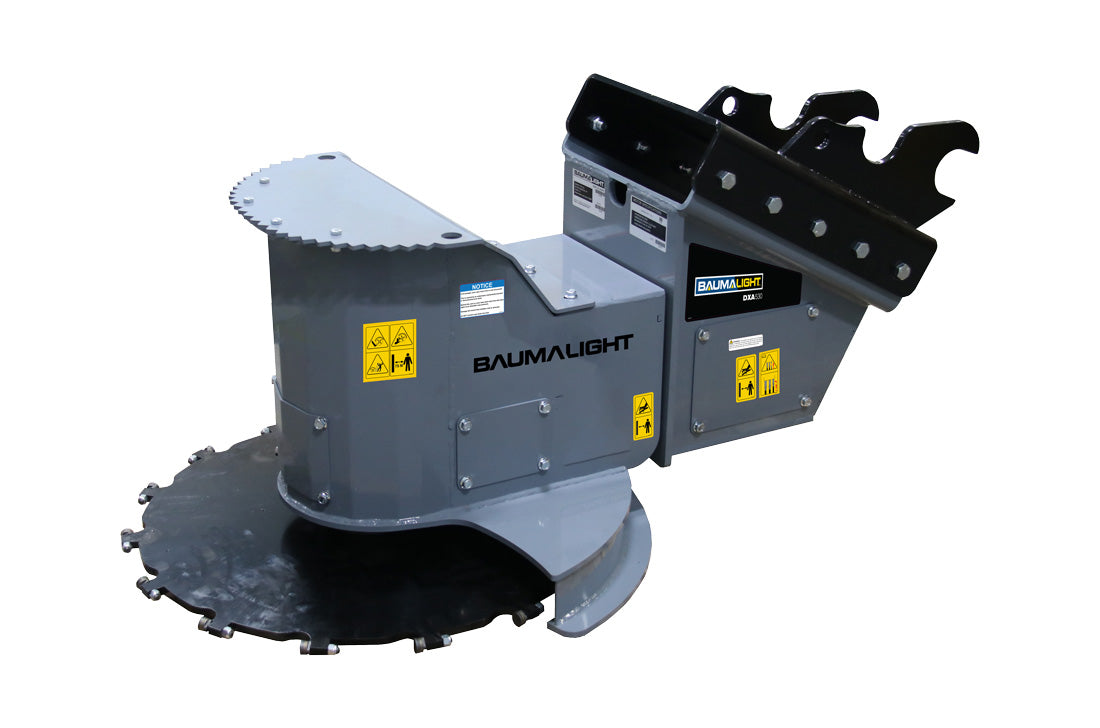

Heavy-duty bearing support carries the blade through repeated cutting, and the blade shield helps direct chips around the working head. Removable access panels keep routine servicing practical, while protected hydraulic hose routing reduces exposure to brush and moving components. A powder-coated finish supports regular outdoor work. The saw cuts above-ground material and leaves roots and the remaining stump in place. Use the carrier within its rated handling limits and follow the operator's manual for setup and field operation.
