Baumalight

Tree Scoop

For Blank Weld-On Mount

28" Root Ball Diameter

Baumalight

Baumalight Tree Scoop X4B with Blank Weld-On Plate

SKU: BML-X4B-BASE Currently In Stock

Sale price$3,499.99 USD

MOST IMPORTANT FEATURES

COMPACT ROOT BALL

THE 28-INCH ROOT BALL DIAMETER DEFINES THE SCOOP’S WORKING SIZE FOR SMALL-TREE RELOCATION AND LANDSCAPE TRANSPLANTING.

DIGGING DEPTH

A 25-INCH ROOT BALL DEPTH PROVIDES A DEFINED DIGGING ENVELOPE FOR LIFTING SOIL AROUND THE TREE’S ROOTS.

TOUGH SCOOP BODY

1/4-INCH AR400 STEEL CONSTRUCTION PROVIDES AN ABRASION-RESISTANT DIGGING BODY FOR REPEATED SOIL CONTACT.

MATCHED CONNECTION

THE BLANK WELD-ON PLATE PROVIDES A BASE FOR FABRICATING A MOUNT THAT MATCHES YOUR CARRIER CONNECTION.

EIGHT-PANEL STRUCTURE

THE REINFORCED EIGHT-PANEL SCOOP BODY FORMS A STRUCTURED DIGGING SHAPE FOR SOIL PENETRATION AND ROOT BALL HANDLING.

Description

Key Benefits

Technical Specs

Applications

Baumalight X4B

The Baumalight X4B Tree Scoop gives landscapers and property owners a practical attachment for moving small trees and preparing planting sites. Its 28-inch root ball diameter and 25-inch digging depth provide a defined working size for lifting and repositioning young trees, while the open scoop shape helps keep the digging point and planting area in view.

Built from 1/4-inch AR400 steel, the scoop combines an eight-panel structure with an aggressive digging tip. The formed panels strengthen the body as it works through soil, and the sharp point concentrates the initial cut where the operator positions the attachment. The reinforced design is suited to repeated digging and tree-moving work around landscaped properties and nursery grounds.

The X4B uses a blank weld-on plate mount, giving this model a specific connection for its carrier. Its 28-inch scoop width and 43-inch length keep the attachment compact enough for deliberate placement around smaller trees. The blank plate provides a weld-on base for a custom carrier connection.

Designed for up to 1.5-inch evergreen trunks and 1-inch hardwood trunks, the X4B supports small-tree relocation, landscape changes, and nursery planting work. Controlled digging and careful handling help keep soil around the roots during the move. The compact scoop also gives crews a useful tool for working along planting rows and reaching individual trees without bringing a larger hydraulic spade into the area.

Baumalight X4B

28-inch root ball diameter gives crews a clear attachment size for transplant planning.

25-inch root ball depth defines the digging envelope beneath the tree.

1/4-inch AR400 steel provides a durable digging surface for repeated soil work.

Blank weld-on plate identifies the included carrier or transport configuration.

Reinforced digging shape supports practical positioning and handling.

The X4B combines defined trunk capacities with model-specific construction for nursery and landscape applications.

Baumalight X4B

Model: X4B
Attachment type: Tree Scoop
Root ball diameter: 28 in.
Root ball depth: 25 in.
Evergreen trunk capacity: 1.5 in.
Hardwood trunk capacity: 1 in.
Scoop material: 1/4-inch AR400 steel
Scoop width: 28 in.
Overall length: 43 in.

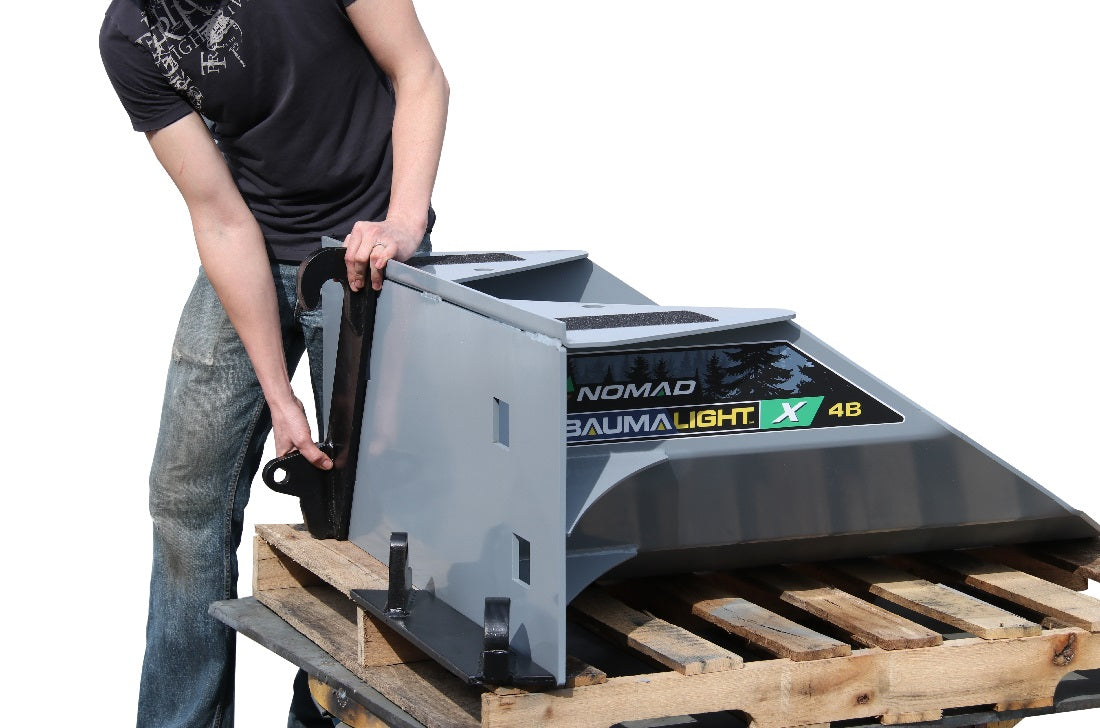

Mount included: Blank weld-on plate
Scoop structure: Eight panels
Digging tip: Sharp profile

Baumalight X4B

  • Nursery tree relocation within the 28-inch root ball working size.
  • Landscape renovation and planned tree repositioning.
  • Planting rows and prepared transplant sites.
  • Property improvements that retain existing trees.
  • Contractor tree-moving and nursery handling projects.

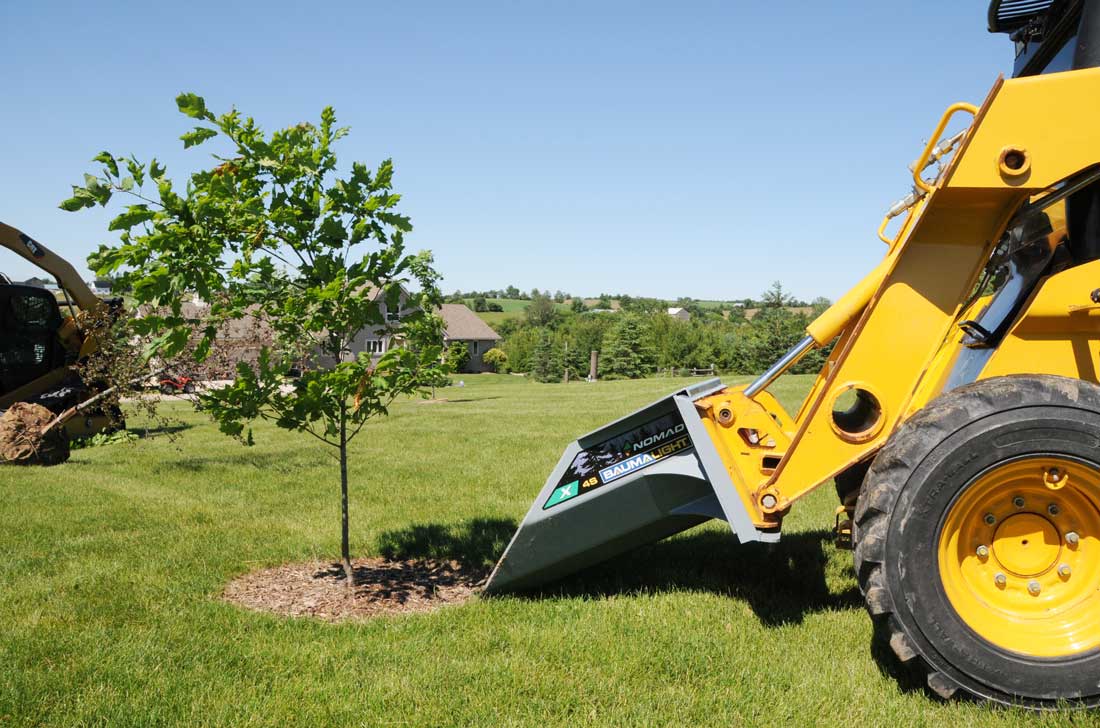

SEE BAUMALIGHT TREE TRANSPLANTING IN ACTION

Baumalight X4B

ENGINEERED FOR POWER:

  • 1/4-inch AR400 steel construction provides an abrasion-resistant scoop body for repeated digging and soil contact.
  • An eight-panel structure reinforces the scoop body and forms a defined digging shape for lifting small root balls.
  • The aggressive scoop tip concentrates the initial digging contact at the point as the carrier drives the scoop into the soil.
  • A 28-inch root ball diameter defines the working size for lifting trees with soil around their roots.
  • A 25-inch root ball depth defines the digging envelope beneath the tree for controlled root ball lifting.

BUILT FOR PRECISION:

  • The blank weld-on plate mounting configuration identifies the connection supplied for carrier hookup or mount fabrication.
  • The 28-inch scoop width defines the attachment’s working width for approaching trees and positioning the digging body.
  • The 43-inch overall length keeps the scoop compact for maneuvering around nursery rows and planting locations.
  • The open scoop layout helps the operator see the digging area while aligning the attachment with the tree or planting site.
  • The sharp digging profile helps the scoop enter the soil around smaller root balls for nursery and landscape relocation.

READY FOR THE FIELD:

  • The scoop handles evergreen trunks up to 1.5 inches in diameter within its root ball working size.
  • The scoop handles hardwood trunks up to 1 inch in diameter within its root ball working size.
  • Reinforced scoop construction supports repeated soil contact during digging, lifting, and repositioning small trees.
  • The compact tree scoop supports nursery-row handling and small-tree relocation during planned landscape improvements.
  • The supplied mounting plate matches this model’s connection configuration for carrier hookup or mount fabrication.
