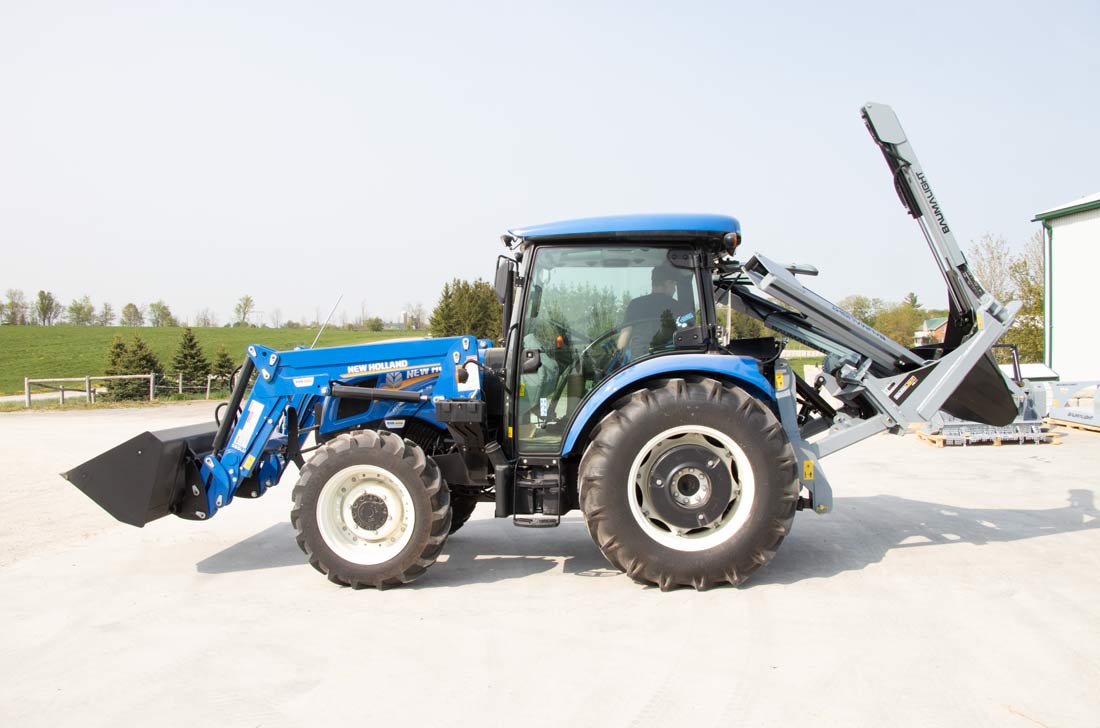

Baumalight PS330 tree spade photo 1
Baumalight PS330 tree spade photo 2

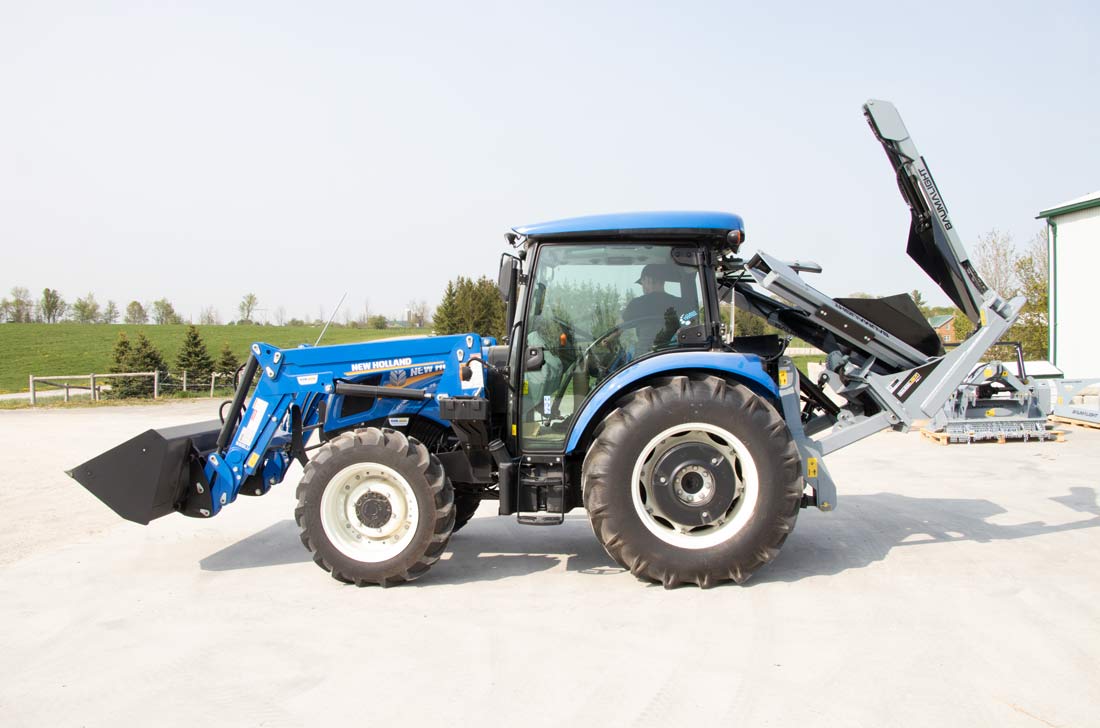

Baumalight PS330 tree spade photo 3

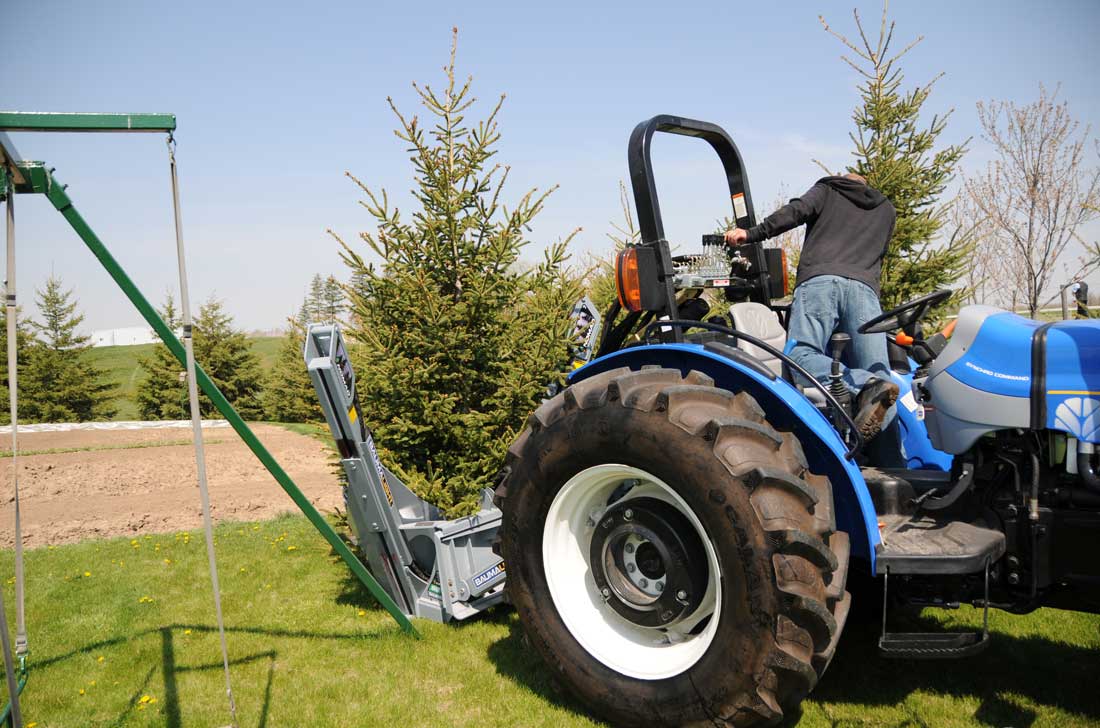

Baumalight PS330 tree spade photo 4

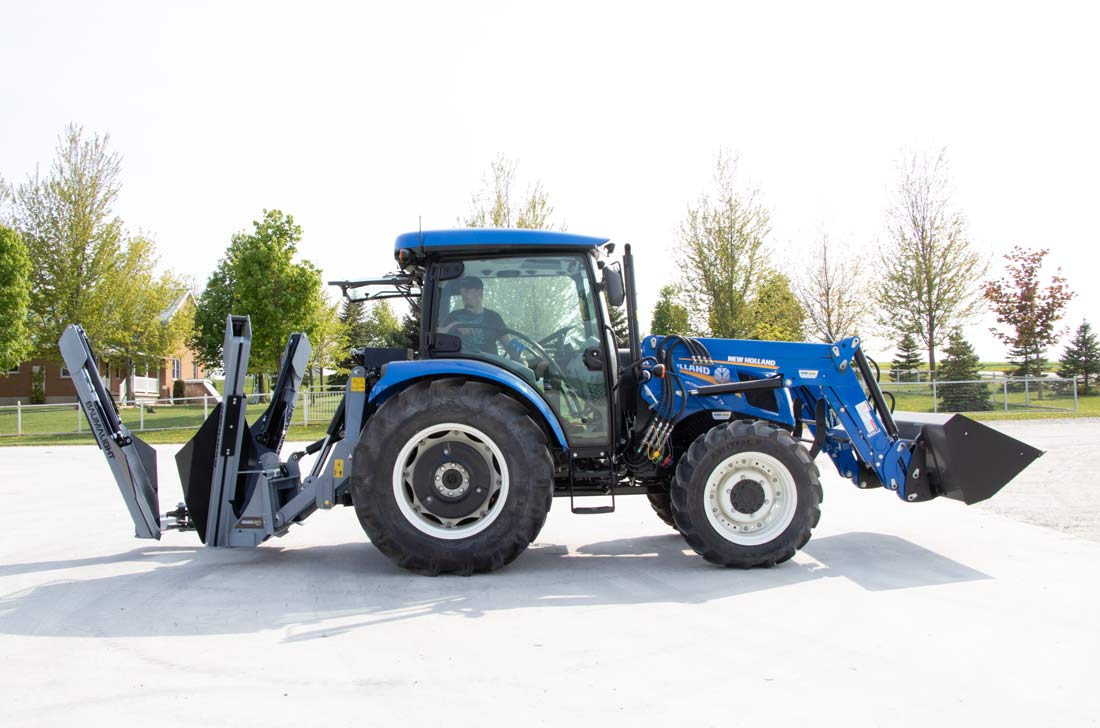

Baumalight PS330 tree spade photo 5

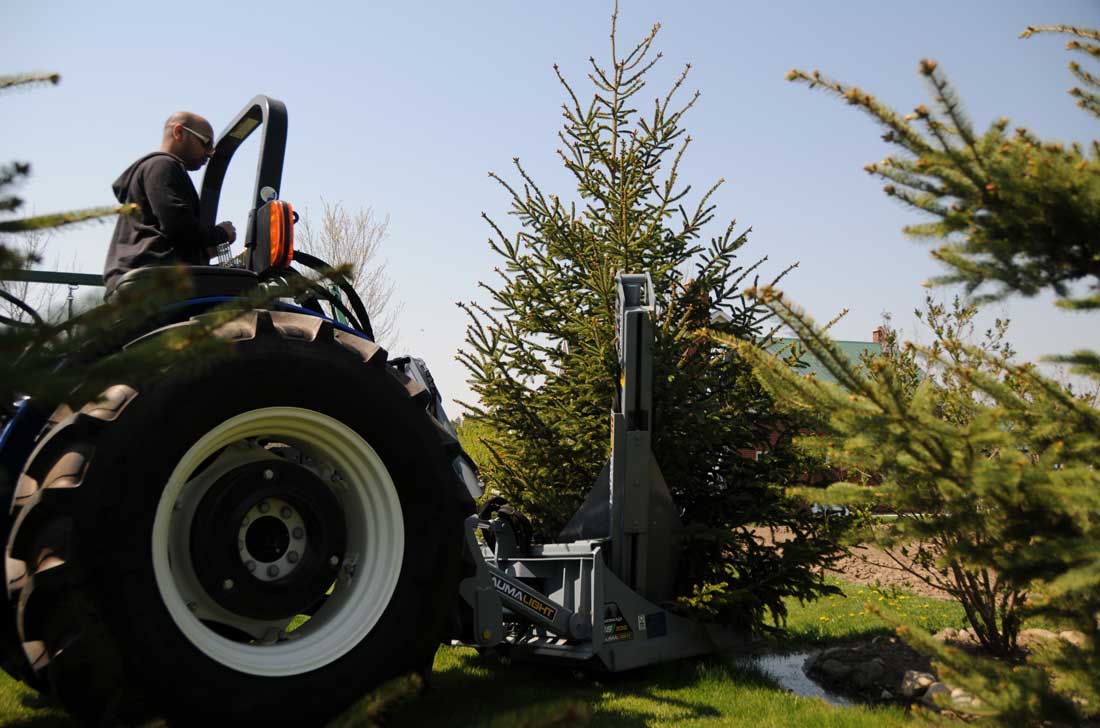

Baumalight PS330 tree spade photo 6

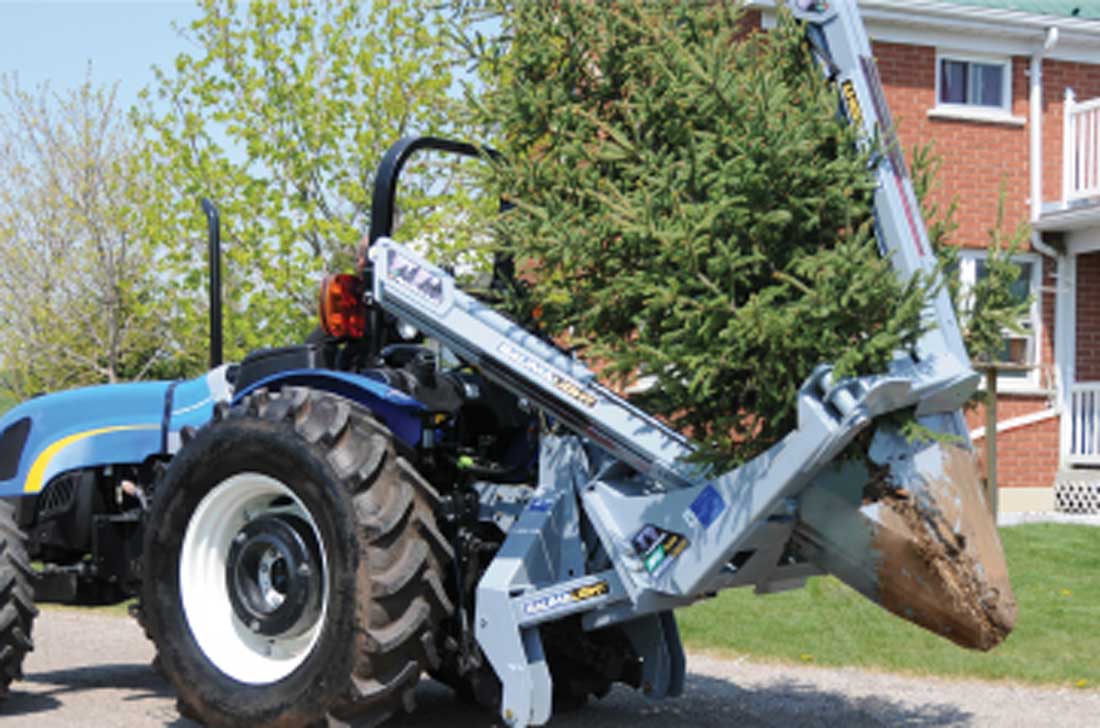

Baumalight PS330 tree spade photo 8

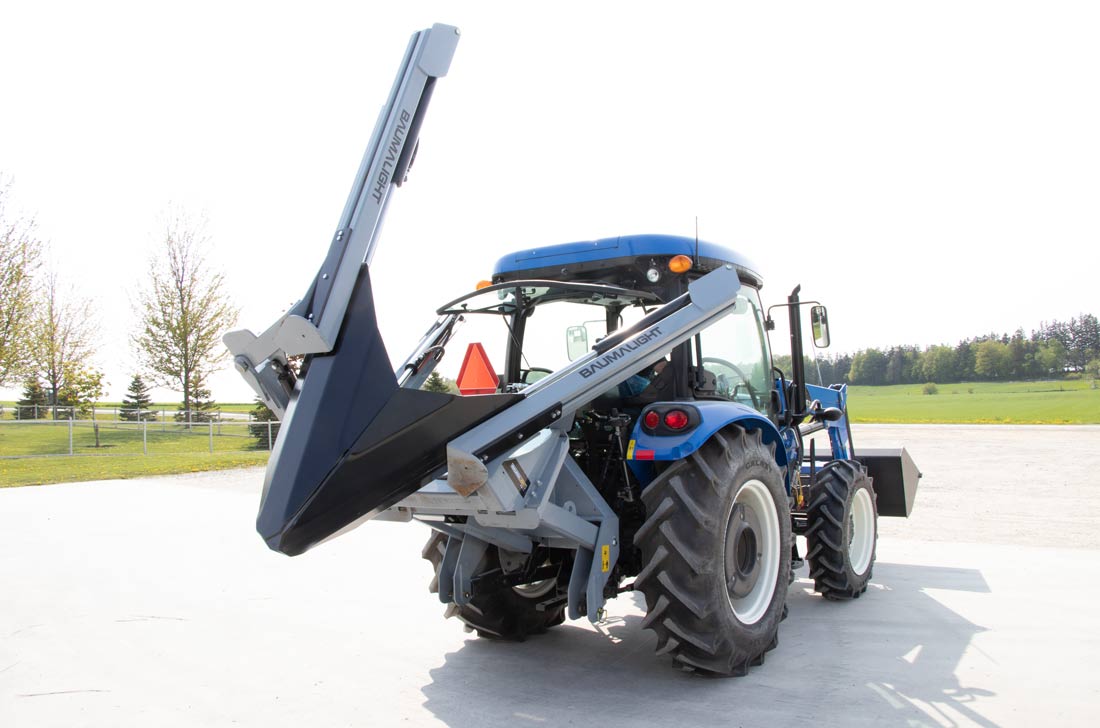

Baumalight PS330 tree spade photo 9

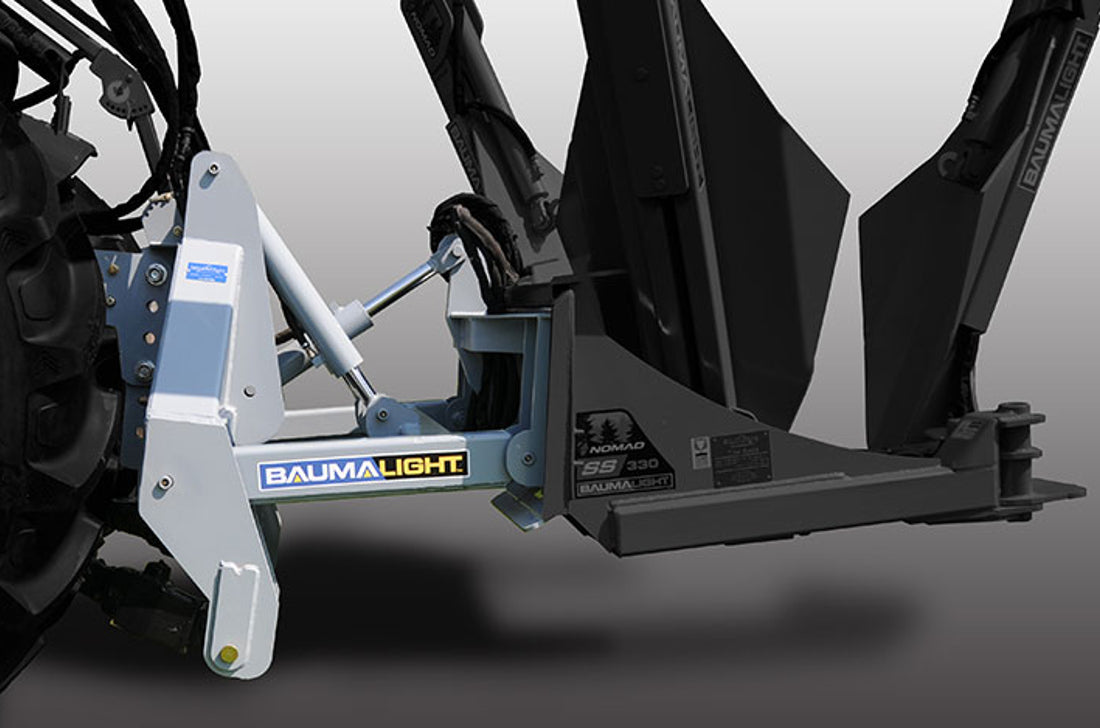

Baumalight PS330 tree spade photo 10

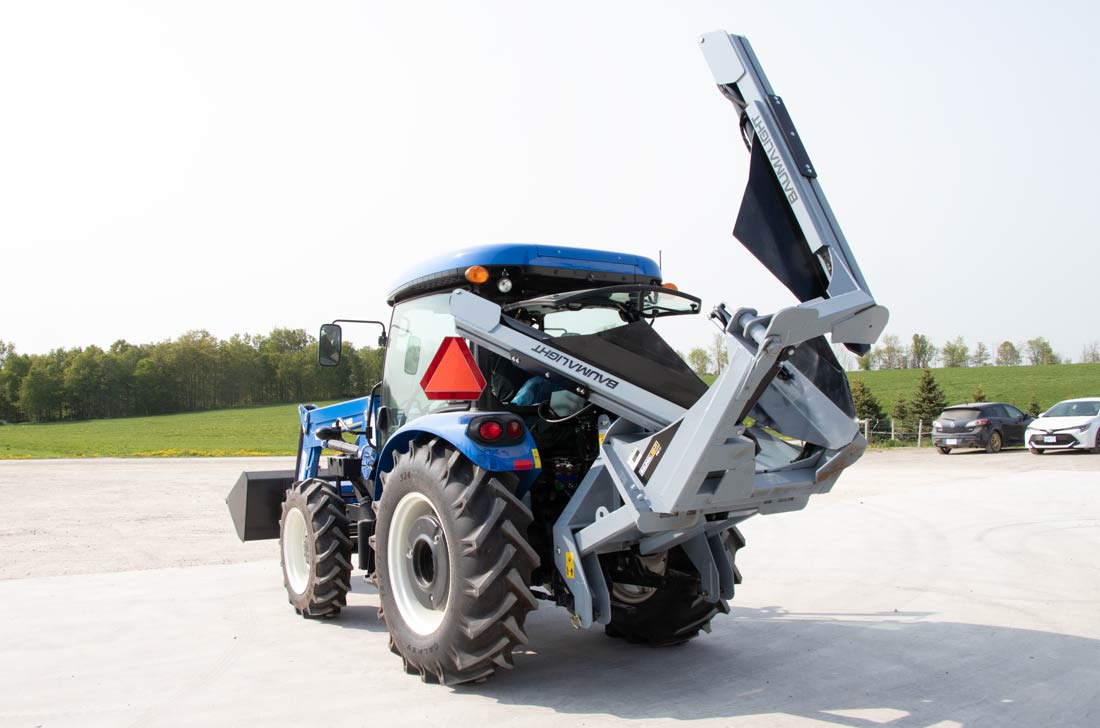

Baumalight PS330 tree spade photo 11
Baumalight PS330 tree spade photo 12
Roll over image to zoom in Click on image to zoom
Baumalight PS330 tree spade photo 7Baumalight PS330 tree spade photo 1Baumalight PS330 tree spade photo 2Baumalight PS330 tree spade photo 3Baumalight PS330 tree spade photo 4Baumalight PS330 tree spade photo 5Baumalight PS330 tree spade photo 6Baumalight PS330 tree spade photo 8Baumalight PS330 tree spade photo 9Baumalight PS330 tree spade photo 10Baumalight PS330 tree spade photo 11Baumalight PS330 tree spade photo 12
Baumalight

Baumalight Tree Spade PS330 for Tractors

SKU: BML-PS330-D003444 Currently In Stock

$15,599.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Manual Find Parts

MOST IMPORTANT FEATURES

ROOT BALL CONTROL

A 30-INCH ROOT BALL DIAMETER AND 29-INCH DEPTH DEFINE THE DIGGING ENVELOPE FOR CONTROLLED TREE LIFTING.

CONTROLLED DIGGING

3 HYDRAULICALLY DRIVEN BLADES CUT INTO THE SOIL AND SHAPE THE ROOT BALL AS THE CYLINDERS EXTEND.

TOUGH CUTTING SYSTEM

3/8-INCH MILD STEEL BLADES PROVIDE A DURABLE CUTTING SURFACE FOR REPEATED DIGGING AND ROOT BALL FORMATION.

CARRIER CONNECTION

THE INCLUDED CAT 2 3-POINT HITCH ADAPTER CONNECTS THE SPADE TO A MATCHING TRACTOR HITCH AND PROVIDES HYDRAULIC POSITIONING.

PRECISE PLACEMENT

THE HYDRAULIC HITCH ADAPTER HELPS POSITION THE SPADE FOR APPROACHING THE TREE AND PLACING THE ROOT BALL.

Description

Key Benefits

Technical Specs

Applications

Baumalight PS330

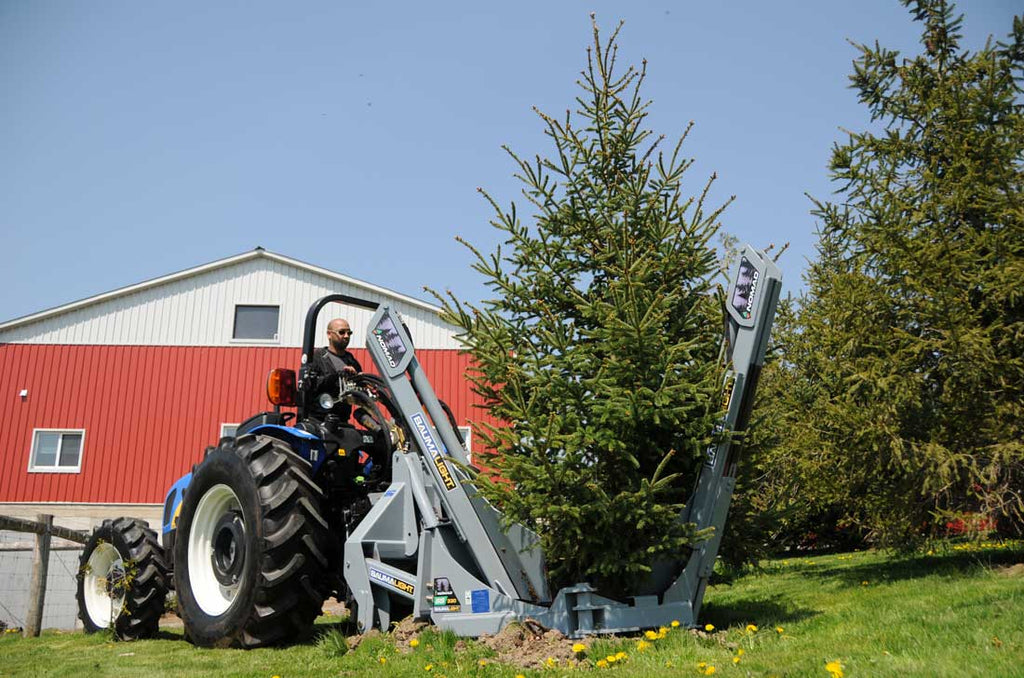

The Baumalight PS330 Tree Spade turns suitable tractors with a 3-point hitch into a controlled tree-transplanting system. Its 30-inch root ball diameter and 29-inch root ball depth give operators a defined digging envelope for lifting trees with soil around their roots. Designed for up to 3-inch evergreen trunks and 2.5-inch hardwood trunks, the PS330 fits nursery work, landscape renovation, and planned tree relocation.

3 hydraulically driven 3/8-inch mild steel blades cut into the soil and form the root ball for lifting. The semi-truncated profile shapes the bottom of the ball as the cylinders extend, while steel slides guide the blades through their working travel. The single-hinged frame opens around the trunk to help position the spade while protecting lower branches.

The included CAT 2 3-point hitch adapter provides hydraulic tilt, down pressure, and lift for positioning and extraction. It connects through a rigid top link and the lower hitch arms; this attachment is not compatible with a tractor quick hitch. The digging system operates with 5–20 GPM and 2,900–4,000 PSI hydraulics.

Sleeved hoses protect the hydraulic lines, JIC fittings support service access, and the powder-coated body stands up to demanding outdoor work. Choose manual, wired electric, or wireless controls to suit the way you operate your tractor. Wired and wireless packages use 12V power. The PS330 gives crews a practical combination of root ball control, accessible construction, and deliberate placement for repeatable transplanting work.

Baumalight PS330

30-inch root ball diameter gives crews a clear attachment size for transplant planning.

29-inch root ball depth defines the digging envelope beneath the tree.

3/8-inch mild steel provides a durable digging surface for repeated soil work.

Cat 2 3-point hitch identifies the included carrier or transport configuration.

Hydraulic hitch positioning supports practical positioning and handling.

The PS330 combines defined trunk capacities with model-specific construction for nursery and landscape applications.

Baumalight PS330

Model: PS330
Attachment type: Tree Spade
Root ball diameter: 30 in.
Root ball depth: 29 in.
Evergreen trunk capacity: 3 in.
Hardwood trunk capacity: 2.5 in.
Digging blades: 3
Blade material: 3/8-inch mild steel
Blade angle: 25 degrees
Blade profile: Semi-truncated
Frame opening: 60 in.
Frame design: Single-hinged
Hydraulic flow: 5–20 GPM
Hydraulic pressure: 2,900–4,000 PSI
Spade weight: 1,550 lb
Mount included: CAT 2 3-point hitch adapter
Slide material: Steel
Control options: Manual Controls, Wired Electric Controls, Wireless Controls
Quick-hitch compatibility: No
Minimum tractor weight: 4,000 lb

Baumalight PS330

  • Nursery tree relocation within the 30-inch root ball working size.
  • Landscape renovation and planned tree repositioning.
  • Planting rows and prepared transplant sites.
  • Property improvements that retain existing trees.
  • Contractor tree-moving and nursery handling projects.

SEE BAUMALIGHT TREE TRANSPLANTING IN ACTION

Baumalight PS330

ENGINEERED FOR POWER:

  • 3 hydraulically driven digging blades cut into the soil and form the root ball as the cylinders extend.
  • 3/8-inch mild steel blades provide a durable cutting surface for repeated soil penetration and root ball formation.
  • The 5–20 GPM hydraulic flow range identifies the carrier output required to operate the spade’s digging system.
  • The digging system operates at 2,900–4,000 PSI to drive the hydraulic cylinders through the blade cutting cycle.
  • A 30-inch root ball diameter defines the working size for lifting trees with soil around their roots.

BUILT FOR PRECISION:

  • A 29-inch root ball depth defines the digging envelope beneath the tree for controlled root ball lifting.
  • The 60-inch frame opening defines the available space for aligning the spade around the tree before digging.
  • The semi-truncated blade profile shapes the base of the root ball as the blades move into their digging position.
  • The single-hinged frame opens around the trunk so the operator can position the digging blades before closing the frame.
  • Hydraulic hitch tilt, down pressure, and lift give the operator control over the spade’s working angle and digging position.

READY FOR THE FIELD:

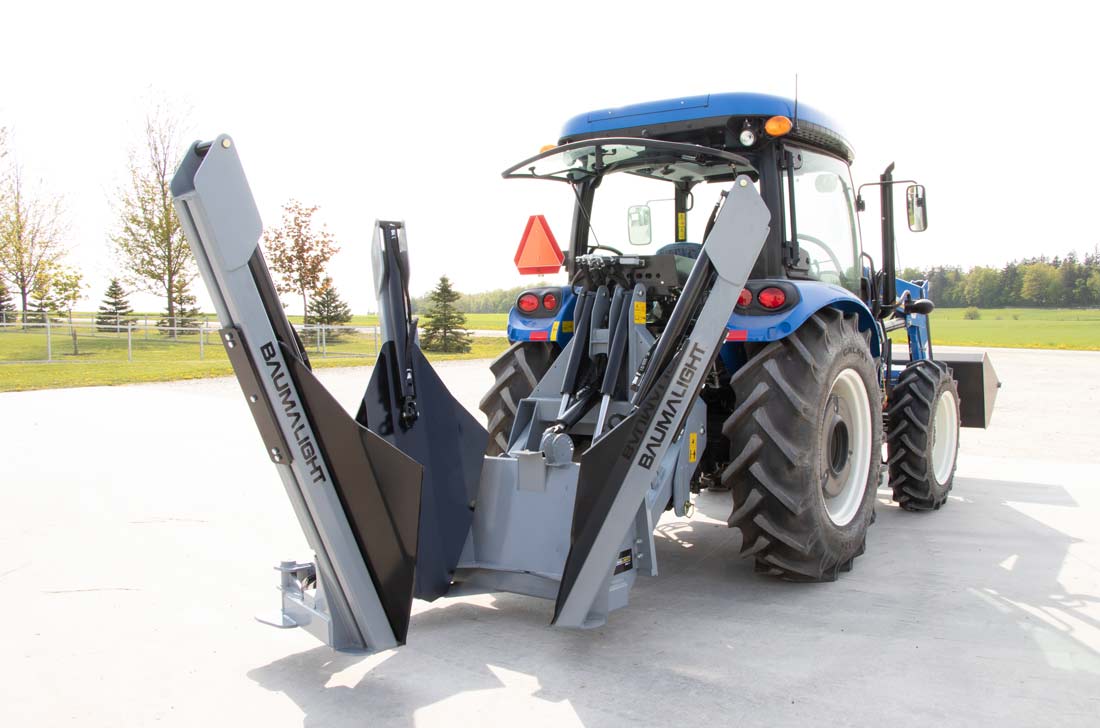

  • Sleeved hydraulic hoses help protect the lines from abrasion as the attachment moves through digging and lifting cycles.
  • JIC hydraulic fittings provide accessible connection points for hose inspection, maintenance, and replacement.
  • The powder-coated finish protects the steel body during outdoor nursery, landscaping, and tree-moving work.
  • Greaseable pivot pins provide service points for maintaining the moving connections in the hydraulic hitch assembly.
  • The included CAT 2 3-point hitch adapter connects the spade to a matching tractor hitch and provides hydraulic positioning.
