Baumalight Tree Spade ST324 for Skid Steers

Baumalight ST324 tree spade photo 1
Baumalight ST324 tree spade photo 2

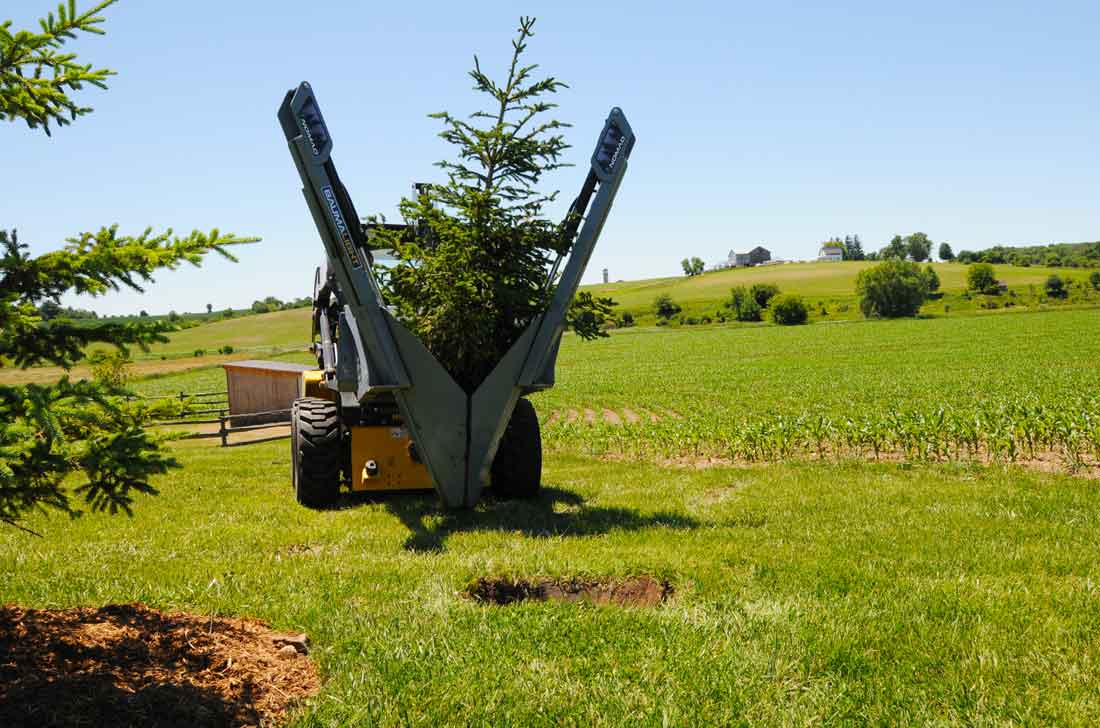

Baumalight ST324 tree spade photo 3

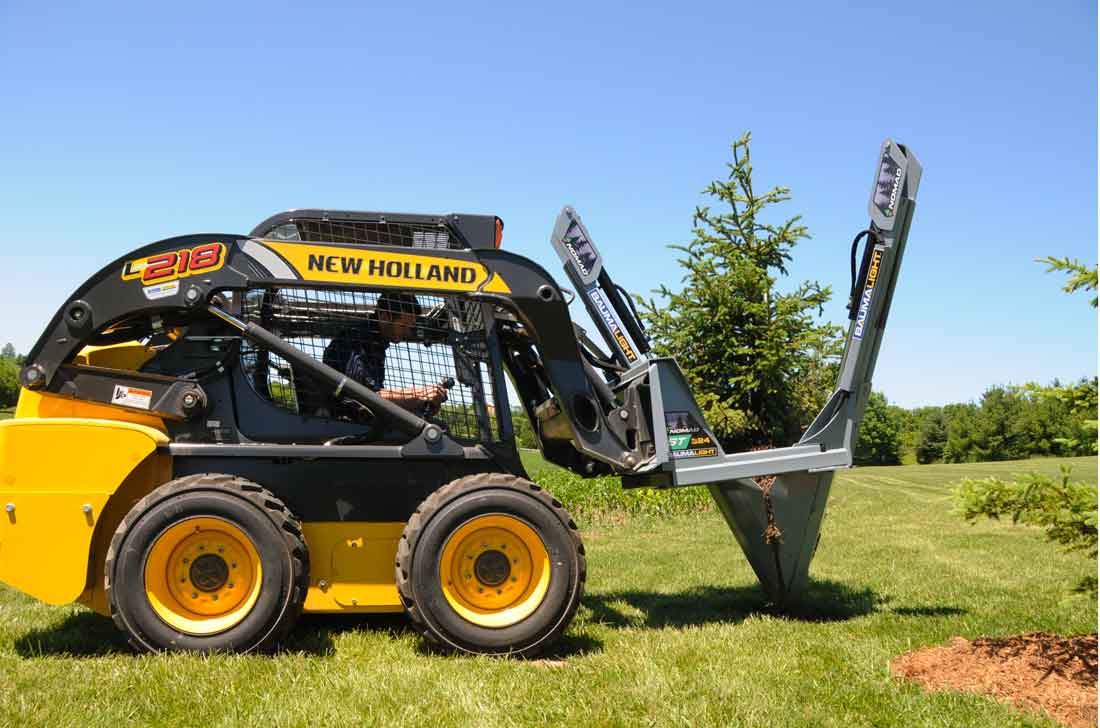

Baumalight ST324 tree spade photo 4

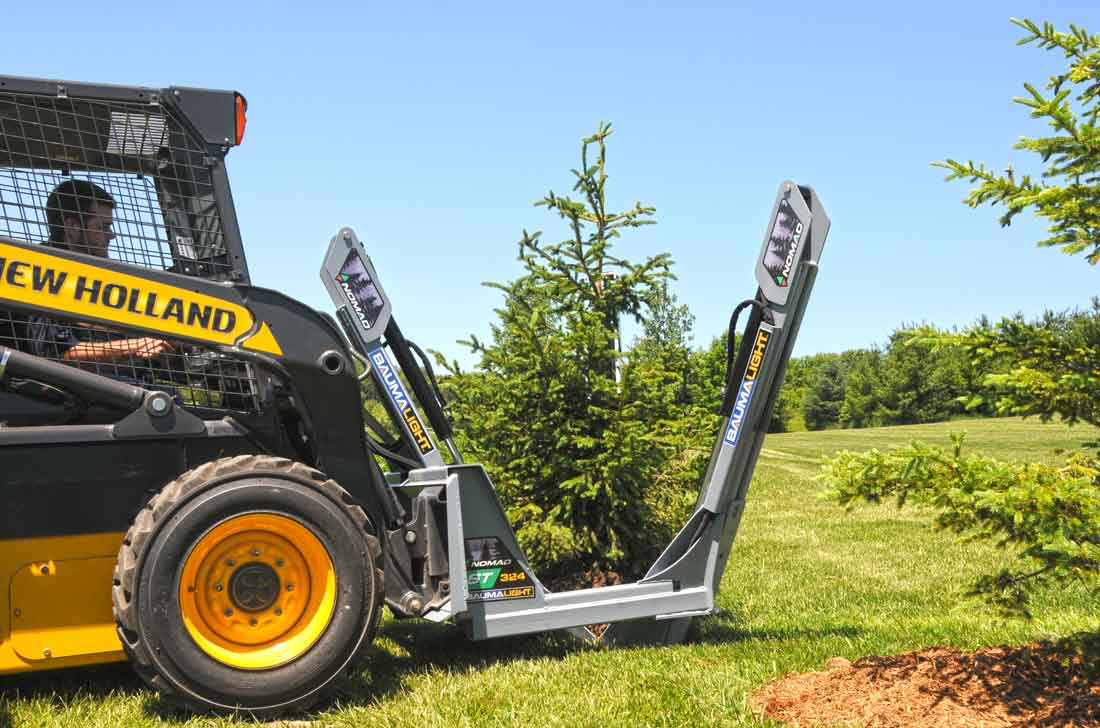

Baumalight ST324 tree spade photo 5

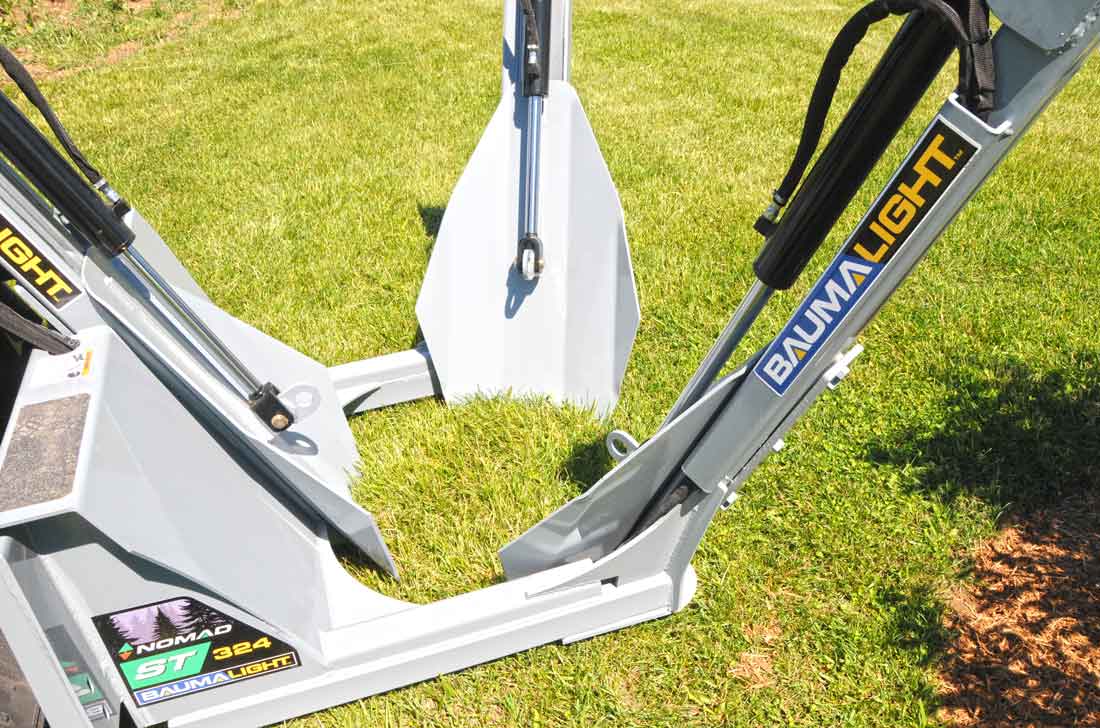

Baumalight ST324 tree spade photo 6

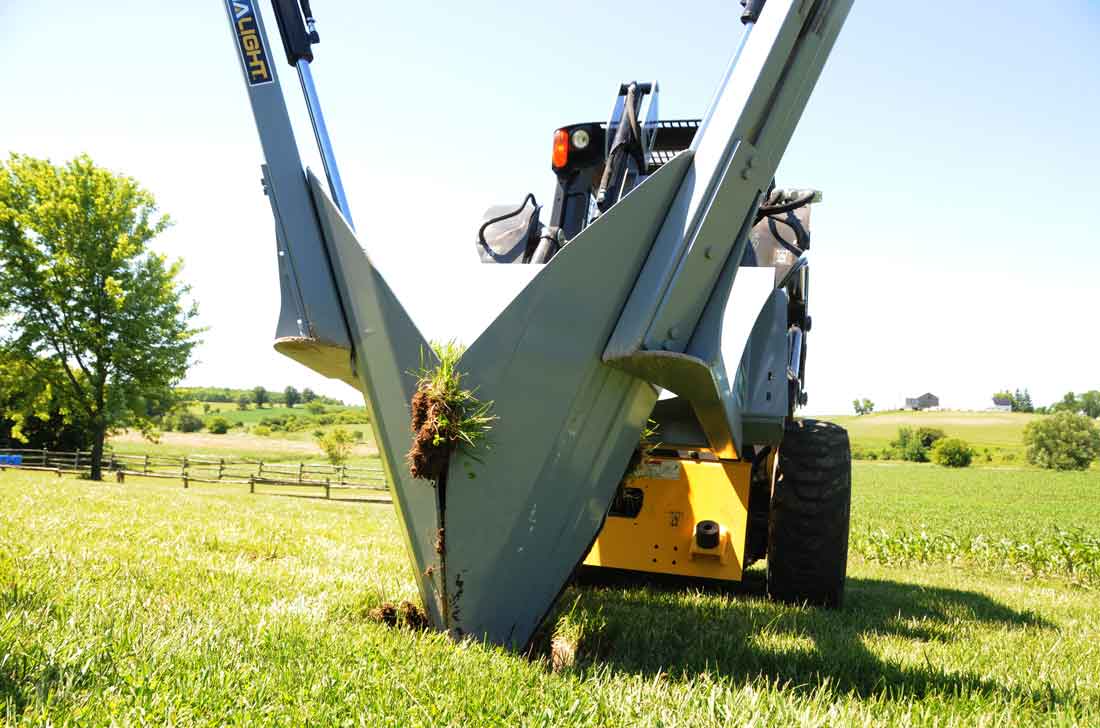

Baumalight ST324 tree spade photo 7

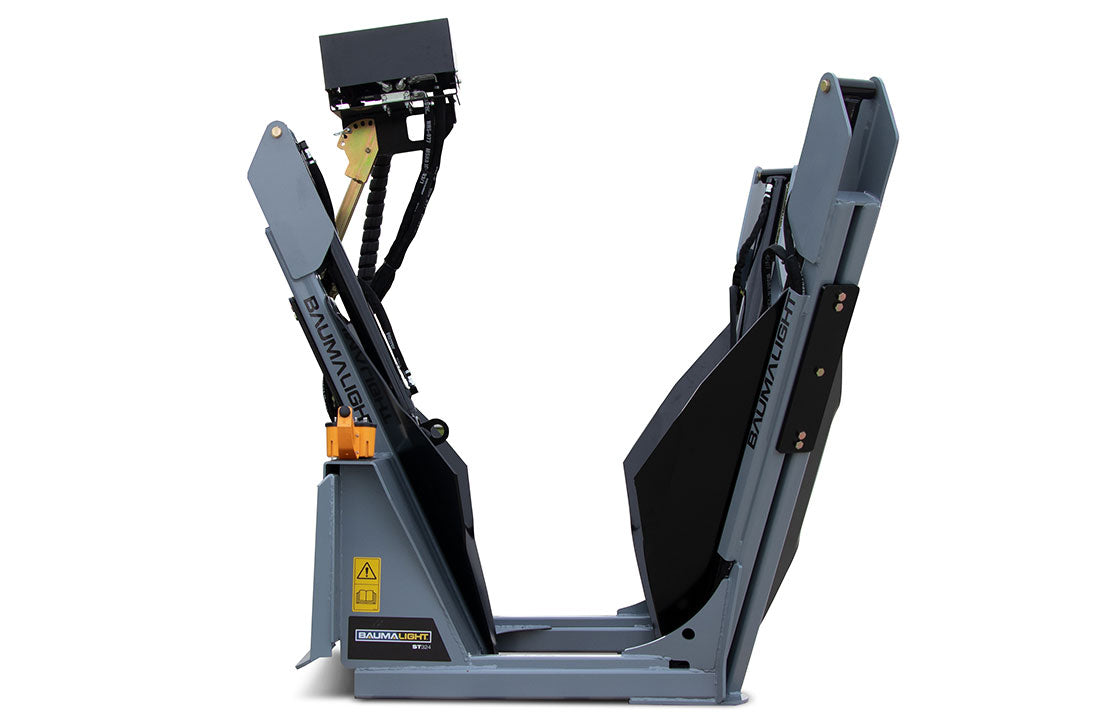

Baumalight ST324 tree spade photo 8

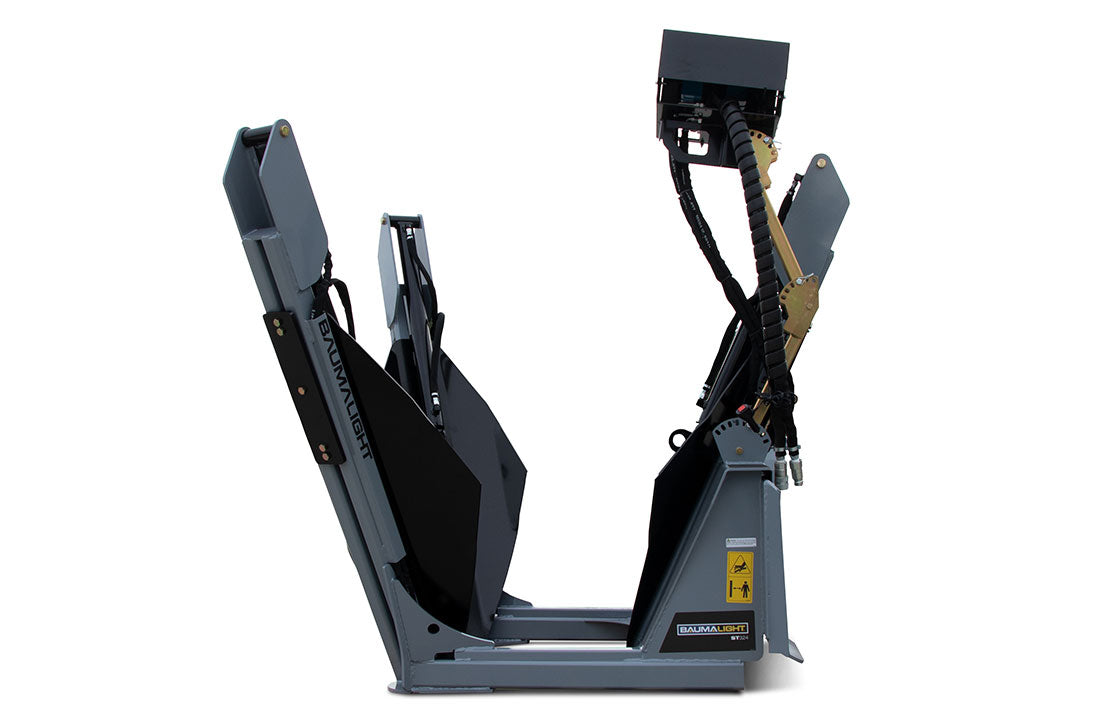

Baumalight ST324 tree spade photo 9

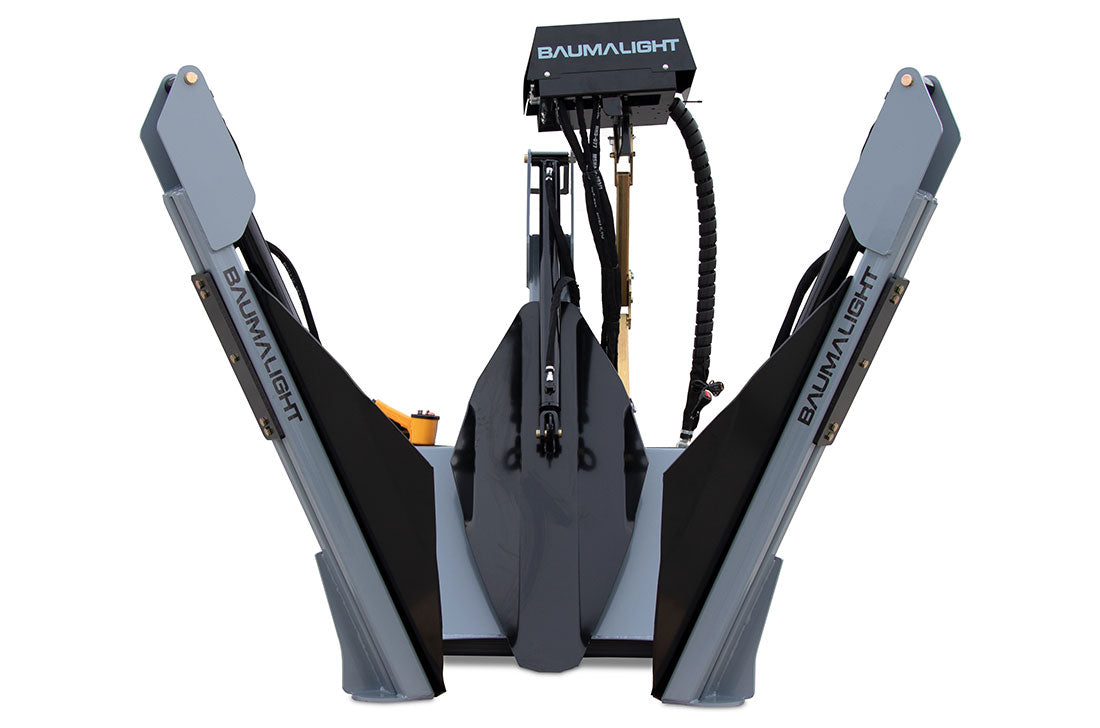

Baumalight ST324 tree spade photo 10
Roll over image to zoom in Click on image to zoom
Baumalight ST324 tree spade photo 1Baumalight ST324 tree spade photo 2Baumalight ST324 tree spade photo 3Baumalight ST324 tree spade photo 4Baumalight ST324 tree spade photo 5Baumalight ST324 tree spade photo 6Baumalight ST324 tree spade photo 7Baumalight ST324 tree spade photo 8Baumalight ST324 tree spade photo 9Baumalight ST324 tree spade photo 10
Baumalight

Baumalight Tree Spade ST324 for Skid Steers

SKU: BML-ST324-D003443 Currently In Stock

$7,999.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Manual Find Parts

MOST IMPORTANT FEATURES

ROOT BALL CONTROL

A 24-INCH ROOT BALL DIAMETER AND 23-INCH DEPTH DEFINE THE DIGGING ENVELOPE FOR CONTROLLED TREE LIFTING.

CONTROLLED DIGGING

3 HYDRAULICALLY DRIVEN BLADES CUT INTO THE SOIL AND SHAPE THE ROOT BALL AS THE CYLINDERS EXTEND.

TOUGH CUTTING SYSTEM

1/4-INCH MILD STEEL BLADES PROVIDE A DURABLE CUTTING SURFACE FOR REPEATED DIGGING AND ROOT BALL FORMATION.

CARRIER CONNECTION

THE INCLUDED UNIVERSAL SKID STEER MOUNT CONNECTS THE SPADE TO A SUITABLE LOADER FOR TREE DIGGING AND LIFTING.

PRECISE PLACEMENT

THE FIXED FRAME KEEPS THE DIGGING SYSTEM COMPACT FOR APPROACHING SMALLER TREES AND ALIGNING THE BLADES.

Description

Key Benefits

Technical Specs

Applications

Baumalight ST324

The Baumalight ST324 Tree Spade turns suitable skid steers into a controlled tree-transplanting system. Its 24-inch root ball diameter and 23-inch root ball depth give operators a defined digging envelope for lifting trees with soil around their roots. Designed for up to 2-inch evergreen trunks and 1.5-inch hardwood trunks, the ST324 fits nursery work, landscape renovation, and planned tree relocation.

3 hydraulically driven 1/4-inch mild steel blades cut into the soil and form the root ball for lifting. The semi-truncated profile shapes the bottom of the ball as the cylinders extend, while steel slides guide the blades through their working travel. The fixed frame keeps the attachment straightforward and compact for approaching smaller trees.

The included universal skid steer mounting plate connects the spade to a suitable carrier. The open layout gives the operator a useful view of the blades and the digging area. The digging system operates with 5–20 GPM and 2,900–4,000 PSI hydraulics.

Sleeved hoses protect the hydraulic lines, JIC fittings support service access, and the powder-coated body stands up to demanding outdoor work. Choose from the control packages shown in the options menu to suit your carrier and operating style. Wired and wireless packages use 12V power; AUX packages connect to the carrier’s electrical controls and use the matching connector configuration. The ST324 gives crews a practical combination of root ball control, accessible construction, and deliberate placement for repeatable transplanting work.

Baumalight ST324

24-inch root ball diameter gives crews a clear attachment size for transplant planning.

23-inch root ball depth defines the digging envelope beneath the tree.

1/4-inch mild steel provides a durable digging surface for repeated soil work.

Universal skid steer mount identifies the included carrier or transport configuration.

Fixed frame supports practical positioning and handling.

The ST324 combines defined trunk capacities with model-specific construction for nursery and landscape applications.

Baumalight ST324

Model: ST324
Attachment type: Tree Spade
Root ball diameter: 24 in.
Root ball depth: 23 in.
Evergreen trunk capacity: 2 in.
Hardwood trunk capacity: 1.5 in.
Digging blades: 3
Blade material: 1/4-inch mild steel
Blade angle: 25 degrees
Blade profile: Semi-truncated
Frame opening: 20 in.
Frame design: Fixed
Hydraulic flow: 5–20 GPM
Hydraulic pressure: 2,900–4,000 PSI
Spade weight: 1,100 lb
Mount included: Universal skid steer plate
Slide material: Steel
Control options: Manual Controls, Wired Electric Controls, Wireless Controls, AUX Controls
AUX live signal pins: 2

Baumalight ST324

  • Nursery tree relocation within the 24-inch root ball working size.
  • Landscape renovation and planned tree repositioning.
  • Planting rows and prepared transplant sites.
  • Property improvements that retain existing trees.
  • Contractor tree-moving and nursery handling projects.

SEE BAUMALIGHT TREE TRANSPLANTING IN ACTION

Baumalight ST324

ENGINEERED FOR POWER:

  • 3 hydraulically driven digging blades cut into the soil and form the root ball as the cylinders extend.
  • 1/4-inch mild steel blades provide a durable cutting surface for repeated soil penetration and root ball formation.
  • The 5–20 GPM hydraulic flow range identifies the carrier output required to operate the spade’s digging system.
  • The digging system operates at 2,900–4,000 PSI to drive the hydraulic cylinders through the blade cutting cycle.
  • A 24-inch root ball diameter defines the working size for lifting trees with soil around their roots.

BUILT FOR PRECISION:

  • A 23-inch root ball depth defines the digging envelope beneath the tree for controlled root ball lifting.
  • The 20-inch frame opening defines the available space for aligning the spade around the tree before digging.
  • The semi-truncated blade profile shapes the base of the root ball as the blades move into their digging position.
  • The fixed frame keeps the digging system compact for approaching smaller trees and aligning the blades with the root ball.
  • Steel slides guide the blades through their working travel as the hydraulic cylinders extend into the soil.

READY FOR THE FIELD:

  • Sleeved hydraulic hoses help protect the lines from abrasion as the attachment moves through digging and lifting cycles.
  • JIC hydraulic fittings provide accessible connection points for hose inspection, maintenance, and replacement.
  • The powder-coated finish protects the steel body during outdoor nursery, landscaping, and tree-moving work.
  • Integrated lifting eyes provide designated lifting points for handling the attachment during setup and storage.
  • The included universal skid steer mounting plate connects the spade to a suitable loader for digging and lifting trees.
