Baumalight

Tree Spade

Trailer Mounted

30" Root Ball Diameter

Request QuoteAdd To Cart

Baumalight Tree Spade TR330 Trailer Mounted

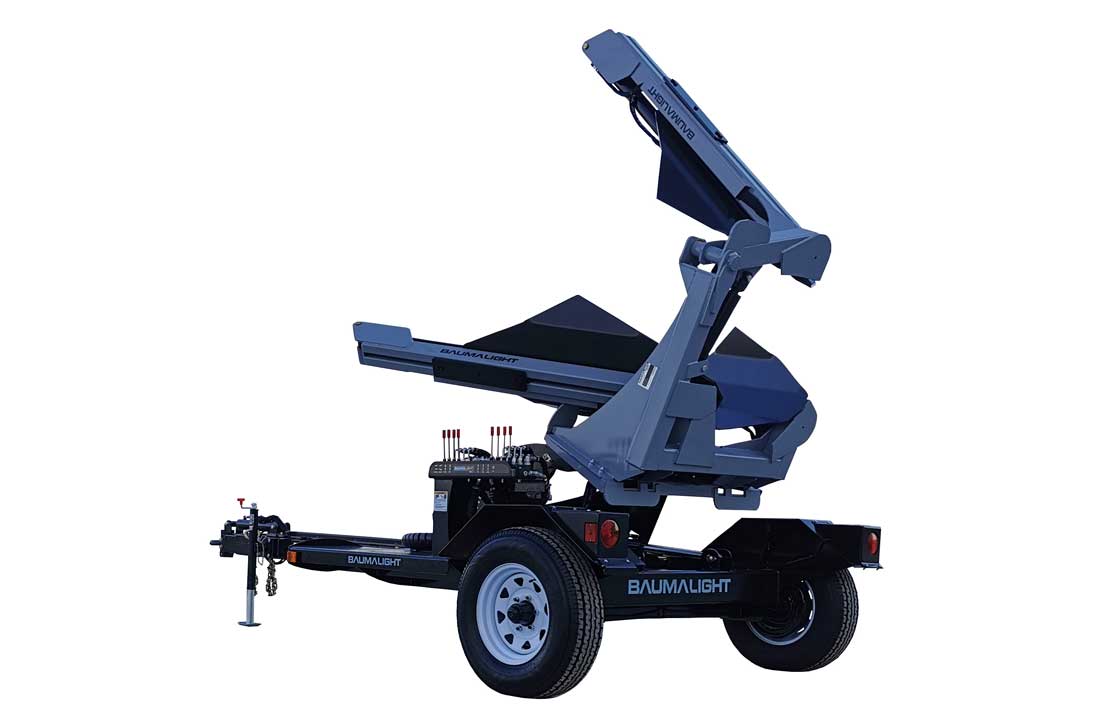

Baumalight TR330 tree spade photo 1
Baumalight TR330 tree spade photo 2

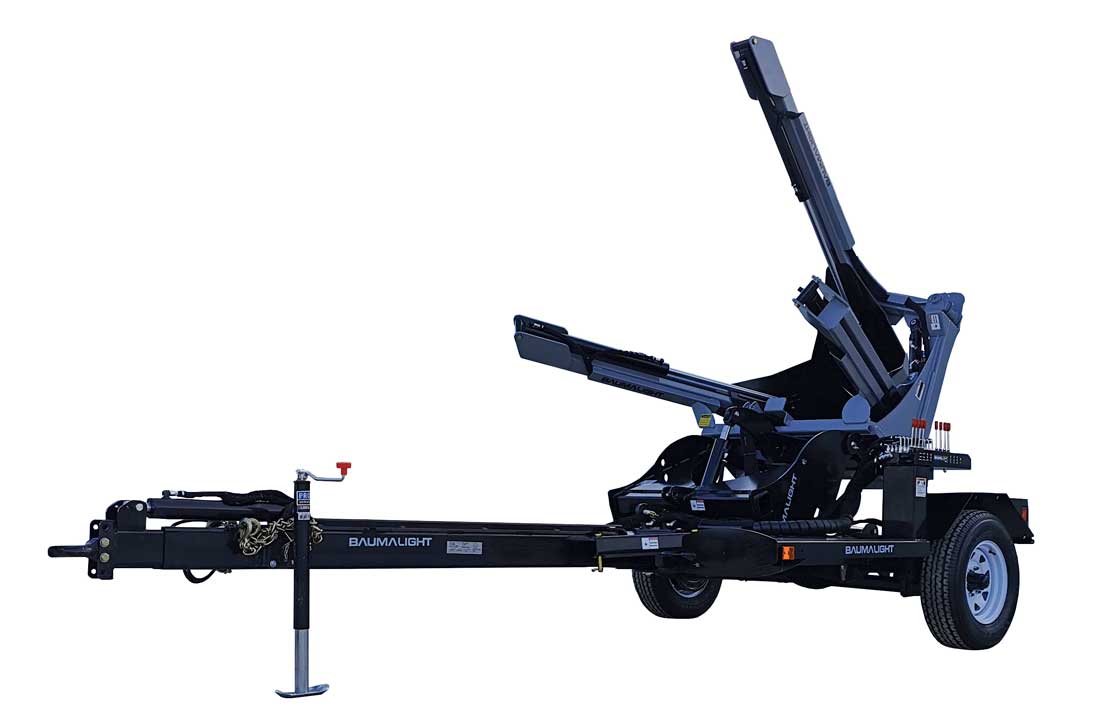

Baumalight TR330 tree spade photo 3
Baumalight TR330 tree spade photo 4

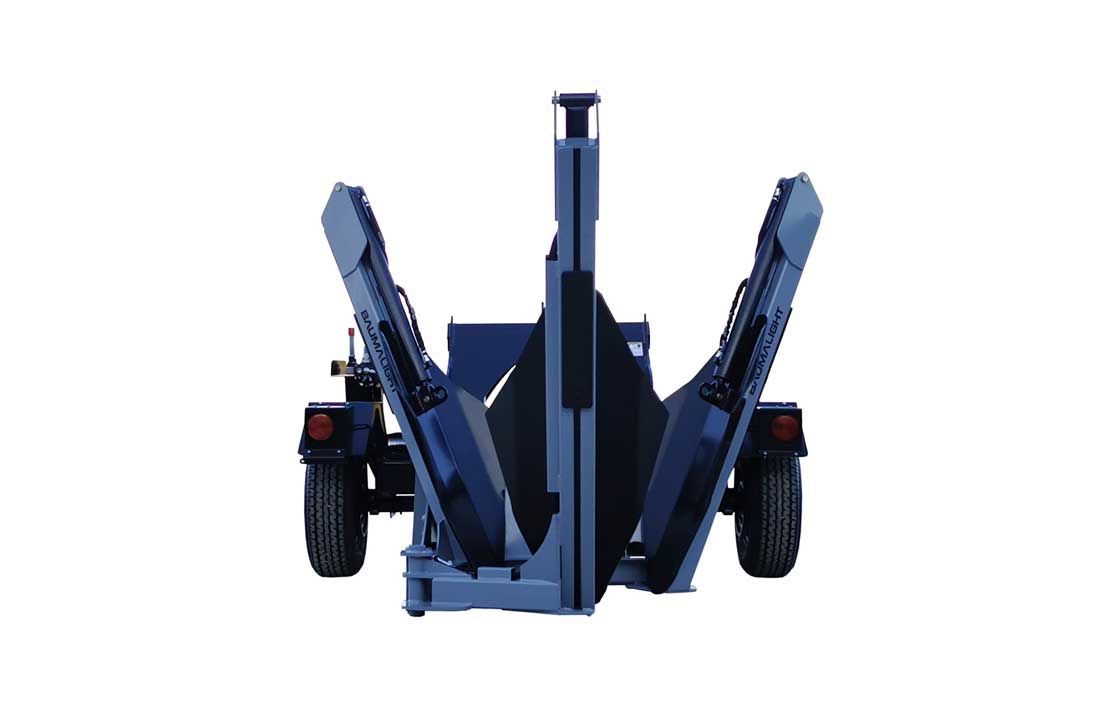

Baumalight TR330 tree spade photo 5

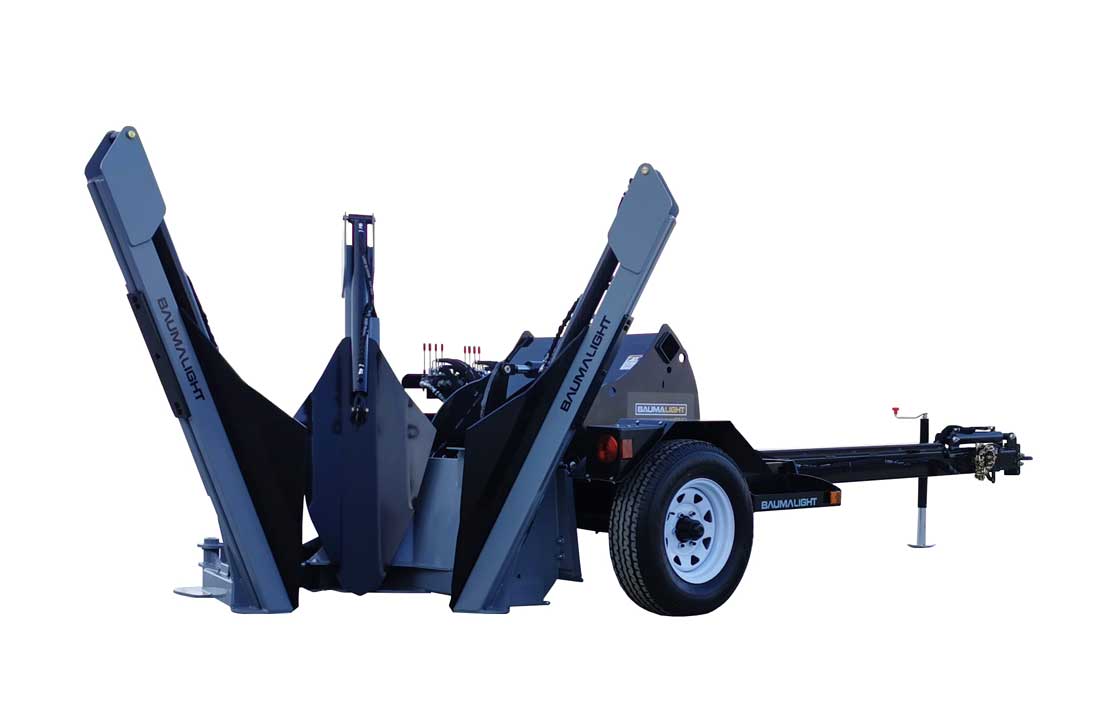

Baumalight TR330 tree spade photo 6
Roll over image to zoom in Click on image to zoom
Baumalight TR330 tree spade photo 1Baumalight TR330 tree spade photo 2Baumalight TR330 tree spade photo 3Baumalight TR330 tree spade photo 4Baumalight TR330 tree spade photo 5Baumalight TR330 tree spade photo 6
Baumalight

Baumalight Tree Spade TR330 Trailer Mounted

SKU: BML-TR330-BASE Currently In Stock

$33,099.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Manual Find Parts

MOST IMPORTANT FEATURES

TREE TRANSPLANTING

THE 30-INCH ROOT BALL DIAMETER SIZES THE DIGGING SYSTEM FOR NURSERY TREE MOVING AND LANDSCAPE TRANSPLANTING.

CONTROLLED DIGGING

3 HYDRAULICALLY DRIVEN STEEL BLADES CUT INTO THE SOIL AND FORM THE ROOT BALL FOR LIFTING.

HYDRAULIC POSITIONING

HYDRAULIC TONGUE, LATERAL, TILT, AND LIFT ADJUSTMENTS HELP ALIGN THE SPADE WITH THE TREE AND POSITION THE LOAD.

TOWABLE PLATFORM

A PINTLE HITCH AND TORFLEX AXLES PROVIDE THE TRAILER CONNECTION AND SUSPENSION FOR MOVING BETWEEN WORK LOCATIONS.

POWER PACK OPTION

CHOOSE THE HYDRAULIC POWER PACK PACKAGE TO ADD AN ELECTRIC-START HONDA GX630 ENGINE AND HYDRAULIC POWER SYSTEM.

Description

Key Benefits

Technical Specs

Applications

Baumalight TR330

The Baumalight TR330 Trailer Mounted Tree Spade combines tree digging and transport in one towable platform. With a 30-inch root ball diameter and 29-inch root ball depth, it is built for relocating established trees while carrying the soil and roots together. The trailer format gives landscaping and nursery crews a way to move between planting locations without keeping a loader attached to the spade.

Its 3 3/8-inch mild-alloy steel blades work around the tree to form the root ball. The semi-truncated blade profile shapes the base for lifting and placement, while the hinged frame opens for positioning around the trunk. A heavy-duty, powder-coated spade body and serviceable pivot points support repeated transplanting work through changing soil and site conditions.

Hydraulic tongue extension, lateral placement, and two-stage vertical positioning help align the spade with the digging site. These adjustments let the operator fine-tune reach, side-to-side location, and ground contact before extending the blades. The same controlled positioning supports lifting and setting the root ball into its prepared planting hole.

The TR330 includes a pintle hitch, safety chains, Torflex suspension axles, steel fenders, and a light kit. Select Trailer Only for use with a suitable external hydraulic supply, or Trailer + Hydraulic Power Pack to add the electric-start Honda GX630 688 cc gas power pack. Designed for up to 3-inch evergreen trunks and 2.5-inch hardwood trunks, this package gives crews a practical platform for nursery moves, landscape relocation, and tree transport.

Baumalight TR330

30-inch root ball diameter gives crews a clear attachment size for transplant planning.

29-inch root ball depth defines the digging envelope beneath the tree.

3/8-inch mild-alloy steel provides a durable digging surface for repeated soil work.

Pintle hitch and torflex axles identifies the included carrier or transport configuration.

Electric-start honda gx630 supports practical positioning and handling.

The TR330 combines defined trunk capacities with model-specific construction for nursery and landscape applications.

Baumalight TR330

Model: TR330
Attachment type: Trailer Mounted Tree Spade
Root ball diameter: 30 in.
Root ball depth: 29 in.
Evergreen trunk capacity: 3 in.
Hardwood trunk capacity: 2.5 in.
Digging blades: 3
Blade material: 3/8-inch mild-alloy steel
Blade angle: 25 degrees
Blade profile: Semi-truncated
Frame opening: 60 in.
Suspension: Torflex axles
Hitch: Pintle hitch with safety chains
Hydraulic power packages: Trailer Only / Trailer + Hydraulic Power Pack
Optional power pack: Honda GX630, 688 cc, electric start

Baumalight TR330

  • Nursery tree relocation within the 30-inch root ball working size.
  • Landscape renovation and planned tree repositioning.
  • Planting rows and prepared transplant sites.
  • Property improvements that retain existing trees.
  • Contractor tree-moving and nursery handling projects.

SEE BAUMALIGHT TREE TRANSPLANTING IN ACTION

Baumalight TR330

ENGINEERED FOR POWER:

  • 3 hydraulically driven digging blades cut into the soil and form the root ball as the cylinders extend.
  • 3/8-inch mild-alloy steel blades provide a durable cutting surface for repeated soil penetration and root ball formation.
  • A 30-inch root ball diameter defines the working size for lifting trees with soil around their roots.
  • A 29-inch root ball depth defines the digging envelope beneath the tree for controlled root ball lifting.
  • The optional electric-start Honda GX630 power pack supplies standalone hydraulic power when selected with the trailer package.

BUILT FOR PRECISION:

  • Hydraulic tongue extension adjusts the spade’s reach to help align the digging frame with the tree.
  • Hydraulic lateral adjustment moves the digging assembly sideways for finer alignment with the tree and planting location.
  • Two-stage vertical positioning provides hydraulic tilt and lift control for digging, raising, and placing the root ball.
  • The 60-inch frame opening provides room to align the trailer-mounted digging assembly around the tree.
  • Semi-truncated blades shape the bottom of the root ball for lifting and placing the tree during transplanting.

READY FOR THE FIELD:

  • The included pintle hitch and safety chains provide the trailer connection components for a matching tow vehicle.
  • Torflex suspension axles provide suspension support for the trailer as it moves between tree-transplanting locations.
  • Steel fenders cover the trailer wheels to help limit mud and debris spray during movement around work sites.
  • The included light kit and highway-rated tires equip the trailer with lighting and tires for transport between locations.
  • The powder-coated spade body and greaseable pivot pins combine a protective finish with accessible maintenance points.
