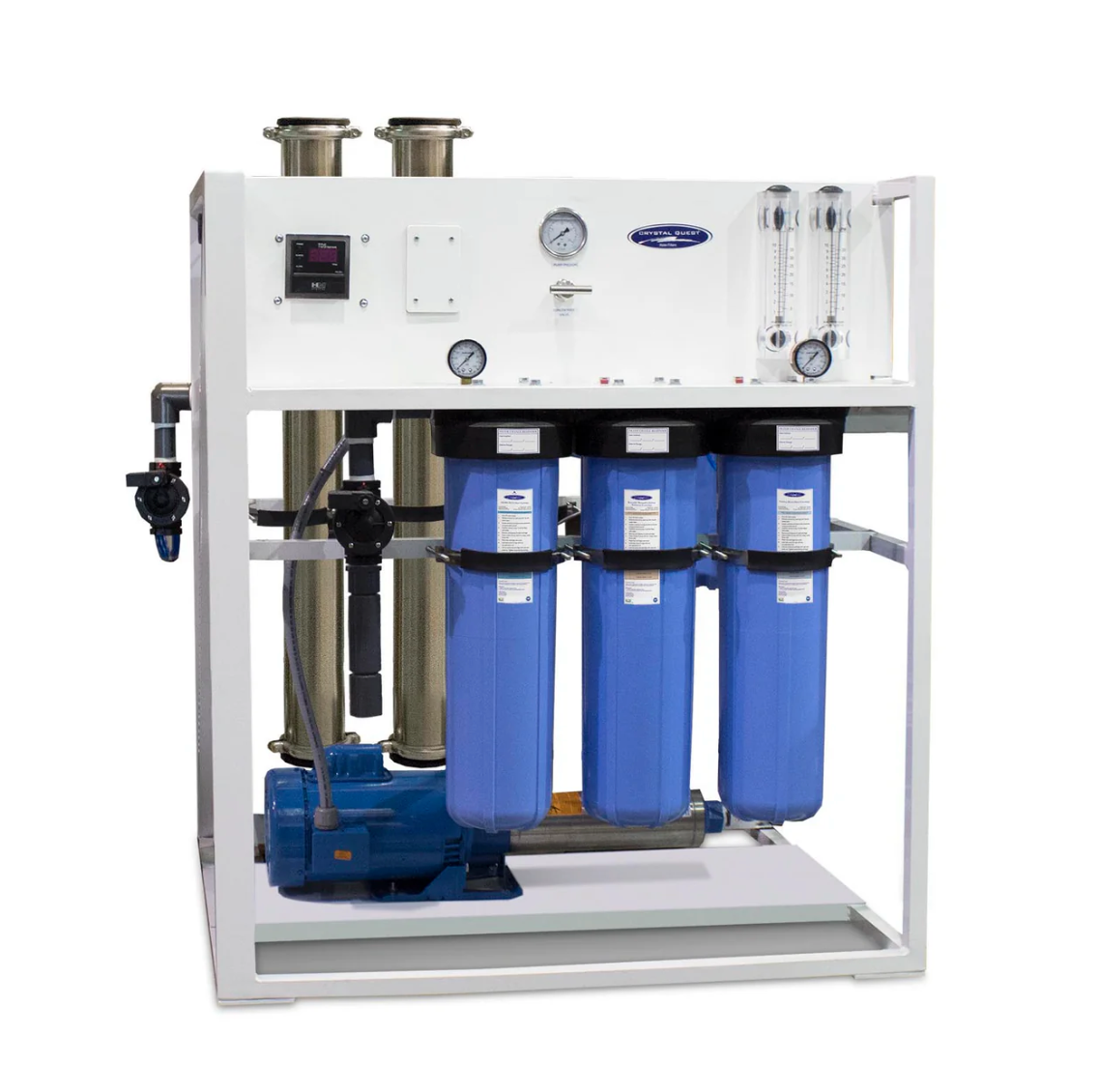

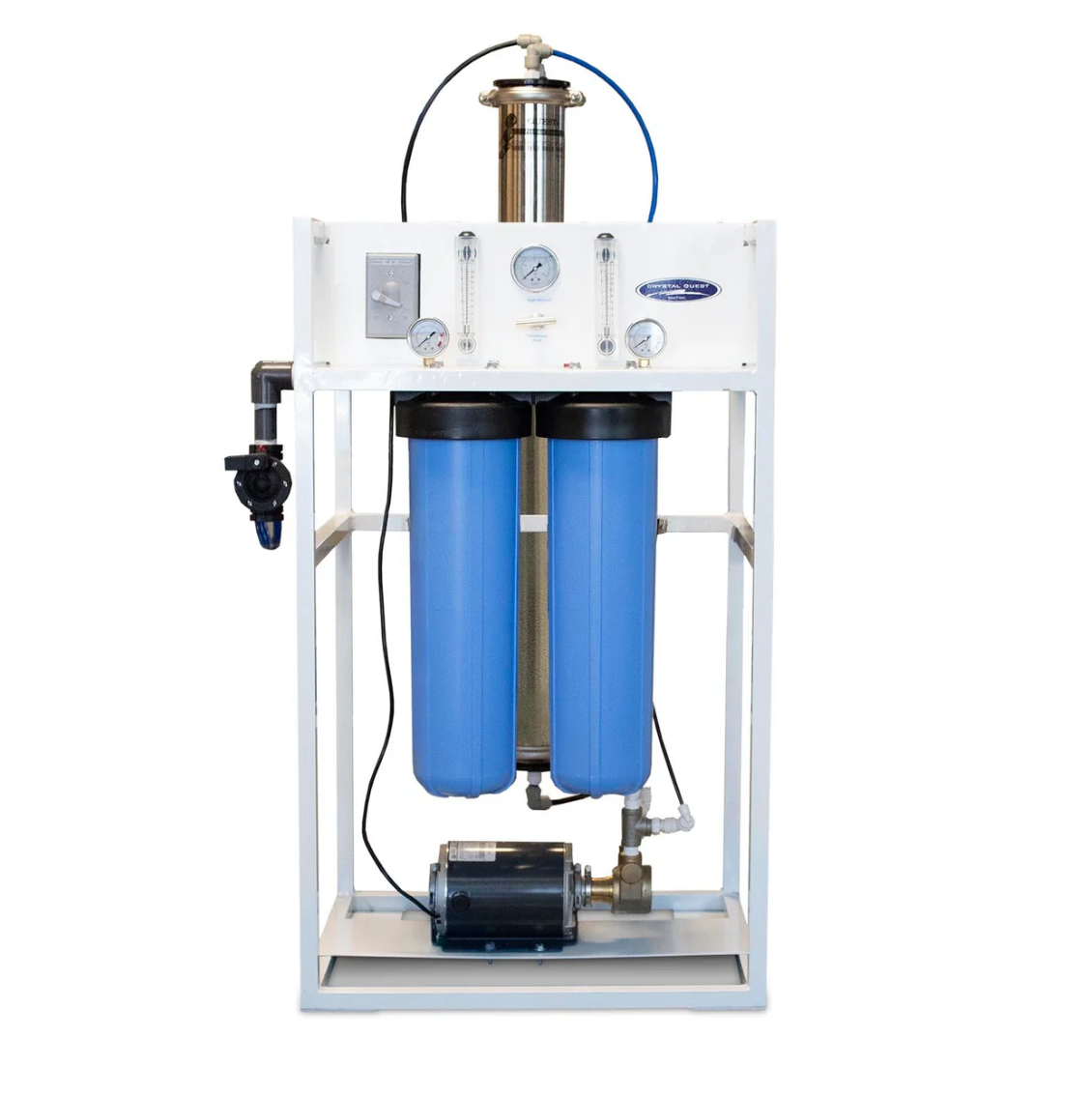

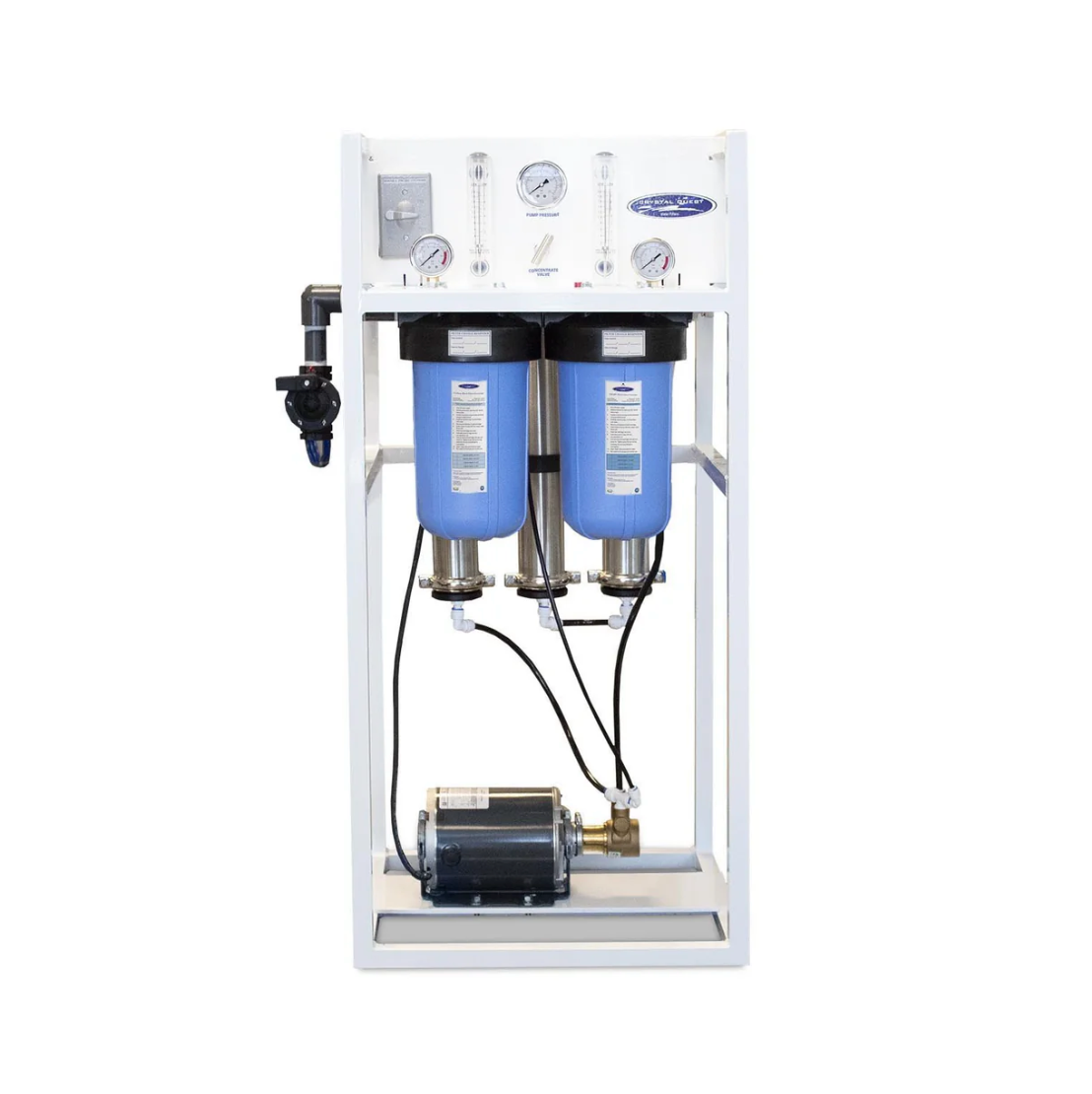

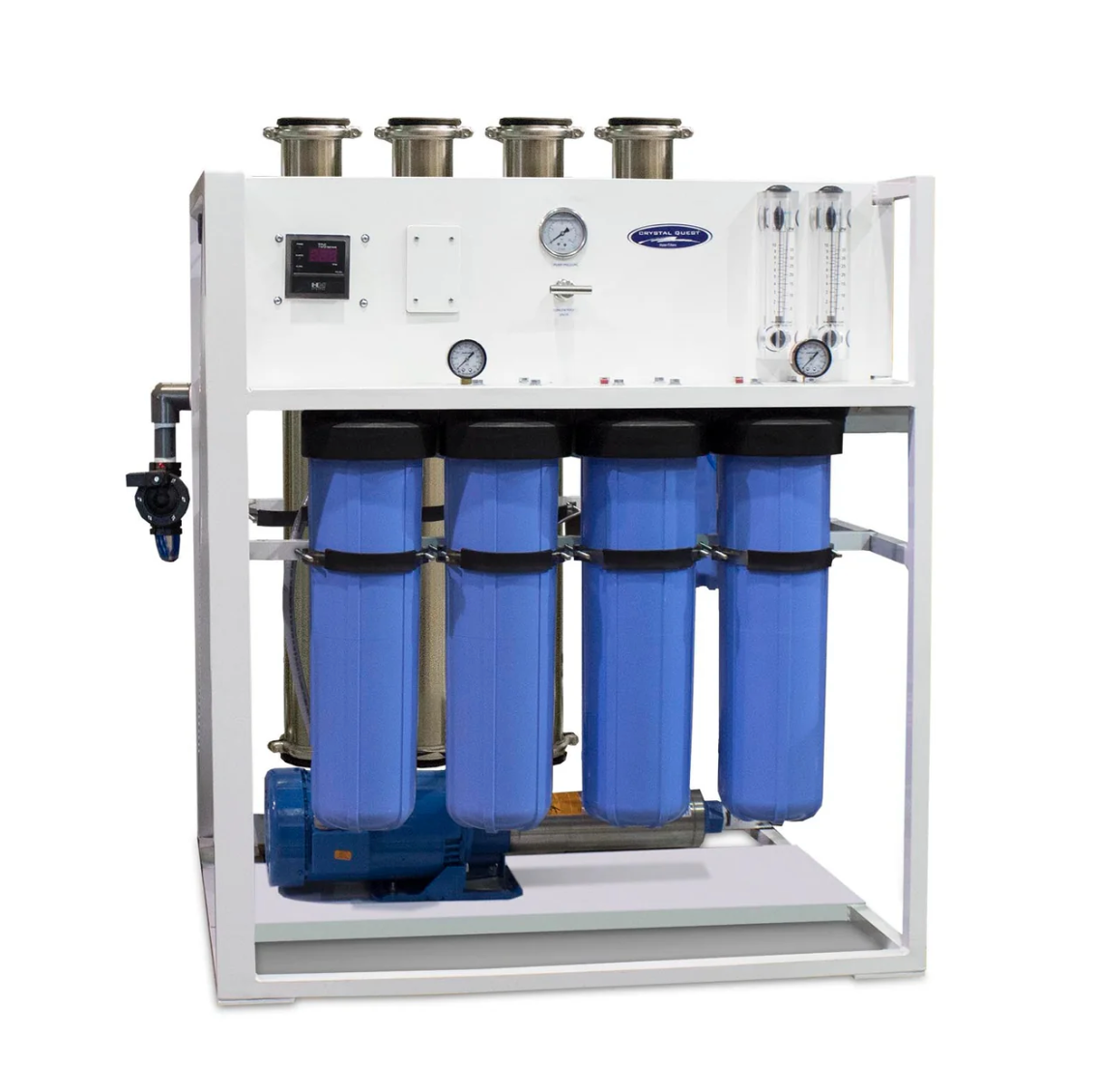

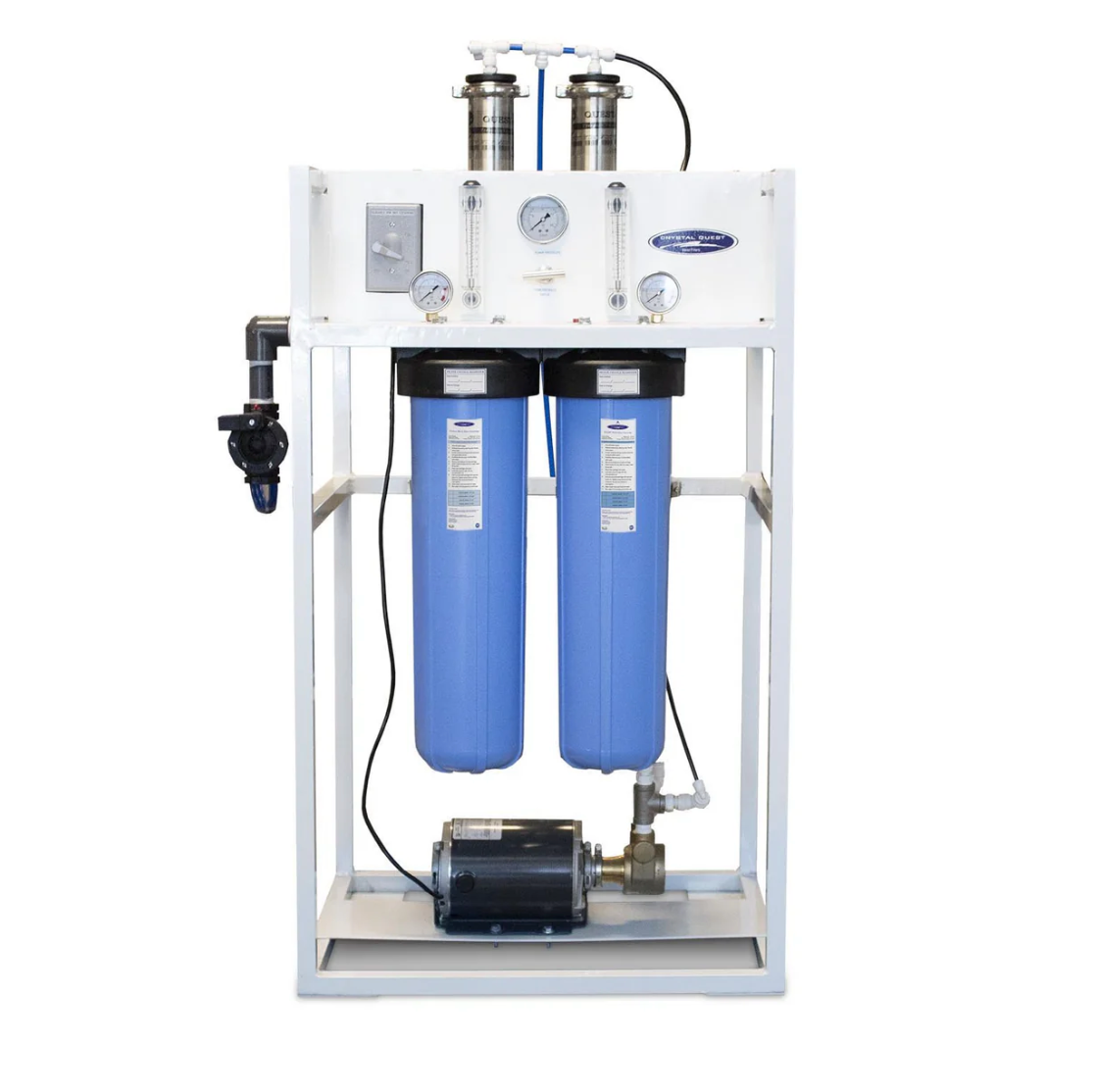

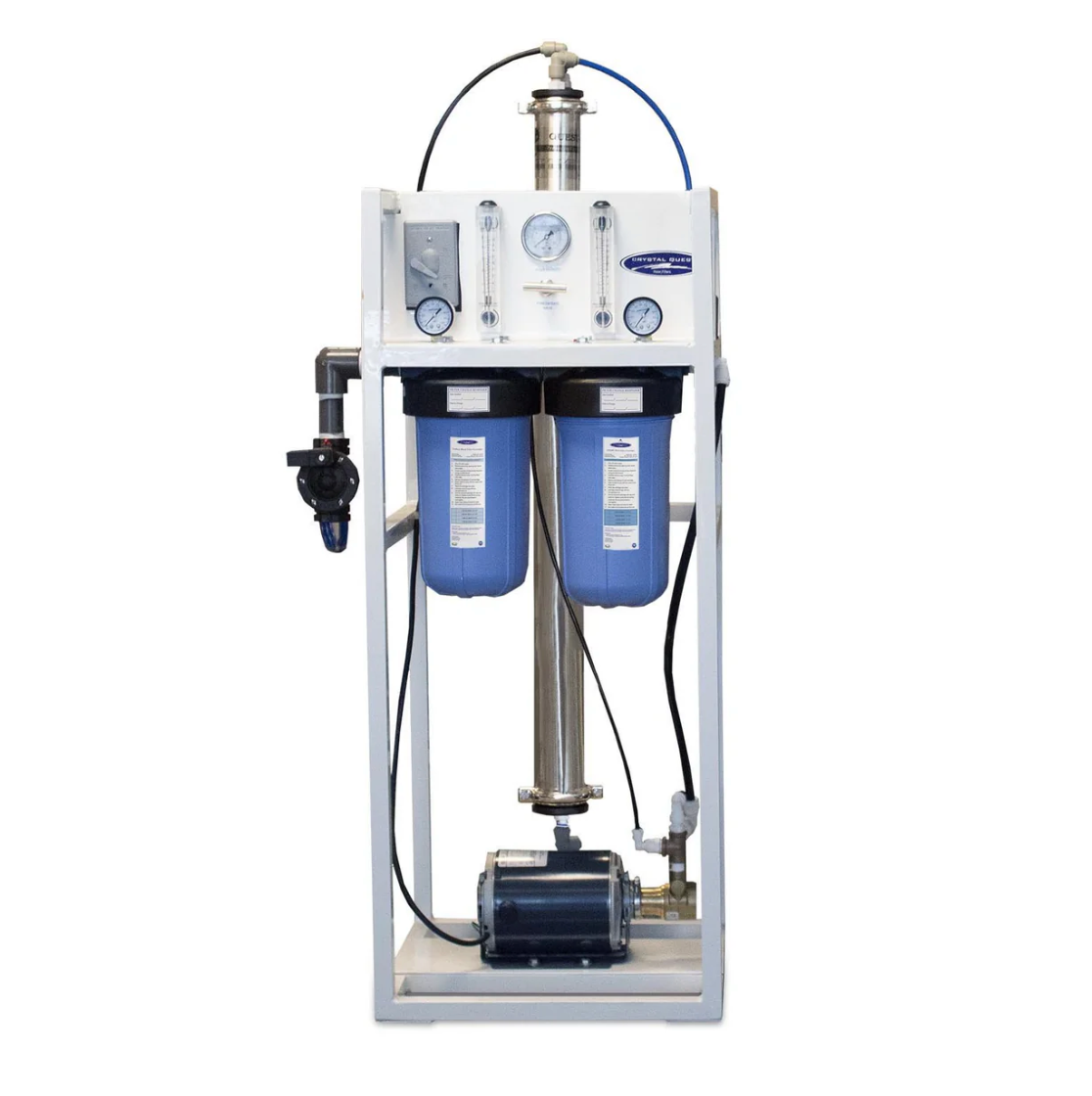

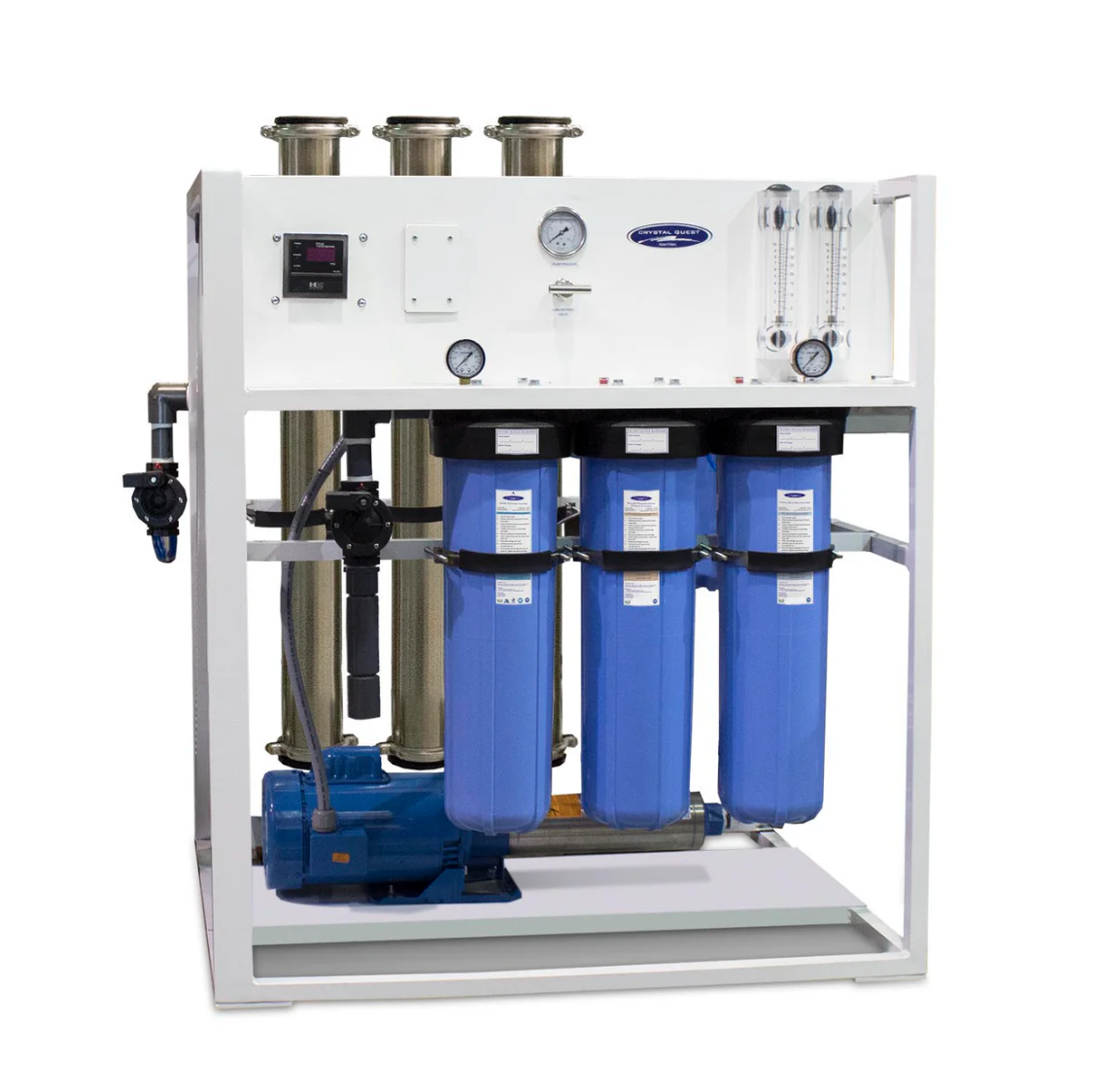

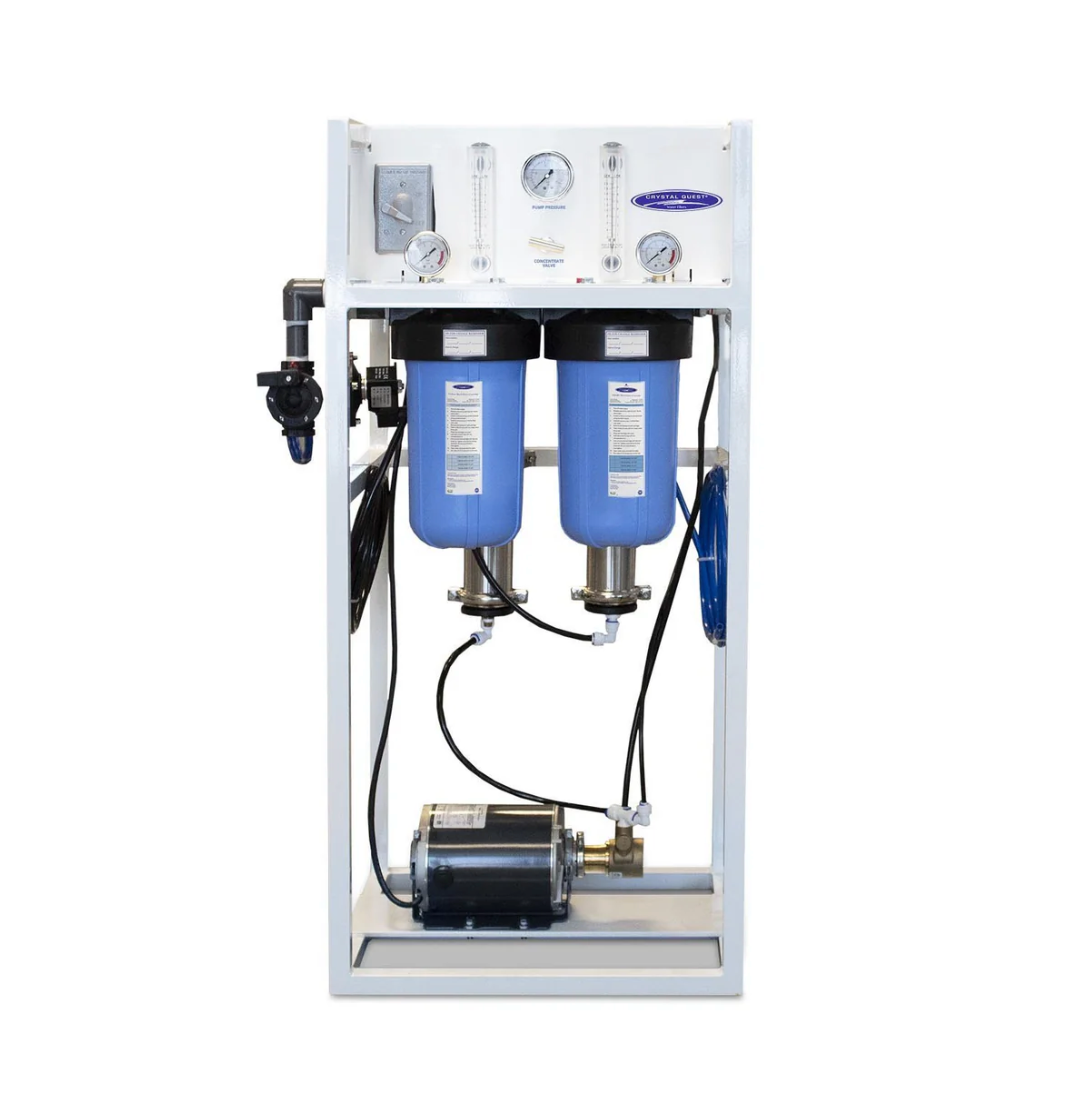

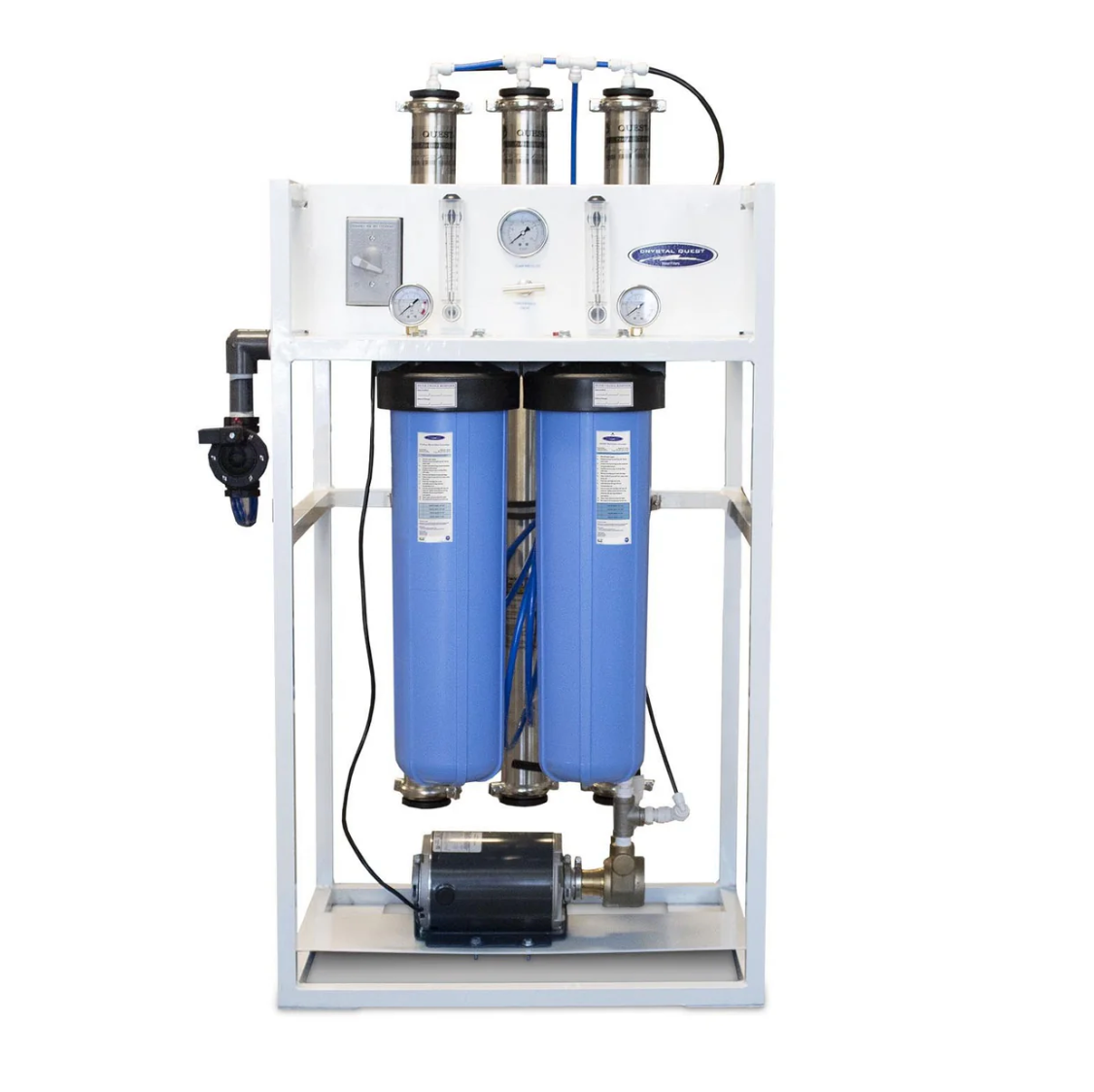

Commercial Mid-Flow Reverse Osmosis System (500-7000 GPD)

SKU: CQE-CO-02024C
Crystal Quest

$3,884.00

✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
✔ FREE & FAST Shipping: In Stock and Ready to Ship
✔ Questions? Call a Currenhaus Team Member: (805)-334-5208

Description

Crystal Quest Commercial Reverse Osmosis System delivers compact, high-performance water purification for commercial and light industrial applications. With configurable flow rates from 500 to 7,000 gallons per day (GPD), this system is ideal for car washes, grow operations, restaurants, labs, and small-scale manufacturing facilities.

Designed for long-term reliability, the system arrives fully assembled, pre-wired, and pre-plumbed, ready for immediate installation. The compact frame, low-maintenance components, and advanced control features make it a dependable choice for facilities with limited space and continuous usage needs.

Core Features:

Powder-coated aluminum frame (lightweight and corrosion-resistant)
TFC membranes housed in stainless steel pressure vessels
Continuous-duty brass rotary vane high-pressure pump with dry-run protection
High-efficiency carbonator motor
316 stainless concentrate valve for recovery control
Dual flow meters (permeate and concentrate)
Pressure gauges: 0–100 psi (pre-filter), 0–300 psi (pump)
Automatic low-pressure shutoff and high-pressure tank shutdown
1” solenoid valve for feed water control
Secure push/pull fittings with locking clips

System Benefits:

Compact footprint for mechanical rooms or tight spaces
Fully factory assembled, wired, and tested
Modular design for transport and servicing
Low energy use and reduced maintenance cost
CE compliant
1-Year Limited Warranty
Made in the USA

Upgrade Options:

Stainless-steel rotary vane pump for enhanced durability
Concentrate recycle valve to increase recovery efficiency
Digital TDS monitoring (single, dual, or conductivity-based)
S150 or IF controllers with feed flush and alarm indicators
Integrated chemical pump power outlet
Blending valve for final TDS control
Permeate sample port for performance testing
Voltage options: 110V or 240V (50–60Hz)
Ships in a single protective wood crate

Need help selecting flow rate or upgrades? Contact Our Team before checkout for configuration support.

We accept

pngimg.com - paypal_PNG7.png__PID:8a7c843a-2227-4649-a602-786624b58d6f

Authorized U.S. Dealer

All Crystal Quest® systems ship directly from certified U.S.-based facilities.

Fast & Free Shipping

Most units are built-to-order and ship quickly with no added delivery fees.

Easy Returns & Exchanges

Eligible systems can be returned within 30 days. We’re here to help if anything’s not right.

Lifetime Support

Call, chat, or email anytime. Our U.S.-based team is ready to assist before and after your purchase.

Mid-Flow Reverse Osmosis Specifications

Construction: Aluminum white powder coated, corrosion-resistant, and lightweight
Stainless steel membrane housing: TFC membrane for maximum rejection of impurity and high flow
Brass Rotary Vane High-Pressure Pump designed for continuous use and built-in protection for loss of feedwater protection
High-Efficiency Carbonate Motor
SWP 316 Stainless steel concentrate valve: to control permeate versus concentrated water
SWP Flow meter: to display permeate and concentrated water flow
SWP 0-100 psi Pre-filter pressure gage Indicator to aids on timely cartridges change
SWP 0-300 psi pump pressure gauge indicator pump pressure gauge reading range from 120 – 200
Low-pressure switch: Automatically shut off RO system motor to avoid pump run dry
High-Pressure Tank Switch: Automatically turns off the RO system at a predetermined storage tank pressure. No need for expensive “plug/play”
1” Feed solenoid valve. Automatically shuts off the feed water to the system
Push/Pull fittings with locking safety clips

Screenshot 2025-06-30 at 10.03.55 PM.png__PID:dd639872-c375-44c1-978a-4dbb66dd8160

What Our Customers Say

Hear why thousands of our customers love CapturePro

Mid-Flow Reverse Osmosis FAQs

Get Answers to Commonly Asked Questions

What protections are in place to prevent system failure?

The system includes a brass rotary vane high-pressure pump with built-in feedwater protection, a low-pressure shutoff switch to prevent dry running, and a high-pressure tank switch to prevent over-pressurization.

Does it come assembled and ready to install?

Yes. Each unit is pre-wired, pre-plumbed, and fully assembled for quick installation. It also includes a 1" feed solenoid valve that automatically shuts off feed water when the system is off, improving efficiency and safety.

Is the system easy to maintain?

Yes. It features push/pull fittings with locking safety clips, clearly labeled pressure gauges, and easy-access pre-filters. The pre-filter pressure gauge helps indicate when cartridges need replacement—simplifying maintenance.

What type of water quality can I expect after filtration with this system?

The system uses a TFC (Thin Film Composite) membrane housed in stainless steel for maximum rejection of impurities. Expect consistently high-purity, low-TDS water that meets the standards required for medical, food service, or high-performance industrial applications.

How does this system compare to other RO units in terms of efficiency and durability?

Unlike typical RO units, this model includes a corrosion-resistant aluminum frame, a high-efficiency carbonate motor, and precision components like SWP stainless steel concentrate valves and dual pressure gauges. It’s engineered for continuous use with reduced maintenance and lower long-term operating costs.
