DEMO DOZER

Standard Grapple Bucket

For Skid Steers & Compact Track Loaders

60–84″ Widths

Request QuoteAdd To Cart

Demo Dozer DD100 Standard Grapple Bucket

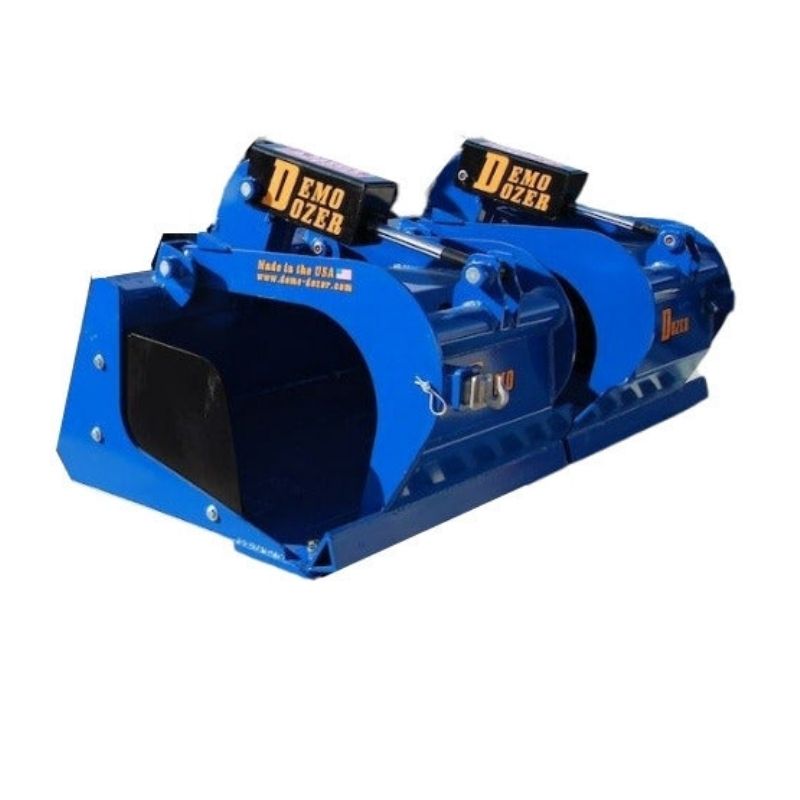

Demo Dozer standard solid floor grapple bucket, product view

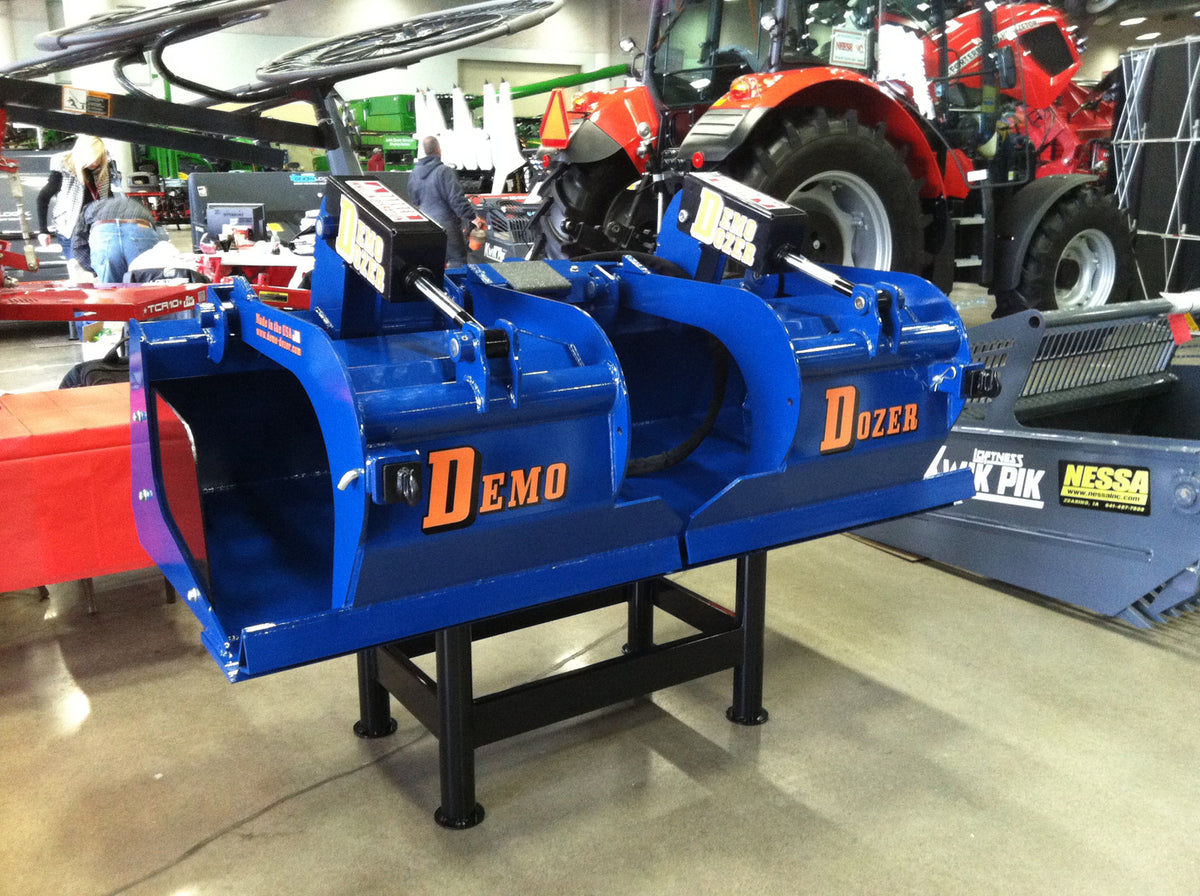

Demo Dozer standard grapple bucket, manufacturer product photograph

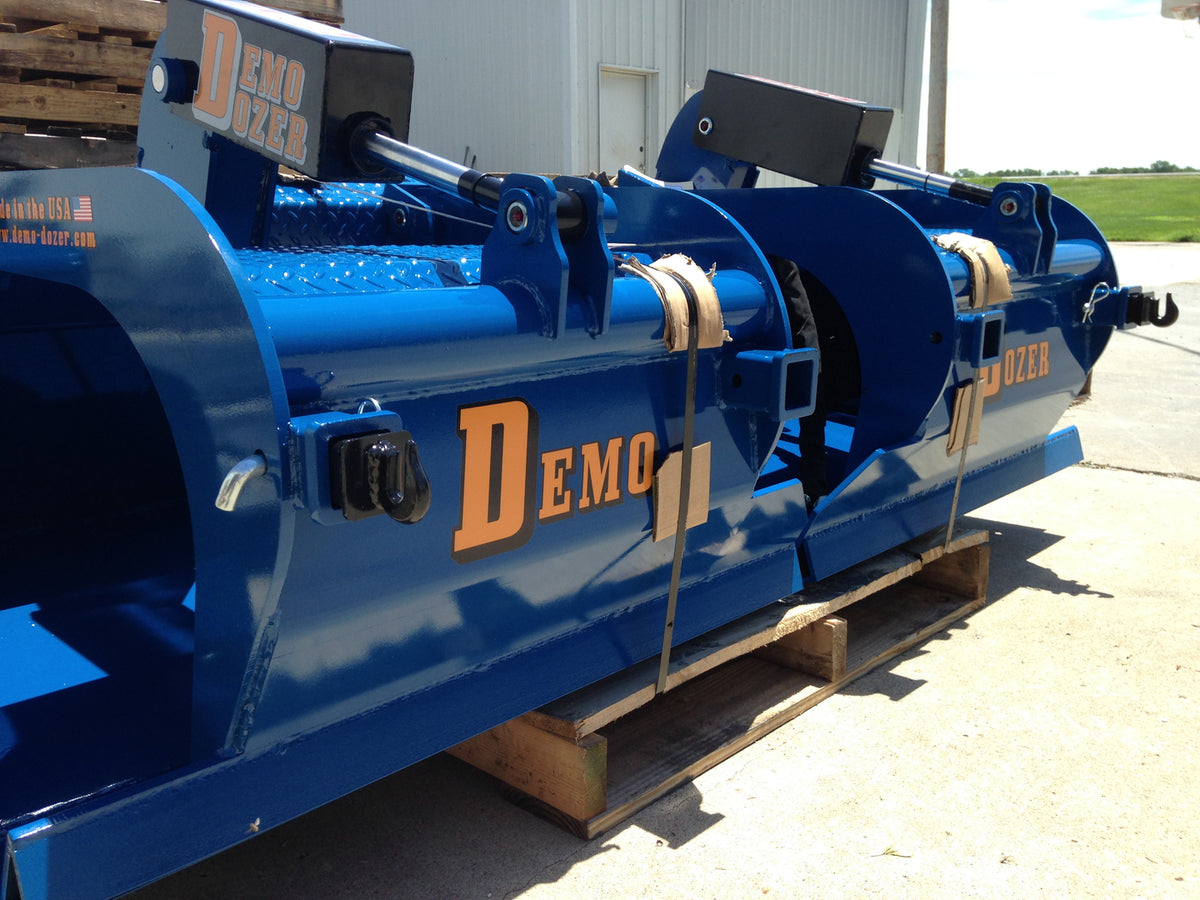

Demo Dozer standard grapple bucket, alternate product view
Demo Dozer recessed grease fitting detail
Demo Dozer grapple bucket rear view showing universal skid steer quick attach; color may vary
Demo Dozer product family demonstration handling a log with a compact track loader
Roll over image to zoom in Click on image to zoom
Demo Dozer standard solid floor grapple bucket, product viewDemo Dozer standard grapple bucket, manufacturer product photographDemo Dozer standard grapple bucket, alternate product viewDemo Dozer recessed grease fitting detailDemo Dozer grapple bucket rear view showing universal skid steer quick attach; color may varyDemo Dozer product family demonstration handling a log with a compact track loader
Demo Dozer

Demo Dozer DD100 Standard Grapple Bucket

SKU: DD100-60 Currently In Stock

$6,814.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Brochure Parts & Support

MOST IMPORTANT FEATURES

SOLID FLOOR BUCKET

RETAIN LOOSE SOIL AND MATERIAL WHILE COMBINING LOADING, PUSHING, AND GRAPPLING.

INDEPENDENT GRAPPLE SECTIONS

HYDRAULIC GRAPPLE SECTIONS ACCOMMODATE BRUSH, LOGS, AND UNEVEN DEBRIS.

FIVE WIDTH OPTIONS

60, 66, 72, 78, AND 84″ NOMINAL WIDTHS COVER A RANGE OF WORK.

REMOVABLE SIDE PLATES

ADAPT THE BUCKET SIDES AROUND BULKY MATERIAL AND CLEANUP TASKS.

TOOL RECEIVERS AND CHAIN HOOKS

TWO RECEIVERS ON 60/66″ MODELS; FOUR ON LARGER WIDTHS. TWO INTEGRATED CHAIN HOOKS ADD HANDLING OPTIONS.

Description

Key Benefits

Technical Specs

Applications

Demo Dozer DD100 Standard Grapple Bucket

The Demo Dozer DD100 Standard Grapple Bucket combines a general purpose bucket with hydraulic grappling, clamshell handling, and pushing capability. Move loose material, secure brush and logs, and collect mixed demolition debris with the same attachment. The solid floor retains soil and other loose loads during general bucket work.

Independent grapple sections help grip uneven material while the bucket supports the load. Removable side plates, recessed grease fittings, and protective cylinder and hose covers support practical day-to-day use. Integrated chain hooks and tool receivers add handling options, and a predrilled base edge provides attachment points for an optional bolt-on edge.

Choose from 60, 66, 72, 78, and 84″ nominal widths. The 60 and 66″ models have two tool receivers; the larger widths have four. A universal skid steer quick attach and auxiliary hydraulic hoses and couplers connect the bucket to a suitable skid steer or compact track loader. Match the attachment and carried load to the machine's capacity, and verify the physical mount and coupler fit before operation.

Demo Dozer DD100 Standard Grapple Bucket

  • Combines general bucket, pushing, and grapple tasks.
  • Handles loose material and bulky debris.
  • Supports clamshell and log handling applications.
  • Five nominal widths suit different machines and access routes.
  • Reduces attachment changes between compatible tasks.

Demo Dozer DD100 Standard Grapple Bucket

  • Model family: DD100.
  • Configuration: Standard solid floor grapple bucket.
  • Nominal widths: 60, 66, 72, 78, 84″.
  • Mount: universal skid steer quick attach.
  • Carriers: skid steers and compact track loaders with auxiliary hydraulics.
  • Hydraulic function: cylinder-operated grapple; no continuous motor-flow range is specified.
  • Hoses and couplers, removable side plates, recessed grease fittings, and two chain hooks.
  • Tool receivers: two on 60/66″ models; four on 72/78/84″ models.
  • Published attachment weights: 60″ 1,015 lb; 66″ 1,068 lb; 72″ 1,136 lb; 78″ 1,215 lb; 84″ 1,290 lb.
  • Colors and decals may vary. Attachment plus load must suit carrier capacity.

Demo Dozer DD100 Standard Grapple Bucket

  • Brush and log handling.
  • Mixed site debris cleanup.
  • Farm and property maintenance.
  • Loose material loading and placement.
  • Construction and demolition site cleanup within carrier limits.

Demo Dozer: Product Family Demonstrations

Demo Dozer DD100 Standard Grapple Bucket

BUILT FOR THE WORK:

  • Combines general bucket, pushing, and grapple tasks.
  • Handles loose material and bulky debris.
  • Supports clamshell and log handling applications.
  • Five nominal widths suit different machines and access routes.
  • Reduces attachment changes between compatible tasks.

SET UP FOR YOUR APPLICATION:

  • Select a 60–84″ nominal width.
  • Fits universal skid steer quick attach mounting.
  • Uses the carrier's auxiliary hydraulics for grapple actuation.
  • Hoses and couplers connect the hydraulic cylinders.
  • Match attachment and carried load to carrier capacity.

READY FOR THE FIELD:

  • Recessed grease fittings support routine servicing.
  • Protective covers shield cylinders and hoses.
  • Removable side plates accommodate the work.
  • Two receivers on 60/66″ models; four on larger widths.
  • Predrilled base edge accepts an optional bolt-on edge.
