DEMO DOZER

Open Bottom Grapple Bucket

For Skid Steers & Compact Track Loaders

66–84″ Widths

Request QuoteAdd To Cart

Demo Dozer DD102 Open Bottom Grapple Bucket

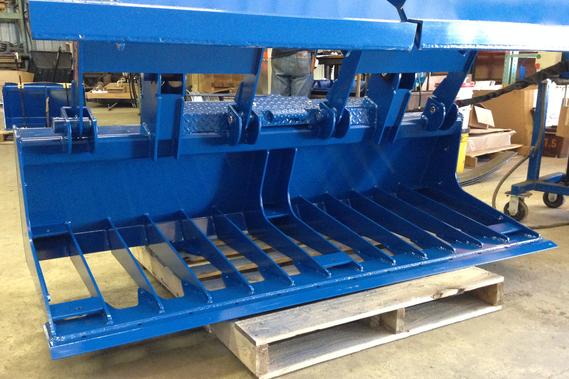

Demo Dozer removable floor configuration, floor removed

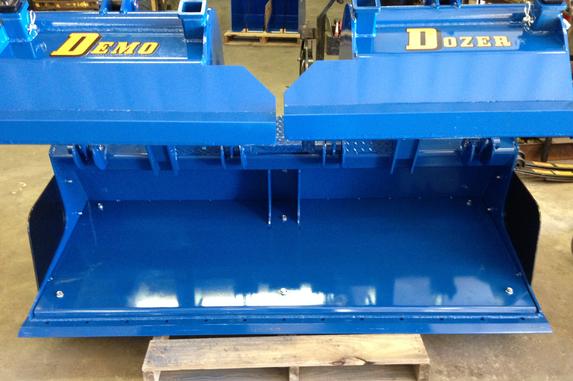

Demo Dozer removable floor configuration, floor installed

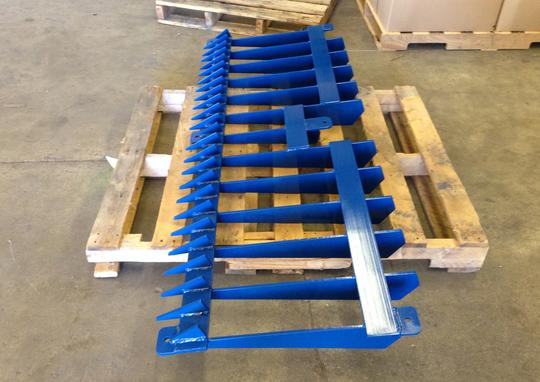

Demo Dozer removable floor configuration with optional rock bucket insert, optional accessory shown

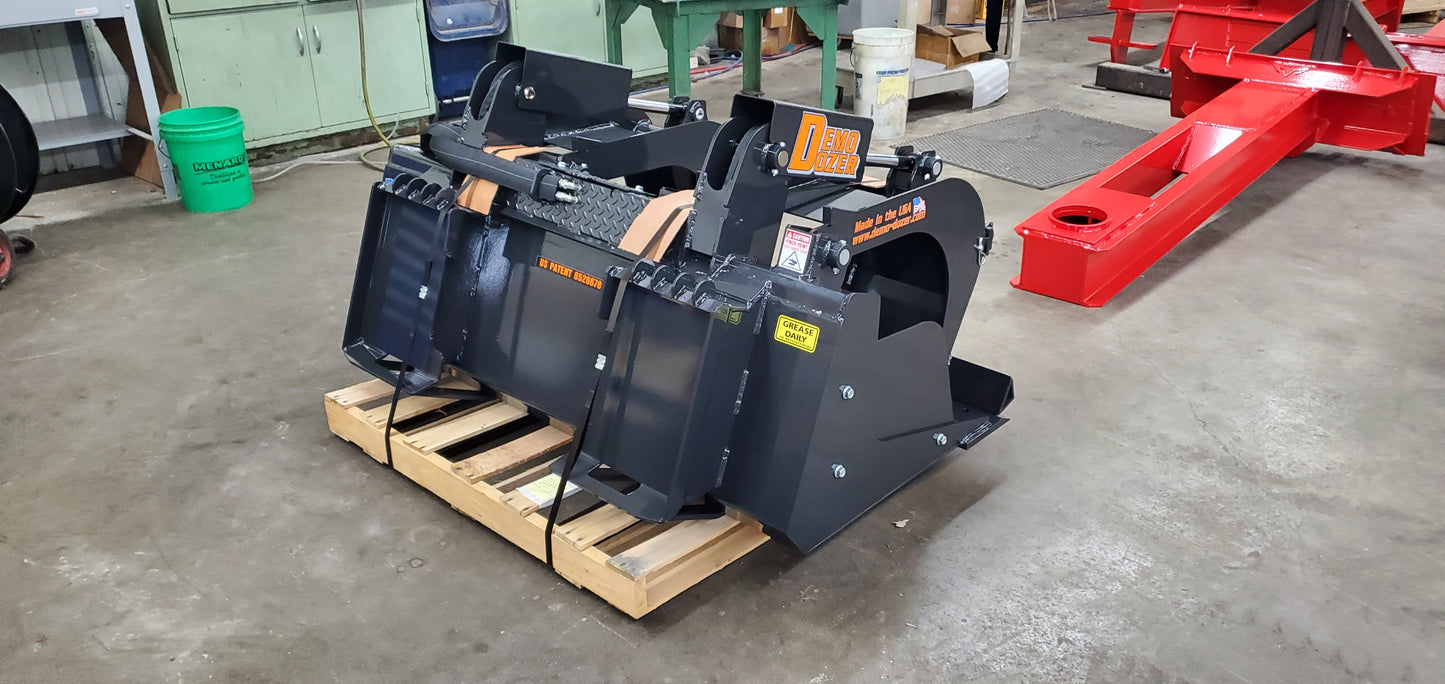

Demo Dozer grapple bucket rear view showing universal skid steer quick attach; color may vary

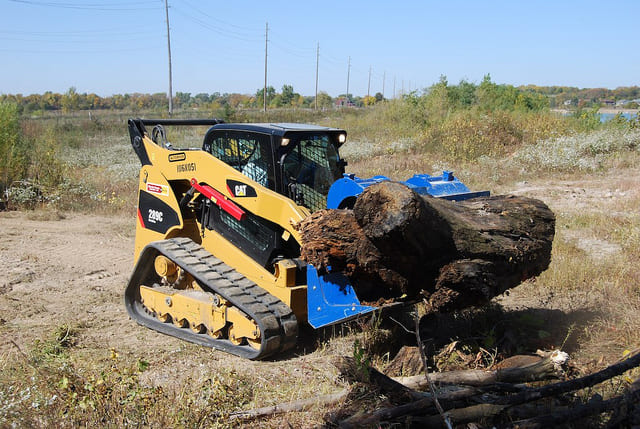

Demo Dozer product family demonstration handling a log with a compact track loader
Roll over image to zoom in Click on image to zoom
Demo Dozer removable floor configuration, floor removedDemo Dozer removable floor configuration, floor installedDemo Dozer removable floor configuration with optional rock bucket insert, optional accessory shownDemo Dozer grapple bucket rear view showing universal skid steer quick attach; color may varyDemo Dozer product family demonstration handling a log with a compact track loader
Demo Dozer

Demo Dozer DD102 Open Bottom Grapple Bucket

SKU: DD102-66 Currently In Stock

$7,681.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Brochure Parts & Support

MOST IMPORTANT FEATURES

OPEN BOTTOM DESIGN

LET LOOSE FINES PASS THROUGH WHILE HANDLING BRUSH AND LARGER DEBRIS.

INDEPENDENT GRAPPLE SECTIONS

GRIP UNEVEN MATERIAL WITH HYDRAULIC GRAPPLE SECTIONS.

FOUR WIDTH OPTIONS

66, 72, 78, AND 84″ NOMINAL WIDTHS SUIT DIFFERENT JOBS AND ACCESS ROUTES.

REMOVABLE SIDE PLATES

ADAPT THE BUCKET SIDES AROUND BULKY MATERIAL AND SITE WORK.

TOOL RECEIVERS AND CHAIN HOOKS

TWO RECEIVERS ON THE 66″ MODEL; FOUR ON LARGER WIDTHS. TWO INTEGRATED CHAIN HOOKS ADD HANDLING OPTIONS.

Description

Key Benefits

Technical Specs

Applications

Demo Dozer DD102 Open Bottom Grapple Bucket

The Demo Dozer DD102 Open Bottom Grapple Bucket combines hydraulic grappling with an open floor for brush, logs, and mixed debris. Its open bottom allows loose fines to pass through while the grapple holds larger material. This arrangement suits cleanup work where separating bulky debris from loose material is more useful than retaining a full bucket of soil.

Independent grapple sections accommodate uneven loads, while removable side plates allow access around material that extends beyond the bucket. Recessed grease fittings, integrated chain hooks, and tool receivers provide service access and additional handling options. The product family also offers floor and rock-bucket insert configurations; optional inserts are separate from the open bottom configuration unless specified in your quote.

The DD102 is offered in 66, 72, 78, and 84″ nominal widths. The 66″ model has two tool receivers, and the 72, 78, and 84″ models have four. Universal skid steer quick attach mounting and auxiliary hydraulic hoses and couplers suit properly equipped skid steers and compact track loaders. Select the width and load around the carrier's operating capacity and site conditions.

Demo Dozer DD102 Open Bottom Grapple Bucket

  • Open bottom lets loose fines pass through during cleanup.
  • Hydraulic grapple sections secure brush, logs, and uneven debris.
  • Removable side plates accommodate wider material.
  • Four nominal widths: 66, 72, 78, and 84″.
  • Tool receivers and two integrated chain hooks add handling options.

Demo Dozer DD102 Open Bottom Grapple Bucket

  • Model family: DD102.
  • Configuration: Open bottom grapple bucket.
  • Nominal widths: 66, 72, 78, 84″.
  • Mount: universal skid steer quick attach.
  • Carriers: skid steers and compact track loaders with auxiliary hydraulics.
  • Hydraulic function: cylinder-operated grapple; no continuous motor-flow range is specified.
  • Hoses and couplers, removable side plates, recessed grease fittings, and two chain hooks.
  • Tool receivers: two on the 66″ model; four on 72/78/84″ models.
  • Optional floor and rock inserts are not included unless specified in the quote.
  • Colors and decals may vary. Attachment plus load must suit carrier capacity.

Demo Dozer DD102 Open Bottom Grapple Bucket

  • Brush and log handling.
  • Mixed site debris cleanup.
  • Farm and property maintenance.
  • Bulky material handling where an open bottom suits the load.
  • Construction and demolition site cleanup within carrier limits.

Demo Dozer: Product Family Demonstrations

Demo Dozer DD102 Open Bottom Grapple Bucket

BUILT FOR THE WORK:

  • Open bottom lets loose fines pass through during cleanup.
  • Hydraulic grapple sections secure brush, logs, and uneven debris.
  • Removable side plates accommodate wider material.
  • Four nominal widths: 66, 72, 78, and 84″.
  • Tool receivers and two integrated chain hooks add handling options.

SET UP FOR YOUR APPLICATION:

  • Select a 66–84″ nominal width.
  • Fits universal skid steer quick attach mounting.
  • Uses the carrier's auxiliary hydraulics for grapple actuation.
  • Hoses and couplers connect the hydraulic cylinders.
  • Match attachment and carried load to carrier capacity.

READY FOR THE FIELD:

  • Recessed grease fittings support routine servicing.
  • Protective covers shield cylinders and hoses.
  • Removable side plates accommodate the work.
  • Two receivers on the 66″ model; four on 72–84″ models.
  • Optional floor and rock inserts are available by configuration.
