EXPRESS STEEL

35-Ton Hydraulic Log Splitter

For Skid Steers & Track Loaders

35-Ton Splitting Force | 30-Inch Log Length

Express Steel

Express Steel 35-Ton Hydraulic Log Splitter

SKU: ES22170 Availability confirmed before order

Sale price$4,799.99 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

UP TO 35 TONS OF SPLITTING FORCE

THE HYDRAULIC SPLITTER DELIVERS UP TO 35 TONS OF SPLITTING FORCE. ITS SINGLE-WEDGE ARRANGEMENT HANDLES FIREWOOD PREPARATION THROUGH A CARRIER-POWERED CYLINDER.

30-INCH LOG LENGTH

THE SPLITTER ACCOMMODATES LOGS UP TO 30 INCHES LONG. POSITION EACH LOG SECURELY FOR A CONTROLLED PUSH INTO THE WEDGE.

5 × 30-INCH HYDRAULIC CYLINDER

A 5 × 30-INCH CYLINDER DRIVES THE SPLITTING STROKE. THE FRONT SERRATED PUSH BAR PROVIDES A CONTACT SURFACE FOR THE LOG DURING THE CUT.

10 × 6 × 1-INCH SINGLE WEDGE

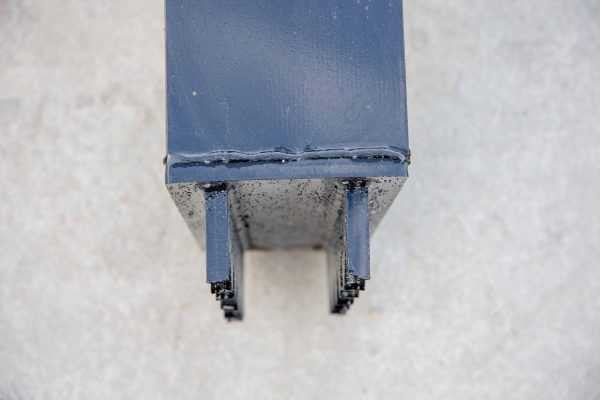

THE SPLITTING WEDGE MEASURES 10 × 6 × 1 INCHES. ITS SINGLE-WEDGE DESIGN DIVIDES THE LOG AS THE HYDRAULIC CYLINDER ADVANCES.

HEAVY-DUTY 1/2-INCH HOSES

INCLUDED HALF-INCH HYDRAULIC HOSES AND QUICK-CONNECT COUPLERS CONNECT THE ATTACHMENT TO THE CARRIER. THE SPLITTER WEIGHS 690 POUNDS AND USES UNIVERSAL SKID-STEER QUICK ATTACH.

Description

Key Benefits

Technical Specs

Applications

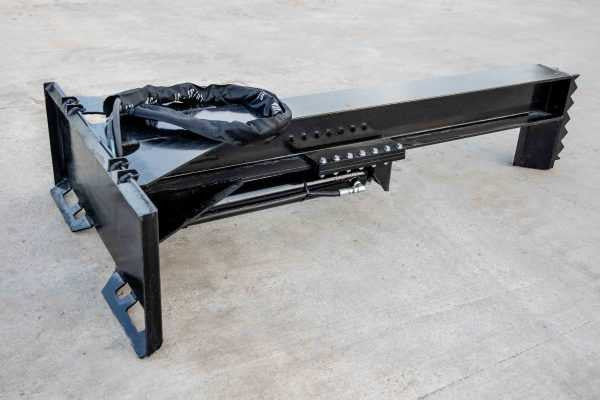

Express Steel 35-Ton Hydraulic Log Splitter

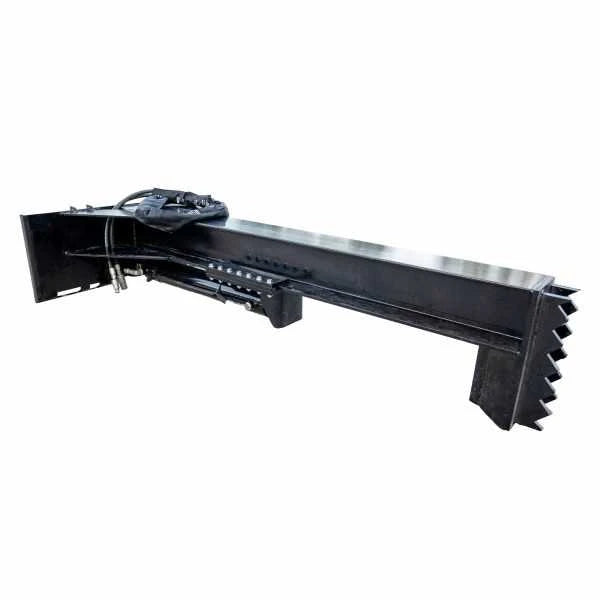

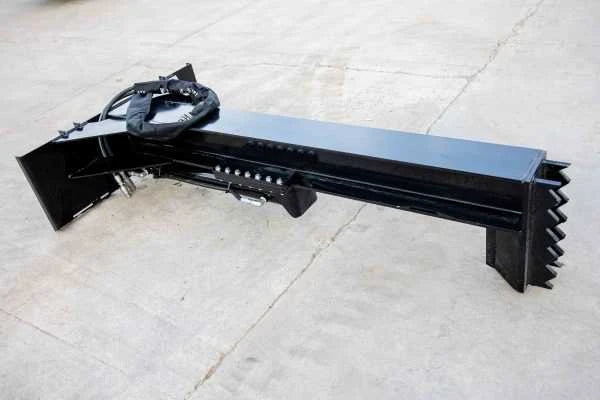

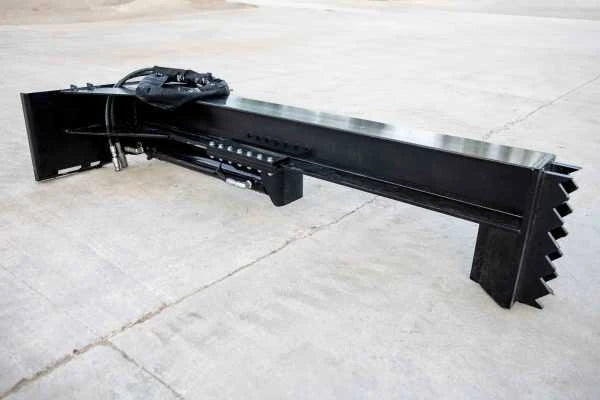

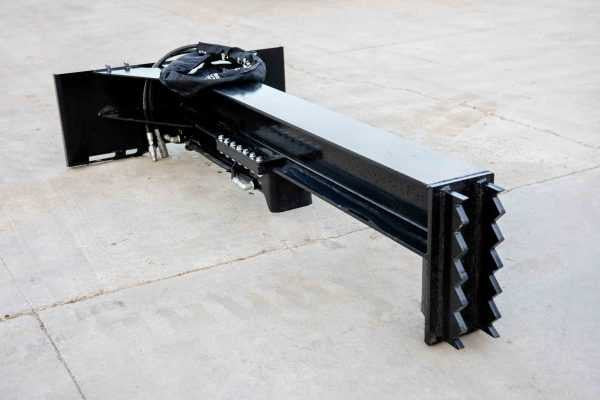

The Express Steel 35-Ton Hydraulic Log Splitter brings firewood splitting to a matching skid steer or compact track loader. It delivers up to 35 tons of force through a single wedge and accommodates logs up to 30 inches long.

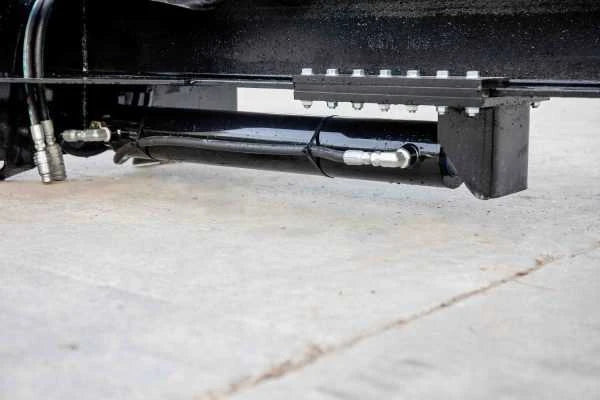

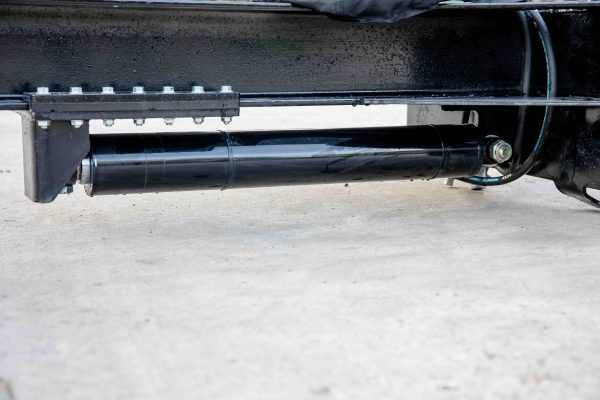

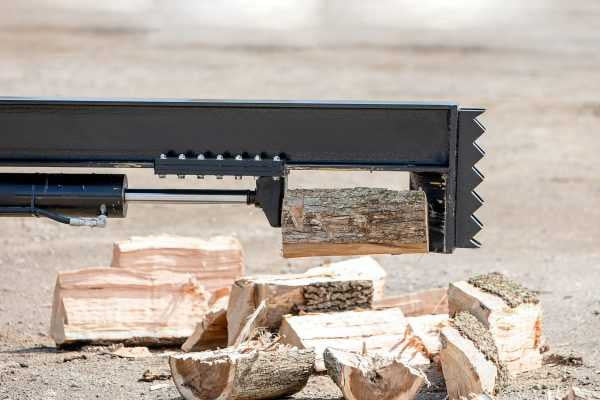

A 5 × 30-inch hydraulic cylinder drives the splitting stroke against a 10 × 6 × 1-inch wedge. The front serrated push bar provides contact with the log as the cylinder advances, supporting controlled splitting passes.

The splitter works with machines supplying at least 2,800 PSI. Auxiliary flow of 15 GPM or more is ideal for cycle speed; lower flow produces a slower cut. This is a hydraulic cylinder attachment, so its operation differs from a continuously rotating hydraulic motor.

The 690-pound attachment measures 96 × 45 × 17 inches and mounts through universal skid-steer quick attach. Heavy-duty half-inch hoses and quick-connect couplers are included. Match the mounting interface and hydraulic supply, secure the attachment, and keep the splitting area clear during operation.

Express Steel 35-Ton Hydraulic Log Splitter

  • The hydraulic splitter delivers up to 35 tons of splitting force. Its single-wedge arrangement handles firewood preparation through a carrier-powered cylinder.
  • The splitter accommodates logs up to 30 inches long. Position each log securely for a controlled push into the wedge.
  • A 5 × 30-inch cylinder drives the splitting stroke. The front serrated push bar provides a contact surface for the log during the cut.
  • The splitting wedge measures 10 × 6 × 1 inches. Its single-wedge design divides the log as the hydraulic cylinder advances.
  • Included half-inch hydraulic hoses and quick-connect couplers connect the attachment to the carrier. The splitter weighs 690 pounds and uses universal skid-steer quick attach.

Express Steel 35-Ton Hydraulic Log Splitter

  • Model: ES22170
  • Maximum splitting force: 35 tons
  • Maximum log length: 30 inches
  • Single wedge: 10 × 6 × 1 inches
  • Hydraulic cylinder: 5 × 30 inches

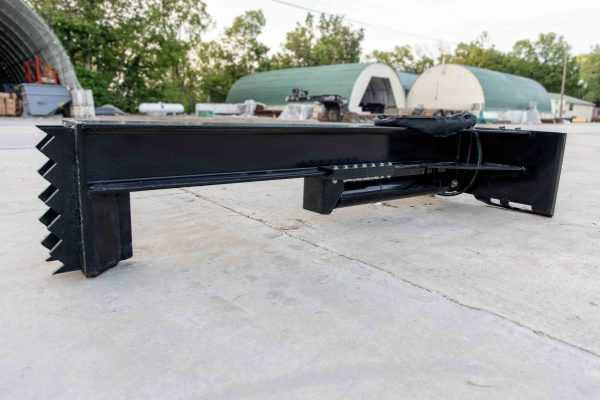

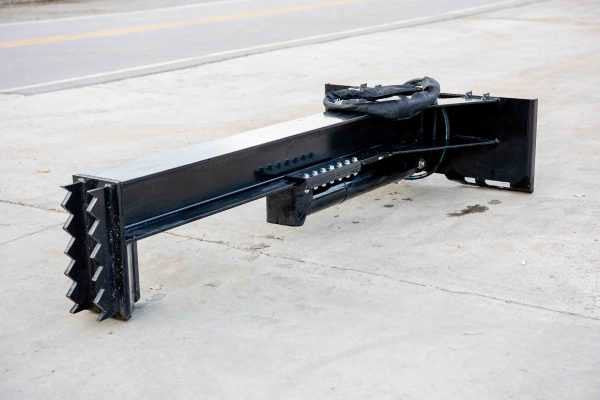

  • Push bar: front serrated design
  • Minimum machine pressure: 2,800 PSI
  • Ideal auxiliary flow: 15+ GPM; lower flow gives a slower cut
  • Attachment weight: 690 lb
  • Overall dimensions: 96 × 45 × 17 inches
  • Included hoses: heavy-duty 1/2-inch with quick-connect couplers

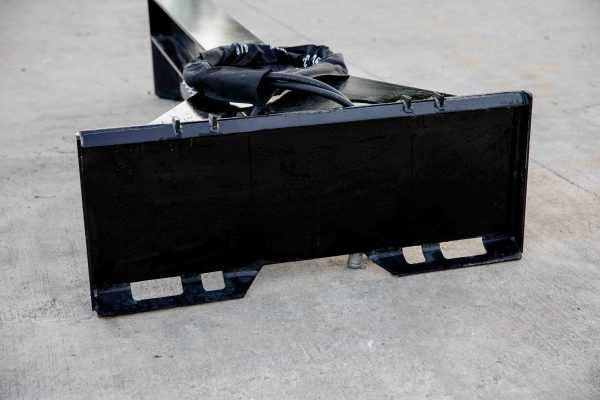

  • Mount: universal skid-steer quick attach

Express Steel 35-Ton Hydraulic Log Splitter

  • Preparing firewood from cut logs.
  • Splitting logs up to 30 inches long.
  • Processing wood around farm and property work areas.
  • Carrier-powered splitting with a matching hydraulic supply.

Express Steel Log Splitter Demo & Brand Videos

Express Steel 35-Ton Hydraulic Log Splitter

BUILT FOR FIREWOOD PROCESSING:

  • The hydraulic splitter delivers up to 35 tons of splitting force. Its single-wedge arrangement handles firewood preparation through a carrier-powered cylinder.
  • The splitter accommodates logs up to 30 inches long. Position each log securely for a controlled push into the wedge.
  • A 5 × 30-inch cylinder drives the splitting stroke. The front serrated push bar provides a contact surface for the log during the cut.
  • The splitting wedge measures 10 × 6 × 1 inches. Its single-wedge design divides the log as the hydraulic cylinder advances.
  • Included half-inch hydraulic hoses and quick-connect couplers connect the attachment to the carrier. The splitter weighs 690 pounds and uses universal skid-steer quick attach.

MATCH YOUR WORKING SETUP:

  • Preparing firewood from cut logs.
  • Splitting logs up to 30 inches long.
  • Processing wood around farm and property work areas.
  • Carrier-powered splitting with a matching hydraulic supply.

READY FOR THE FIELD:

  • Inspect the wedge, push bar, cylinder, hoses, and frame.
  • Lock the quick attach securely onto a matching carrier.
  • Connect hydraulics with the system safely depressurized.
  • Confirm at least 2,800 PSI and set flow for controlled operation.
  • Keep hands and bystanders clear of the wedge, cylinder, and moving log.
