EXPRESS STEEL

36-Inch Mini Excavator Brush Cutter

For Excavators

Direct Drive | 3/16-Inch Reinforced Deck

Request QuoteAdd To Cart

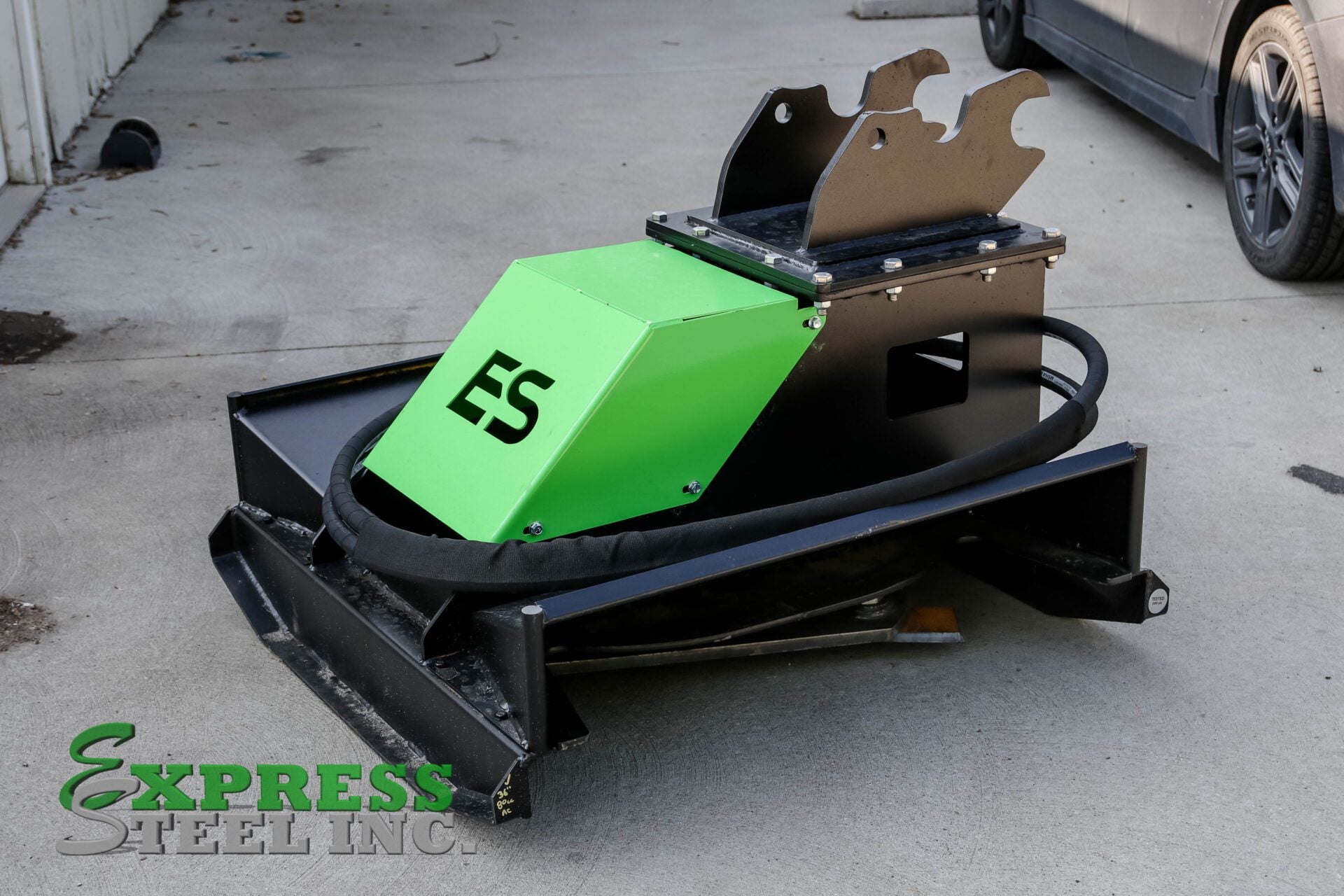

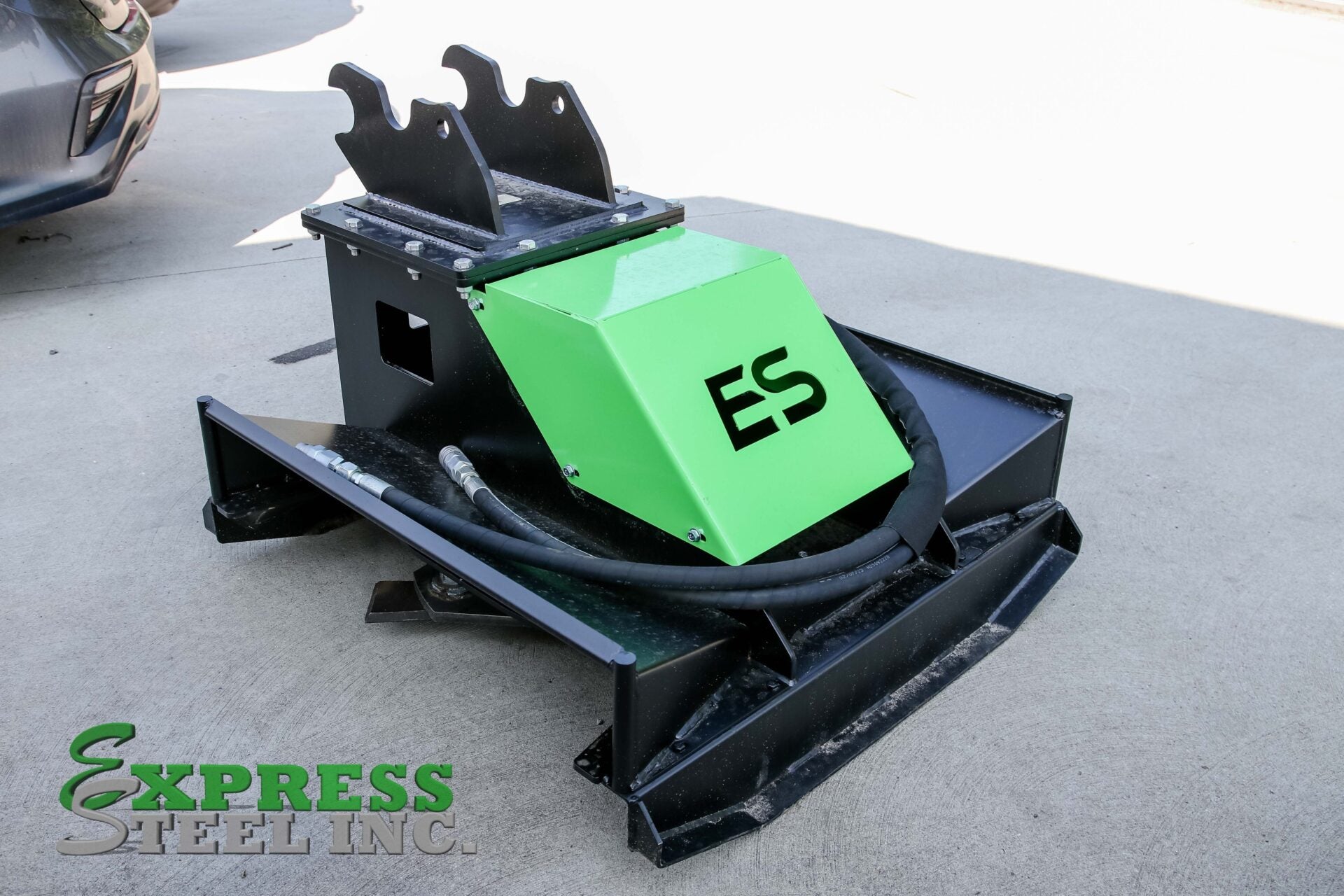

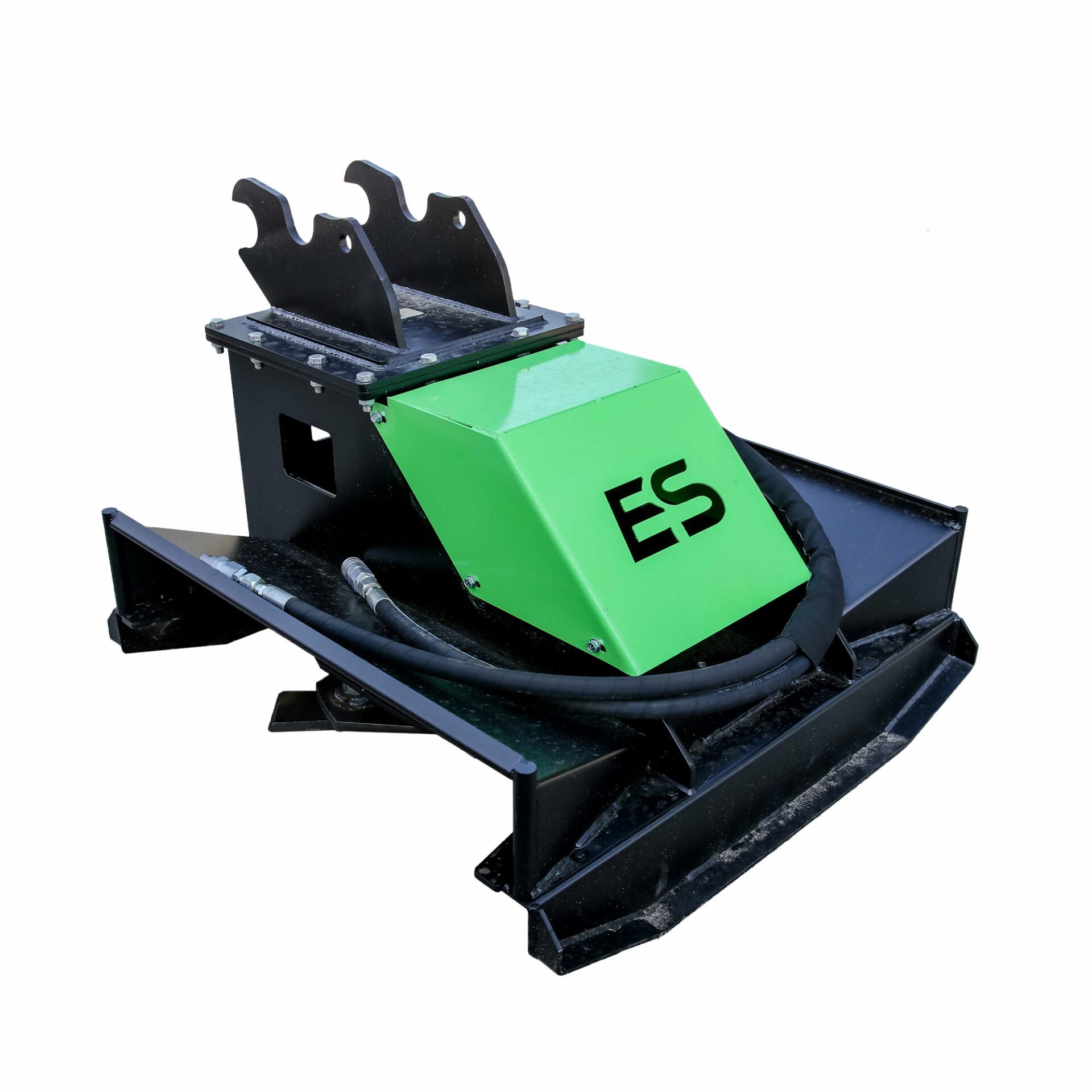

Express Steel 36-Inch Mini Excavator Brush Cutter

Express Steel 36-Inch Mini Excavator Brush Cutter — attachment view
Express Steel 36-Inch Mini Excavator Brush Cutter — detail view 1
Express Steel 36-Inch Mini Excavator Brush Cutter — detail view 2
Roll over image to zoom in Click on image to zoom
Express Steel 36-Inch Mini Excavator Brush Cutter — attachment viewExpress Steel 36-Inch Mini Excavator Brush Cutter — detail view 1Express Steel 36-Inch Mini Excavator Brush Cutter — detail view 2
Express Steel

Express Steel 36-Inch Mini Excavator Brush Cutter

SKU: Availability confirmed before order

$6,505.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

36-INCH CUTTING WIDTH

THE COMPACT 36-INCH CUTTING HEAD REACHES VEGETATION AROUND DITCHES, BANKS, AND AREAS ACCESSIBLE TO THE EXCAVATOR’S BOOM. THE EXCAVATOR MOUNTING BRACKET IS SOLD SEPARATELY.

ENCLOSED DIRECT DRIVE

THE MOTOR AND DRIVE ASSEMBLY SIT INSIDE A PROTECTIVE ENCLOSURE. DIRECT DRIVE ELIMINATES GEARS BETWEEN THE HYDRAULIC MOTOR AND CUTTING ASSEMBLY.

FORGED HEAT-TREATED AXLE

A ONE-PIECE FORGED, HEAT-TREATED AXLE WORKS INSIDE A ONE-PIECE IRON HOUSING. TWO OVERSIZED TAPERED ROLLER BEARINGS SUPPORT THE ROTATING ASSEMBLY.

3/16-INCH REINFORCED DECK

THE REINFORCED STEEL DECK IS 3/16 INCH THICK. A WIRE-PROTECTED LOWER GREASE SEAL HELPS SHIELD THE SEAL AREA FROM WRAPPED VEGETATION.

BIDIRECTIONAL CUTTING SYSTEM

FORGED, HEAT-TREATED BLADES CUT IN BOTH DIRECTIONS. HYDRAULIC PRESSURE RELIEF OPERATES IN BOTH ROTATION DIRECTIONS, WITH MOTOR DISPLACEMENT SELECTED TO SUIT THE MACHINE.

Description

Key Benefits

Technical Specs

Applications

Express Steel 36-Inch Mini Excavator Brush Cutter

The Express Steel 36-Inch Mini Excavator Brush Cutter brings rotary vegetation cutting to banks, ditches, and other areas reached by your excavator’s boom. Its 36-inch cutting width pairs with a Geroller-style hydraulic motor.

The motor and drive assembly sit inside a protective enclosure. Direct drive eliminates gears between the hydraulic motor and cutting assembly. A one-piece forged, heat-treated axle works inside a one-piece iron housing. Two oversized tapered roller bearings support the rotating assembly.

The reinforced steel deck is 3/16 inch thick. A wire-protected lower grease seal helps shield the seal area from wrapped vegetation. Forged, heat-treated blades cut in both directions. Hydraulic pressure relief operates in both rotation directions, with motor displacement selected to suit the machine.

The machine-specific excavator mounting bracket is sold separately. Match the bracket and exact hydraulic motor to your excavator before ordering.

Express Steel 36-Inch Mini Excavator Brush Cutter

  • The compact 36-inch cutting head reaches vegetation around ditches, banks, and areas accessible to the excavator’s boom. The excavator mounting bracket is sold separately.
  • The motor and drive assembly sit inside a protective enclosure. Direct drive eliminates gears between the hydraulic motor and cutting assembly.
  • A one-piece forged, heat-treated axle works inside a one-piece iron housing. Two oversized tapered roller bearings support the rotating assembly.
  • The reinforced steel deck is 3/16 inch thick. A wire-protected lower grease seal helps shield the seal area from wrapped vegetation.
  • Forged, heat-treated blades cut in both directions. Hydraulic pressure relief operates in both rotation directions, with motor displacement selected to suit the machine.

Express Steel 36-Inch Mini Excavator Brush Cutter

  • Cutting width: 36 inches
  • Drive: direct drive, no gears
  • Motor: Geroller-style, displacement matched to machine
  • Deck: 3/16-inch reinforced steel
  • Axle: one-piece forged, heat treated
  • Housing: one-piece iron casting
  • Bearings: 2 oversized tapered roller bearings
  • Blades: forged, heat-treated, bidirectional
  • Hydraulic relief: both rotation directions
  • Excavator mounting bracket: sold separately
  • Estimated weight: 650 lb; confirm the supplied configuration
  • Confirm exact motor displacement and flow range before ordering.

Express Steel 36-Inch Mini Excavator Brush Cutter

  • Vegetation cutting along banks and drainage ditches.
  • Brush cleanup around fence lines and access areas.
  • Maintenance work within the excavator’s stable reach and lifting limits.

Express Steel: Brush Cutter & Brand Videos — Models Vary

Express Steel 36-Inch Mini Excavator Brush Cutter

BUILT FOR BRUSH CLEARING:

  • The compact 36-inch cutting head reaches vegetation around ditches, banks, and areas accessible to the excavator’s boom. The excavator mounting bracket is sold separately.
  • The motor and drive assembly sit inside a protective enclosure. Direct drive eliminates gears between the hydraulic motor and cutting assembly.
  • A one-piece forged, heat-treated axle works inside a one-piece iron housing. Two oversized tapered roller bearings support the rotating assembly.
  • The reinforced steel deck is 3/16 inch thick. A wire-protected lower grease seal helps shield the seal area from wrapped vegetation.
  • Forged, heat-treated blades cut in both directions. Hydraulic pressure relief operates in both rotation directions, with motor displacement selected to suit the machine.

MATCH YOUR WORKING SETUP:

  • Vegetation cutting along banks and drainage ditches.
  • Brush cleanup around fence lines and access areas.
  • Maintenance work within the excavator’s stable reach and lifting limits.
  • Confirm the exact supplied motor and hydraulic-flow configuration.
  • Excavator mounting bracket sold separately.

READY FOR THE FIELD:

  • Inspect blades, retaining hardware, deck guards, and hydraulic lines before operation.
  • Secure the attachment and confirm all mounting locks are fully engaged.
  • Connect the correct hydraulic hoses with circuit pressure relieved.
  • Test rotation and controls in a clear area before entering vegetation.
  • Keep people clear of the cutting area and follow the supplied operating manual.
Request a Quote
