EXPRESS STEEL

48-Inch Toro Dingo Landscape Rake

For Mini Skid Steers

48-Inch Width | 34 Steel Teeth

Request QuoteAdd To Cart

Express Steel 48-Inch Toro Dingo Landscape Rake

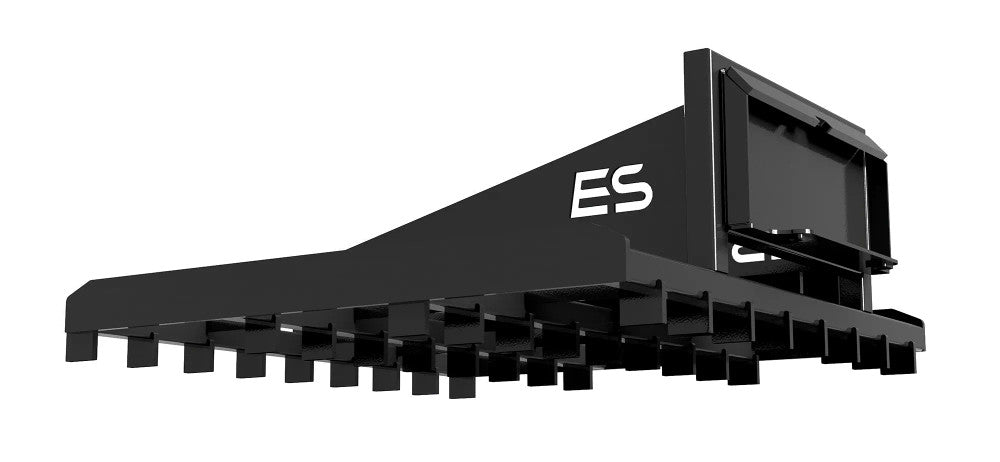

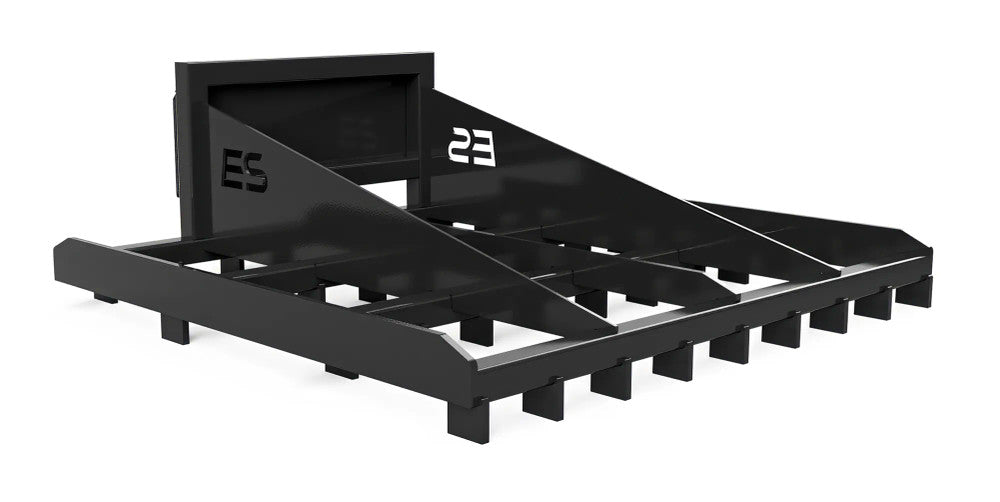

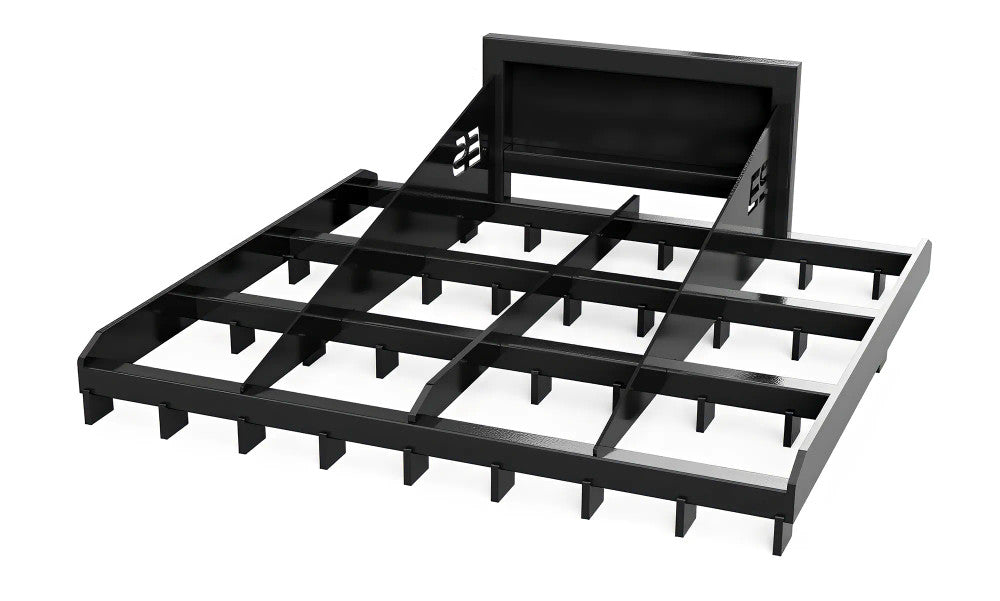

Express Steel 48-Inch Toro Dingo Landscape Rake — attachment view
Express Steel 48-Inch Toro Dingo Landscape Rake — detail view 1
Express Steel 48-Inch Toro Dingo Landscape Rake — detail view 2

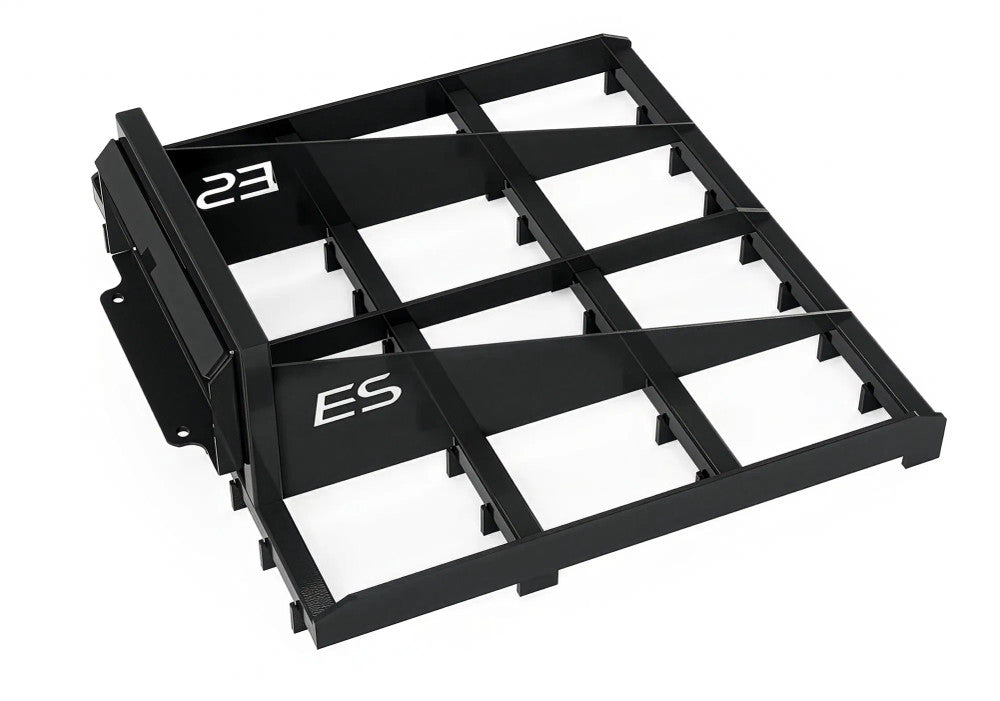

Express Steel 48-Inch Toro Dingo Landscape Rake — detail view 3
Express Steel 48-Inch Toro Dingo Landscape Rake — detail view 4
Roll over image to zoom in Click on image to zoom
Express Steel 48-Inch Toro Dingo Landscape Rake — attachment viewExpress Steel 48-Inch Toro Dingo Landscape Rake — detail view 1Express Steel 48-Inch Toro Dingo Landscape Rake — detail view 2Express Steel 48-Inch Toro Dingo Landscape Rake — detail view 3Express Steel 48-Inch Toro Dingo Landscape Rake — detail view 4
Express Steel

Express Steel 48-Inch Toro Dingo Landscape Rake

SKU: ES80048 Availability confirmed before order

$2,629.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

48-INCH WORKING WIDTH

THE 48-INCH RAKE WORKS IN COMPACT LANDSCAPING AREAS, ALONG PATHS, AND AROUND ESTABLISHED BEDS. ITS NARROW LAYOUT SUITS SURFACE PREPARATION WITH A MINI SKID STEER.

34 WELDED STEEL TEETH

THIRTY-FOUR WELDED TEETH BREAK UP SURFACE SOIL AND DRAW LOOSE MATERIAL ACROSS THE WORK AREA. THE TOOTH BANK HELPS PREPARE DIRT, MULCH, GRAVEL, AND SEED BEDS.

2 × 2-INCH TUBE FRAME

THE FRAME USES 2 × 2-INCH SQUARE, 11-GAUGE TUBING. ITS WELDED CONSTRUCTION SUPPORTS RAKING AND LIGHT SURFACE-LEVELING WORK.

3/16-INCH GUSSETS AND SIDES

FORMED 3/16-INCH GUSSETS AND SIDE BOARDS REINFORCE THE BODY. THE RAKE MEASURES 36 INCHES DEEP AND 16 INCHES TALL.

140-POUND COMPACT ATTACHMENT

THE COMPLETE RAKE WEIGHS 140 POUNDS AND ATTACHES THROUGH A TORO DINGO-STYLE MINI MOUNT. ITS PASSIVE DESIGN NEEDS NO AUXILIARY HYDRAULIC MOTOR OR PTO CONNECTION.

Description

Key Benefits

Technical Specs

Applications

Express Steel 48-Inch Toro Dingo Landscape Rake

The Express Steel 48-Inch Toro Dingo Landscape Rake prepares loose soil, gravel, and seed beds through the movement of your mini skid steer. Its fixed tooth bank breaks up the surface and helps spread and level material without a powered rotor.

Thirty-four welded teeth break up surface soil and draw loose material across the work area. The tooth bank helps prepare dirt, mulch, gravel, and seed beds. The frame uses 2 × 2-inch square, 11-gauge tubing. Its welded construction supports raking and light surface-leveling work.

Formed 3/16-inch gussets and side boards reinforce the body. The rake measures 36 inches deep and 16 inches tall. The complete rake weighs 140 pounds and attaches through a Toro Dingo-style mini mount. Its passive design needs no auxiliary hydraulic motor or PTO connection.

The toro dingo mini skid-steer mount must match your machine’s attachment plate. This model does not fit Toro Dingo TX1000 or Kubota SCL1000 machines. Use the rake for surface preparation and keep the carrier within its operating limits.

Express Steel 48-Inch Toro Dingo Landscape Rake

  • The 48-inch rake works in compact landscaping areas, along paths, and around established beds. Its narrow layout suits surface preparation with a mini skid steer.
  • Thirty-four welded teeth break up surface soil and draw loose material across the work area. The tooth bank helps prepare dirt, mulch, gravel, and seed beds.
  • The frame uses 2 × 2-inch square, 11-gauge tubing. Its welded construction supports raking and light surface-leveling work.
  • Formed 3/16-inch gussets and side boards reinforce the body. The rake measures 36 inches deep and 16 inches tall.
  • The complete rake weighs 140 pounds and attaches through a Toro Dingo-style mini mount. Its passive design needs no auxiliary hydraulic motor or PTO connection.

Express Steel 48-Inch Toro Dingo Landscape Rake

  • Working width: 48 inches
  • Supplier SKU: ES80048
  • Teeth: 34 welded steel teeth
  • Frame: 2 × 2-inch square, 11-gauge tubing
  • Gussets and side boards: 3/16 inch
  • Dimensions: 48 inches wide × 36 inches deep × 16 inches tall
  • Weight: 140 lb

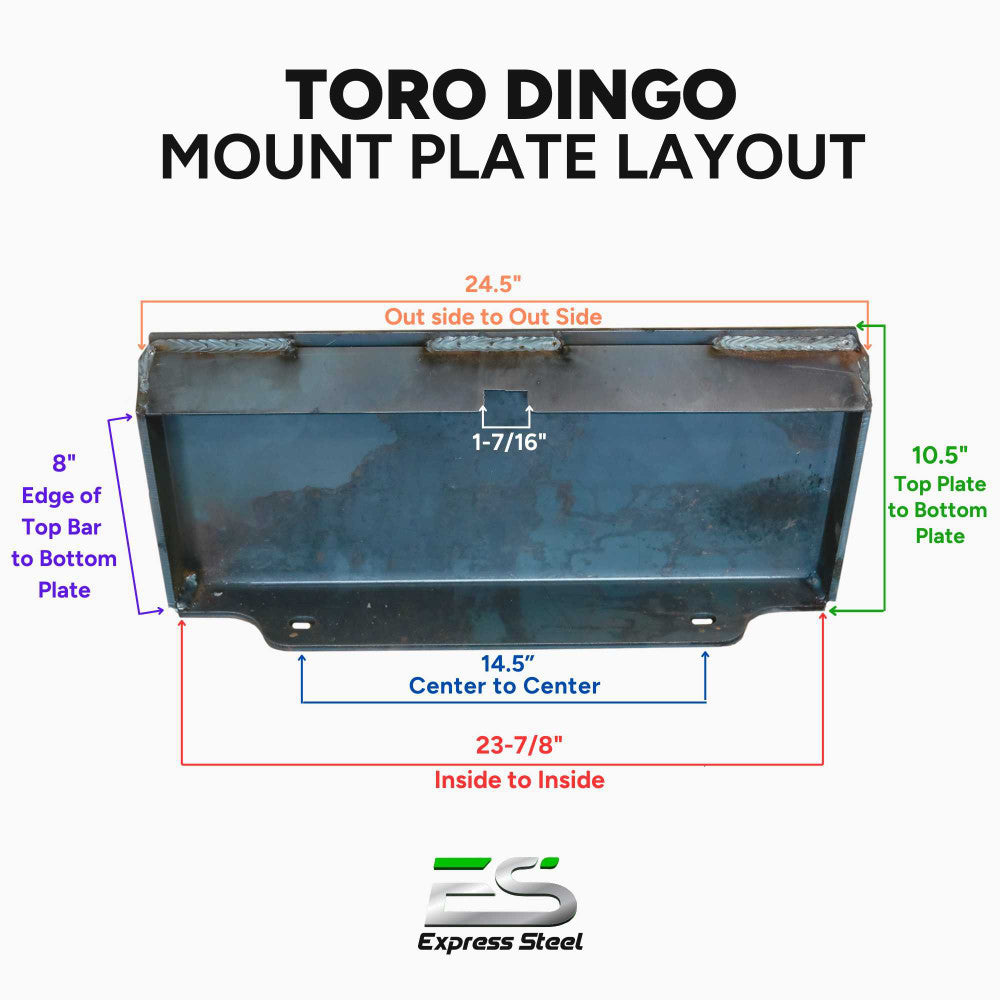

  • Mount: Toro Dingo mini skid-steer interface
  • Does not fit Toro Dingo TX1000 or Kubota SCL1000
  • Passive attachment: no hydraulic motor or PTO drive

Express Steel 48-Inch Toro Dingo Landscape Rake

  • Leveling and spreading loose soil or gravel.
  • Breaking up surface soil before landscape work.
  • Preparing seed beds and maintaining landscape areas.

Express Steel: Brand & Attachment Videos

Express Steel 48-Inch Toro Dingo Landscape Rake

BUILT FOR LANDSCAPE PREPARATION:

  • The 48-inch rake works in compact landscaping areas, along paths, and around established beds. Its narrow layout suits surface preparation with a mini skid steer.
  • Thirty-four welded teeth break up surface soil and draw loose material across the work area. The tooth bank helps prepare dirt, mulch, gravel, and seed beds.
  • The frame uses 2 × 2-inch square, 11-gauge tubing. Its welded construction supports raking and light surface-leveling work.
  • Formed 3/16-inch gussets and side boards reinforce the body. The rake measures 36 inches deep and 16 inches tall.
  • The complete rake weighs 140 pounds and attaches through a Toro Dingo-style mini mount. Its passive design needs no auxiliary hydraulic motor or PTO connection.

MATCH YOUR WORKING SETUP:

  • Leveling and spreading loose soil or gravel.
  • Breaking up surface soil before landscape work.
  • Preparing seed beds and maintaining landscape areas.
  • Mount: Toro Dingo mini skid-steer mount.
  • Does not fit Toro Dingo TX1000 or Kubota SCL1000.

READY FOR THE FIELD:

  • Inspect the welded teeth, frame, gussets, and mounting plate.
  • Secure the attachment and confirm the carrier’s locks are engaged.
  • Clear hidden obstacles before starting surface preparation.
  • Work in controlled passes suited to the soil and terrain.
  • Keep bystanders clear and stay within the carrier’s operating limits.
Request a Quote
