EXPRESS STEEL

6-Way Hydraulic Dozer Blade

For Skid Steers & Track Loaders

84-96-Inch Width Options | Hydraulic Angle & Tilt

Request QuoteAdd To Cart

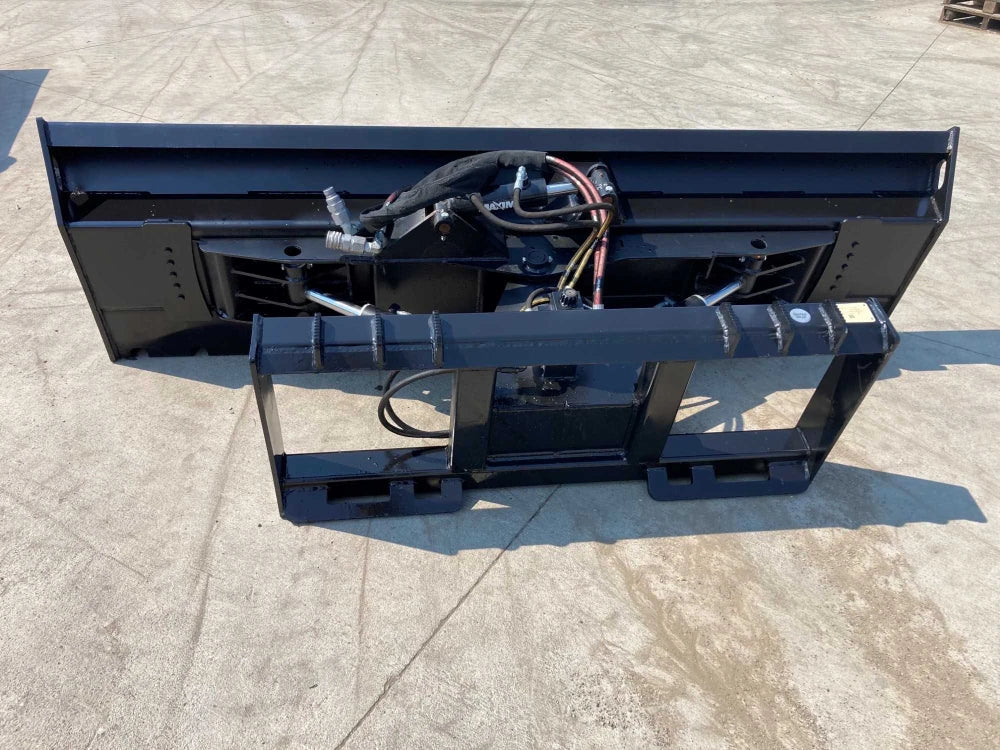

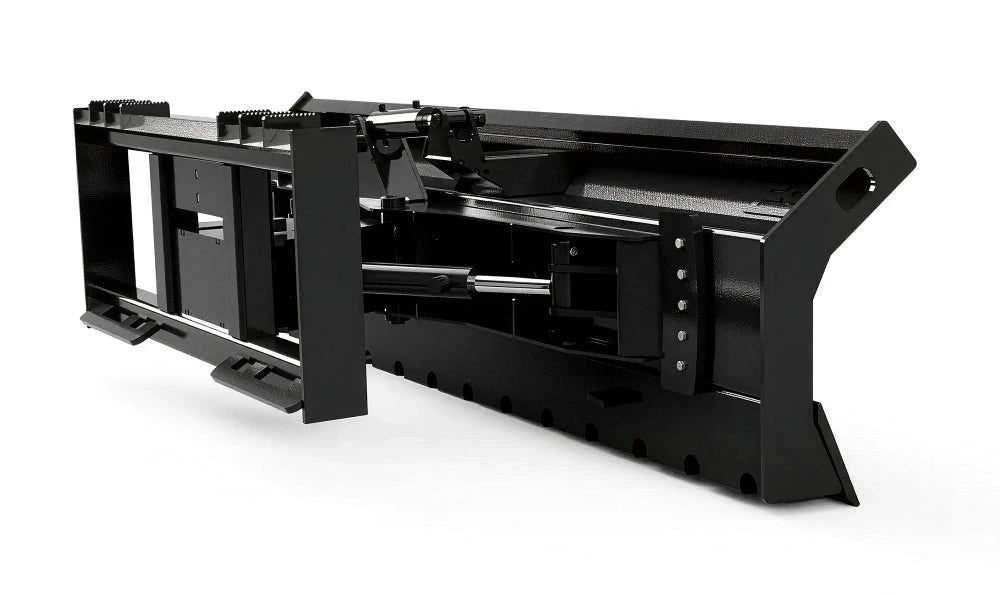

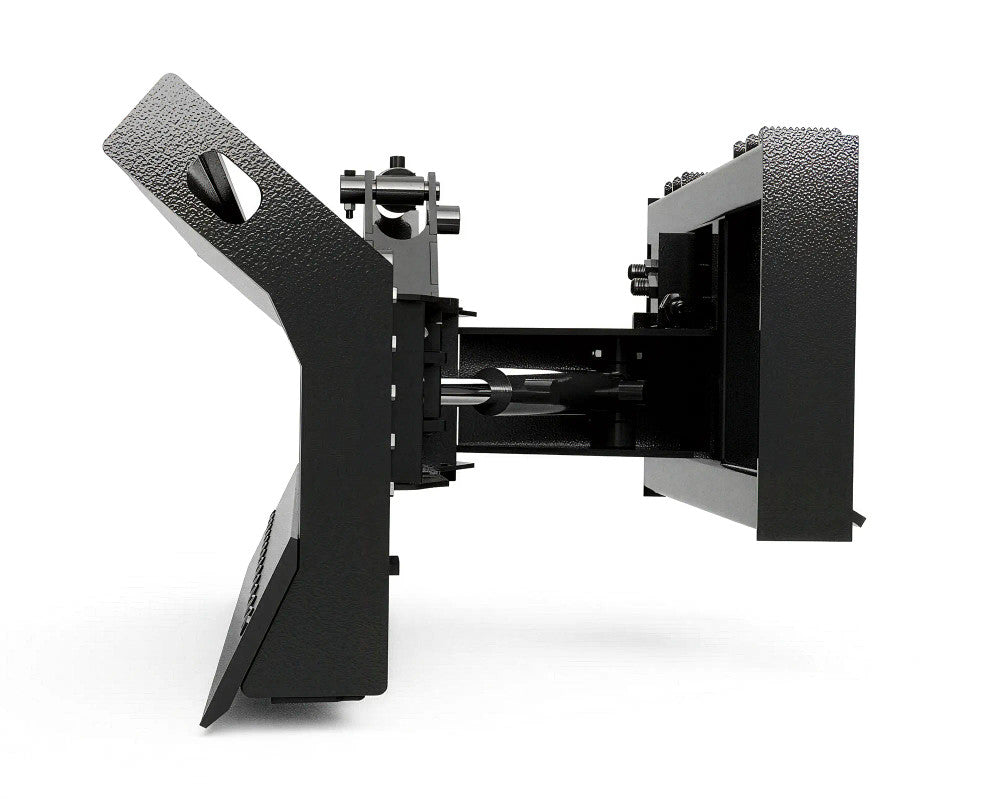

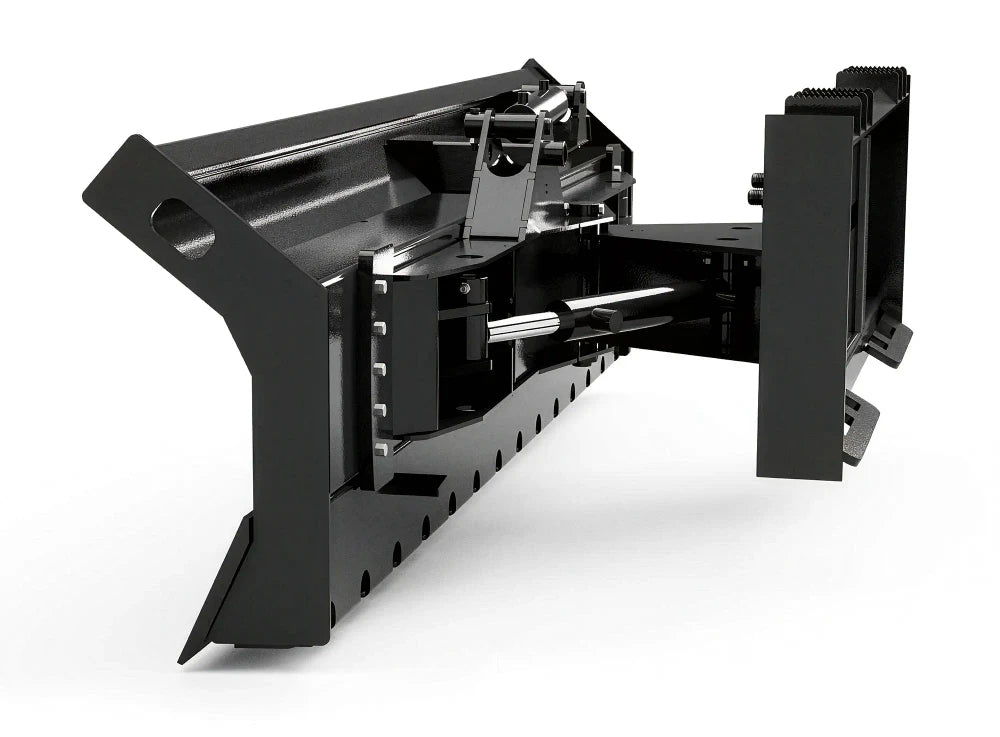

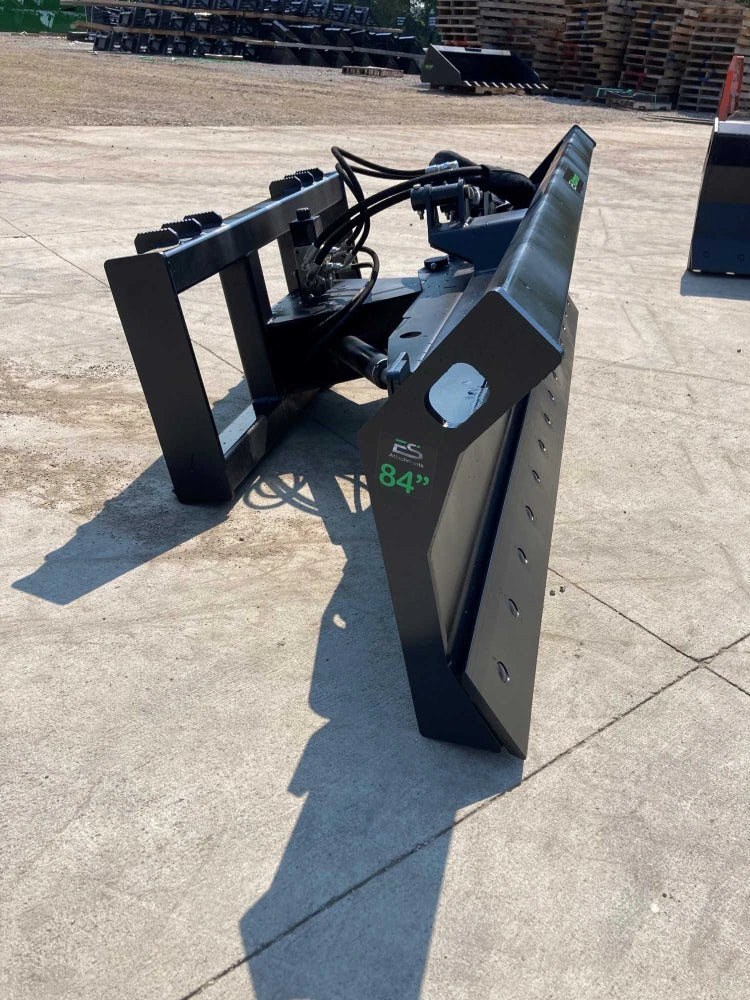

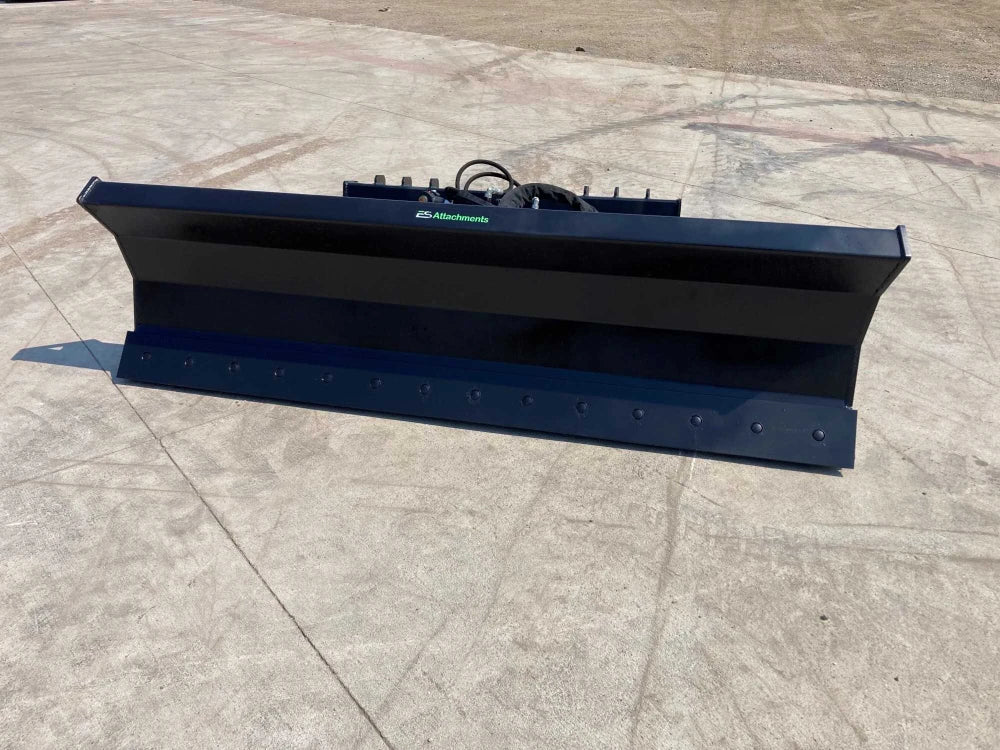

Express Steel 6-Way Hydraulic Dozer Blade

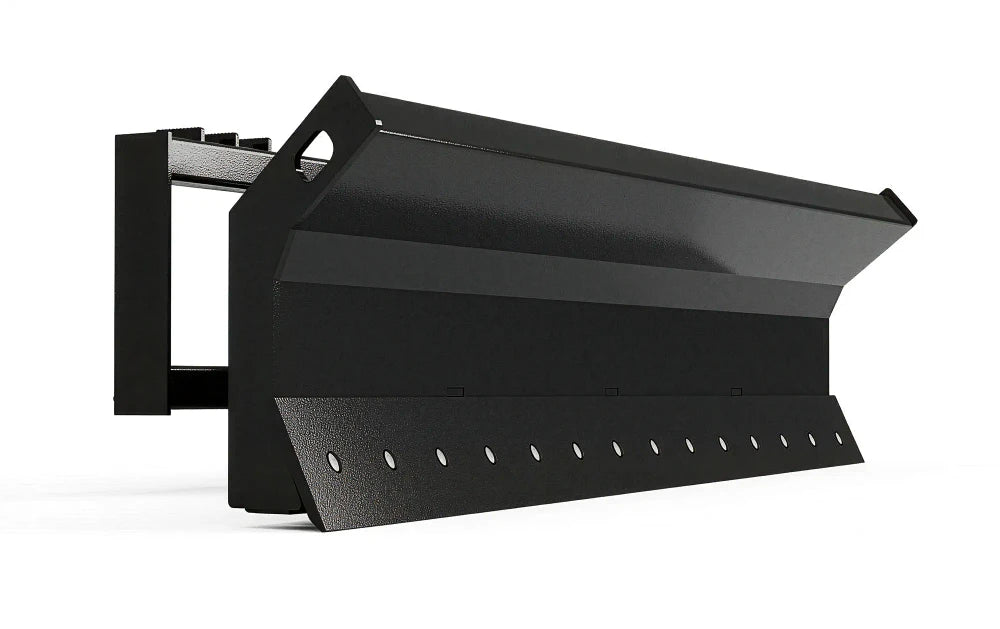

Express Steel 6-way dozer blade family manufacturer view 1
Express Steel 6-way dozer blade family manufacturer view 2

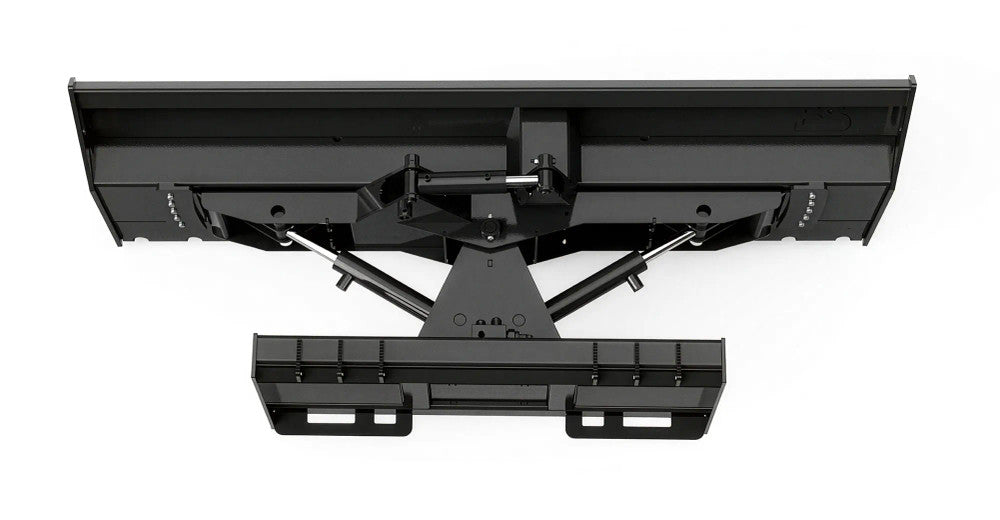

Express Steel 6-way dozer blade family manufacturer view 3
Express Steel 6-way dozer blade family manufacturer view 4
Express Steel 6-way dozer blade family manufacturer view 5
Express Steel 6-way dozer blade family manufacturer view 6
Express Steel 6-way dozer blade family manufacturer view 7
Express Steel 6-way dozer blade family manufacturer view 8
Roll over image to zoom in Click on image to zoom
Express Steel 6-way dozer blade family manufacturer view 1Express Steel 6-way dozer blade family manufacturer view 2Express Steel 6-way dozer blade family manufacturer view 3Express Steel 6-way dozer blade family manufacturer view 4Express Steel 6-way dozer blade family manufacturer view 5Express Steel 6-way dozer blade family manufacturer view 6Express Steel 6-way dozer blade family manufacturer view 7Express Steel 6-way dozer blade family manufacturer view 8
Express Steel

Express Steel 6-Way Hydraulic Dozer Blade

SKU: ES70084-84 Availability confirmed before order

$6,197.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

84-96-INCH BLADE WIDTHS

CHOOSE AN 84-INCH OR 96-INCH BLADE FOR GRADING AND MATERIAL MOVEMENT. BOTH SIZES USE A 21-INCH-TALL BLADE WITH 32 INCHES FROM QUICK ATTACH TO THE BLADE FRONT.

HYDRAULIC ANGLE & TILT

TWO 2 × 12-INCH HYDRAULIC CYLINDERS ADJUST BLADE ANGLE AND TILT. COMBINED WITH CARRIER LIFT MOVEMENT, THE 6-WAY SETUP SUPPORTS CONTROLLED GRADING PASSES.

REVERSIBLE BOLT-ON EDGE

A 5/8 × 6-INCH CUTTING EDGE BOLTS ONTO THE BLADE. REVERSE OR REPLACE THE EDGE AS IT WEARS TO MAINTAIN THE GROUND-CONTACT SURFACE.

3/16-INCH STEEL BLADE

THE BLADE USES 3/16-INCH STEEL FOR DOZING, LEVELING, AND SCRAPING LOOSE MATERIAL. GREASEABLE PIVOT POINTS SUPPORT ROUTINE MAINTENANCE OF THE MOVING JOINTS.

STAND-ALONE 12V HARNESS

AN INCLUDED STAND-ALONE 12V WIRING HARNESS SUPPORTS THE HYDRAULIC CONTROL SETUP. PARKER HOSES AND FLAT-FACE QUICK-CONNECT COUPLERS PROVIDE THE HYDRAULIC CONNECTIONS.

Description

Key Benefits

Technical Specs

Applications

Express Steel 6-Way Hydraulic Dozer Blade

The Express Steel 6-Way Hydraulic Dozer Blade equips a matching skid steer or compact track loader for dozing, leveling, grading, and scraping. Choose an 84-inch or 96-inch blade to suit the work area and carrier.

Hydraulic angle and tilt let you change the blade position as the job requires. Two 2 × 12-inch cylinders move the blade, while carrier lift movement completes the 6-way arrangement for controlling material through successive passes.

The 3/16-inch steel blade stands 21 inches tall and uses a reversible 5/8 × 6-inch bolt-on cutting edge. Greaseable pivot points make the moving joints accessible for routine service.

An included stand-alone 12V wiring harness, Parker hoses, and flat-face quick-connect couplers support installation on a matching universal skid-steer quick attach. The 84-inch blade weighs 810 pounds and the 96-inch blade weighs 850 pounds. Confirm carrier capacity, hydraulic connections, and the control-harness setup before use.

Express Steel 6-Way Hydraulic Dozer Blade

  • Choose an 84-inch or 96-inch blade for grading and material movement. Both sizes use a 21-inch-tall blade with 32 inches from quick attach to the blade front.
  • Two 2 × 12-inch hydraulic cylinders adjust blade angle and tilt. Combined with carrier lift movement, the 6-way setup supports controlled grading passes.
  • A 5/8 × 6-inch cutting edge bolts onto the blade. Reverse or replace the edge as it wears to maintain the ground-contact surface.
  • The blade uses 3/16-inch steel for dozing, leveling, and scraping loose material. Greaseable pivot points support routine maintenance of the moving joints.
  • An included stand-alone 12V wiring harness supports the hydraulic control setup. Parker hoses and flat-face quick-connect couplers provide the hydraulic connections.

Express Steel 6-Way Hydraulic Dozer Blade

  • Available widths: 84 and 96 inches
  • 84-inch model: ES70084-84; 810 lb
  • 96-inch model: ES70084-96; 850 lb
  • Blade height: 21 inches
  • Quick attach to blade front: 32 inches
  • Blade material: 3/16-inch steel
  • Hydraulic cylinders: two, 2 × 12 inches
  • Movement: hydraulic angle and tilt, plus carrier lift
  • Cutting edge: 5/8 × 6 inches, bolt-on and reversible
  • Pivot points: greaseable
  • Wiring harness: stand-alone 12V, included
  • Hydraulics: Parker hoses and flat-face quick-connect couplers
  • Mount: universal skid-steer quick attach

Express Steel 6-Way Hydraulic Dozer Blade

  • Grading and leveling loose soil or aggregate.
  • Dozing material through controlled passes.
  • Scraping work areas within operating limits.
  • Shaping swales and spreading landscape material.

Express Steel: Brand & Attachment Videos

Express Steel 6-Way Hydraulic Dozer Blade

BUILT FOR GRADING & MATERIAL MOVEMENT:

  • Choose an 84-inch or 96-inch blade for grading and material movement. Both sizes use a 21-inch-tall blade with 32 inches from quick attach to the blade front.
  • Two 2 × 12-inch hydraulic cylinders adjust blade angle and tilt. Combined with carrier lift movement, the 6-way setup supports controlled grading passes.
  • A 5/8 × 6-inch cutting edge bolts onto the blade. Reverse or replace the edge as it wears to maintain the ground-contact surface.
  • The blade uses 3/16-inch steel for dozing, leveling, and scraping loose material. Greaseable pivot points support routine maintenance of the moving joints.
  • An included stand-alone 12V wiring harness supports the hydraulic control setup. Parker hoses and flat-face quick-connect couplers provide the hydraulic connections.

MATCH YOUR WORKING SETUP:

  • Grading and leveling loose soil or aggregate.
  • Dozing material through controlled passes.
  • Scraping work areas within operating limits.
  • Shaping swales and spreading landscape material.

READY FOR THE FIELD:

  • Inspect the blade, cutting edge, bolts, and pivot points.
  • Secure the quick attach and verify the carrier’s locks.
  • Connect hydraulic couplers with the system depressurized.
  • Check the 12V harness and cycle angle and tilt before working.
  • Keep people clear and stay within carrier operating limits.
