EXPRESS STEEL

84-Inch Hydraulic Angle Broom

For Skid Steers & Track Loaders

84-Inch Sweeping Width | 45° Total Angle

Request QuoteAdd To Cart

Express Steel 84-Inch Hydraulic Angle Broom

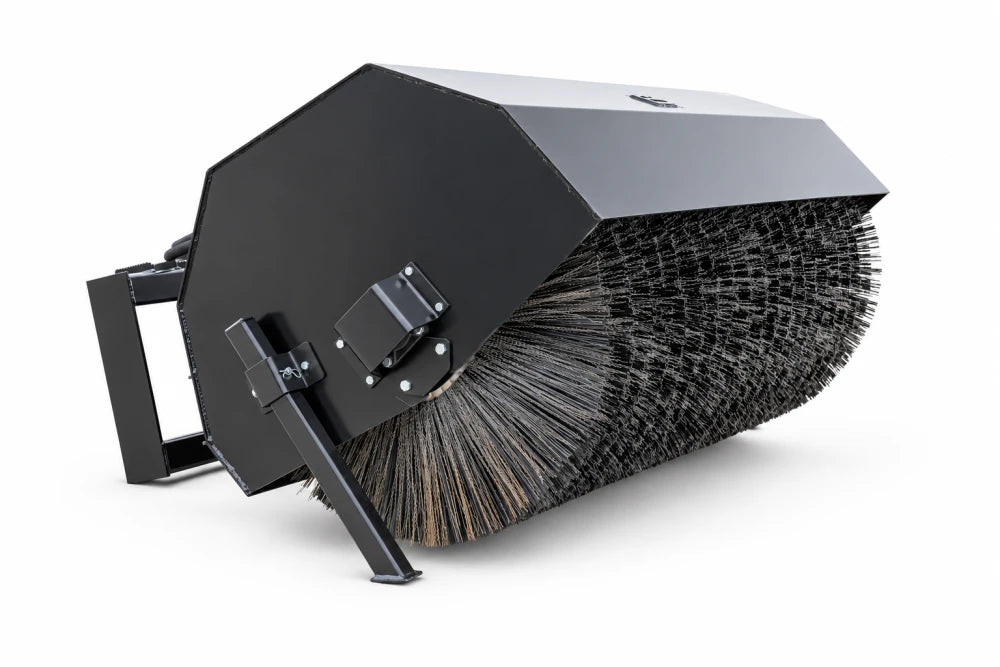

Express Steel 84-inch hydraulic angle broom manufacturer view 1

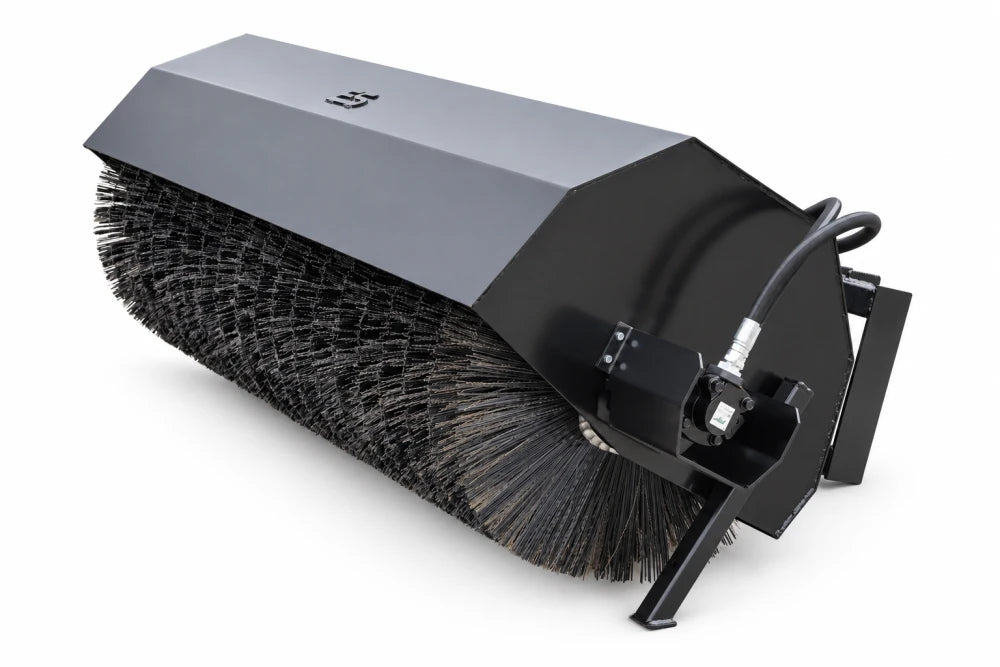

Express Steel 84-inch hydraulic angle broom manufacturer view 2

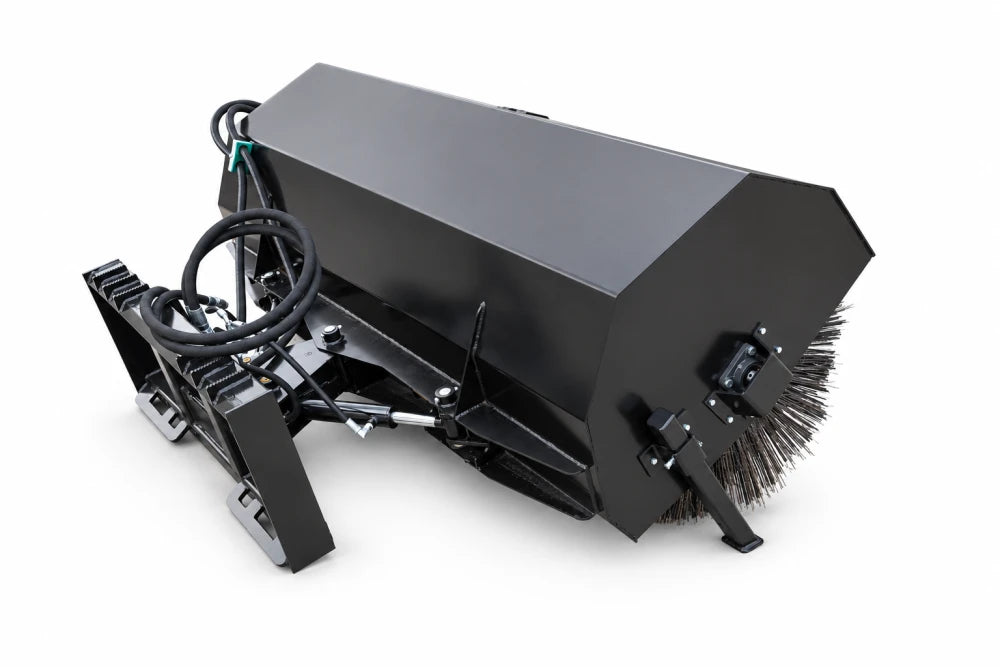

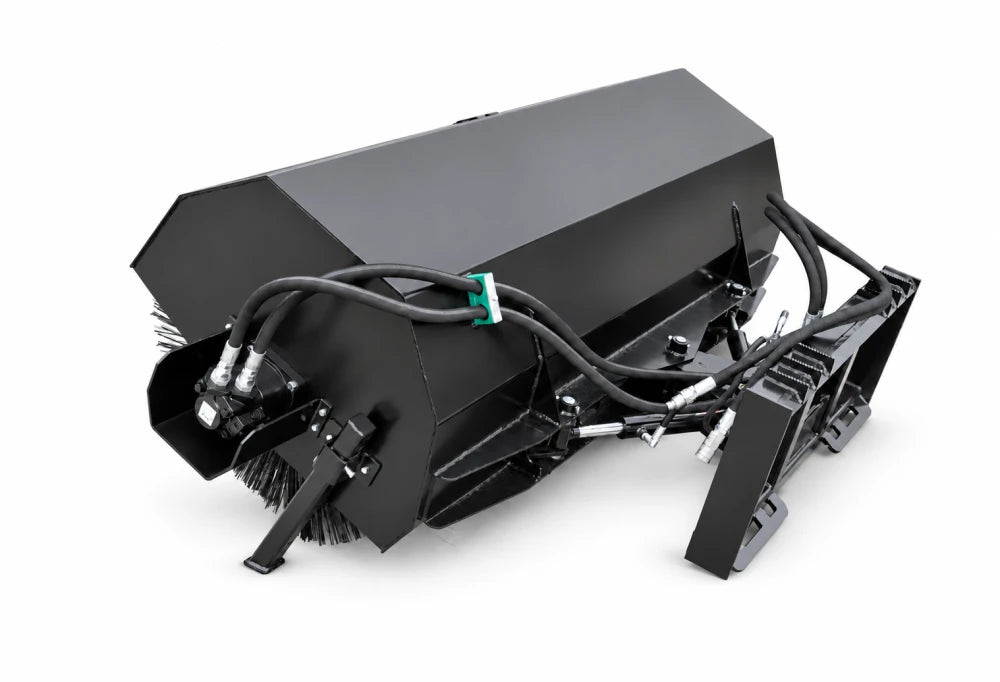

Express Steel 84-inch hydraulic angle broom manufacturer view 3
Express Steel 84-inch hydraulic angle broom manufacturer view 4

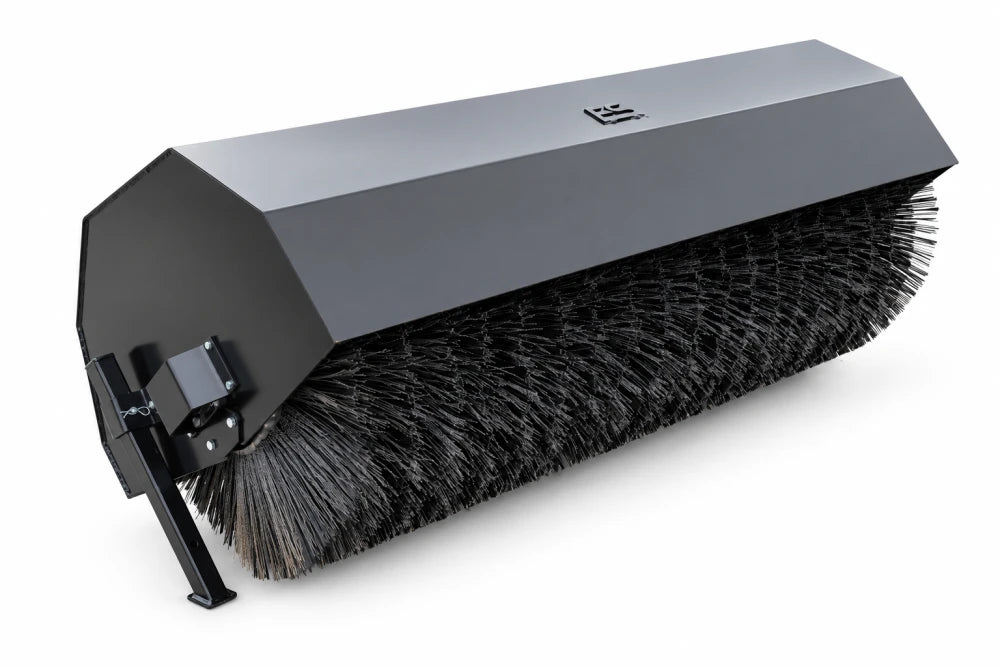

Express Steel 84-inch hydraulic angle broom manufacturer view 5
Roll over image to zoom in Click on image to zoom
Express Steel 84-inch hydraulic angle broom manufacturer view 1Express Steel 84-inch hydraulic angle broom manufacturer view 2Express Steel 84-inch hydraulic angle broom manufacturer view 3Express Steel 84-inch hydraulic angle broom manufacturer view 4Express Steel 84-inch hydraulic angle broom manufacturer view 5
Express Steel

Express Steel 84-Inch Hydraulic Angle Broom

SKU: ES50120 Availability confirmed before order

$6,459.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

84-INCH SWEEPING WIDTH

SWEEP BROAD PAVED AREAS WITH AN 84-INCH BRUSH. THE ANGLED BROOM DIRECTS LOOSE MATERIAL ALONG THE WORK AREA DURING CLEANUP PASSES.

45-DEGREE TOTAL ANGLE

HYDRAULIC ANGLING PROVIDES 22.5 DEGREES TO EITHER SIDE. ADJUST THE BRUSH POSITION TO CONTROL WHICH SIDE RECEIVES SWEPT DEBRIS.

2.5 × 8-INCH CYLINDER

A HYDRAULIC CYLINDER MOVES THE BROOM THROUGH ITS ANGLE RANGE. THE INCLUDED WIRING HARNESS SUPPORTS THE ATTACHMENT’S ANGLE-CONTROL SETUP.

40 REPLACEABLE BRISTLES

THE BRUSH COMBINES STEEL AND POLY MATERIAL IN 40 REPLACEABLE SECTIONS. ITS BRISTLES MEASURE 10 × 32 INCHES FOR THE SWEEPING ASSEMBLY.

800 CC HYDRAULIC DRIVE

AN 800 CC MOTOR POWERS BRUSH ROTATION. THE 795-POUND ATTACHMENT USES A UNIVERSAL SKID-STEER QUICK ATTACH FOR A MATCHING CARRIER.

Description

Key Benefits

Technical Specs

Applications

Express Steel 84-Inch Hydraulic Angle Broom

The Express Steel 84-Inch Hydraulic Angle Broom clears loose debris from paved work areas while directing material to either side of your path. Its broad brush suits landscaping cleanup, construction sites, parking areas, and routine property maintenance.

Hydraulic angle adjustment moves the broom 22.5 degrees in either direction for a 45-degree total range. A 2.5 × 8-inch cylinder positions the brush, helping you keep material moving toward the desired side as you make successive passes.

The brush uses 40 replaceable steel/poly bristle sections measuring 10 × 32 inches. An 800 cc hydraulic motor drives rotation, and the included wiring harness supports the angle-control setup.

The 795-pound broom mounts through a matching universal skid-steer quick attach. Confirm auxiliary hydraulic output for the supplied motor, carrier handling capacity, and control connections before operation, then set the sweeping angle to suit the work area.

Express Steel 84-Inch Hydraulic Angle Broom

  • Sweep broad paved areas with an 84-inch brush. The angled broom directs loose material along the work area during cleanup passes.
  • Hydraulic angling provides 22.5 degrees to either side. Adjust the brush position to control which side receives swept debris.
  • A hydraulic cylinder moves the broom through its angle range. The included wiring harness supports the attachment’s angle-control setup.
  • The brush combines steel and poly material in 40 replaceable sections. Its bristles measure 10 × 32 inches for the sweeping assembly.
  • An 800 cc motor powers brush rotation. The 795-pound attachment uses a universal skid-steer quick attach for a matching carrier.

Express Steel 84-Inch Hydraulic Angle Broom

  • Sweeping width: 84 inches
  • Model: ES50120
  • Weight: 795 lb
  • Motor: 800 cc hydraulic
  • Angle: 22.5 degrees each way; 45 degrees total
  • Cylinder: 2.5 × 8 inches
  • Bristles: 40 replaceable steel/poly sections; 10 × 32 inches
  • Wiring harness: included
  • Mount: universal skid-steer quick attach

Express Steel 84-Inch Hydraulic Angle Broom

  • Clearing paved parking and service areas.
  • Directing debris to either side during cleanup.
  • Cleaning around landscape and construction work.
  • Sweeping driveways and property access routes.

Express Steel: Brand & Attachment Videos

Express Steel 84-Inch Hydraulic Angle Broom

BUILT FOR SWEEPING & CLEANUP:

  • Sweep broad paved areas with an 84-inch brush. The angled broom directs loose material along the work area during cleanup passes.
  • Hydraulic angling provides 22.5 degrees to either side. Adjust the brush position to control which side receives swept debris.
  • A hydraulic cylinder moves the broom through its angle range. The included wiring harness supports the attachment’s angle-control setup.
  • The brush combines steel and poly material in 40 replaceable sections. Its bristles measure 10 × 32 inches for the sweeping assembly.
  • An 800 cc motor powers brush rotation. The 795-pound attachment uses a universal skid-steer quick attach for a matching carrier.

MATCH YOUR WORKING SETUP:

  • Clearing paved parking and service areas.
  • Directing debris to either side during cleanup.
  • Cleaning around landscape and construction work.
  • Sweeping driveways and property access routes.
  • Mount: universal skid-steer quick attach; match carrier capacity and hydraulic output.

READY FOR THE FIELD:

  • Inspect bristle wear, fasteners, guards, and the mounting plate.
  • Lock the quick attach securely onto a matching carrier.
  • Connect hydraulic lines with the system safely depressurized.
  • Check cylinder movement and wiring connections before sweeping.
  • Keep bystanders clear and follow carrier and attachment operating instructions.
