EXPRESS STEEL

48-Inch Bobcat MT Root Grapple

For Mini Skid Steers

34-Inch Jaw Opening

Request QuoteAdd To Cart

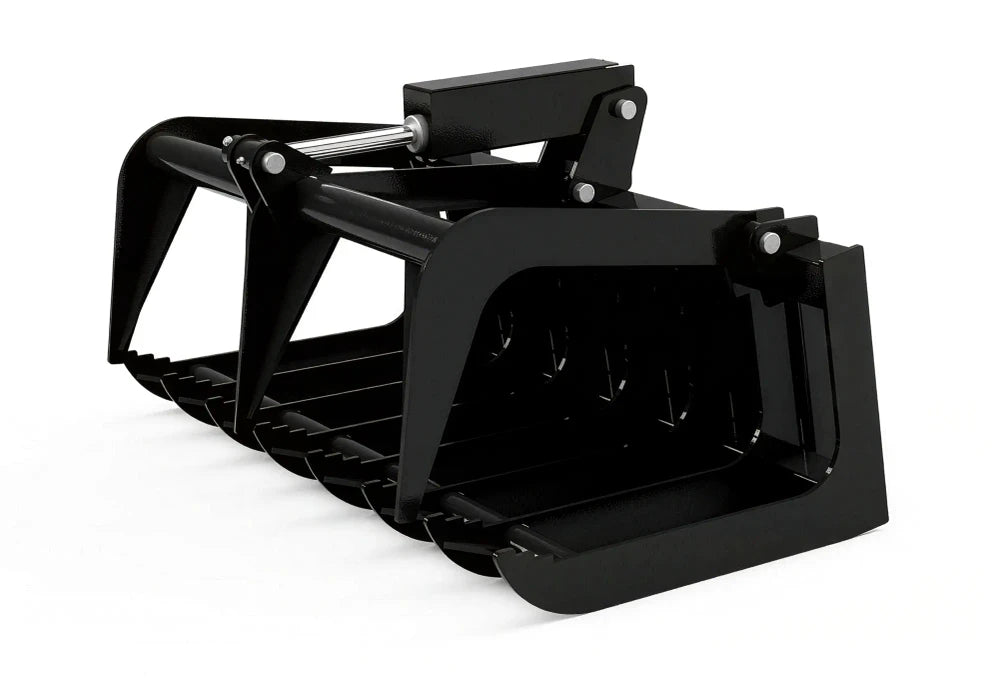

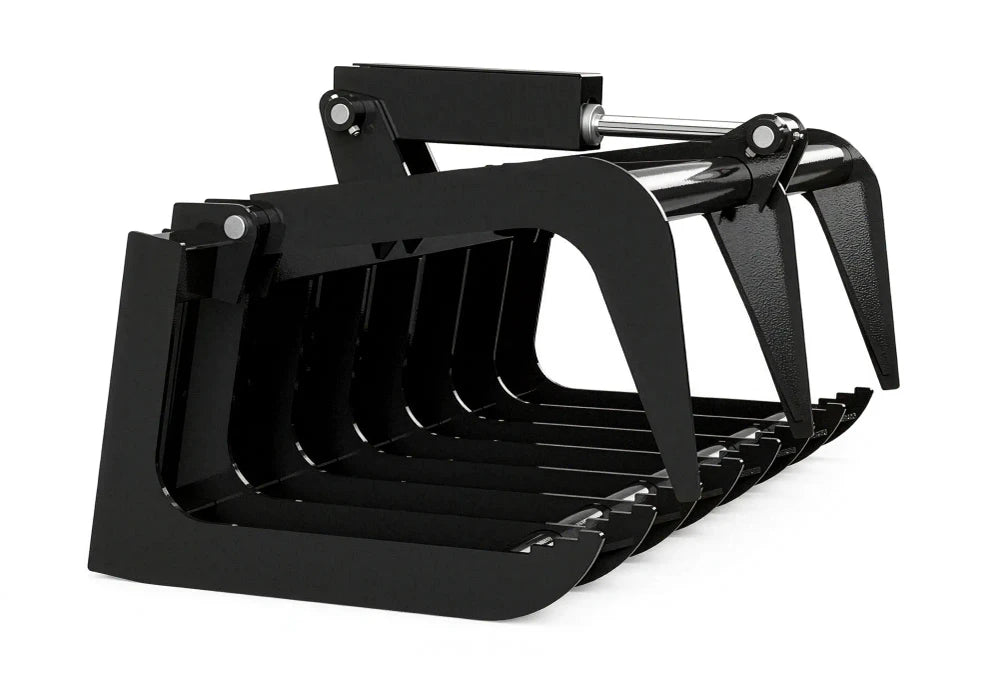

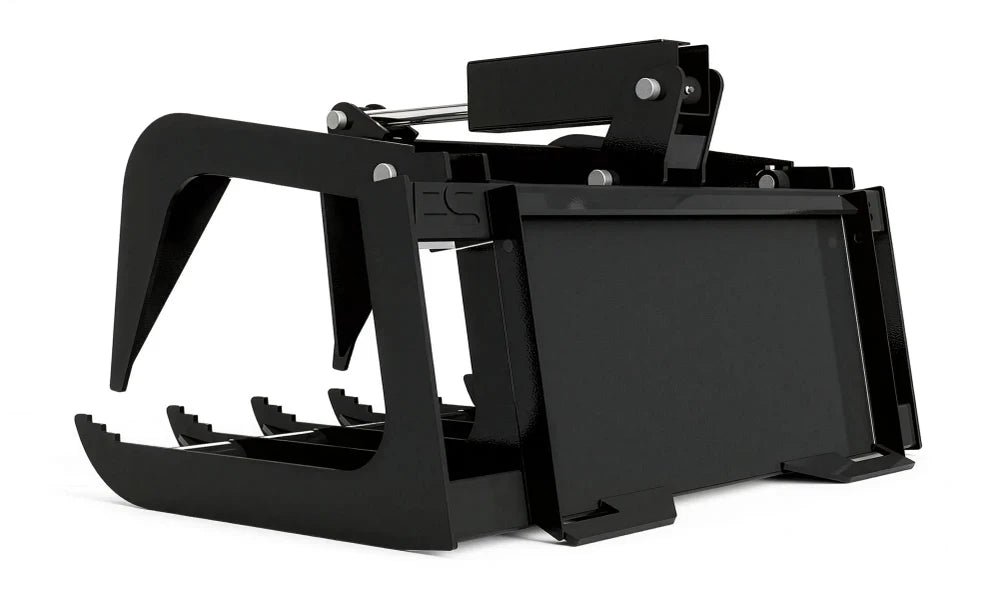

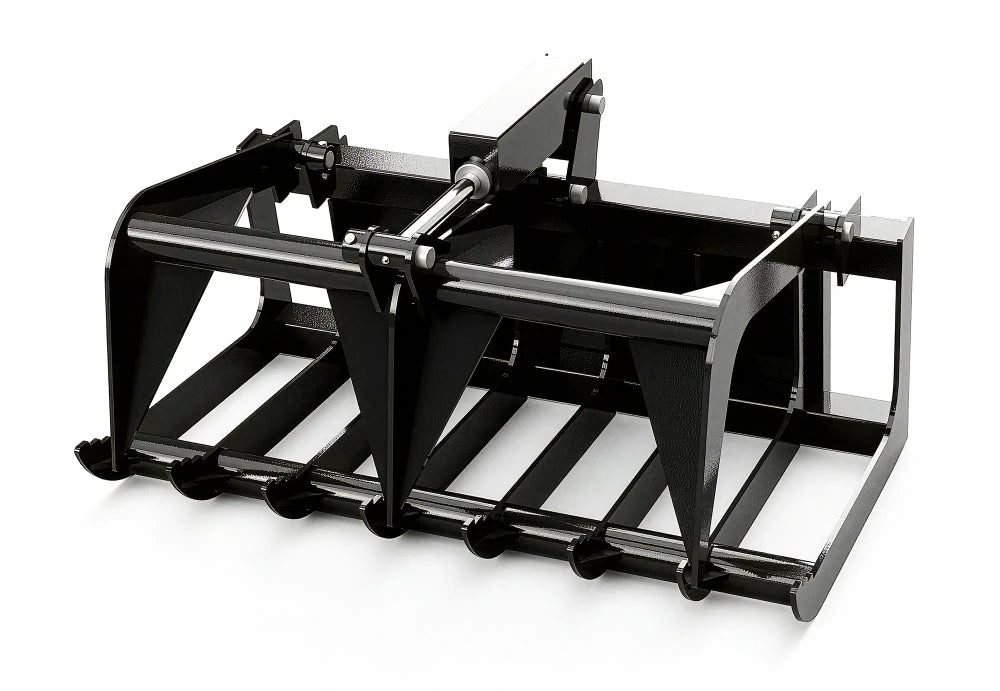

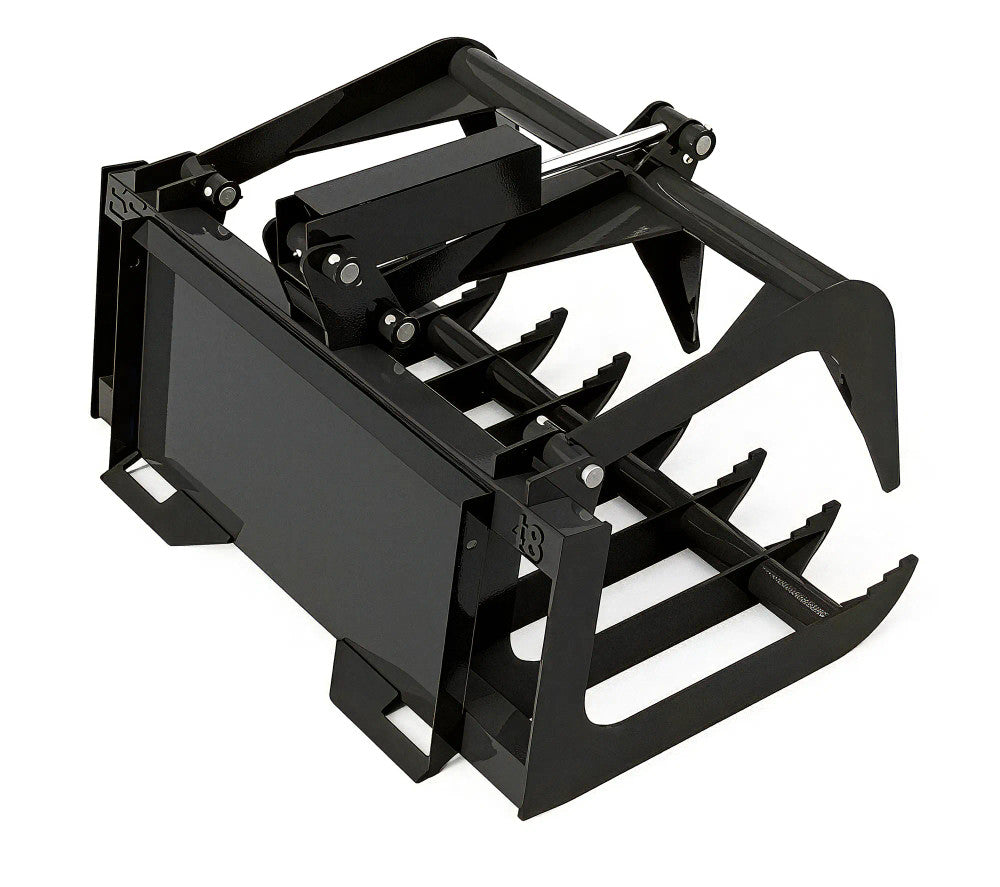

Express Steel 48-Inch Bobcat MT Root Grapple

Express Steel 48-Inch Bobcat MT Root Grapple;manufacturer family image, selected configuration may differ
Express Steel 48-Inch Bobcat MT Root Grapple;manufacturer family image, selected configuration may differ
Express Steel 48-Inch Bobcat MT Root Grapple;manufacturer family image, selected configuration may differ
Express Steel 48-Inch Bobcat MT Root Grapple;manufacturer family image, selected configuration may differ
Express Steel 48-Inch Bobcat MT Root Grapple;manufacturer family image, selected configuration may differ
Express Steel 48-Inch Bobcat MT Root Grapple;manufacturer family image, selected configuration may differ
Roll over image to zoom in Click on image to zoom
Express Steel 48-Inch Bobcat MT Root Grapple;manufacturer family image, selected configuration may differExpress Steel 48-Inch Bobcat MT Root Grapple;manufacturer family image, selected configuration may differExpress Steel 48-Inch Bobcat MT Root Grapple;manufacturer family image, selected configuration may differExpress Steel 48-Inch Bobcat MT Root Grapple;manufacturer family image, selected configuration may differExpress Steel 48-Inch Bobcat MT Root Grapple;manufacturer family image, selected configuration may differExpress Steel 48-Inch Bobcat MT Root Grapple;manufacturer family image, selected configuration may differ
Express Steel

Express Steel 48-Inch Bobcat MT Root Grapple

SKU: ES23015 Availability confirmed before order

$3,163.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

34-INCH GRAPPLE OPENING

THE HYDRAULIC CLAMP OPENS TO 34 INCHES. POSITION THE LOWER BODY UNDER THE MATERIAL BEFORE CLOSING THE UPPER TINE.

3/8-INCH UPPER TINE

THE UPPER GRAPPLE TINE USES 3/8-INCH STEEL. ITS WORKING SHAPE HOLDS BRUSH AND DEBRIS AGAINST THE LOWER BODY.

COVERED HYDRAULIC CYLINDER

THE CYLINDER IS COVERED TO REDUCE DIRECT EXPOSURE TO DEBRIS. PROTECTED HOSES CONNECT THE WORKING CLAMP TO THE CARRIER’S AUXILIARY CIRCUIT.

2 × 10-INCH CYLINDER

A 2-INCH BY 10-INCH HYDRAULIC CYLINDER OPERATES THE UPPER GRAPPLE. THE MINI-LOADER ATTACHMENT USES INTERMITTENT CYLINDER MOVEMENT RATHER THAN A CONTINUOUSLY DRIVEN ROTOR.

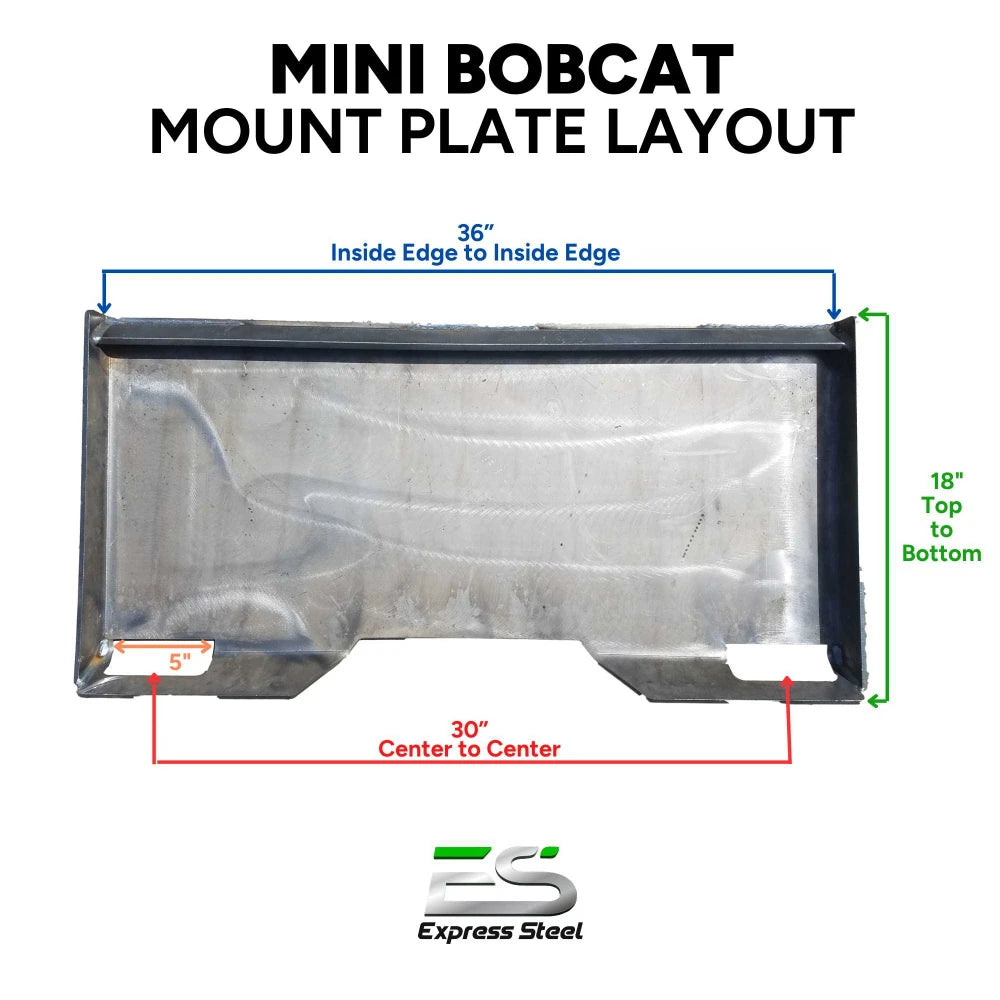

DEDICATED MINI-LOADER MOUNT

THE ATTACHMENT USES A BOBCAT MT MINI SKID STEER MOUNT. MATCH THAT PHYSICAL MOUNTING INTERFACE TO THE CARRIER BEFORE ORDERING.

Description

Key Benefits

Technical Specs

Applications

Express Steel 48-Inch Bobcat MT Root Grapple

The Express Steel 48-Inch Bobcat MT Root Grapple grips brush, logs, and irregular debris for controlled material handling. It connects through a Bobcat MT mini skid steer mount interface.

The hydraulic clamp opens to 34 inches. Position the lower body under the material before closing the upper tine. The upper grapple tine uses 3/8-inch steel. Its working shape holds brush and debris against the lower body.

The cylinder is covered to reduce direct exposure to debris. Protected hoses connect the working clamp to the carrier’s auxiliary circuit. A 2-inch by 10-inch hydraulic cylinder operates the upper grapple. The mini-loader attachment uses intermittent cylinder movement rather than a continuously driven rotor.

The attachment uses a Bobcat MT mini skid steer mount. Match that physical mounting interface to the carrier before ordering. Account for attachment weight, payload, load position, and the carrier’s rated capacity before lifting or transporting material.

Express Steel 48-Inch Bobcat MT Root Grapple

  • The hydraulic clamp opens to 34 inches. Position the lower body under the material before closing the upper tine.
  • The upper grapple tine uses 3/8-inch steel. Its working shape holds brush and debris against the lower body.
  • The cylinder is covered to reduce direct exposure to debris. Protected hoses connect the working clamp to the carrier’s auxiliary circuit.
  • A 2-inch by 10-inch hydraulic cylinder operates the upper grapple. The mini-loader attachment uses intermittent cylinder movement rather than a continuously driven rotor.
  • The attachment uses a Bobcat MT mini skid steer mount. Match that physical mounting interface to the carrier before ordering.

Express Steel 48-Inch Bobcat MT Root Grapple

  • Brand: Express Steel
  • Product: 48-Inch Bobcat MT Root Grapple
  • Mount: Bobcat MT mini skid steer mount
  • Working action: hydraulic cylinder actuation
  • Mount:Bobcat MT mini skid steer mount
  • Hoses fully protected;hydraulic cylinder covered
  • Body depth:33 inches;bodyheight:28 inches
  • ES23015: 360 lb
  • Maximum jaw opening: 34 inches

Express Steel 48-Inch Bobcat MT Root Grapple

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.

Express Steel: Grapple Demonstrations

Express Steel 48-Inch Bobcat MT Root Grapple

BUILT FOR MATERIAL HANDLING:

  • The hydraulic clamp opens to 34 inches. Position the lower body under the material before closing the upper tine.
  • The upper grapple tine uses 3/8-inch steel. Its working shape holds brush and debris against the lower body.
  • The cylinder is covered to reduce direct exposure to debris. Protected hoses connect the working clamp to the carrier’s auxiliary circuit.
  • A 2-inch by 10-inch hydraulic cylinder operates the upper grapple. The mini-loader attachment uses intermittent cylinder movement rather than a continuously driven rotor.
  • The attachment uses a Bobcat MT mini skid steer mount. Match that physical mounting interface to the carrier before ordering.

MATCH YOUR WORKING SETUP:

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.
  • Mount:Bobcat MT mini skid steer mount.
  • Check carrier lifting capacity at the actual load position.

READY FOR THE FIELD:

  • Inspect the grapple tines, working edges, pins, and retaining hardware.
  • Engage the loader attachment locks before connecting hydraulics.
  • Connect the correct hoses and couplers with hydraulic pressure relieved.
  • Check jaw movement and any rotation controls in a clear area.
  • Keep the load low during travel and remain within all handling limits.
