EXPRESS STEEL

CAT IT28 Adapter Blanks

For CAT IT28 Loader Interfaces

1-1/2-inch Steel Blanks

Request QuoteAdd To Cart

Express Steel CAT IT28 Female Adapter Blanks

Express Steel CAT IT28 Female Adapter Blanks - product view

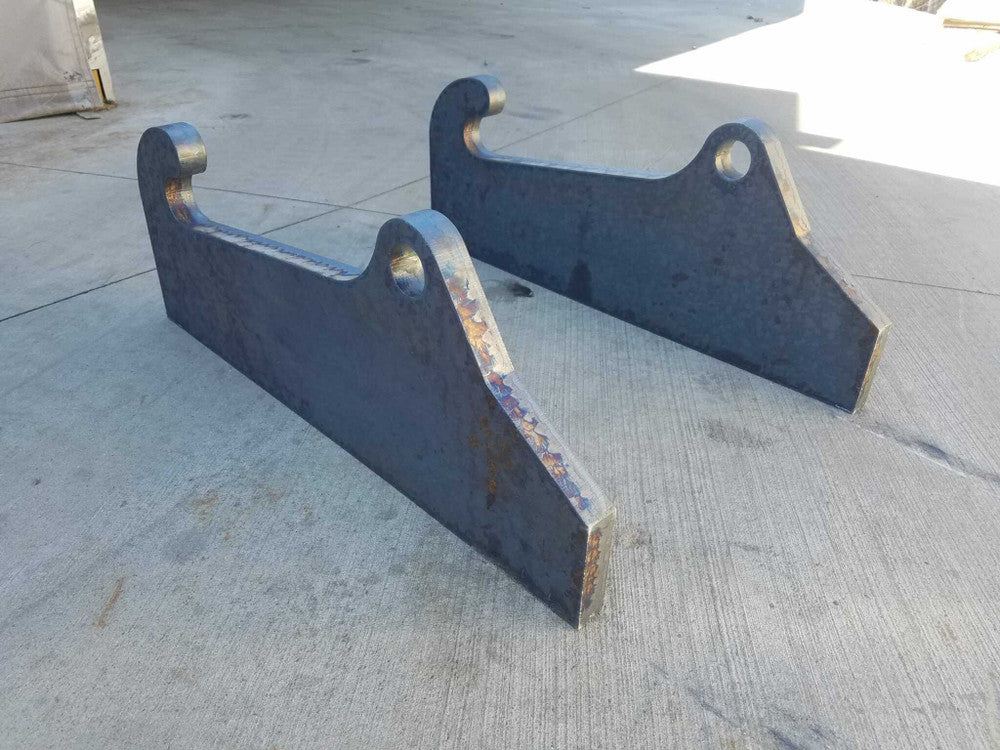

Express Steel CAT IT28 Female Adapter Blanks - manufacturer view 2

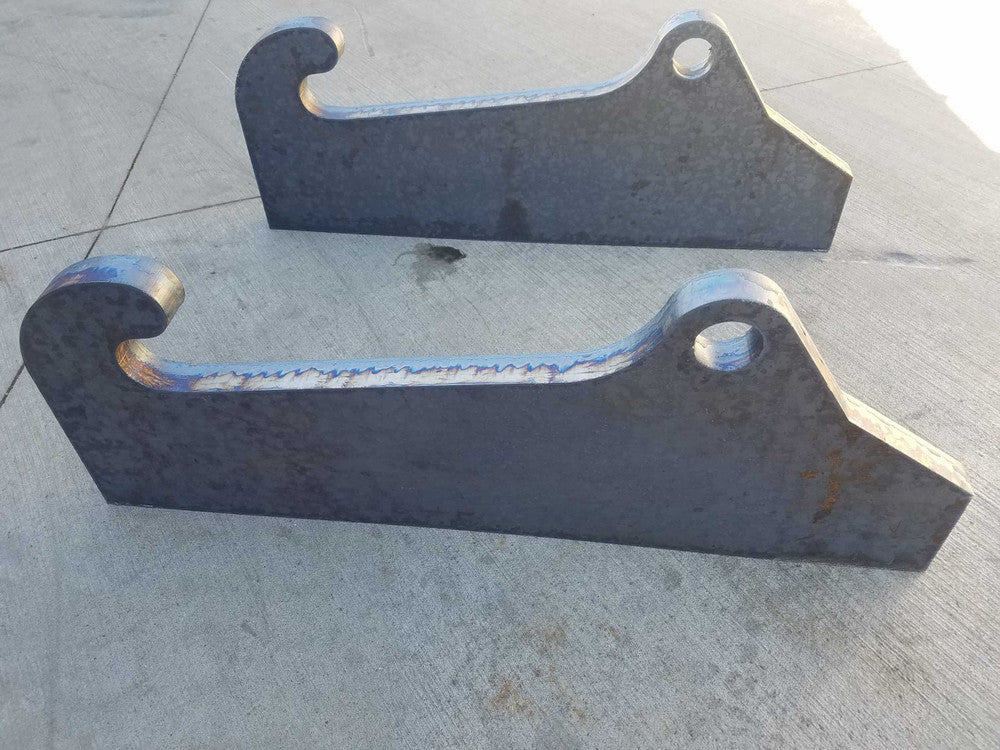

Express Steel CAT IT28 Female Adapter Blanks - manufacturer view 3
Express Steel CAT IT28 Female Adapter Blanks - manufacturer view 4

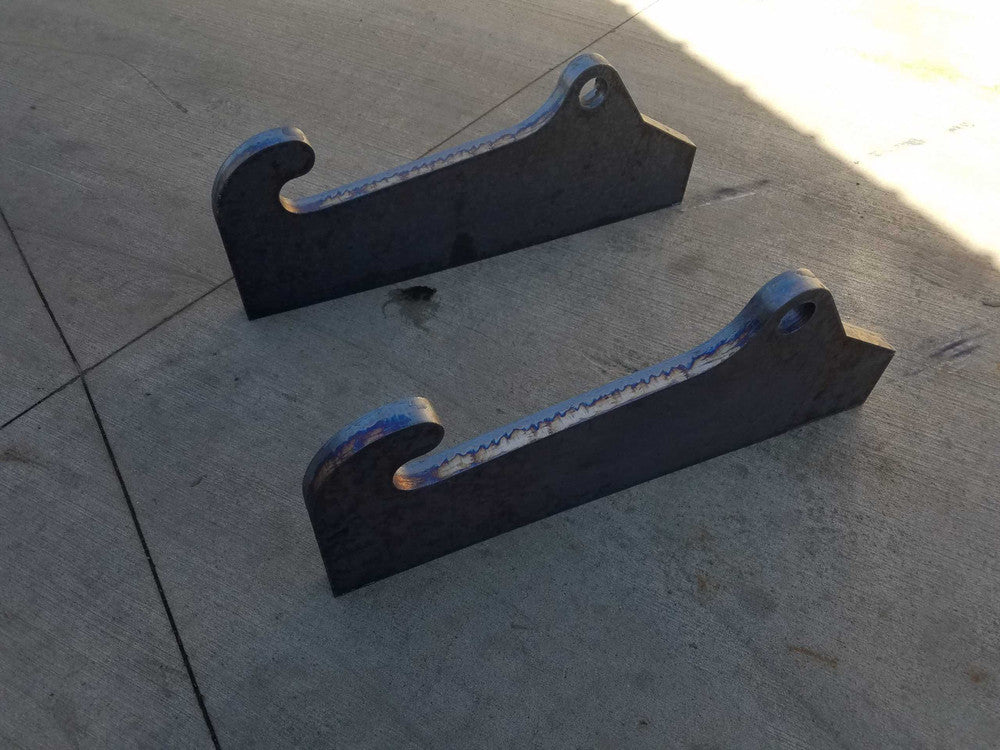

Express Steel CAT IT28 Female Adapter Blanks - manufacturer view 5
Express Steel CAT IT28 Female Adapter Blanks - manufacturer view 6
Express Steel CAT IT28 Female Adapter Blanks - manufacturer view 7
Roll over image to zoom in Click on image to zoom
Express Steel CAT IT28 Female Adapter Blanks - product viewExpress Steel CAT IT28 Female Adapter Blanks - manufacturer view 2Express Steel CAT IT28 Female Adapter Blanks - manufacturer view 3Express Steel CAT IT28 Female Adapter Blanks - manufacturer view 4Express Steel CAT IT28 Female Adapter Blanks - manufacturer view 5Express Steel CAT IT28 Female Adapter Blanks - manufacturer view 6Express Steel CAT IT28 Female Adapter Blanks - manufacturer view 7
Express Steel

Express Steel CAT IT28 Female Adapter Blanks

SKU: 81 Availability confirmed before order

$2,273.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

LOADER-SPECIFIC PROFILE

THE ADAPTER BLANKS ARE DESIGNED FOR THE CAT IT28 LOADER INTERFACE; CONFIRM THE EXACT COUPLER BEFORE FABRICATION.

STEEL ADAPTER BLANKS

EACH ADAPTER IS FORMED FROM 1-1/2-INCH STEEL FOR THE MOUNTING INTERFACE.

SET CONFIGURATION

THE PRODUCT IS SUPPLIED AS A SET OF ADAPTER BLANKS FOR ATTACHMENT FABRICATION, RATHER THAN A COMPLETE CONVERSION CARRIAGE.

PER-ADAPTER WEIGHT

EACH ADAPTER WEIGHS 135 LB; ACCOUNT FOR BOTH ADAPTERS IN THE COMPLETED ASSEMBLY.

COUPLER GEOMETRY

CHECK THE HOOK PROFILE, PIN ENGAGEMENT AND ATTACHMENT SPACING AGAINST THE ACTUAL LOADER COUPLER.

Description

Key Benefits

Technical Specs

Applications

Express Steel CAT IT28 Female Adapter Blanks

Express Steel CAT IT28 Female Adapter Blanks provide the loader-side interface for a properly designed attachment fabrication project. The blanks are supplied as a set for the CAT IT28 coupler system and require welding to a suitable attachment structure.

Each adapter uses 1-1/2-inch steel and weighs 135 lb. Include both adapters and the complete attachment structure when checking carrier load limits.

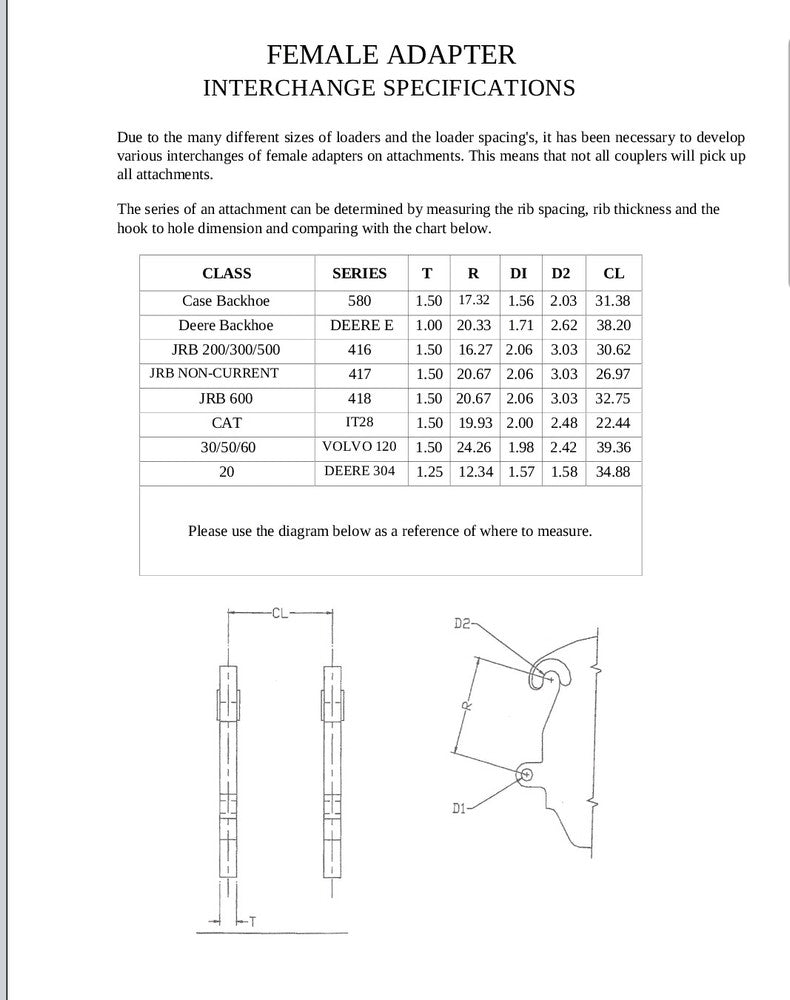

Key geometry includes 19.93-inch vertical spacing and a 2-inch lower pin hole. Center-line spacing is 22.44 inches. Compare the actual coupler dimensions before fabrication.

These are fabrication blanks, not a finished conversion carriage. Use a qualified fabrication process, confirm weld design and clearances, and inspect the completed coupler engagement before placing the attachment into service.

Express Steel CAT IT28 Female Adapter Blanks

  • The adapter blanks are designed for the CAT IT28 loader interface; confirm the exact coupler before fabrication.
  • Each adapter is formed from 1-1/2-inch steel for the mounting interface.
  • The product is supplied as a set of adapter blanks for attachment fabrication, rather than a complete conversion carriage.
  • Each adapter weighs 135 lb; account for both adapters in the completed assembly.
  • Check the hook profile, pin engagement and attachment spacing against the actual loader coupler.

Express Steel CAT IT28 Female Adapter Blanks

  • Catalog reference: 81
  • Interface: CAT IT28
  • Material thickness: 1-1/2-inch
  • Weight per adapter: 135 lb
  • Nominal set weight: 270 lb (two adapters)
  • Vertical spacing R: 19.93 inches
  • Lower pin hole DI: 2 inches
  • Center-line spacing CL: 22.44 inches
  • Supplied as a set; attachment structure and fabrication are separate

Express Steel CAT IT28 Female Adapter Blanks

  • Building a suitable loader attachment interface.
  • Repairing an approved attachment coupler structure.
  • Coupler applications using the CAT IT28 interface.
  • Check dimensions on the actual loader before cutting or welding.
  • Confirm the completed structure, locking engagement and rated capacity before use.

Express Steel: Brand & Attachment Videos

Express Steel CAT IT28 Female Adapter Blanks

BUILT FOR YOUR WORK:

  • The adapter blanks are designed for the CAT IT28 loader interface; confirm the exact coupler before fabrication.
  • Each adapter is formed from 1-1/2-inch steel for the mounting interface.
  • The product is supplied as a set of adapter blanks for attachment fabrication, rather than a complete conversion carriage.
  • Each adapter weighs 135 lb; account for both adapters in the completed assembly.
  • Check the hook profile, pin engagement and attachment spacing against the actual loader coupler.

MATCH YOUR WORKING SETUP:

  • Building a suitable loader attachment interface.
  • Repairing an approved attachment coupler structure.
  • Coupler applications using the CAT IT28 interface.
  • Check dimensions on the actual loader before cutting or welding.
  • Confirm the completed structure, locking engagement and rated capacity before use.

READY FOR THE FIELD:

  • Identify the exact loader coupler standard.
  • Compare the adapter dimensions and locking geometry.
  • Verify the required adapter spacing on the attachment.
  • Use a qualified welding and structural fabrication process.
  • Inspect both locking points and all clearances before operating.
