EXPRESS STEEL

Deere 304 Adapter Blanks

For Deere 304 Loader Interfaces

1-1/4-inch Steel Blanks

Request QuoteAdd To Cart

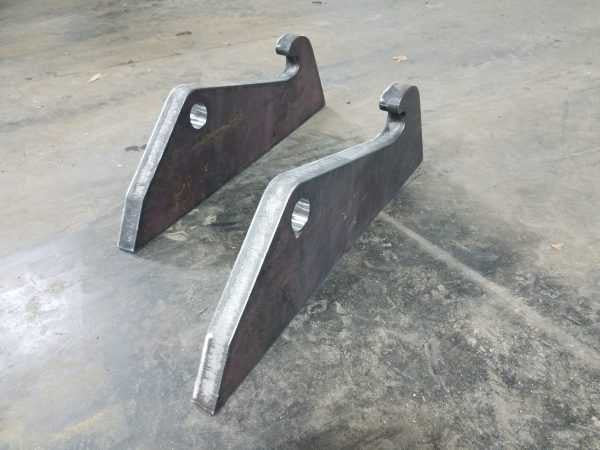

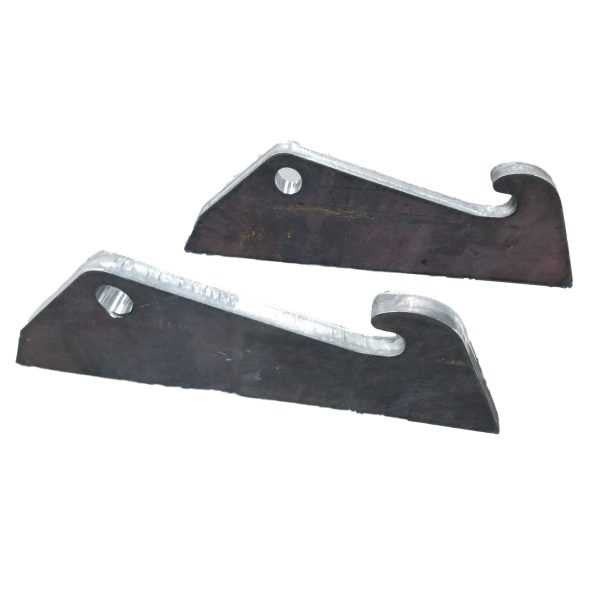

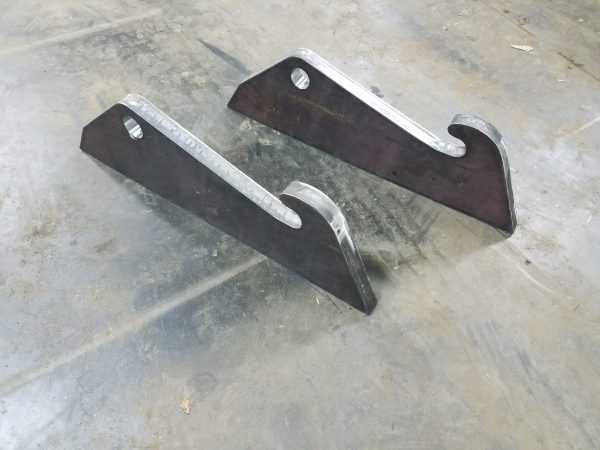

Express Steel Deere 304 Female Adapter Blanks

Express Steel Deere 304 Female Adapter Blanks - product view
Express Steel Deere 304 Female Adapter Blanks - manufacturer view 2
Express Steel Deere 304 Female Adapter Blanks - manufacturer view 3
Express Steel Deere 304 Female Adapter Blanks - manufacturer view 4
Roll over image to zoom in Click on image to zoom
Express Steel Deere 304 Female Adapter Blanks - product viewExpress Steel Deere 304 Female Adapter Blanks - manufacturer view 2Express Steel Deere 304 Female Adapter Blanks - manufacturer view 3Express Steel Deere 304 Female Adapter Blanks - manufacturer view 4
Express Steel

Express Steel Deere 304 Female Adapter Blanks

SKU: 136 Availability confirmed before order

$2,182.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

LOADER-SPECIFIC PROFILE

THE ADAPTER BLANKS ARE DESIGNED FOR THE DEERE 304 LOADER INTERFACE; CONFIRM THE EXACT COUPLER BEFORE FABRICATION.

STEEL ADAPTER BLANKS

EACH ADAPTER IS FORMED FROM 1-1/4-INCH STEEL FOR THE MOUNTING INTERFACE.

SET CONFIGURATION

THE PRODUCT IS SUPPLIED AS A SET OF ADAPTER BLANKS FOR ATTACHMENT FABRICATION, RATHER THAN A COMPLETE CONVERSION CARRIAGE.

PER-ADAPTER WEIGHT

EACH ADAPTER WEIGHS 50 LB; ACCOUNT FOR BOTH ADAPTERS IN THE COMPLETED ASSEMBLY.

OVERALL ADAPTER LENGTH

EACH ADAPTER MEASURES 26 INCHES IN OVERALL LENGTH; VERIFY FIT AND ENGAGEMENT POINTS BEFORE WELDING.

Description

Key Benefits

Technical Specs

Applications

Express Steel Deere 304 Female Adapter Blanks

Express Steel Deere 304 Female Adapter Blanks provide the loader-side interface for a properly designed attachment fabrication project. The blanks are supplied as a set for the Deere 304 coupler system and require welding to a suitable attachment structure.

Each adapter uses 1-1/4-inch steel and weighs 50 lb. Overall length per adapter is 26 inches. Include both adapters and the complete attachment structure when checking carrier load limits.

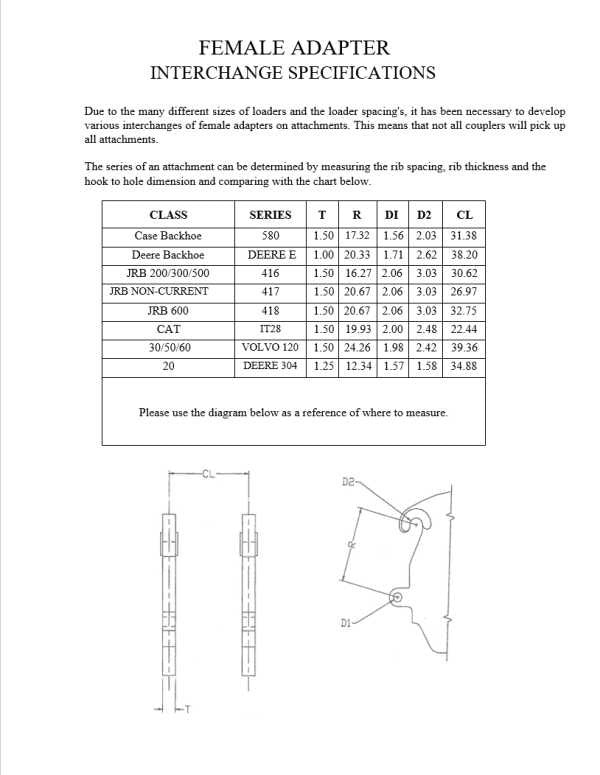

Key geometry includes 12.34-inch vertical spacing and a 1.57-inch lower pin hole. Center-line spacing is 34.88 inches. Compare the actual coupler dimensions before fabrication.

These are fabrication blanks, not a finished conversion carriage. Use a qualified fabrication process, confirm weld design and clearances, and inspect the completed coupler engagement before placing the attachment into service.

Express Steel Deere 304 Female Adapter Blanks

  • The adapter blanks are designed for the Deere 304 loader interface; confirm the exact coupler before fabrication.
  • Each adapter is formed from 1-1/4-inch steel for the mounting interface.
  • The product is supplied as a set of adapter blanks for attachment fabrication, rather than a complete conversion carriage.
  • Each adapter weighs 50 lb; account for both adapters in the completed assembly.
  • Each adapter measures 26 inches in overall length; verify fit and engagement points before welding.

Express Steel Deere 304 Female Adapter Blanks

  • Catalog reference: 136
  • Interface: Deere 304
  • Material thickness: 1-1/4-inch
  • Weight per adapter: 50 lb
  • Nominal set weight: 100 lb (two adapters)
  • Overall length per adapter: 26 inches
  • Vertical spacing R: 12.34 inches
  • Lower pin hole DI: 1.57 inches
  • Center-line spacing CL: 34.88 inches
  • Supplied as a set; attachment structure and fabrication are separate

Express Steel Deere 304 Female Adapter Blanks

  • Building a suitable loader attachment interface.
  • Repairing an approved attachment coupler structure.
  • Coupler applications using the Deere 304 interface.
  • Check dimensions on the actual loader before cutting or welding.
  • Confirm the completed structure, locking engagement and rated capacity before use.

Express Steel: Brand & Attachment Videos

Express Steel Deere 304 Female Adapter Blanks

BUILT FOR YOUR WORK:

  • The adapter blanks are designed for the Deere 304 loader interface; confirm the exact coupler before fabrication.
  • Each adapter is formed from 1-1/4-inch steel for the mounting interface.
  • The product is supplied as a set of adapter blanks for attachment fabrication, rather than a complete conversion carriage.
  • Each adapter weighs 50 lb; account for both adapters in the completed assembly.
  • Each adapter measures 26 inches in overall length; verify fit and engagement points before welding.

MATCH YOUR WORKING SETUP:

  • Building a suitable loader attachment interface.
  • Repairing an approved attachment coupler structure.
  • Coupler applications using the Deere 304 interface.
  • Check dimensions on the actual loader before cutting or welding.
  • Confirm the completed structure, locking engagement and rated capacity before use.

READY FOR THE FIELD:

  • Identify the exact loader coupler standard.
  • Compare the adapter dimensions and locking geometry.
  • Verify the required adapter spacing on the attachment.
  • Use a qualified welding and structural fabrication process.
  • Inspect both locking points and all clearances before operating.
