EXPRESS STEEL

Grader

For Skid Steers & Track Loaders

72-84-Inch Width Options | Reversible Cutting Edges

Request QuoteAdd To Cart

Express Steel Grader for Skid Steers & Track Loaders

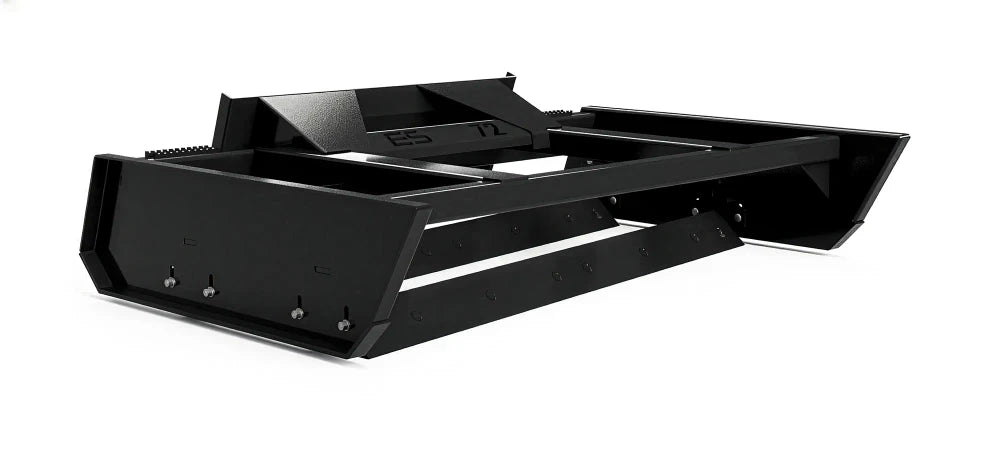

Express Steel 72-inch grader manufacturer view 1

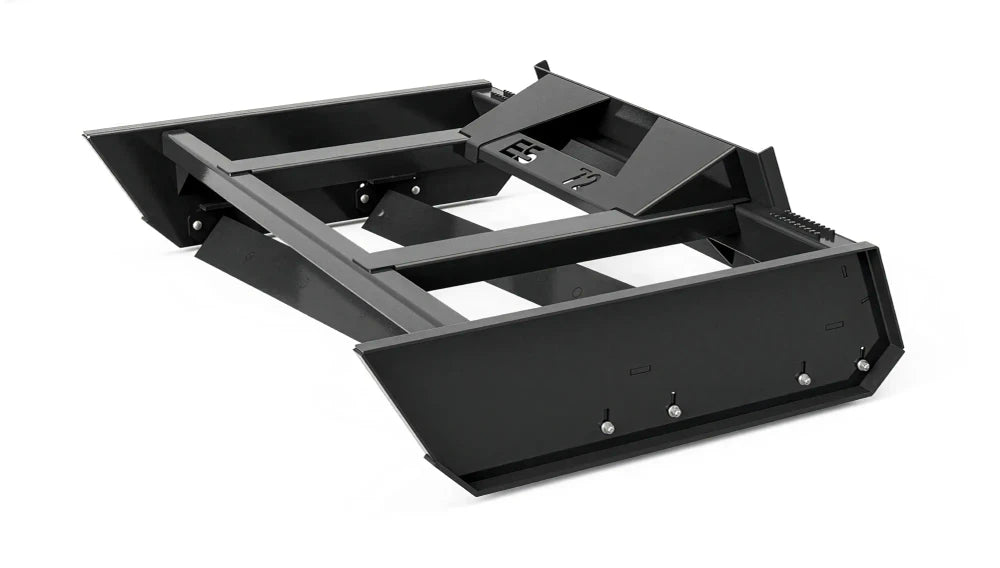

Express Steel 72-inch grader manufacturer view 2

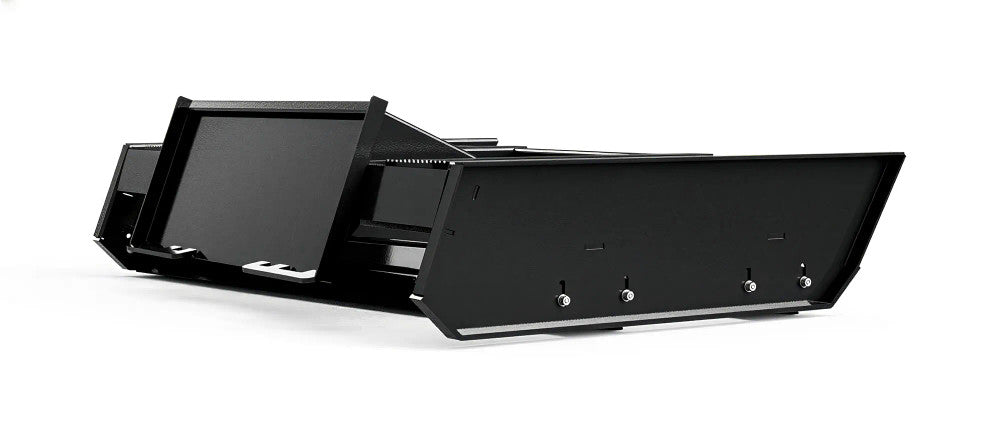

Express Steel 72-inch grader manufacturer view 3

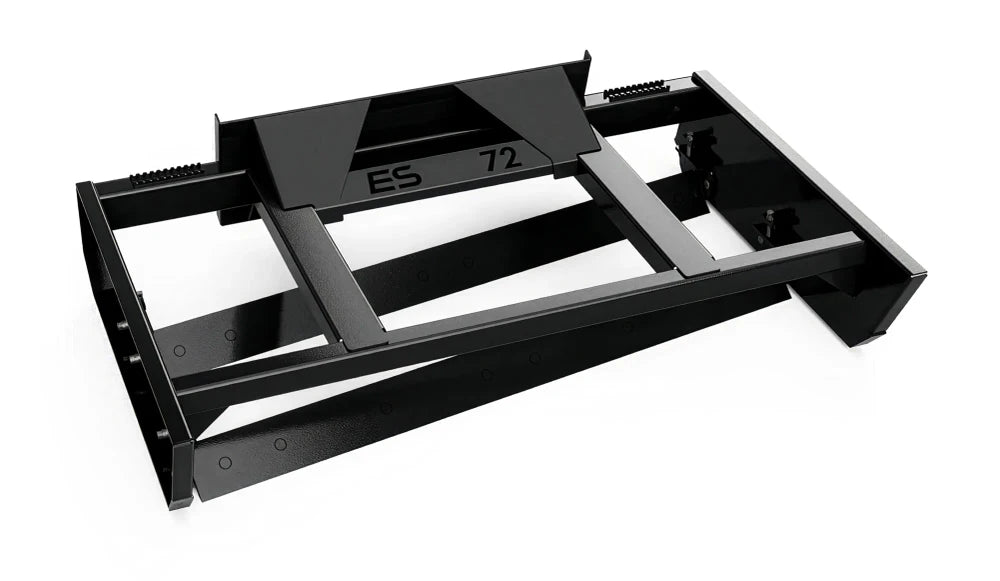

Express Steel 72-inch grader manufacturer view 4

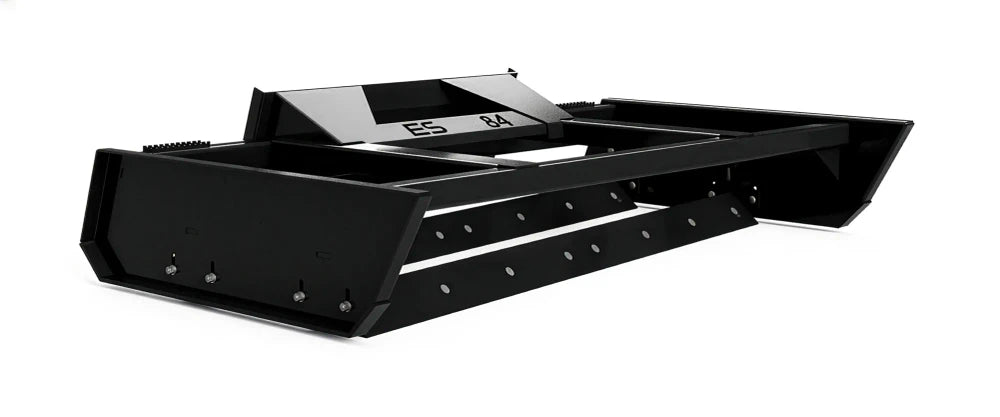

Express Steel 84-inch grader manufacturer view 1

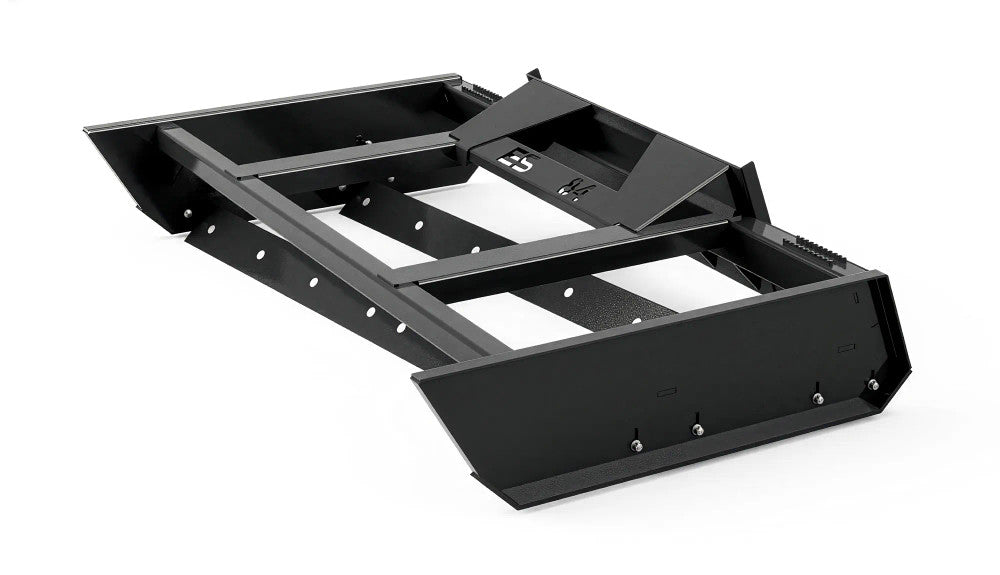

Express Steel 84-inch grader manufacturer view 2

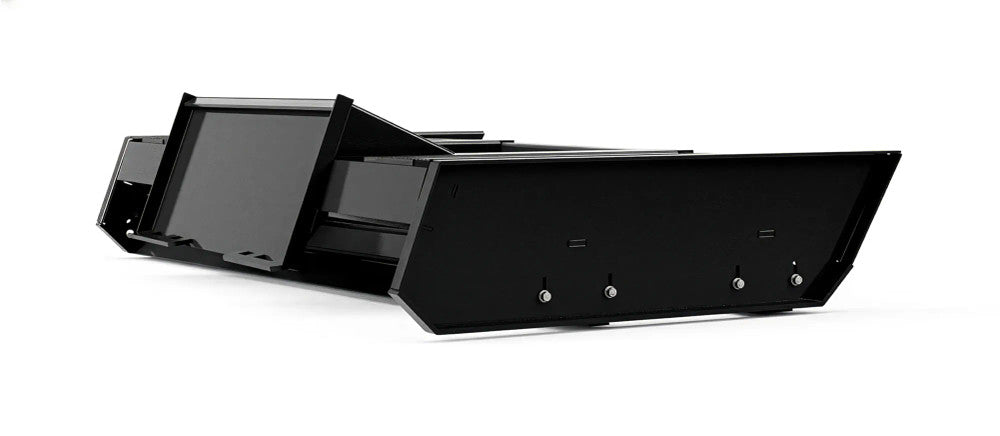

Express Steel 84-inch grader manufacturer view 3

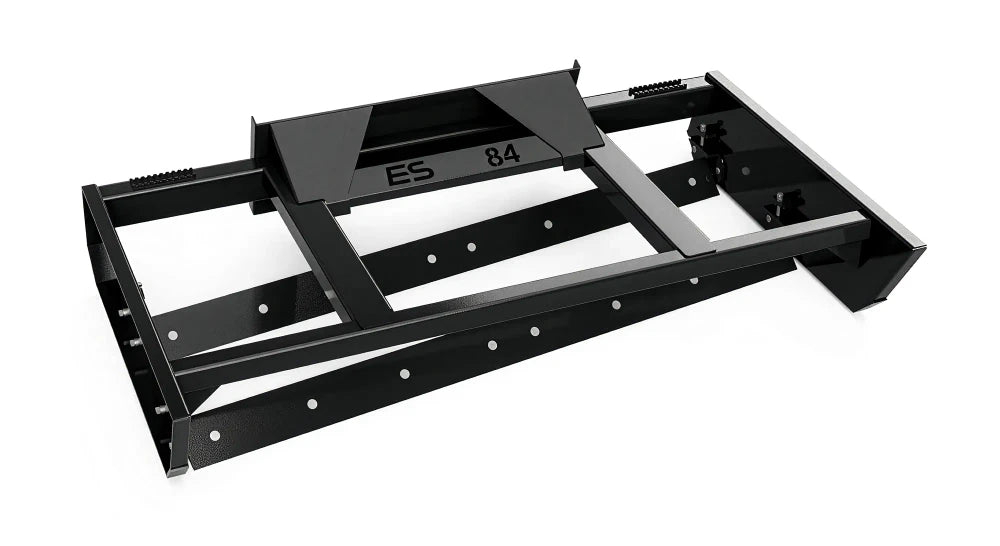

Express Steel 84-inch grader manufacturer view 4
Roll over image to zoom in Click on image to zoom
Express Steel 72-inch grader manufacturer view 1Express Steel 72-inch grader manufacturer view 2Express Steel 72-inch grader manufacturer view 3Express Steel 72-inch grader manufacturer view 4Express Steel 84-inch grader manufacturer view 1Express Steel 84-inch grader manufacturer view 2Express Steel 84-inch grader manufacturer view 3Express Steel 84-inch grader manufacturer view 4
Express Steel

Express Steel Grader for Skid Steers & Track Loaders

SKU: ES22072 Availability confirmed before order

$3,317.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

72-84-INCH GRADING WIDTHS

CHOOSE 72-INCH COVERAGE FOR NARROWER WORK AREAS OR AN 84-INCH GRADER FOR WIDER PASSES. BOTH SIZES SPREAD LOOSE MATERIAL AND SMOOTH UNEVEN SURFACES DURING FINISH GRADING.

REVERSIBLE 1060 CUTTING EDGES

BOLT-ON 1060 CUTTING EDGES OFFER REVERSIBLE WEAR SURFACES AND ADJUSTABLE HEIGHT. SET THE CUTTING DEPTH TO SUIT MATERIAL SPREADING, LAND LEVELING, AND DRIVEWAY MAINTENANCE.

A36 STEEL MAIN FRAME

AN A36 STEEL MAIN FRAME SUPPORTS THE GRADING BODY. QUARTER-INCH SIDE PLATES AND FORMED BRACES REINFORCE THE ATTACHMENT AS LOOSE MATERIAL MOVES THROUGH THE FRAME.

3-INCH TUBE FRONT BRACE

A 3-INCH SQUARE TUBE FRONT BRACE TIES THE STRUCTURE TOGETHER. HALF-INCH WEAR BARS REINFORCE THE GROUND-CONTACT AREAS DURING REPEATED GRADING PASSES.

REINFORCED QUICK ATTACH

THE REINFORCED UNIVERSAL SKID-STEER QUICK ATTACH INCLUDES A TREADED STEP. ATTACHMENT WEIGHT IS 665 POUNDS FOR THE 72-INCH MODEL AND 695 POUNDS FOR THE 84-INCH MODEL.

Description

Key Benefits

Technical Specs

Applications

Express Steel Grader for Skid Steers & Track Loaders

The Express Steel Grader turns your skid steer or compact track loader into a tool for land leveling, finish grading, material spreading, and gravel road maintenance. Choose a 72-inch or 84-inch grading width to match your work area and carrier.

Reversible 1060 bolt-on cutting edges provide adjustable cutting height for working loose soil and aggregate. The open grading frame helps redistribute material across the surface, making it useful for smoothing driveways, parking areas, and landscape projects.

An A36 steel main frame combines a 3-inch square tube front brace with quarter-inch formed braces and side plates. Half-inch wear bars protect the ground-contact structure, while the reinforced quick-attach assembly includes a treaded step.

The grader connects through a matching universal skid-steer quick attach and operates through carrier movement without hydraulic or PTO power. The 72-inch model weighs 665 pounds; the 84-inch model weighs 695 pounds. Match the mounting interface and attachment weight to your carrier before use.

Express Steel Grader for Skid Steers & Track Loaders

  • Choose 72-inch coverage for narrower work areas or an 84-inch grader for wider passes. Both sizes spread loose material and smooth uneven surfaces during finish grading.
  • Bolt-on 1060 cutting edges offer reversible wear surfaces and adjustable height. Set the cutting depth to suit material spreading, land leveling, and driveway maintenance.
  • An A36 steel main frame supports the grading body. Quarter-inch side plates and formed braces reinforce the attachment as loose material moves through the frame.
  • A 3-inch square tube front brace ties the structure together. Half-inch wear bars reinforce the ground-contact areas during repeated grading passes.
  • The reinforced universal skid-steer quick attach includes a treaded step. Attachment weight is 665 pounds for the 72-inch model and 695 pounds for the 84-inch model.

Express Steel Grader for Skid Steers & Track Loaders

  • Grading widths: 72 and 84 inches
  • 72-inch model: ES22072; 665 lb; overall dimensions 77.25 × 55 × 20 inches
  • 84-inch model: ES22084; 695 lb; overall dimensions 89.25 × 55 × 20 inches
  • Cutting edges: reversible bolt-on 1060 steel with adjustable height; 45-degree edge angle
  • Main frame: A36 steel
  • Front brace: 3-inch square tube
  • Formed braces and sides: 1/4 inch
  • Wear bars: 1/2 inch
  • Mount: reinforced universal skid-steer quick attach with treaded step
  • Drive: passive attachment; no hydraulic motor or PTO

Express Steel Grader for Skid Steers & Track Loaders

  • Finish grading loose soil for landscaping.
  • Spreading and leveling loose gravel or aggregate.
  • Maintaining gravel driveways, roads, and parking areas.
  • Preparing broad surfaces before final landscape work.

Express Steel: Brand & Attachment Videos

Express Steel Grader for Skid Steers & Track Loaders

BUILT FOR SURFACE GRADING:

  • Choose 72-inch coverage for narrower work areas or an 84-inch grader for wider passes. Both sizes spread loose material and smooth uneven surfaces during finish grading.
  • Bolt-on 1060 cutting edges offer reversible wear surfaces and adjustable height. Set the cutting depth to suit material spreading, land leveling, and driveway maintenance.
  • An A36 steel main frame supports the grading body. Quarter-inch side plates and formed braces reinforce the attachment as loose material moves through the frame.
  • A 3-inch square tube front brace ties the structure together. Half-inch wear bars reinforce the ground-contact areas during repeated grading passes.
  • The reinforced universal skid-steer quick attach includes a treaded step. Attachment weight is 665 pounds for the 72-inch model and 695 pounds for the 84-inch model.

MATCH YOUR WORKING SETUP:

  • Finish grading loose soil for landscaping.
  • Spreading and leveling loose gravel or aggregate.
  • Maintaining gravel driveways, roads, and parking areas.
  • Preparing broad surfaces before final landscape work.
  • Mount: universal skid-steer quick attach; match carrier capacity to attachment weight.

READY FOR THE FIELD:

  • Inspect cutting edges, bolts, wear bars, and frame before use.
  • Lock the quick attach securely onto a matching carrier.
  • Adjust cutting-edge height with the attachment safely supported.
  • Clear hidden obstacles and work in controlled passes.
  • Keep bystanders clear and stay within carrier operating limits.
