EXPRESS STEEL

Hydraulic Nursery Forks

For Skid Steers & Track Loaders

65-Inch Forks | 4-60-Inch Tip Opening

Request QuoteAdd To Cart

Express Steel Hydraulic Nursery Forks

Express Steel hydraulic nursery forks manufacturer view 1
Express Steel hydraulic nursery forks manufacturer view 2

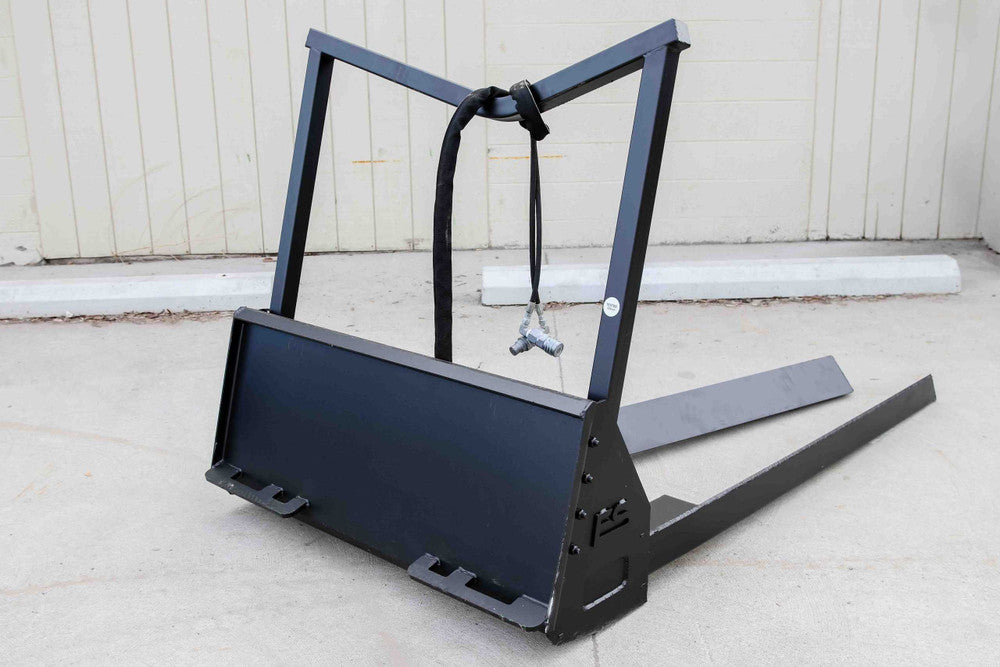

Express Steel hydraulic nursery forks manufacturer view 3
Express Steel hydraulic nursery forks manufacturer view 4
Express Steel hydraulic nursery forks manufacturer view 5

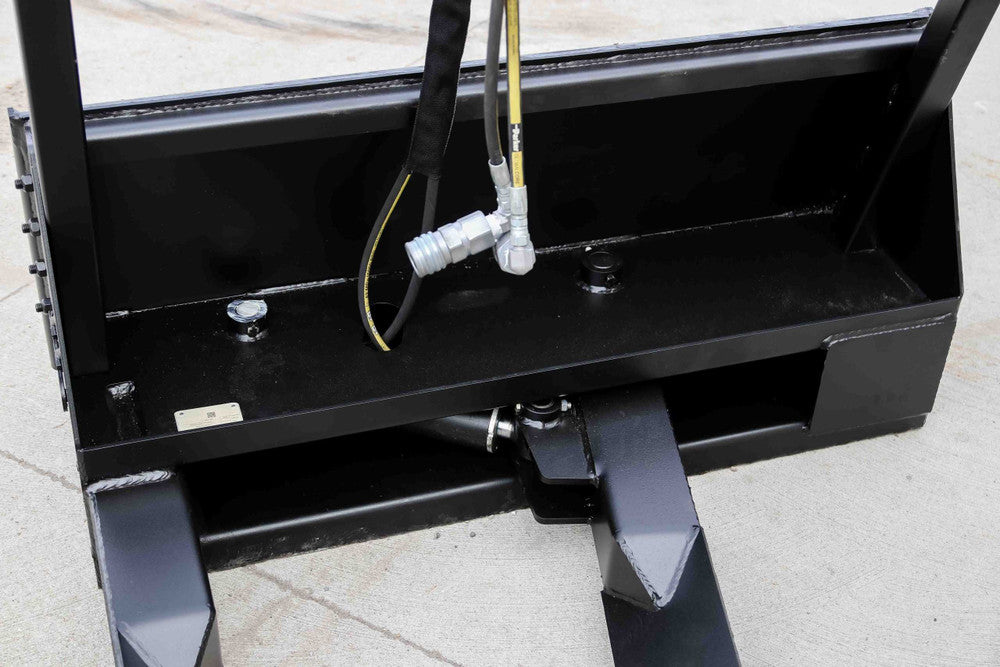

Express Steel hydraulic nursery forks manufacturer view 6

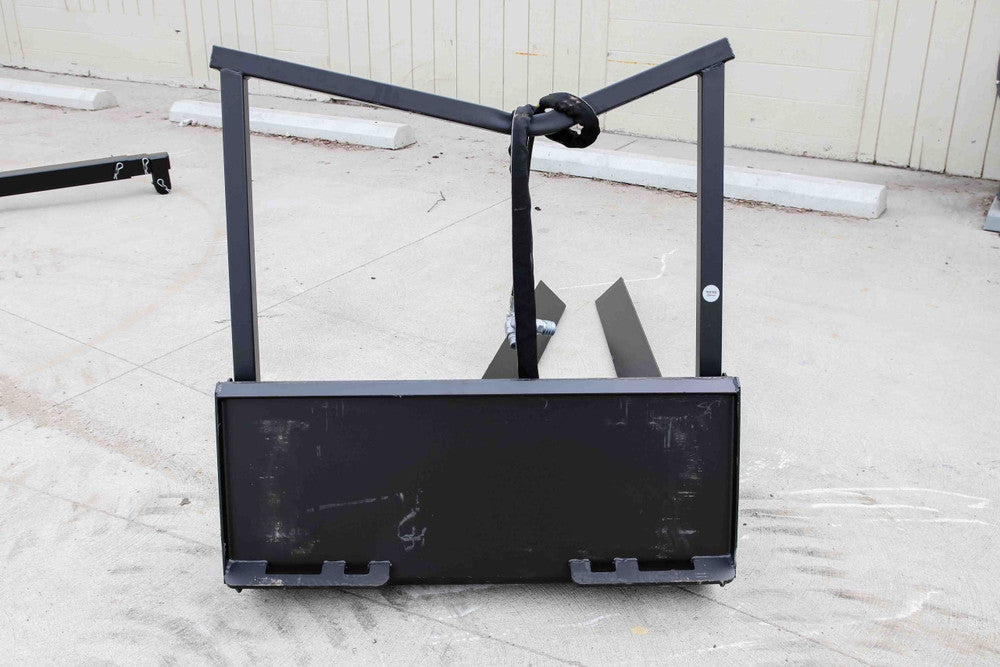

Express Steel hydraulic nursery forks manufacturer view 7
Roll over image to zoom in Click on image to zoom
Express Steel hydraulic nursery forks manufacturer view 1Express Steel hydraulic nursery forks manufacturer view 2Express Steel hydraulic nursery forks manufacturer view 3Express Steel hydraulic nursery forks manufacturer view 4Express Steel hydraulic nursery forks manufacturer view 5Express Steel hydraulic nursery forks manufacturer view 6Express Steel hydraulic nursery forks manufacturer view 7
Express Steel

Express Steel Hydraulic Nursery Forks

SKU: ES60400 Availability confirmed before order

$3,702.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

65-INCH FORK LENGTH

LONG 65-INCH FORKS REACH BENEATH NURSERY STOCK AND LANDSCAPE MATERIALS. POSITION THE LOAD SECURELY BEFORE LIFTING OR TRANSPORTING IT.

4-60-INCH TIP OPENING

THE FORK TIPS OPEN TO 60 INCHES AND CLOSE TO A 4-INCH MINIMUM. HYDRAULIC ADJUSTMENT CHANGES THE SPACING TO SUIT THE LOAD.

3,000-POUND ATTACHMENT CAPACITY

MAXIMUM ATTACHMENT CAPACITY IS 3,000 POUNDS. THE CARRIER’S CAPACITY, LOAD POSITION, AND STABILITY CAN REQUIRE A LOWER WORKING LOAD.

43-INCH BACKREST HEIGHT

THE BACKREST IS 43 INCHES TALL AT ITS CENTER BEND. ITS FRAME SUPPORTS THE FORK ASSEMBLY DURING CONTROLLED PLANT AND MATERIAL POSITIONING.

1/2-INCH FLAT-FACE COUPLERS

INCLUDED HALF-INCH FLAT-FACE COUPLERS CONNECT THE HYDRAULIC CIRCUIT. THE 450-POUND ATTACHMENT MOUNTS THROUGH UNIVERSAL SKID-STEER QUICK ATTACH.

Description

Key Benefits

Technical Specs

Applications

Express Steel Hydraulic Nursery Forks

The Express Steel Hydraulic Nursery Forks lift and position balled or container-grown trees, shrubs, and landscape materials. Their 65-inch forks give a matching skid steer or compact track loader a dedicated tool for handling nursery stock and placing it around the work area.

Hydraulic adjustment changes the fork-tip opening from a 4-inch minimum to a 60-inch maximum. This range lets you set the spacing for different loads while keeping the material securely supported during movement.

The attachment has a 3,000-pound maximum capacity and weighs 450 pounds. Its backrest is 43 inches tall at the center bend. Carrier capacity, load position, and operating conditions can reduce the load that may be handled safely.

Universal skid-steer quick attach connects the frame to a matching carrier, and included half-inch flat-face couplers connect the auxiliary hydraulics. Inspect the mounting locks and connections before use, then handle plants and landscape rocks within both attachment and carrier limits.

Express Steel Hydraulic Nursery Forks

  • Long 65-inch forks reach beneath nursery stock and landscape materials. Position the load securely before lifting or transporting it.
  • The fork tips open to 60 inches and close to a 4-inch minimum. Hydraulic adjustment changes the spacing to suit the load.
  • Maximum attachment capacity is 3,000 pounds. The carrier’s capacity, load position, and stability can require a lower working load.
  • The backrest is 43 inches tall at its center bend. Its frame supports the fork assembly during controlled plant and material positioning.
  • Included half-inch flat-face couplers connect the hydraulic circuit. The 450-pound attachment mounts through universal skid-steer quick attach.

Express Steel Hydraulic Nursery Forks

  • Model: ES60400
  • Fork length: 65 inches
  • Fork-tip opening: 4-inch minimum; 60-inch maximum
  • Maximum attachment capacity: 3,000 lb
  • Attachment weight: 450 lb
  • Backrest height at center bend: 43 inches
  • Hydraulic connection: 1/2-inch flat-face quick-connect couplers
  • Mount: universal skid-steer quick attach
  • Hydraulic function: cylinder actuation for fork spacing

Express Steel Hydraulic Nursery Forks

  • Lifting and positioning balled nursery trees.
  • Moving container-grown trees and shrubs.
  • Placing landscape rocks within operating limits.
  • Handling nursery and landscape materials with a matching loader.

Express Steel: Brand & Attachment Videos

Express Steel Hydraulic Nursery Forks

BUILT FOR NURSERY HANDLING:

  • Long 65-inch forks reach beneath nursery stock and landscape materials. Position the load securely before lifting or transporting it.
  • The fork tips open to 60 inches and close to a 4-inch minimum. Hydraulic adjustment changes the spacing to suit the load.
  • Maximum attachment capacity is 3,000 pounds. The carrier’s capacity, load position, and stability can require a lower working load.
  • The backrest is 43 inches tall at its center bend. Its frame supports the fork assembly during controlled plant and material positioning.
  • Included half-inch flat-face couplers connect the hydraulic circuit. The 450-pound attachment mounts through universal skid-steer quick attach.

MATCH YOUR WORKING SETUP:

  • Lifting and positioning balled nursery trees.
  • Moving container-grown trees and shrubs.
  • Placing landscape rocks within operating limits.
  • Handling nursery and landscape materials with a matching loader.

READY FOR THE FIELD:

  • Inspect forks, pivot areas, hydraulic hoses, and the frame.
  • Secure the quick attach and verify all carrier locks.
  • Connect hydraulic couplers with the system depressurized.
  • Check fork movement and support the load securely before lifting.
  • Stay within attachment and carrier limits and keep people clear of the load.
