EXPRESS STEEL

John Deere Pin Style Plate

For John Deere Loader Attachments

1/4-inch Steel Plate

Request QuoteAdd To Cart

Express Steel John Deere Pin Style Quick Attach Plate

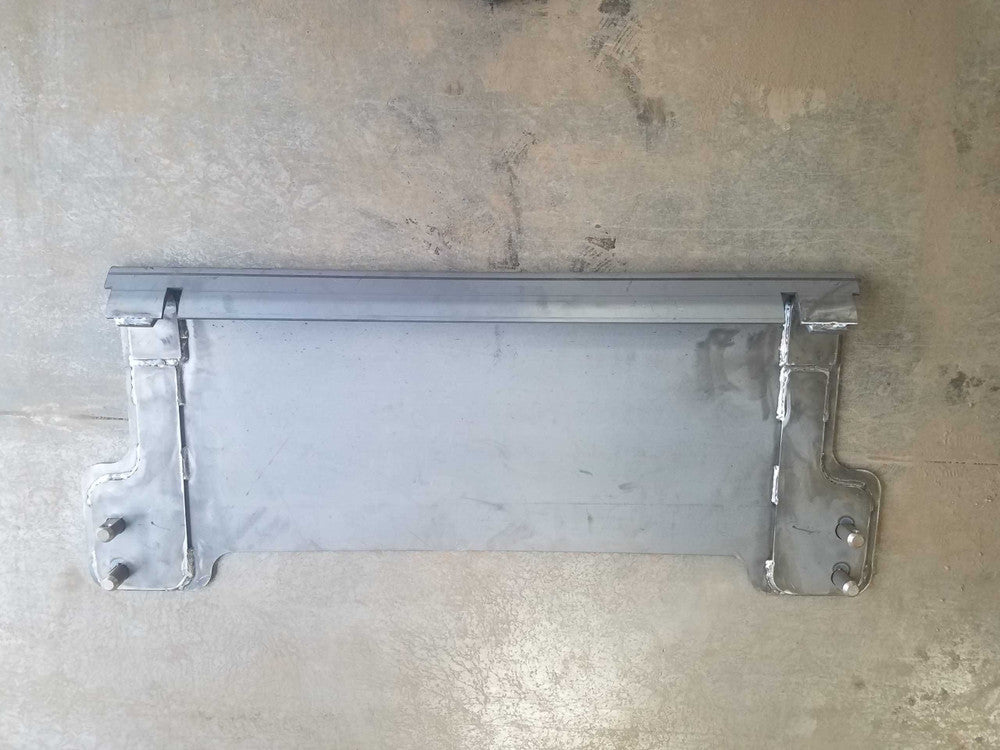

Express Steel John Deere Pin Style Quick Attach Plate - product view

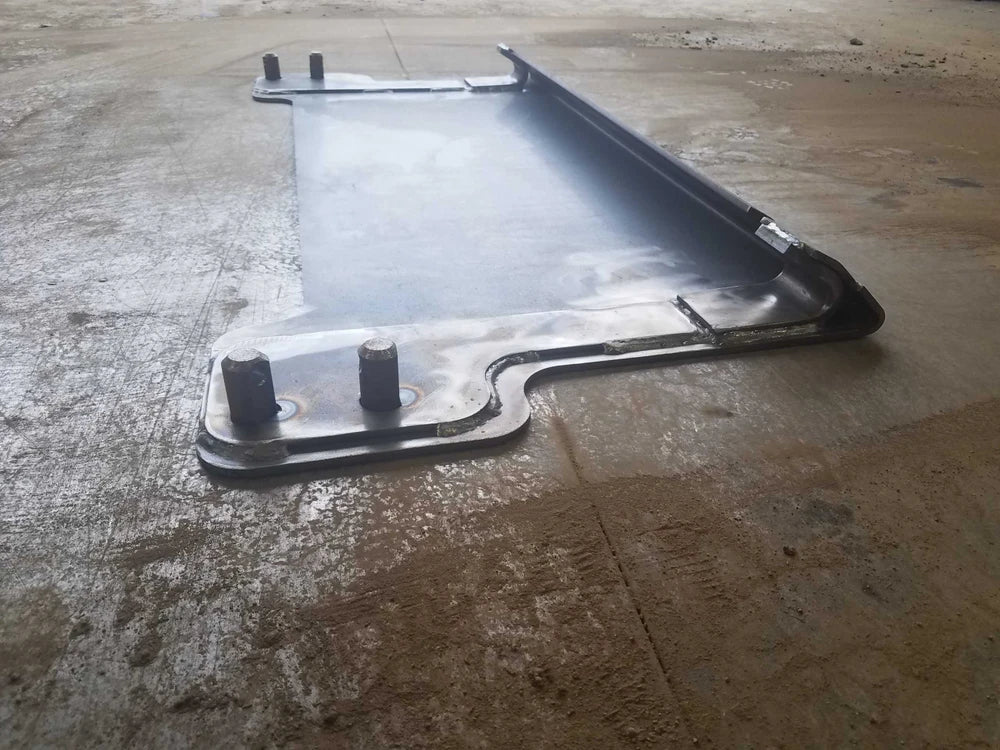

Express Steel John Deere Pin Style Quick Attach Plate - manufacturer view 2

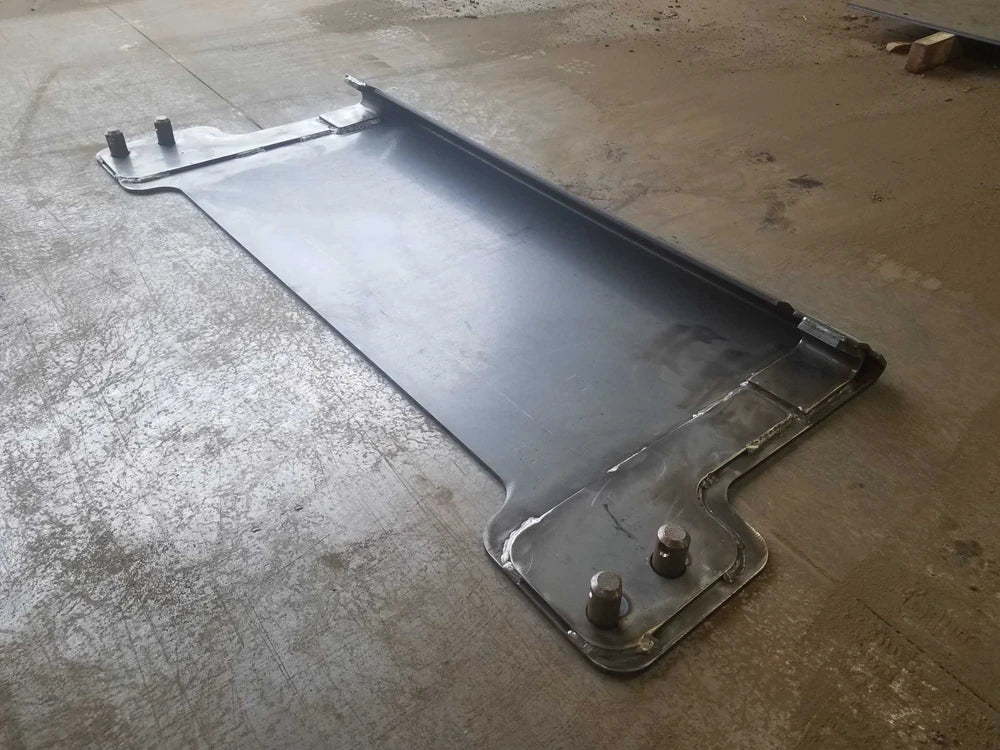

Express Steel John Deere Pin Style Quick Attach Plate - manufacturer view 3
Express Steel John Deere Pin Style Quick Attach Plate - manufacturer view 4
Roll over image to zoom in Click on image to zoom
Express Steel John Deere Pin Style Quick Attach Plate - product viewExpress Steel John Deere Pin Style Quick Attach Plate - manufacturer view 2Express Steel John Deere Pin Style Quick Attach Plate - manufacturer view 3Express Steel John Deere Pin Style Quick Attach Plate - manufacturer view 4
Express Steel

Express Steel John Deere Pin Style Quick Attach Plate

SKU: ES21500 Availability confirmed before order

$1,829.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

STEEL CONSTRUCTION

THE MOUNTING STRUCTURE USES 1/4-INCH STEEL PLATE FOR THE ATTACHMENT INTERFACE.

SPECIFIC COUPLER FIT

DESIGNED FOR THE JOHN DEERE 200-500, H100 AND D100 PIN-STYLE LOADER MOUNTS; EXCLUDES GLOBAL EURO.

MOUNTING GEOMETRY

46-7/8-INCH PIN CENTERS; 15-INCH AND 18-INCH UPPER-LIP-TO-PIN LOCATIONS.

COMPONENT WEIGHT

THE COMPONENT WEIGHS 90 LB; INCLUDE IT IN THE TOTAL ATTACHMENT WEIGHT.

ATTACHMENT FABRICATION

THE MOUNTING COMPONENT SUPPORTS A PROPERLY DESIGNED ATTACHMENT CONVERSION OR REPAIR; FINAL STRUCTURAL AND LOCKING CHECKS ARE REQUIRED.

Description

Key Benefits

Technical Specs

Applications

Express Steel John Deere Pin Style Quick Attach Plate

Express Steel John Deere Pin Style Quick Attach Plate provides a mounting interface for a suitable attachment fabrication or repair project. It is intended for the john deere 200-500, h100 and d100 pin-style loader mounts; excludes global euro, so the carrier and attachment geometry must match before installation.

The mounting component uses 1/4-inch steel plate. Its 90-lb component weight must be included in the completed attachment's handling calculations. 46-7/8-inch pin centers; 15-inch and 18-inch upper-lip-to-pin locations.

Fit the mounting component to a structurally suitable attachment using an appropriate fabrication plan. Check locking points, clearances, alignment and load paths before welding or final installation.

This is a mounting component, not a complete powered attachment. Professional fabrication and a final coupler inspection are required before use; adding a mounting plate does not increase the carrier or attachment's rated capacity.

Express Steel John Deere Pin Style Quick Attach Plate

  • The mounting structure uses 1/4-inch steel plate for the attachment interface.
  • Designed for the john deere 200-500, h100 and d100 pin-style loader mounts; excludes global euro.
  • 46-7/8-inch pin centers; 15-inch and 18-inch upper-lip-to-pin locations.
  • The component weighs 90 lb; include it in the total attachment weight.
  • The mounting component supports a properly designed attachment conversion or repair; final structural and locking checks are required.

Express Steel John Deere Pin Style Quick Attach Plate

  • Supplier catalog reference: ES21500
  • Steel: 1/4-inch steel plate
  • Mounting geometry: 46-7/8-inch pin centers; 15-inch and 18-inch upper-lip-to-pin locations
  • Carrier interface: John Deere 200-500, H100 and D100 pin-style loader mounts; excludes Global Euro
  • Component weight: 90 lb
  • Component only: Requires appropriate attachment fabrication and fit verification

Express Steel John Deere Pin Style Quick Attach Plate

  • Attachment mounting interface fabrication.
  • Repairing a suitable attachment mounting structure.
  • Adapting a structurally appropriate implement to the specified coupler.
  • Interface: John Deere 200-500, H100 and D100 pin-style loader mounts; excludes Global Euro.
  • Confirm the completed assembly's clearance, locking engagement and rated load before use.

Express Steel: Brand & Attachment Videos

Express Steel John Deere Pin Style Quick Attach Plate

BUILT FOR YOUR WORK:

  • The mounting structure uses 1/4-inch steel plate for the attachment interface.
  • Designed for the john deere 200-500, h100 and d100 pin-style loader mounts; excludes global euro.
  • 46-7/8-inch pin centers; 15-inch and 18-inch upper-lip-to-pin locations.
  • The component weighs 90 lb; include it in the total attachment weight.
  • The mounting component supports a properly designed attachment conversion or repair; final structural and locking checks are required.

MATCH YOUR WORKING SETUP:

  • Attachment mounting interface fabrication.
  • Repairing a suitable attachment mounting structure.
  • Adapting a structurally appropriate implement to the specified coupler.
  • Interface: John Deere 200-500, H100 and D100 pin-style loader mounts; excludes Global Euro.
  • Confirm the completed assembly's clearance, locking engagement and rated load before use.

READY FOR THE FIELD:

  • Identify the exact carrier coupler.
  • Compare interface measurements and locking points.
  • Confirm the attachment is structurally suitable for conversion.
  • Use a qualified fabrication process and appropriate hardware.
  • Inspect alignment, clearances and locking engagement before operation.
