EXPRESS STEEL

JRB 417 & 418 Adapter Blanks

For JRB 417 & 418 Loader Interfaces

1-1/2-inch Steel Blanks

Request QuoteAdd To Cart

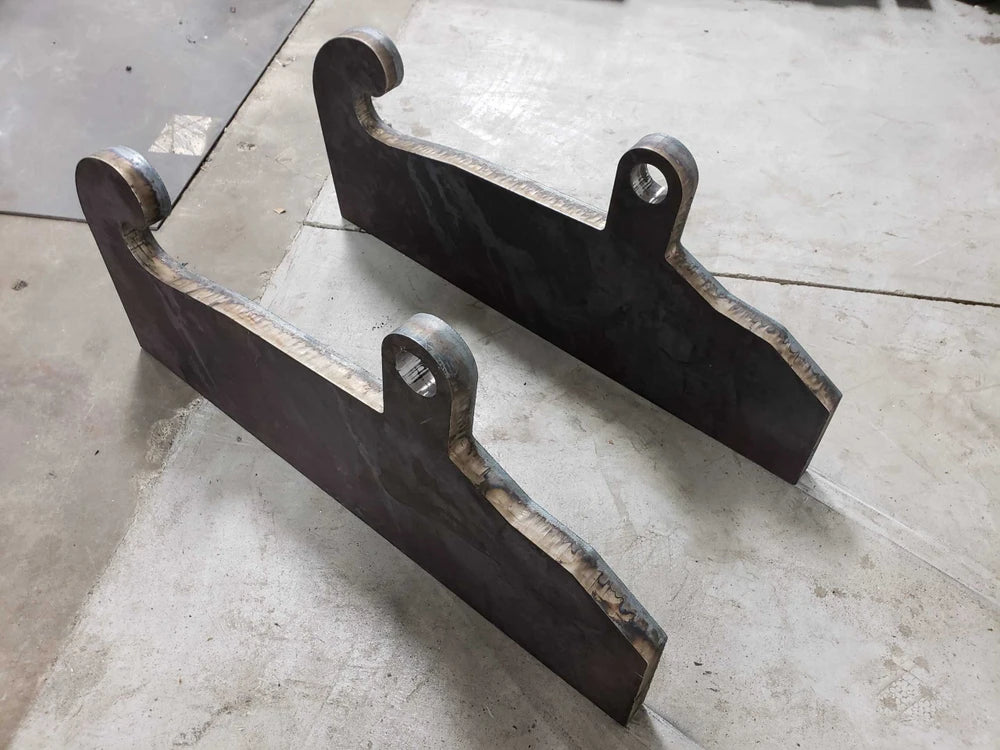

Express Steel JRB 417 & 418 Female Adapter Blanks

Express Steel JRB 417 & 418 Female Adapter Blanks - product view
Express Steel JRB 417 & 418 Female Adapter Blanks - manufacturer view 2
Express Steel JRB 417 & 418 Female Adapter Blanks - manufacturer view 3
Express Steel JRB 417 & 418 Female Adapter Blanks - manufacturer view 4
Roll over image to zoom in Click on image to zoom
Express Steel JRB 417 & 418 Female Adapter Blanks - product viewExpress Steel JRB 417 & 418 Female Adapter Blanks - manufacturer view 2Express Steel JRB 417 & 418 Female Adapter Blanks - manufacturer view 3Express Steel JRB 417 & 418 Female Adapter Blanks - manufacturer view 4
Express Steel

Express Steel JRB 417 & 418 Female Adapter Blanks

SKU: 83 Availability confirmed before order

$2,273.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

LOADER-SPECIFIC PROFILE

THE ADAPTER BLANKS ARE DESIGNED FOR THE JRB 417 & 418 LOADER INTERFACE; CONFIRM THE EXACT COUPLER BEFORE FABRICATION.

STEEL ADAPTER BLANKS

EACH ADAPTER IS FORMED FROM 1-1/2-INCH STEEL FOR THE MOUNTING INTERFACE.

SET CONFIGURATION

THE PRODUCT IS SUPPLIED AS A SET OF ADAPTER BLANKS FOR ATTACHMENT FABRICATION, RATHER THAN A COMPLETE CONVERSION CARRIAGE.

PER-ADAPTER WEIGHT

EACH ADAPTER WEIGHS 185 LB; ACCOUNT FOR BOTH ADAPTERS IN THE COMPLETED ASSEMBLY.

OVERALL ADAPTER LENGTH

EACH ADAPTER MEASURES 38 INCHES IN OVERALL LENGTH; VERIFY FIT AND ENGAGEMENT POINTS BEFORE WELDING.

Description

Key Benefits

Technical Specs

Applications

Express Steel JRB 417 & 418 Female Adapter Blanks

Express Steel JRB 417 & 418 Female Adapter Blanks provide the loader-side interface for a properly designed attachment fabrication project. The blanks are supplied as a set for the JRB 417 & 418 coupler system and require welding to a suitable attachment structure.

Each adapter uses 1-1/2-inch steel and weighs 185 lb. Overall length per adapter is 38 inches. Include both adapters and the complete attachment structure when checking carrier load limits.

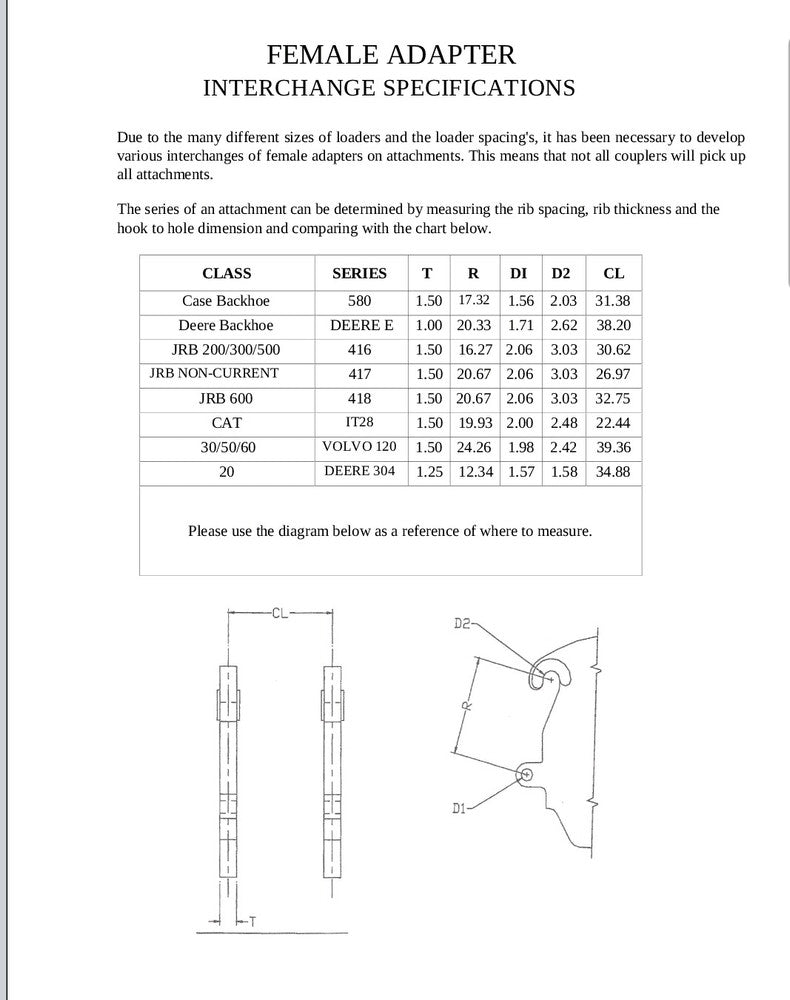

Key geometry includes 20.67-inch vertical spacing and a 2.06-inch lower pin hole. Select the correct version: JRB 417 uses 26.97-inch center-line spacing; JRB 418 uses 32.75 inches. Compare the actual coupler dimensions before fabrication.

These are fabrication blanks, not a finished conversion carriage. Use a qualified fabrication process, confirm weld design and clearances, and inspect the completed coupler engagement before placing the attachment into service.

Express Steel JRB 417 & 418 Female Adapter Blanks

  • The adapter blanks are designed for the JRB 417 & 418 loader interface; confirm the exact coupler before fabrication.
  • Each adapter is formed from 1-1/2-inch steel for the mounting interface.
  • The product is supplied as a set of adapter blanks for attachment fabrication, rather than a complete conversion carriage.
  • Each adapter weighs 185 lb; account for both adapters in the completed assembly.
  • Each adapter measures 38 inches in overall length; verify fit and engagement points before welding.

Express Steel JRB 417 & 418 Female Adapter Blanks

  • Catalog reference: 83
  • Interface: JRB 417 & 418
  • Material thickness: 1-1/2-inch
  • Weight per adapter: 185 lb
  • Nominal set weight: 370 lb (two adapters)
  • Overall length per adapter: 38 inches
  • Vertical spacing R: 20.67 inches
  • Lower pin hole DI: 2.06 inches
  • JRB 417 CL: 26.97 inches
  • JRB 418 CL: 32.75 inches
  • Supplied as a set; attachment structure and fabrication are separate

Express Steel JRB 417 & 418 Female Adapter Blanks

  • Building a suitable loader attachment interface.
  • Repairing an approved attachment coupler structure.
  • Coupler applications using the JRB 417 & 418 interface.
  • Check dimensions on the actual loader before cutting or welding.
  • Confirm the completed structure, locking engagement and rated capacity before use.

Express Steel: Brand & Attachment Videos

Express Steel JRB 417 & 418 Female Adapter Blanks

BUILT FOR YOUR WORK:

  • The adapter blanks are designed for the JRB 417 & 418 loader interface; confirm the exact coupler before fabrication.
  • Each adapter is formed from 1-1/2-inch steel for the mounting interface.
  • The product is supplied as a set of adapter blanks for attachment fabrication, rather than a complete conversion carriage.
  • Each adapter weighs 185 lb; account for both adapters in the completed assembly.
  • Each adapter measures 38 inches in overall length; verify fit and engagement points before welding.

MATCH YOUR WORKING SETUP:

  • Building a suitable loader attachment interface.
  • Repairing an approved attachment coupler structure.
  • Coupler applications using the JRB 417 & 418 interface.
  • Check dimensions on the actual loader before cutting or welding.
  • Confirm the completed structure, locking engagement and rated capacity before use.

READY FOR THE FIELD:

  • Identify the exact loader coupler standard.
  • Compare the adapter dimensions and locking geometry.
  • Verify the required adapter spacing on the attachment.
  • Use a qualified welding and structural fabrication process.
  • Inspect both locking points and all clearances before operating.
