Mini Skid Steer Pallet Fork Frame

For Mini Skid Steers

36-Inch Frame Width

Request QuoteAdd To Cart

Express Steel Mini Skid Steer Pallet Fork Frame

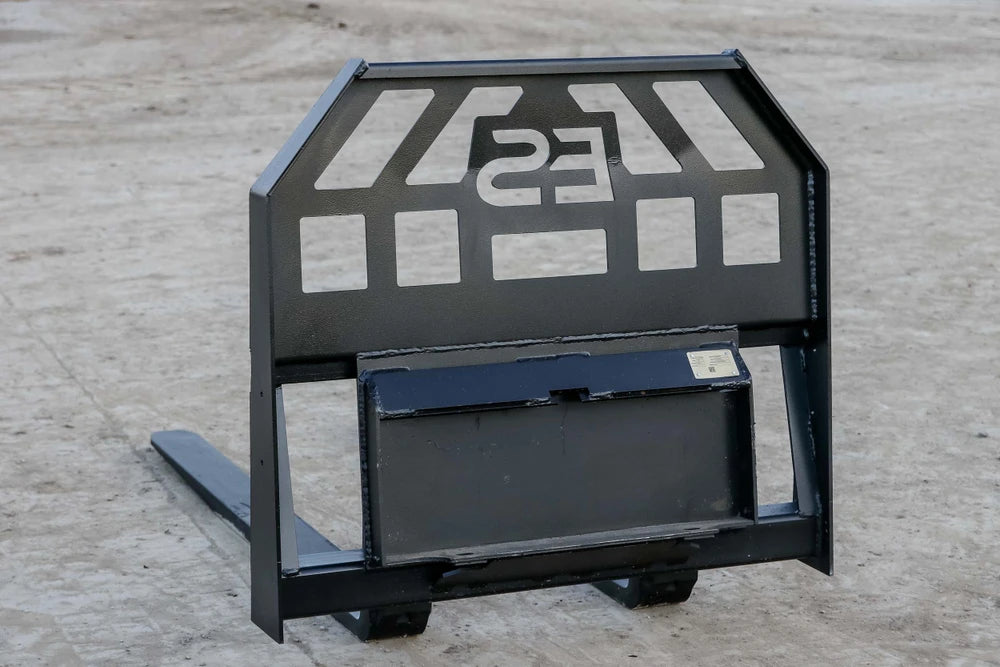

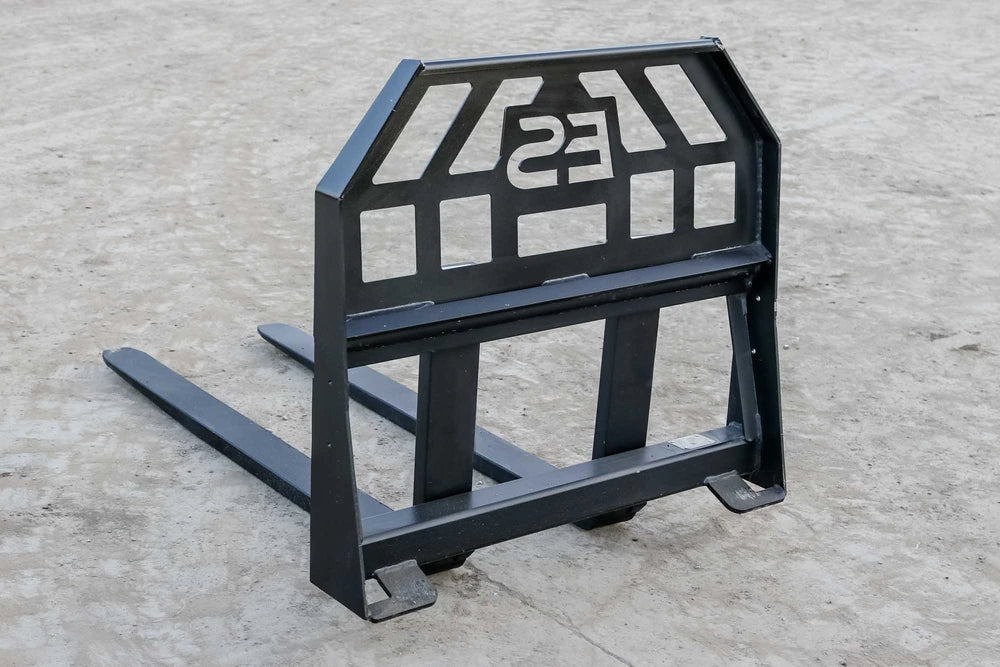

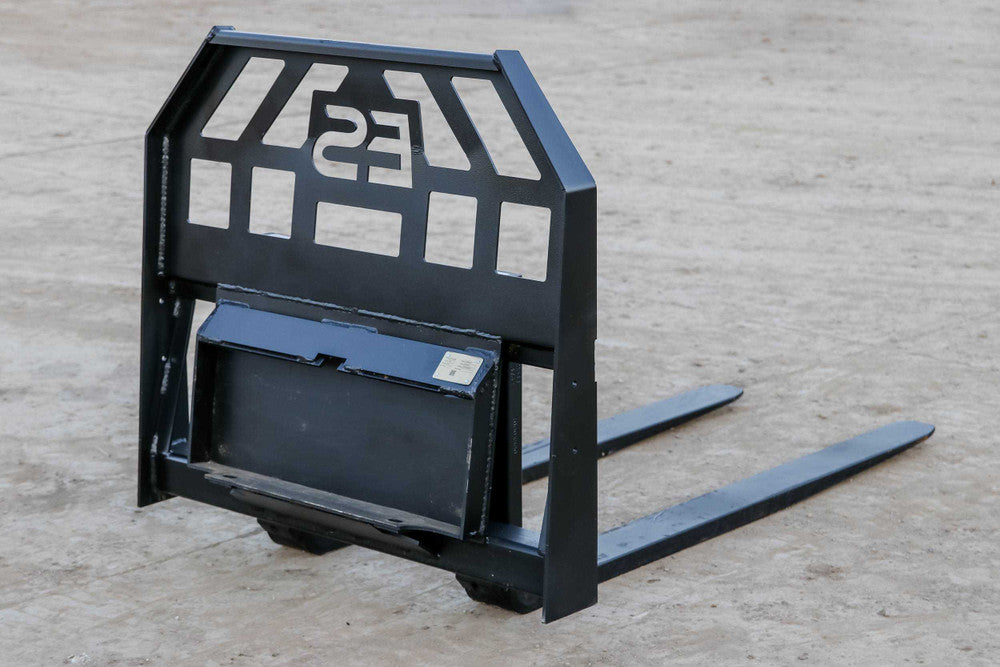

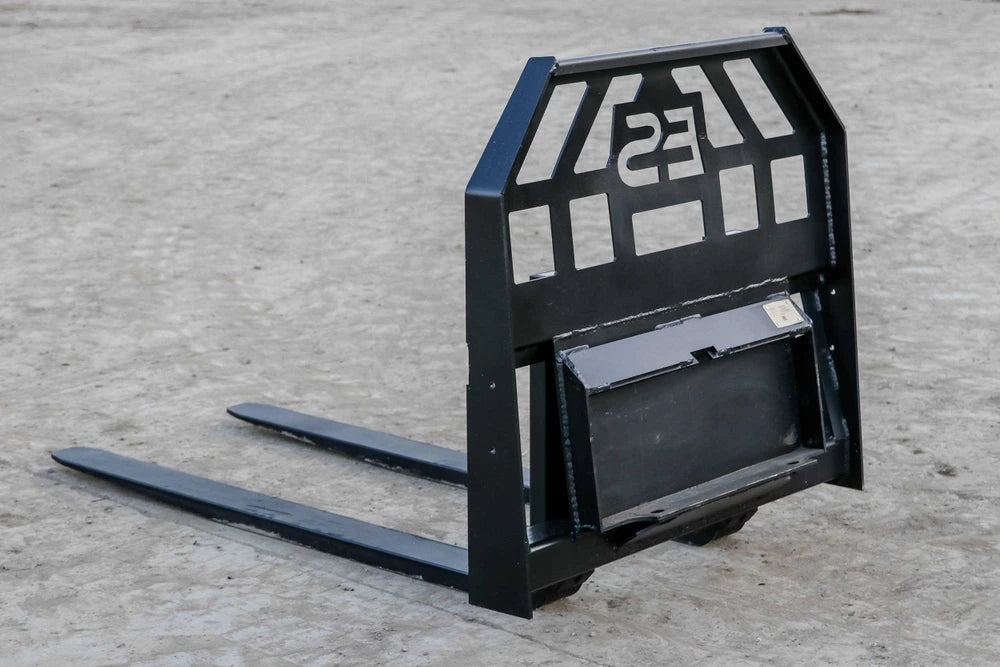

Express Steel Mini Skid Steer Pallet Fork Frame; compatible forks/spears pictured may be sold separately
Express Steel Mini Skid Steer Pallet Fork Frame; compatible forks/spears pictured may be sold separately
Express Steel Mini Skid Steer Pallet Fork Frame; compatible forks/spears pictured may be sold separately
Express Steel Mini Skid Steer Pallet Fork Frame; compatible forks/spears pictured may be sold separately
Express Steel Mini Skid Steer Pallet Fork Frame; compatible forks/spears pictured may be sold separately
Express Steel Mini Skid Steer Pallet Fork Frame; compatible forks/spears pictured may be sold separately
Roll over image to zoom in Click on image to zoom
Express Steel Mini Skid Steer Pallet Fork Frame; compatible forks/spears pictured may be sold separatelyExpress Steel Mini Skid Steer Pallet Fork Frame; compatible forks/spears pictured may be sold separatelyExpress Steel Mini Skid Steer Pallet Fork Frame; compatible forks/spears pictured may be sold separatelyExpress Steel Mini Skid Steer Pallet Fork Frame; compatible forks/spears pictured may be sold separatelyExpress Steel Mini Skid Steer Pallet Fork Frame; compatible forks/spears pictured may be sold separatelyExpress Steel Mini Skid Steer Pallet Fork Frame; compatible forks/spears pictured may be sold separately
Express Steel

Express Steel Mini Skid Steer Pallet Fork Frame

SKU: ES60410-MA Availability confirmed before order

$1,922.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

36-INCH FRAME WIDTH

THE MAST SPANS 36 INCHES. ITS BACKREST SUPPORTS A SEPARATELY CONFIGURED FORK ASSEMBLY.

CLASS II FORK INTERFACE

THE CARRIAGE ACCEPTS MATCHING CLASS II FORK BLADES. FORK TINES ARE SOLD SEPARATELY AND MUST HAVE SUITABLE RATINGS AND RETAINING HARDWARE.

DEDICATED LOADER MOUNT

THIS FRAME USES THE SELECTED TORO DINGO OR BOBCAT MT INTERFACE. MATCH THAT PHYSICAL CONNECTION TO THE LOADER BEFORE ORDERING.

WELDED STEEL CONSTRUCTION

THE MAST IS BUILT AS A WELDED STEEL ASSEMBLY. INSPECT THE CARRIAGE RAILS AND ATTACHMENT LOCKS AS PART OF NORMAL EQUIPMENT CARE.

ADJUSTABLE FORK SETUP

COMPATIBLE FORK BLADES CAN BE POSITIONED ALONG THE CARRIAGE. SELECT FORK LENGTH AND SPACING FOR THE SUPPORTED LOAD AND CARRIER LIMITS.

Description

Key Benefits

Technical Specs

Applications

Express Steel Mini Skid Steer Pallet Fork Frame

The Express Steel Mini Skid Steer Pallet Fork Frame equips mini skid steers for pallet handling and material staging. This listing supplies the mast/frame; fork tines are sold separately. Photos may show compatible fork blades or spears that are sold separately.

The mast spans 36 inches. Its backrest supports a separately configured fork assembly. The carriage accepts matching Class II fork blades. Fork tines are sold separately and must have suitable ratings and retaining hardware.

This frame uses the selected Toro Dingo or Bobcat MT interface. Match that physical connection to the loader before ordering. The mast is built as a welded steel assembly. Inspect the carriage rails and attachment locks as part of normal equipment care.

The attachment uses a Toro Dingo or Bobcat MT mounting interface. Compatible fork blades can be positioned along the carriage. Select fork length and spacing for the supported load and carrier limits. Keep the load within the lowest rating of the carrier, forks, carriage, and installed components at the actual load center.

Express Steel Mini Skid Steer Pallet Fork Frame

  • The mast spans 36 inches. Its backrest supports a separately configured fork assembly.
  • The carriage accepts matching Class II fork blades. Fork tines are sold separately and must have suitable ratings and retaining hardware.
  • This frame uses the selected Toro Dingo or Bobcat MT interface. Match that physical connection to the loader before ordering.
  • The mast is built as a welded steel assembly. Inspect the carriage rails and attachment locks as part of normal equipment care.
  • Compatible fork blades can be positioned along the carriage. Select fork length and spacing for the supported load and carrier limits.

Express Steel Mini Skid Steer Pallet Fork Frame

  • Brand: Express Steel
  • Product: Mini Skid Steer Pallet Fork Frame

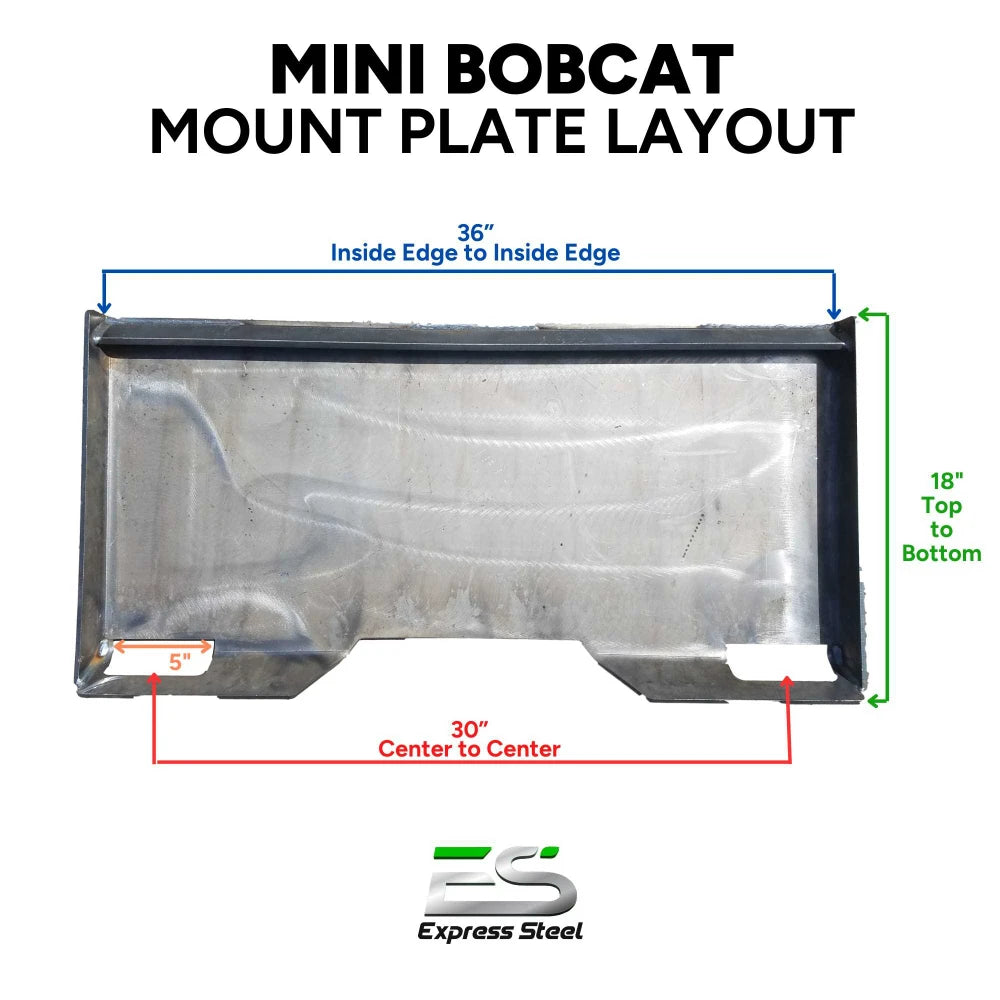

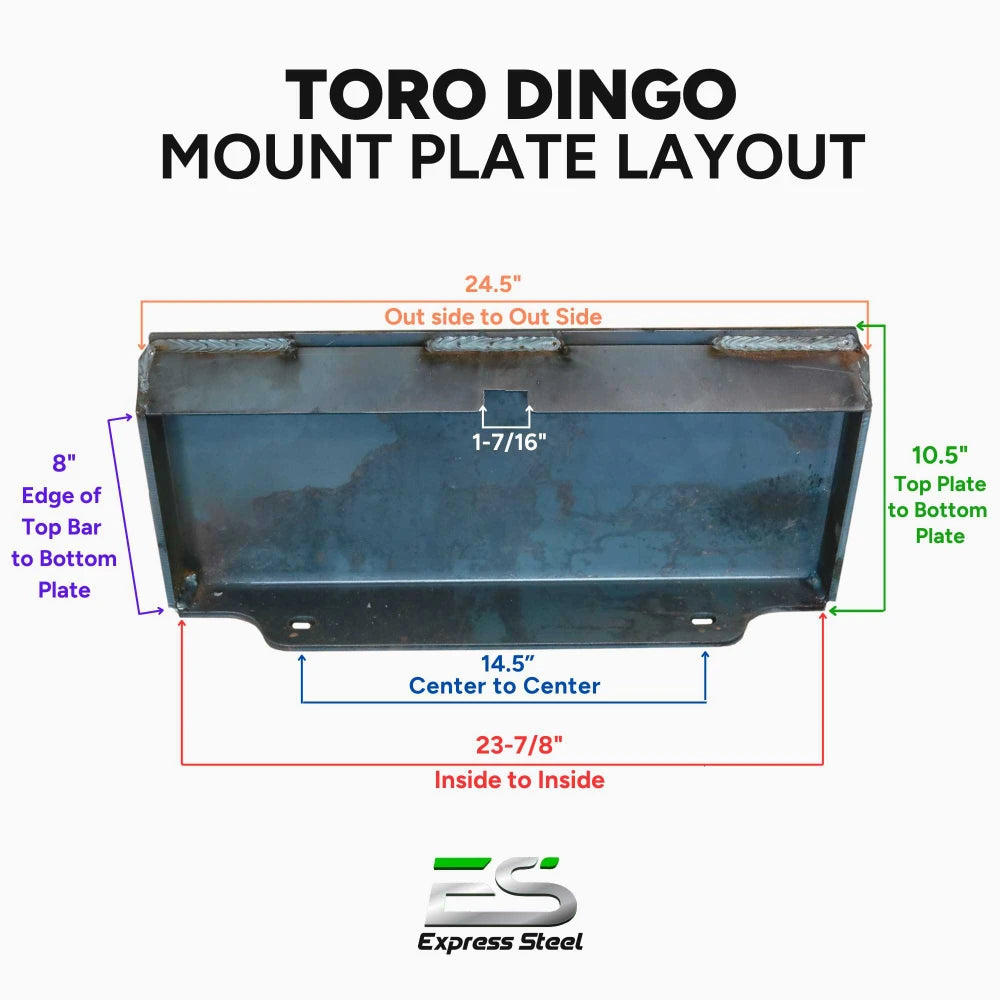

  • Mount: Toro Dingo or Bobcat MT
  • Frame width: 36 inches
  • Fork interface: Class II
  • Supply: This listing supplies the mast/frame; fork tines are sold separately.
  • ES60410-MA: Toro Dingo; 140 lb
  • ES60610-MA: Bobcat MT; 105 lb

Express Steel Mini Skid Steer Pallet Fork Frame

  • Palletized supplies and building materials.
  • Farm, landscape, and construction-yard material staging.
  • Loading and unloading with a correctly rated loader and fork assembly.

Pallet Forks: Product, Operation & Brand Videos

Express Steel Mini Skid Steer Pallet Fork Frame

BUILT FOR MATERIAL HANDLING:

  • The mast spans 36 inches. Its backrest supports a separately configured fork assembly.
  • The carriage accepts matching Class II fork blades. Fork tines are sold separately and must have suitable ratings and retaining hardware.
  • This frame uses the selected Toro Dingo or Bobcat MT interface. Match that physical connection to the loader before ordering.
  • The mast is built as a welded steel assembly. Inspect the carriage rails and attachment locks as part of normal equipment care.
  • Compatible fork blades can be positioned along the carriage. Select fork length and spacing for the supported load and carrier limits.

MATCH YOUR FORK ASSEMBLY:

  • This listing supplies the mast/frame; fork tines are sold separately.
  • Mounting interface: Toro Dingo or Bobcat MT.
  • Use matching Class II fork blades and retaining hardware.
  • Account for attachment weight, load center, and the loader’s rated lift capacity.

READY FOR THE WORKDAY:

  • Inspect the mast, carriage rails, fork hooks, and locking pins.
  • Engage and check the loader attachment locks.
  • Center the load and secure both fork-positioning locks.
  • Keep loads low during travel and remain within the machine’s operating limits.
  • Install matching fork blades or approved working components with the correct retention hardware before lifting.
