Express Steel Pallet Fork Grapple

Roll over image to zoom in Click on image to zoom

Express Steel

Express Steel Pallet Fork Grapple

SKU: ES62060-42 Availability confirmed before order

Fork Length: 42 inch

Variant

$3,433.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility

Quantity:

Ask a Question or Request a Quote

(805)-334-5208

operations@currenhaus.com

Product Specifications

Parts & Support

MOST IMPORTANT FEATURES

4 × 4-INCH FRAME TUBING

HEAVY-DUTY 4-INCH BY 4-INCH SQUARE TUBING FORMS THE FRAME. THE STRUCTURE CONNECTS THE FORK CARRIAGE TO THE GRAPPLE ASSEMBLY.

PROTECTED 2 × 10-INCH CYLINDER

A PROTECTED HYDRAULIC CYLINDER MEASURES 2 INCHES BY 10 INCHES. IT OPERATES THE UPPER CLAMP THROUGH THE CARRIER’S AUXILIARY CIRCUIT.

CNC-MACHINED CARRIAGE BAR

THE CARRIAGE USES A CNC-MACHINED BAR WITH THREE LOCKING LOCATIONS. CLASS II FORK BLADES CAN BE POSITIONED FOR THE SUPPORTED LOAD.

1.25-INCH GREASEABLE PINS

OVERSIZED 1.25-INCH GREASEABLE PINS SUPPORT THE MOVING GRAPPLE. ADJUSTABLE PIN POSITIONS CHANGE THE WORKING OPENING.

42–48-INCH CLASS II FORKS

CHOOSE A COMPLETE ASSEMBLY WITH 42-INCH OR 48-INCH CLASS II FORK BLADES. THE FORK PAIR AND UPPER GRAPPLE WORK TOGETHER FOR SUPPORTED MATERIAL HANDLING.

Description

Key Benefits

Technical Specs

Applications

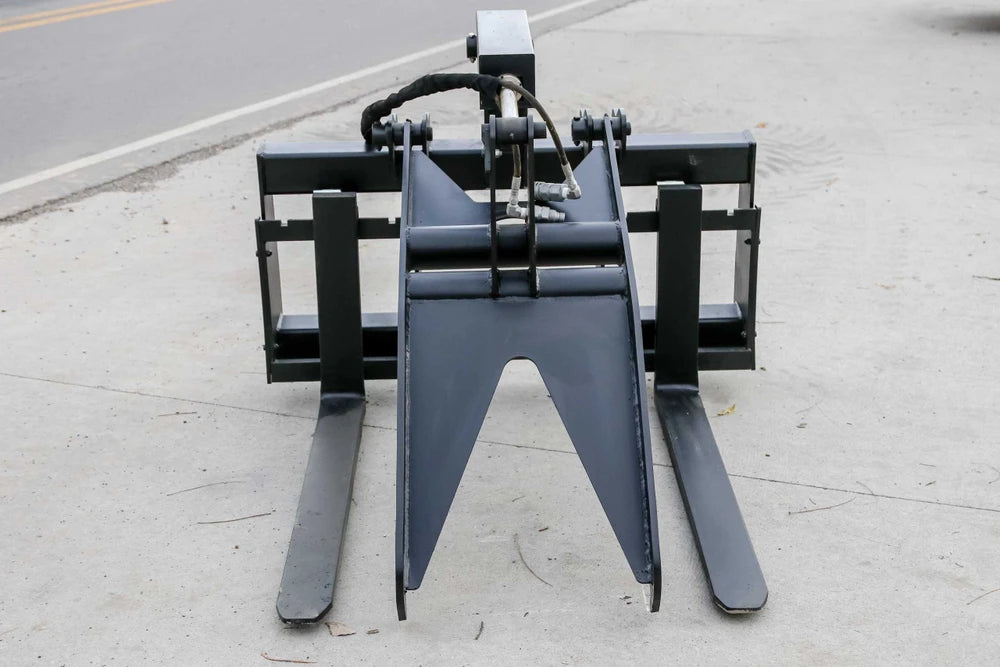

Express Steel Pallet Fork Grapple

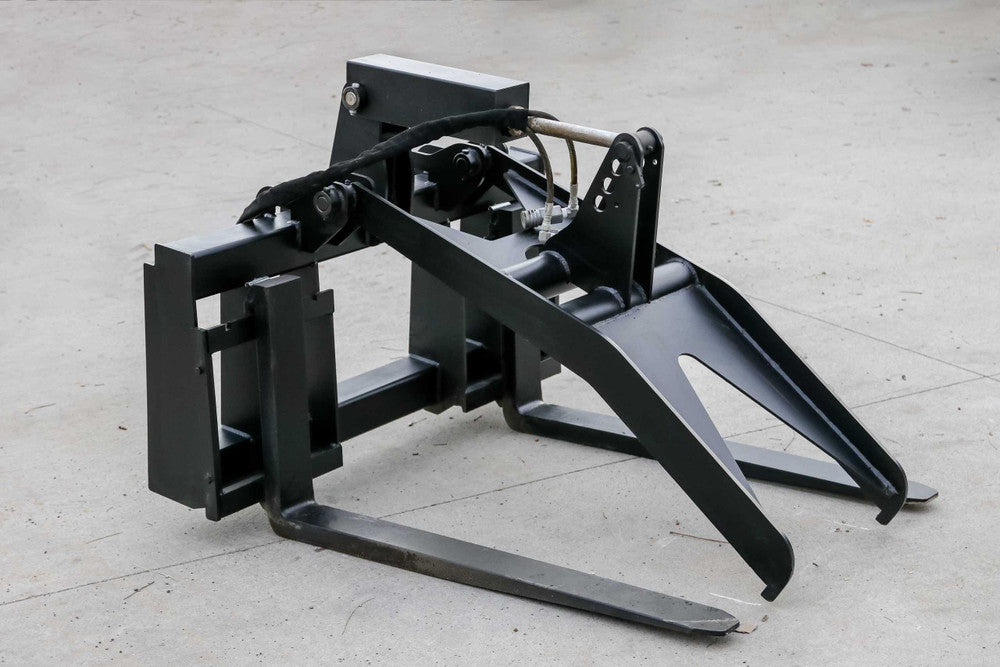

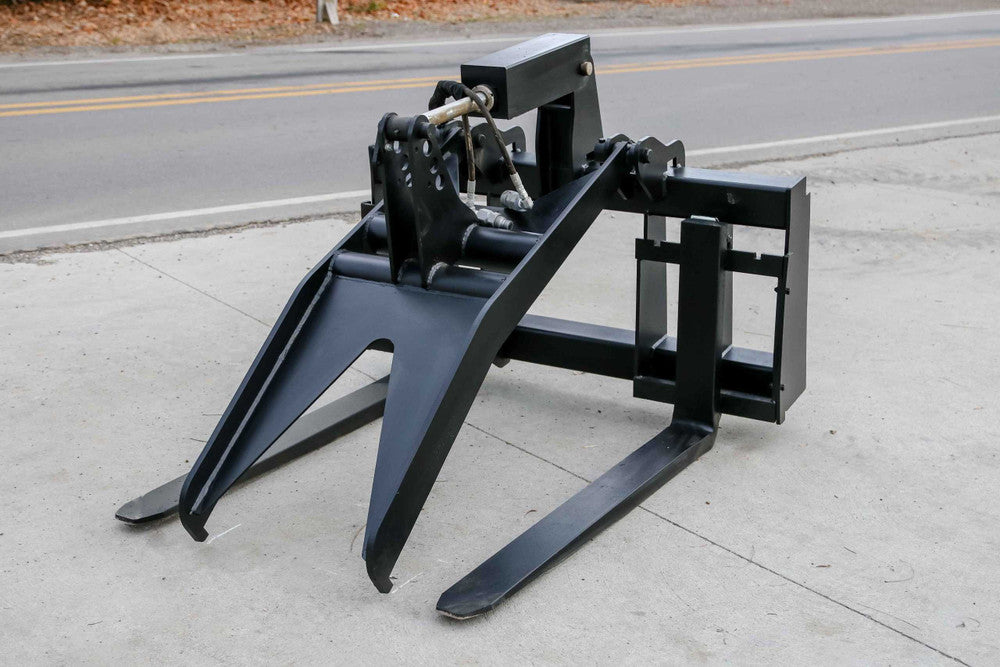

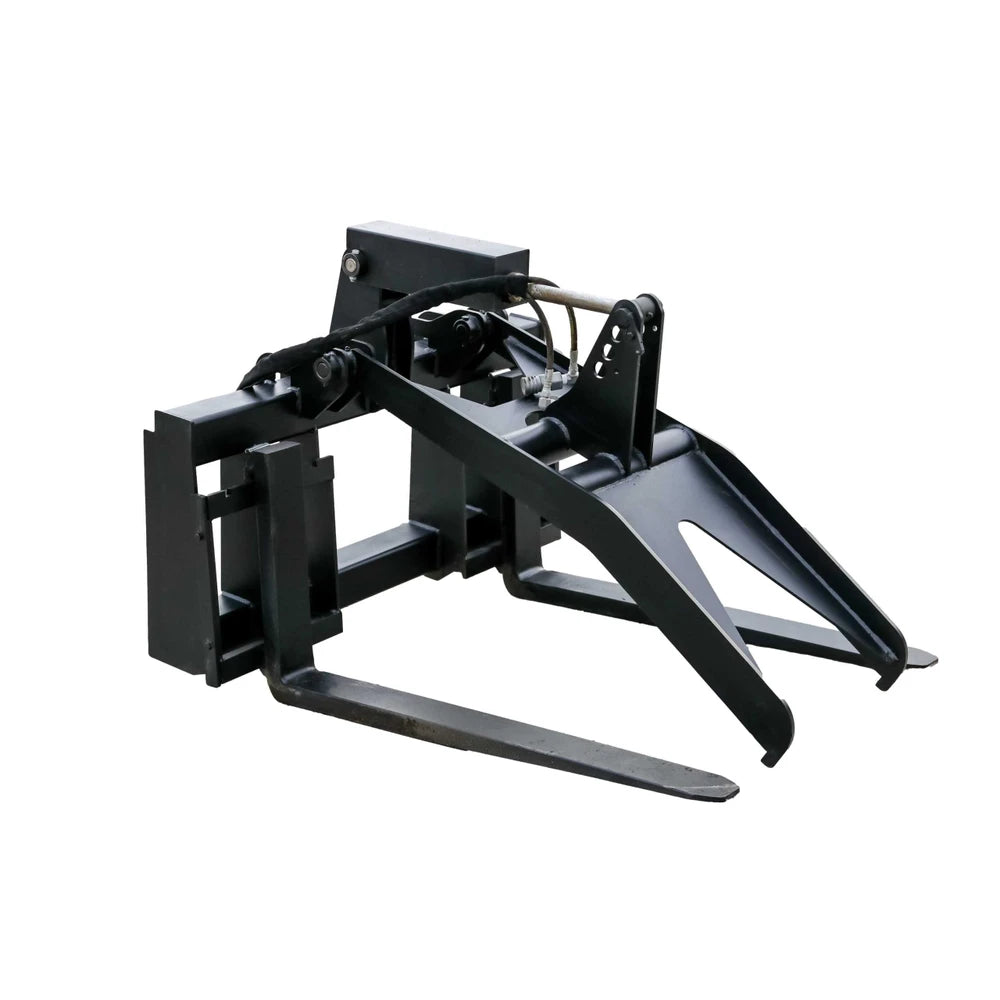

The Express Steel Pallet Fork Grapple combines a fork pair and hydraulic upper clamp for material handling. It connects through a Universal skid steer quick attach interface. The selected assembly includes a pair of Class II fork blades.

Heavy-duty 4-inch by 4-inch square tubing forms the frame. The structure connects the fork carriage to the grapple assembly. A protected hydraulic cylinder measures 2 inches by 10 inches. It operates the upper clamp through the carrier’s auxiliary circuit.

The carriage uses a CNC-machined bar with three locking locations. Class II fork blades can be positioned for the supported load. Oversized 1.25-inch greaseable pins support the moving grapple. Adjustable pin positions change the working opening.

Choose a complete assembly with 42-inch or 48-inch Class II fork blades. The fork pair and upper grapple work together for supported material handling. Account for attachment weight, payload, load position, and the carrier’s rated capacity before lifting or transporting material.

Express Steel Pallet Fork Grapple

Heavy-duty 4-inch by 4-inch square tubing forms the frame. The structure connects the fork carriage to the grapple assembly.

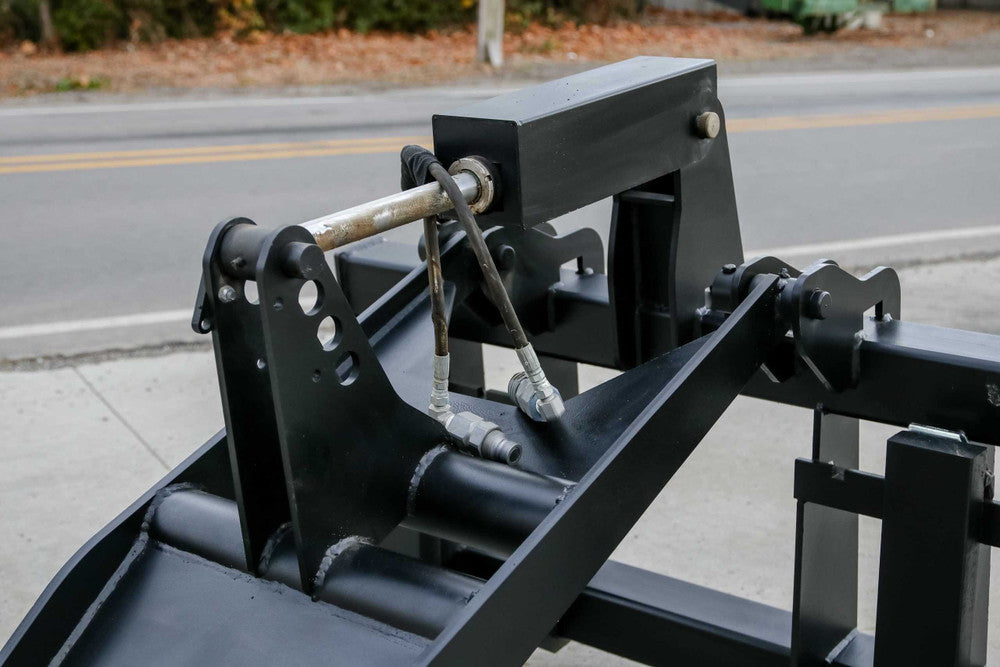

A protected hydraulic cylinder measures 2 inches by 10 inches. It operates the upper clamp through the carrier’s auxiliary circuit.

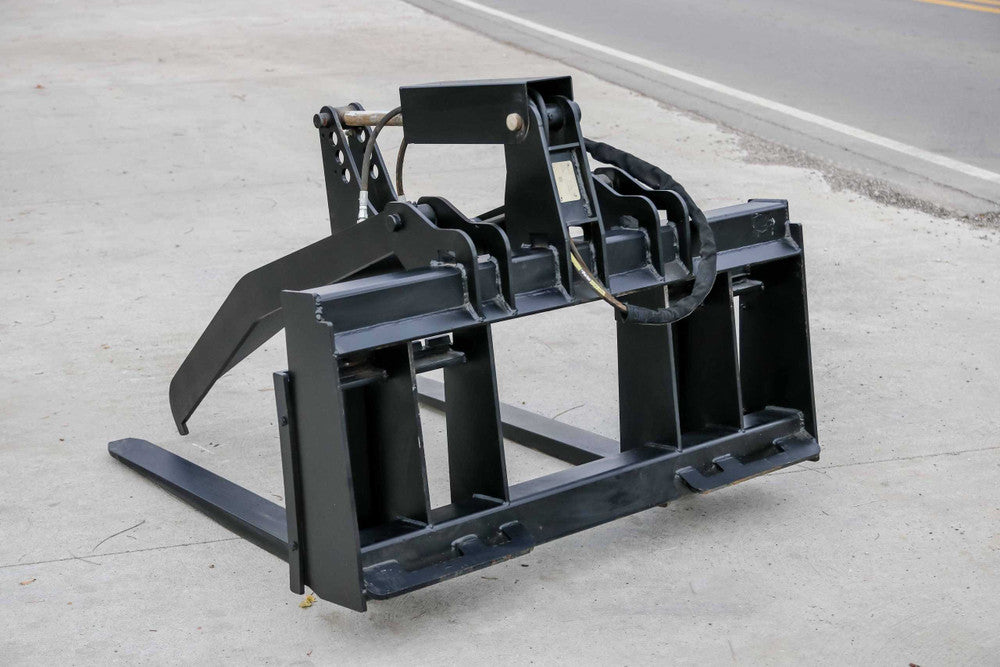

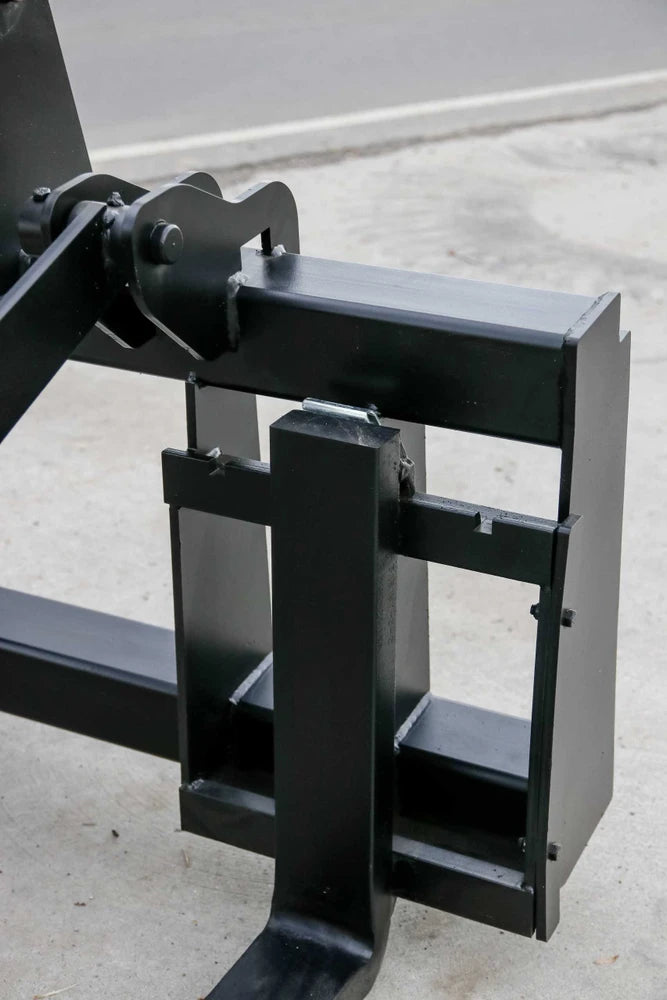

The carriage uses a CNC-machined bar with three locking locations. Class II fork blades can be positioned for the supported load.

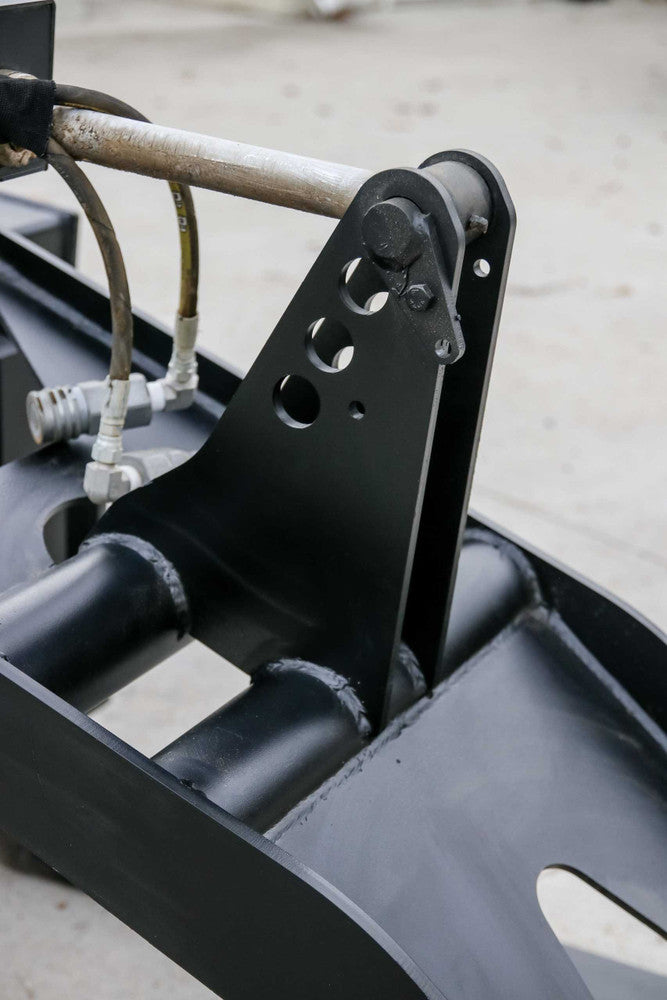

Oversized 1.25-inch greaseable pins support the moving grapple. Adjustable pin positions change the working opening.
Choose a complete assembly with 42-inch or 48-inch Class II fork blades. The fork pair and upper grapple work together for supported material handling.

Express Steel Pallet Fork Grapple

Brand: Express Steel
Product: Pallet Fork Grapple
Mount: Universal skid steer quick attach
Working action: hydraulic cylinder actuation
Forks: standard Class II; pair included
Optional steps sold separately
42-inch configuration: 595 lb;48-inch configuration:615 lb
ES62060-42: 42 inch; 595 lb
ES62060-48: 48 inch; 615 lb

Express Steel Pallet Fork Grapple

Palletized material handling with the fork pair.
Retaining suitable bulky material with the hydraulic upper clamp.
Jobsite loading and material staging.

Express Steel: Grapple Demonstrations

Express Steel Pallet Fork Grapple

BUILT FOR MATERIAL HANDLING:

Heavy-duty 4-inch by 4-inch square tubing forms the frame. The structure connects the fork carriage to the grapple assembly.
A protected hydraulic cylinder measures 2 inches by 10 inches. It operates the upper clamp through the carrier’s auxiliary circuit.
The carriage uses a CNC-machined bar with three locking locations. Class II fork blades can be positioned for the supported load.
Oversized 1.25-inch greaseable pins support the moving grapple. Adjustable pin positions change the working opening.
Choose a complete assembly with 42-inch or 48-inch Class II fork blades. The fork pair and upper grapple work together for supported material handling.

MATCH YOUR WORKING SETUP:

Palletized material handling with the fork pair.
Retaining suitable bulky material with the hydraulic upper clamp.
Jobsite loading and material staging.
Mount:Universal skid steer quick attach.
Check carrier lifting capacity at the actual load position.

READY FOR THE FIELD:

Inspect the grapple tines, working edges, pins, and retaining hardware.
Engage the loader attachment locks before connecting hydraulics.
Connect the correct hoses and couplers with hydraulic pressure relieved.
Check jaw movement and any rotation controls in a clear area.
Keep the load low during travel and remain within all handling limits.
