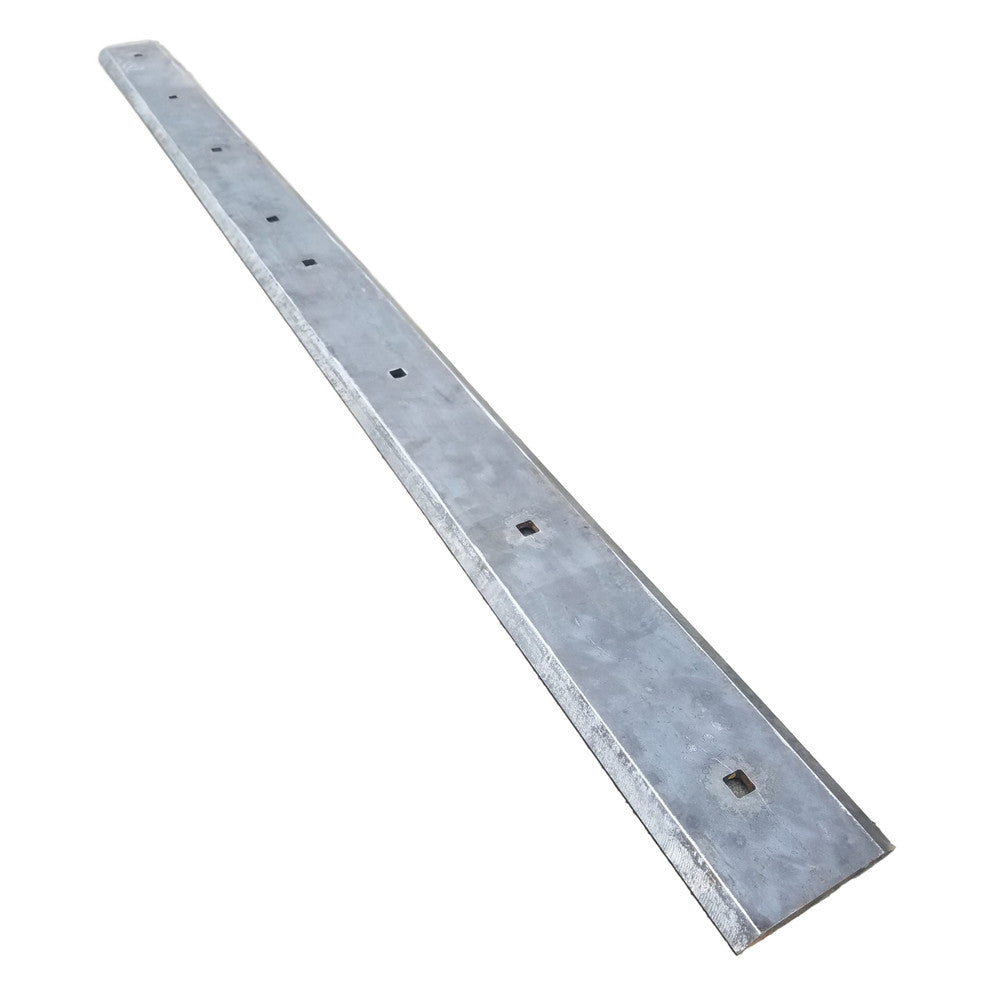

Express Steel 84-inch cutting edge - manufacturer view 1; other widths available
Express Steel Reversible Bolt-On Cutting Edges - product view

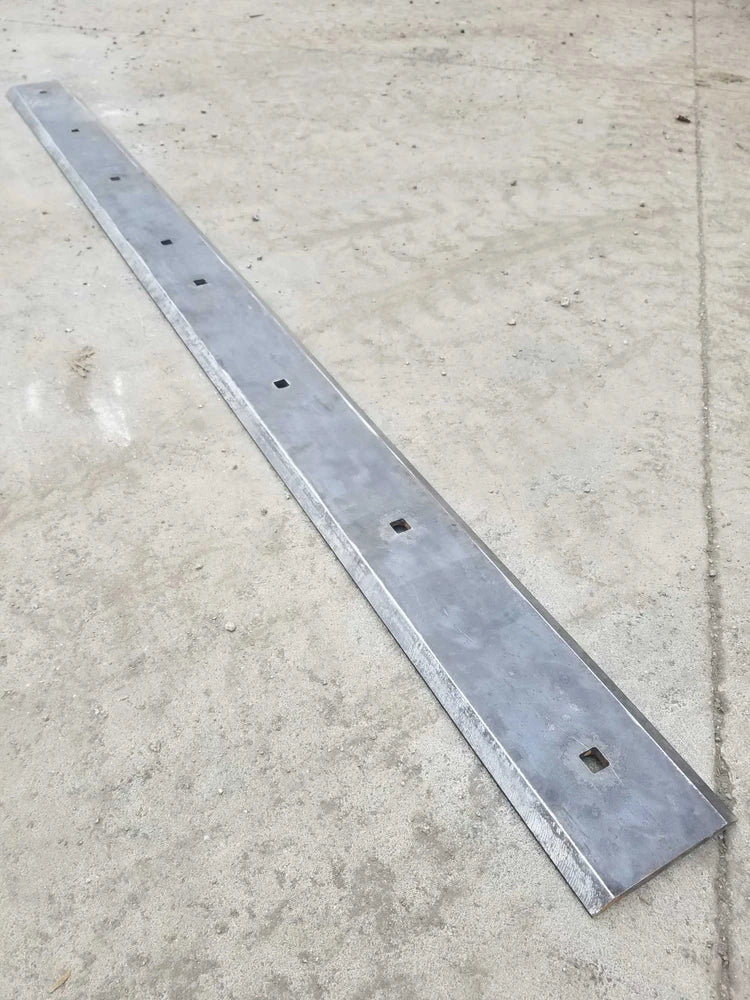

Express Steel 84-inch cutting edge - manufacturer view 2; other widths available

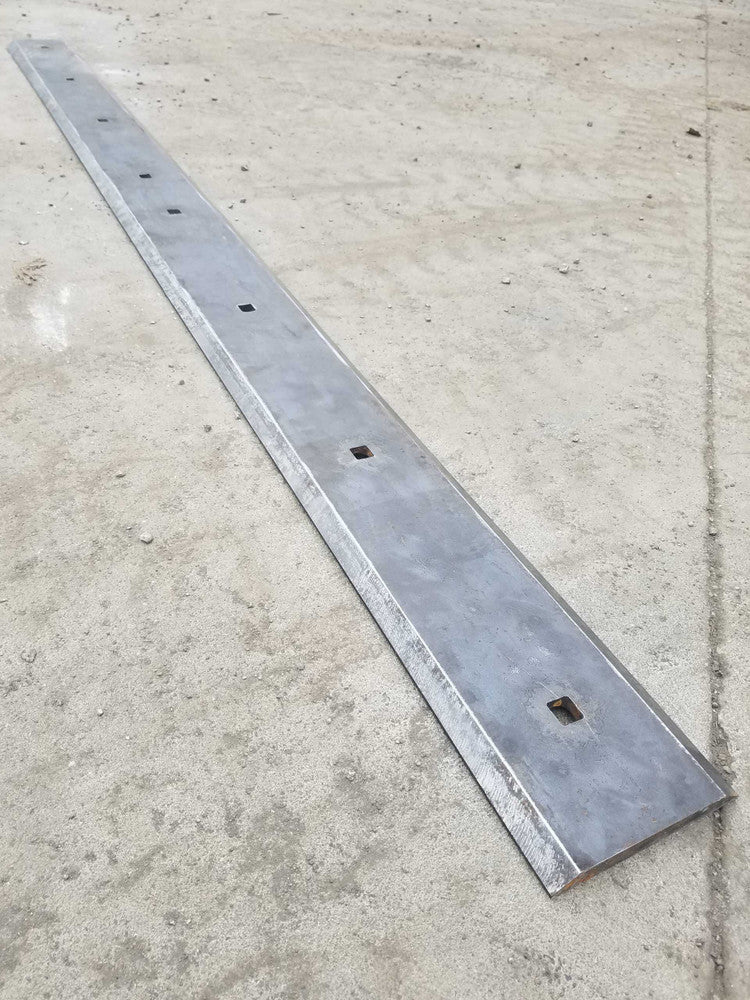

Express Steel 84-inch cutting edge - manufacturer view 3; other widths available

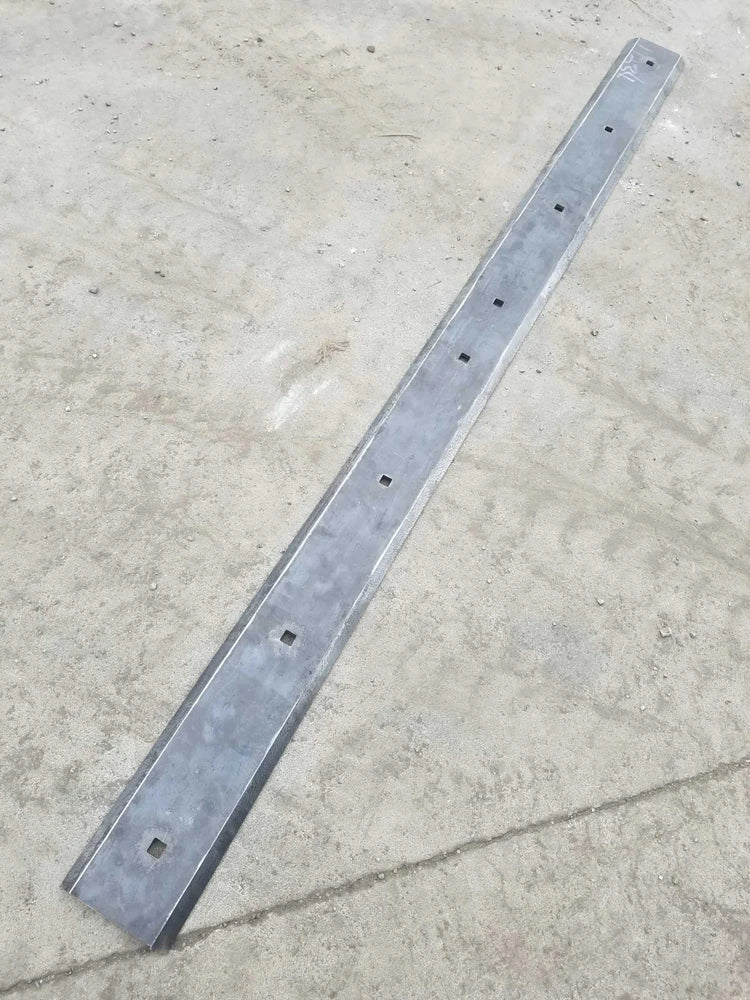

Express Steel 84-inch cutting edge - manufacturer view 4; other widths available

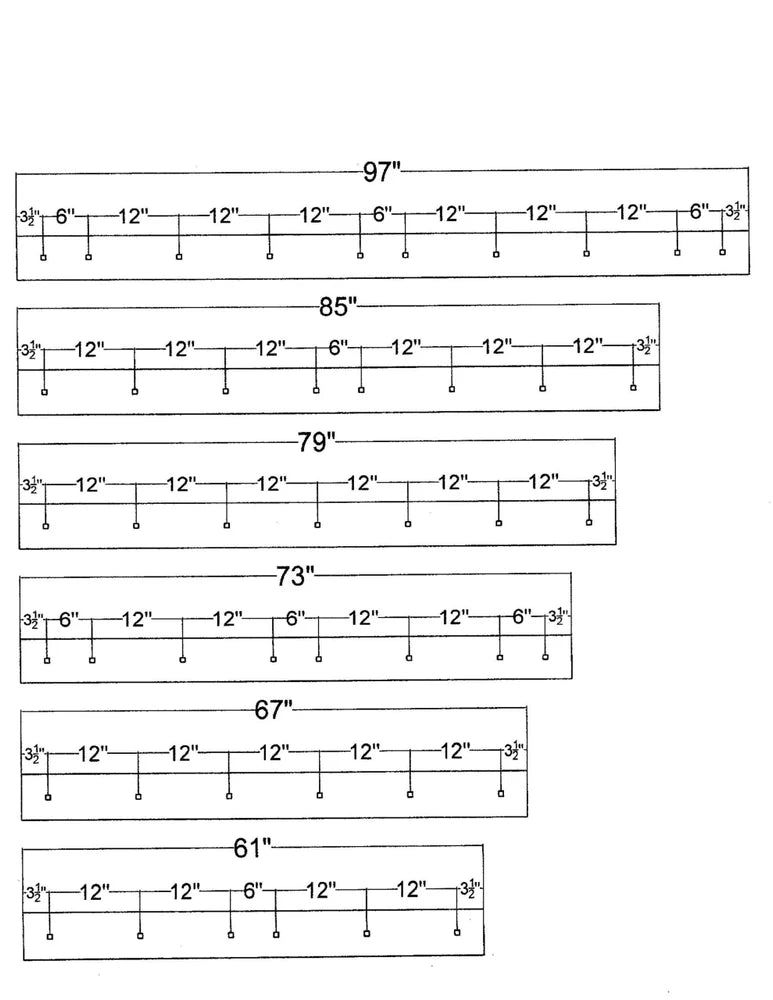

Express Steel cutting edge mounting hole drawings, verify selected width

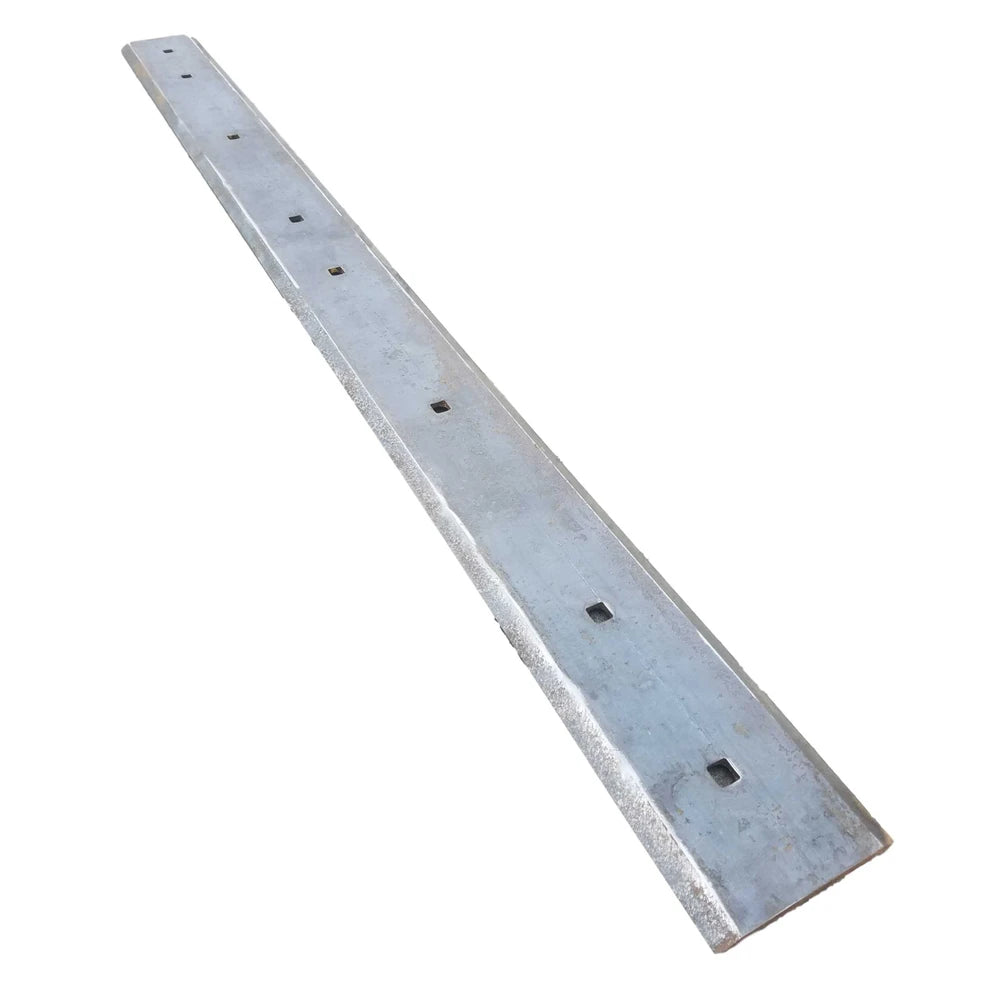

Express Steel 72-inch cutting edge - manufacturer view 6; other widths available

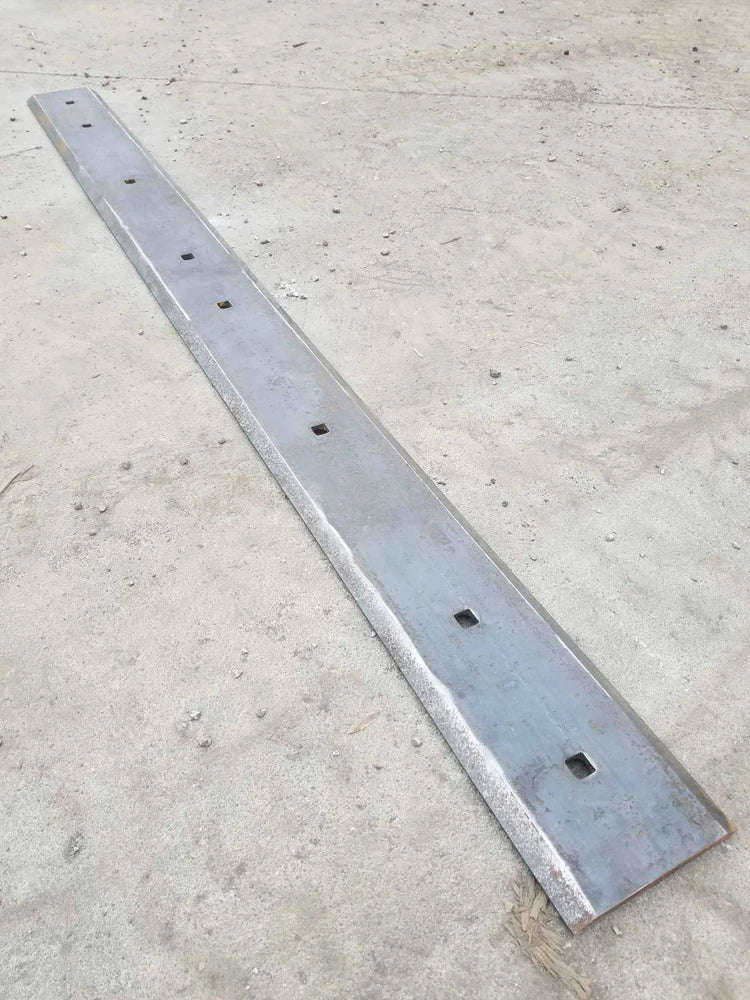

Express Steel 72-inch cutting edge - manufacturer view 7; other widths available

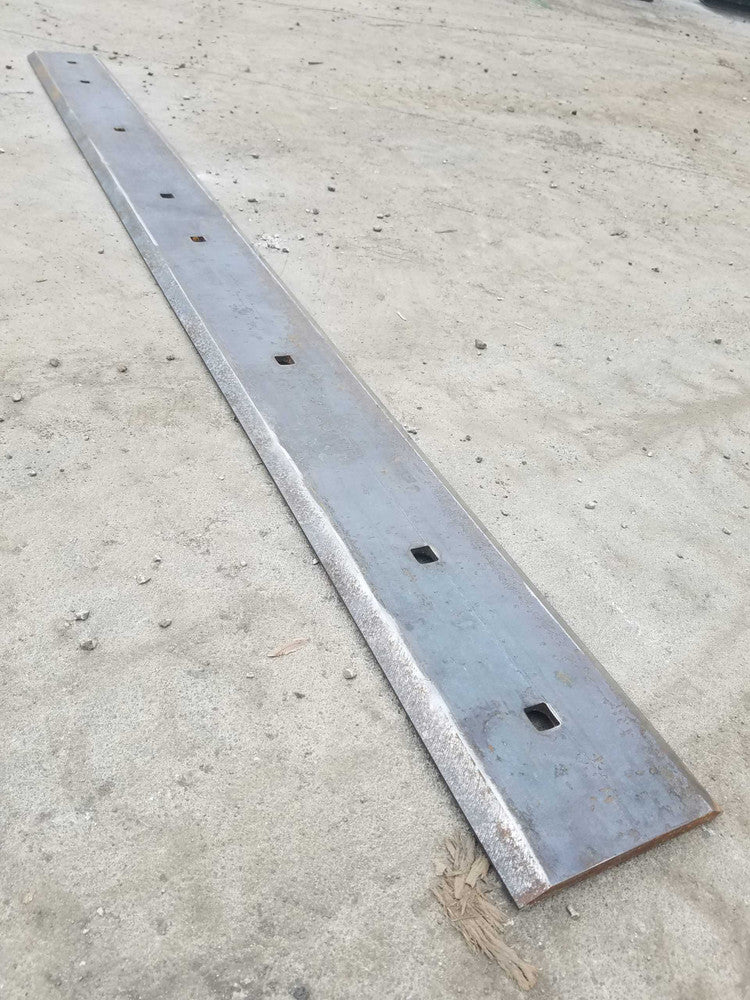

Express Steel 72-inch cutting edge - manufacturer view 8; other widths available

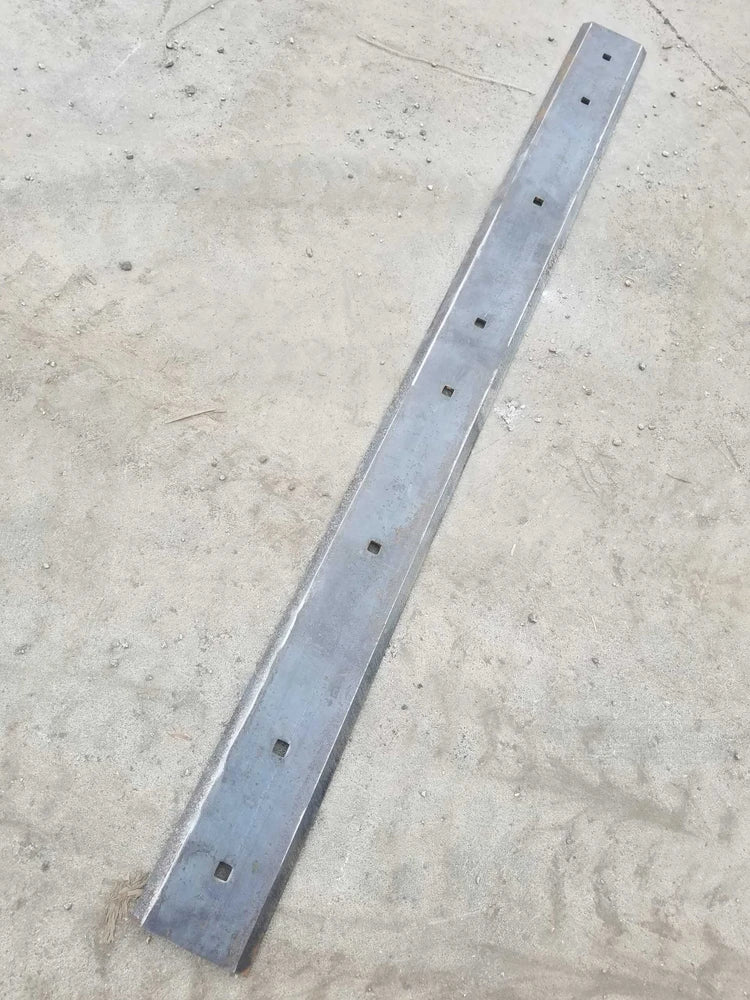

Express Steel 72-inch cutting edge - manufacturer view 9; other widths available
Roll over image to zoom in Click on image to zoom
Express Steel 84-inch cutting edge - manufacturer view 1; other widths availableExpress Steel Reversible Bolt-On Cutting Edges - product viewExpress Steel 84-inch cutting edge - manufacturer view 2; other widths availableExpress Steel 84-inch cutting edge - manufacturer view 3; other widths availableExpress Steel 84-inch cutting edge - manufacturer view 4; other widths availableExpress Steel cutting edge mounting hole drawings, verify selected widthExpress Steel 72-inch cutting edge - manufacturer view 6; other widths availableExpress Steel 72-inch cutting edge - manufacturer view 7; other widths availableExpress Steel 72-inch cutting edge - manufacturer view 8; other widths availableExpress Steel 72-inch cutting edge - manufacturer view 9; other widths available
Express Steel

Express Steel Reversible Bolt-On Cutting Edges

SKU: DHM-9345 Availability confirmed before order

$1,729.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

60-96 INCH WIDTHS

SEVEN WIDTH CHOICES COVER 60, 66, 72, 78, 84, 90 AND 96 INCHES.

5/8 × 6-INCH STEEL

EACH CUTTING EDGE USES A 5/8-INCH-THICK BY 6-INCH-WIDE STEEL SECTION.

REVERSIBLE DOUBLE EDGE

THE DOUBLE-EDGE DESIGN CAN BE REVERSED TO PLACE THE SECOND WORKING EDGE INTO SERVICE.

GRADE 8 PLOW BOLTS

INCLUDED PLOW BOLTS USE GRADE 8 HARDWARE FOR THE MATCHING BOLT-ON INSTALLATION.

5/8-11 BOLT THREAD

THE INCLUDED BOLTS HAVE A 5/8-11 THREAD AND A 2-1/4-INCH LENGTH.

Description

Key Benefits

Technical Specs

Applications

Express Steel Reversible Bolt-On Cutting Edges

Express Steel Reversible Bolt-On Cutting Edges replace a matching worn edge on a suitable bucket or blade. Choose from 60-96 inch widths and compare the mounting pattern to the existing attachment before ordering.

Each edge uses 5/8 × 6-inch steel with a reversible double-edge design. Reversing the edge provides another working edge once the first side reaches its service limit.

Grade 8 plow bolts sized 5/8-11 × 2-1/4 inches are included. Confirm the hole layout and bolt length against the attachment so the edge seats correctly and the fastening hardware engages properly.

These are wear-edge components, not complete buckets or blades. Select the exact width, inspect the mounting surface and follow the attachment's installation instructions. The 96-inch edge ships by LTL freight.

Express Steel Reversible Bolt-On Cutting Edges

  • Seven width choices cover 60, 66, 72, 78, 84, 90 and 96 inches.
  • Each cutting edge uses a 5/8-inch-thick by 6-inch-wide steel section.
  • The double-edge design can be reversed to place the second working edge into service.
  • Included plow bolts use Grade 8 hardware for the matching bolt-on installation.
  • The included bolts have a 5/8-11 thread and a 2-1/4-inch length.

Express Steel Reversible Bolt-On Cutting Edges

  • Steel section: 5/8 × 6 inches
  • Edge: Reversible double edge
  • Included plow bolts: 5/8-11 × 2-1/4 inches, Grade 8
  • 60-inch edge: DHM-9345; 60 lb
  • 66-inch edge: DHM-9323; 63 lb
  • 72-inch edge: DHM-9324; 70 lb
  • 78-inch edge: DHM-9325; 75 lb
  • 84-inch edge: DHM-9090; 80 lb
  • 90-inch edge: DHM-9389; 85 lb
  • 96-inch edge: DHM-9301; 90 lb
  • Verify hole pattern and fastening arrangement before ordering
  • 96-inch edge: LTL freight shipment

Express Steel Reversible Bolt-On Cutting Edges

  • Replacing a matching bucket cutting edge.
  • Servicing a suitable blade wear edge.
  • Maintaining a bolt-on reversible edge installation.
  • Confirm width, hole pattern and attachment specification.
  • This wear component has no machine hydraulic compatibility tester.

Express Steel: Brand & Attachment Videos

Express Steel Reversible Bolt-On Cutting Edges

BUILT FOR YOUR WORK:

  • Seven width choices cover 60, 66, 72, 78, 84, 90 and 96 inches.
  • Each cutting edge uses a 5/8-inch-thick by 6-inch-wide steel section.
  • The double-edge design can be reversed to place the second working edge into service.
  • Included plow bolts use Grade 8 hardware for the matching bolt-on installation.
  • The included bolts have a 5/8-11 thread and a 2-1/4-inch length.

MATCH YOUR WORKING SETUP:

  • Replacing a matching bucket cutting edge.
  • Servicing a suitable blade wear edge.
  • Maintaining a bolt-on reversible edge installation.
  • Confirm width, hole pattern and attachment specification.
  • This wear component has no machine hydraulic compatibility tester.

READY FOR THE FIELD:

  • Measure the required edge width.
  • Compare the mounting-hole pattern.
  • Confirm steel section and bolt length.
  • Inspect the attachment mounting surface.
  • Install and torque hardware using the attachment instructions.
