EXPRESS STEEL

72-Inch Single-Cylinder Rock Bucket Grapple

For Skid Steers & Track Loaders

36-Inch Jaw Opening

Request QuoteAdd To Cart

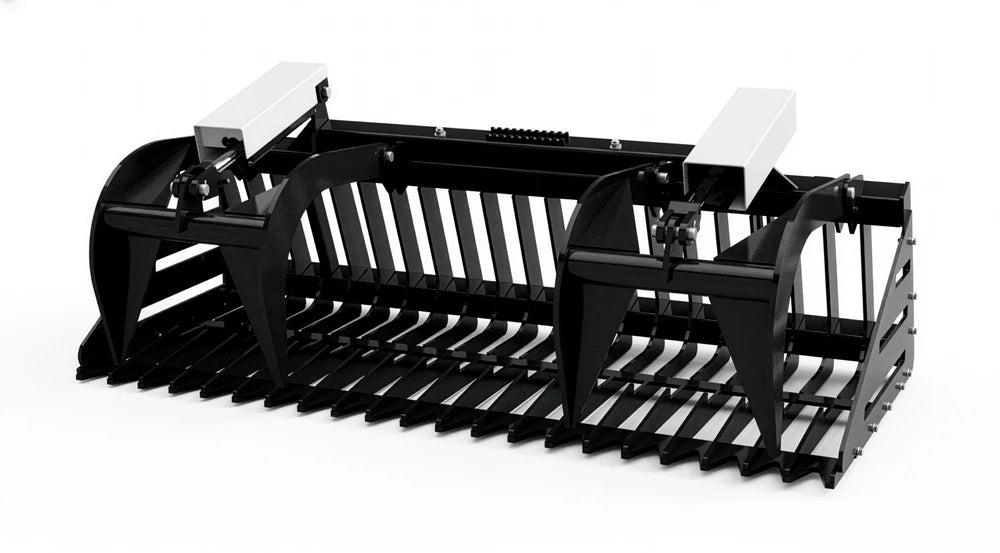

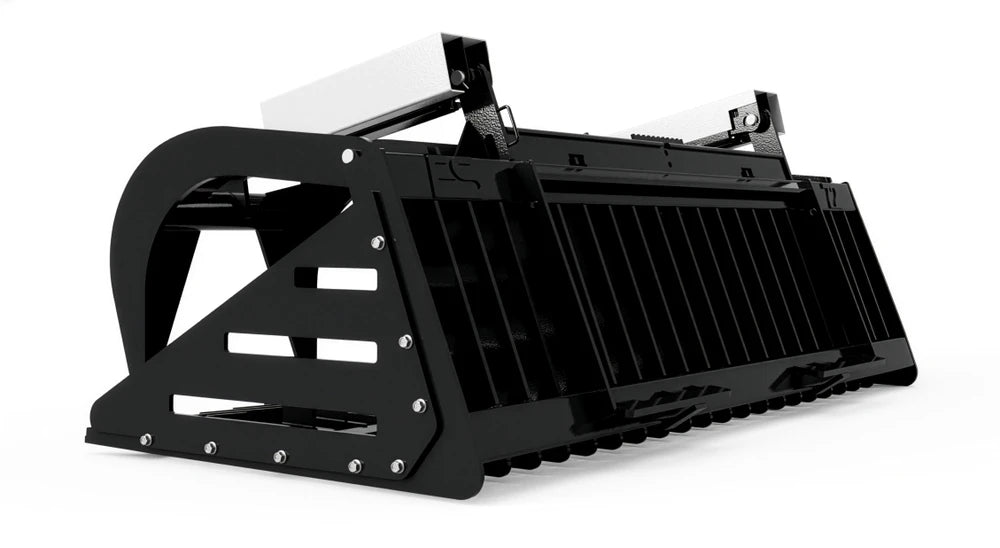

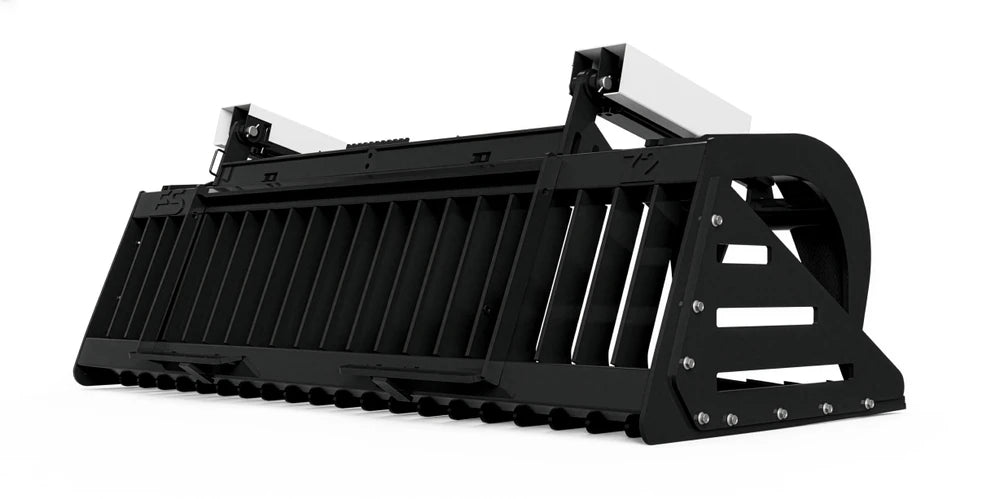

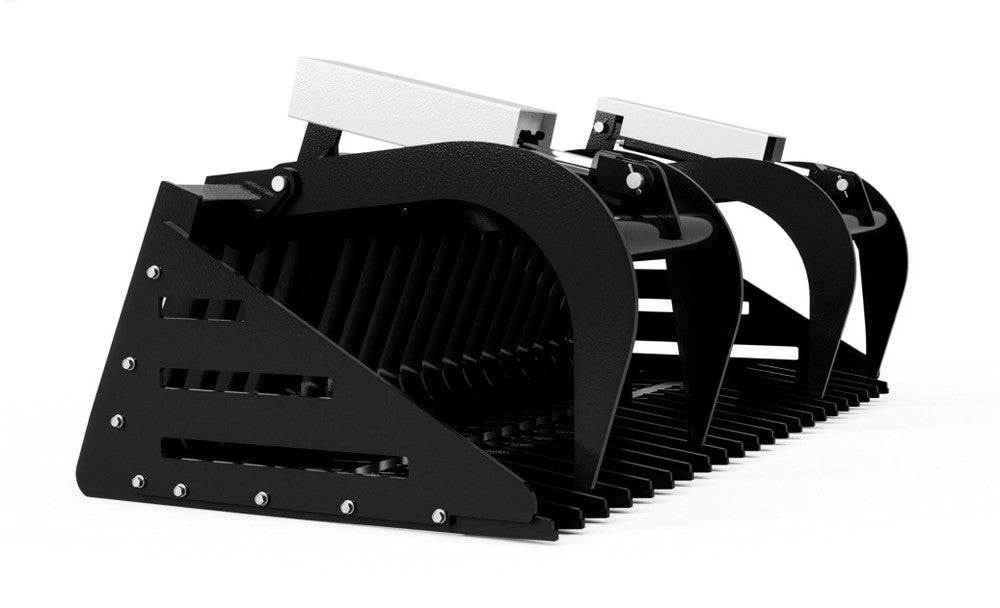

Express Steel 72-Inch Single-Cylinder Rock Bucket Grapple

Express Steel 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differ
Express Steel 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differ
Express Steel 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differ
Express Steel 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differ
Roll over image to zoom in Click on image to zoom
Express Steel 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differExpress Steel 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differExpress Steel 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differExpress Steel 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differ
Express Steel

Express Steel 72-Inch Single-Cylinder Rock Bucket Grapple

SKU: ES20230 Availability confirmed before order

$4,523.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

3/8-INCH GRADE 50 STEEL

THE GRAPPLE BUCKET USES 3/8-INCH GRADE 50 HIGH-TENSILE STEEL. THIS STEEL CONSTRUCTION SUPPORTS ROCK AND DEBRIS HANDLING.

3-3/8-INCH TOOTH SPACING

THE LOWER TEETH HAVE 3-3/8-INCH SPACING. THE OPEN ARRANGEMENT SEPARATES LARGER MATERIAL FROM FINER LOOSE SOIL.

SINGLE HYDRAULIC CLAMP

A SINGLE HYDRAULIC CYLINDER OPERATES THE UPPER GRAPPLE. THE CLAMP HOLDS MATERIAL AGAINST THE OPEN LOWER BUCKET.

36-INCH GRAPPLE OPENING

THE GRAPPLE OPENS TO 36 INCHES. ITS 72-INCH WORKING WIDTH COVERS THE MATERIAL-SORTING AREA AHEAD OF THE CARRIER.

550-POUND ATTACHMENT

THE COMPLETE ATTACHMENT WEIGHS 550 POUNDS. ACCOUNT FOR THIS WEIGHT AND THE COLLECTED MATERIAL WITHIN THE LOADER’S RATED CAPACITY.

Description

Key Benefits

Technical Specs

Applications

Express Steel 72-Inch Single-Cylinder Rock Bucket Grapple

The Express Steel 72-Inch Single-Cylinder Rock Bucket Grapple collects and retains rock and debris while finer material falls through. It connects through a Universal skid steer quick attach interface.

The grapple bucket uses 3/8-inch Grade 50 high-tensile steel. This steel construction supports rock and debris handling. The lower teeth have 3-3/8-inch spacing. The open arrangement separates larger material from finer loose soil.

A single hydraulic cylinder operates the upper grapple. The clamp holds material against the open lower bucket. The grapple opens to 36 inches. Its 72-inch working width covers the material-sorting area ahead of the carrier.

The complete attachment weighs 550 pounds. Account for this weight and the collected material within the loader’s rated capacity. Account for attachment weight, payload, load position, and the carrier’s rated capacity before lifting or transporting material.

Express Steel 72-Inch Single-Cylinder Rock Bucket Grapple

  • The grapple bucket uses 3/8-inch Grade 50 high-tensile steel. This steel construction supports rock and debris handling.
  • The lower teeth have 3-3/8-inch spacing. The open arrangement separates larger material from finer loose soil.
  • A single hydraulic cylinder operates the upper grapple. The clamp holds material against the open lower bucket.
  • The grapple opens to 36 inches. Its 72-inch working width covers the material-sorting area ahead of the carrier.
  • The complete attachment weighs 550 pounds. Account for this weight and the collected material within the loader’s rated capacity.

Express Steel 72-Inch Single-Cylinder Rock Bucket Grapple

  • Brand: Express Steel
  • Product: 72-Inch Single-Cylinder Rock Bucket Grapple
  • Mount: Universal skid steer quick attach
  • Working action: hydraulic cylinder actuation
  • Body depth: 34 inches; body height: 27 inches
  • ES20230: 550 lb
  • Maximum jaw opening: 36 inches

Express Steel 72-Inch Single-Cylinder Rock Bucket Grapple

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.

Express Steel: Grapple Demonstrations

Express Steel 72-Inch Single-Cylinder Rock Bucket Grapple

BUILT FOR MATERIAL HANDLING:

  • The grapple bucket uses 3/8-inch Grade 50 high-tensile steel. This steel construction supports rock and debris handling.
  • The lower teeth have 3-3/8-inch spacing. The open arrangement separates larger material from finer loose soil.
  • A single hydraulic cylinder operates the upper grapple. The clamp holds material against the open lower bucket.
  • The grapple opens to 36 inches. Its 72-inch working width covers the material-sorting area ahead of the carrier.
  • The complete attachment weighs 550 pounds. Account for this weight and the collected material within the loader’s rated capacity.

MATCH YOUR WORKING SETUP:

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.
  • Mount:Universal skid steer quick attach.
  • Check carrier lifting capacity at the actual load position.

READY FOR THE FIELD:

  • Inspect the grapple tines, working edges, pins, and retaining hardware.
  • Engage the loader attachment locks before connecting hydraulics.
  • Connect the correct hoses and couplers with hydraulic pressure relieved.
  • Check jaw movement and any rotation controls in a clear area.
  • Keep the load low during travel and remain within all handling limits.
