EXPRESS STEEL

Single-Spear Round Bale Spear

For Skid Steers & Track Loaders

49-Inch Main Spear | 3,000-Lb Attachment Capacity

Request QuoteAdd To Cart

Express Steel Single-Spear Round Bale Spear

Express Steel single-spear round bale spear view 1

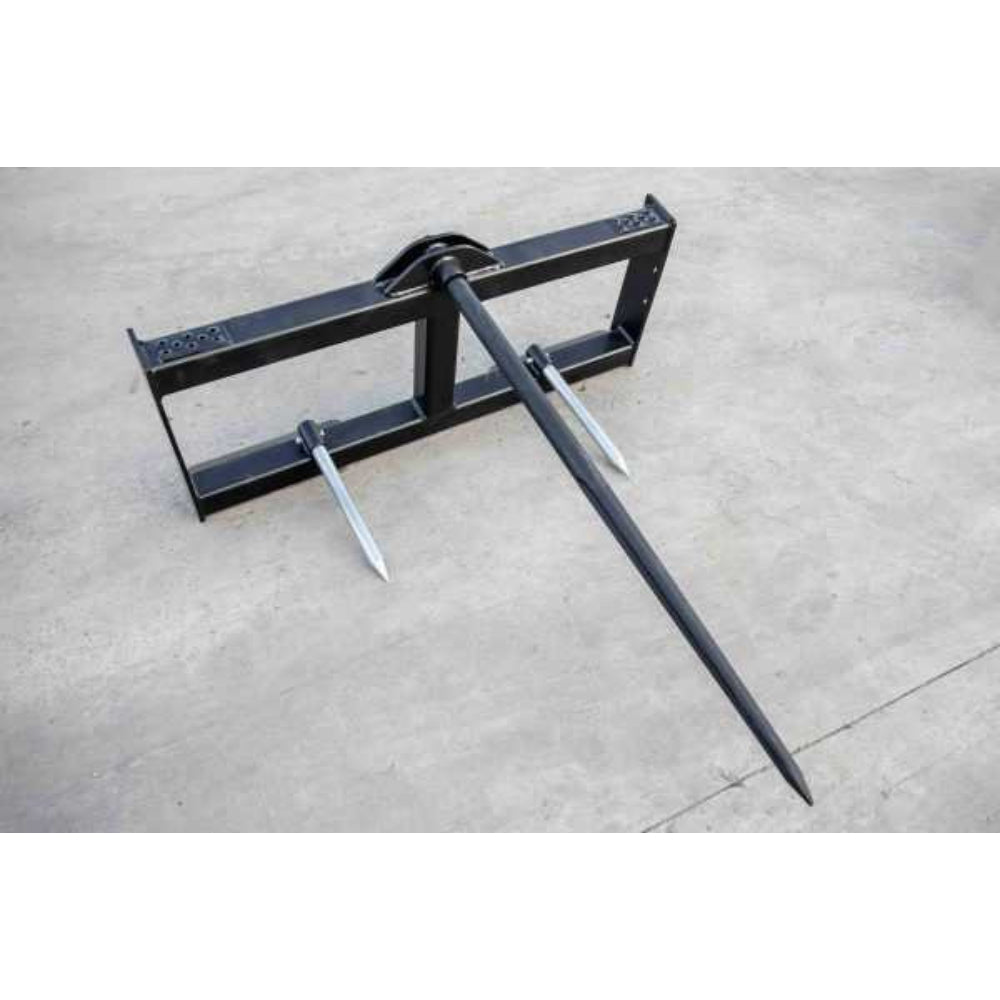

Express Steel single-spear round bale spear view 2

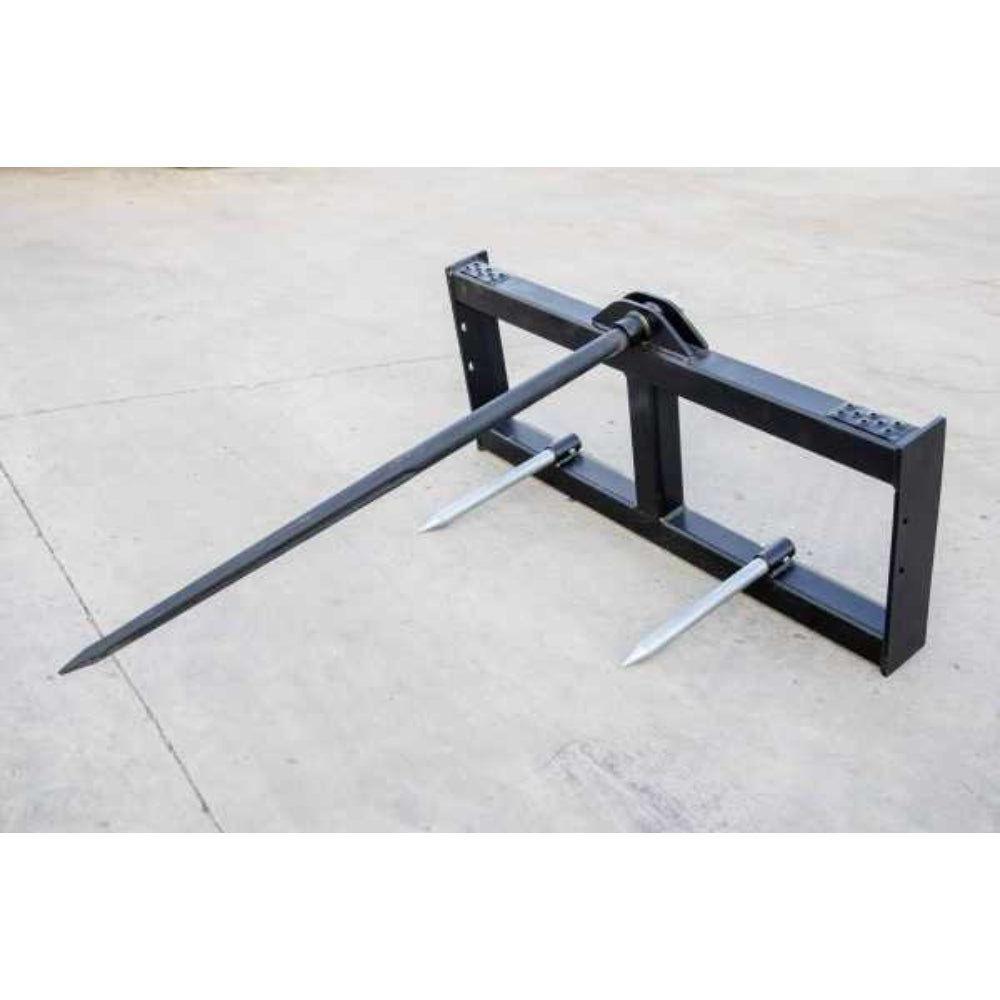

Express Steel single-spear round bale spear view 3
Express Steel single-spear round bale spear view 4

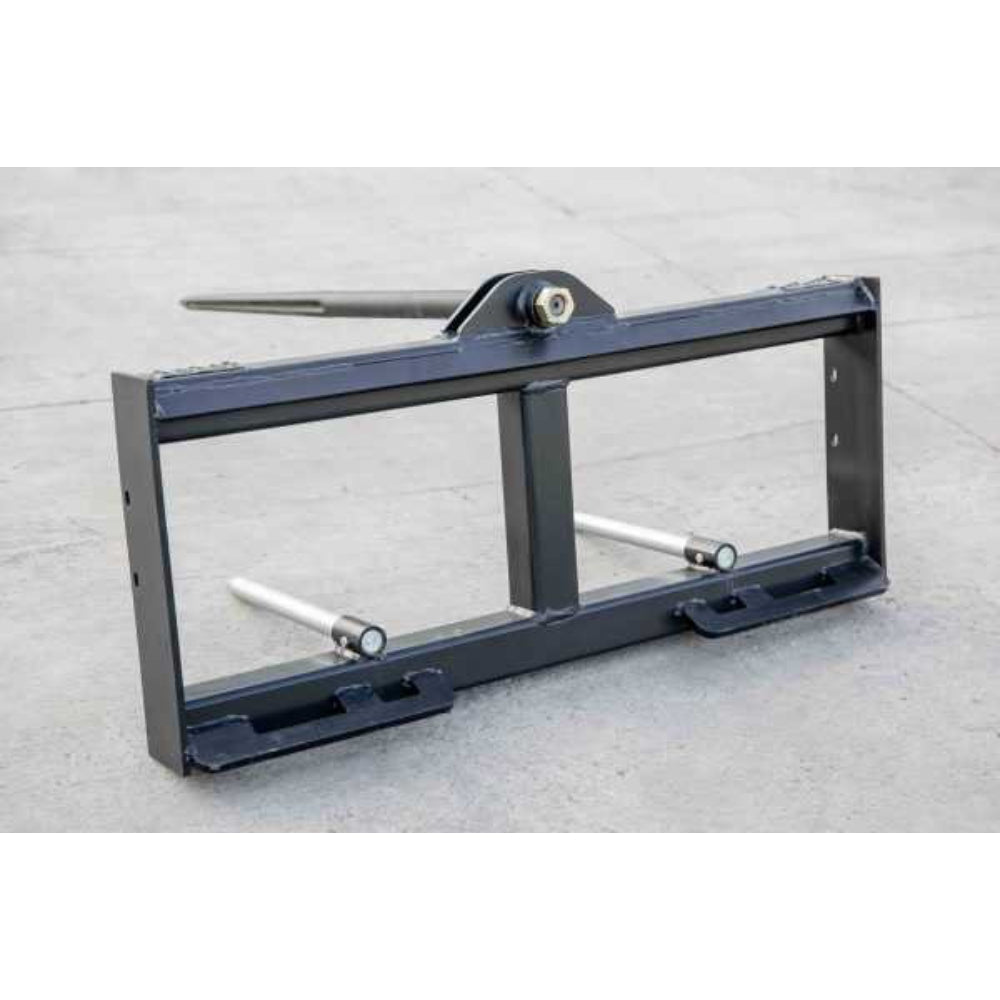

Express Steel single-spear round bale spear view 5
Express Steel single-spear round bale spear view 8
Express Steel single-spear round bale spear view 9
Express Steel single-spear round bale spear view 10
Roll over image to zoom in Click on image to zoom
Express Steel single-spear round bale spear view 1Express Steel single-spear round bale spear view 2Express Steel single-spear round bale spear view 3Express Steel single-spear round bale spear view 4Express Steel single-spear round bale spear view 5Express Steel single-spear round bale spear view 8Express Steel single-spear round bale spear view 9Express Steel single-spear round bale spear view 10
Express Steel

Express Steel Single-Spear Round Bale Spear

SKU: ESBSSS0049 Availability confirmed before order

$2,157.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Manufacturer Information Parts & Support

MOST IMPORTANT FEATURES

49-INCH MAIN SPEAR

A SINGLE 49-INCH MAIN SPEAR ENGAGES THE BALE. ITS 1-9/16-INCH DIAMETER PROVIDES THE PRIMARY SUPPORT POINT DURING CONTROLLED HAY HANDLING.

18-INCH STABILIZERS

SHORTER 18-INCH STABILIZERS HELP CONTROL THE BALE AROUND THE MAIN SPEAR. EACH STABILIZER HAS A 1-1/4-INCH DIAMETER.

3,000-POUND ATTACHMENT CAPACITY

THE ATTACHMENT IS RATED FOR UP TO 3,000 POUNDS. STAY WITHIN THE CARRIER’S CAPACITY AND STABILITY LIMITS FOR THE BALE’S WEIGHT AND POSITION.

49 × 19 × 6-INCH FRAME

THE FRAME MEASURES 49 × 19 × 6 INCHES. ITS OPEN ARRANGEMENT LEAVES THE SPEAR LAYOUT VISIBLE WHILE APPROACHING AND ENGAGING A BALE.

145-POUND QUICK-ATTACH FRAME

ATTACHMENT WEIGHT IS 145 POUNDS. THE UNIVERSAL SKID-STEER QUICK ATTACH REQUIRES A MATCHING CARRIER INTERFACE FOR MOUNTING.

Description

Key Benefits

Technical Specs

Applications

Express Steel Single-Spear Round Bale Spear

The Express Steel Single-Spear Round Bale Spear carries round hay bales with a long center spear and shorter stabilizers. It gives a matching skid steer or compact track loader a straightforward attachment for loading, moving, and placing hay around the farm.

The 49-inch main spear has a 1-9/16-inch diameter. Shorter 18-inch stabilizers, each 1-1/4 inches in diameter, help control the bale around the main support point during handling.

The attachment has a 3,000-pound maximum capacity and weighs 145 pounds. Its frame measures 49 × 19 × 6 inches, with an open layout that keeps the spear arrangement visible as you line up a bale.

A universal skid-steer quick attach connects to a matching carrier. Match the bale’s weight and load position to both attachment and carrier limits, engage the bale securely, and travel with the load kept low.

Express Steel Single-Spear Round Bale Spear

  • A single 49-inch main spear engages the bale. Its 1-9/16-inch diameter provides the primary support point during controlled hay handling.
  • Shorter 18-inch stabilizers help control the bale around the main spear. Each stabilizer has a 1-1/4-inch diameter.
  • The attachment is rated for up to 3,000 pounds. Stay within the carrier’s capacity and stability limits for the bale’s weight and position.
  • The frame measures 49 × 19 × 6 inches. Its open arrangement leaves the spear layout visible while approaching and engaging a bale.
  • Attachment weight is 145 pounds. The universal skid-steer quick attach requires a matching carrier interface for mounting.

Express Steel Single-Spear Round Bale Spear

  • Model: ESBSSS0049
  • Main spear: 49 inches long; 1-9/16-inch diameter
  • Stabilizers: 18 inches long; 1-1/4-inch diameter
  • Maximum attachment capacity: 3,000 lb
  • Frame dimensions: 49 × 19 × 6 inches
  • Attachment weight: 145 lb
  • Mount: universal skid-steer quick attach
  • Operation: passive bale handling; no hydraulic drive

Express Steel Single-Spear Round Bale Spear

  • Loading hay bales for farm transport.
  • Moving bales between storage and feeding areas.
  • Placing hay within the carrier’s handling limits.
  • Routine agricultural bale handling with a matching loader.

Express Steel: Brand & Attachment Videos

Express Steel Single-Spear Round Bale Spear

BUILT FOR HAY HANDLING:

  • A single 49-inch main spear engages the bale. Its 1-9/16-inch diameter provides the primary support point during controlled hay handling.
  • Shorter 18-inch stabilizers help control the bale around the main spear. Each stabilizer has a 1-1/4-inch diameter.
  • The attachment is rated for up to 3,000 pounds. Stay within the carrier’s capacity and stability limits for the bale’s weight and position.
  • The frame measures 49 × 19 × 6 inches. Its open arrangement leaves the spear layout visible while approaching and engaging a bale.
  • Attachment weight is 145 pounds. The universal skid-steer quick attach requires a matching carrier interface for mounting.

MATCH YOUR WORKING SETUP:

  • Loading hay bales for farm transport.
  • Moving bales between storage and feeding areas.
  • Placing hay within the carrier’s handling limits.
  • Routine agricultural bale handling with a matching loader.

READY FOR THE FIELD:

  • Inspect the spears, stabilizers where fitted, frame, and fasteners.
  • Lock the quick-attach interface securely to a matching carrier.
  • Check bale weight against attachment and carrier limits.
  • Engage the bale securely and keep the load low while traveling.
  • Keep people clear of the load and avoid unstable ground.
