EXPRESS STEEL

84-Inch Solid Bottom Grapple Bucket

For Skid Steers & Track Loaders

84-Inch Working Width

Request QuoteAdd To Cart

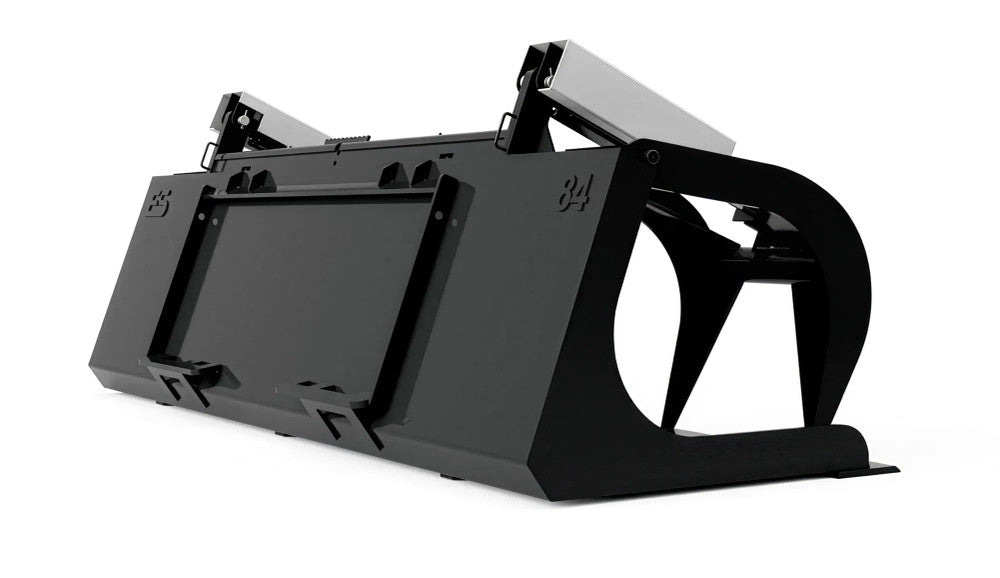

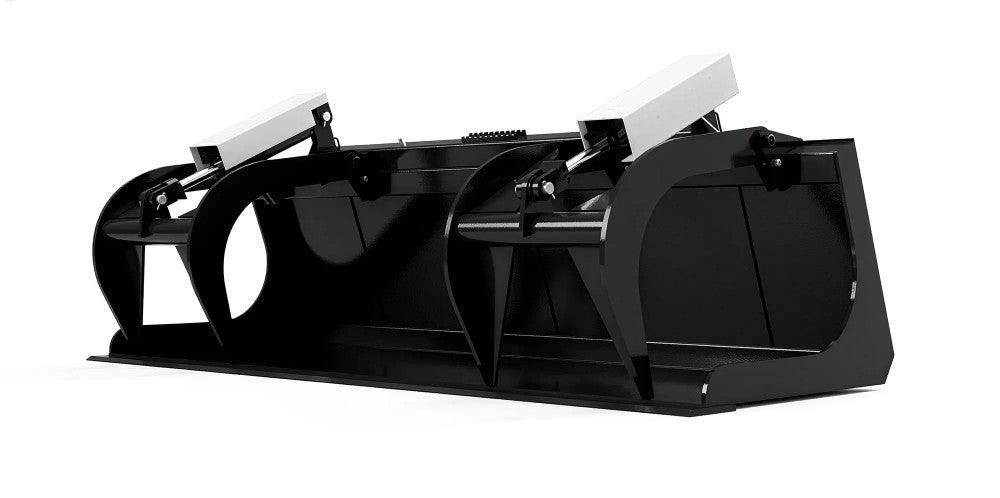

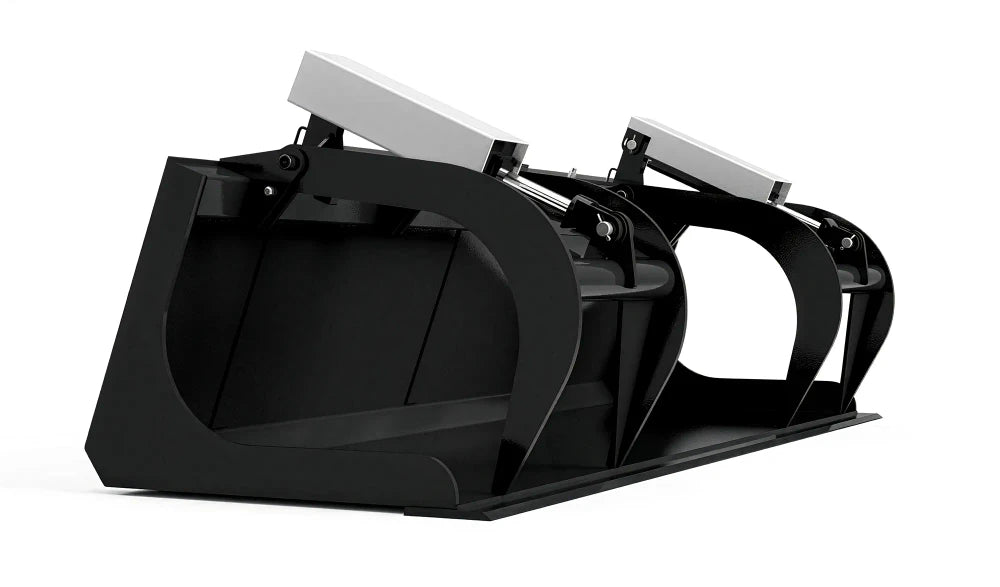

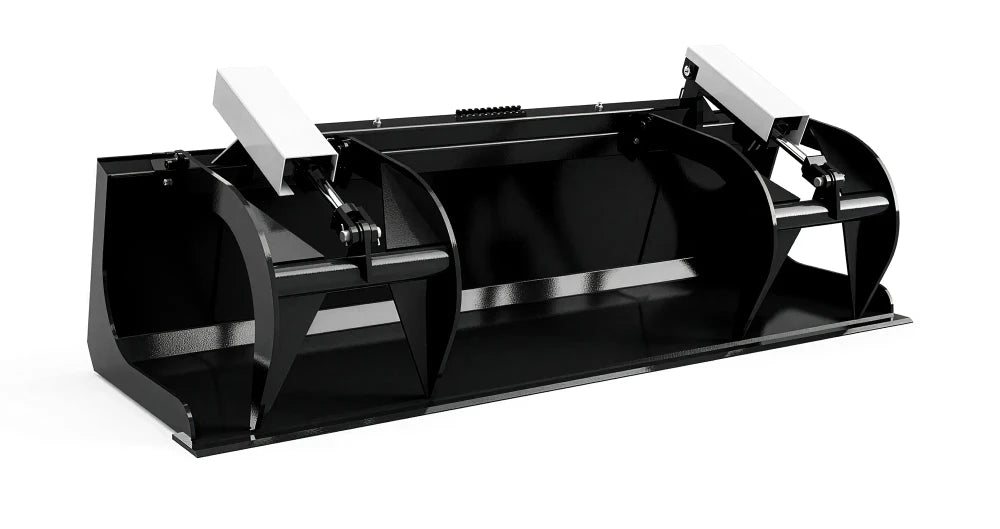

Express Steel 84-Inch Solid Bottom Grapple Bucket

Express Steel 84-Inch Solid Bottom Grapple Bucket;manufacturer family image, selected configuration may differ
Express Steel 84-Inch Solid Bottom Grapple Bucket;manufacturer family image, selected configuration may differ
Express Steel 84-Inch Solid Bottom Grapple Bucket;manufacturer family image, selected configuration may differ
Express Steel 84-Inch Solid Bottom Grapple Bucket;manufacturer family image, selected configuration may differ
Roll over image to zoom in Click on image to zoom
Express Steel 84-Inch Solid Bottom Grapple Bucket;manufacturer family image, selected configuration may differExpress Steel 84-Inch Solid Bottom Grapple Bucket;manufacturer family image, selected configuration may differExpress Steel 84-Inch Solid Bottom Grapple Bucket;manufacturer family image, selected configuration may differExpress Steel 84-Inch Solid Bottom Grapple Bucket;manufacturer family image, selected configuration may differ
Express Steel

Express Steel 84-Inch Solid Bottom Grapple Bucket

SKU: ES20125 Availability confirmed before order

$3,781.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

SOLID 1/4-INCH BUCKET BODY

THE UPPER AND LOWER WRAP USE 1/4-INCH STEEL. A SOLID BOTTOM SUPPORTS LOOSE MATERIAL WHILE THE GRAPPLE RETAINS LARGER DEBRIS.

TWO-CYLINDER GRAPPLE ACTION

TWO HYDRAULIC CYLINDERS OPERATE THE UPPER GRAPPLE SECTIONS. AUXILIARY HYDRAULICS OPEN AND CLOSE THE CLAMPS AROUND THE LOAD.

1/2-INCH GRAPPLE TINES

THE UPPER GRAPPLE TINES USE 1/2-INCH STEEL. THE CLAMP ARRANGEMENT ADDS RETENTION ABOVE THE BUCKET BODY.

3/4 × 6-INCH CUTTING EDGE

A 3/4-INCH BY 6-INCH WELDED CUTTING EDGE FORMS THE FRONT OF THE BUCKET. REAR STRAPS AND UNDERSIDE WEAR BARS REINFORCE THE BODY.

FOR MACHINES UP TO 75 HP

THE BUCKET GRAPPLE IS RECOMMENDED FOR MACHINES UP TO 75 HORSEPOWER. THE BODY IS 34.75 INCHES DEEP AND 32.5 INCHES TALL.

Description

Key Benefits

Technical Specs

Applications

Express Steel 84-Inch Solid Bottom Grapple Bucket

The Express Steel 84-Inch Solid Bottom Grapple Bucket combines loose-material loading with an upper grapple for retaining larger debris. It connects through a Universal skid steer quick attach interface.

The upper and lower wrap use 1/4-inch steel. A solid bottom supports loose material while the grapple retains larger debris. Two hydraulic cylinders operate the upper grapple sections. Auxiliary hydraulics open and close the clamps around the load.

The upper grapple tines use 1/2-inch steel. The clamp arrangement adds retention above the bucket body. A 3/4-inch by 6-inch welded cutting edge forms the front of the bucket. Rear straps and underside wear bars reinforce the body.

The bucket grapple is recommended for machines up to 75 horsepower. The body is 34.75 inches deep and 32.5 inches tall. Account for attachment weight, payload, load position, and the carrier’s rated capacity before lifting or transporting material.

Express Steel 84-Inch Solid Bottom Grapple Bucket

  • The upper and lower wrap use 1/4-inch steel. A solid bottom supports loose material while the grapple retains larger debris.
  • Two hydraulic cylinders operate the upper grapple sections. Auxiliary hydraulics open and close the clamps around the load.
  • The upper grapple tines use 1/2-inch steel. The clamp arrangement adds retention above the bucket body.
  • A 3/4-inch by 6-inch welded cutting edge forms the front of the bucket. Rear straps and underside wear bars reinforce the body.
  • The bucket grapple is recommended for machines up to 75 horsepower. The body is 34.75 inches deep and 32.5 inches tall.

Express Steel 84-Inch Solid Bottom Grapple Bucket

  • Brand: Express Steel
  • Product: 84-Inch Solid Bottom Grapple Bucket
  • Mount: Universal skid steer quick attach
  • Working action: hydraulic cylinder actuation
  • Body: 34.75 inches deep × 32.5 inches tall
  • Rear straps: 1/4 inch
  • Machine recommendation: up to 75 HP
  • ES20125: 765 lb

Express Steel 84-Inch Solid Bottom Grapple Bucket

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.

Express Steel: Grapple Demonstrations

Express Steel 84-Inch Solid Bottom Grapple Bucket

BUILT FOR MATERIAL HANDLING:

  • The upper and lower wrap use 1/4-inch steel. A solid bottom supports loose material while the grapple retains larger debris.
  • Two hydraulic cylinders operate the upper grapple sections. Auxiliary hydraulics open and close the clamps around the load.
  • The upper grapple tines use 1/2-inch steel. The clamp arrangement adds retention above the bucket body.
  • A 3/4-inch by 6-inch welded cutting edge forms the front of the bucket. Rear straps and underside wear bars reinforce the body.
  • The bucket grapple is recommended for machines up to 75 horsepower. The body is 34.75 inches deep and 32.5 inches tall.

MATCH YOUR WORKING SETUP:

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.
  • Mount:Universal skid steer quick attach.
  • Check carrier lifting capacity at the actual load position.

READY FOR THE FIELD:

  • Inspect the grapple tines, working edges, pins, and retaining hardware.
  • Engage the loader attachment locks before connecting hydraulics.
  • Connect the correct hoses and couplers with hydraulic pressure relieved.
  • Check jaw movement and any rotation controls in a clear area.
  • Keep the load low during travel and remain within all handling limits.
