EXPRESS STEEL

Three-Spear Square Bale Spear

For Skid Steers & Track Loaders

Three 39-Inch Spears | 3,000-Lb Attachment Capacity

Request QuoteAdd To Cart

Express Steel Three-Spear Square Bale Spear

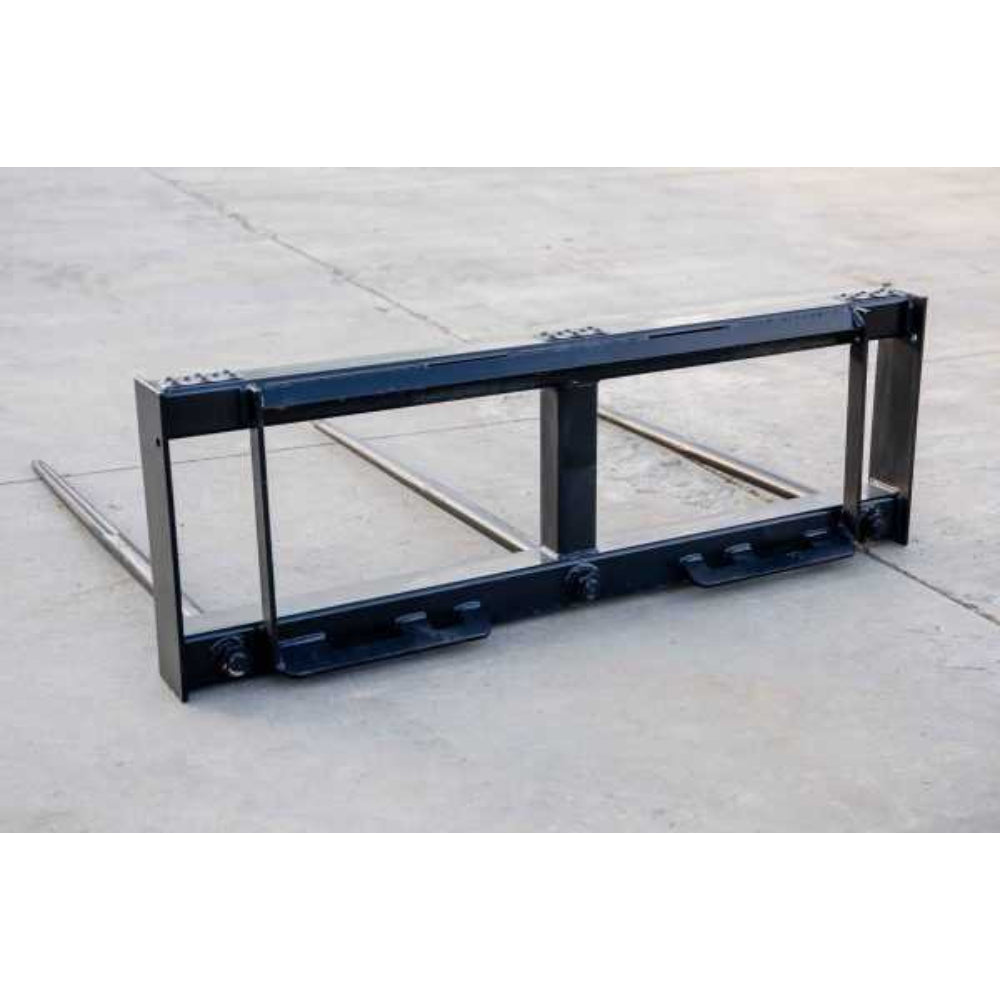

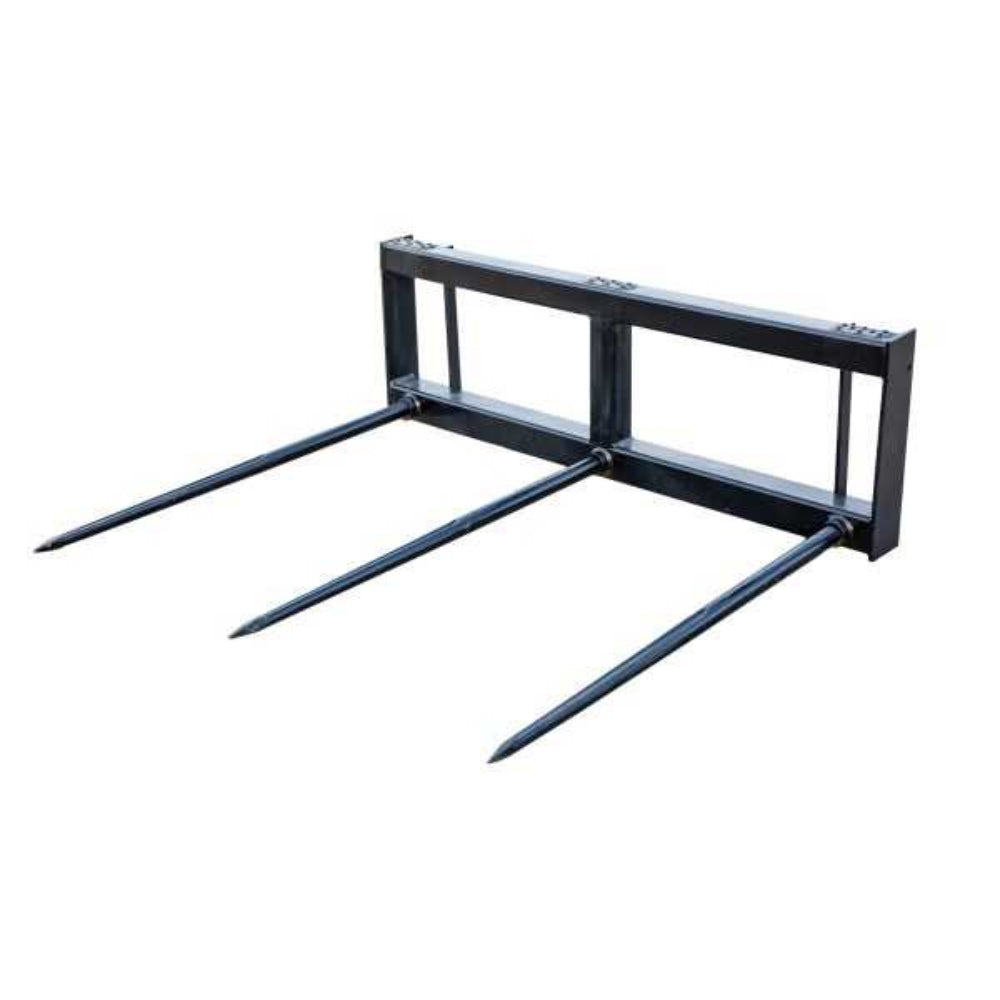

Express Steel three-spear square bale spear view 1

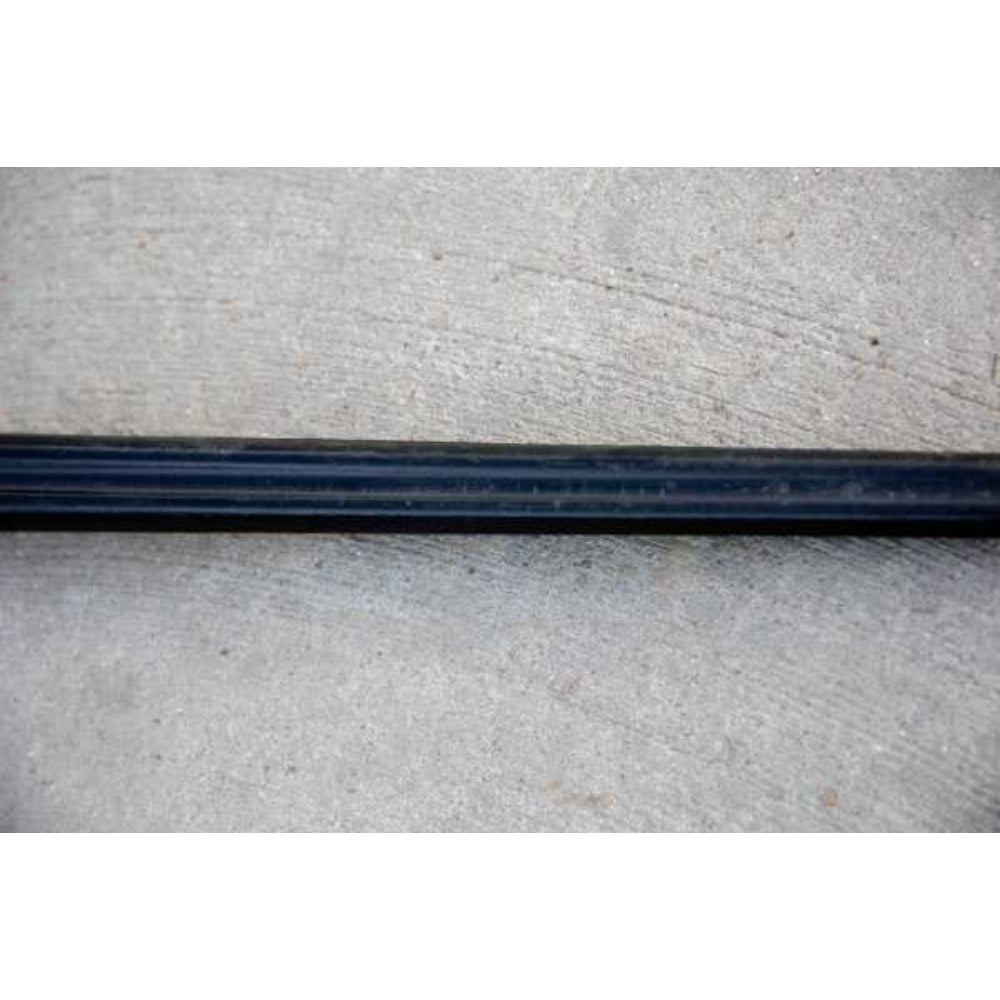

Express Steel three-spear square bale spear view 2

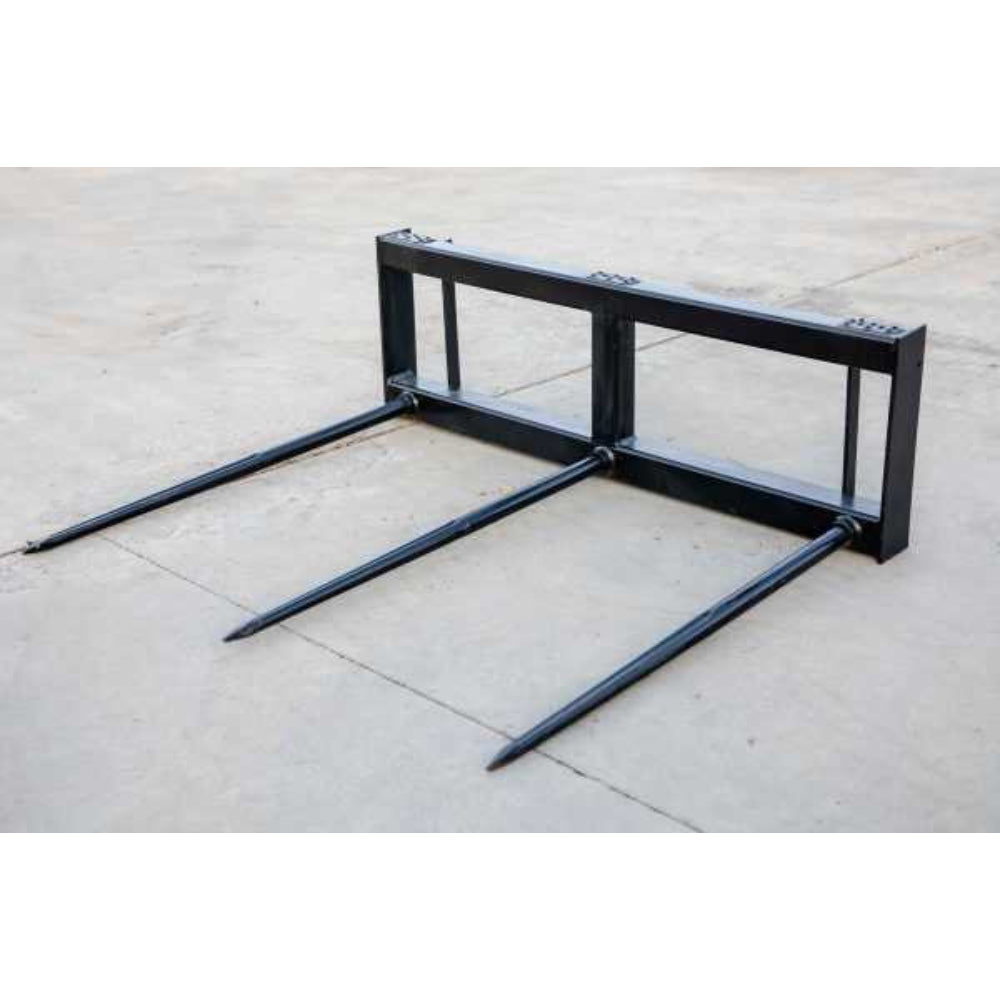

Express Steel three-spear square bale spear view 3

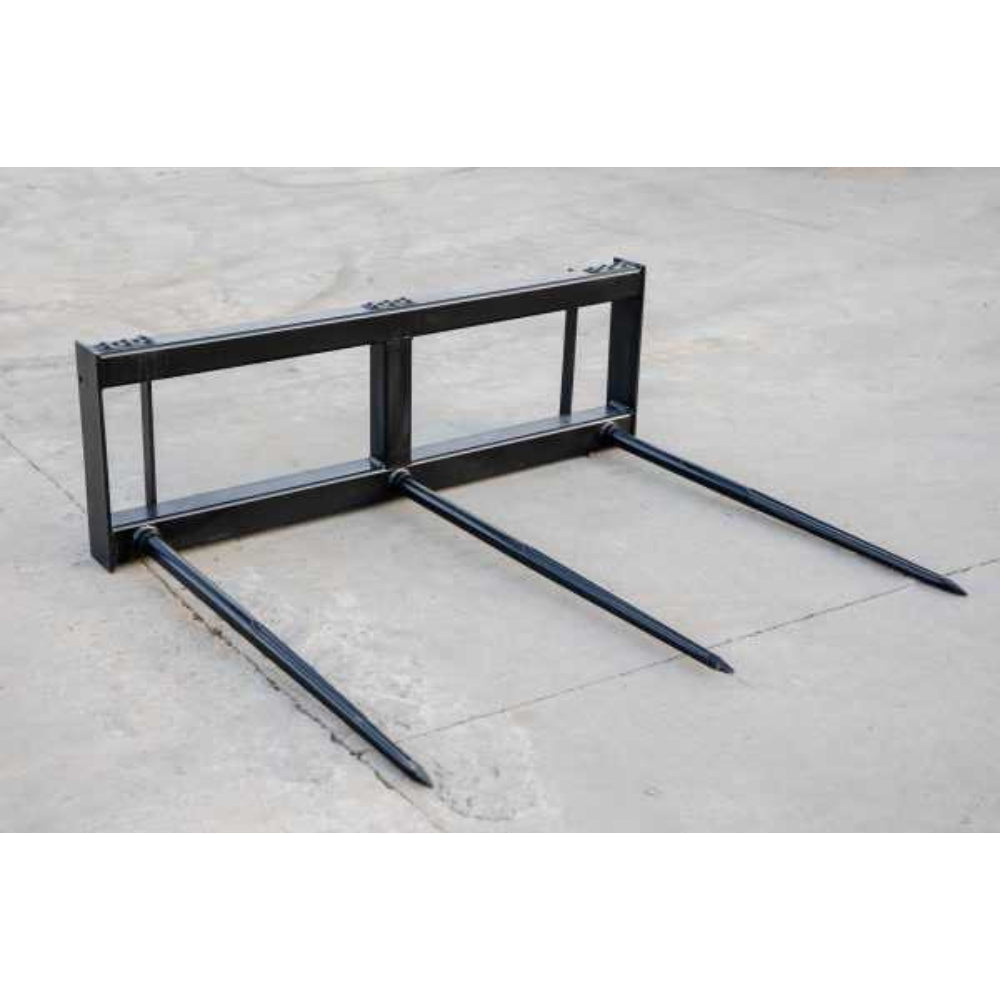

Express Steel three-spear square bale spear view 4

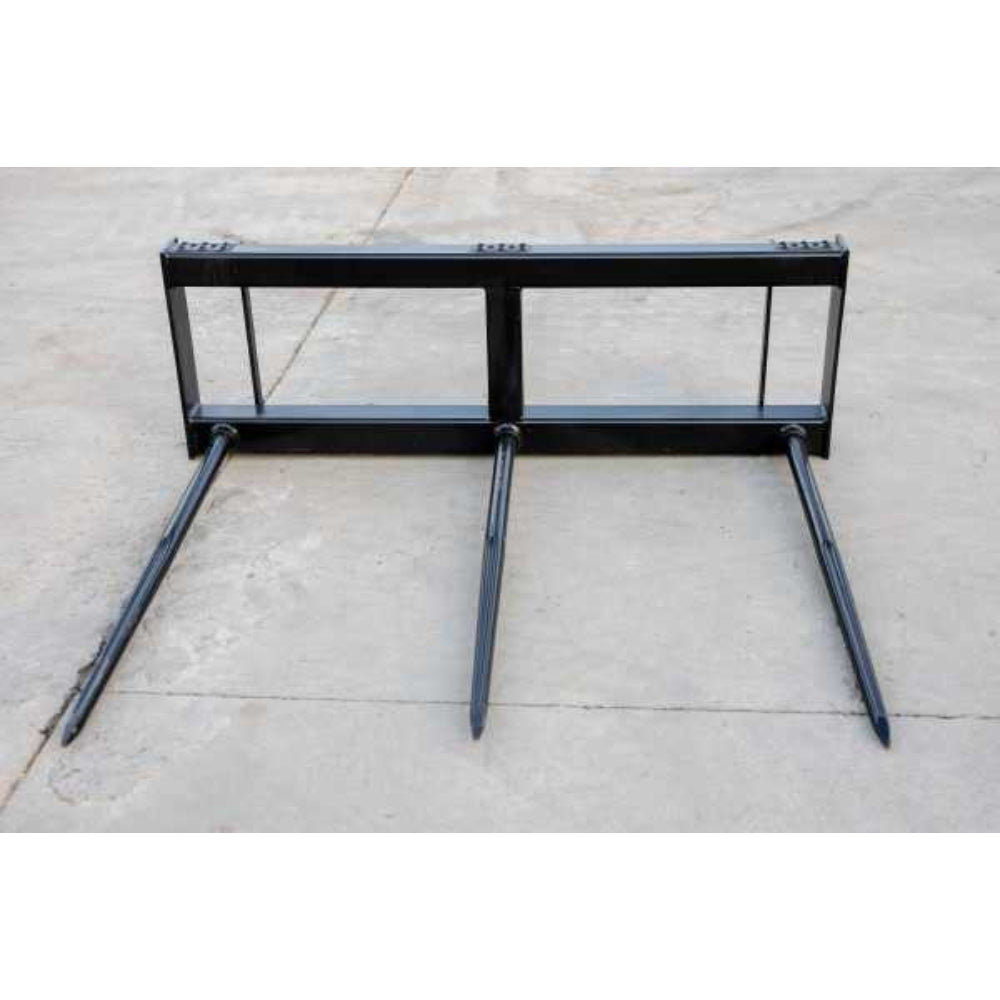

Express Steel three-spear square bale spear view 5

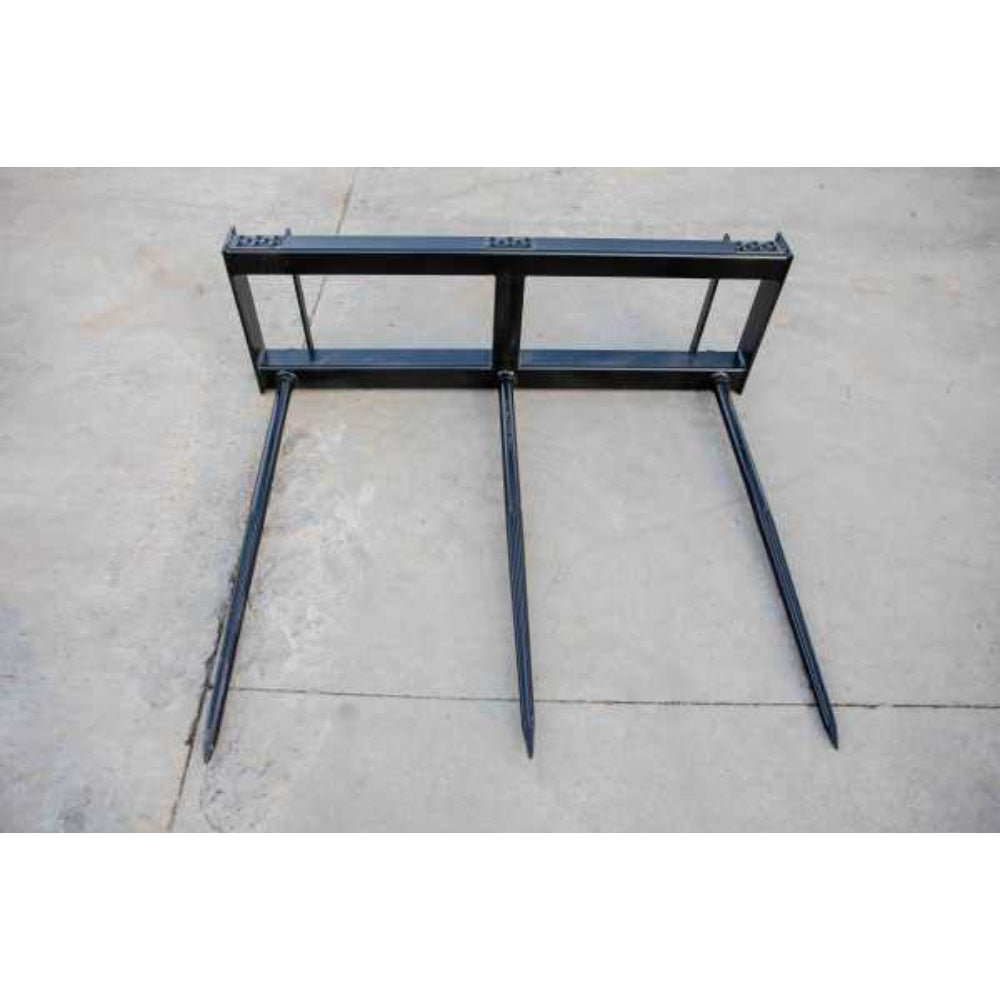

Express Steel three-spear square bale spear view 6
Express Steel three-spear square bale spear view 7
Roll over image to zoom in Click on image to zoom
Express Steel three-spear square bale spear view 1Express Steel three-spear square bale spear view 2Express Steel three-spear square bale spear view 3Express Steel three-spear square bale spear view 4Express Steel three-spear square bale spear view 5Express Steel three-spear square bale spear view 6Express Steel three-spear square bale spear view 7
Express Steel

Express Steel Three-Spear Square Bale Spear

SKU: ESBSSQ0049 Availability confirmed before order

$2,268.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Manufacturer Information Parts & Support

MOST IMPORTANT FEATURES

THREE 39-INCH SPEARS

THREE 39-INCH SPEARS PROVIDE MULTIPLE ENGAGEMENT POINTS FOR SQUARE HAY BALES. THE LAYOUT SUPPORTS CONTROLLED PICKUP AND PLACEMENT AROUND THE FARM.

1-9/16-INCH SPEAR DIAMETER

EACH MAIN SPEAR HAS A 1-9/16-INCH DIAMETER. CHECK SPEAR CONDITION AND SECURE ENGAGEMENT BEFORE LIFTING OR TRANSPORTING A BALE.

3,000-POUND ATTACHMENT CAPACITY

MAXIMUM ATTACHMENT CAPACITY IS 3,000 POUNDS. THE CARRIER’S RATED CAPACITY, STABILITY, AND LOAD POSITION CAN REQUIRE A LOWER WORKING LOAD.

58 × 19 × 6-INCH FRAME

THE FRAME MEASURES 58 × 19 × 6 INCHES. ITS WIDE, OPEN LAYOUT SPACES THE THREE SPEARS ACROSS THE ATTACHMENT.

210-POUND QUICK-ATTACH FRAME

ATTACHMENT WEIGHT IS 210 POUNDS. A UNIVERSAL SKID-STEER QUICK ATTACH CONNECTS THE SPEAR FRAME TO A MATCHING LOADER.

Description

Key Benefits

Technical Specs

Applications

Express Steel Three-Spear Square Bale Spear

The Express Steel Three-Spear Square Bale Spear uses three long spears to engage square hay bales. It equips a matching skid steer or compact track loader for routine loading, transport, and placement in farm work areas.

Each spear is 39 inches long with a 1-9/16-inch diameter. The three-point layout spreads the engagement points across the bale, while the open frame helps the operator line up the attachment before pickup.

The frame measures 58 × 19 × 6 inches and the attachment weighs 210 pounds. Maximum attachment capacity is 3,000 pounds, subject to the carrier’s lower capacity or stability limit for the load’s actual position.

The universal skid-steer quick attach requires a matching carrier interface. Fully engage the bale before lifting, keep the load low during travel, and use suitable ground and operating methods for the carrier and bale.

Express Steel Three-Spear Square Bale Spear

  • Three 39-inch spears provide multiple engagement points for square hay bales. The layout supports controlled pickup and placement around the farm.
  • Each main spear has a 1-9/16-inch diameter. Check spear condition and secure engagement before lifting or transporting a bale.
  • Maximum attachment capacity is 3,000 pounds. The carrier’s rated capacity, stability, and load position can require a lower working load.
  • The frame measures 58 × 19 × 6 inches. Its wide, open layout spaces the three spears across the attachment.
  • Attachment weight is 210 pounds. A universal skid-steer quick attach connects the spear frame to a matching loader.

Express Steel Three-Spear Square Bale Spear

  • Model: ESBSSQ0049
  • Main spears: three, each 39 inches long
  • Spear diameter: 1-9/16 inches
  • Maximum attachment capacity: 3,000 lb
  • Frame dimensions: 58 × 19 × 6 inches
  • Attachment weight: 210 lb
  • Mount: universal skid-steer quick attach
  • Operation: passive bale handling; no hydraulic drive

Express Steel Three-Spear Square Bale Spear

  • Loading hay bales for farm transport.
  • Moving bales between storage and feeding areas.
  • Placing hay within the carrier’s handling limits.
  • Routine agricultural bale handling with a matching loader.

Express Steel: Brand & Attachment Videos

Express Steel Three-Spear Square Bale Spear

BUILT FOR HAY HANDLING:

  • Three 39-inch spears provide multiple engagement points for square hay bales. The layout supports controlled pickup and placement around the farm.
  • Each main spear has a 1-9/16-inch diameter. Check spear condition and secure engagement before lifting or transporting a bale.
  • Maximum attachment capacity is 3,000 pounds. The carrier’s rated capacity, stability, and load position can require a lower working load.
  • The frame measures 58 × 19 × 6 inches. Its wide, open layout spaces the three spears across the attachment.
  • Attachment weight is 210 pounds. A universal skid-steer quick attach connects the spear frame to a matching loader.

MATCH YOUR WORKING SETUP:

  • Loading hay bales for farm transport.
  • Moving bales between storage and feeding areas.
  • Placing hay within the carrier’s handling limits.
  • Routine agricultural bale handling with a matching loader.

READY FOR THE FIELD:

  • Inspect the spears, stabilizers where fitted, frame, and fasteners.
  • Lock the quick-attach interface securely to a matching carrier.
  • Check bale weight against attachment and carrier limits.
  • Engage the bale securely and keep the load low while traveling.
  • Keep people clear of the load and avoid unstable ground.
