EXPRESS STEEL

Toro Dingo Auger Head

For Mini Skid Steers

15-25 GPM Hydraulic Flow

Request QuoteAdd To Cart

Express Steel Toro Dingo Hydraulic Auger Head

Express Steel Toro Dingo Hydraulic Auger Head - product view

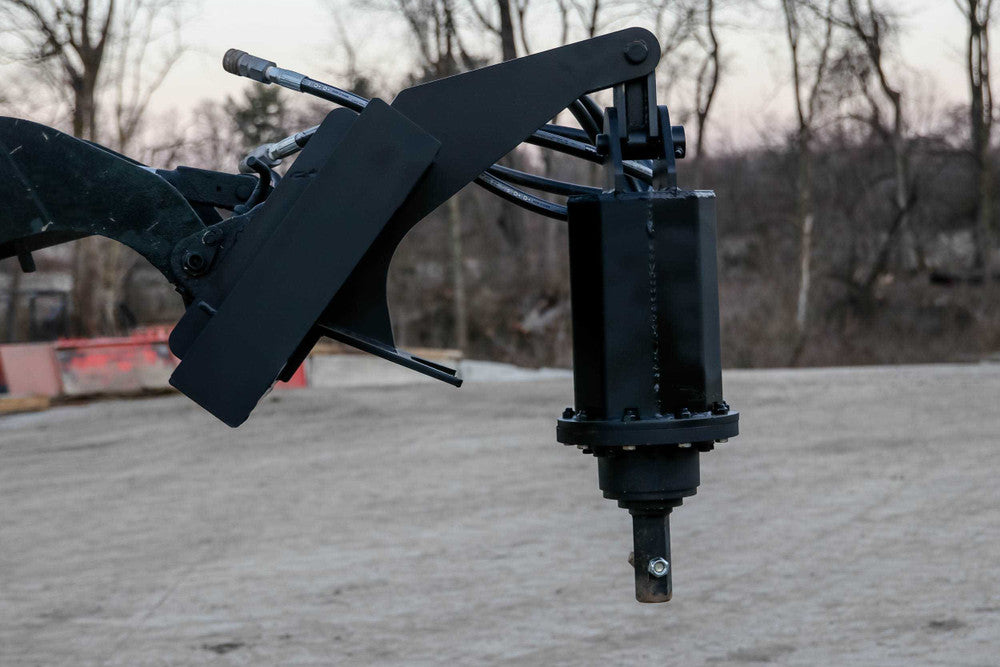

Express Steel Toro Dingo Hydraulic Auger Head - manufacturer attachment view 2

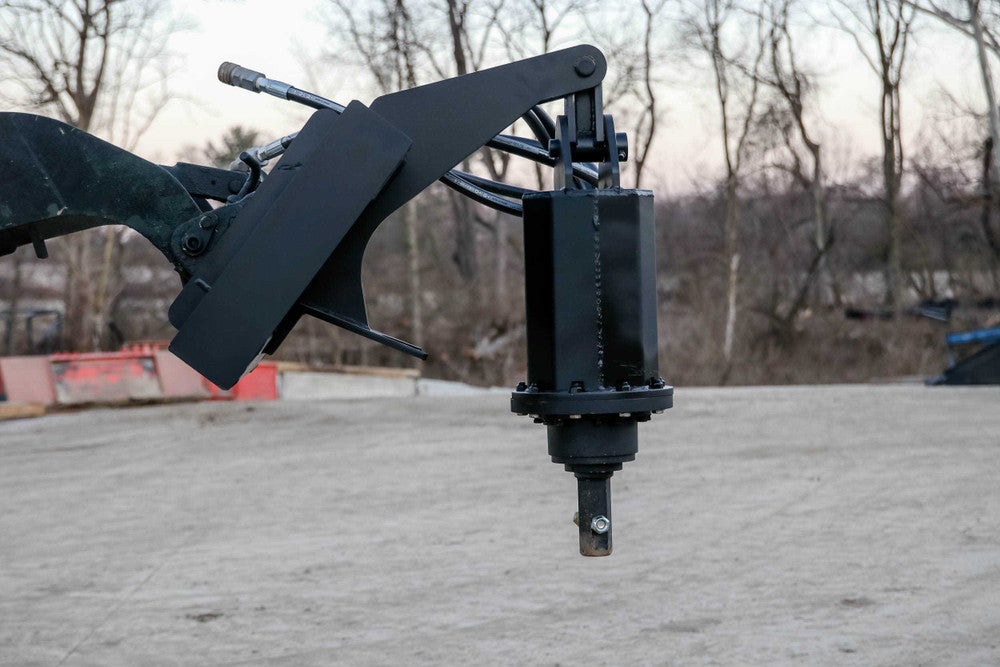

Express Steel Toro Dingo Hydraulic Auger Head - manufacturer attachment view 3
Express Steel Toro Dingo Hydraulic Auger Head - manufacturer attachment view 4

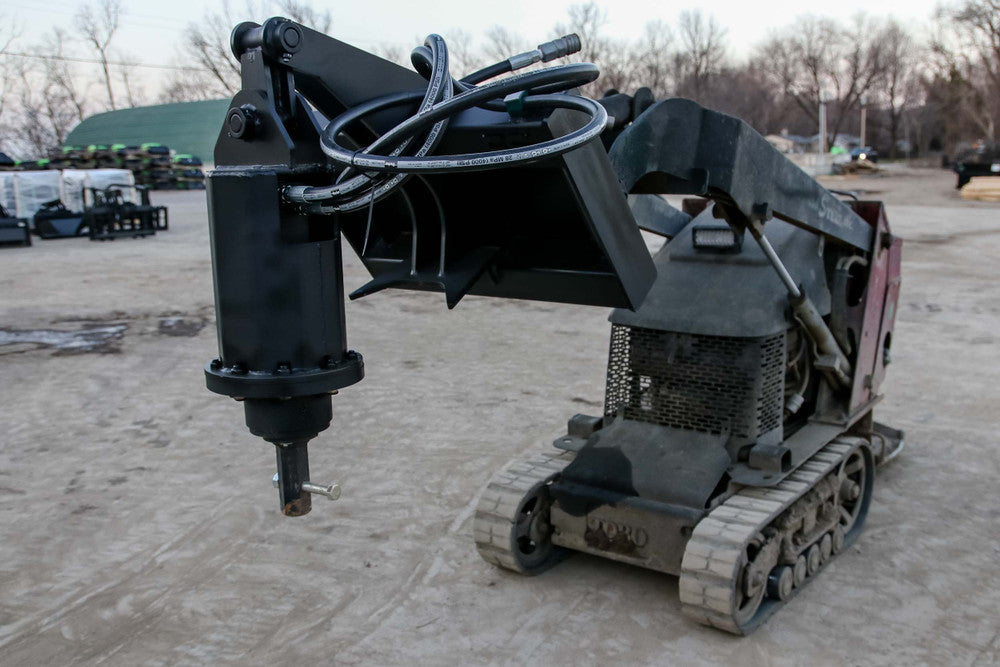

Express Steel Toro Dingo Hydraulic Auger Head - manufacturer attachment view 5
Express Steel Toro Dingo Hydraulic Auger Head - manufacturer attachment view 6
Express Steel Toro Dingo Hydraulic Auger Head - manufacturer attachment view 7
Roll over image to zoom in Click on image to zoom
Express Steel Toro Dingo Hydraulic Auger Head - product viewExpress Steel Toro Dingo Hydraulic Auger Head - manufacturer attachment view 2Express Steel Toro Dingo Hydraulic Auger Head - manufacturer attachment view 3Express Steel Toro Dingo Hydraulic Auger Head - manufacturer attachment view 4Express Steel Toro Dingo Hydraulic Auger Head - manufacturer attachment view 5Express Steel Toro Dingo Hydraulic Auger Head - manufacturer attachment view 6Express Steel Toro Dingo Hydraulic Auger Head - manufacturer attachment view 7
Express Steel

Express Steel Toro Dingo Hydraulic Auger Head

SKU: ES42410 Availability confirmed before order

$5,386.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

PLANETARY DRIVE

A PLANETARY DRIVE POWERS REPEATED HOLE DRILLING FOR FENCE POSTS, PLANTING AND CONSTRUCTION TASKS.

2-INCH HEX OUTPUT

THE STANDARD 2-INCH HEX OUTPUT SHAFT ACCEPTS COMPATIBLE BITS UP TO 36 INCHES IN DIAMETER.

15-25 GPM FLOW

A 15-25 GPM AUXILIARY HYDRAULIC CIRCUIT DRIVES AN OUTPUT SPEED OF 50-83 RPM.

2,290-3,206 LB-FT TORQUE

THE DRIVE DEVELOPS 2,290 LB-FT AT 2,500 PSI AND 3,206 LB-FT AT 3,500 PSI.

HOSES & COUPLERS INCLUDED

THE AUGER HEAD INCLUDES HYDRAULIC HOSES, FITTINGS AND COUPLERS FOR CONNECTION TO A SUITABLE MACHINE.

Description

Key Benefits

Technical Specs

Applications

Express Steel Toro Dingo Hydraulic Auger Head

Express Steel Toro Dingo Hydraulic Auger Head brings powered hole drilling to fencing, planting and construction work. Its planetary drive turns a compatible auger bit through a 2-inch hex output shaft, with capacity for bits up to 36 inches in diameter.

Match the drive to an auxiliary hydraulic circuit delivering 15-25 GPM and 2,500-3,500 PSI. Output ranges from 50-83 RPM, with torque of 2,290 lb-ft at 2,500 PSI and 3,206 lb-ft at 3,500 PSI.

Hoses, fittings and couplers are included to connect the auger head to a suitable hydraulic circuit. The 300-lb attachment uses a toro dingo style mini skid steer mount; excludes toro dingo tx1000, kubota scl1000, mini bobcat/mt and universal skid steer quick attach. Confirm the machine's mount, hydraulic connections and handling capacity before ordering.

The auger head is supplied without a bit. Choose a compatible 2-inch hex bit separately to suit the hole diameter, ground conditions and work plan; extensions are separate accessories. Check the work area for underground utilities and follow the carrier and attachment operating instructions.

Express Steel Toro Dingo Hydraulic Auger Head

  • A planetary drive powers repeated hole drilling for fence posts, planting and construction tasks.
  • The standard 2-inch hex output shaft accepts compatible bits up to 36 inches in diameter.
  • A 15-25 gpm auxiliary hydraulic circuit drives an output speed of 50-83 rpm.
  • The drive develops 2,290 lb-ft at 2,500 psi and 3,206 lb-ft at 3,500 psi.
  • The auger head includes hydraulic hoses, fittings and couplers for connection to a suitable machine.

Express Steel Toro Dingo Hydraulic Auger Head

  • Model: ES42410
  • Drive: Planetary
  • Output shaft: 2-inch hex
  • Maximum bit diameter: 36 inches
  • Hydraulic flow: 15-25 GPM
  • Operating pressure: 2,500-3,500 PSI
  • Output speed: 50-83 RPM
  • Torque: 2,290 lb-ft at 2,500 PSI; 3,206 lb-ft at 3,500 PSI
  • Attachment weight: 300 lb
  • Dimensions: 29 × 20 × 32 inches

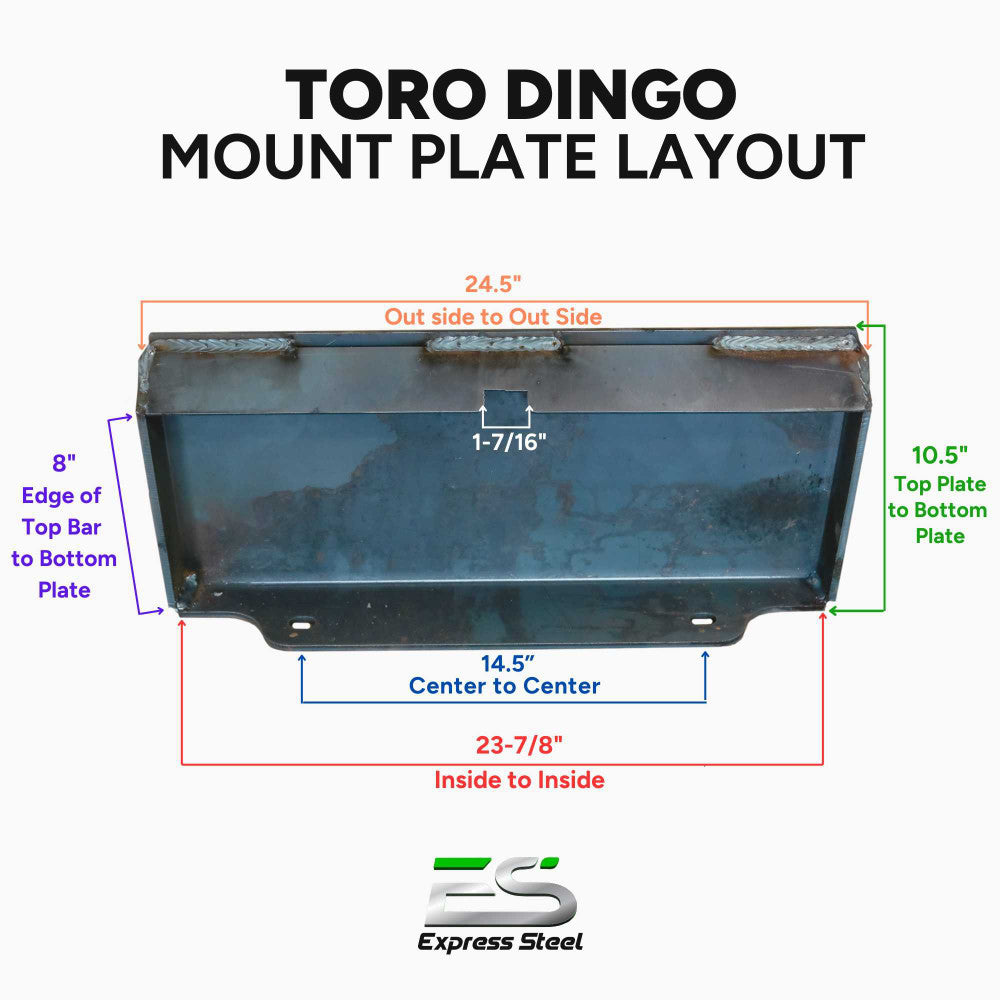

  • Mount: Toro Dingo style mini skid steer mount; excludes Toro Dingo TX1000, Kubota SCL1000, Mini Bobcat/MT and universal skid steer quick attach
  • Included: Auger head, hoses, fittings and couplers
  • Not included: Auger bit and extension

Express Steel Toro Dingo Hydraulic Auger Head

  • Drilling fence and gate post holes with a suitable bit.
  • Preparing planting holes for landscaping work.
  • Boring holes for construction layout and post setting.
  • Selecting bit diameter and depth for the ground conditions and carrier capacity.
  • Mount: Toro Dingo style mini skid steer mount; excludes Toro Dingo TX1000, Kubota SCL1000, Mini Bobcat/MT and universal skid steer quick attach. PowerFit checks hydraulic power; physical mounting and handling capacity must be confirmed separately.

Express Steel: Auger & Attachment Videos

Express Steel Toro Dingo Hydraulic Auger Head

BUILT FOR POWERED DRILLING:

  • A planetary drive powers repeated hole drilling for fence posts, planting and construction tasks.
  • The standard 2-inch hex output shaft accepts compatible bits up to 36 inches in diameter.
  • A 15-25 gpm auxiliary hydraulic circuit drives an output speed of 50-83 rpm.
  • The drive develops 2,290 lb-ft at 2,500 psi and 3,206 lb-ft at 3,500 psi.
  • The auger head includes hydraulic hoses, fittings and couplers for connection to a suitable machine.

MATCH YOUR WORKING SETUP:

  • Drilling fence and gate post holes with a suitable bit.
  • Preparing planting holes for landscaping work.
  • Boring holes for construction layout and post setting.
  • Selecting bit diameter and depth for the ground conditions and carrier capacity.
  • Mount: Toro Dingo style mini skid steer mount; excludes Toro Dingo TX1000, Kubota SCL1000, Mini Bobcat/MT and universal skid steer quick attach. PowerFit checks hydraulic power; physical mounting and handling capacity must be confirmed separately.

READY FOR THE FIELD:

  • Confirm the carrier mounting system and attachment handling capacity.
  • Check for 15-25 GPM auxiliary flow and 2,500-3,500 PSI operating pressure.
  • Select a compatible 2-inch hex bit, sold separately.
  • Check underground utilities and establish a clear drilling area.
  • Connect the hydraulics and inspect the assembly before operating.
