EXPRESS STEEL

Toro Dingo Tree Boom

For Mini Skid Steers

2,500-Lb Attachment Capacity | 55.5-Inch Tube Boom

Request QuoteAdd To Cart

Express Steel Toro Dingo Tree Boom

Express Steel toro dingo tree boom manufacturer view 1

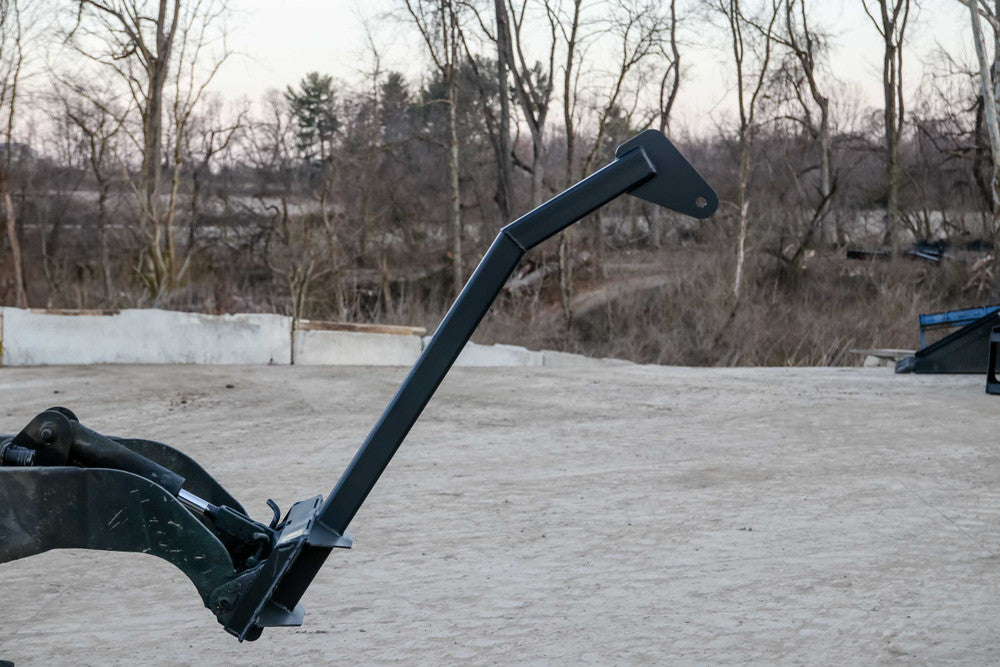

Express Steel toro dingo tree boom manufacturer view 2

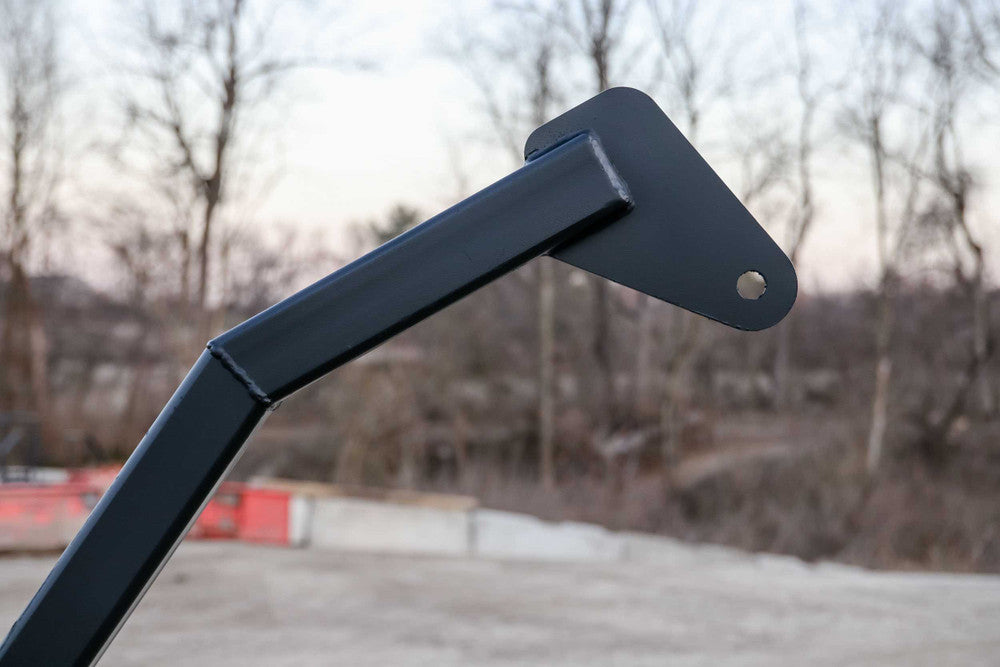

Express Steel toro dingo tree boom manufacturer view 3
Express Steel toro dingo tree boom manufacturer view 4
Express Steel toro dingo tree boom manufacturer view 5
Express Steel toro dingo tree boom manufacturer view 6
Roll over image to zoom in Click on image to zoom
Express Steel toro dingo tree boom manufacturer view 1Express Steel toro dingo tree boom manufacturer view 2Express Steel toro dingo tree boom manufacturer view 3Express Steel toro dingo tree boom manufacturer view 4Express Steel toro dingo tree boom manufacturer view 5Express Steel toro dingo tree boom manufacturer view 6
Express Steel

Express Steel Toro Dingo Tree Boom

SKU: ES61520 Availability confirmed before order

$1,960.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

2,500-POUND ATTACHMENT CAPACITY

THE BOOM’S MAXIMUM LIFTING CAPACITY IS 2,500 POUNDS. THE MINI LOADER’S RATED CAPACITY, STABILITY, AND LOAD POSITION STILL DETERMINE THE PERMITTED WORKING LOAD.

3 × 3-INCH STEEL TUBING

THE FIXED BOOM USES 3 × 3-INCH SQUARE STEEL TUBING. ITS RIGID STRUCTURE PROVIDES AN ATTACHMENT POINT FOR CONTROLLED TREE AND MATERIAL PLACEMENT.

55.5-INCH TUBE BOOM HEIGHT

THE TUBE BOOM STANDS 55.5 INCHES TALL. OVERALL ATTACHMENT DIMENSIONS ARE 25 × 18 × 60 INCHES.

90-POUND ATTACHMENT

THE FIXED TREE BOOM WEIGHS 90 POUNDS. INCLUDE THIS ATTACHMENT WEIGHT WHEN CALCULATING THE CARRIER’S AVAILABLE LOAD-HANDLING CAPACITY.

TORO DINGO-STYLE MOUNT

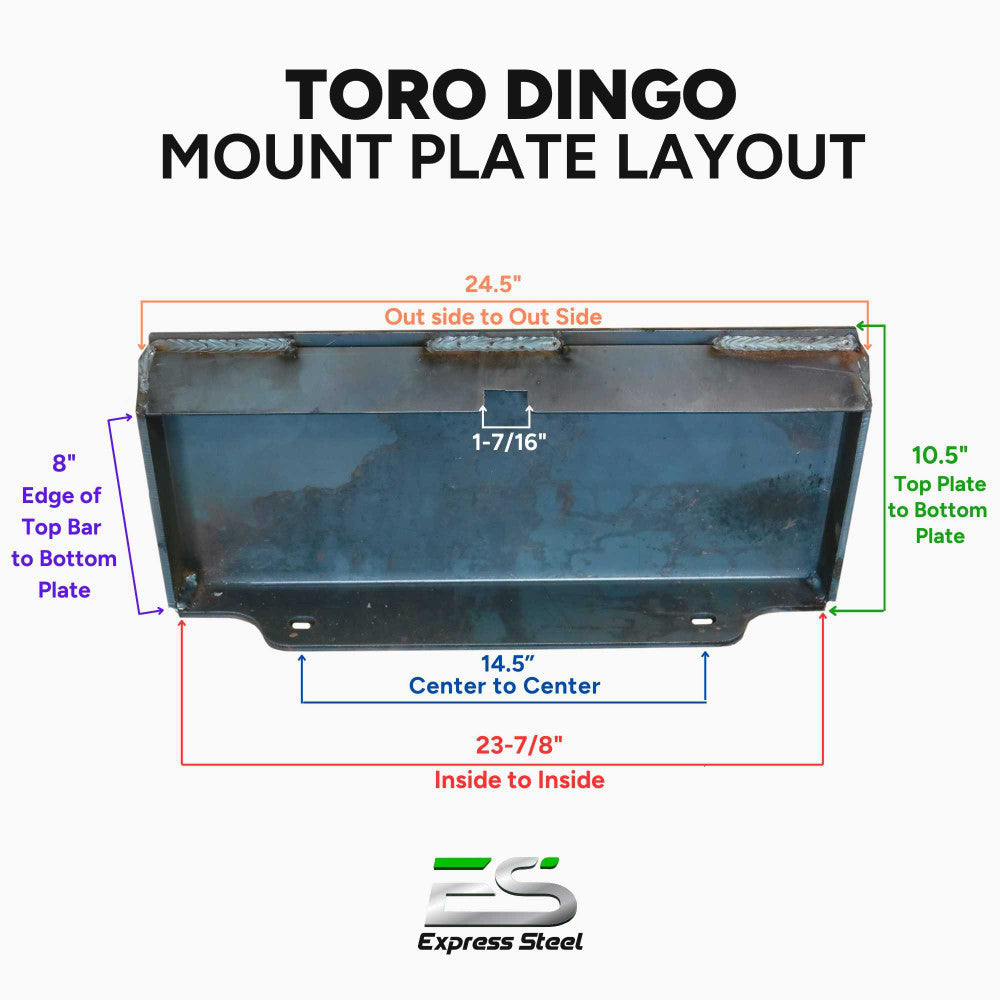

THE MINI MOUNTING PLATE REQUIRES A MATCHING TORO DINGO-STYLE INTERFACE. THIS ATTACHMENT DOES NOT FIT TORO TX1000 OR KUBOTA SCL1000 MACHINES.

Description

Key Benefits

Technical Specs

Applications

Express Steel Toro Dingo Tree Boom

The Express Steel Toro Dingo Tree Boom gives a matching mini skid steer a fixed boom for setting trees and positioning materials. Its compact mounting arrangement suits landscape jobs and controlled handling around a worksite.

The boom uses 3 × 3-inch square steel tubing with a tube boom height of 55.5 inches. Overall dimensions are 25 × 18 × 60 inches, and attachment weight is 90 pounds.

Maximum attachment lifting capacity is 2,500 pounds. This figure is the attachment rating, not a promise that a mini loader can lift that load. Follow the carrier’s rated capacity, stability limits, and load-position requirements, including the weight of the attachment and rigging.

The mounting plate fits matching Toro Dingo-style mini interfaces, including the manufacturer’s named Ditch Witch, Vermeer, Ramrod, Thomas, Finn, and Boxer applications. It excludes Toro TX1000 and Kubota SCL1000 machines. Confirm the exact mounting interface before use.

Express Steel Toro Dingo Tree Boom

  • The boom’s maximum lifting capacity is 2,500 pounds. The mini loader’s rated capacity, stability, and load position still determine the permitted working load.
  • The fixed boom uses 3 × 3-inch square steel tubing. Its rigid structure provides an attachment point for controlled tree and material placement.
  • The tube boom stands 55.5 inches tall. Overall attachment dimensions are 25 × 18 × 60 inches.
  • The fixed tree boom weighs 90 pounds. Include this attachment weight when calculating the carrier’s available load-handling capacity.
  • The mini mounting plate requires a matching Toro Dingo-style interface. This attachment does not fit Toro TX1000 or Kubota SCL1000 machines.

Express Steel Toro Dingo Tree Boom

  • Model: ES61520
  • Maximum attachment lifting capacity: 2,500 lb
  • Tube construction: 3 × 3-inch square steel tubing
  • Tube boom height: 55.5 inches
  • Overall dimensions: 25 × 18 × 60 inches
  • Attachment weight: 90 lb
  • Mount: Toro Dingo-style mini attachment plate
  • Mount exclusions: Toro TX1000 and Kubota SCL1000
  • Operation: fixed boom; no auxiliary hydraulic drive

Express Steel Toro Dingo Tree Boom

  • Setting trees within the loader’s handling capacity.
  • Positioning landscape materials in controlled work areas.
  • Supporting material loading and placement.
  • Working with a matching mini attachment interface.

Express Steel: Brand & Attachment Videos

Express Steel Toro Dingo Tree Boom

BUILT FOR MATERIAL POSITIONING:

  • The boom’s maximum lifting capacity is 2,500 pounds. The mini loader’s rated capacity, stability, and load position still determine the permitted working load.
  • The fixed boom uses 3 × 3-inch square steel tubing. Its rigid structure provides an attachment point for controlled tree and material placement.
  • The tube boom stands 55.5 inches tall. Overall attachment dimensions are 25 × 18 × 60 inches.
  • The fixed tree boom weighs 90 pounds. Include this attachment weight when calculating the carrier’s available load-handling capacity.
  • The mini mounting plate requires a matching Toro Dingo-style interface. This attachment does not fit Toro TX1000 or Kubota SCL1000 machines.

MATCH YOUR WORKING SETUP:

  • Setting trees within the loader’s handling capacity.
  • Positioning landscape materials in controlled work areas.
  • Supporting material loading and placement.
  • Working with a matching mini attachment interface.

READY FOR THE FIELD:

  • Inspect the boom, attachment plate, and load-handling hardware.
  • Secure the mounting interface and verify all carrier locks.
  • Confirm the mini mounting plate matches the carrier.
  • Keep the load within both attachment and carrier limits for its position.
  • Keep people clear of suspended loads and operate on suitable ground.
Request a Quote
