EXPRESS STEEL

Universal Plate

For Skid Steer & Tractor Attachments

5/16-inch Steel Plate

Request QuoteAdd To Cart

Express Steel Universal Quick Attach Plate

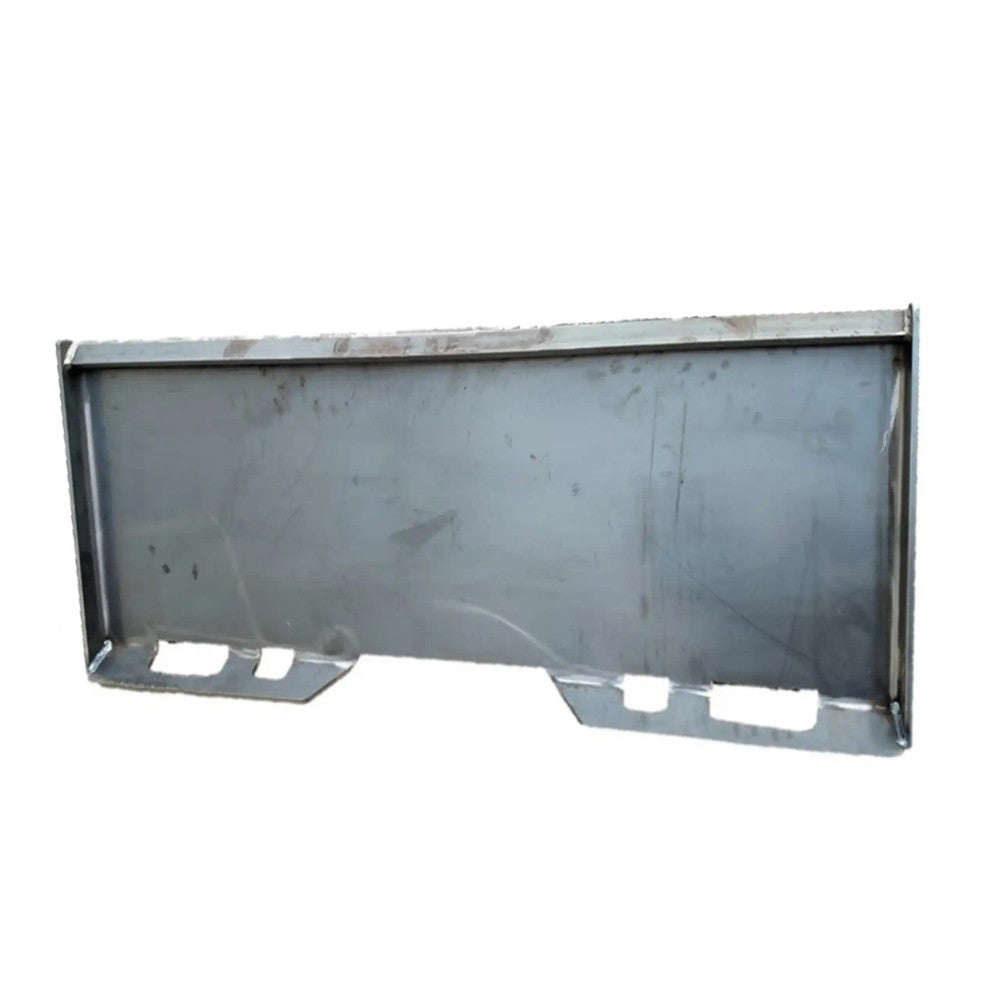

Express Steel Universal Quick Attach Plate - product view

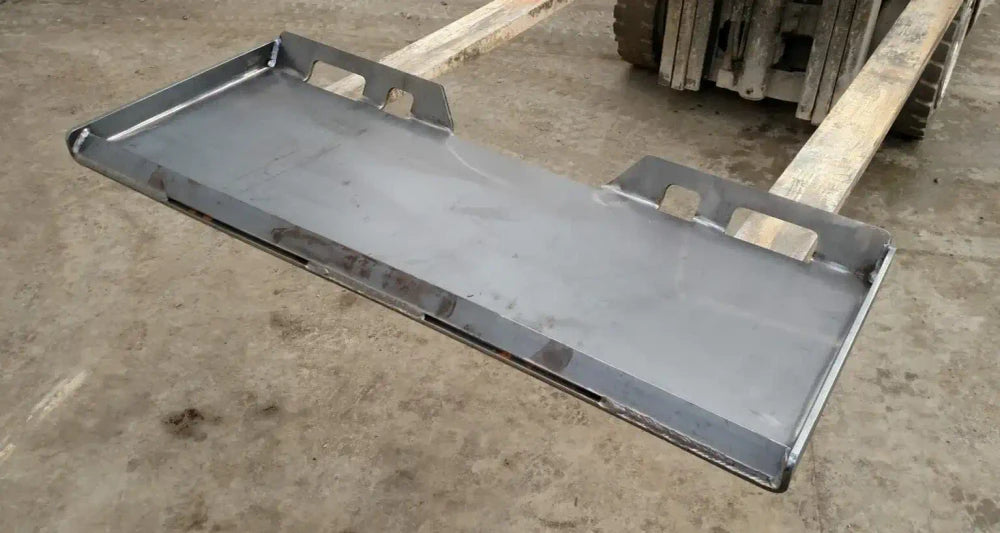

Express Steel Universal Quick Attach Plate - manufacturer view 2

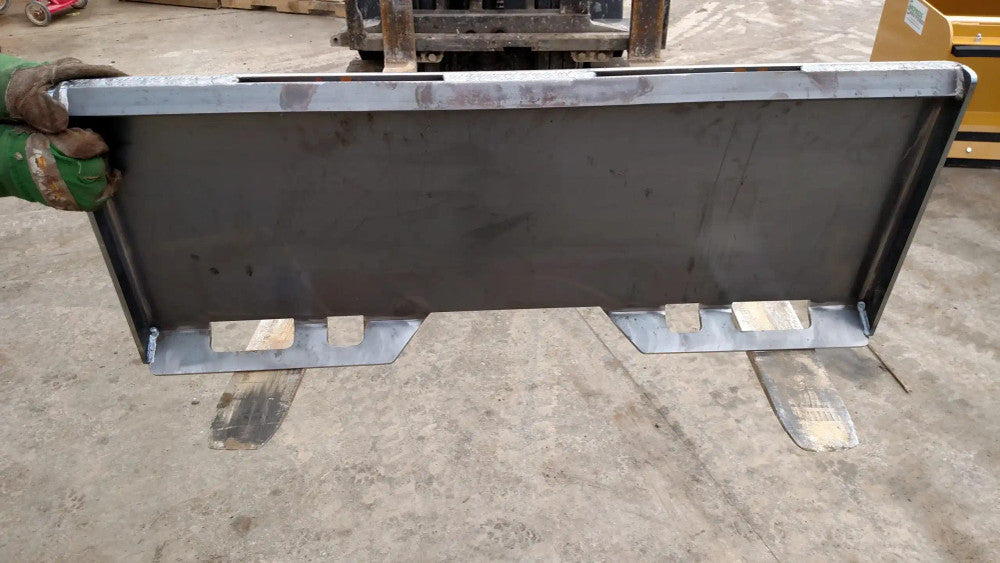

Express Steel Universal Quick Attach Plate - manufacturer view 3

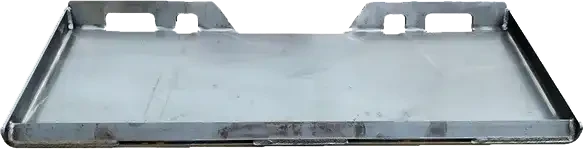

Express Steel Universal Quick Attach Plate - manufacturer view 4
Roll over image to zoom in Click on image to zoom
Express Steel Universal Quick Attach Plate - product viewExpress Steel Universal Quick Attach Plate - manufacturer view 2Express Steel Universal Quick Attach Plate - manufacturer view 3Express Steel Universal Quick Attach Plate - manufacturer view 4
Express Steel

Express Steel Universal Quick Attach Plate

SKU: 3014-31 Availability confirmed before order

$1,709.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

STEEL CONSTRUCTION

THE MOUNTING STRUCTURE USES 5/16-INCH STEEL PLATE WITH A 3/8-INCH UPPER MOUNT FOR THE ATTACHMENT INTERFACE.

SPECIFIC COUPLER FIT

DESIGNED FOR THE UNIVERSAL SKID STEER QUICK ATTACH.

MOUNTING GEOMETRY

45-1/2 × 2-1/2 × 17-1/2 INCHES.

COMPONENT WEIGHT

THE COMPONENT WEIGHS 85 LB; INCLUDE IT IN THE TOTAL ATTACHMENT WEIGHT.

ATTACHMENT FABRICATION

THE MOUNTING COMPONENT SUPPORTS A PROPERLY DESIGNED ATTACHMENT CONVERSION OR REPAIR; FINAL STRUCTURAL AND LOCKING CHECKS ARE REQUIRED.

Description

Key Benefits

Technical Specs

Applications

Express Steel Universal Quick Attach Plate

Express Steel Universal Quick Attach Plate provides a mounting interface for a suitable attachment fabrication or repair project. It is intended for the universal skid steer quick attach, so the carrier and attachment geometry must match before installation.

The mounting component uses 5/16-inch steel plate with a 3/8-inch upper mount. Its 85-lb component weight must be included in the completed attachment's handling calculations. 45-1/2 × 2-1/2 × 17-1/2 inches.

Fit the mounting component to a structurally suitable attachment using an appropriate fabrication plan. Check locking points, clearances, alignment and load paths before welding or final installation.

This is a mounting component, not a complete powered attachment. Professional fabrication and a final coupler inspection are required before use; adding a mounting plate does not increase the carrier or attachment's rated capacity.

Express Steel Universal Quick Attach Plate

  • The mounting structure uses 5/16-inch steel plate with a 3/8-inch upper mount for the attachment interface.
  • Designed for the universal skid steer quick attach.
  • 45-1/2 × 2-1/2 × 17-1/2 inches.
  • The component weighs 85 lb; include it in the total attachment weight.
  • The mounting component supports a properly designed attachment conversion or repair; final structural and locking checks are required.

Express Steel Universal Quick Attach Plate

  • Supplier catalog reference: 3014-31
  • Steel: 5/16-inch steel plate with a 3/8-inch upper mount
  • Mounting geometry: 45-1/2 × 2-1/2 × 17-1/2 inches
  • Carrier interface: universal skid steer quick attach
  • Component weight: 85 lb
  • Component only: Requires appropriate attachment fabrication and fit verification

Express Steel Universal Quick Attach Plate

  • Attachment mounting interface fabrication.
  • Repairing a suitable attachment mounting structure.
  • Adapting a structurally appropriate implement to the specified coupler.
  • Interface: universal skid steer quick attach.
  • Confirm the completed assembly's clearance, locking engagement and rated load before use.

Express Steel: Brand & Attachment Videos

Express Steel Universal Quick Attach Plate

BUILT FOR YOUR WORK:

  • The mounting structure uses 5/16-inch steel plate with a 3/8-inch upper mount for the attachment interface.
  • Designed for the universal skid steer quick attach.
  • 45-1/2 × 2-1/2 × 17-1/2 inches.
  • The component weighs 85 lb; include it in the total attachment weight.
  • The mounting component supports a properly designed attachment conversion or repair; final structural and locking checks are required.

MATCH YOUR WORKING SETUP:

  • Attachment mounting interface fabrication.
  • Repairing a suitable attachment mounting structure.
  • Adapting a structurally appropriate implement to the specified coupler.
  • Interface: universal skid steer quick attach.
  • Confirm the completed assembly's clearance, locking engagement and rated load before use.

READY FOR THE FIELD:

  • Identify the exact carrier coupler.
  • Compare interface measurements and locking points.
  • Confirm the attachment is structurally suitable for conversion.
  • Use a qualified fabrication process and appropriate hardware.
  • Inspect alignment, clearances and locking engagement before operation.
