EXPRESS STEEL

Vertical Extreme Grapple

For Skid Steers & Track Loaders

72–84-Inch Widths

Express Steel

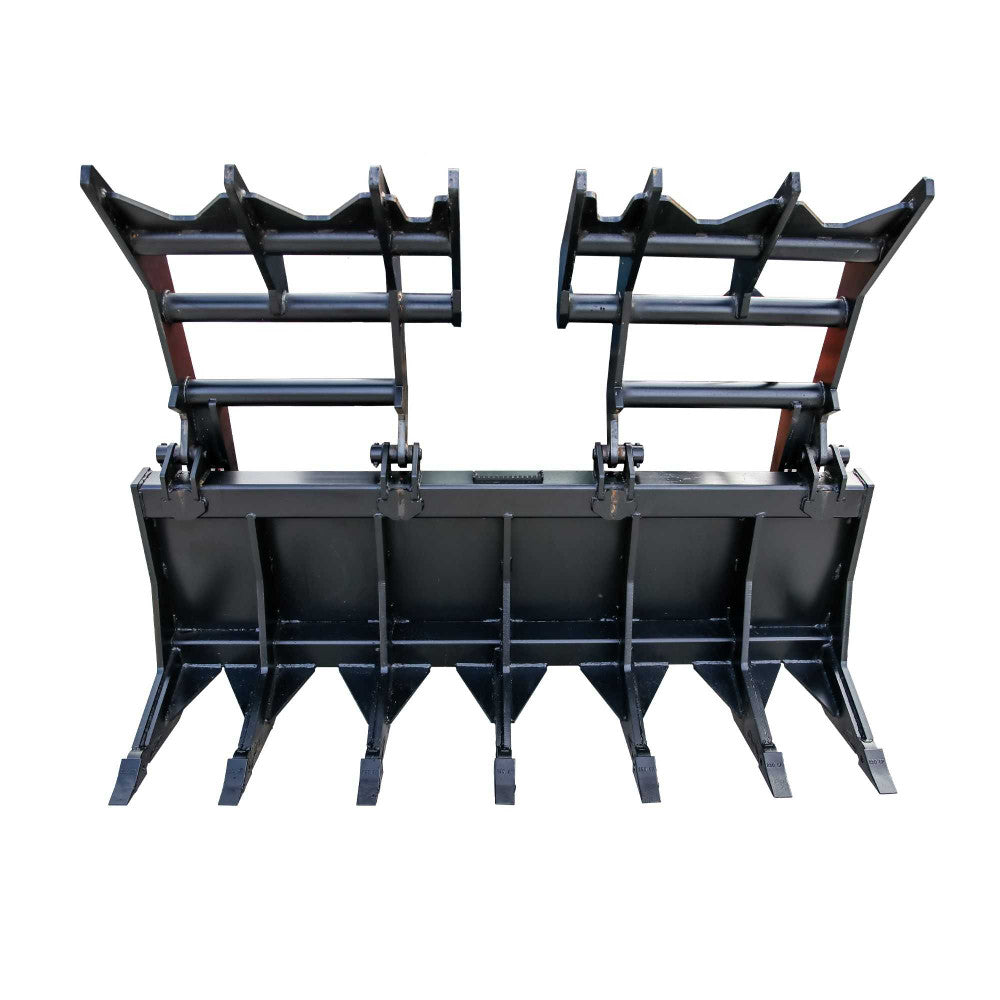

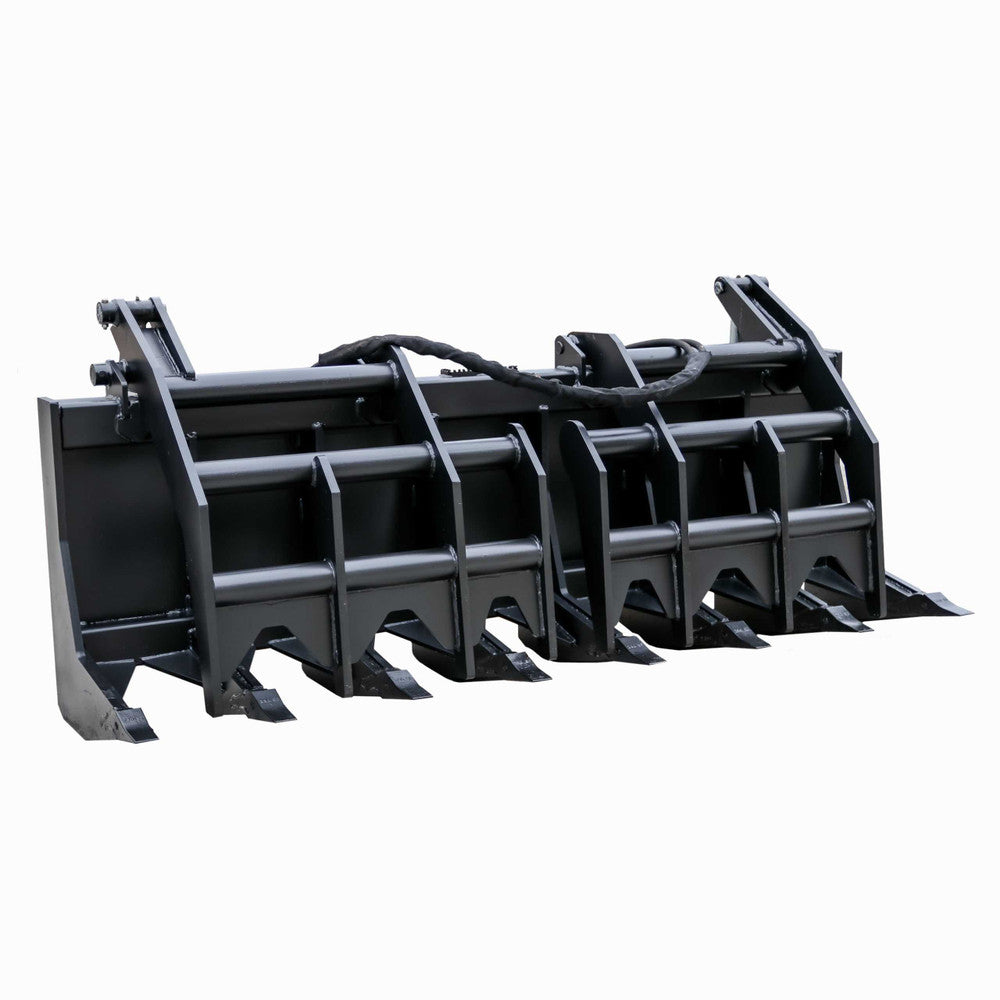

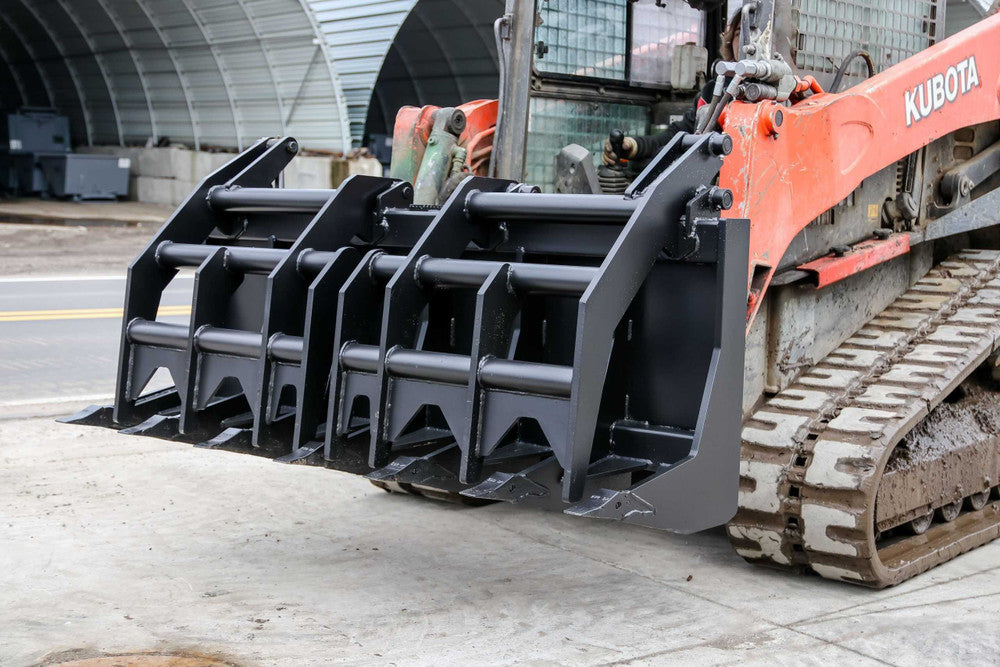

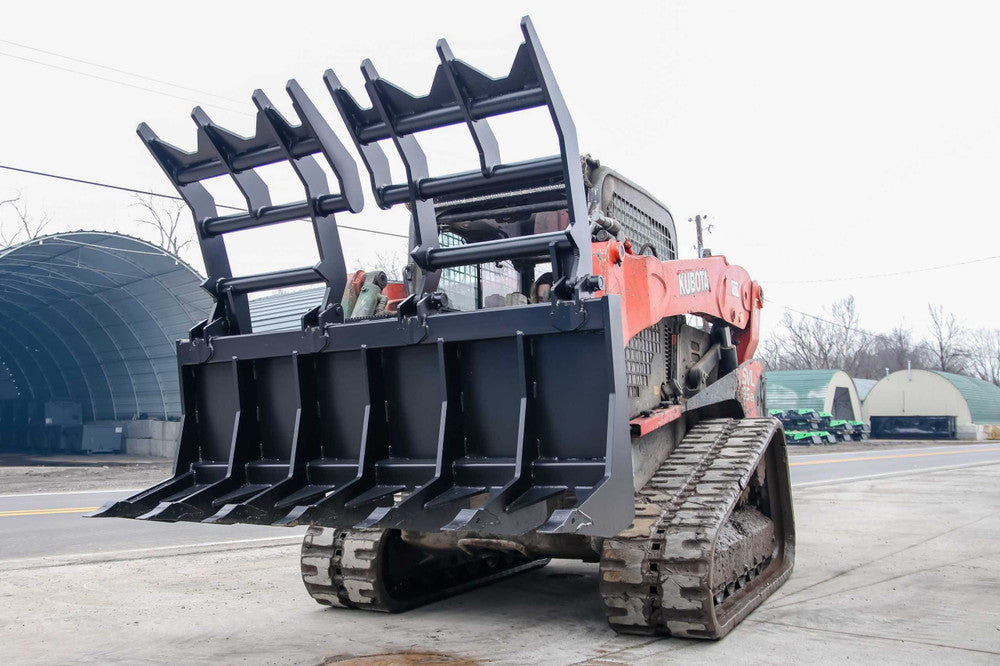

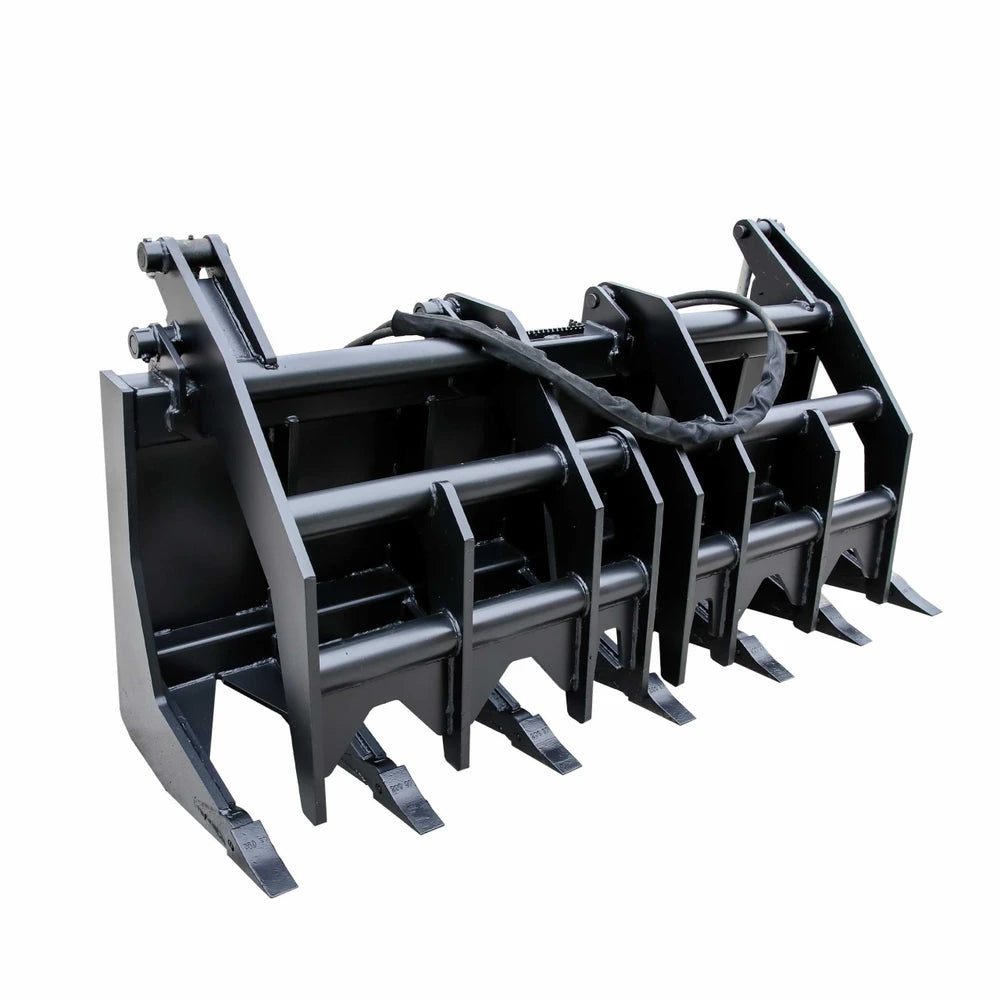

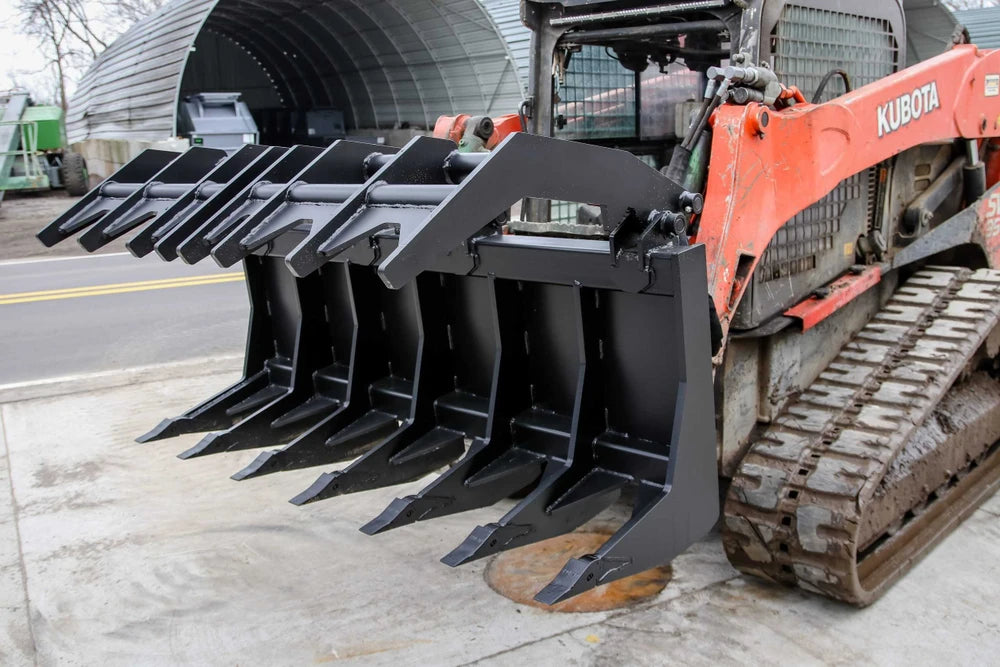

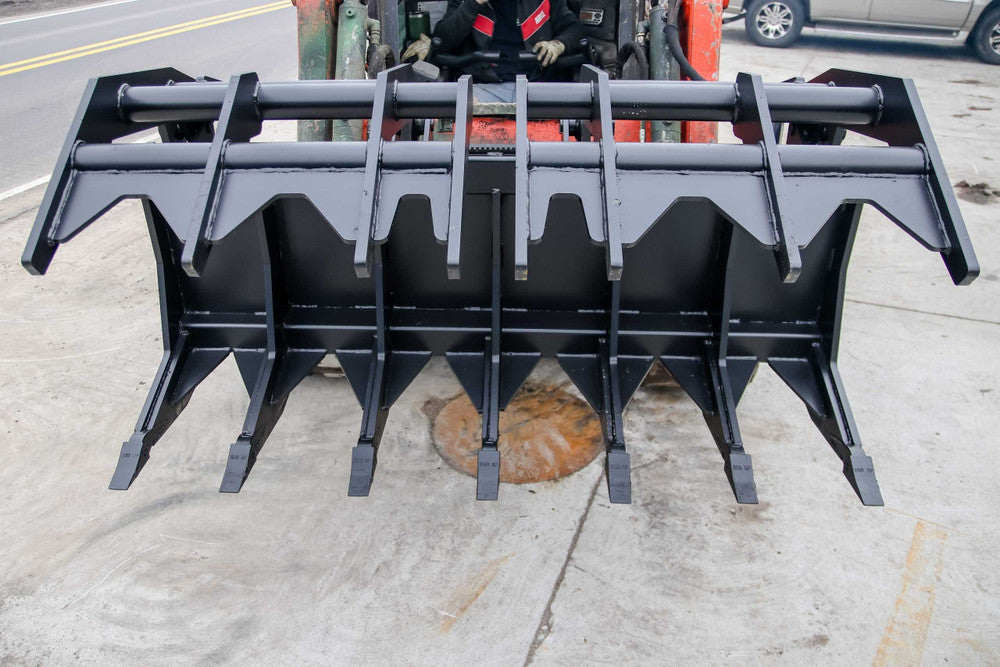

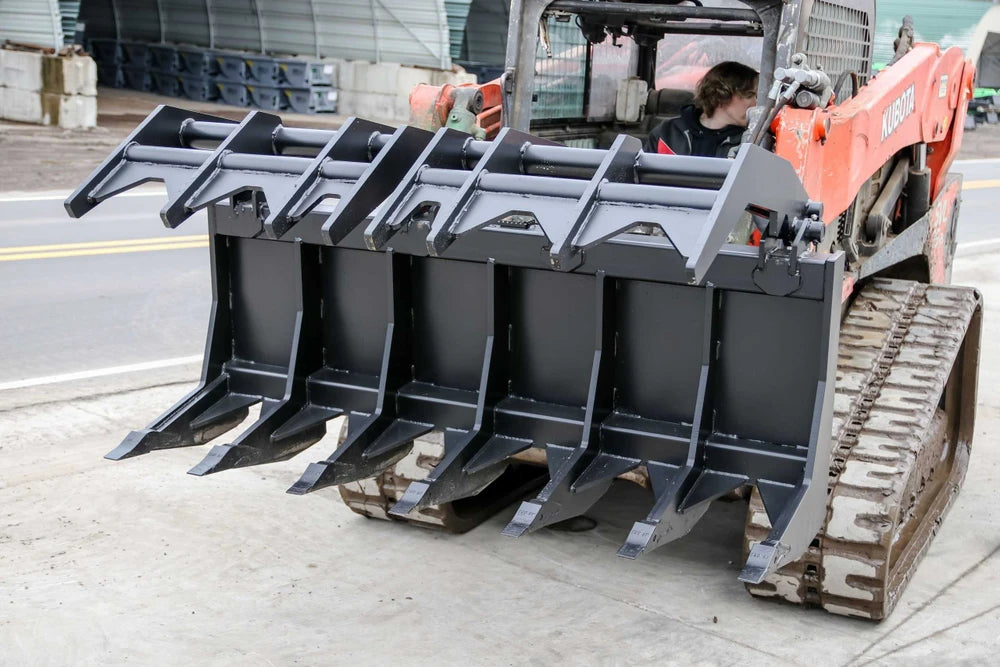

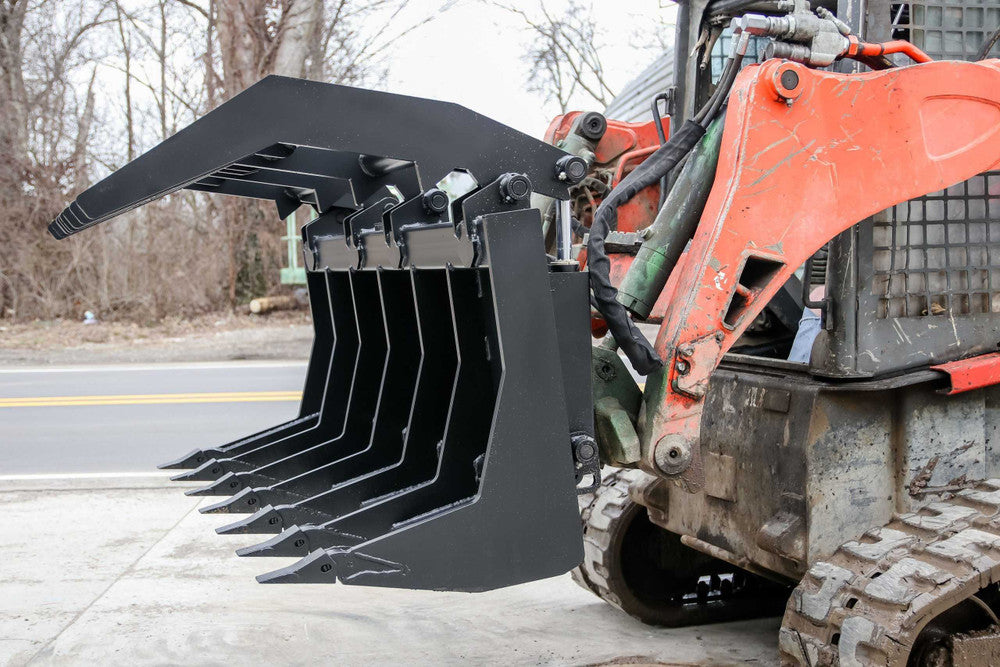

Express Steel Vertical Extreme Grapple

SKU: ES20160 Availability confirmed before order

Sale price$6,059.99 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

1.5-INCH BOTTOM TINES

THE LOWER TINES USE 1.5-INCH-THICK STEEL. THIS SUBSTANTIAL LOWER STRUCTURE SUPPORTS HEAVY-DUTY DEBRIS HANDLING.

3/4-INCH UPPER TINES

THE UPPER GRAPPLE TINES USE 3/4-INCH STEEL. INDEPENDENT UPPER SECTIONS CLAMP IRREGULAR LOADS AGAINST THE LOWER BODY.

54-INCH GRAPPLE OPENING

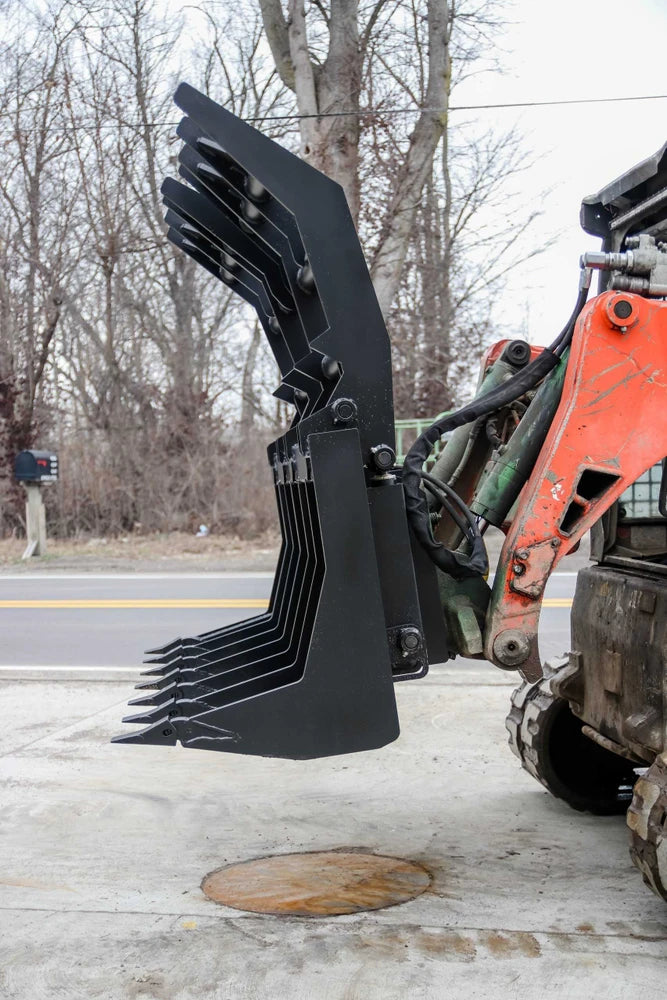

THE GRAPPLE OPENS TO 54 INCHES. ITS WIDE OPENING HELPS POSITION THE ATTACHMENT AROUND BULKY MATERIAL.

11.25-INCH TINE SPACING

THE LOWER TINES HAVE 11.25-INCH SPACING. THE OPEN STRUCTURE LETS FINER MATERIAL FALL AWAY DURING SORTING AND CLEANUP.

FOR MACHINES UP TO 110 HP

THE VERTICAL EXTREME FAMILY IS RECOMMENDED FOR MACHINES UP TO 110 HORSEPOWER. KEEP ATTACHMENT AND PAYLOAD WEIGHT WITHIN THE CARRIER’S HANDLING LIMITS.

Description

Key Benefits

Technical Specs

Applications

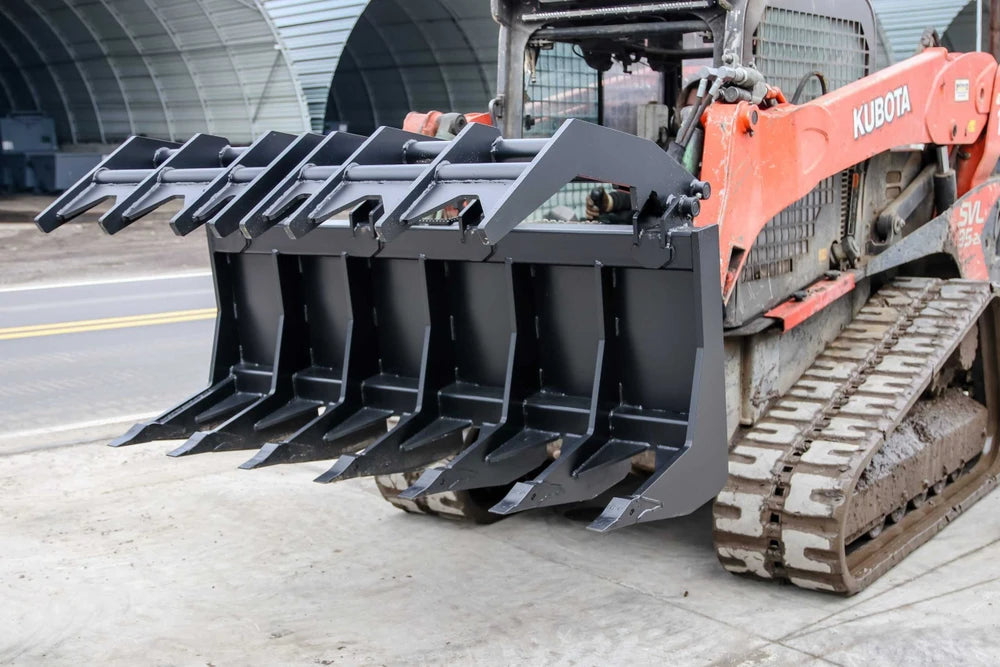

Express Steel Vertical Extreme Grapple

The Express Steel Vertical Extreme Grapple grips brush, logs, and irregular debris for controlled material handling. It connects through a Universal skid steer quick attach interface.

The lower tines use 1.5-inch-thick steel. This substantial lower structure supports heavy-duty debris handling. The upper grapple tines use 3/4-inch steel. Independent upper sections clamp irregular loads against the lower body.

The grapple opens to 54 inches. Its wide opening helps position the attachment around bulky material. The lower tines have 11.25-inch spacing. The open structure lets finer material fall away during sorting and cleanup.

The vertical extreme family is recommended for machines up to 110 horsepower. Keep attachment and payload weight within the carrier’s handling limits. Account for attachment weight, payload, load position, and the carrier’s rated capacity before lifting or transporting material.

Express Steel Vertical Extreme Grapple

  • The lower tines use 1.5-inch-thick steel. This substantial lower structure supports heavy-duty debris handling.
  • The upper grapple tines use 3/4-inch steel. Independent upper sections clamp irregular loads against the lower body.
  • The grapple opens to 54 inches. Its wide opening helps position the attachment around bulky material.
  • The lower tines have 11.25-inch spacing. The open structure lets finer material fall away during sorting and cleanup.
  • The vertical extreme family is recommended for machines up to 110 horsepower. Keep attachment and payload weight within the carrier’s handling limits.

Express Steel Vertical Extreme Grapple

  • Brand: Express Steel
  • Product: Vertical Extreme Grapple
  • Mount: Universal skid steer quick attach
  • Working action: hydraulic cylinder actuation
  • Body depth: 25.5 inches; body height: 37 inches
  • Machine recommendation: up to 110 HP
  • ES20160: 72 inch; 1250 lb
  • ES20170: 78 inch; 1320 lb
  • ES20180: 84 inch; 1380 lb
  • Maximum jaw opening: 54 inches

Express Steel Vertical Extreme Grapple

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.

Express Steel: Grapple Demonstrations

Express Steel Vertical Extreme Grapple

BUILT FOR MATERIAL HANDLING:

  • The lower tines use 1.5-inch-thick steel. This substantial lower structure supports heavy-duty debris handling.
  • The upper grapple tines use 3/4-inch steel. Independent upper sections clamp irregular loads against the lower body.
  • The grapple opens to 54 inches. Its wide opening helps position the attachment around bulky material.
  • The lower tines have 11.25-inch spacing. The open structure lets finer material fall away during sorting and cleanup.
  • The vertical extreme family is recommended for machines up to 110 horsepower. Keep attachment and payload weight within the carrier’s handling limits.

MATCH YOUR WORKING SETUP:

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.
  • Mount:Universal skid steer quick attach.
  • Check carrier lifting capacity at the actual load position.

READY FOR THE FIELD:

  • Inspect the grapple tines, working edges, pins, and retaining hardware.
  • Engage the loader attachment locks before connecting hydraulics.
  • Connect the correct hoses and couplers with hydraulic pressure relieved.
  • Check jaw movement and any rotation controls in a clear area.
  • Keep the load low during travel and remain within all handling limits.
