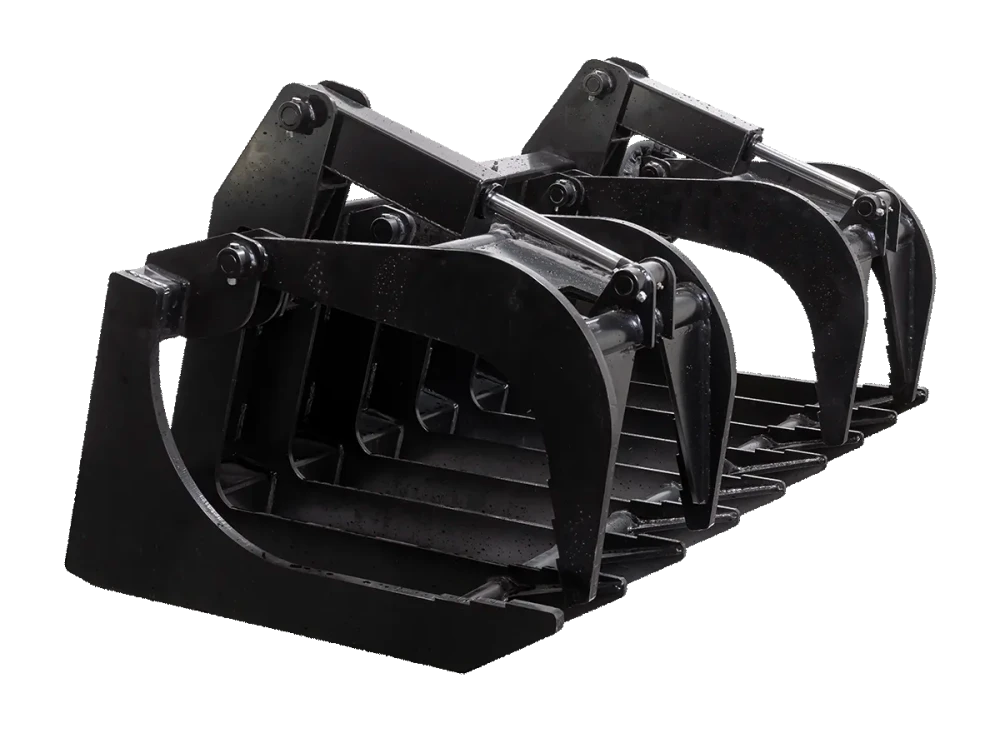

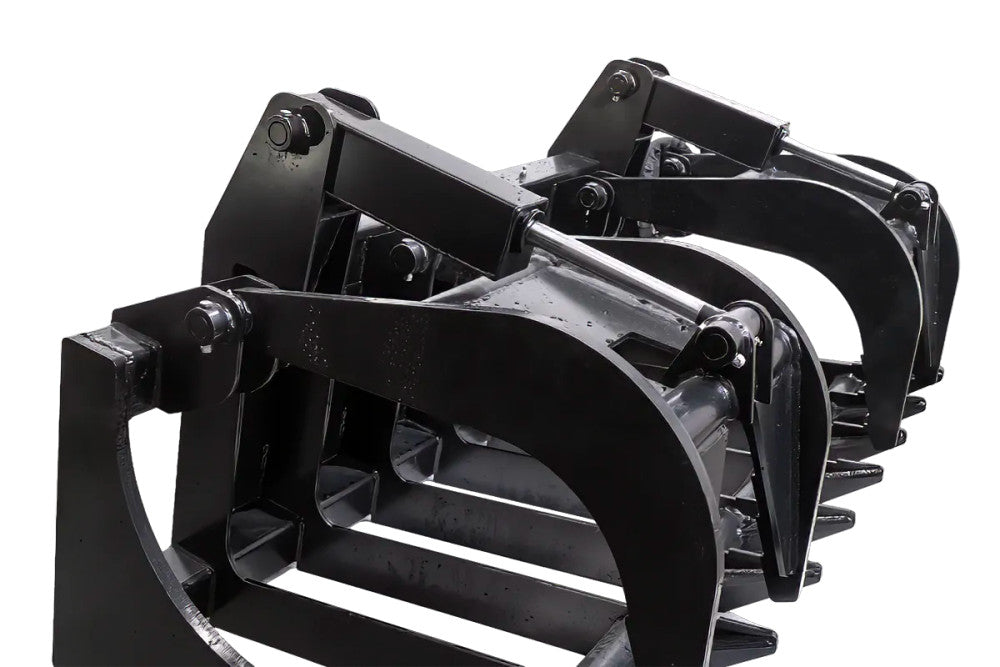

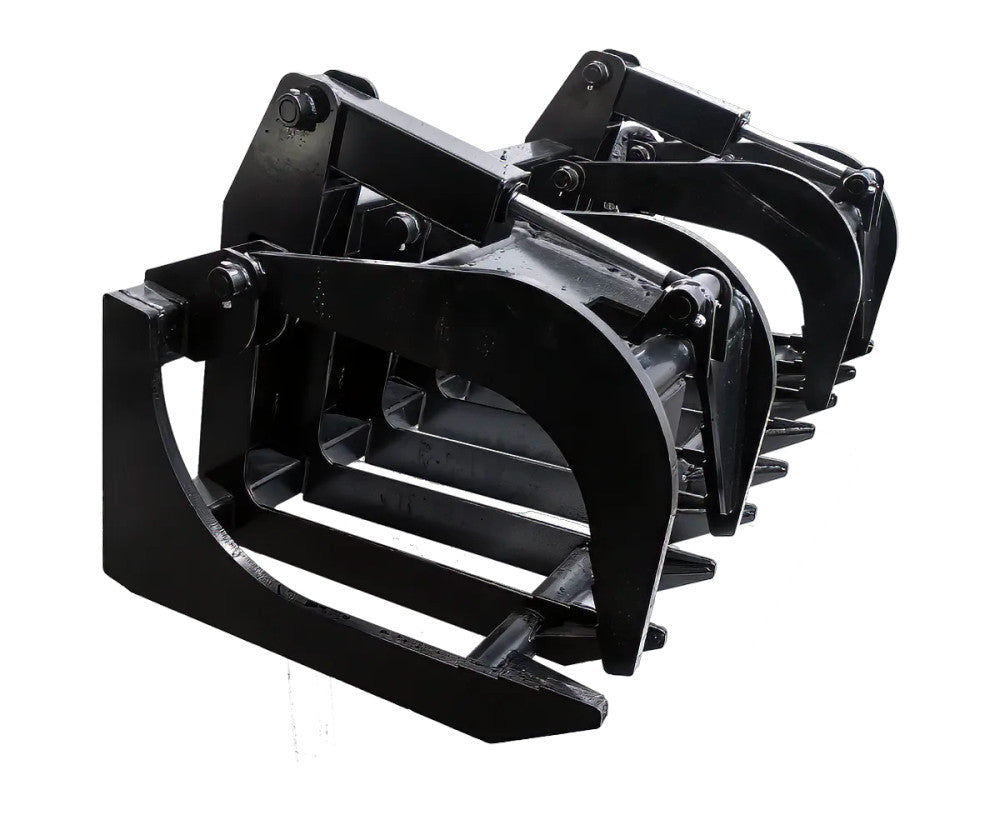

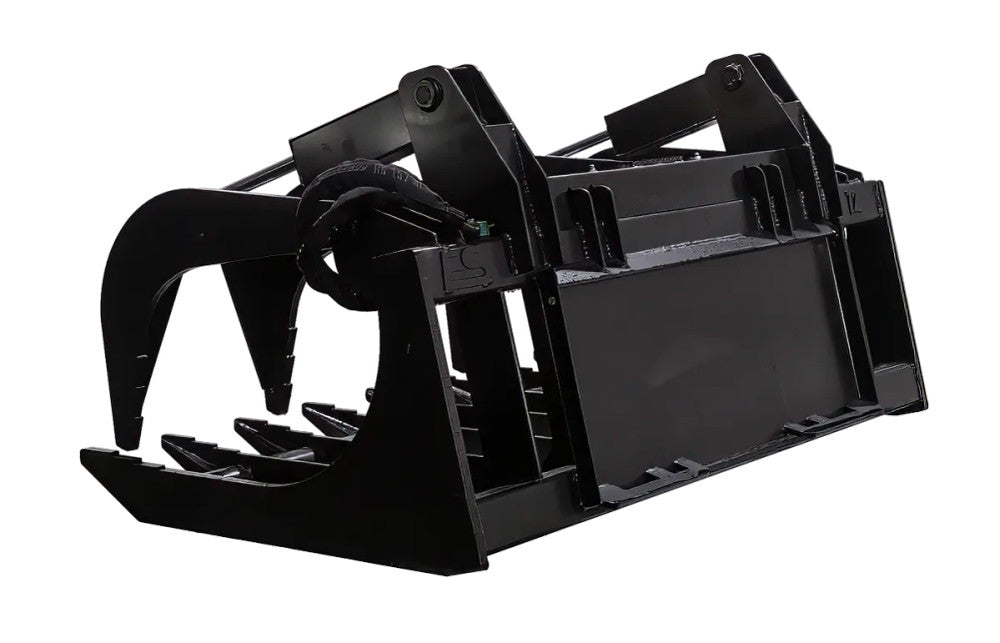

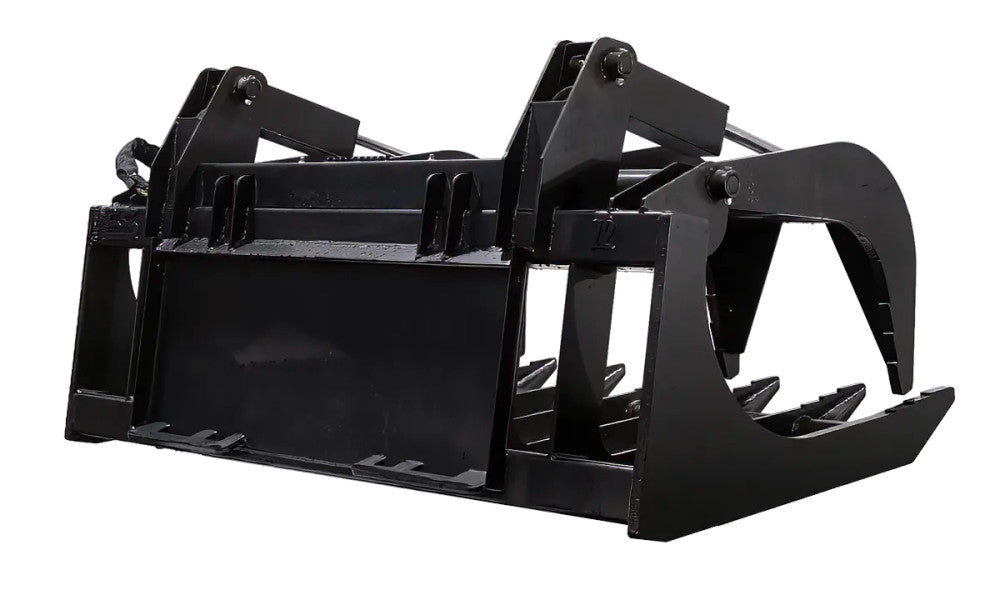

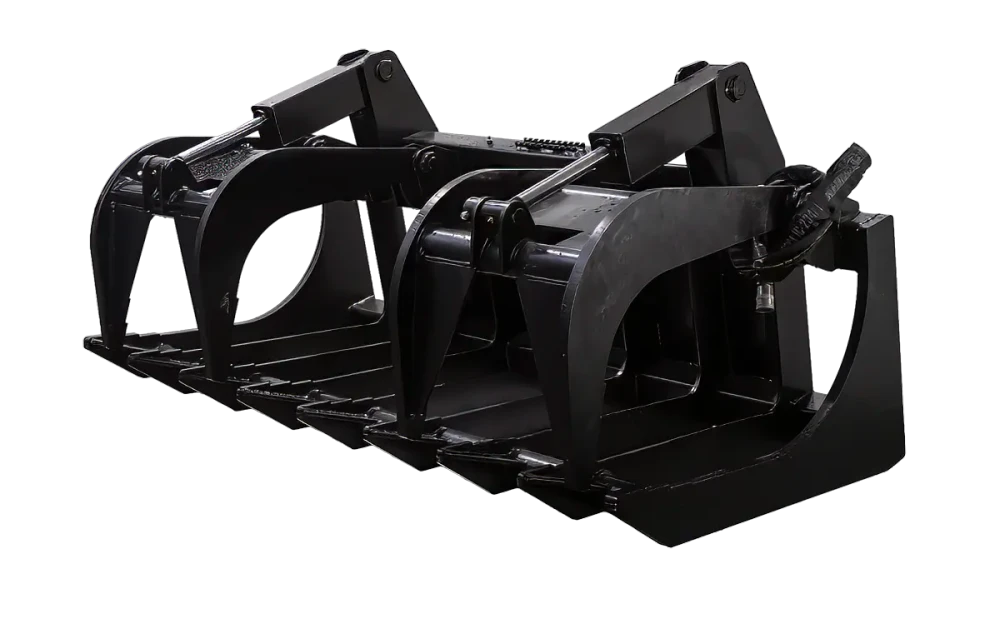

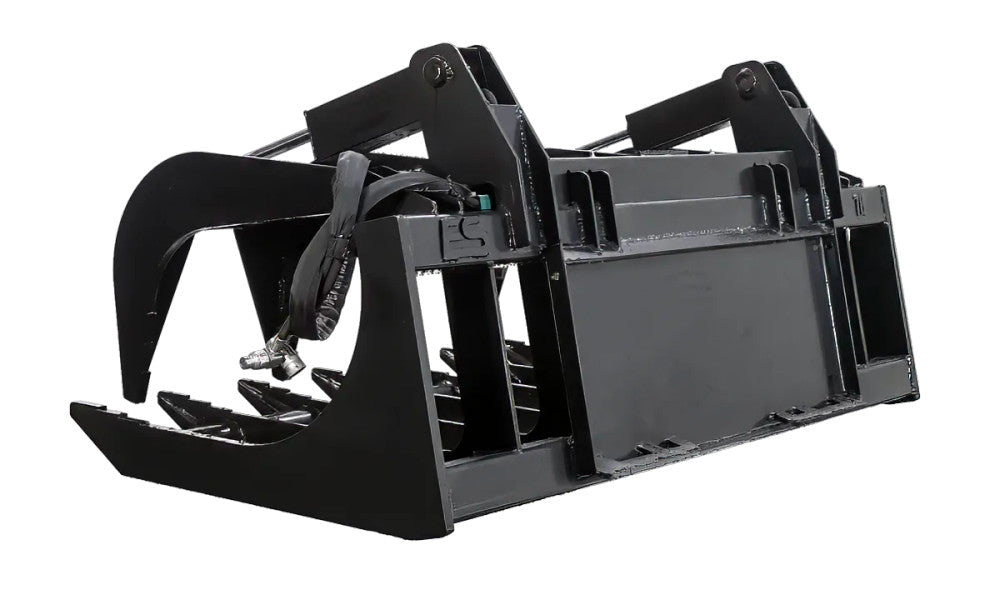

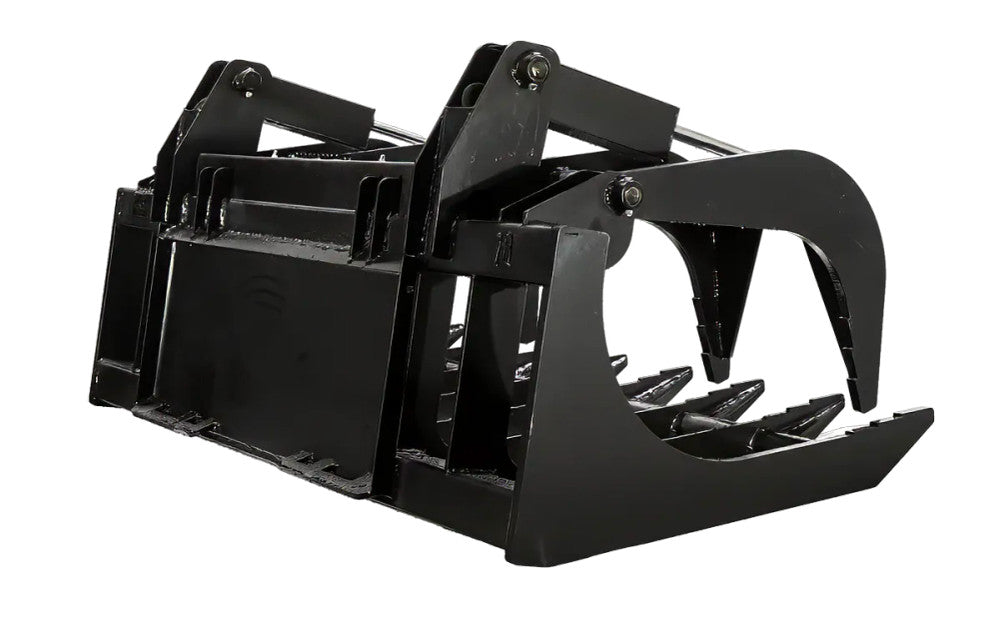

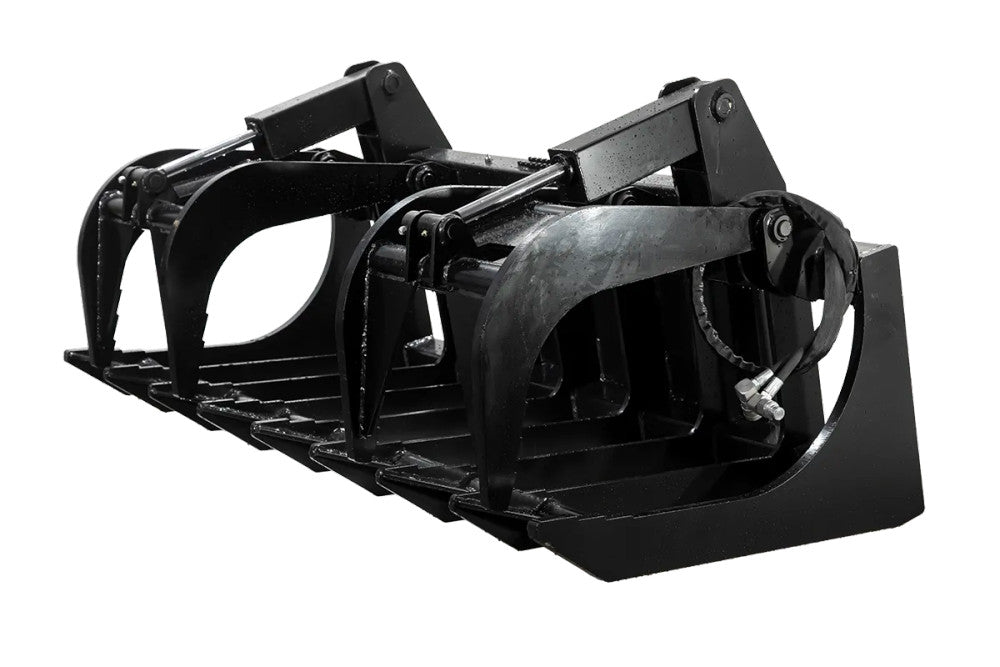

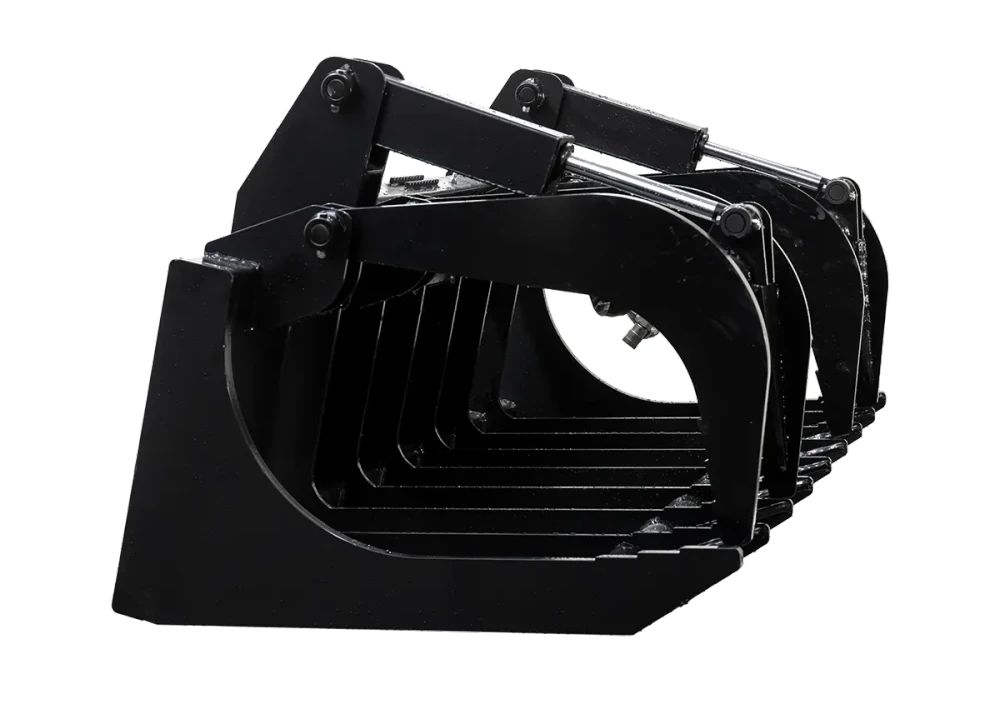

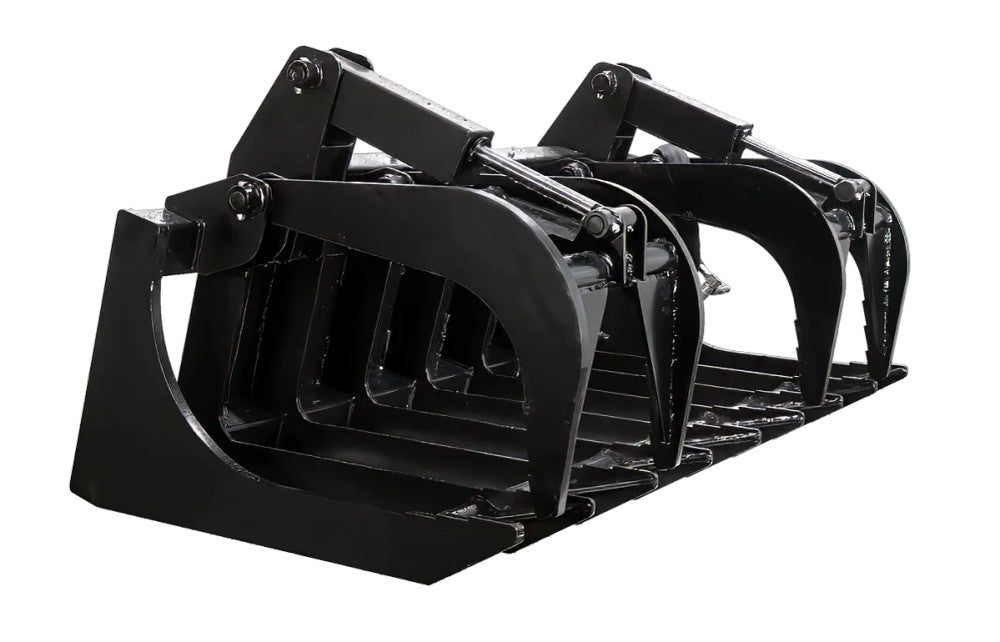

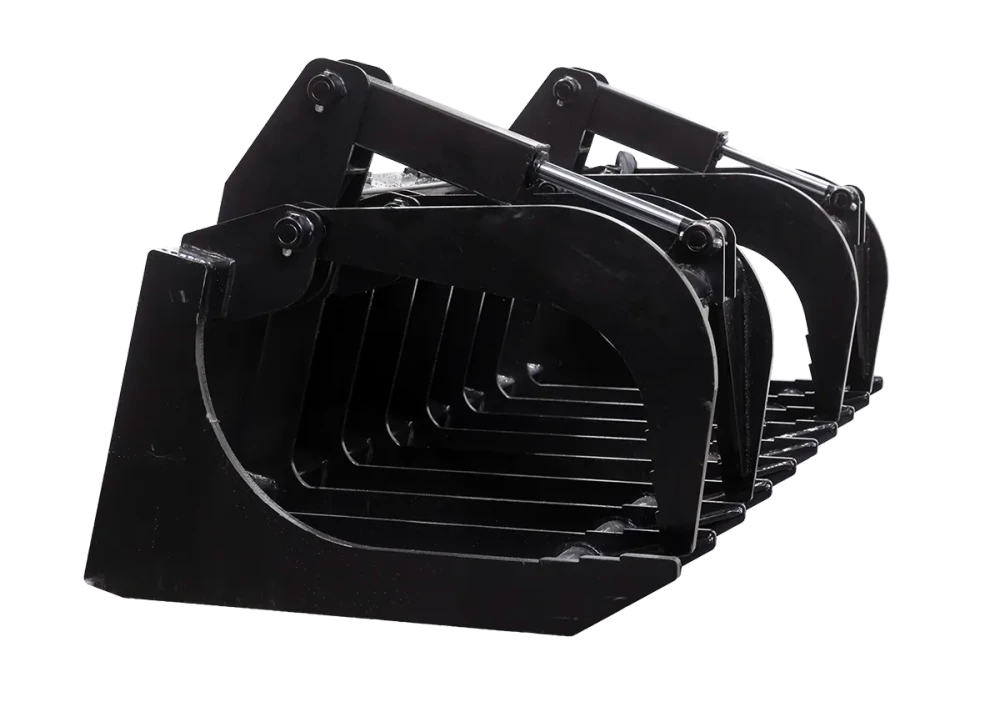

Express Steel XHD Root Grapple

Roll over image to zoom in Click on image to zoom

Express Steel

Express Steel XHD Root Grapple

SKU: ES20130 Availability confirmed before order

Width: 72 inch

Variant

$5,917.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility

Quantity:

Ask a Question or Request a Quote

(805)-334-5208

operations@currenhaus.com

Product Specifications

Parts & Support

MOST IMPORTANT FEATURES

1-INCH INDEPENDENT UPPER TINES

INDEPENDENT UPPER GRAPPLE TINES USE 1-INCH-THICK STEEL. THE SEPARATE UPPER SECTIONS HOLD UNEVEN LOADS AGAINST THE LOWER TINES.

REINFORCED LOWER TINE STRUCTURE

THE BOTTOM TINES USE 1/2-INCH STEEL WITH 1-INCH OUTSIDE TINES. THIS REINFORCED ARRANGEMENT SUPPORTS HEAVY BRUSH AND DEBRIS HANDLING.

9-INCH TINE SPACING

THE LOWER TINES HAVE 9-INCH SPACING. THE OPEN LAYOUT ALLOWS FINER MATERIAL TO FALL THROUGH DURING CLEANUP.

33.25-INCH GRAPPLE OPENING

THE GRAPPLE OPENS TO 33.25 INCHES. THREE WIDTH CHOICES SPAN 72–84 INCHES.

FOR MACHINES UP TO 110 HP

THE XHD FAMILY IS RECOMMENDED FOR MACHINES UP TO 110 HORSEPOWER. MATCH THE LOADED ATTACHMENT TO THE CARRIER’S RATED HANDLING CAPACITY.

Description

Key Benefits

Technical Specs

Applications

Express Steel XHD Root Grapple

The Express Steel XHD Root Grapple grips brush, logs, and irregular debris for controlled material handling. It connects through a Universal skid steer quick attach interface.

Independent upper grapple tines use 1-inch-thick steel. The separate upper sections hold uneven loads against the lower tines. The bottom tines use 1/2-inch steel with 1-inch outside tines. This reinforced arrangement supports heavy brush and debris handling.

The lower tines have 9-inch spacing. The open layout allows finer material to fall through during cleanup. The grapple opens to 33.25 inches. Three width choices span 72–84 inches.

The XHD family is recommended for machines up to 110 horsepower. Match the loaded attachment to the carrier’s rated handling capacity. Account for attachment weight, payload, load position, and the carrier’s rated capacity before lifting or transporting material.

Express Steel XHD Root Grapple

Independent upper grapple tines use 1-inch-thick steel. The separate upper sections hold uneven loads against the lower tines.
The bottom tines use 1/2-inch steel with 1-inch outside tines. This reinforced arrangement supports heavy brush and debris handling.
The lower tines have 9-inch spacing. The open layout allows finer material to fall through during cleanup.
The grapple opens to 33.25 inches. Three width choices span 72–84 inches.
The XHD family is recommended for machines up to 110 horsepower. Match the loaded attachment to the carrier’s rated handling capacity.

Express Steel XHD Root Grapple

Brand: Express Steel
Product: XHD Root Grapple
Mount: Universal skid steer quick attach
Working action: hydraulic cylinder actuation
Body depth: 40 inches; body height: 35 inches
Tine spacing: 9 inches
Machine recommendation: up to 110 HP
ES20130: 72 inch; 1070 lb
ES20140: 78 inch; 1090 lb
ES20150: 84 inch; 1140 lb
Maximum jaw opening: 33.25 inches

Express Steel XHD Root Grapple

Brush and debris cleanup.
Landscape clearing and material staging.
Loading and transporting supported material within carrier and attachment limits.

Express Steel: Grapple Demonstrations

Express Steel XHD Root Grapple

BUILT FOR MATERIAL HANDLING:

Independent upper grapple tines use 1-inch-thick steel. The separate upper sections hold uneven loads against the lower tines.
The bottom tines use 1/2-inch steel with 1-inch outside tines. This reinforced arrangement supports heavy brush and debris handling.
The lower tines have 9-inch spacing. The open layout allows finer material to fall through during cleanup.
The grapple opens to 33.25 inches. Three width choices span 72–84 inches.
The XHD family is recommended for machines up to 110 horsepower. Match the loaded attachment to the carrier’s rated handling capacity.

MATCH YOUR WORKING SETUP:

Brush and debris cleanup.
Landscape clearing and material staging.
Loading and transporting supported material within carrier and attachment limits.
Mount:Universal skid steer quick attach.
Check carrier lifting capacity at the actual load position.

READY FOR THE FIELD:

Inspect the grapple tines, working edges, pins, and retaining hardware.
Engage the loader attachment locks before connecting hydraulics.
Connect the correct hoses and couplers with hydraulic pressure relieved.
Check jaw movement and any rotation controls in a clear area.
Keep the load low during travel and remain within all handling limits.
