HD RAMPS

84″ Modular Yard Ramp Systems

25,000 lb. Total Capacity

Request QuoteView Options

HD Ramps 84″ Aluminum Modular Yard Ramp Systems

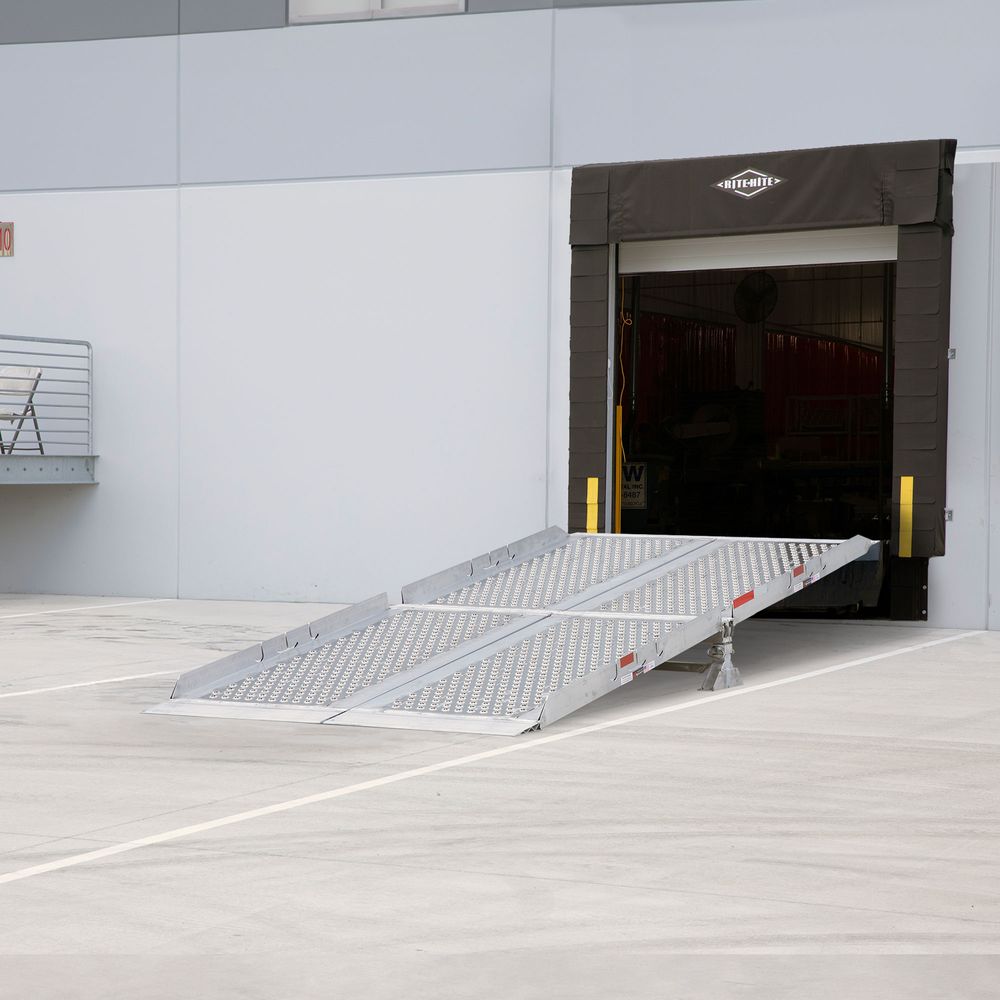

HD Ramps 15-84-184-06-MYR: product photograph

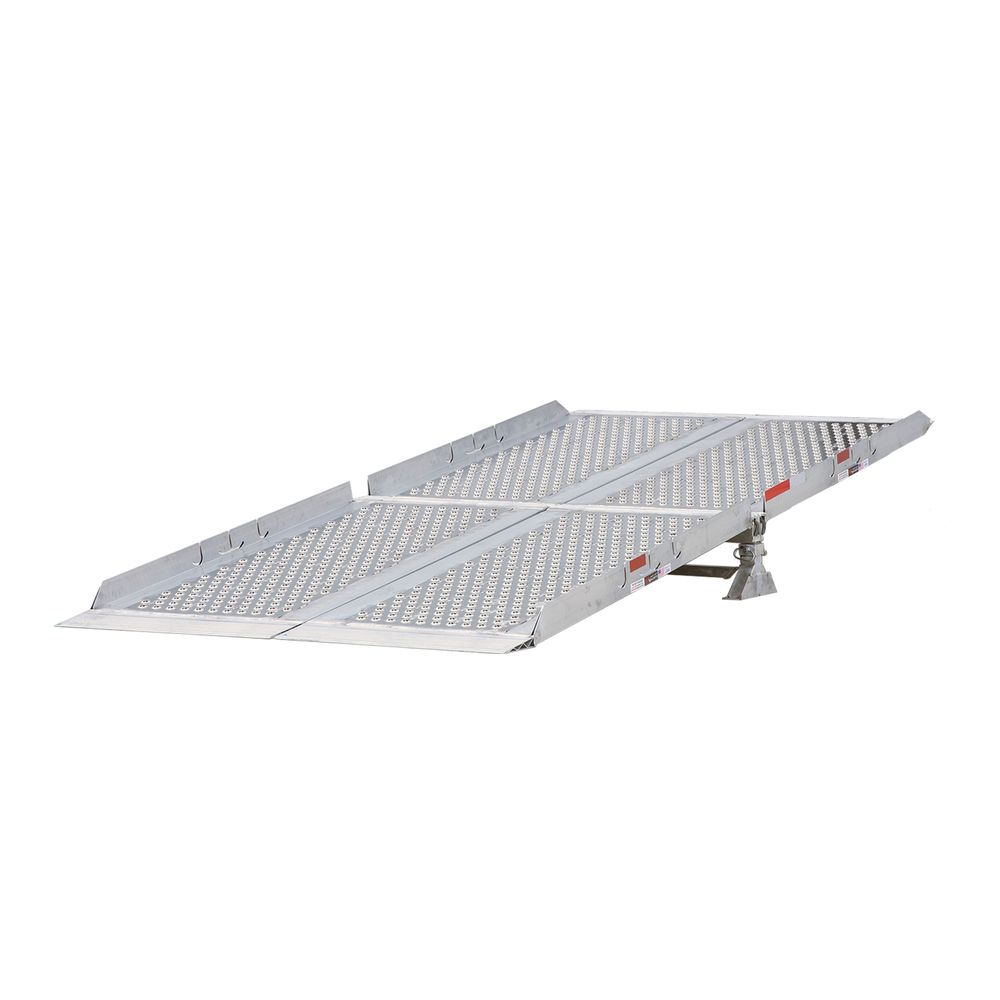

HD Ramps 15-84-184-06-MYR: detail view 1

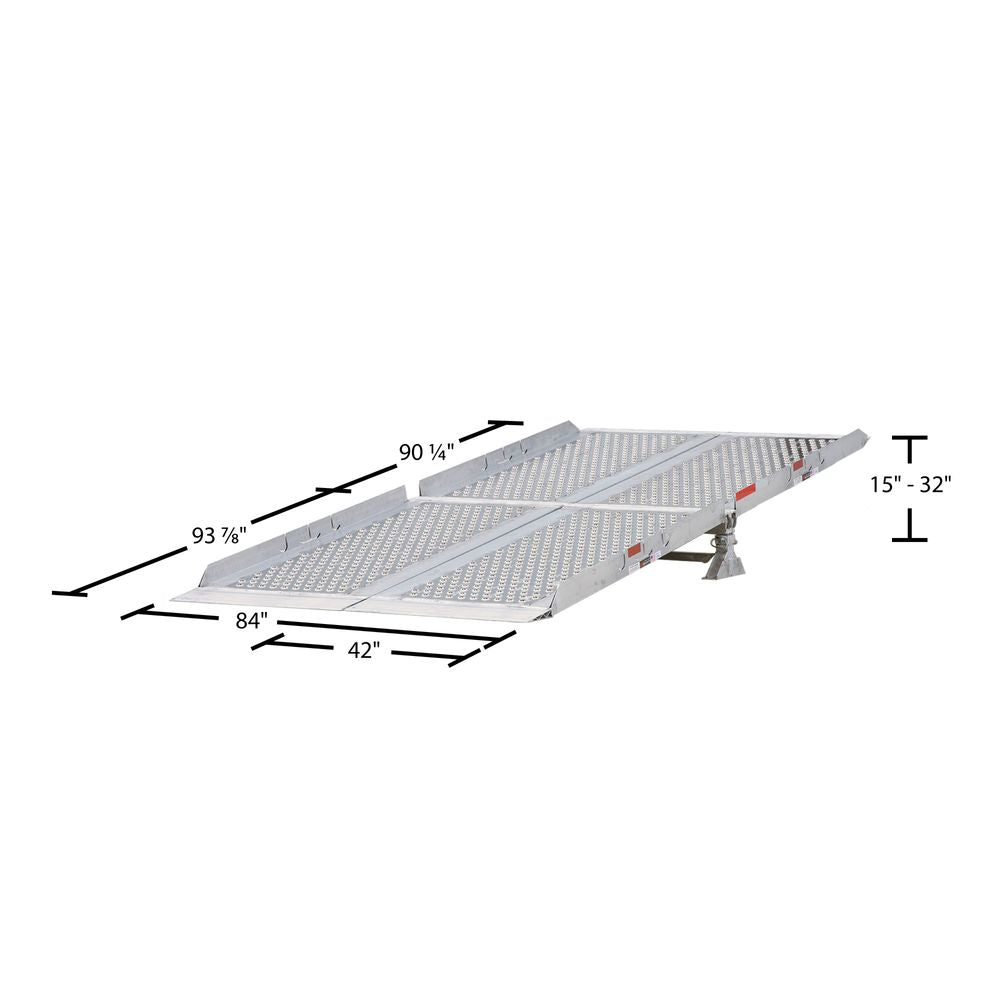

HD Ramps 15-84-184-06-MYR: detail view 2
Roll over image to zoom in Click on image to zoom
HD Ramps 15-84-184-06-MYR: product photographHD Ramps 15-84-184-06-MYR: detail view 1HD Ramps 15-84-184-06-MYR: detail view 2
Heavy Duty Ramps

HD Ramps 84″ Aluminum Modular Yard Ramp Systems

SKU: 15-84-184-06-MYR Currently In Stock

$6,994.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

ALUMINUM CONSTRUCTION

SELECT THE ENGINEERED CONFIGURATION FOR THE WORK AND INSTALLATION.

MODULAR DESIGN

SEPARATE RAMP SECTIONS BREAK DOWN FOR COMPACT STORAGE AND TRANSPORT BETWEEN FACILITIES.

LOAD LIMITS

25,000 LB. TOTAL CAPACITY. CHECK THE SELECTED SKU’S LIMITS BEFORE USE.

MEASURE BEFORE ORDERING

CHECK BOTH THE PER-AXLE RATING AND THE TOTAL SYSTEM CAPACITY.

APPLICATION DETAILS

15″ MANUFACTURER WIDTH ALLOWANCE BEYOND THE WIDEST EQUIPMENT.

Description

Key Benefits

Technical Specs

Applications

84″ Modular Yard Ramp Systems

The modular yard ramp system provides loading access between the ground and a suitable truck, trailer or dock. The separate aluminum sections and adjustable support stands let the system break down for storage and transport between facilities.

The 84″ overall width is offered in nominal assembled lengths of 184″, 270″ and 360″. Each length has its own supported loading-height range. The system includes safety straps, and the longer configurations provide additional sections and stands for a supported loading path.

Size the system for the combined weight of the loading machine and its cargo, and check both total and per-axle limits. The manufacturer calls for a width allowance of 15″ beyond the widest equipment. Confirm the required rise, usable width, wheel clearance and support arrangement. Freight, unloading access and the exact supplied configuration must be confirmed before release.

84″ Modular Yard Ramp Systems

  • The modular yard ramp system provides loading access between the ground and a suitable truck, trailer or dock. The separate aluminum sections and adjustable support stands let the system break down for storage and transport between facilities.
  • The 84″ overall width is offered in nominal assembled lengths of 184″, 270″ and 360″. Each length has its own supported loading-height range. The system includes safety straps, and the longer configurations provide additional sections and stands for a supported loading path.
  • Check combined equipment and cargo weight, axle loading, usable width and required rise; freight and unloading arrangements require confirmation.

84″ Modular Yard Ramp Systems

  • 15-84-184-06-MYR | Kit | Nominal assembled length: 184″; Overall width: 84″; Loading height: 15–32″; Per-axle capacity: 15,000 lb.; Total capacity: 25,000 lb.; Material: Aluminum; Usable width: 82″
  • 15-84-270-06-MYR | Kit | Nominal assembled length: 270″; Overall width: 84″; Loading height: 15–48″; Per-axle capacity: 15,000 lb.; Total capacity: 25,000 lb.; Material: Aluminum; Usable width: 82″
  • 15-84-360-06-MYR | Kit | Nominal assembled length: 360″; Overall width: 84″; Loading height: 15–60″; Per-axle capacity: 15,000 lb.; Total capacity: 25,000 lb.; Material: Aluminum; Usable width: 82″

84″ Modular Yard Ramp Systems

  • 15″ manufacturer width allowance beyond the widest equipment.
  • Chock the vehicle and secure the ramp with the supplied straps before loading.
  • Supplier web tables contain conflicting lengths and weights; nominal configuration and current shipping dimensions require supplier confirmation.
  • Combine the heaviest loading-machine weight with its heaviest cargo.
  • Check both the per-axle rating and the total system capacity.
  • Match the equipment width to the usable ramp width with the manufacturer’s clearance allowance.
  • Select the assembled length for the required truck or dock loading height.
  • Confirm freight, unloading equipment, support placement and safety-strap securement before delivery.

HD Ramps Product & Manufacturer Videos

84″ Modular Yard Ramp Systems

BUILT FOR THE WORK:

  • Check combined equipment and cargo weight, axle loading, usable width and required rise; freight and unloading arrangements require confirmation.
  • Aluminum construction for the stated application.
  • 25,000 lb. Total Capacity.
  • Dimensions and connection details vary by SKU.
  • Select the configuration before reviewing the technical specifications.

SET UP FOR YOUR APPLICATION:

  • Combine the heaviest loading-machine weight with its heaviest cargo.
  • Check both the per-axle rating and the total system capacity.
  • Match the equipment width to the usable ramp width with the manufacturer’s clearance allowance.
  • Select the assembled length for the required truck or dock loading height.
  • Confirm freight, unloading equipment, support placement and safety-strap securement before delivery.

READY FOR THE FIELD:

  • Combine the heaviest loading-machine weight with its heaviest cargo.
  • Check both the per-axle rating and the total system capacity.
  • Match the equipment width to the usable ramp width with the manufacturer’s clearance allowance.
  • Select the assembled length for the required truck or dock loading height.
  • Confirm freight, unloading equipment, support placement and safety-strap securement before delivery.
