HD RAMPS

Double-Pin Equipment Loading Ramps

Up to 20,000 lb. per Axle

Request QuoteView Options

Trailer Ramps | Aluminum Double-Pin Equipment Loading Ramps

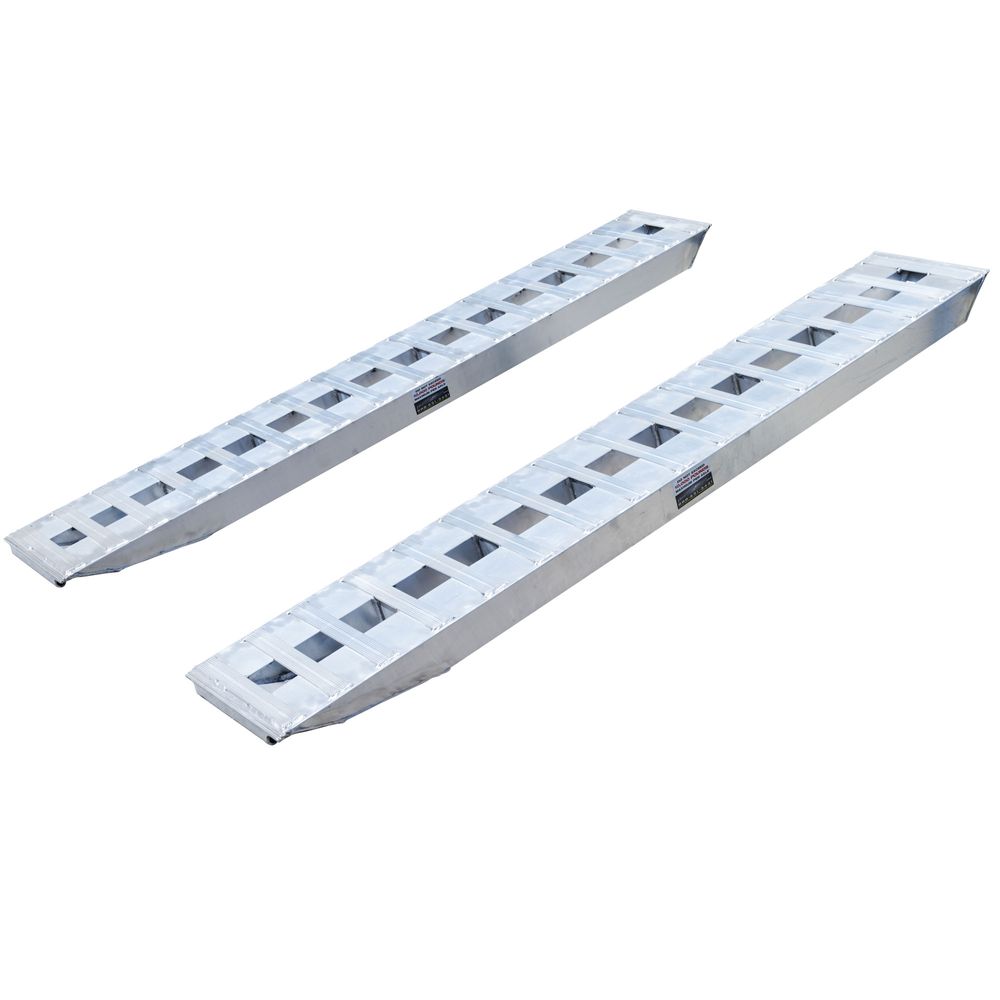

HD Ramps 10-16-096-02-02: product photograph
HD Ramps 10-16-096-02-02: detail view 1
HD Ramps 10-16-096-02-02: detail view 2
Roll over image to zoom in Click on image to zoom
HD Ramps 10-16-096-02-02: product photographHD Ramps 10-16-096-02-02: detail view 1HD Ramps 10-16-096-02-02: detail view 2
Heavy Duty Ramps

Trailer Ramps | Aluminum Double-Pin Equipment Loading Ramps

SKU: 10-16-096-02-02 Currently In Stock

$2,734.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

ALUMINUM CONSTRUCTION

SELECT THE ENGINEERED CONFIGURATION FOR THE WORK AND INSTALLATION.

CONFIGURATION CHOICE

PAIR; DOUBLE-PIN ENDS; SKID SEATS SOLD SEPARATELY

LOAD LIMITS

UP TO 20,000 LB. PER AXLE. CHECK THE SELECTED SKU’S LIMITS BEFORE USE.

MEASURE BEFORE ORDERING

MEASURE TIRE WIDTH, WHEEL SPACING AND THE AVAILABLE LOADING APPROACH.

APPLICATION DETAILS

NO UNIVERSAL MACHINE COMPATIBILITY IS CLAIMED. FIT DEPENDS ON LOADING HEIGHT, AXLE WEIGHT, WHEEL CONTACT AND CONNECTION GEOMETRY.

Description

Key Benefits

Technical Specs

Applications

Double-Pin Equipment Loading Ramps

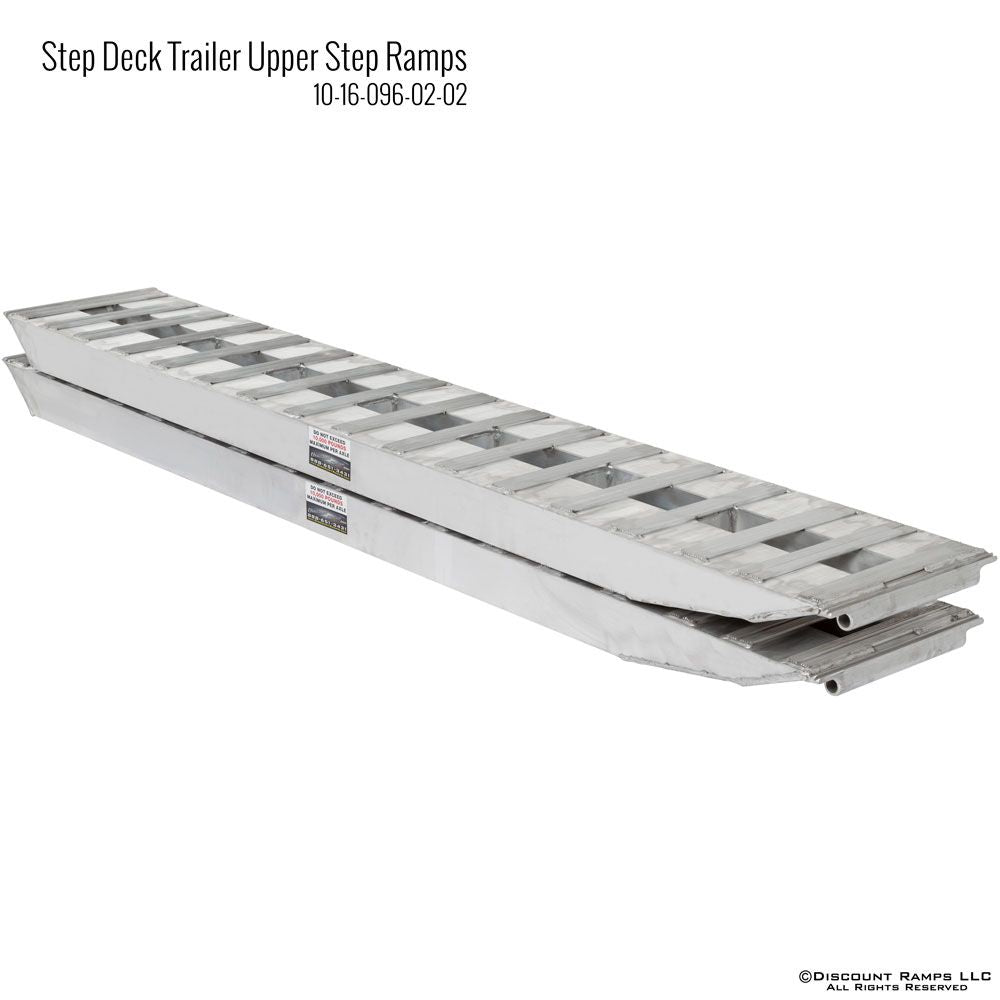

These loading ramps use pin receiving tubes at both ends for a mechanically secured loading arrangement. They are intended for suitable wheeled equipment and must connect to compatible skid seats or supports.

The 96″ × 16″ version is rated for 10,000 lb. per axle, while the 120″ × 20″ version is rated for 20,000 lb. per axle. Their loading heights differ. The 20″ model is a loading ramp and is not a load leveler.

Before ordering, measure the trailer rise and check the heaviest loaded axle, tire width, wheel spacing and ground clearance. Use the selected configuration only within its specified limits. Capacity is a per-axle rating, not a blanket approval for every machine with a lower total weight.

Double-Pin Equipment Loading Ramps

  • These loading ramps use pin receiving tubes at both ends for a mechanically secured loading arrangement. They are intended for suitable wheeled equipment and must connect to compatible skid seats or supports.
  • The 96″ × 16″ version is rated for 10,000 lb. per axle, while the 120″ × 20″ version is rated for 20,000 lb. per axle. Their loading heights differ. The 20″ model is a loading ramp and is not a load leveler.
  • Pair; double-pin ends; skid seats sold separately.

Double-Pin Equipment Loading Ramps

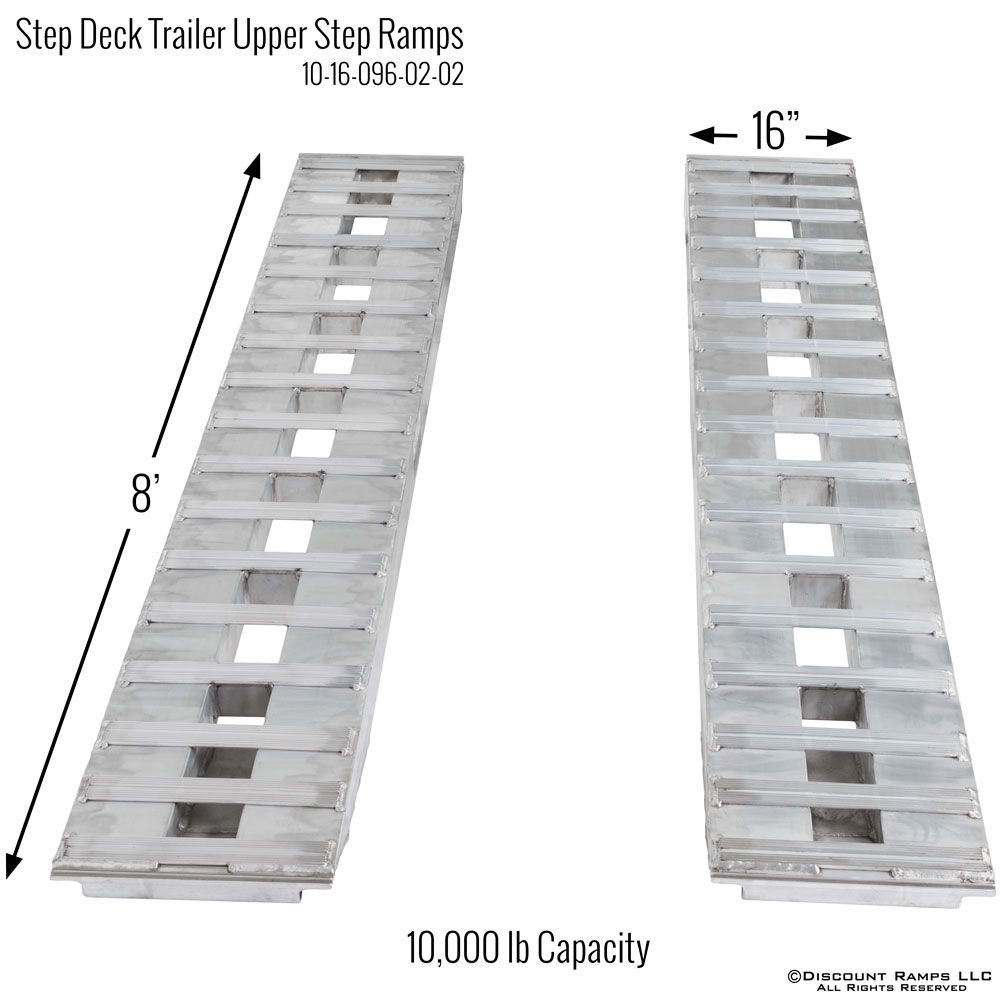

  • 10-16-096-02-02 | Pair | Material: Aluminum; Minimum Height: 18″; Maximum Height: 26″; Foot Type: Pin-On; Attaching End: Pin-On; Surface Type: Rung; Dimensions (L × W × H): 8′ × 16″ × 4.25″; Rated capacity: 10,000 lb. per axle
  • 20-20-120-02-02 | Pair | Minimum Height: 36″; Maximum Height: 42″; Material: Aluminum; Foot Type: Pin-On (welded pin-receiving tubes at both ends); Attaching End: Pin-On; Dimensions (L × W × H): 10′ × 20″ × 6″; Rated capacity: 20,000 lb. per axle

Double-Pin Equipment Loading Ramps

  • No universal machine compatibility is claimed. Fit depends on loading height, axle weight, wheel contact and connection geometry.
  • Not recommended for forklifts, steel-tracked equipment or trucks with mounted cranes in this ramp family.
  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

HD Ramps Product & Manufacturer Videos

Double-Pin Equipment Loading Ramps

BUILT FOR THE WORK:

  • Pair; double-pin ends; skid seats sold separately.
  • Aluminum construction for the stated application.
  • Up to 20,000 lb. per Axle.
  • Dimensions and connection details vary by SKU.
  • Select the configuration before reviewing the technical specifications.

SET UP FOR YOUR APPLICATION:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

READY FOR THE FIELD:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.
