HD RAMPS

Four-Ramp Four-Load-Leveler Kits

Up to 23,500 lb. per Axle

Request QuoteView Options

Trailer Ramps | Aluminum Four-Ramp Four-Load-Leveler Kits

HD Ramps 23-20-192-02-02-MLL-4: product photograph
HD Ramps 23-20-192-02-02-MLL-4: detail view 1
HD Ramps 23-20-192-02-02-MLL-4: detail view 2
Roll over image to zoom in Click on image to zoom
HD Ramps 23-20-192-02-02-MLL-4: product photographHD Ramps 23-20-192-02-02-MLL-4: detail view 1HD Ramps 23-20-192-02-02-MLL-4: detail view 2
Heavy Duty Ramps

Trailer Ramps | Aluminum Four-Ramp Four-Load-Leveler Kits

SKU: 23-20-192-02-02-MLL-4 Currently In Stock

$7,643.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com

MOST IMPORTANT FEATURES

ALUMINUM CONSTRUCTION

SELECT THE ENGINEERED CONFIGURATION FOR THE WORK AND INSTALLATION.

CONFIGURATION CHOICE

FOUR LOAD LEVELERS; STANDARD OR MASTER; MATCH THE DECK DROP AND MOUNTING DETAILS

LOAD LIMITS

UP TO 23,500 LB. PER AXLE. CHECK THE SELECTED SKU’S LIMITS BEFORE USE.

MEASURE BEFORE ORDERING

MEASURE TIRE WIDTH, WHEEL SPACING AND THE AVAILABLE LOADING APPROACH.

APPLICATION DETAILS

NO UNIVERSAL MACHINE COMPATIBILITY IS CLAIMED. FIT DEPENDS ON LOADING HEIGHT, AXLE WEIGHT, WHEEL CONTACT AND CONNECTION GEOMETRY.

Description

Key Benefits

Technical Specs

Applications

Four-Ramp Four-Load-Leveler Kits

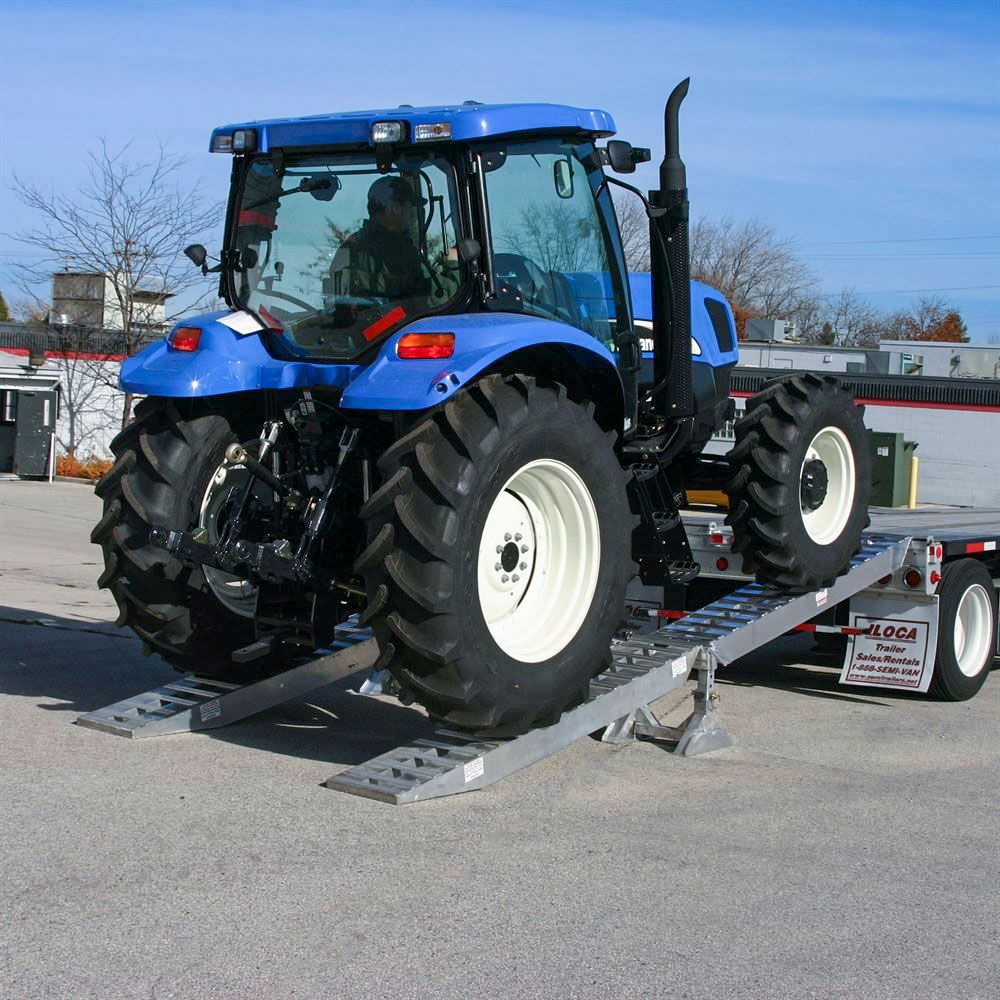

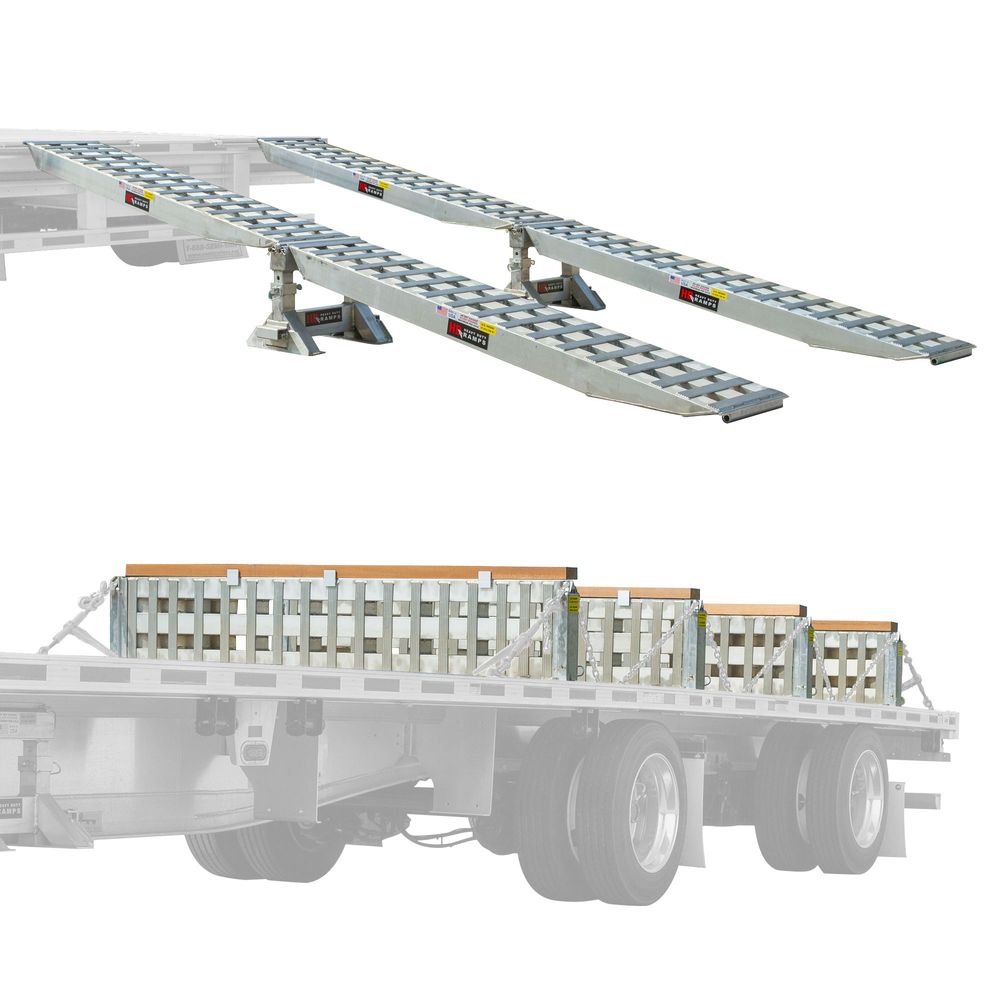

This system combines four loading ramps with four load-leveling positions for step deck hauling. It lets a properly configured trailer handle equipment loading and long cargo with the same modular components.

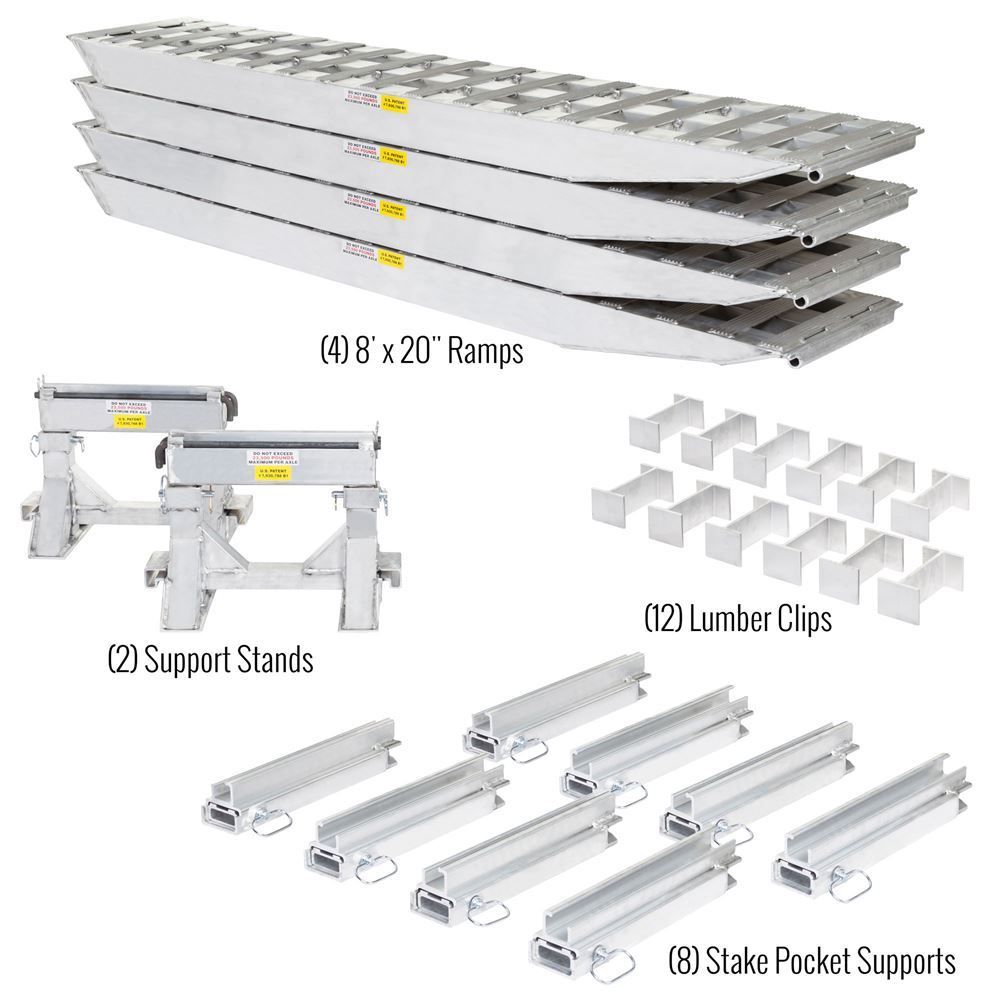

Standard kits include four 8′ ramps, two support stands, twelve lumber clips and eight stake-pocket supports. Master kits add ramp hangers, stand hangers and attaching brackets. Configurations for 24″ and 26″ deck drops also use four spacers.

Before ordering, measure the trailer rise and check the heaviest loaded axle, tire width, wheel spacing and ground clearance. For load-leveling use, also confirm trailer width, stake-pocket dimensions, deck drop, lumber and chain securement. Use the selected configuration only within its specified limits. Capacity is a per-axle rating, not a blanket approval for every machine with a lower total weight.

Four-Ramp Four-Load-Leveler Kits

  • This system combines four loading ramps with four load-leveling positions for step deck hauling. It lets a properly configured trailer handle equipment loading and long cargo with the same modular components.
  • Standard kits include four 8′ ramps, two support stands, twelve lumber clips and eight stake-pocket supports. Master kits add ramp hangers, stand hangers and attaching brackets. Configurations for 24″ and 26″ deck drops also use four spacers.
  • Four load levelers; Standard or Master; match the deck drop and mounting details.

Four-Ramp Four-Load-Leveler Kits

  • 23-20-192-02-02-MLL-4 | Kit | Maximum Capacity: 23,500 lbs. per axle; Length: 16′; Width: 20″; Height: 5″; Material: Aluminum; Step deck height: 20″; Ramp width: 20″
  • 23-24-192-02-02-MLL-4 | Kit | Maximum Capacity: 23,500 lbs. per axle; Length: 16′; Width: 18″; Height: 5″; Surface Type: Rung; Step deck height: 24″; Ramp width: 18″
  • 23-26-192-02-02-MLL-4 | Kit | Maximum Capacity: 23,500 lbs. per axle; Length: 16′; Width: 20″; Height: 5″; Surface Type: Rung; Step deck height: 26″; Ramp width: 20″
  • 23-20-192-02-02-MLL-4-KIT | Kit | Maximum Capacity: 23,500 lbs. per axle; Length: 16′; Width: 20″; Height: 5″; Material: Aluminum; Step deck height: 20″; Ramp width: 20″
  • 23-24-192-02-02-MLL-4-KIT | Kit | Maximum Capacity: 23,500 lbs. per axle; Length: 16′; Width: 18″; Height: 5″; Surface Type: Rung; Step deck height: 24″; Ramp width: 18″
  • 23-26-192-02-02-MLL-4-KIT | Kit | Maximum Capacity: 23,500 lbs. per axle; Length: 16′; Width: 20″; Height: 5″; Surface Type: Rung; Step deck height: 26″; Ramp width: 20″

Four-Ramp Four-Load-Leveler Kits

  • No universal machine compatibility is claimed. Fit depends on loading height, axle weight, wheel contact and connection geometry.
  • Not recommended for forklifts, steel-tracked equipment or trucks with mounted cranes in this ramp family.
  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

HD Ramps Product & Manufacturer Videos

Four-Ramp Four-Load-Leveler Kits

BUILT FOR THE WORK:

  • Four load levelers; Standard or Master; match the deck drop and mounting details.
  • Aluminum construction for the stated application.
  • Up to 23,500 lb. per Axle.
  • Dimensions and connection details vary by SKU.
  • Select the configuration before reviewing the technical specifications.

SET UP FOR YOUR APPLICATION:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

READY FOR THE FIELD:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.
