HD RAMPS

Grit-Coat Container Ramps

Up to 12,000 lb. per Axle

Request QuoteView Options

HD Ramps Grit-Coat Aluminum Container Ramps

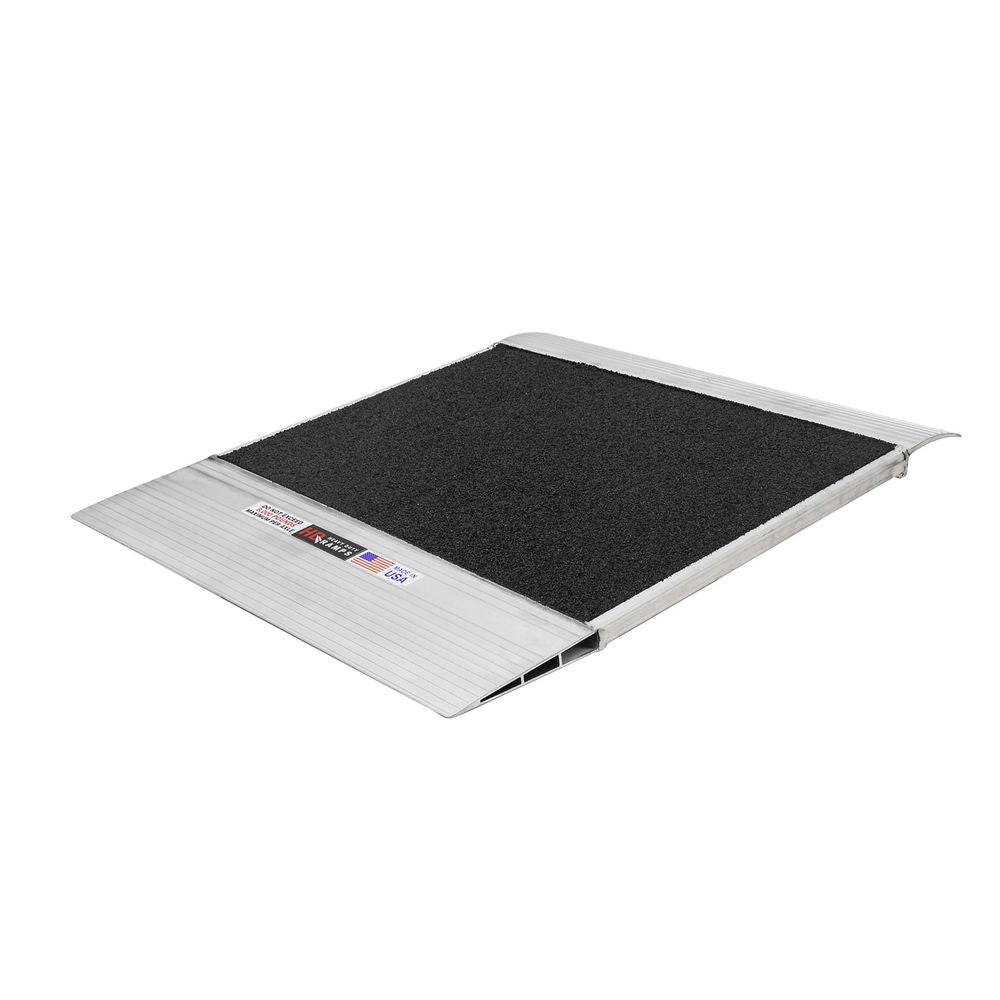

HD Ramps 08-36-036-06-Grit: product photograph
HD Ramps 08-36-036-06-Grit: detail view 1
HD Ramps 08-36-036-06-Grit: detail view 2
Roll over image to zoom in Click on image to zoom
HD Ramps 08-36-036-06-Grit: product photographHD Ramps 08-36-036-06-Grit: detail view 1HD Ramps 08-36-036-06-Grit: detail view 2
Heavy Duty Ramps

HD Ramps Grit-Coat Aluminum Container Ramps

SKU: 08-36-036-06-Grit Currently In Stock

$1,968.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com

MOST IMPORTANT FEATURES

ALUMINUM CONSTRUCTION

SELECT THE ENGINEERED CONFIGURATION FOR THE WORK AND INSTALLATION.

CONFIGURATION CHOICE

SINGLE RAMP; GRIT-COAT SURFACE; MODEL-SPECIFIC CONTAINER EDGE HEIGHT

LOAD LIMITS

UP TO 12,000 LB. PER AXLE. CHECK THE SELECTED SKU’S LIMITS BEFORE USE.

MEASURE BEFORE ORDERING

CHECK THE LOADED EQUIPMENT’S AXLE WEIGHT AGAINST THE SELECTED RATING.

APPLICATION DETAILS

WEDGE PAIRS: FORKLIFT USE ONLY.

Description

Key Benefits

Technical Specs

Applications

Grit-Coat Container Ramps

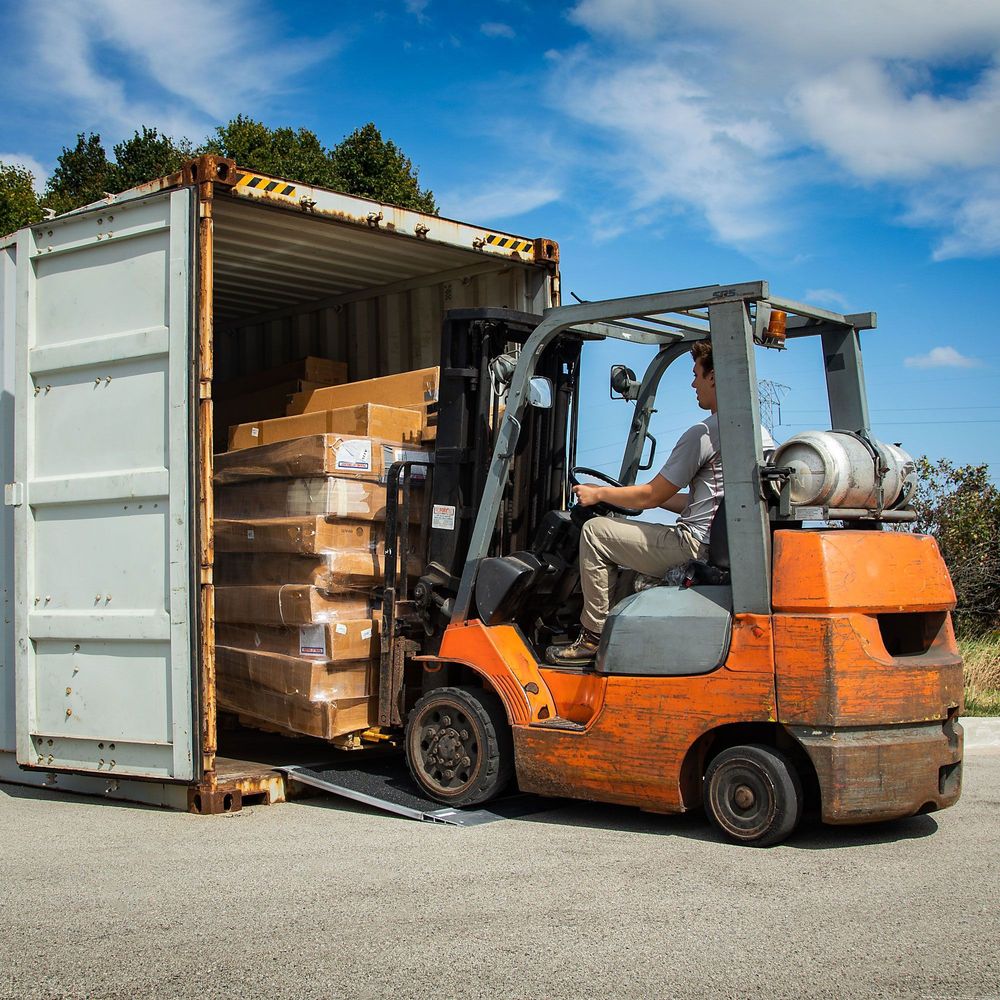

The grit-coat container ramp provides an approach over a suitable shipping-container edge for a forklift or pallet jack. Its single-piece aluminum construction supports container loading without separate narrow wheel ramps.

The grit-coated surface supports traction while the tapered lower edge provides a smoother approach. Choose the width and length for the equipment, and match the container-edge height and per-axle rating to the selected model. The 36″, 45″ and 63″ widths have different dimensions and ratings.

Measure the actual container edge and check the equipment’s loaded axle weight, wheel spacing and ground clearance. Wedge ramp pairs are intended for forklifts; the single-piece container ramps can serve suitable forklifts or pallet jacks. Position the ramp on a stable surface with proper support at the container edge, and stay within the selected model’s rating.

Grit-Coat Container Ramps

  • The grit-coat container ramp provides an approach over a suitable shipping-container edge for a forklift or pallet jack. Its single-piece aluminum construction supports container loading without separate narrow wheel ramps.
  • The grit-coated surface supports traction while the tapered lower edge provides a smoother approach. Choose the width and length for the equipment, and match the container-edge height and per-axle rating to the selected model. The 36″, 45″ and 63″ widths have different dimensions and ratings.
  • Single ramp; grit-coat surface; model-specific container edge height.

Grit-Coat Container Ramps

  • 08-36-036-06-Grit | Single | Material: Aluminum; Dimensions (L × W × H): 3′ × 36″ × 2.125″; Rated capacity: 8,000 lb. per axle
  • 08-36-048-06-Grit | Single | Material: Aluminum; Dimensions (L × W × H): 4′ × 36″ × 1.25″; Rated capacity: 8,000 lb. per axle
  • 08-45-048-06-Grit | Single | Material: Aluminum; Dimensions (L × W × H): 4′ × 45″ × 1.25″; Rated capacity: 8,000 lb. per axle
  • 12-63-048-06-Grit | Single | Material: Aluminum; Dimensions (L × W × H): 4′ × 63″ × 1.25″; Rated capacity: 12,000 lb. per axle
  • 12-63-060-06-Grit | Single | Material: Aluminum; Dimensions (L × W × H): 5′ × 63″ × 1.25″; Rated capacity: 12,000 lb. per axle

Grit-Coat Container Ramps

  • Wedge pairs: forklift use only.
  • Single-piece models: suitable forklifts or pallet jacks, subject to axle, width and edge-height limits.
  • Measure the container edge height at the intended entry point.
  • Check the loaded equipment’s axle weight against the selected rating.
  • Verify the usable width and wheel path throughout the approach.
  • Use wedge pairs only for suitable forklifts; single-piece models also support suitable pallet jacks.
  • Inspect support contact and follow the supplied loading instructions.

HD Ramps Product & Manufacturer Videos

Grit-Coat Container Ramps

BUILT FOR THE WORK:

  • Single ramp; grit-coat surface; model-specific container edge height.
  • Aluminum construction for the stated application.
  • Up to 12,000 lb. per Axle.
  • Dimensions and connection details vary by SKU.
  • Select the configuration before reviewing the technical specifications.

SET UP FOR YOUR APPLICATION:

  • Measure the container edge height at the intended entry point.
  • Check the loaded equipment’s axle weight against the selected rating.
  • Verify the usable width and wheel path throughout the approach.
  • Use wedge pairs only for suitable forklifts; single-piece models also support suitable pallet jacks.
  • Inspect support contact and follow the supplied loading instructions.

READY FOR THE FIELD:

  • Measure the container edge height at the intended entry point.
  • Check the loaded equipment’s axle weight against the selected rating.
  • Verify the usable width and wheel path throughout the approach.
  • Use wedge pairs only for suitable forklifts; single-piece models also support suitable pallet jacks.
  • Inspect support contact and follow the supplied loading instructions.
