HD Ramps Aluminum Hook-End Walk Ramps

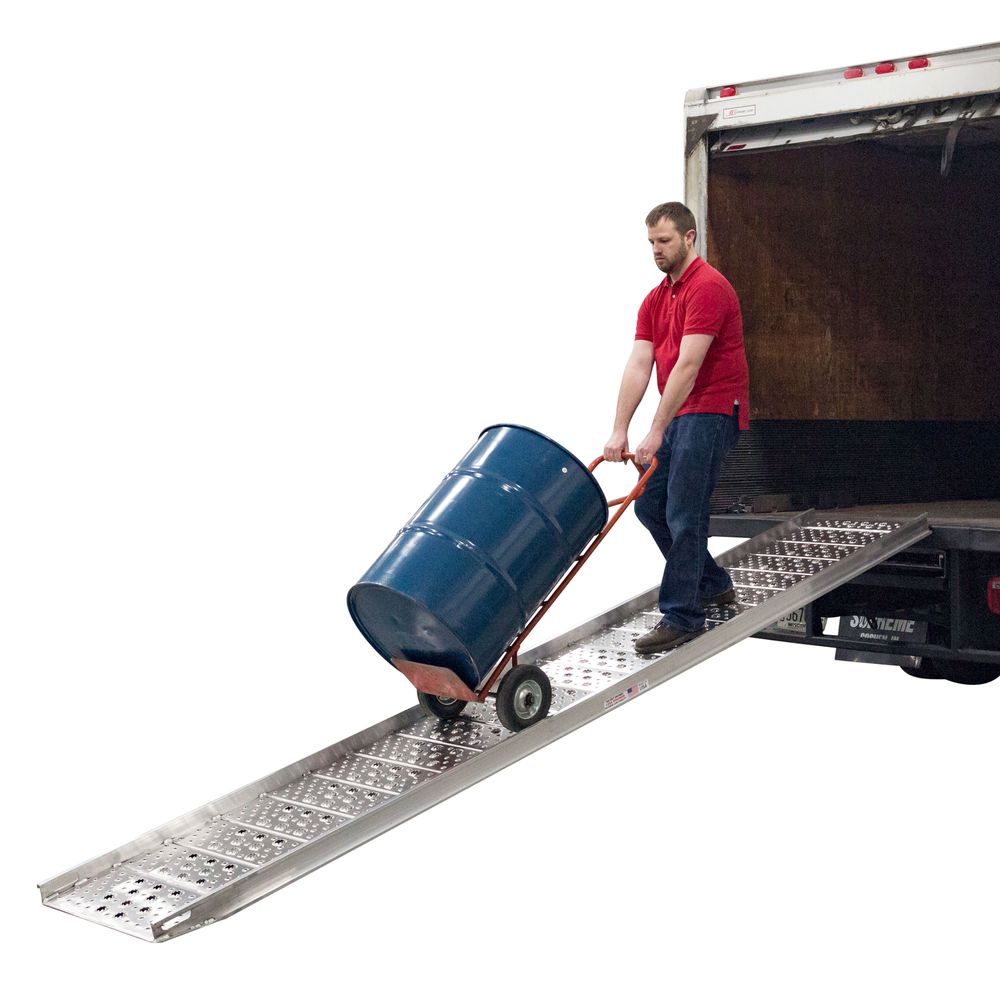

HD Ramps 01-26-120-04-WALK-P: product photograph

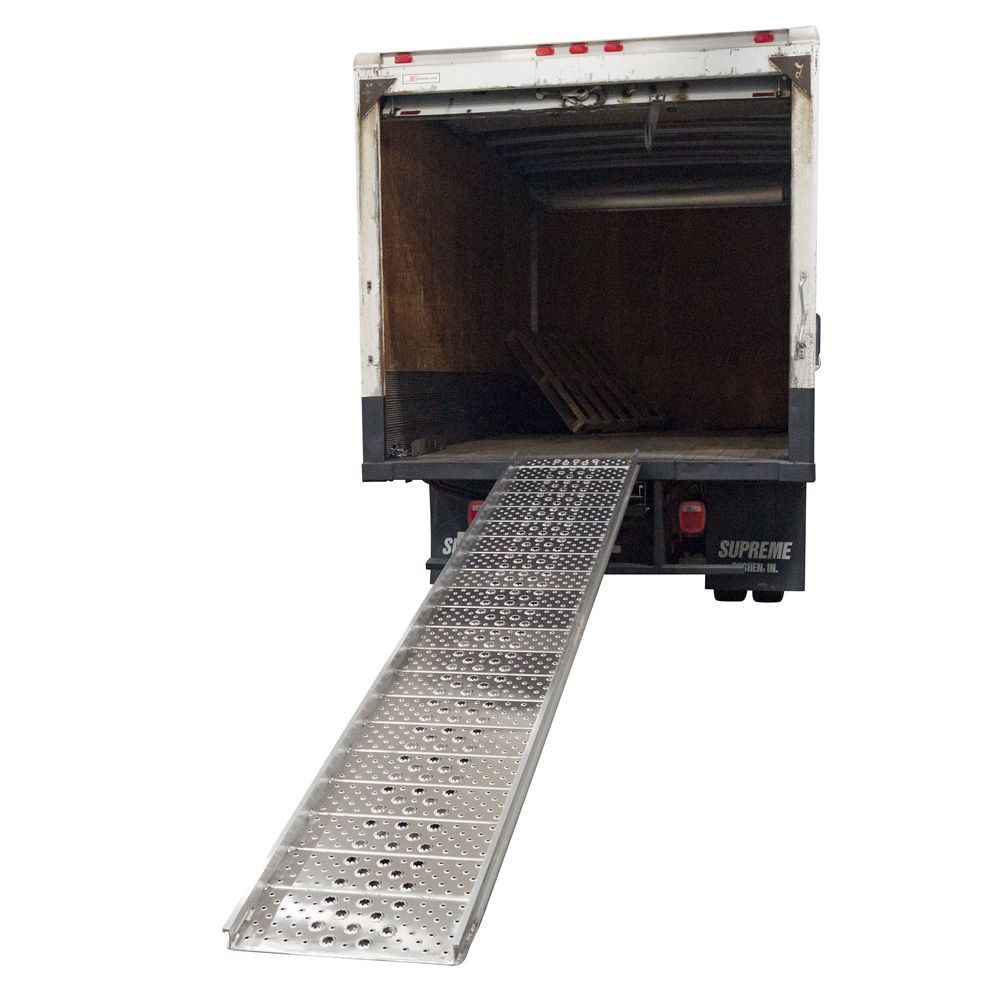

HD Ramps 01-26-120-04-WALK-P: detail view 1

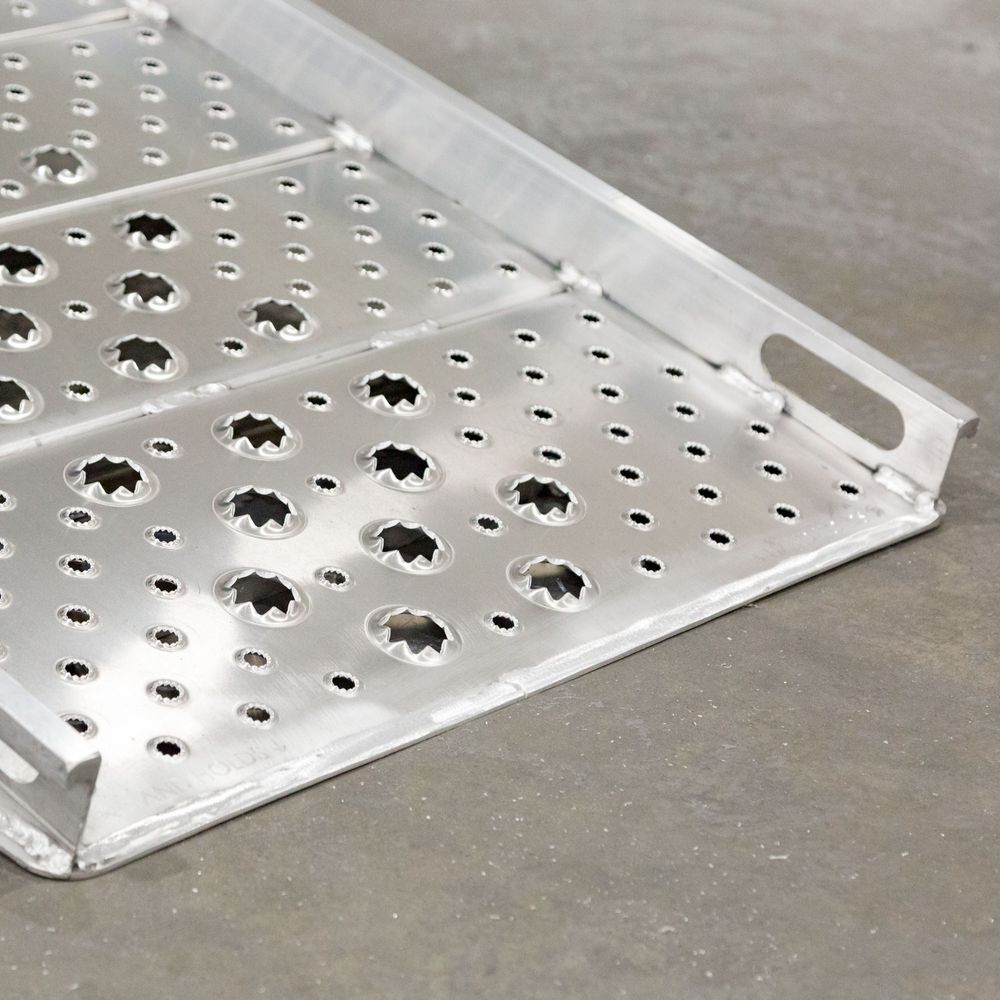

HD Ramps 01-26-120-04-WALK-P: detail view 2
Roll over image to zoom in Click on image to zoom
HD Ramps 01-26-120-04-WALK-P: product photographHD Ramps 01-26-120-04-WALK-P: detail view 1HD Ramps 01-26-120-04-WALK-P: detail view 2
Heavy Duty Ramps

HD Ramps Aluminum Hook-End Walk Ramps

SKU: 01-26-120-04-WALK-P Currently In Stock

$2,228.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com

MOST IMPORTANT FEATURES

ALUMINUM CONSTRUCTION

SELECT THE ENGINEERED CONFIGURATION FOR THE WORK AND INSTALLATION.

CONFIGURATION CHOICE

HAND TRUCKS AND FOOT TRAFFIC ONLY; HOOK-END CONNECTION

LOAD LIMITS

UP TO 1,750 LB. CAPACITY. CHECK THE SELECTED SKU’S LIMITS BEFORE USE.

MEASURE BEFORE ORDERING

CHECK THE SELECTED RAMP CAPACITY WITH CARGO AND OPERATOR WEIGHT INCLUDED.

APPLICATION DETAILS

FOR FOOT TRAFFIC AND HAND TRUCKS ONLY. DO NOT USE PALLET JACKS OR POWERED EQUIPMENT.

Description

Key Benefits

Technical Specs

Applications

Hook-End Walk Ramps

The hook-end walk ramp provides a loading path for delivery personnel moving cargo with hand trucks or dollies. It is intended for foot traffic and manually moved equipment rather than powered loading machinery.

The 26″ overall width provides a 24.5″ usable walking surface. EZ Traction punch plate provides a central area for footwear grip and smoother outer areas for dolly wheels. Choose length around deck height; capacity decreases as the ramp becomes longer.

Match the selected ramp to the deck height, usable width and combined person-and-cargo load. Hand trucks and foot traffic are the intended applications; these walk ramps are not for pallet jacks or powered equipment. Confirm the upper connection and, for a storage kit, the complete underbody installation space before ordering.

Hook-End Walk Ramps

  • The hook-end walk ramp provides a loading path for delivery personnel moving cargo with hand trucks or dollies. It is intended for foot traffic and manually moved equipment rather than powered loading machinery.
  • The 26″ overall width provides a 24.5″ usable walking surface. EZ Traction punch plate provides a central area for footwear grip and smoother outer areas for dolly wheels. Choose length around deck height; capacity decreases as the ramp becomes longer.
  • Hand trucks and foot traffic only; hook-end connection.

Hook-End Walk Ramps

  • 01-26-120-04-WALK-P | Single | Minimum Height: 20″; Maximum Height: 34″; Material: Aluminum; Usable Width: 24-1/2″; Attaching End: Hook; Dimensions (L × W × H): 10′ × 26″ × 3.875″; Rated capacity: 1,750 lb.
  • 01-26-144-04-WALK-P | Single | Minimum Height: 25″; Maximum Height: 40″; Material: Aluminum; Usable Width: 24-1/2″; Attaching End: Hook; Dimensions (L × W × H): 12′ × 26″ × 3.875″; Rated capacity: 1,500 lb.
  • 01-26-168-04-WALK-P | Single | Minimum Height: 30″; Maximum Height: 48″; Material: Aluminum; Usable Width: 24-1/2″; Attaching End: Hook; Dimensions (L × W × H): 14′ × 26″ × 3.875″; Rated capacity: 1,250 lb.
  • 01-26-192-04-WALK-P | Single | Minimum Height: 35″; Maximum Height: 56″; Material: Aluminum; Usable Width: 24-1/2″; Attaching End: Hook; Dimensions (L × W × H): 16′ × 26″ × 3.875″; Rated capacity: 1,000 lb.

Hook-End Walk Ramps

  • For foot traffic and hand trucks only. Do not use pallet jacks or powered equipment.
  • Check overall width separately from usable width; storage assembly length differs from nominal ramp length.
  • Use for hand trucks, dollies and foot traffic only.
  • Check the selected ramp capacity with cargo and operator weight included.
  • Measure the deck height and confirm the approved loading range.
  • Verify the hook or plate connection and the available usable width.
  • For storage kits, check underbody clearance and the sill attachment before installation.

HD Ramps Product & Manufacturer Videos

Hook-End Walk Ramps

BUILT FOR THE WORK:

  • Hand trucks and foot traffic only; hook-end connection.
  • Aluminum construction for the stated application.
  • Up to 1,750 lb. Capacity.
  • Dimensions and connection details vary by SKU.
  • Select the configuration before reviewing the technical specifications.

SET UP FOR YOUR APPLICATION:

  • Use for hand trucks, dollies and foot traffic only.
  • Check the selected ramp capacity with cargo and operator weight included.
  • Measure the deck height and confirm the approved loading range.
  • Verify the hook or plate connection and the available usable width.
  • For storage kits, check underbody clearance and the sill attachment before installation.

READY FOR THE FIELD:

  • Use for hand trucks, dollies and foot traffic only.
  • Check the selected ramp capacity with cargo and operator weight included.
  • Measure the deck height and confirm the approved loading range.
  • Verify the hook or plate connection and the available usable width.
  • For storage kits, check underbody clearance and the sill attachment before installation.
